MapR M7: Providing an enterprise quality Apache HBase API

  1. 1. 1©MapR Technologies - Confidential M7 Technical Overview M. C. Srivas CTO/Founder, MapR

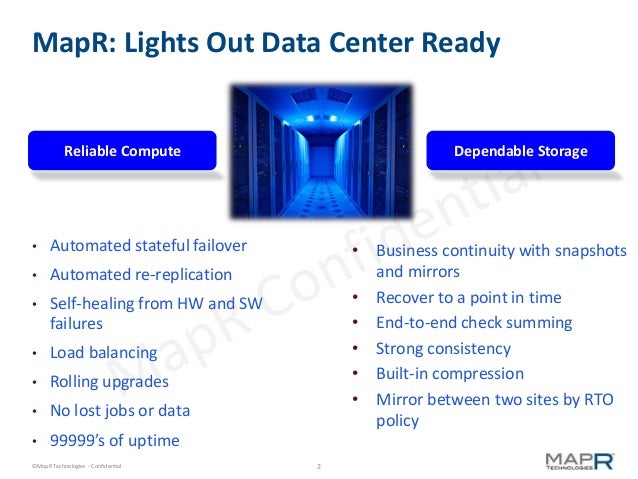

  2. 2. 2©MapR Technologies - Confidential MapR: Lights Out Data Center Ready • Automated stateful failover • Automated re-replication • Self-healing from HW and SW failures • Load balancing • Rolling upgrades • No lost jobs or data • 99999’s of uptime Reliable Compute Dependable Storage • Business continuity with snapshots and mirrors • Recover to a point in time • End-to-end check summing • Strong consistency • Built-in compression • Mirror between two sites by RTO policy
  3. 3. 3©MapR Technologies - Confidential MapR does MapReduce (fast) TeraSort Record 1 TB in 54 seconds 1003 nodes MinuteSort Record 1.5 TB in 59 seconds 2103 nodes
  4. 4. 4©MapR Technologies - Confidential MapR does MapReduce (faster) TeraSort Record 1 TB in 54 seconds 1003 nodes MinuteSort Record 1.5 TB in 59 seconds 2103 nodes 1.65 300
  5. 5. 5©MapR Technologies - Confidential Dynamo DB ZopeDB Shoal CloudKit Vertex DB FlockD B NoSQL
  6. 6. 6©MapR Technologies - Confidential HBase Table Architecture  Tables are divided into key ranges (regions)  Regions are served by nodes (RegionServers)  Columns are divided into access groups (columns families) CF1 CF2 CF3 CF4 CF5 R1 R2 R3 R4

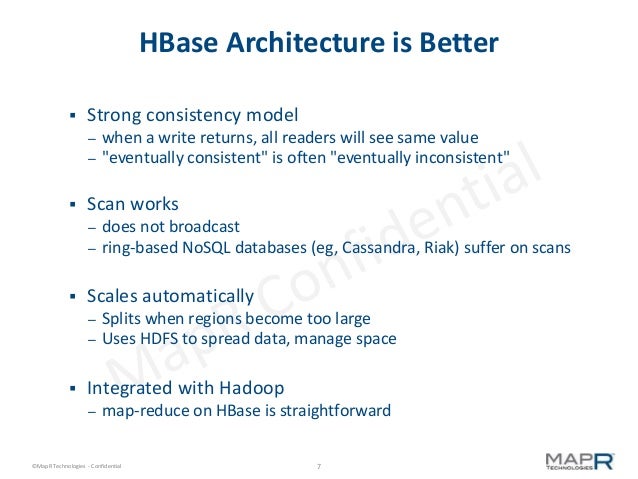

  7. 7. 7©MapR Technologies - Confidential HBase Architecture is Better  Strong consistency model – when a write returns, all readers will see same value – "eventually consistent" is often "eventually inconsistent"  Scan works – does not broadcast – ring-based NoSQL databases (eg, Cassandra, Riak) suffer on scans  Scales automatically – Splits when regions become too large – Uses HDFS to spread data, manage space  Integrated with Hadoop – map-reduce on HBase is straightforward

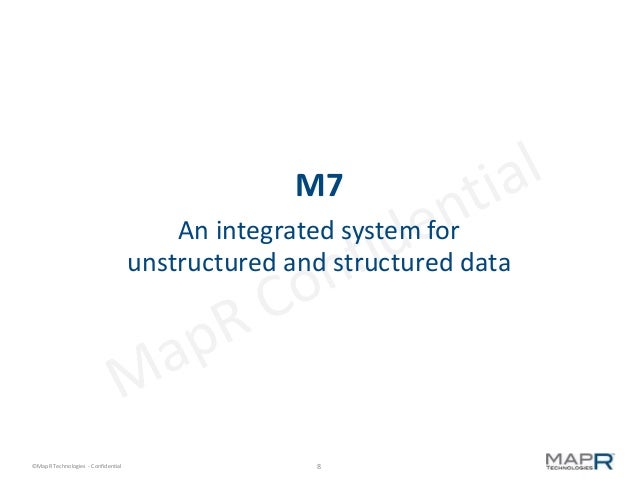

  8. 8. 8©MapR Technologies - Confidential M7 An integrated system for unstructured and structured data
  9. 9. 9©MapR Technologies - Confidential MapR M7 Tables  Binary compatible with Apache HBase – no recompilation needed to access M7 tables – Just set CLASSPATH – including HBase CLI  M7 tables accessed via pathname – openTable( "hello") … uses HBase – openTable( "/hello") … uses M7 – openTable( "/user/srivas/hello") … uses M7 9

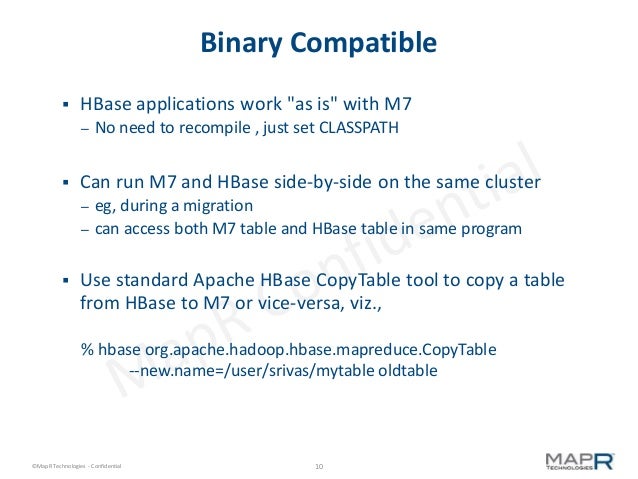

  10. 10. 10©MapR Technologies - Confidential Binary Compatible  HBase applications work "as is" with M7 – No need to recompile , just set CLASSPATH  Can run M7 and HBase side-by-side on the same cluster – eg, during a migration – can access both M7 table and HBase table in same program  Use standard Apache HBase CopyTable tool to copy a table from HBase to M7 or vice-versa, viz., % hbase org.apache.hadoop.hbase.mapreduce.CopyTable --new.name=/user/srivas/mytable oldtable

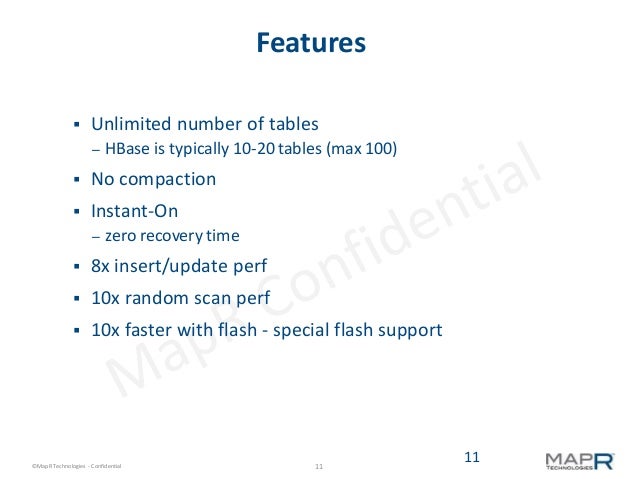

  11. 11. 11©MapR Technologies - Confidential Features  Unlimited number of tables – HBase is typically 10-20 tables (max 100)  No compaction  Instant-On – zero recovery time  8x insert/update perf  10x random scan perf  10x faster with flash - special flash support 11
  12. 12. 12©MapR Technologies - Confidential M7: Remove Layers, Simplify MapR M7
  13. 13. 13©MapR Technologies - Confidential M7 tables in a MapR Cluster  M7 tables integrated into storage – always available on every node – no separate process to start/stop/monitor – zero administration – no tuning parameters … just works  M7 tables work 'as expected' – First copy local to writing client – Snapshots and mirrors – Quotas , repl factor, data placement 13

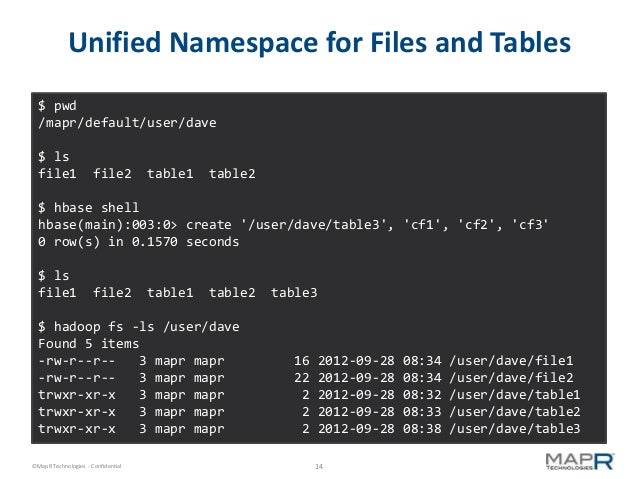

  14. 14. 14©MapR Technologies - Confidential Unified Namespace for Files and Tables $ pwd /mapr/default/user/dave $ ls file1 file2 table1 table2 $ hbase shell hbase(main):003:0> create '/user/dave/table3', 'cf1', 'cf2', 'cf3' 0 row(s) in 0.1570 seconds $ ls file1 file2 table1 table2 table3 $ hadoop fs -ls /user/dave Found 5 items -rw-r--r-- 3 mapr mapr 16 2012-09-28 08:34 /user/dave/file1 -rw-r--r-- 3 mapr mapr 22 2012-09-28 08:34 /user/dave/file2 trwxr-xr-x 3 mapr mapr 2 2012-09-28 08:32 /user/dave/table1 trwxr-xr-x 3 mapr mapr 2 2012-09-28 08:33 /user/dave/table2 trwxr-xr-x 3 mapr mapr 2 2012-09-28 08:38 /user/dave/table3
  15. 15. 15©MapR Technologies - Confidential M7 – An Integrated System
  16. 16. 16©MapR Technologies - Confidential Tables for End Users  Users can create and manage their own tables – Unlimited # of tables – first copy local  Tables can be created in any directory – Tables count towards volume and user quotas  No admin intervention needed – do stuff on the fly, no stop/restart servers  Automatic data protection and disaster recovery – Users can recover from snapshots/mirrors on their own

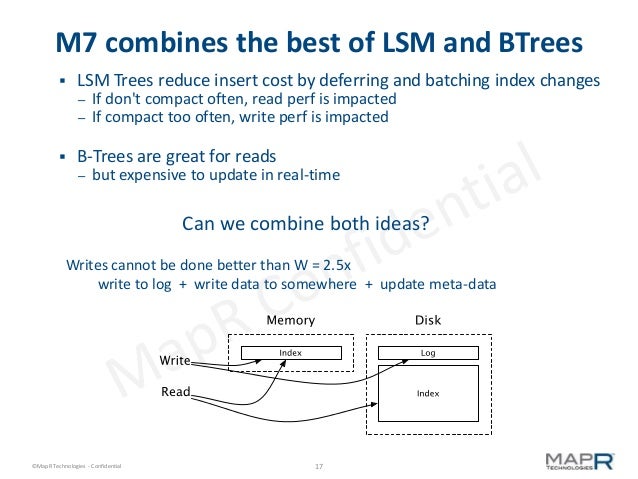

  17. 17. 17©MapR Technologies - Confidential M7 combines the best of LSM and BTrees  LSM Trees reduce insert cost by deferring and batching index changes – If don't compact often, read perf is impacted – If compact too often, write perf is impacted  B-Trees are great for reads – but expensive to update in real-time Can we combine both ideas? Writes cannot be done better than W = 2.5x write to log + write data to somewhere + update meta-data

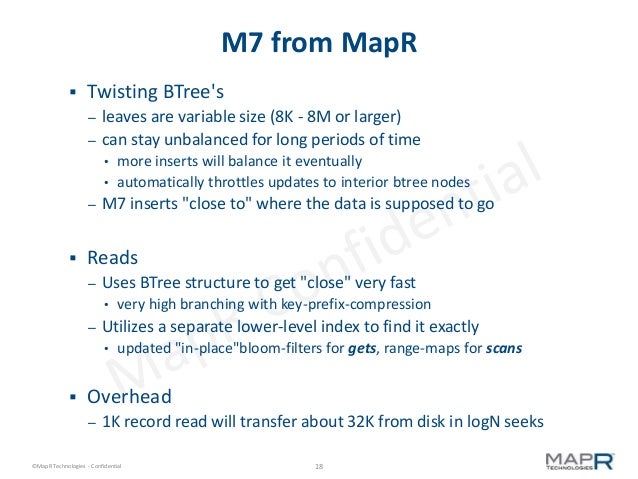

  18. 18. 18©MapR Technologies - Confidential M7 from MapR  Twisting BTree's – leaves are variable size (8K - 8M or larger) – can stay unbalanced for long periods of time • more inserts will balance it eventually • automatically throttles updates to interior btree nodes – M7 inserts "close to" where the data is supposed to go  Reads – Uses BTree structure to get "close" very fast • very high branching with key-prefix-compression – Utilizes a separate lower-level index to find it exactly • updated "in-place"bloom-filters for gets, range-maps for scans  Overhead – 1K record read will transfer about 32K from disk in logN seeks

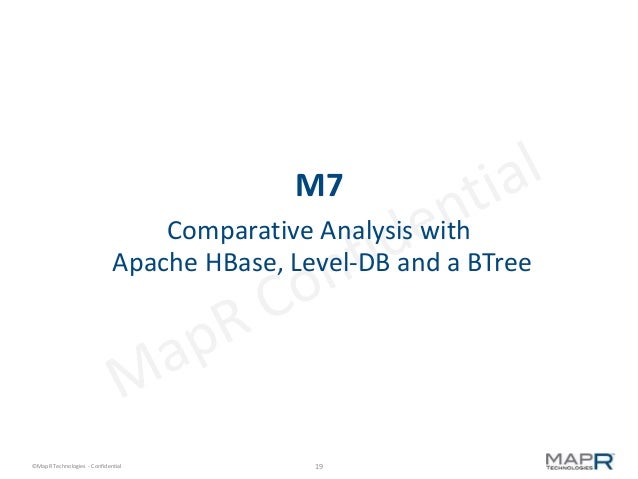

  19. 19. 19©MapR Technologies - Confidential M7 Comparative Analysis with Apache HBase, Level-DB and a BTree
  20. 20. 20©MapR Technologies - Confidential Apache HBase HFile Structure 64Kbyte blocks are compressed An index into the compressed blocks is created as a btree Key-value pairs are laid out in increasing order Each cell is an individual key + value - a row repeats the key for each column

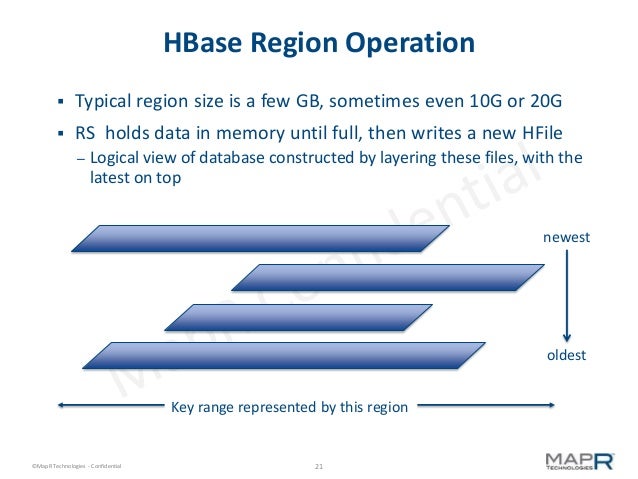

  21. 21. 21©MapR Technologies - Confidential HBase Region Operation  Typical region size is a few GB, sometimes even 10G or 20G  RS holds data in memory until full, then writes a new HFile – Logical view of database constructed by layering these files, with the latest on top Key range represented by this region newest oldest

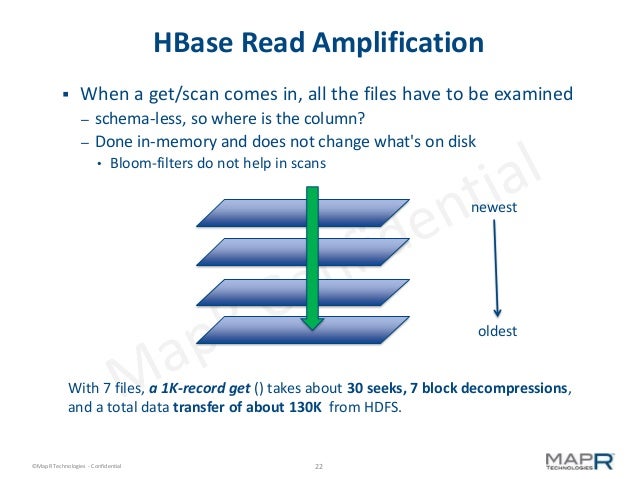

  22. 22. 22©MapR Technologies - Confidential HBase Read Amplification  When a get/scan comes in, all the files have to be examined – schema-less, so where is the column? – Done in-memory and does not change what's on disk • Bloom-filters do not help in scans newest oldest With 7 files, a 1K-record get () takes about 30 seeks, 7 block decompressions, and a total data transfer of about 130K from HDFS.
  23. 23. 23©MapR Technologies - Confidential HBase Write Amplification  To reduce the read-amplification, HBase merges the HFiles periodically – process called compaction – runs automatically when too many files – usually turned off due to I/O storms – and kicked-off manually on weekends Compaction reads all files and merges into a single HFile
  24. 24. 24©MapR Technologies - Confidential HBase Compaction Analysis  Assume 10G per region, write 10% per day, grow 10% per week – 1G of writes – after 7 days, 7 files of 1G and 1file of 10G  Compaction – Total reads: 17G (= 7 x 1G + 1 x 10G) – Total writes: 25G (= 7G wal + 7G flush + 11G write to new HFile)  500 regions – read 8.5T, write 12.5T  major outage on node – with fewer hfiles, it only gets worse  Best practice, serve < 500g per node (50 regions)

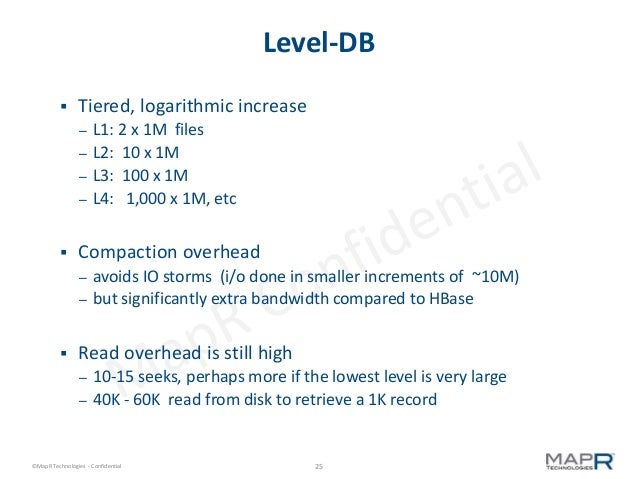

  25. 25. 25©MapR Technologies - Confidential Level-DB  Tiered, logarithmic increase – L1: 2 x 1M files – L2: 10 x 1M – L3: 100 x 1M – L4: 1,000 x 1M, etc  Compaction overhead – avoids IO storms (i/o done in smaller increments of ~10M) – but significantly extra bandwidth compared to HBase  Read overhead is still high – 10-15 seeks, perhaps more if the lowest level is very large – 40K - 60K read from disk to retrieve a 1K record
  26. 26. 26©MapR Technologies - Confidential BTree analysis  Read finds data directly, proven to be fastest – interior nodes only hold keys – very large branching factor – values only at leaves – thus caches work – R = logN seeks, if no caching – 1K record read will transfer about logN blocks from disk  Writes are slow on inserts – inserted into correct place right away – otherwise read will not find it – requires btree to be continuously rebalanced – causes extreme random i/o in insert path – W = 2.5x + logN seeks if no caching

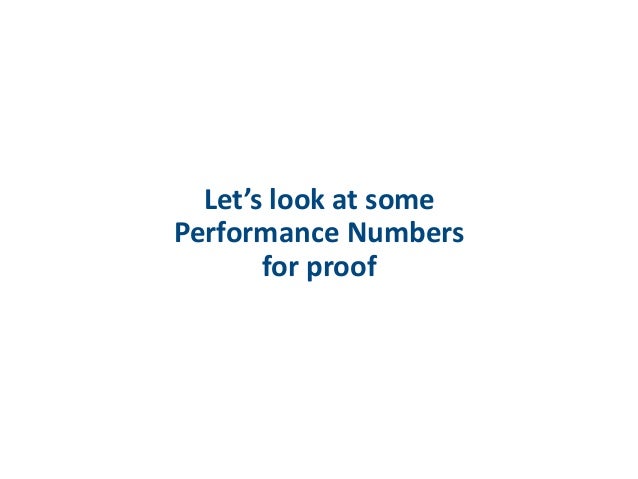

  27. 27. Let’s look at some Performance Numbers for proof
  28. 28. 29©MapR Technologies - Confidential M7 vs. CDH: 50-50 Mix (Reads)
  29. 29. 30©MapR Technologies - Confidential M7 vs. CDH: 50-50 load (read latency)
  30. 30. 31©MapR Technologies - Confidential M7 vs. CDH: 50-50 Mix (Updates)

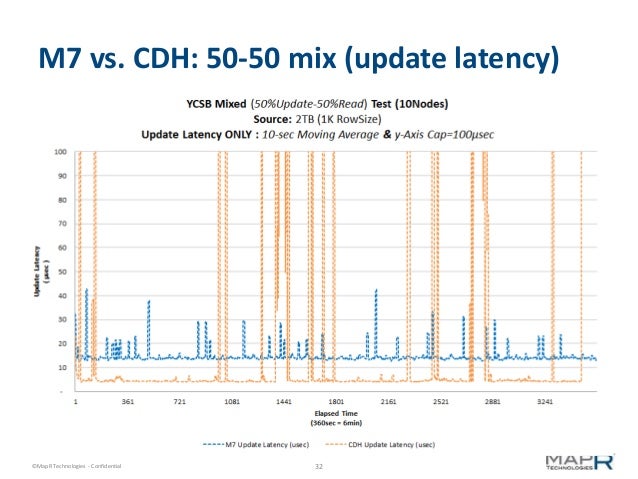

  31. 31. 32©MapR Technologies - Confidential M7 vs. CDH: 50-50 mix (update latency)

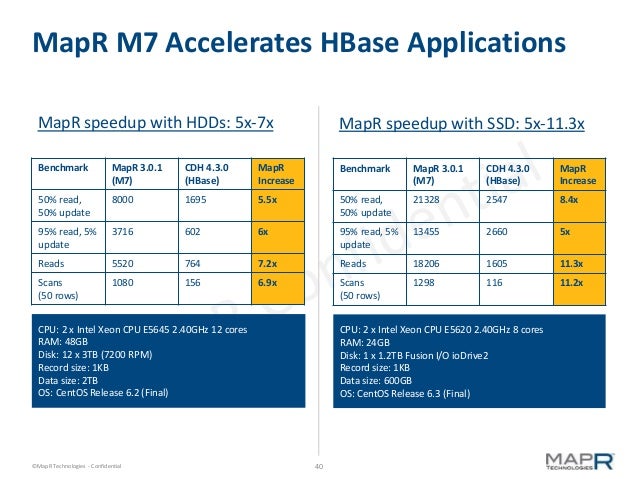

  32. 32. 33©MapR Technologies - Confidential MapR M7 Accelerates HBase Applications Benchmark MapR 3.0.1 (M7) CDH 4.3.0 (HBase) MapR Increase 50% read, 50% update 8000 1695 5.5x 95% read, 5% update 3716 602 6x Reads 5520 764 7.2x Scans (50 rows) 1080 156 6.9x CPU: 2 x Intel Xeon CPU E5645 2.40GHz 12 cores RAM: 48GB Disk: 12 x 3TB (7200 RPM) Record size: 1KB Data size: 2TB OS: CentOS Release 6.2 (Final) Benchmark MapR 3.0.1 (M7) CDH 4.3.0 (HBase) MapR Increase 50% read, 50% update 21328 2547 8.4x 95% read, 5% update 13455 2660 5x Reads 18206 1605 11.3x Scans (50 rows) 1298 116 11.2x CPU: 2 x Intel Xeon CPU E5620 2.40GHz 8 cores RAM: 24GB Disk: 1 x 1.2TB Fusion I/O ioDrive2 Record size: 1KB Data size: 600GB OS: CentOS Release 6.3 (Final) MapR speedup with HDDs: 5x-7x MapR speedup with SSD: 5x-11.3x

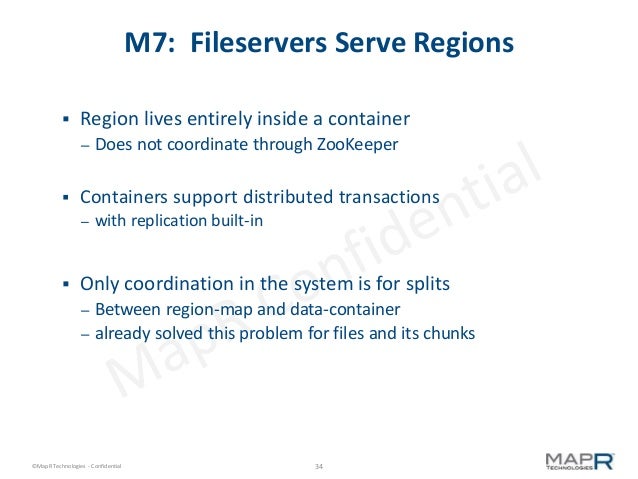

  33. 33. 34©MapR Technologies - Confidential M7: Fileservers Serve Regions  Region lives entirely inside a container – Does not coordinate through ZooKeeper  Containers support distributed transactions – with replication built-in  Only coordination in the system is for splits – Between region-map and data-container – already solved this problem for files and its chunks

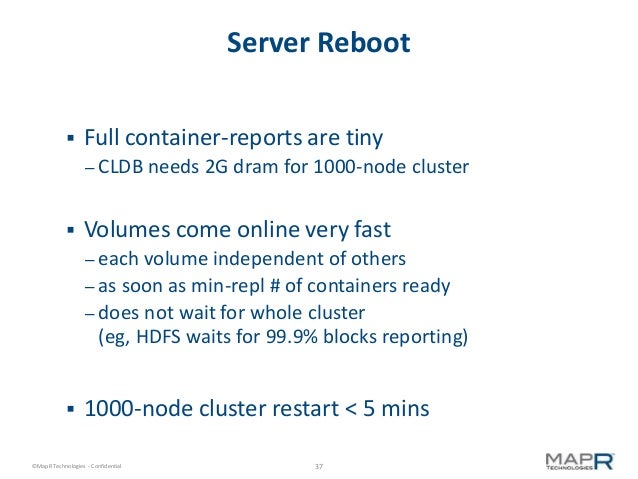

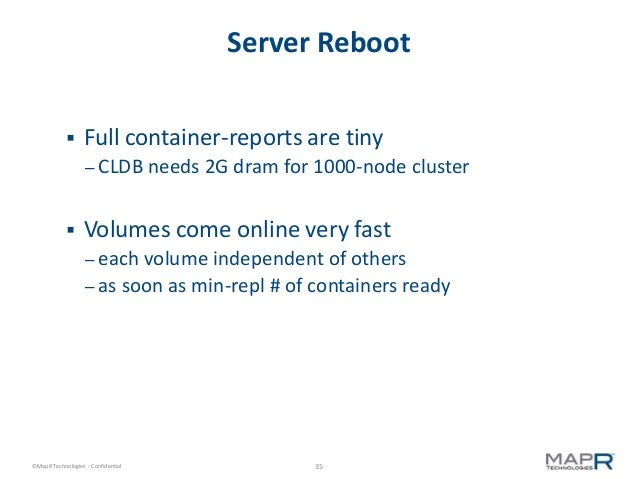

  34. 34. 35©MapR Technologies - Confidential Server Reboot  Full container-reports are tiny – CLDB needs 2G dram for 1000-node cluster  Volumes come online very fast – each volume independent of others – as soon as min-repl # of containers ready
  35. 35. 36©MapR Technologies - Confidential Server Reboot  Full container-reports are tiny – CLDB needs 2G dram for 1000-node cluster  Volumes come online very fast – each volume independent of others – as soon as min-repl # of containers ready – does not wait for whole cluster (eg, HDFS waits for 99.9% blocks reporting)
  36. 36. 37©MapR Technologies - Confidential Server Reboot  Full container-reports are tiny – CLDB needs 2G dram for 1000-node cluster  Volumes come online very fast – each volume independent of others – as soon as min-repl # of containers ready – does not wait for whole cluster (eg, HDFS waits for 99.9% blocks reporting)  1000-node cluster restart < 5 mins

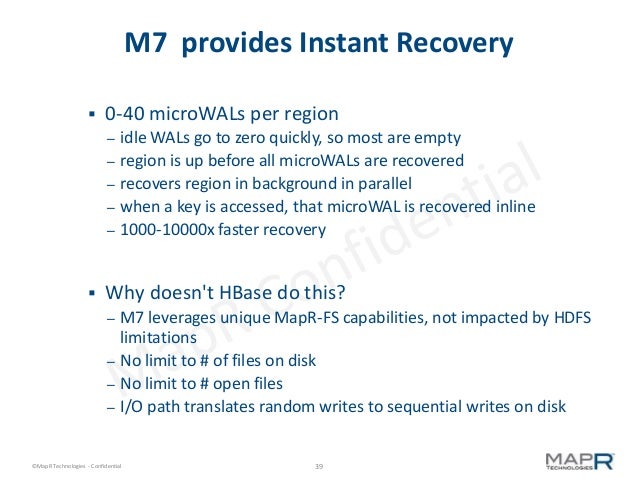

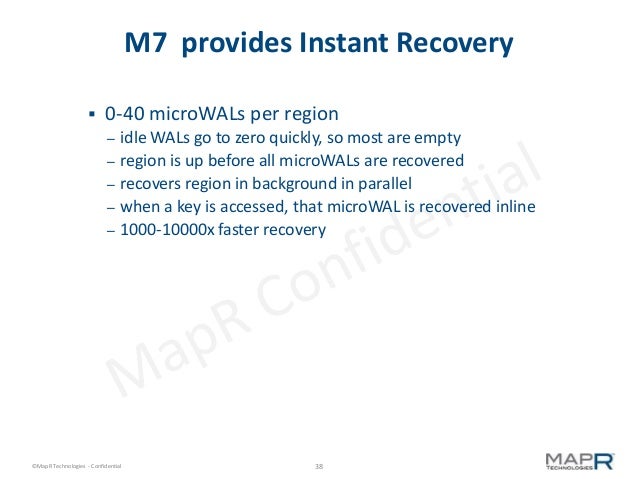

  37. 37. 38©MapR Technologies - Confidential M7 provides Instant Recovery  0-40 microWALs per region – idle WALs go to zero quickly, so most are empty – region is up before all microWALs are recovered – recovers region in background in parallel – when a key is accessed, that microWAL is recovered inline – 1000-10000x faster recovery
  38. 38. 39©MapR Technologies - Confidential M7 provides Instant Recovery  0-40 microWALs per region – idle WALs go to zero quickly, so most are empty – region is up before all microWALs are recovered – recovers region in background in parallel – when a key is accessed, that microWAL is recovered inline – 1000-10000x faster recovery  Why doesn't HBase do this? – M7 leverages unique MapR-FS capabilities, not impacted by HDFS limitations – No limit to # of files on disk – No limit to # open files – I/O path translates random writes to sequential writes on disk
