Supersized PostgreSQL: Postgres-XL for Scale-Out OLTP and Big Data Analytics

5,712

Published on

In this talk we introduce Postgres-XL for scaling out PostgreSQL. We cover its architecture, how tables are distributed, and include a sample configuration for a small local test cluster. Finally, we …

In this talk we introduce Postgres-XL for scaling out PostgreSQL. We cover its architecture, how tables are distributed, and include a sample configuration for a small local test cluster. Finally, we discuss the differences to PostgreSQL and discuss Postgres-XL community building

Published in: Technology
0 Comments
29 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
5,712
On Slideshare
0
From Embeds
0
Number of Embeds
6
Actions
Shares
0
Downloads
5
Comments
0
Likes
29
Embeds 0
No embeds

Report content
Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
No notes for slide

Transcript

  • 1. 1©2014 TransLattice, Inc. All Rights Reserved. 1 Supersized PostgreSQL: Postgres-XL for Scale-out OLTP and Big Data Analytics June 17, 2014 Mason Sharp

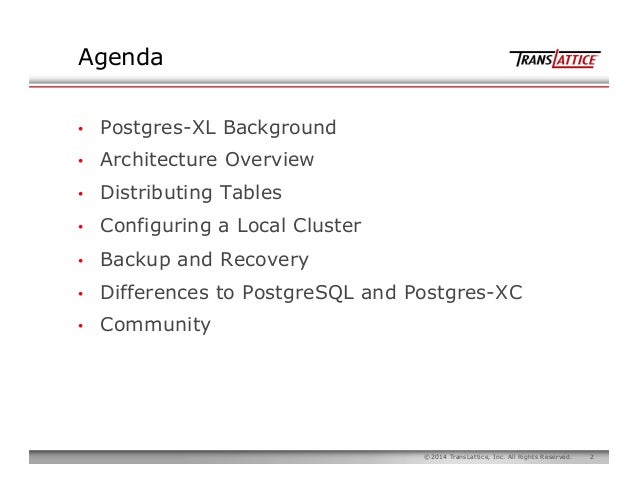

  • 2. 2©2014 TransLattice, Inc. All Rights Reserved. Agenda •  Postgres-XL Background •  Architecture Overview •  Distributing Tables •  Configuring a Local Cluster •  Backup and Recovery •  Differences to PostgreSQL and Postgres-XC •  Community
  • 3. 3©2014 TransLattice, Inc. All Rights Reserved. Announced May 2014

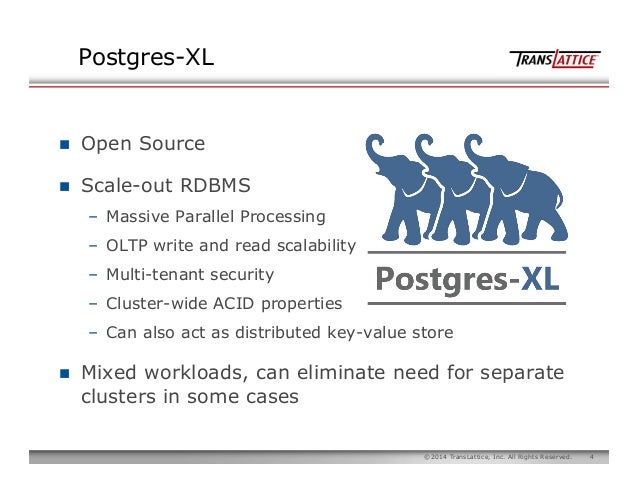

  • 4. 4©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL n  Open Source n  Scale-out RDBMS –  Massive Parallel Processing –  OLTP write and read scalability –  Multi-tenant security –  Cluster-wide ACID properties –  Can also act as distributed key-value store n  Mixed workloads, can eliminate need for separate clusters in some cases
  • 5. 5©2014 TransLattice, Inc. All Rights Reserved. XL Origins Considered open sourcing very early

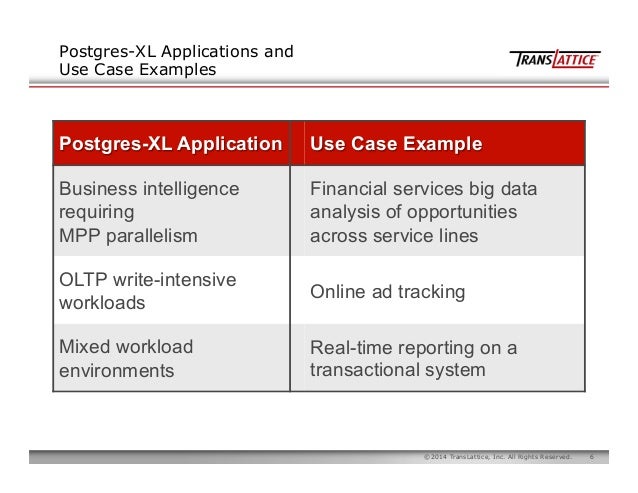

  • 6. 6©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Applications and Use Case Examples Postgres-XL Application Use Case Example Business intelligence requiring MPP parallelism Financial services big data analysis of opportunities across service lines OLTP write-intensive workloads Online ad tracking Mixed workload environments Real-time reporting on a transactional system

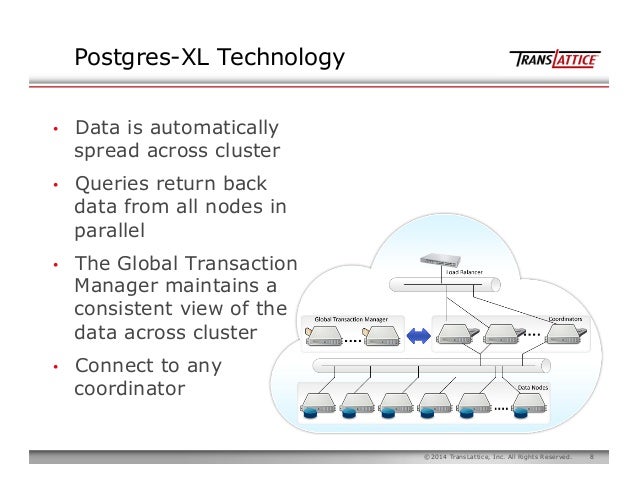

  • 7. 8©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Technology •  Data is automatically spread across cluster •  Queries return back data from all nodes in parallel •  The Global Transaction Manager maintains a consistent view of the data across cluster •  Connect to any coordinator

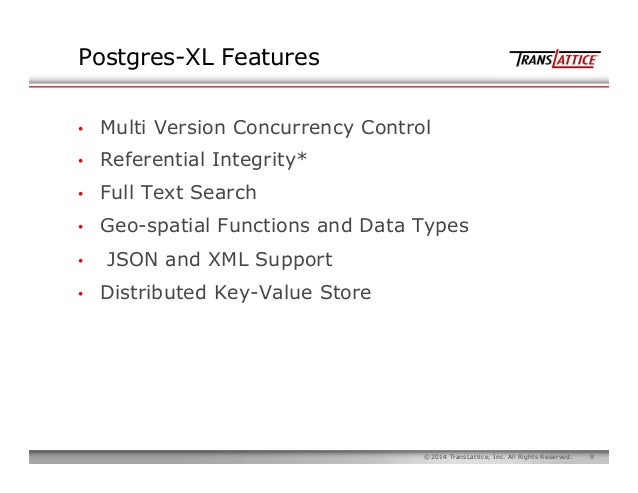

  • 8. 9©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Features •  Multi Version Concurrency Control •  Referential Integrity* •  Full Text Search •  Geo-spatial Functions and Data Types •  JSON and XML Support •  Distributed Key-Value Store
  • 9. 10©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Missing Features •  Built in High Availability •  Use external like Corosync/Pacemaker •  Area for future improvement •  “Easy” to re-shard / add nodes •  Some pieces there •  Can however “pre-shard” multiple nodes on the same server or VM •  Some FK and UNIQUE constraints
  • 10. 11©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Connectors Looks like a PostgreSQL 9.2 database •  C •  C++ •  Perl •  Python •  PHP •  Erlang •  Haskell – Java – Javascript – .NET – Node.js – Ruby – Scala

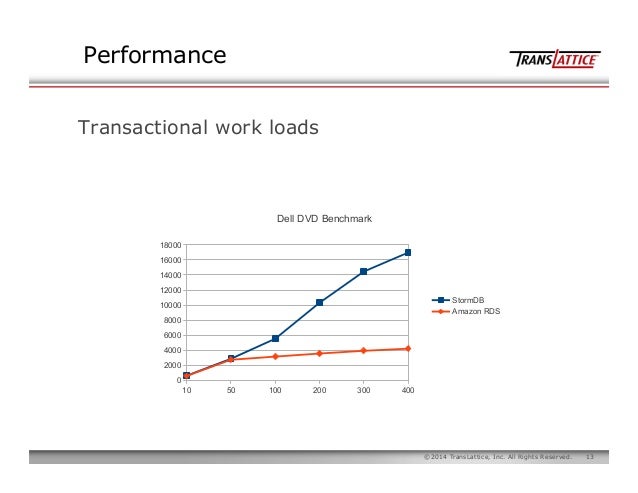

  • 11. 13©2014 TransLattice, Inc. All Rights Reserved. Performance Transactional work loads 10 50 100 200 300 400 0 2000 4000 6000 8000 10000 12000 14000 16000 18000 Dell DVD Benchmark StormDB Amazon RDS

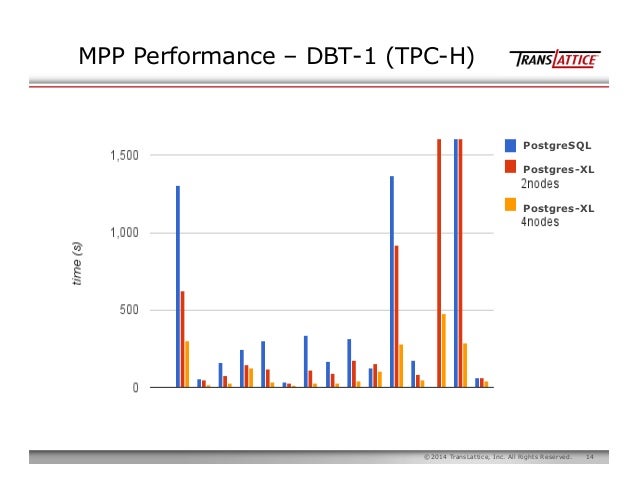

  • 12. 14©2014 TransLattice, Inc. All Rights Reserved. MPP Performance – DBT-1 (TPC-H) Postgres-XL PostgreSQL Postgres-XL

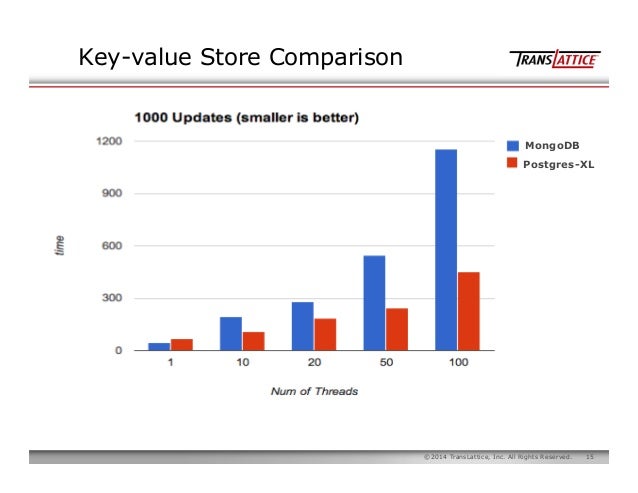

  • 13. 15©2014 TransLattice, Inc. All Rights Reserved. Key-value Store Comparison Postgres-XL MongoDB

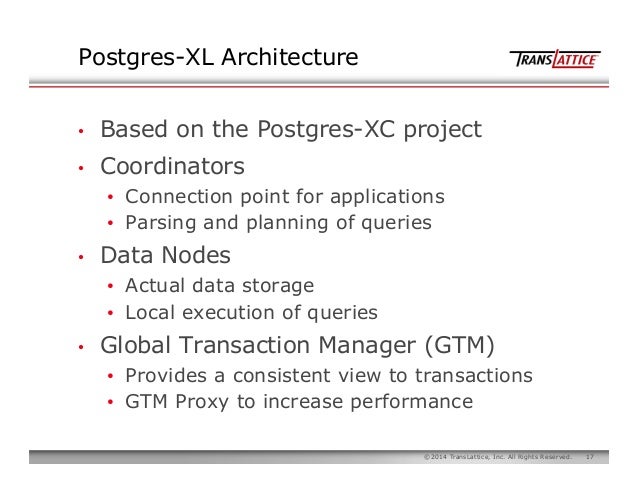

  • 14. 17©2014 TransLattice, Inc. All Rights Reserved. Postgres-XL Architecture •  Based on the Postgres-XC project •  Coordinators •  Connection point for applications •  Parsing and planning of queries •  Data Nodes •  Actual data storage •  Local execution of queries •  Global Transaction Manager (GTM) •  Provides a consistent view to transactions •  GTM Proxy to increase performance

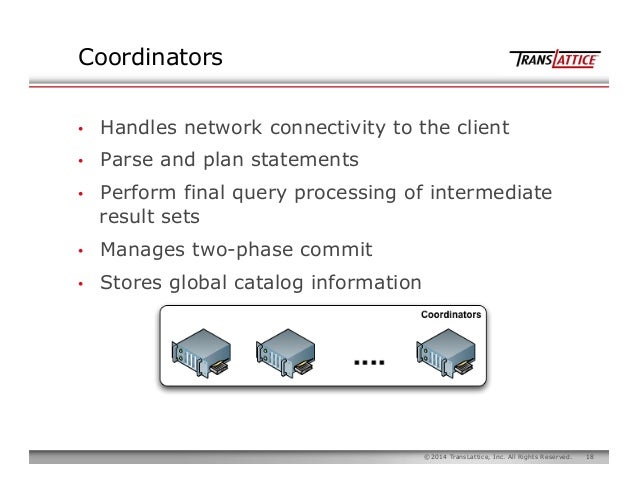

  • 15. 18©2014 TransLattice, Inc. All Rights Reserved. Coordinators •  Handles network connectivity to the client •  Parse and plan statements •  Perform final query processing of intermediate result sets •  Manages two-phase commit •  Stores global catalog information
  • 16. 19©2014 TransLattice, Inc. All Rights Reserved. Data Nodes •  Stores tables and indexes •  Only coordinators connects to data nodes •  Executes queries from the coordinators •  Communicates with peer data nodes for distributed joins

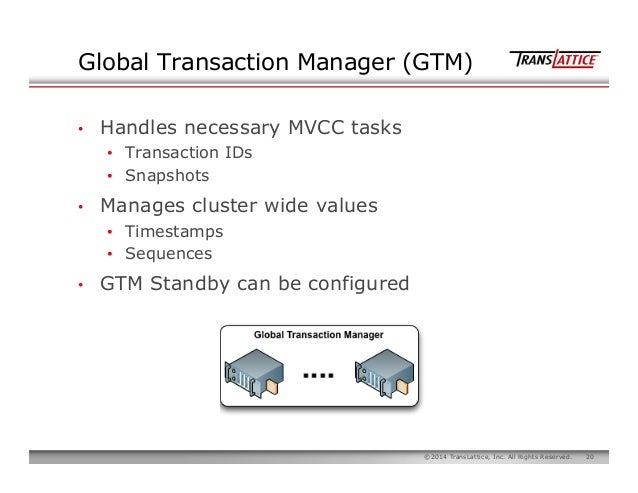

  • 17. 20©2014 TransLattice, Inc. All Rights Reserved. Global Transaction Manager (GTM) •  Handles necessary MVCC tasks •  Transaction IDs •  Snapshots •  Manages cluster wide values •  Timestamps •  Sequences •  GTM Standby can be configured

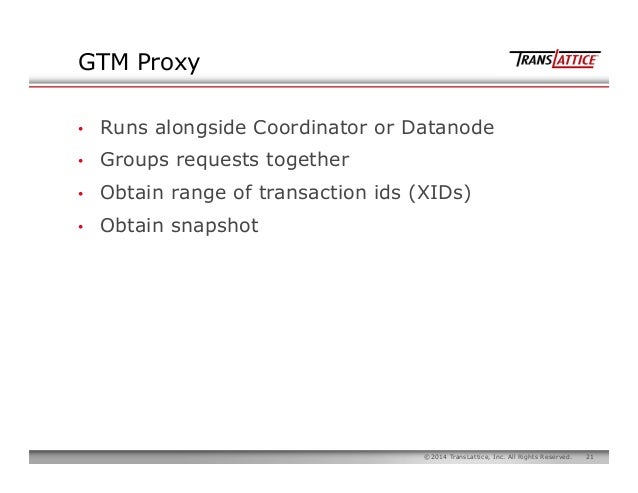

  • 18. 21©2014 TransLattice, Inc. All Rights Reserved. GTM Proxy •  Runs alongside Coordinator or Datanode •  Groups requests together •  Obtain range of transaction ids (XIDs) •  Obtain snapshot

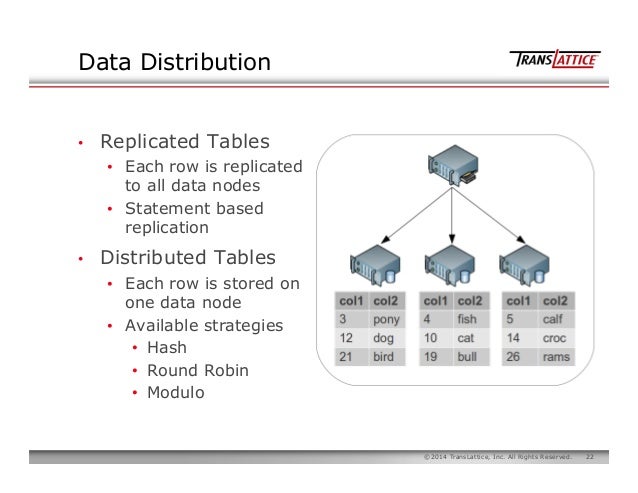

  • 19. 22©2014 TransLattice, Inc. All Rights Reserved. Data Distribution •  Replicated Tables •  Each row is replicated to all data nodes •  Statement based replication •  Distributed Tables •  Each row is stored on one data node •  Available strategies •  Hash •  Round Robin •  Modulo

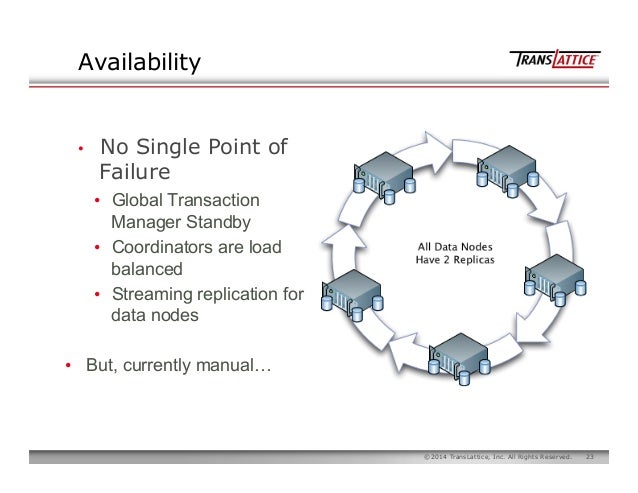

  • 20. 23©2014 TransLattice, Inc. All Rights Reserved. Availability •  No Single Point of Failure •  Global Transaction Manager Standby •  Coordinators are load balanced •  Streaming replication for data nodes •  But, currently manual…
  • 21. 24©2014 TransLattice, Inc. All Rights Reserved. DDL

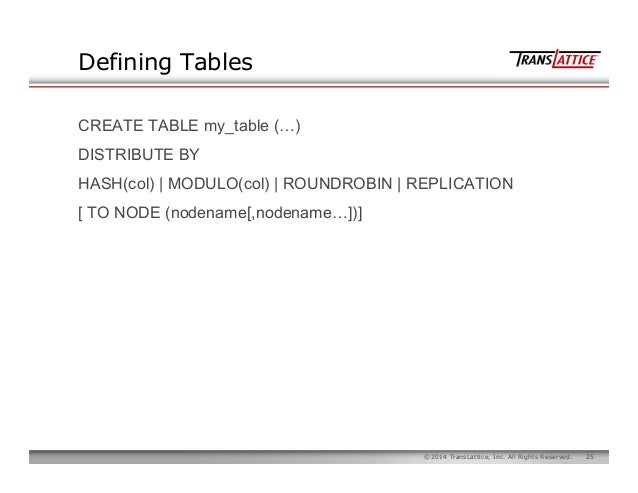

  • 22. 25©2014 TransLattice, Inc. All Rights Reserved. Defining Tables CREATE TABLE my_table (…) DISTRIBUTE BY HASH(col) | MODULO(col) | ROUNDROBIN | REPLICATION [ TO NODE (nodename[,nodename…])]
  • 23. 26©2014 TransLattice, Inc. All Rights Reserved. Defining Tables CREATE TABLE state_code ( state_code CHAR(2), state_name VARCHAR, : ) DISTRIBUTE BY REPLICATION An exact replica on each node

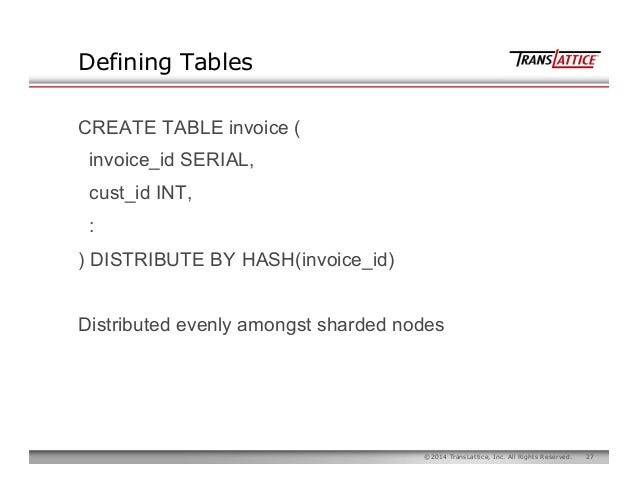

  • 24. 27©2014 TransLattice, Inc. All Rights Reserved. Defining Tables CREATE TABLE invoice ( invoice_id SERIAL, cust_id INT, : ) DISTRIBUTE BY HASH(invoice_id) Distributed evenly amongst sharded nodes
  • 25. 28©2014 TransLattice, Inc. All Rights Reserved. Defining Tables CREATE TABLE invoice ( invoice_id SERIAL, cust_id INT …. ) DISTRIBUTE BY HASH(invoice_id); CREATE TABLE lineitem ( lineitem_id SERIAL, invoice_id INT … ) DISTRIBUTE BY HASH(invoice_id); Joins on invoice_id can be pushed down to the datanodes

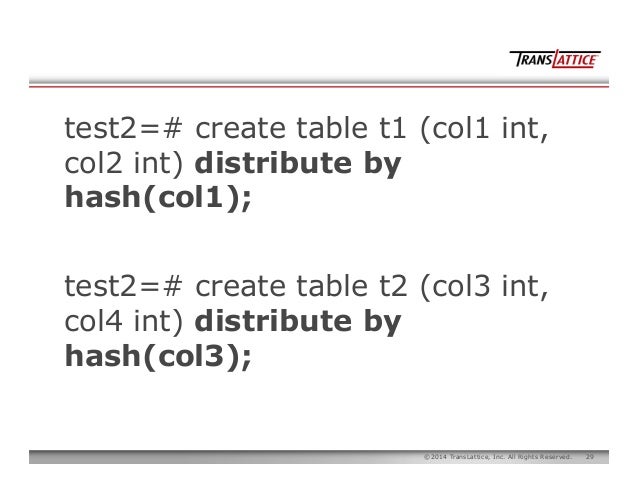

  • 26. 29©2014 TransLattice, Inc. All Rights Reserved. test2=# create table t1 (col1 int, col2 int) distribute by hash(col1); test2=# create table t2 (col3 int, col4 int) distribute by hash(col3);
  • 27. 30©2014 TransLattice, Inc. All Rights Reserved. explain select * from t1 inner join t2 on col1 = col3; Remote Subquery Scan on all (datanode_1,datanode_2) -> Hash Join Hash Cond: -> Seq Scan on t1 -> Hash -> Seq Scan on t2 Join push-down. Looks much like regular PostgreSQL

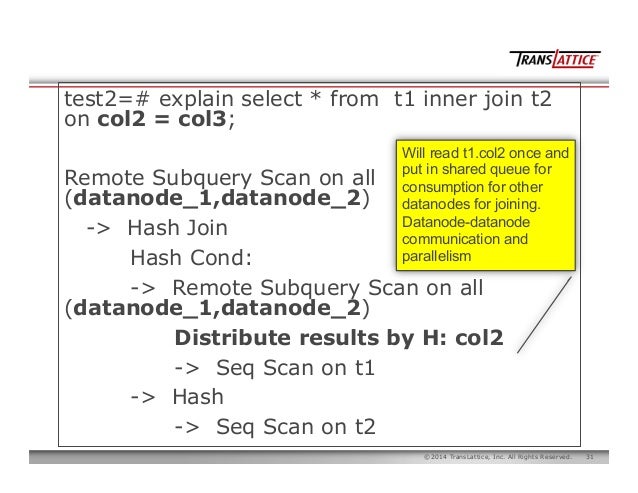

  • 28. 31©2014 TransLattice, Inc. All Rights Reserved. test2=# explain select * from t1 inner join t2 on col2 = col3; Remote Subquery Scan on all (datanode_1,datanode_2) -> Hash Join Hash Cond: -> Remote Subquery Scan on all (datanode_1,datanode_2) Distribute results by H: col2 -> Seq Scan on t1 -> Hash -> Seq Scan on t2 Will read t1.col2 once and put in shared queue for consumption for other datanodes for joining. Datanode-datanode communication and parallelism
  • 29. 34©2014 TransLattice, Inc. All Rights Reserved.
  • 30. 35©2014 TransLattice, Inc. All Rights Reserved. Configuration
  • 31. 36©2014 TransLattice, Inc. All Rights Reserved.

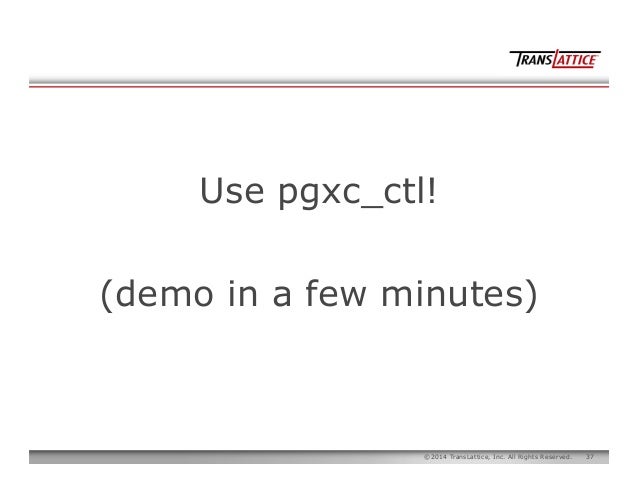

  • 32. 37©2014 TransLattice, Inc. All Rights Reserved. Use pgxc_ctl! (demo in a few minutes)

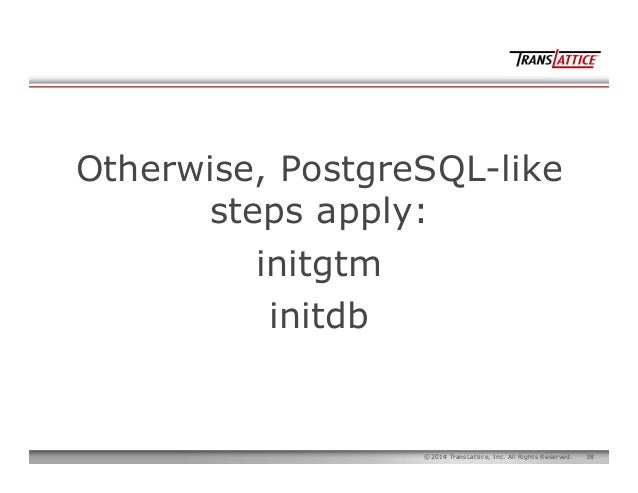

  • 33. 38©2014 TransLattice, Inc. All Rights Reserved. Otherwise, PostgreSQL-like steps apply: initgtm initdb

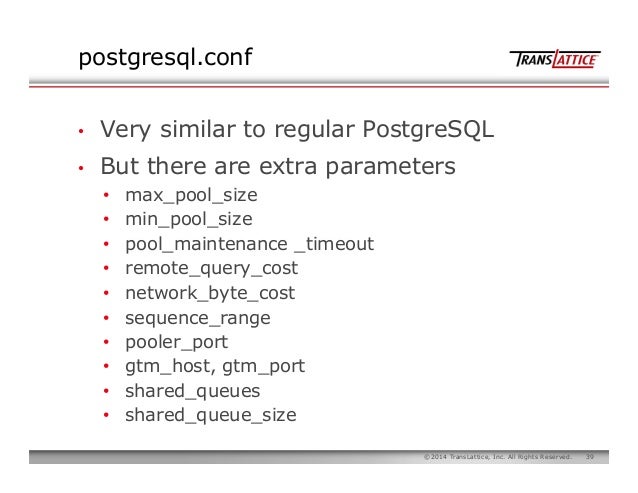

  • 34. 39©2014 TransLattice, Inc. All Rights Reserved. postgresql.conf •  Very similar to regular PostgreSQL •  But there are extra parameters •  max_pool_size •  min_pool_size •  pool_maintenance _timeout •  remote_query_cost •  network_byte_cost •  sequence_range •  pooler_port •  gtm_host, gtm_port •  shared_queues •  shared_queue_size

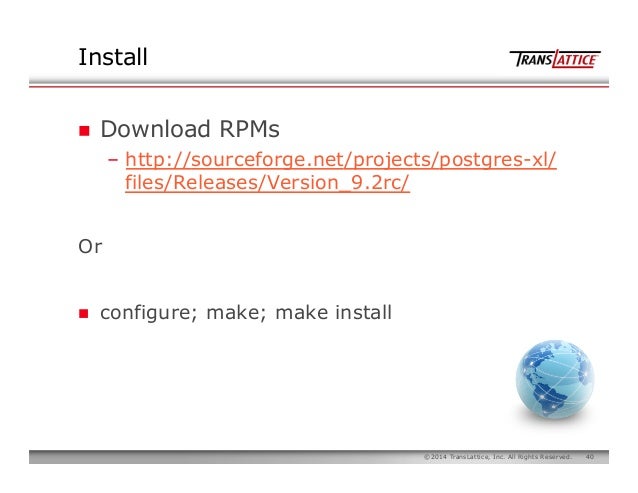

  • 35. 40©2014 TransLattice, Inc. All Rights Reserved. Install n  Download RPMs –  http://sourceforge.net/projects/postgres-xl/ files/Releases/Version_9.2rc/ Or n  configure; make; make install

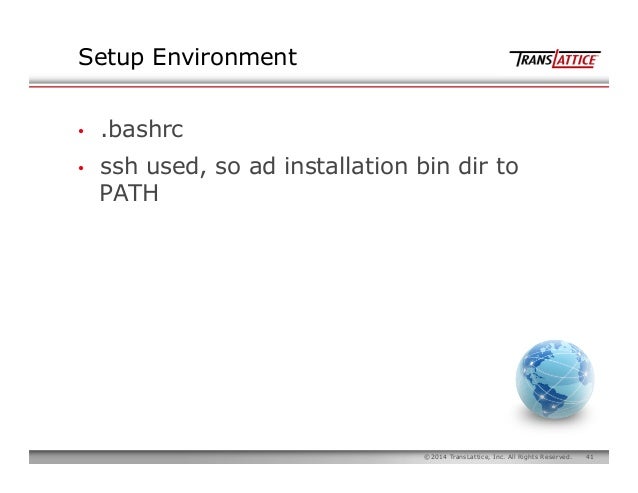

  • 36. 41©2014 TransLattice, Inc. All Rights Reserved. Setup Environment •  .bashrc •  ssh used, so ad installation bin dir to PATH

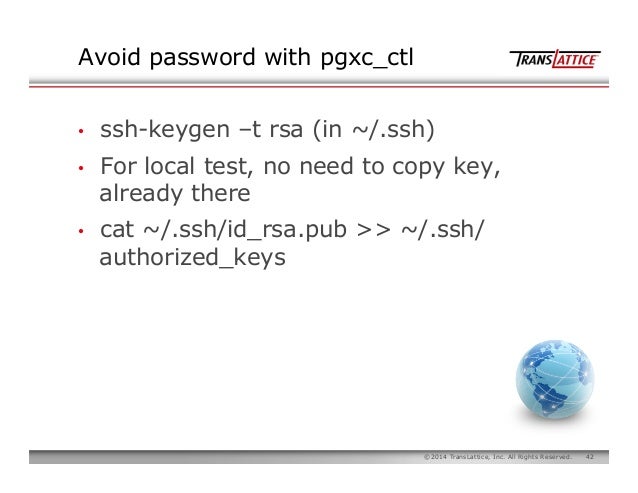

  • 37. 42©2014 TransLattice, Inc. All Rights Reserved. Avoid password with pgxc_ctl •  ssh-keygen –t rsa (in ~/.ssh) •  For local test, no need to copy key, already there •  cat ~/.ssh/id_rsa.pub >> ~/.ssh/ authorized_keys

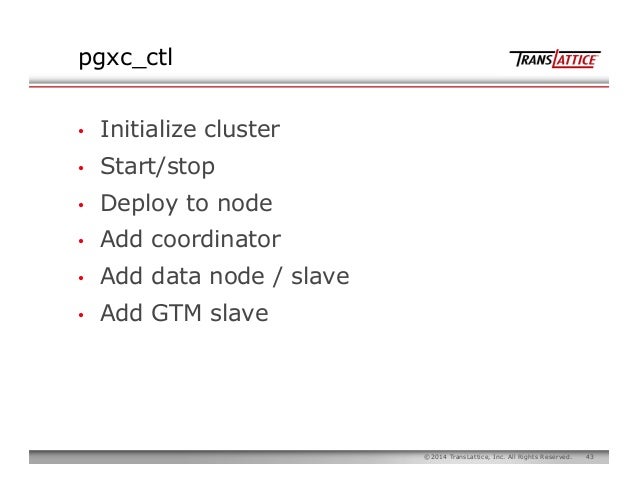

  • 38. 43©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl •  Initialize cluster •  Start/stop •  Deploy to node •  Add coordinator •  Add data node / slave •  Add GTM slave

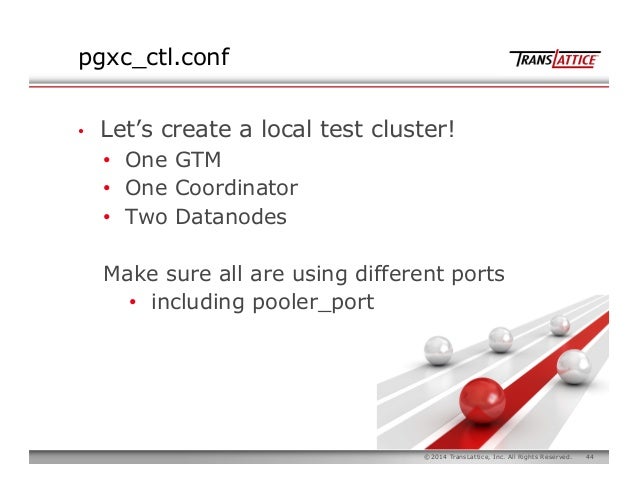

  • 39. 44©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf •  Let’s create a local test cluster! •  One GTM •  One Coordinator •  Two Datanodes Make sure all are using different ports •  including pooler_port

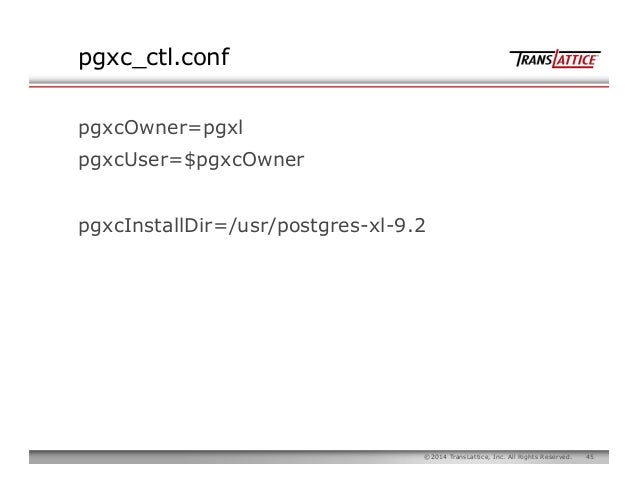

  • 40. 45©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf pgxcOwner=pgxl pgxcUser=$pgxcOwner pgxcInstallDir=/usr/postgres-xl-9.2

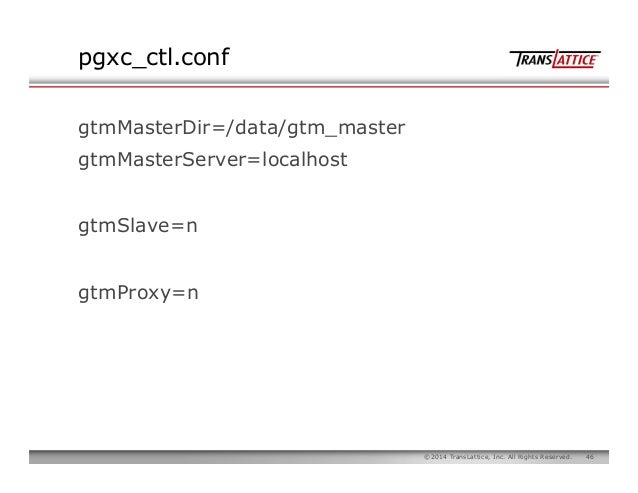

  • 41. 46©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf gtmMasterDir=/data/gtm_master gtmMasterServer=localhost gtmSlave=n gtmProxy=n
  • 42. 47©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf coordMasterDir=/data/coord_master coordNames=(coord1) coordPorts=(5432) poolerPorts=(20010) coordMasterServers=(localhost) coordMasterDirs=($coordMasterDir/coord1)
  • 43. 48©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf coordMaxWALSenders=($coordMaxWALsernder) coordSlave=n coordSpecificExtraConfig=(none) coordSpecificExtraPgHba=(none)

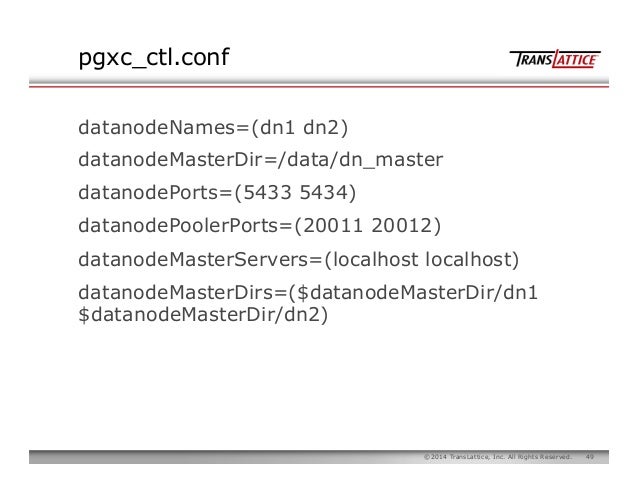

  • 44. 49©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf datanodeNames=(dn1 dn2) datanodeMasterDir=/data/dn_master datanodePorts=(5433 5434) datanodePoolerPorts=(20011 20012) datanodeMasterServers=(localhost localhost) datanodeMasterDirs=($datanodeMasterDir/dn1 $datanodeMasterDir/dn2)

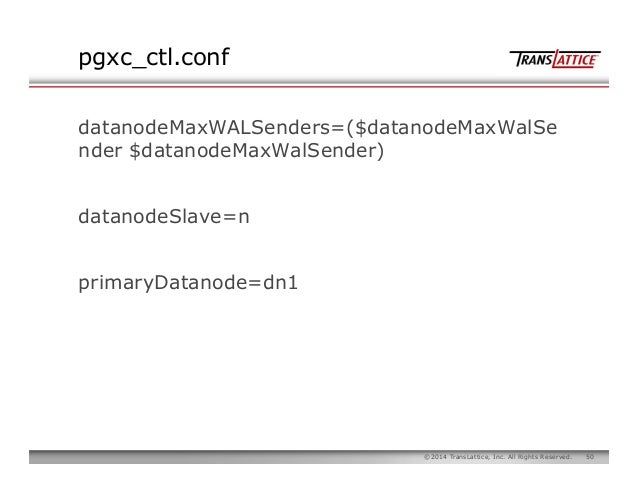

  • 45. 50©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl.conf datanodeMaxWALSenders=($datanodeMaxWalSe nder $datanodeMaxWalSender) datanodeSlave=n primaryDatanode=dn1

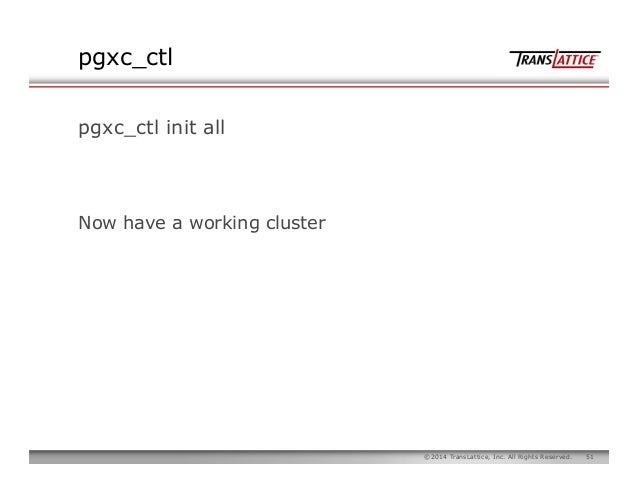

  • 46. 51©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl pgxc_ctl init all Now have a working cluster

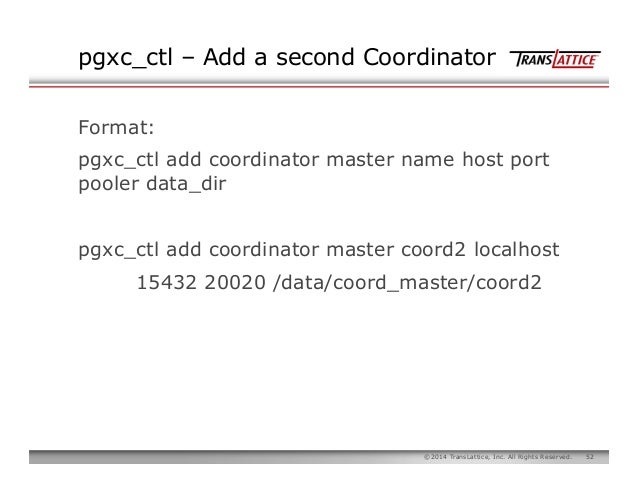

  • 47. 52©2014 TransLattice, Inc. All Rights Reserved. pgxc_ctl – Add a second Coordinator Format: pgxc_ctl add coordinator master name host port pooler data_dir pgxc_ctl add coordinator master coord2 localhost 15432 20020 /data/coord_master/coord2
  • 48. 53©2014 TransLattice, Inc. All Rights Reserved. PostgreSQL Differences

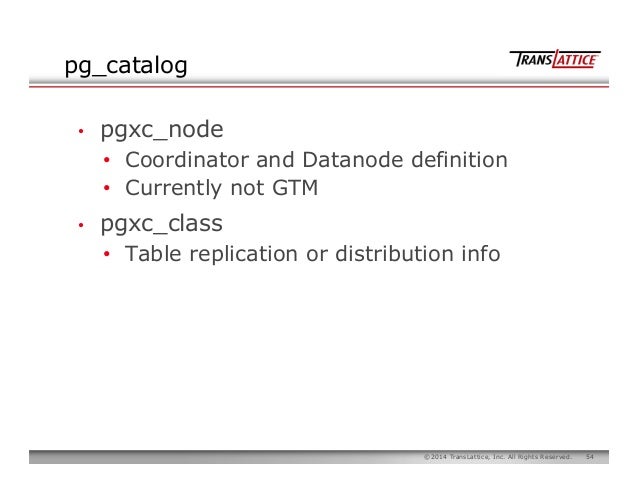

  • 49. 54©2014 TransLattice, Inc. All Rights Reserved. pg_catalog •  pgxc_node •  Coordinator and Datanode definition •  Currently not GTM •  pgxc_class •  Table replication or distribution info

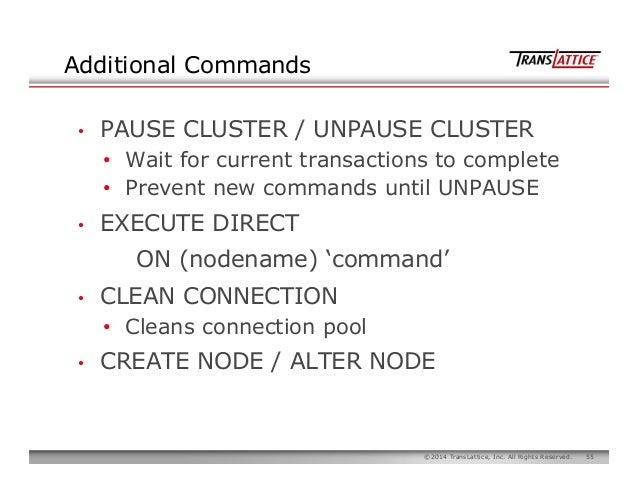

  • 50. 55©2014 TransLattice, Inc. All Rights Reserved. Additional Commands •  PAUSE CLUSTER / UNPAUSE CLUSTER •  Wait for current transactions to complete •  Prevent new commands until UNPAUSE •  EXECUTE DIRECT ON (nodename) ‘command’ •  CLEAN CONNECTION •  Cleans connection pool •  CREATE NODE / ALTER NODE

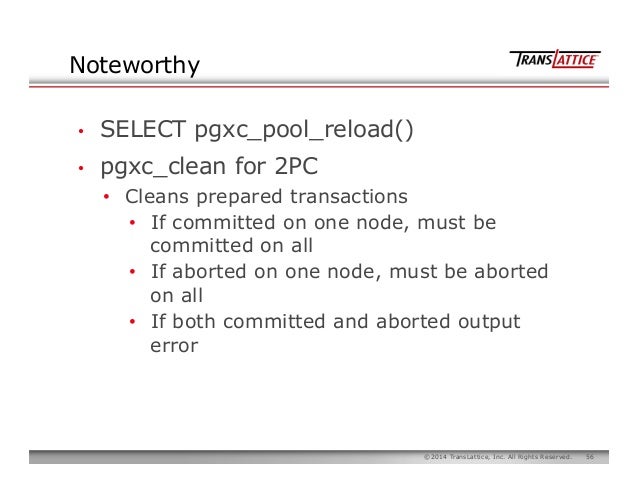

  • 51. 56©2014 TransLattice, Inc. All Rights Reserved. Noteworthy •  SELECT pgxc_pool_reload() •  pgxc_clean for 2PC •  Cleans prepared transactions •  If committed on one node, must be committed on all •  If aborted on one node, must be aborted on all •  If both committed and aborted output error
  • 52. 57©2014 TransLattice, Inc. All Rights Reserved. Backup and Recovery

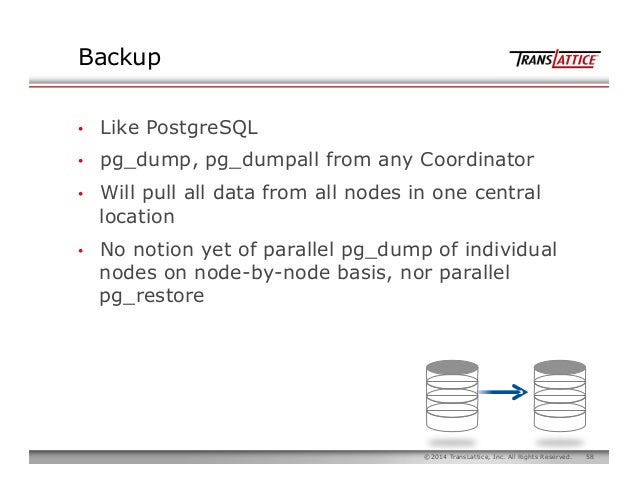

  • 53. 58©2014 TransLattice, Inc. All Rights Reserved. Backup •  Like PostgreSQL •  pg_dump, pg_dumpall from any Coordinator •  Will pull all data from all nodes in one central location •  No notion yet of parallel pg_dump of individual nodes on node-by-node basis, nor parallel pg_restore
  • 54. 59©2014 TransLattice, Inc. All Rights Reserved. Cold Backup •  Stop Cluster •  Backup individual data directories on nodes’ file system •  Gzip, compress, rsync off, etc •  Cold restore do the opposite

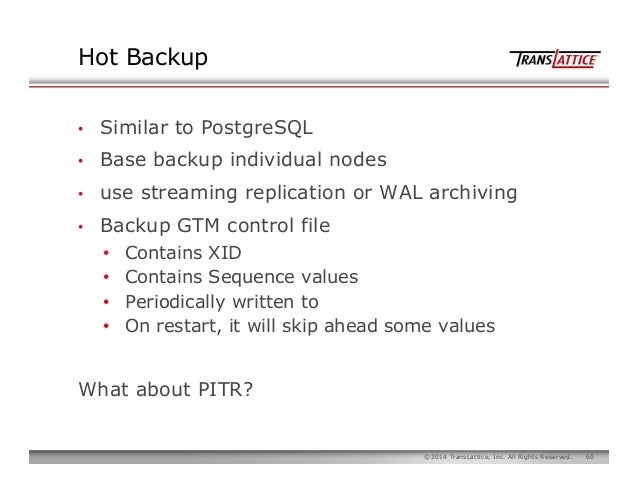

  • 55. 60©2014 TransLattice, Inc. All Rights Reserved. Hot Backup •  Similar to PostgreSQL •  Base backup individual nodes •  use streaming replication or WAL archiving •  Backup GTM control file •  Contains XID •  Contains Sequence values •  Periodically written to •  On restart, it will skip ahead some values What about PITR?

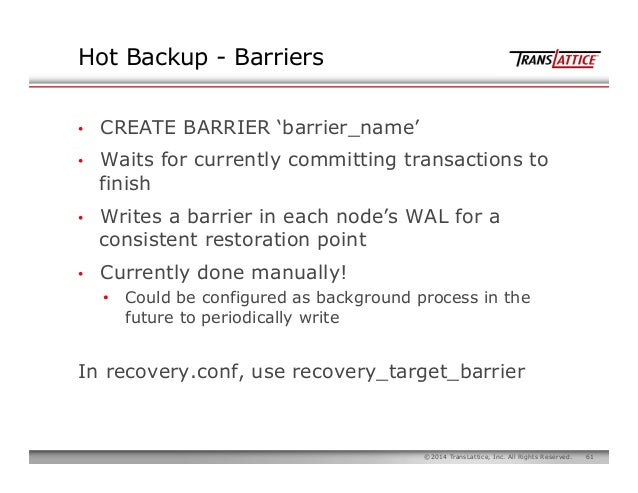

  • 56. 61©2014 TransLattice, Inc. All Rights Reserved. Hot Backup - Barriers •  CREATE BARRIER ‘barrier_name’ •  Waits for currently committing transactions to finish •  Writes a barrier in each node’s WAL for a consistent restoration point •  Currently done manually! •  Could be configured as background process in the future to periodically write In recovery.conf, use recovery_target_barrier

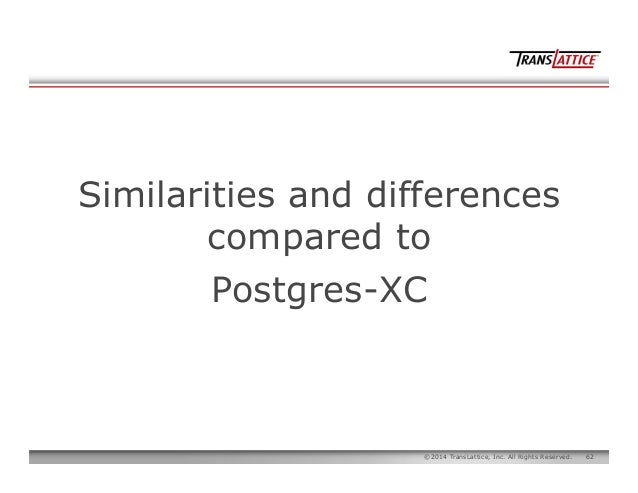

  • 57. 62©2014 TransLattice, Inc. All Rights Reserved. Similarities and differences compared to Postgres-XC

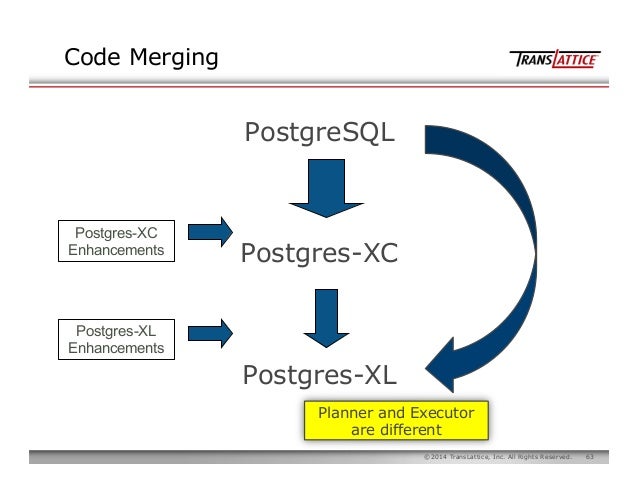

  • 58. 63©2014 TransLattice, Inc. All Rights Reserved. Code Merging PostgreSQL Postgres-XC Postgres-XL Postgres-XC Enhancements Postgres-XL Enhancements Planner and Executor are different

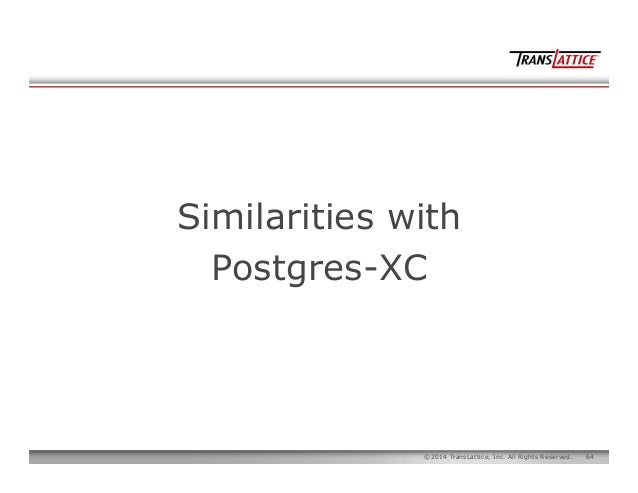

  • 59. 64©2014 TransLattice, Inc. All Rights Reserved. Similarities with Postgres-XC

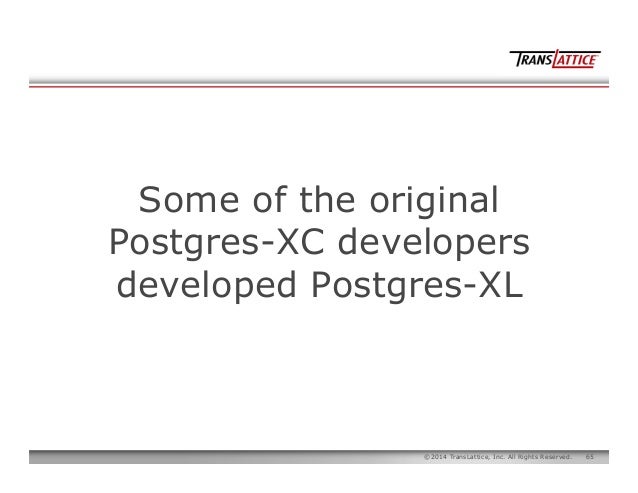

  • 60. 65©2014 TransLattice, Inc. All Rights Reserved. Some of the original Postgres-XC developers developed Postgres-XL

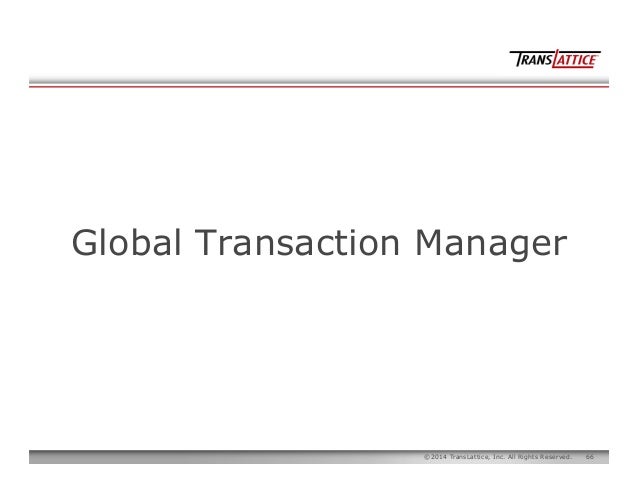

  • 61. 66©2014 TransLattice, Inc. All Rights Reserved. Global Transaction Manager
  • 62. 67©2014 TransLattice, Inc. All Rights Reserved. Pooler

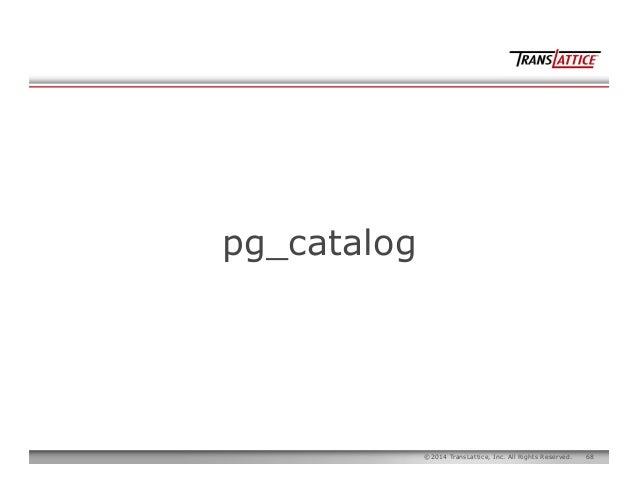

  • 63. 68©2014 TransLattice, Inc. All Rights Reserved. pg_catalog

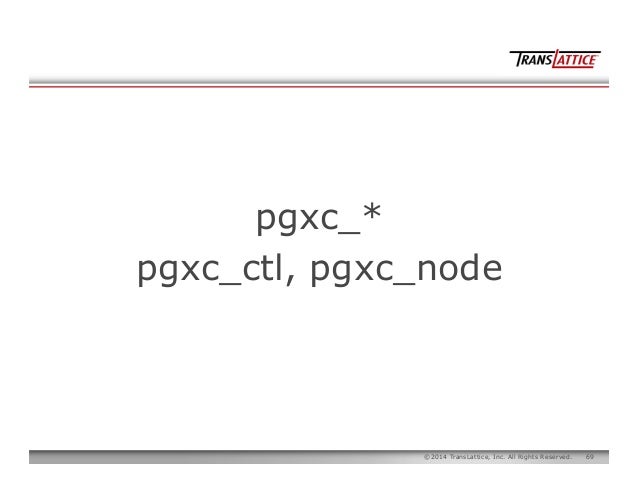

  • 64. 69©2014 TransLattice, Inc. All Rights Reserved. pgxc_* pgxc_ctl, pgxc_node
  • 65. 70©2014 TransLattice, Inc. All Rights Reserved. “pgxc” = Postgres-XL Cluster J
  • 66. 71©2014 TransLattice, Inc. All Rights Reserved. Differences compared to Postgres-XC

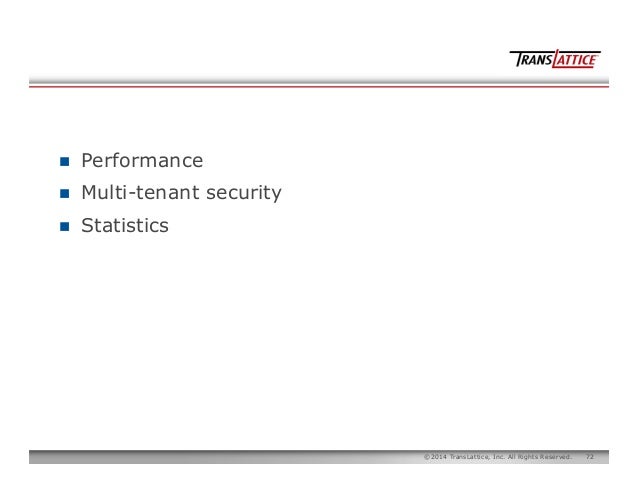

  • 67. 72©2014 TransLattice, Inc. All Rights Reserved. n  Performance n  Multi-tenant security n  Statistics
  • 68. 73©2014 TransLattice, Inc. All Rights Reserved. Performance Data node ßà Data node Communication –  Avoid Coordinator-centric processing –  Can be many times faster for some queries Pooler needs to be configured for each Data node, not just coordinator –  More connections needed at each node

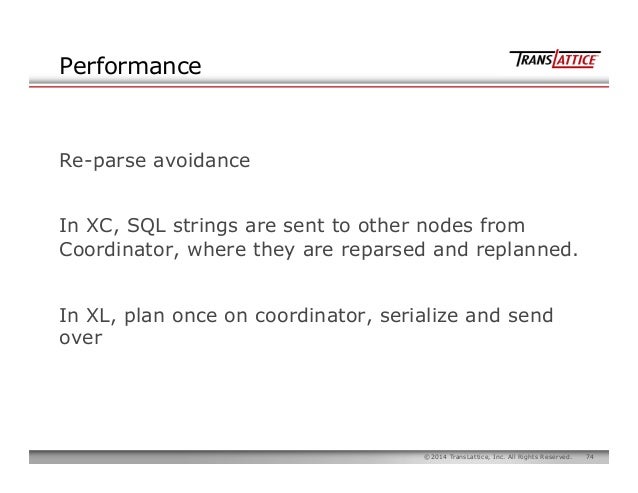

  • 69. 74©2014 TransLattice, Inc. All Rights Reserved. Performance Re-parse avoidance In XC, SQL strings are sent to other nodes from Coordinator, where they are reparsed and replanned. In XL, plan once on coordinator, serialize and send over
  • 70. 75©2014 TransLattice, Inc. All Rights Reserved. Performance Sequences Detect frequently accessed sequences, fetch range of values, avoid fewer round trips to GTM COPY INSERT SELECT

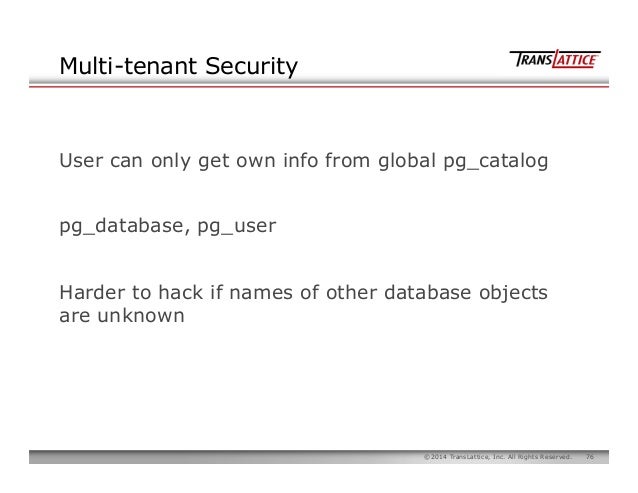

  • 71. 76©2014 TransLattice, Inc. All Rights Reserved. Multi-tenant Security User can only get own info from global pg_catalog pg_database, pg_user Harder to hack if names of other database objects are unknown

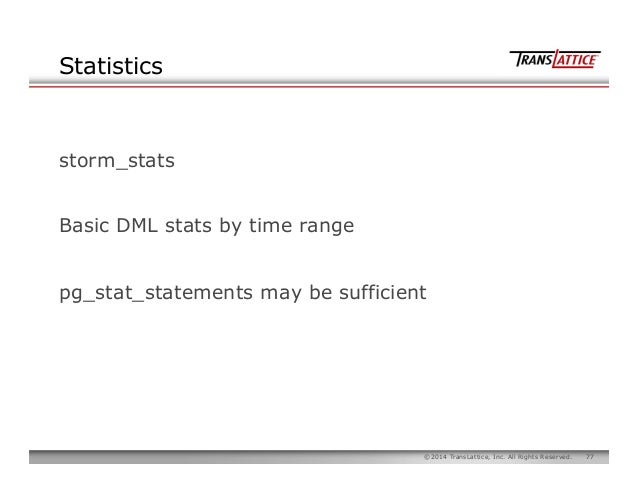

  • 72. 77©2014 TransLattice, Inc. All Rights Reserved. Statistics storm_stats Basic DML stats by time range pg_stat_statements may be sufficient

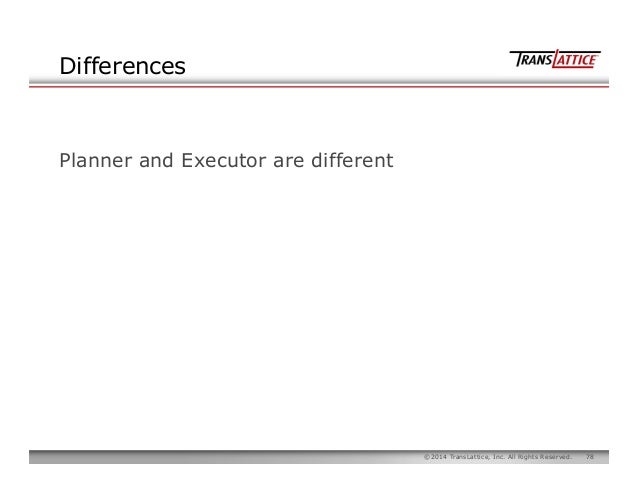

  • 73. 78©2014 TransLattice, Inc. All Rights Reserved. Differences Planner and Executor are different

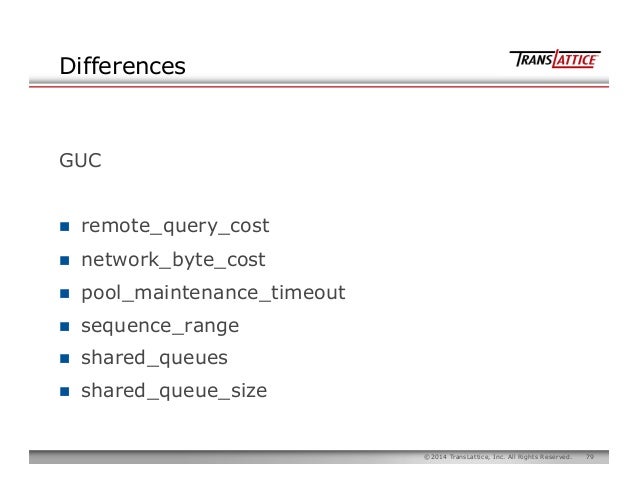

  • 74. 79©2014 TransLattice, Inc. All Rights Reserved. Differences GUC n  remote_query_cost n  network_byte_cost n  pool_maintenance_timeout n  sequence_range n  shared_queues n  shared_queue_size

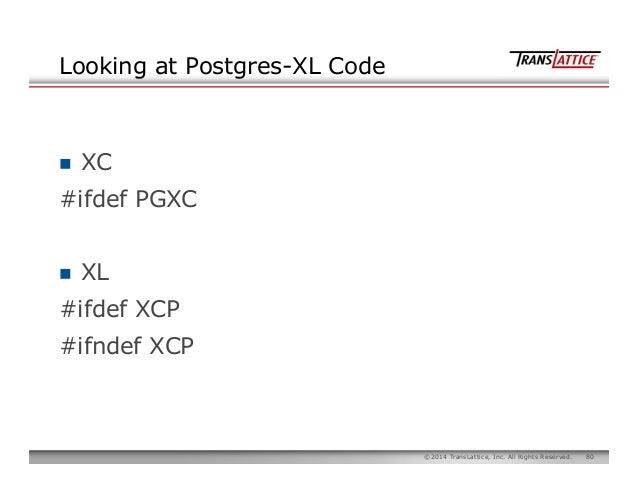

  • 75. 80©2014 TransLattice, Inc. All Rights Reserved. Looking at Postgres-XL Code n  XC #ifdef PGXC n  XL #ifdef XCP #ifndef XCP

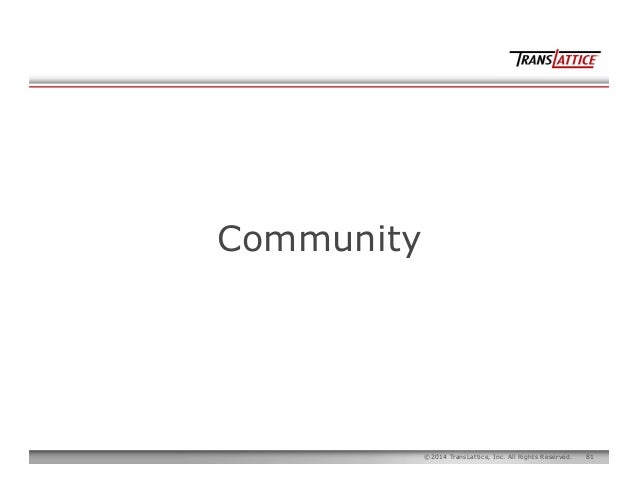

  • 76. 81©2014 TransLattice, Inc. All Rights Reserved. Community

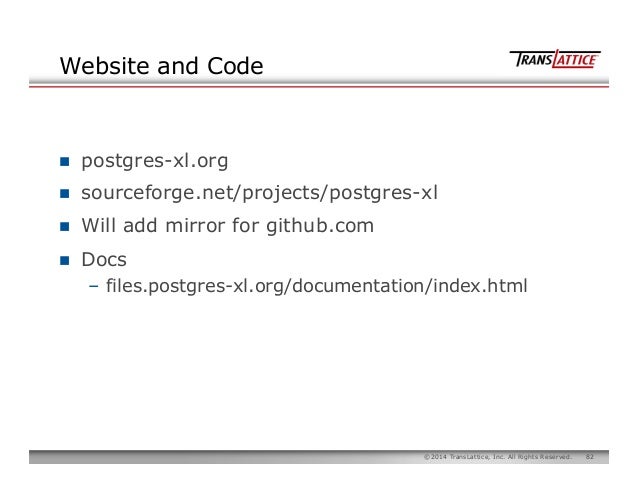

  • 77. 82©2014 TransLattice, Inc. All Rights Reserved. Website and Code n  postgres-xl.org n  sourceforge.net/projects/postgres-xl n  Will add mirror for github.com n  Docs –  files.postgres-xl.org/documentation/index.html

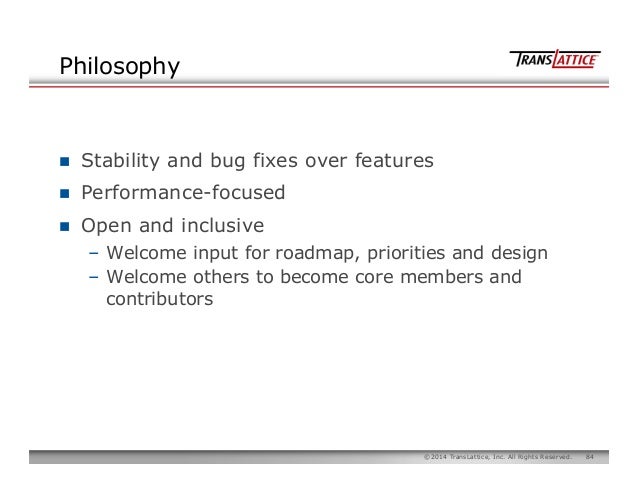

  • 78. 84©2014 TransLattice, Inc. All Rights Reserved. Philosophy n  Stability and bug fixes over features n  Performance-focused n  Open and inclusive –  Welcome input for roadmap, priorities and design –  Welcome others to become core members and contributors

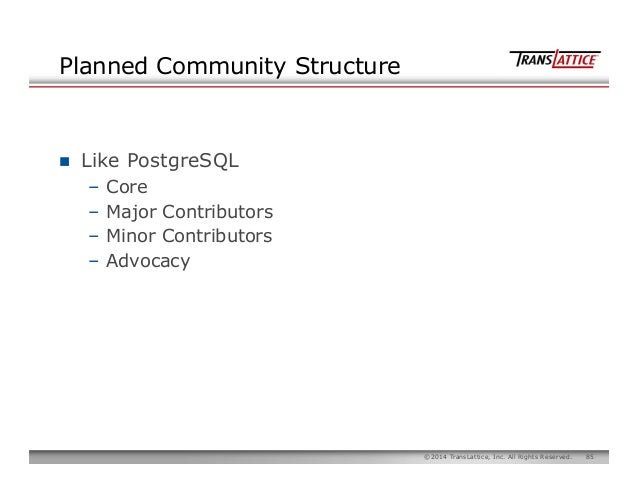

  • 79. 85©2014 TransLattice, Inc. All Rights Reserved. Planned Community Structure n  Like PostgreSQL –  Core –  Major Contributors –  Minor Contributors –  Advocacy

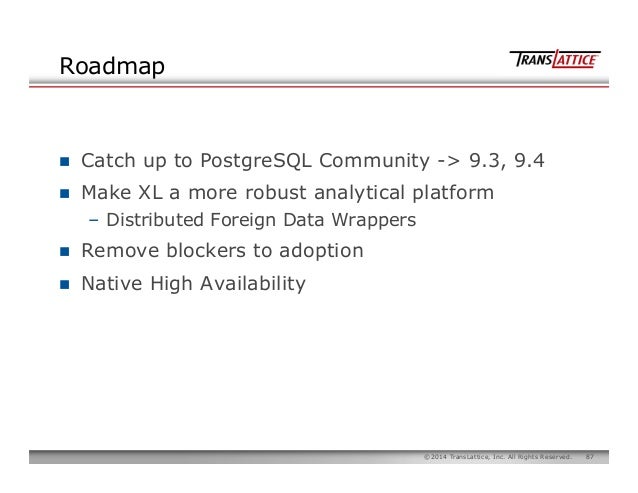

  • 80. 87©2014 TransLattice, Inc. All Rights Reserved. Roadmap n  Catch up to PostgreSQL Community -> 9.3, 9.4 n  Make XL a more robust analytical platform –  Distributed Foreign Data Wrappers n  Remove blockers to adoption n  Native High Availability
  • 81. 88©2014 TransLattice, Inc. All Rights Reserved. Thank You! msharp@translattice.com @mason_db

×
