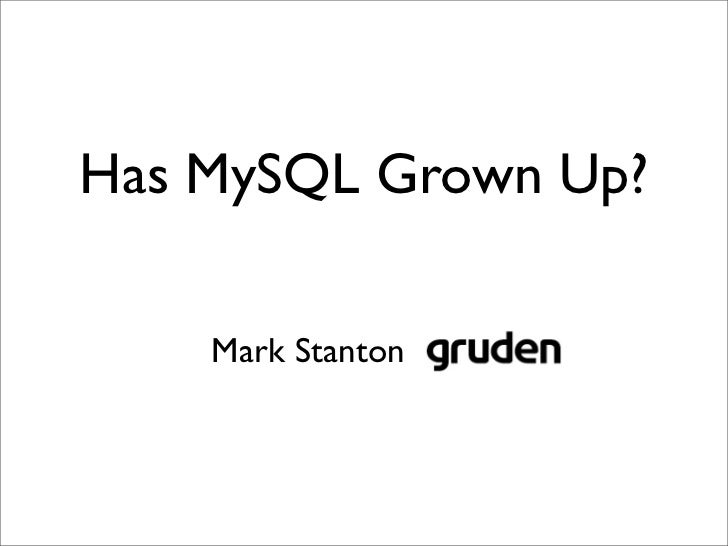

Has MySQL Grown Up?    Mark Stanton grude
A brief history
A brief history1995          Named after Monty’s daughter (My)2000          Open sourced2001   3.232003   4.02005   5.0   ...
Where are we now?• MySQL is growing up• Oracle are showing love• Facebook, Google & others are contributing• Make sure you...
The wonderful world of   Storage Engines
Storage Engines•   Storage engines are pluggable    table types•   You can have multiple storage    engines within each a ...
MyISAM• Simple, light weight• File based• FULLTEXT indexes• Table level locking
InnoDB•   ACID compliant         •   Hot backup•   Crash safe             •   Active development•   Foreign keys          ...
NDB - MySQL Cluster•   High Availability•   Tables clustered across    nodes•   Auto fail & recover•   Auto partitioning• ...
Other Storage Engines• MERGE• MEMORY• BLACKHOLE• CSV (                                                      )     CREATE T...
Storage Engines:        Conclusion• InnoDB is the new default & new direction• MyISAM is the past• If you are still on MyI...
Replication
Why Replicate?• Scale out• High availability• Geographic• Backup• Analytics / Business Intelligence
Under the Hood:              Logs                               IO Thread             Step 2   Step 3                     ...
Under the Hood:    Format     • Statement:       UPDATE table..     • Records      1100101100111
Under the Hood:            Semi-sync             Step 1   Step 1Step 1                         Step 2
Configuration:               Master-Slave•   Master my.cnf:    server-id = 10    log-bin=mysql-M1-bin•   Master DB:    mysq...
SHOW SLAVE STATUSmysql> show slave status G*************************** 1.   row ***************************               ...
In Practice
Multi-Master  M1      M2 M1#S1   M2#S1
Why Multi-Master?• Active/Passive sites• High Availability• Geographically dispersed writes
Multi-Master:        ConsiderationsMulti-Master replication needs at least one of:•   Conflict Avoidance•   Conflict Resolut...
Multi-Master:      Considerations• Conflict Avoidance • UUIDs • Auto increment hacks = 2   auto_increment_increment   auto_...
Multi-Master:       Considerations• Conflict Resolution • Cluster/NDB • Galera • or roll your own...
Configuration:              Multi-MasterName    Server-Id PortM1      10        3310M1-S1   11        3311M2      20       ...
Review of Topologies   Master   Master   Master   Master     Master     Master   Slave    Slave                         Sl...
Connector/J• MySQL’s Connector/J supports: • Failover • Load Balancing • (Replication)
JDBC Connection          Syntaxjdbc:mysql://hostname:port/dbname ?property=valuejdbc:mysql://localhost:3306/test?username=...
JDBC Failoverjdbc:mysql://host1:port1,host2:port2/dbname
JDBC Load Balancingjdbc:mysql:loadbalance://host1:port1,host2:port2,host3:port3/dbname
Warning• Failover doesn’t attempt to be transparent• ColdFusion doesn’t allow you full control• Check/upgrade your Connect...
MySQL Enterprise   Monitor
MySQL Enterprise       Monitor• Heat maps• Charts• Query analyser• Replication status• Configurable advisors & email alerts...
MySQL Enterprise       Monitor• Server with agents for each mysqld• Query analyser can have performance hit• Non-free
Backing Up MySQL• Several approaches: • Copy DB files • mysqldump • binlog • Backup to slave • mysqlbackup
Backup: File copy• Enable read lock:  mysql> LOCK TABLES READ;  mysql> FLUSH TABLES;• Run file copy:  $ cp -R ./myDB /mybac...
Backup: mysqldump• Creates an sql script containing commands  to recreate database• Run from command-line:  $ mysqldump --...
Backup: binlog• The binary log: • records statements • can be replayed from arbitrary point • need to know where to replay...
Backup: Slave• Setup dedicated slave for backup purposes• Shutdown slave• Run backup• Restart slave
Backup: mysqlbackup• Non-free enterprise backup tool• Features: • Hot • Incremental • Compressed • Verification
Summary of Backup              Options                                                                           backup to...
Questions?• Mark Stanton• http://blog.gruden.com• mark@gruden.com• @MarkStanto
Upcoming SlideShare
Loading in …5
×

Has MySQL grown up?

2,792 views
2,704 views

Published on

Much has changed in the MySQL world over the past few years with it being first bought by Sun and then gobbled by Oracle. So is it going to be sucked of oxygen or are Oracle serious about keeping MySQL popular and open?

The good news is that despite going quiet for a long while (one releases in 4+ years) it looks like Oracle have shown some love and rolled out significant changes and welcome improvements that improve the MySQL's overall maturity and performance.

This talk will walk through practical examples that demonstrate how these features can be best used.

Topics include:

With InnoDB being chosen over MyISAM as the default storage engine we'll explore the pros & cons of these and other table types.

A key to high availability is redundancy, so replication is vital. This talk will walk through real-world examples ranging from simple master-slave setups to more complex multi-master and multi-slave configurations.
Now that you have multiple servers up & running the next logical step is a look at the load balancing and failover features built into the latest JDBC drivers.

To round things out we'll examine options for backing up your mysql data and check out some of the new monitoring tools Oracle are providing as enterprise (i.e. non-free) add-ons.

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
2,792
On SlideShare
0
From Embeds
0
Number of Embeds
12
Actions
Shares
0
Downloads
16
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Has MySQL grown up?

  1. 1. Has MySQL Grown Up? Mark Stanton grude
  2. 2. A brief history
  3. 3. A brief history1995 Named after Monty’s daughter (My)2000 Open sourced2001 3.232003 4.02005 5.0 Oracle buys the company behind InnoDB2006 MySQL hits 33% market share, Oracle tries to buy2008 5.1 Sun acquires MySQL for $1 billion, Monty leaves2010 5.5 Oracle buys Sun for $7.4 billion
  4. 4. Where are we now?• MySQL is growing up• Oracle are showing love• Facebook, Google & others are contributing• Make sure you are running: • 5.5 • recent version of 5.1
  5. 5. The wonderful world of Storage Engines
  6. 6. Storage Engines• Storage engines are pluggable table types• You can have multiple storage engines within each a DB• Transparent to clients (mostly) MyISAM InnoDB
  7. 7. MyISAM• Simple, light weight• File based• FULLTEXT indexes• Table level locking
  8. 8. InnoDB• ACID compliant • Hot backup• Crash safe • Active development• Foreign keys • Optimised for multi-core• Row-level locking • Default from 5.5 on• Table compression • No FULLTEXT (until 5.6)
  9. 9. NDB - MySQL Cluster• High Availability• Tables clustered across nodes• Auto fail & recover• Auto partitioning• No FK, limited transactions• Poor multi-table joins• Pretends to be MySQL, really whole other product
  10. 10. Other Storage Engines• MERGE• MEMORY• BLACKHOLE• CSV ( ) CREATE TABLE export ENGINE=CSV SELECT foo, bar FROM table
  11. 11. Storage Engines: Conclusion• InnoDB is the new default & new direction• MyISAM is the past• If you are still on MyISAM, think of moving• NDB is very interesting for special cases
  12. 12. Replication
  13. 13. Why Replicate?• Scale out• High availability• Geographic• Backup• Analytics / Business Intelligence
  14. 14. Under the Hood: Logs IO Thread Step 2 Step 3 SQL ThreadStep 1 Step 4
  15. 15. Under the Hood: Format • Statement: UPDATE table.. • Records 1100101100111
  16. 16. Under the Hood: Semi-sync Step 1 Step 1Step 1 Step 2
  17. 17. Configuration: Master-Slave• Master my.cnf: server-id = 10 log-bin=mysql-M1-bin• Master DB: mysql> CREATE USER repl; Name Server-Id Port mysql> GRANT REPLICATION SLAVE ON *.* TO repl; M1 10 3310• Slave my.cnf: server-id = 11 M1-S1 11 3311• Slave DB: mysql> CHANGE MASTER TO MASTER_HOST=localhost, MASTER_PORT=3310, MASTER_USER=repl;
  18. 18. SHOW SLAVE STATUSmysql> show slave status G*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Server_Id: 10 Master_Host: localhost Master_Port: 3310 Master_User: repl Master_Log_File: mysql-M1-bin.000017 Read_Master_Log_Pos: 107 Exec_Master_Log_Pos: 107 Slave_IO_Running: Yes Slave_SQL_Running: Yes Last_Errno: 0 Last_Error: Seconds_Behind_Master: 0 Master_Server_Id: 10
  19. 19. In Practice
  20. 20. Multi-Master M1 M2 M1#S1 M2#S1
  21. 21. Why Multi-Master?• Active/Passive sites• High Availability• Geographically dispersed writes
  22. 22. Multi-Master: ConsiderationsMulti-Master replication needs at least one of:• Conflict Avoidance• Conflict Resolution• Hope
  23. 23. Multi-Master: Considerations• Conflict Avoidance • UUIDs • Auto increment hacks = 2 auto_increment_increment auto_increment_offset = 1 • Semi-sync • Active/Passive • Ticket server
  24. 24. Multi-Master: Considerations• Conflict Resolution • Cluster/NDB • Galera • or roll your own...
  25. 25. Configuration: Multi-MasterName Server-Id PortM1 10 3310M1-S1 11 3311M2 20 3320 M1 M2M2-S1 21 3321• M2 as slave of M1• M1 as slave of M2• M2-S1 as slave of M2 M1#S1 M2#S1
  26. 26. Review of Topologies Master Master Master Master Master Master Slave Slave Slave Slave Master Slave Master Master Mul)* Mul)*Mul$% Slaves SlavesSlaves
  27. 27. Connector/J• MySQL’s Connector/J supports: • Failover • Load Balancing • (Replication)
  28. 28. JDBC Connection Syntaxjdbc:mysql://hostname:port/dbname ?property=valuejdbc:mysql://localhost:3306/test?username=root
  29. 29. JDBC Failoverjdbc:mysql://host1:port1,host2:port2/dbname
  30. 30. JDBC Load Balancingjdbc:mysql:loadbalance://host1:port1,host2:port2,host3:port3/dbname
  31. 31. Warning• Failover doesn’t attempt to be transparent• ColdFusion doesn’t allow you full control• Check/upgrade your Connector/J version• Set connectionTimeout, socketTimeout and blacklistTimeout carefully
  32. 32. MySQL Enterprise Monitor
  33. 33. MySQL Enterprise Monitor• Heat maps• Charts• Query analyser• Replication status• Configurable advisors & email alerts• Event logs
  34. 34. MySQL Enterprise Monitor• Server with agents for each mysqld• Query analyser can have performance hit• Non-free
  35. 35. Backing Up MySQL• Several approaches: • Copy DB files • mysqldump • binlog • Backup to slave • mysqlbackup
  36. 36. Backup: File copy• Enable read lock: mysql> LOCK TABLES READ; mysql> FLUSH TABLES;• Run file copy: $ cp -R ./myDB /mybackups/myDB• Unlock tables: mysql> UNLOCK TABLES;
  37. 37. Backup: mysqldump• Creates an sql script containing commands to recreate database• Run from command-line: $ mysqldump --single-transaction --all-databases > backup_sunday_1_PM.sql
  38. 38. Backup: binlog• The binary log: • records statements • can be replayed from arbitrary point • need to know where to replay from• Rotate binlog mysql> FLUSH LOGS;• Then copy relevant files
  39. 39. Backup: Slave• Setup dedicated slave for backup purposes• Shutdown slave• Run backup• Restart slave
  40. 40. Backup: mysqlbackup• Non-free enterprise backup tool• Features: • Hot • Incremental • Compressed • Verification
  41. 41. Summary of Backup Options backup to copy DB files mysqldump binlog mysqlbackup slave Lock (MyISAM) Lock (MyISAM)Hot/Read-Lock Lock Hot Hot Hot* (InnoDB) Hot (InnoDB)Incremental No No Yes No YesInnoDB Support No Yes Yes Yes YesRestore Speed Fast OK ** OK Fast Fast* use --single-transaction for InnoDB** disable for autocommit/FK checks in InnoDB
  42. 42. Questions?• Mark Stanton• http://blog.gruden.com• mark@gruden.com• @MarkStanto

×
