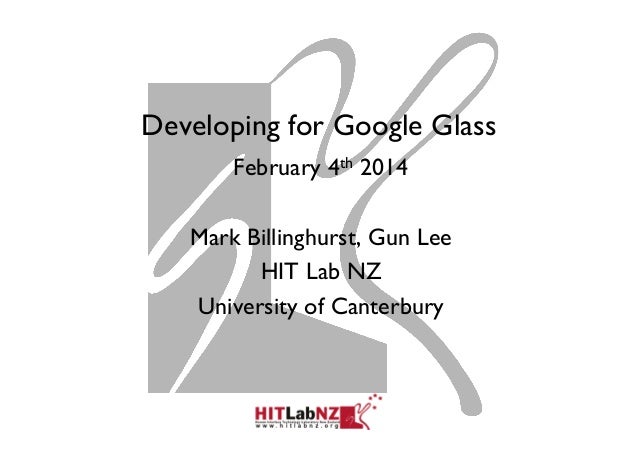

Developing for Google Glass
February 4th 2014
Mark Billinghurst, Gun Lee
HIT Lab NZ
University of Canterbury

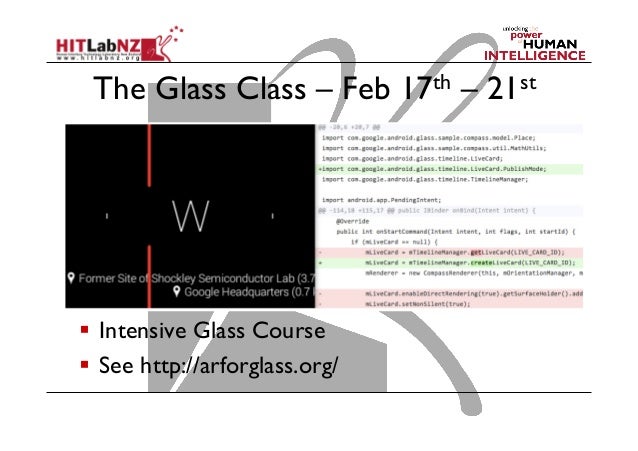

The Glass Class – Feb 17th – 21st

  Intensive Glass Course
  See http://arforglass.org/

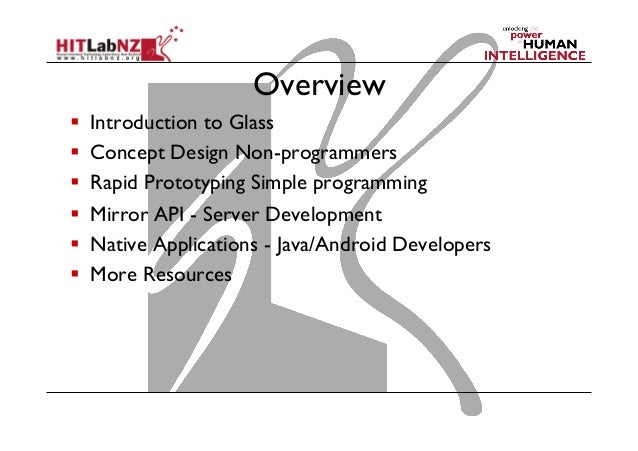

Overview
 
 
 
 
 
 

Introduction to Glass
Concept Design Non-programmers
Rapid Prototyping Simple programming
Mirr...
Introduction
Google Glass

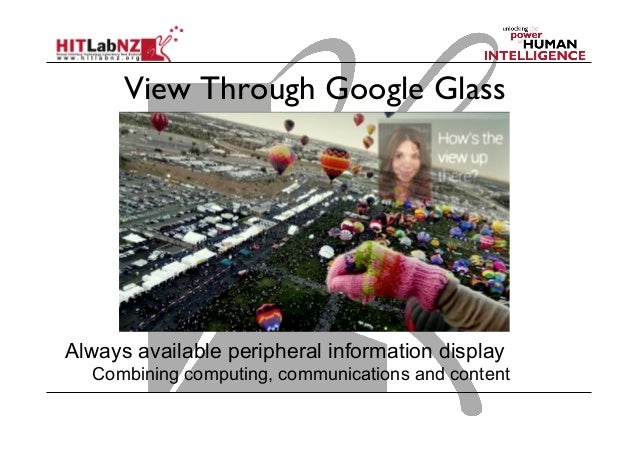

View Through Google Glass

Always available peripheral information display
Combining computing, communications and content...
User Interface

  dfasdf
  Hardware
  CPU TI OMAP 4430 – 1 Ghz
  16 GB SanDisk Flash,1 GB Ram
  570mAh Battery

  Input
  5 mp camera, 720p r...
User Experience
  Truly Wearable Computing
  Less than 46 ounces

  Hands-free Information Access
  Voice interaction,...

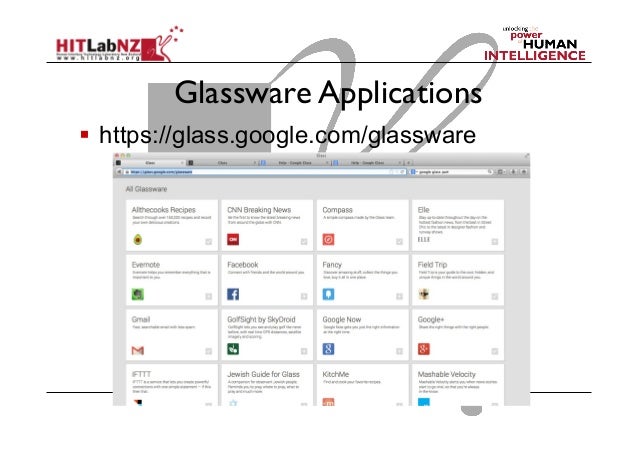

Glassware Applications
  https://glass.google.com/glassware
Concept Design Tools
Glass Sim – http://glasssim.com/

  Simulate the view through Google Glass
  Multiple card templates
Glass UI Templates
  Google Glass PSD Templates
  http://glass-ui.com/
  http://dsky9.com/glassfaq/the-google-glass-psd...

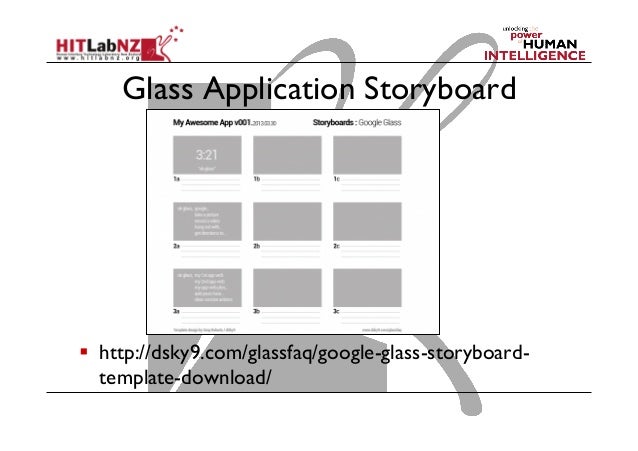

Glass Application Storyboard

  http://dsky9.com/glassfaq/google-glass-storyboardtemplate-download/
Glass Application Flow
Rapid Prototyping

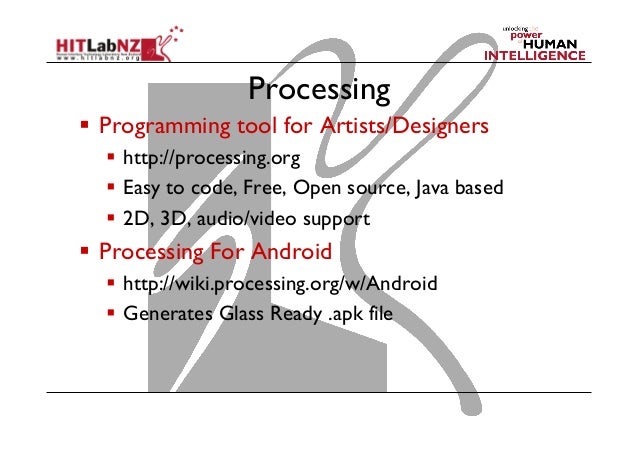

Processing
  Programming tool for Artists/Designers
  http://processing.org
  Easy to code, Free, Open source, Java bas...

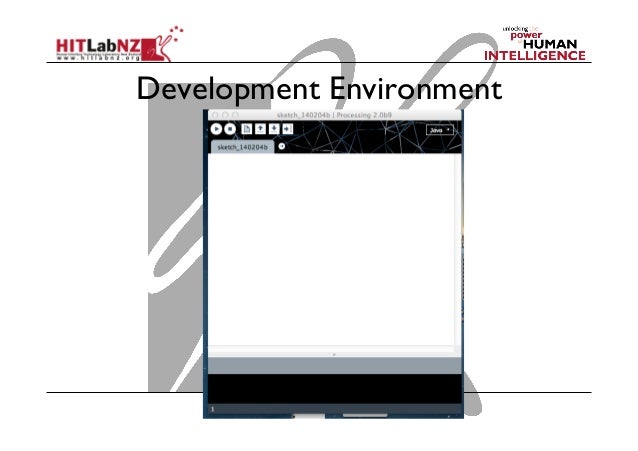

Development Environment
Hello World
//called initially at the start of the Processing sketch!
void setup() {!
size(640, 360);!
background(0);!
} !...

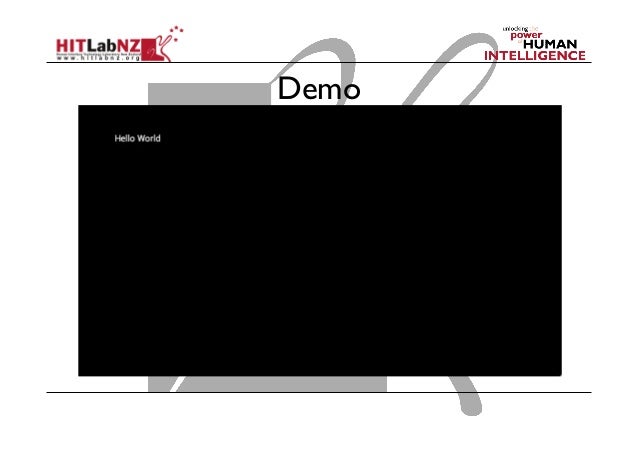

Demo

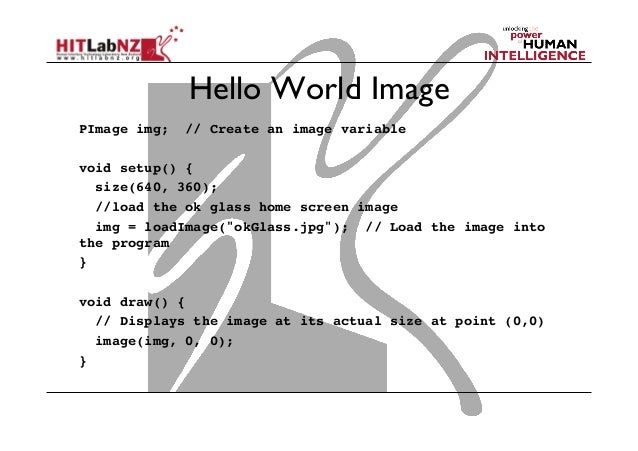

Hello World Image
PImage img; // Create an image variable!
!
void setup() {!
size(640, 360);!
//load the ok glass home scr...
Demo

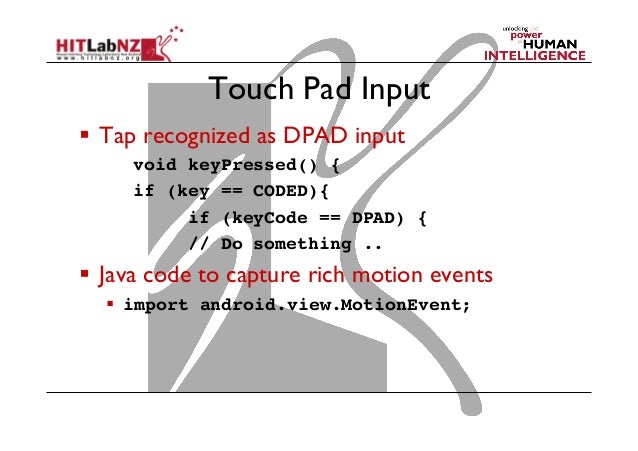

Touch Pad Input
  Tap recognized as DPAD input
!void keyPressed() {!
!if (key == CODED){!
!
!if (keyCode == DPAD) {!
!// ...
Motion Event
//Glass Touch Events - reads from touch pad!
public boolean dispatchGenericMotionEvent(MotionEvent event) {
!...
Demo
Sensors
  Ketai Library for Processing
  https://code.google.com/p/ketai/

  Support all phone sensors
  GPS, Compass,...

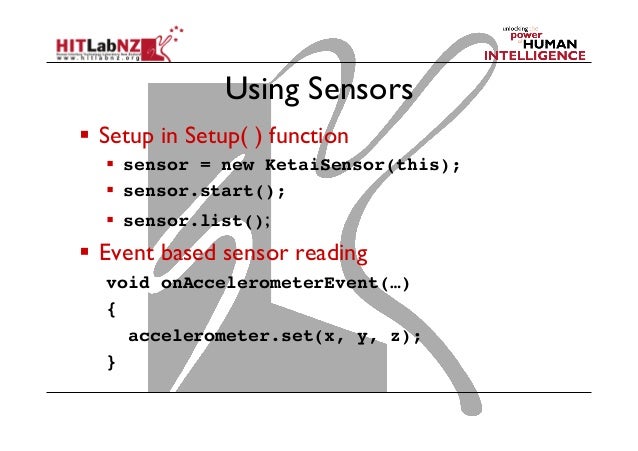

Using Sensors
  Setup in Setup( ) function
  sensor = new KetaiSensor(this);!
  sensor.start();!
  sensor.list();

  ...

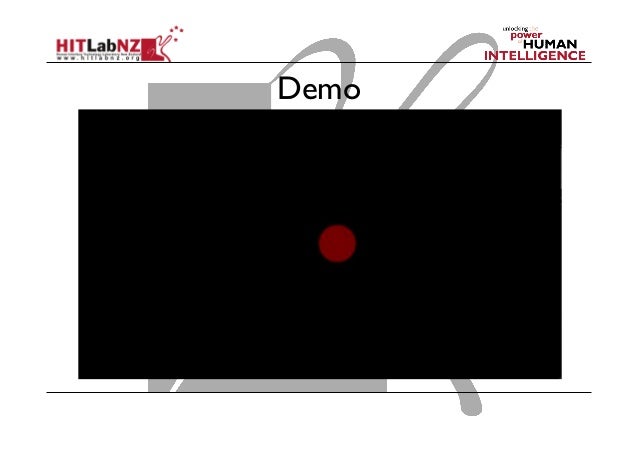

Sensor Demo
Other Tools
  App Inventor – visual programming for Android
  http://appinventor.mit.edu/

  Phone Gap – Android Apps u...
Mirror API + Glass GDK

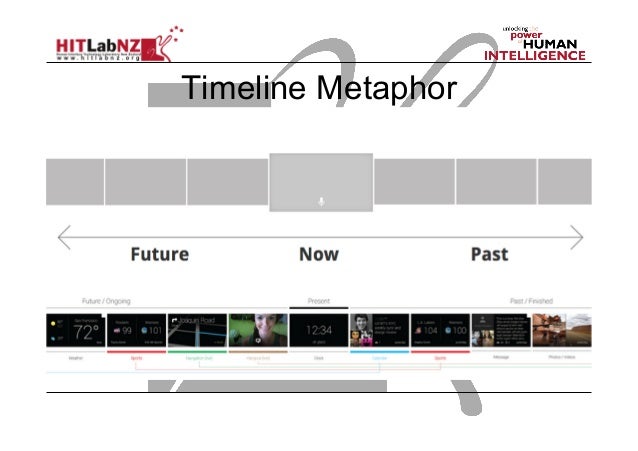

Timeline Metaphor

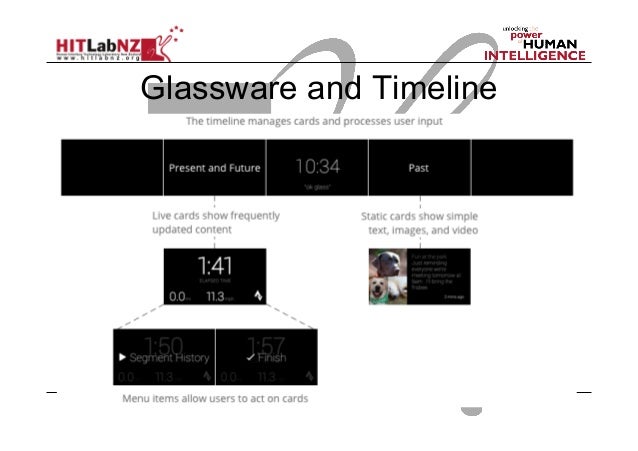

Glassware and Timeline

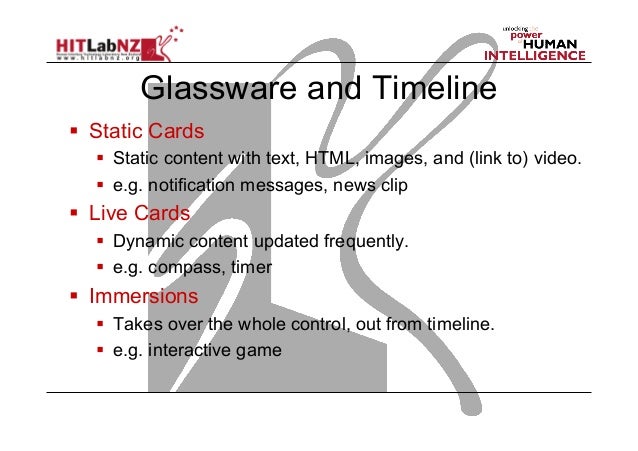

Glassware and Timeline

  Static Cards
  Static content with text, HTML, images, and (link to) video.
  e.g. notificat...

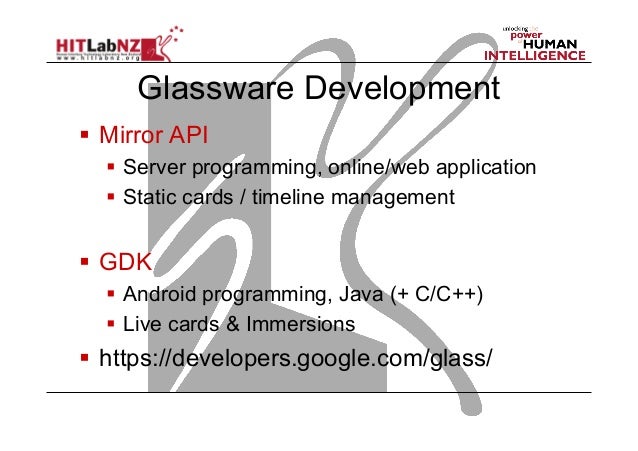

Glassware Development

  Mirror API
  Server programming, online/web application
  Static cards / timeline management
...
Mirror API
  REST API
  Java servlet, PHP, Go,
Python, Ruby, .NET

  Timeline based apps
  Static cards
-  Text, HTML,...

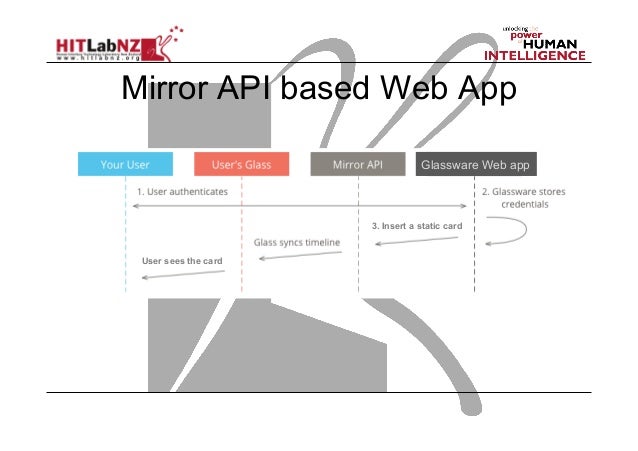

Mirror API based Web App

Glassware Web app

3. Insert a static card

User sees the card
Develop with Mirror API

  Create a Google APIs Console project
  Prepare a web server
  https callback for OAuth 2.0
...

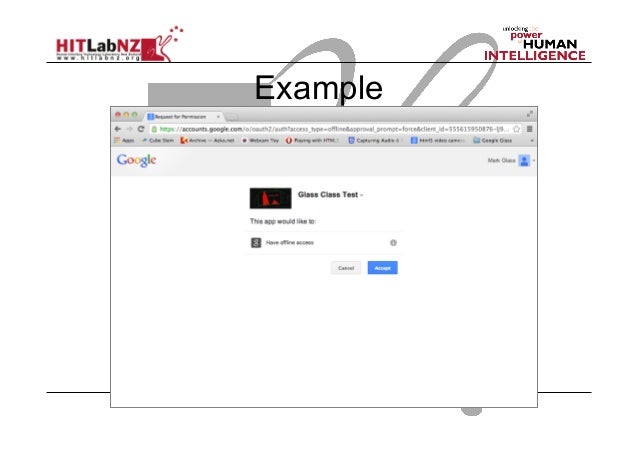

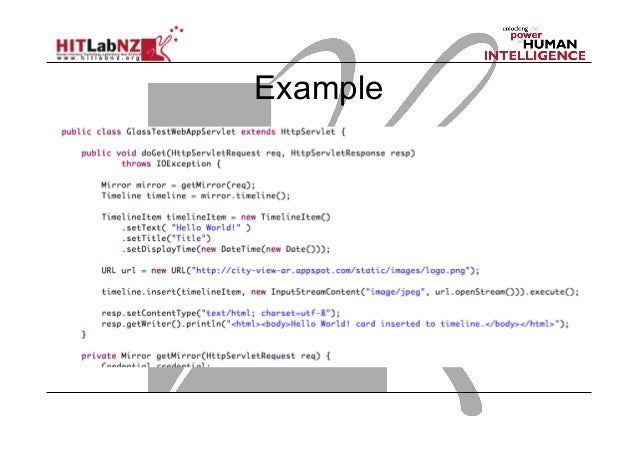

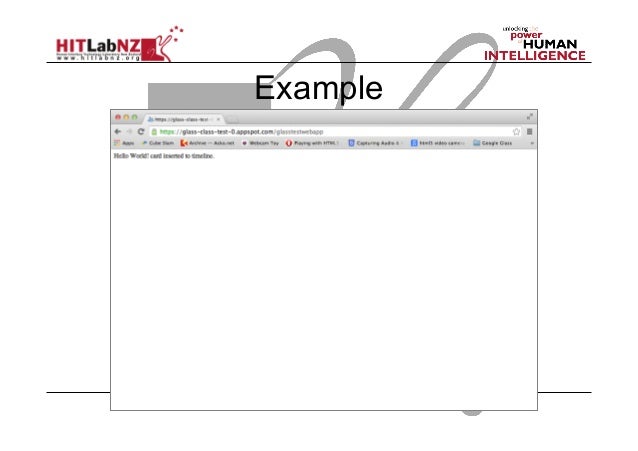

Example
Example
Example
Example
Example

On your Glass

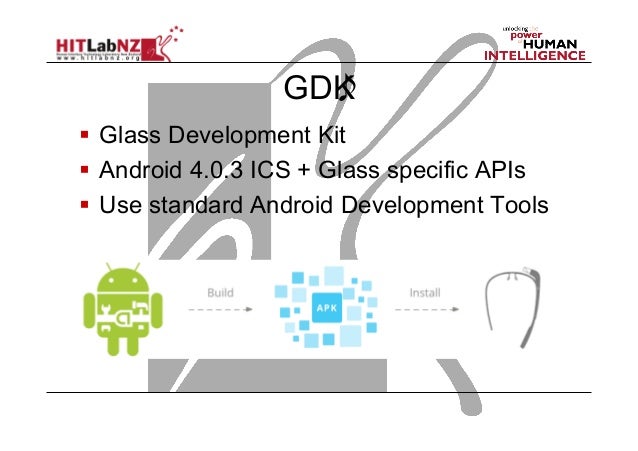

GDK

  Glass Development Kit
  Android 4.0.3 ICS + Glass specific APIs
  Use standard Android Development Tools

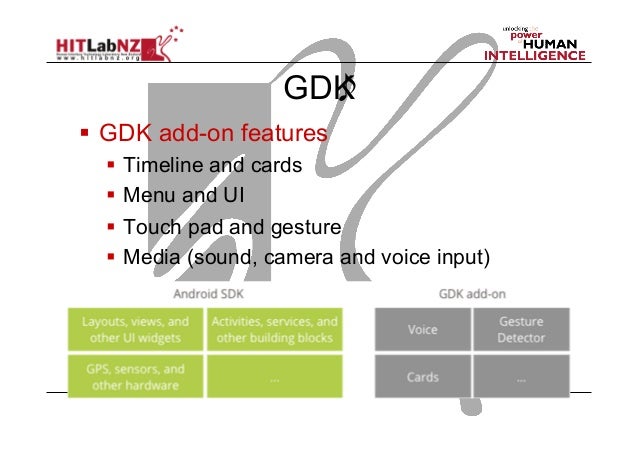

GDK

  GDK add-on features
  Timeline and cards
  Menu and UI
  Touch pad and gesture
  Media (sound, camera and voic...
Live Cards vs. Immersions

  Live cards display frequently updated
information to the left of the Glass clock.
  Integr...
Live Cards vs. Immersions
Live Cards

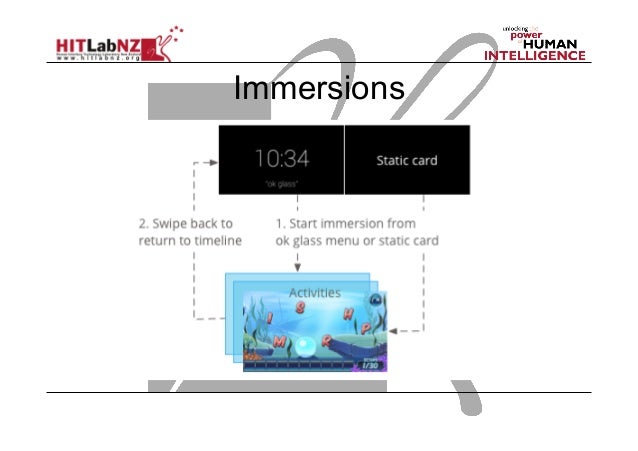

Immersions

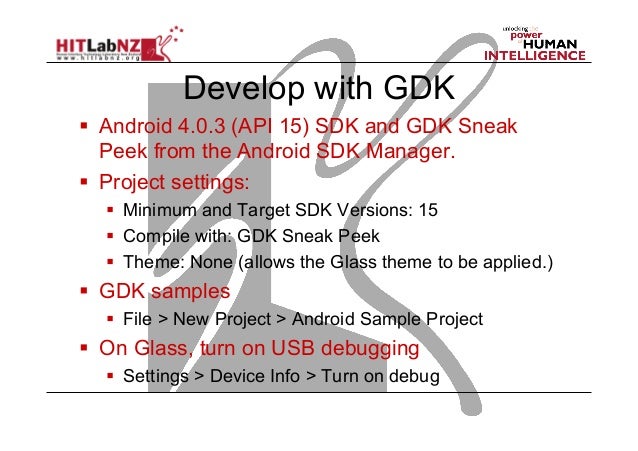

Develop with GDK

  Android 4.0.3 (API 15) SDK and GDK Sneak
Peek from the Android SDK Manager.
  Project settings:
  ...

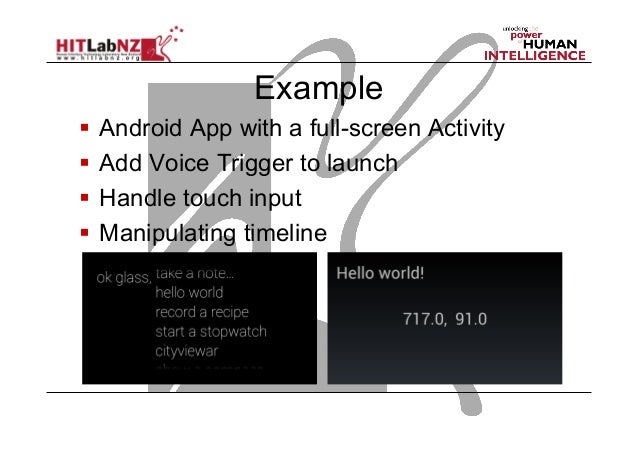

Example

  Android App with a full-screen Activity
  Add Voice Trigger to launch
  Handle touch input
  Manipulating ...
Example

  Add Voice Trigger to launch
  Add intent filter to AndroidManifest.xml
Example

  Add Voice Trigger to launch (continued)
  Add xml/voice_trigger.xml to res folder

  Add voice_trigger_titl...

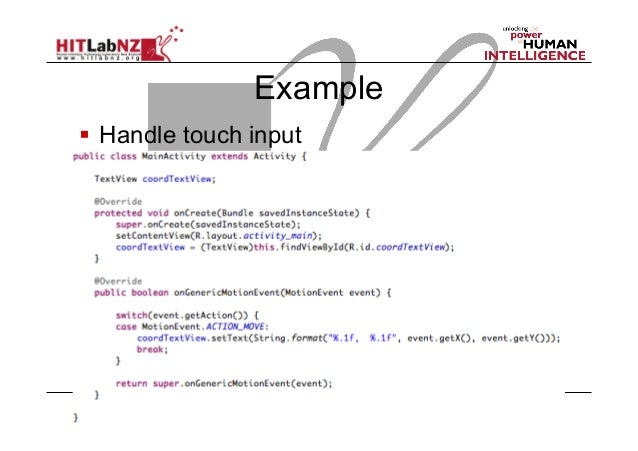

Example

  Handle touch input
Example

  Adding static cards to timeline

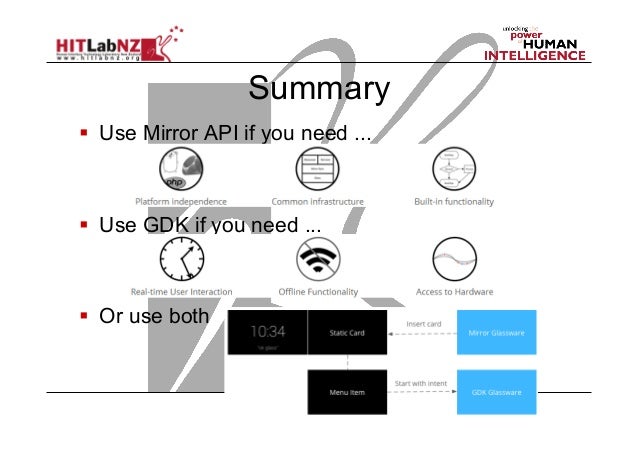

Summary

  Use Mirror API if you need ...

  Use GDK if you need ...

  Or use both
Resources
  Main Developer Website
  https://developers.google.com/glass/

  Glass Apps Developer Site
  http://glass-...
Books
  Programming Google Glass
  Eric Redmond

  Rapid Android Development:
Build Rich, Sensor-Based
Applications wit...
More Information

  Mark Billinghurst
  mark.billinghurst@hitlabnz.org

  Gun Lee
  gun.lee@hitlabnz.org
Developing for Google Glass
Developing for Google Glass
Developing for Google Glass
Upcoming SlideShare
Loading in...5
×

Developing for Google Glass

11,124

Published on

Presentation given by Mark Billinghurst and Gun Lee on how to develop for Google Glass. Given on February 4th in Christchurch New Zealand.

Published in: Technology
0 Comments
22 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
11,124
On Slideshare
0
From Embeds
0
Number of Embeds
4
Actions
Shares
0
Downloads
286
Comments
0
Likes
22
Embeds 0
No embeds

No notes for slide

Transcript of "Developing for Google Glass"

  1. 1. Developing for Google Glass February 4th 2014 Mark Billinghurst, Gun Lee HIT Lab NZ University of Canterbury
  2. 2. The Glass Class – Feb 17th – 21st   Intensive Glass Course   See http://arforglass.org/
  3. 3. Overview             Introduction to Glass Concept Design Non-programmers Rapid Prototyping Simple programming Mirror API - Server Development Native Applications - Java/Android Developers More Resources
  4. 4. Introduction
  5. 5. Google Glass
  6. 6. View Through Google Glass Always available peripheral information display Combining computing, communications and content capture
  7. 7. User Interface   dfasdf

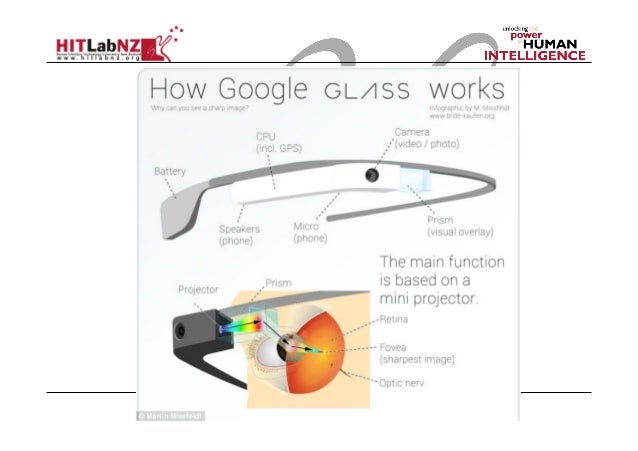

  8. 8.   Hardware   CPU TI OMAP 4430 – 1 Ghz   16 GB SanDisk Flash,1 GB Ram   570mAh Battery   Input   5 mp camera, 720p recording, microphone   GPS, InvenSense MPU-9150 inertial sensor   Output   Bone conducting speaker   640x360 micro-projector display
  9. 9. User Experience   Truly Wearable Computing   Less than 46 ounces   Hands-free Information Access   Voice interaction, Ego-vision camera   Intuitive User Interface   Touch, Gesture, Speech, Head Motion   Access to all Google Services   Map, Search, Location, Messaging, Email, etc
  10. 10. Glassware Applications   https://glass.google.com/glassware
  11. 11. Concept Design Tools
  12. 12. Glass Sim – http://glasssim.com/   Simulate the view through Google Glass   Multiple card templates
  13. 13. Glass UI Templates   Google Glass PSD Templates   http://glass-ui.com/   http://dsky9.com/glassfaq/the-google-glass-psd-template/   UXPin Wireframing Tool   http://uxpin.com/
  14. 14. Glass Application Storyboard   http://dsky9.com/glassfaq/google-glass-storyboardtemplate-download/
  15. 15. Glass Application Flow
  16. 16. Rapid Prototyping
  17. 17. Processing   Programming tool for Artists/Designers   http://processing.org   Easy to code, Free, Open source, Java based   2D, 3D, audio/video support   Processing For Android   http://wiki.processing.org/w/Android   Generates Glass Ready .apk file
  18. 18. Development Environment

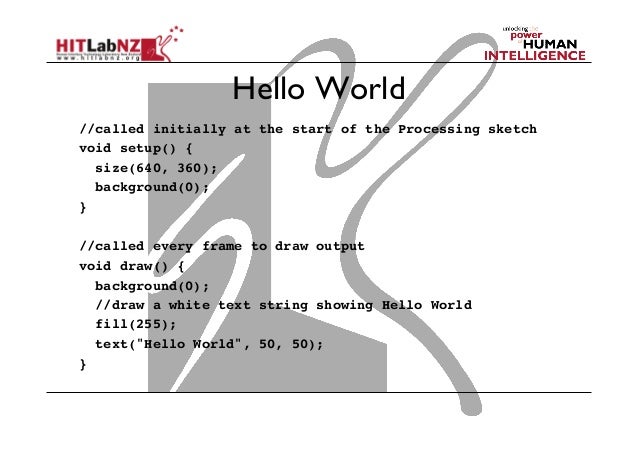

  19. 19. Hello World //called initially at the start of the Processing sketch! void setup() {! size(640, 360);! background(0);! } ! ! //called every frame to draw output! void draw() {! background(0);! //draw a white text string showing Hello World! fill(255);! text("Hello World", 50, 50);! }!
  20. 20. Demo
  21. 21. Hello World Image PImage img; // Create an image variable! ! void setup() {! size(640, 360);! //load the ok glass home screen image! img = loadImage("okGlass.jpg"); // Load the image into the program ! }! ! void draw() {! // Displays the image at its actual size at point (0,0)! image(img, 0, 0);! }!
  22. 22. Demo
  23. 23. Touch Pad Input   Tap recognized as DPAD input !void keyPressed() {! !if (key == CODED){! ! !if (keyCode == DPAD) {! !// Do something ..!   Java code to capture rich motion events   import android.view.MotionEvent;!
  24. 24. Motion Event //Glass Touch Events - reads from touch pad! public boolean dispatchGenericMotionEvent(MotionEvent event) { ! float x = event.getX(); // get x/y coords ! float y = event.getY();! int action = event.getActionMasked(); // get code for action ! ! switch (action) { // let us know which action code shows up ! !case MotionEvent.ACTION_DOWN:! ! !touchEvent = "DOWN";! ! !fingerTouch = 1;! !break; ! !case MotionEvent.ACTION_MOVE:! ! !touchEvent = "MOVE";! ! !xpos = myScreenWidth-x*touchPadScaleX;! ! !ypos = y*touchPadScaleY;! !break;!
  25. 25. Demo

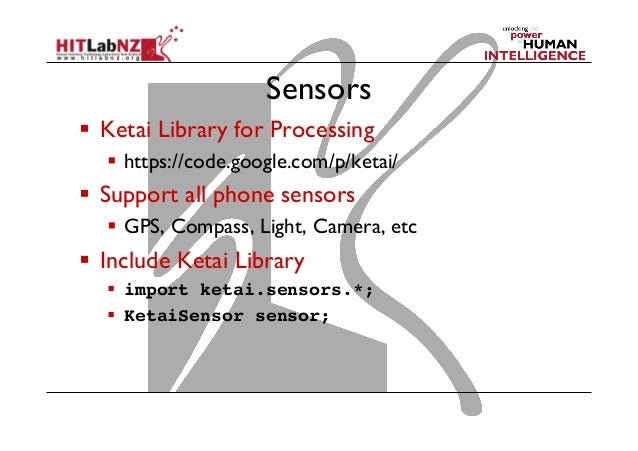

  26. 26. Sensors   Ketai Library for Processing   https://code.google.com/p/ketai/   Support all phone sensors   GPS, Compass, Light, Camera, etc   Include Ketai Library   import ketai.sensors.*;!   KetaiSensor sensor;!
  27. 27. Using Sensors   Setup in Setup( ) function   sensor = new KetaiSensor(this);!   sensor.start();!   sensor.list();   Event based sensor reading void onAccelerometerEvent(…)! {! accelerometer.set(x, y, z);! }!
  28. 28. Sensor Demo
  29. 29. Other Tools   App Inventor – visual programming for Android   http://appinventor.mit.edu/   Phone Gap – Android Apps using Javascript   http://phonegap.com/   Phone Gap for Glass   https://github.com/brendajin/googleglass-phonegap-example   WearScript   Using Javascript/HTML to develop Glass Applications   http://www.wearscript.com/
  30. 30. Mirror API + Glass GDK
  31. 31. Timeline Metaphor
  32. 32. Glassware and Timeline
  33. 33. Glassware and Timeline   Static Cards   Static content with text, HTML, images, and (link to) video.   e.g. notification messages, news clip   Live Cards   Dynamic content updated frequently.   e.g. compass, timer   Immersions   Takes over the whole control, out from timeline.   e.g. interactive game
  34. 34. Glassware Development   Mirror API   Server programming, online/web application   Static cards / timeline management   GDK   Android programming, Java (+ C/C++)   Live cards & Immersions   https://developers.google.com/glass/
  35. 35. Mirror API   REST API   Java servlet, PHP, Go, Python, Ruby, .NET   Timeline based apps   Static cards -  Text, HTML, media attachment (image & video) -  Standard and custom menu items   Manage timeline -  Subscribe to timeline notifications -  Sharing with contacts -  Location based services
  36. 36. Mirror API based Web App Glassware Web app 3. Insert a static card User sees the card
  37. 37. Develop with Mirror API   Create a Google APIs Console project   Prepare a web server   https callback for OAuth 2.0   Minimum storage for credentials   Create a web application   Java servlet, PHP, Go, Python, Ruby, .NET   Implement Oauth 2.0 authentication   Use Mirror API to make REST API calls -  Wrapper classes/methods provided
  38. 38. Example
  39. 39. Example
  40. 40. Example
  41. 41. Example

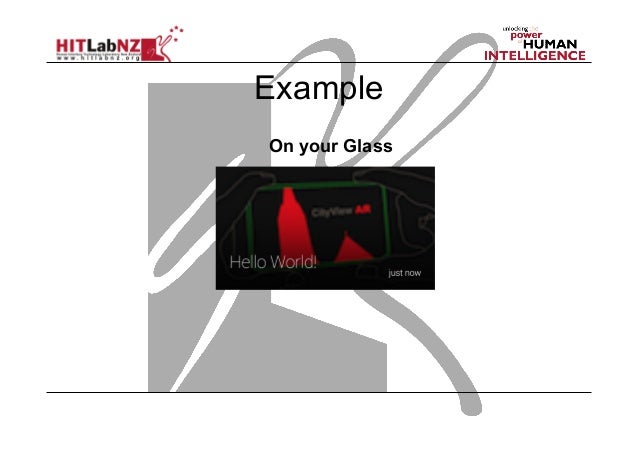

  42. 42. Example On your Glass
  43. 43. GDK   Glass Development Kit   Android 4.0.3 ICS + Glass specific APIs   Use standard Android Development Tools
  44. 44. GDK   GDK add-on features   Timeline and cards   Menu and UI   Touch pad and gesture   Media (sound, camera and voice input)
  45. 45. Live Cards vs. Immersions   Live cards display frequently updated information to the left of the Glass clock.   Integrate rich content into the timeline   Simple text/images to full-blown 3D graphics   Immersions let you build a user experience outside of the timeline.   Build interactive experiences   Extra control, less user input constraints
  46. 46. Live Cards vs. Immersions

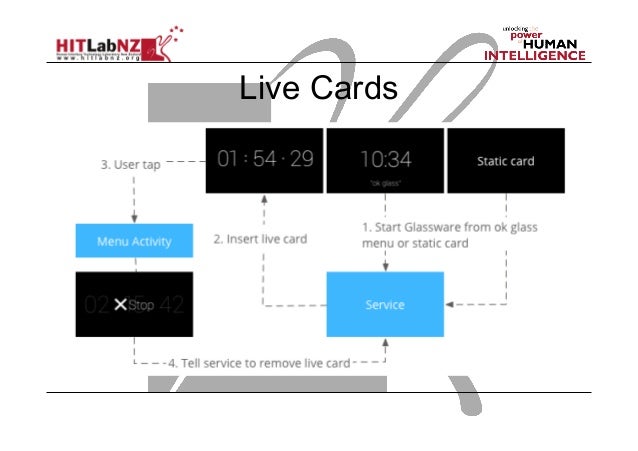

  47. 47. Live Cards
  48. 48. Immersions
  49. 49. Develop with GDK   Android 4.0.3 (API 15) SDK and GDK Sneak Peek from the Android SDK Manager.   Project settings:   Minimum and Target SDK Versions: 15   Compile with: GDK Sneak Peek   Theme: None (allows the Glass theme to be applied.)   GDK samples   File > New Project > Android Sample Project   On Glass, turn on USB debugging   Settings > Device Info > Turn on debug
  50. 50. Example   Android App with a full-screen Activity   Add Voice Trigger to launch   Handle touch input   Manipulating timeline

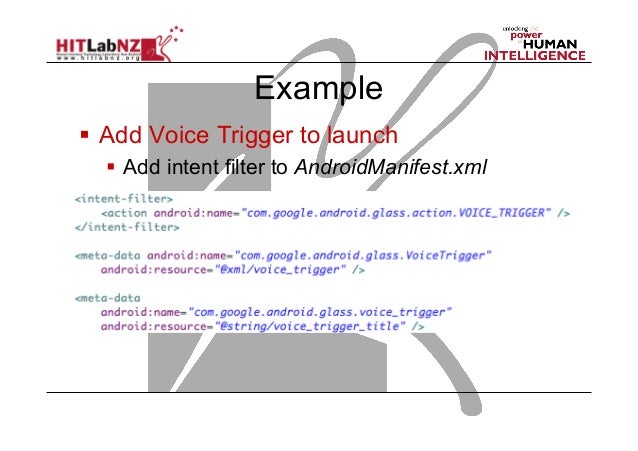

  51. 51. Example   Add Voice Trigger to launch   Add intent filter to AndroidManifest.xml

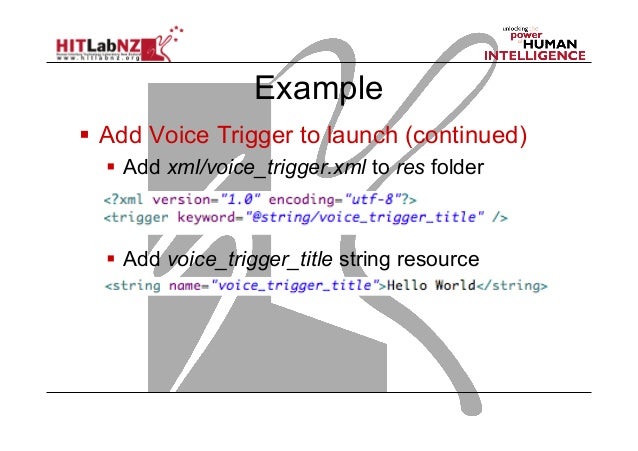

  52. 52. Example   Add Voice Trigger to launch (continued)   Add xml/voice_trigger.xml to res folder   Add voice_trigger_title string resource
  53. 53. Example   Handle touch input
  54. 54. Example   Adding static cards to timeline
  55. 55. Summary   Use Mirror API if you need ...   Use GDK if you need ...   Or use both
  56. 56. Resources   Main Developer Website   https://developers.google.com/glass/   Glass Apps Developer Site   http://glass-apps.org/glass-developer   Google Glass Emulator   http://glass-apps.org/google-glass-emulator   AR for Glass Website   http://www.arforglass.org/
  57. 57. Books   Programming Google Glass   Eric Redmond   Rapid Android Development: Build Rich, Sensor-Based Applications with Processing   Daniel Sauter
  58. 58. More Information   Mark Billinghurst   mark.billinghurst@hitlabnz.org   Gun Lee   gun.lee@hitlabnz.org
