All Virtual All The Time

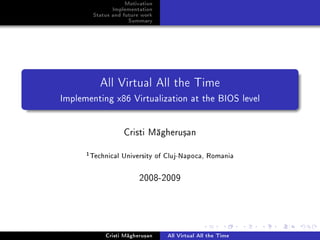

  1. 1. Motivation Implementation Status and future work Summary All Virtual All the Time Implementing x86 Virtualization at the BIOS level Cristi M gheru³an 1 Technical University of Cluj-Napoca, Romania 2008-2009 Cristi M gheru³an All Virtual All the Time

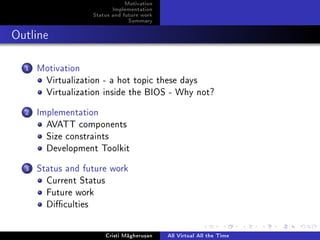

  2. 2. Motivation Implementation Status and future work Summary Outline 1 Motivation Virtualization - a hot topic these days Virtualization inside the BIOS - Why not? 2 Implementation AVATT components Size constraints Development Toolkit 3 Status and future work Current Status Future work Diculties Cristi M gheru³an All Virtual All the Time

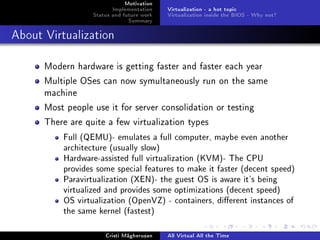

  3. 3. Motivation Implementation Virtualization - a hot topic Status and future work Virtualization inside the BIOS - Why not? Summary About Virtualization Modern hardware is getting faster and faster each year Multiple OSes can now symultaneously run on the same machine Most people use it for server consolidation or testing There are quite a few virtualization types Full (QEMU)- emulates a full computer, maybe even another architecture (usually slow) Hardware-assisted full virtualization (KVM)- The CPU provides some special features to make it faster (decent speed) Paravirtualization (XEN)- the guest OS is aware it's being virtualized and provides some optimizations (decent speed) OS virtualization (OpenVZ) - containers, dierent instances of the same kernel (fastest) Cristi M gheru³an All Virtual All the Time

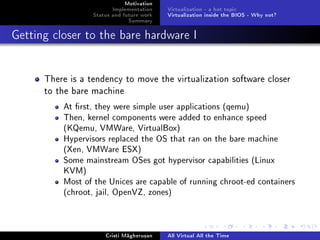

  4. 4. Motivation Implementation Virtualization - a hot topic Status and future work Virtualization inside the BIOS - Why not? Summary Getting closer to the bare hardware I There is a tendency to move the virtualization software closer to the bare machine At rst, they were simple user applications (qemu) Then, kernel components were added to enhance speed (KQemu, VMWare, VirtualBox) Hypervisors replaced the OS that ran on the bare machine (Xen, VMWare ESX) Some mainstream OSes got hypervisor capabilities (Linux KVM) Most of the Unices are capable of running chroot-ed containers (chroot, jail, OpenVZ, zones) Cristi M gheru³an All Virtual All the Time

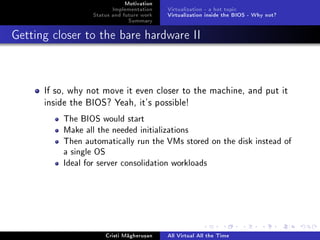

  5. 5. Motivation Implementation Virtualization - a hot topic Status and future work Virtualization inside the BIOS - Why not? Summary Getting closer to the bare hardware II If so, why not move it even closer to the machine, and put it inside the BIOS? Yeah, it's possible! The BIOS would start Make all the needed initializations Then automatically run the VMs stored on the disk instead of a single OS Ideal for server consolidation workloads Cristi M gheru³an All Virtual All the Time

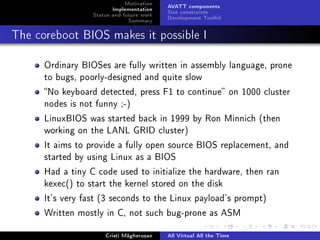

  6. 6. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary The coreboot BIOS makes it possible I Ordinary BIOSes are fully written in assembly language, prone to bugs, poorly-designed and quite slow No keyboard detected, press F1 to continue on 1000 cluster nodes is not funny ;-) LinuxBIOS was started back in 1999 by Ron Minnich (then working on the LANL GRID cluster) It aims to provide a fully open source BIOS replacement, and started by using Linux as a BIOS Had a tiny C code used to initialize the hardware, then ran kexec() to start the kernel stored on the disk It's very fast (3 seconds to the Linux payload's prompt) Written mostly in C, not such bug-prone as ASM Cristi M gheru³an All Virtual All the Time

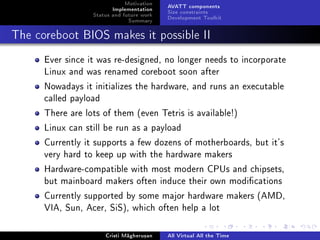

  7. 7. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary The coreboot BIOS makes it possible II Ever since it was re-designed, no longer needs to incorporate Linux and was renamed coreboot soon after Nowadays it initializes the hardware, and runs an executable called payload There are lots of them (even Tetris is available!) Linux can still be run as a payload Currently it supports a few dozens of motherboards, but it's very hard to keep up with the hardware makers Hardware-compatible with most modern CPUs and chipsets, but mainboard makers often induce their own modications Currently supported by some major hardware makers (AMD, VIA, Sun, Acer, SiS), which often help a lot Cristi M gheru³an All Virtual All the Time

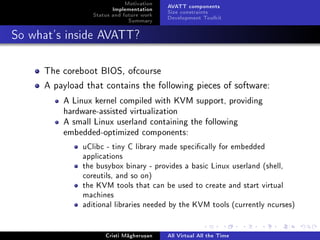

  8. 8. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary So what's inside AVATT? The coreboot BIOS, ofcourse A payload that contains the following pieces of software: A Linux kernel compiled with KVM support, providing hardware-assisted virtualization A small Linux userland containing the following embedded-optimized components: uClibc - tiny C library made specically for embedded applications the busybox binary - provides a basic Linux userland (shell, coreutils, and so on) the KVM tools that can be used to create and start virtual machines aditional libraries needed by the KVM tools (currently ncurses) Cristi M gheru³an All Virtual All the Time

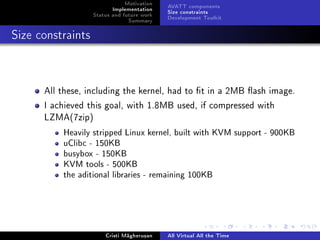

  9. 9. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary Size constraints All these, including the kernel, had to t in a 2MB ash image. I achieved this goal, with 1.8MB used, if compressed with LZMA(7zip) Heavily stripped Linux kernel, built with KVM support - 900KB uClibc - 150KB busybox - 150KB KVM tools - 500KB the aditional libraries - remaining 100KB Cristi M gheru³an All Virtual All the Time

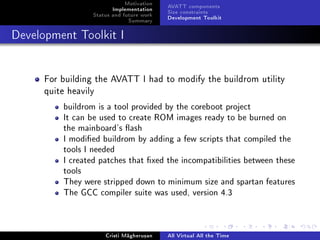

  10. 10. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary Development Toolkit I For building the AVATT I had to modify the buildrom utility quite heavily buildrom is a tool provided by the coreboot project It can be used to create ROM images ready to be burned on the mainboard's ash I modied buildrom by adding a few scripts that compiled the tools I needed I created patches that xed the incompatibilities between these tools They were stripped down to minimum size and spartan features The GCC compiler suite was used, version 4.3 Cristi M gheru³an All Virtual All the Time

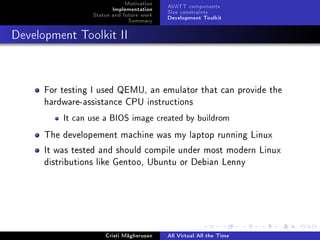

  11. 11. Motivation AVATT components Implementation Size constraints Status and future work Development Toolkit Summary Development Toolkit II For testing I used QEMU, an emulator that can provide the hardware-assistance CPU instructions It can use a BIOS image created by buildrom The developement machine was my laptop running Linux It was tested and should compile under most modern Linux distributions like Gentoo, Ubuntu or Debian Lenny Cristi M gheru³an All Virtual All the Time

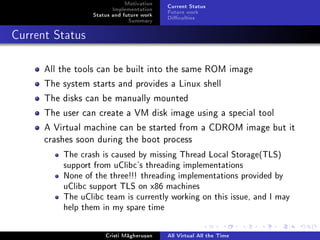

  12. 12. Motivation Current Status Implementation Future work Status and future work Diculties Summary Current Status All the tools can be built into the same ROM image The system starts and provides a Linux shell The disks can be manually mounted The user can create a VM disk image using a special tool A Virtual machine can be started from a CDROM image but it crashes soon during the boot process The crash is caused by missing Thread Local Storage(TLS) support from uClibc's threading implementations None of the three!!! threading implementations provided by uClibc support TLS on x86 machines The uClibc team is currently working on this issue, and I may help them in my spare time Cristi M gheru³an All Virtual All the Time

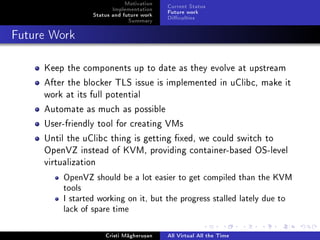

  13. 13. Motivation Current Status Implementation Future work Status and future work Diculties Summary Future Work Keep the components up to date as they evolve at upstream After the blocker TLS issue is implemented in uClibc, make it work at its full potential Automate as much as possible User-friendly tool for creating VMs Until the uClibc thing is getting xed, we could switch to OpenVZ instead of KVM, providing container-based OS-level virtualization OpenVZ should be a lot easier to get compiled than the KVM tools I started working on it, but the progress stalled lately due to lack of spare time Cristi M gheru³an All Virtual All the Time

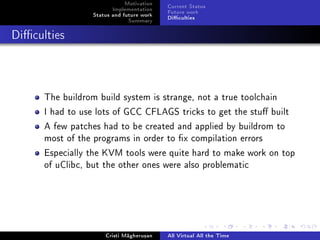

  14. 14. Motivation Current Status Implementation Future work Status and future work Diculties Summary Diculties The buildrom build system is strange, not a true toolchain I had to use lots of GCC CFLAGS tricks to get the stu built A few patches had to be created and applied by buildrom to most of the programs in order to x compilation errors Especially the KVM tools were quite hard to make work on top of uClibc, but the other ones were also problematic Cristi M gheru³an All Virtual All the Time

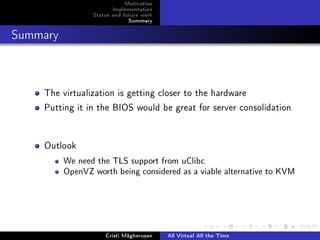

  15. 15. Motivation Implementation Status and future work Summary Summary The virtualization is getting closer to the hardware Putting it in the BIOS would be great for server consolidation Outlook We need the TLS support from uClibc OpenVZ worth being considered as a viable alternative to KVM Cristi M gheru³an All Virtual All the Time

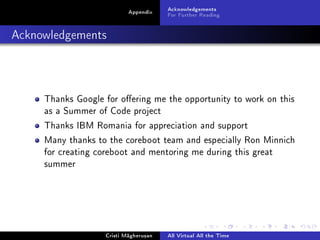

  16. 16. Appendix Acknowledgements For Further Reading Acknowledgements Thanks Google for oering me the opportunity to work on this as a Summer of Code project Thanks IBM Romania for appreciation and support Many thanks to the coreboot team and especially Ron Minnich for creating coreboot and mentoring me during this great summer Cristi M gheru³an All Virtual All the Time

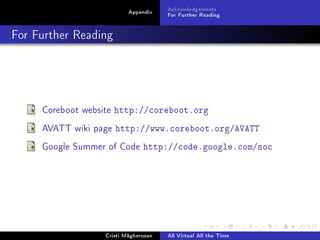

  17. 17. Appendix Acknowledgements For Further Reading For Further Reading Coreboot website http://coreboot.org AVATT wiki page http://www.coreboot.org/AVATT Google Summer of Code http://code.google.com/soc Cristi M gheru³an All Virtual All the Time

×
