Scaling Django with Gevent          Mahendra M          @mahendra   https://github.com/mahendra
@mahendra●   Python developer for 6 years●   FOSS enthusiast/volunteer for 14 years    ●   Bangalore LUG and Infosys LUG  ...
Concurrency models●   Multi-Process●   Threads●   Event driven●   Coroutines
Process/Threadrequest   dispatch()   worker_1()                                    read(fp)                               ...
Process/Thread●   There are blocking sections in the code●   Python GIL is an issue in thread based    concurrency
Event drivenevent_1                           hdler_1()   ev()event_2      block_on_events()    hdler_2()          Events ...
Event driven web server request                        open(fp)    reg() opened                         parse()           ...
Two years back●   Using python twisted for half of our products●   Using django for the other half●   Quite a nightmare
Python twisted●   An event driven library (very scalable)●   Using epoll or kqueue                 Server 1               ...
GeventA coroutine-based Python networking library thatuses greenlet to provide a high-level synchronousAPI on top of the l...
GeventA coroutine-based Python networking library thatuses greenlet to provide a high-level synchronousAPI on top of the l...
Coroutines●   Python coroutines are almost similar to    generators.def abc( seq ):     lst = list( seq )     for i in lst...
Gevent features●   Fast event-loop based on libevent (epoll,    kqueue etc.)●   Lightweight execution units based on green...
Greenlets●   Primitive notion of micro-threads with no implicit    scheduling●   Just co-routines or independent pseudo-  ...
Greenlet executionMain greenlet                     pause()                                   abc()                 Child ...
Greenlet codefrom greenlet import greenletdef test1():   gr2.switch()def test2():   gr1.switch()gr1 = greenlet(test1)gr2 =...
How does gevent work●   Creates an implicit event loop inside a    dedicated greenlet●   When a function in gevent wants t...
Gevent codeimport geventfrom gevent import socketurls = [www.google.com, www.example.com,www.python.org]jobs = [gevent.spa...
Gevent apis●   Greenlet management (spawn, timeout, schedule)●   Greenlet local data●   Networking (socket, ssl, dns, sele...
Gevent advantages●   Almost synchronous code. No callbacks and    deferreds●   Lightweight greenlets●   Good concurrency● ...
Gevent issues●   A greenlet will run till it blocks or switches    ●   Be vary of large/infinite loops●   Monkey patching ...
Our django dream●   We love django●   I like twisted, but love django more    ●   Coding complexity    ●   Lack of develop...
The Django Problem●   In a HTTP request cycle, we wanted the    following operations    ●   Fetch some metadata for an ite...
Twisted codedef handle_purchase( rqst ):   defs = []   defs.append( biller() )   defs.append( ads() )   defs.append( recos...
Twisted issues●   The issues were with everything else    ●   Header management    ●   Templates for response    ●   ORM s...
gunicorn●   A python WSGI HTTP server●   Supports running code under worker, eventlet,    gevent etc.    ●   Uses monkey p...
Migrating our productsdef handle_purchase( request ):    jobs = []    jobs.append( gevent.spawn( biller, … ) )    jobs.app...
Migrating our products●   Migrating our entire code base (2 products)    took around 1 week to finish●   Was easier becaus...
Deployment                        Gunicorn 1                        Gunicorn 2             NginxClient           (SSL & LB...
Life today●   Single framework for all 4 products●   Use djangos awesome features and    ecosystem●   Increased scalabilit...
Links●   http://greenlet.readthedocs.org/en/latest/index.html●   http://www.gevent.org/●   http://in.pycon.org/2010/talks/...
Upcoming SlideShare
Loading in...5
×

Scaling Django with gevent

18,190

Published on

Published in: Technology
3 Comments
37 Likes
Statistics
Notes
No Downloads
Views
Total Views
18,190
On Slideshare
0
From Embeds
0
Number of Embeds
4
Actions
Shares
0
Downloads
134
Comments
3
Likes
37
Embeds 0
No embeds

No notes for slide

Transcript of "Scaling Django with gevent"

  1. 1. Scaling Django with Gevent Mahendra M @mahendra https://github.com/mahendra

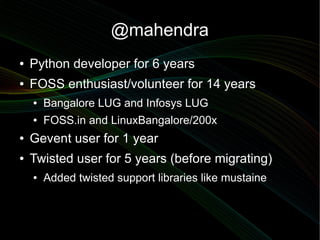

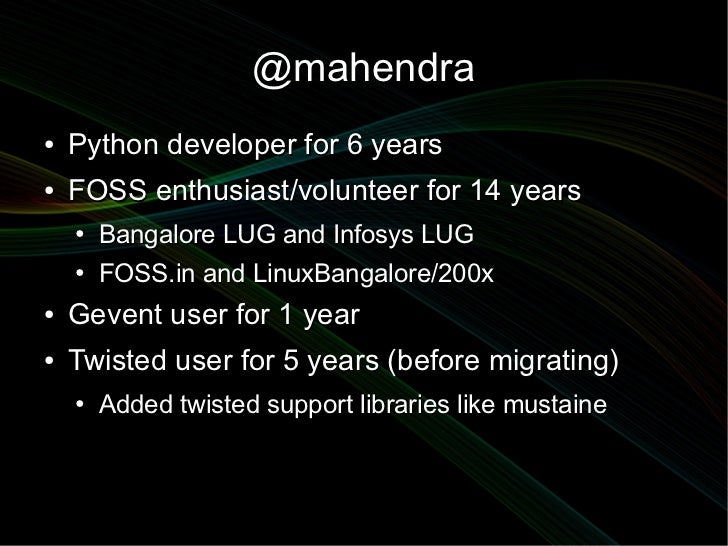

  2. 2. @mahendra● Python developer for 6 years● FOSS enthusiast/volunteer for 14 years ● Bangalore LUG and Infosys LUG ● FOSS.in and LinuxBangalore/200x● Gevent user for 1 year● Twisted user for 5 years (before migrating) ● Added twisted support libraries like mustaine

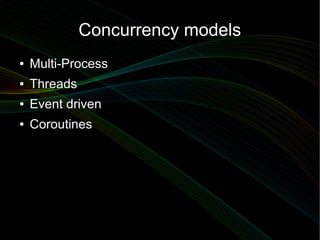

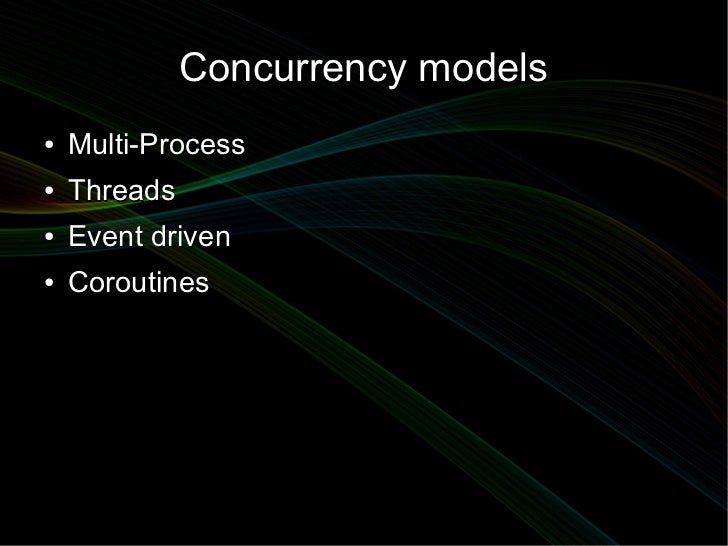

  3. 3. Concurrency models● Multi-Process● Threads● Event driven● Coroutines
  4. 4. Process/Threadrequest dispatch() worker_1() read(fp) db_rd() db_wr() sock_wr() worker_n()

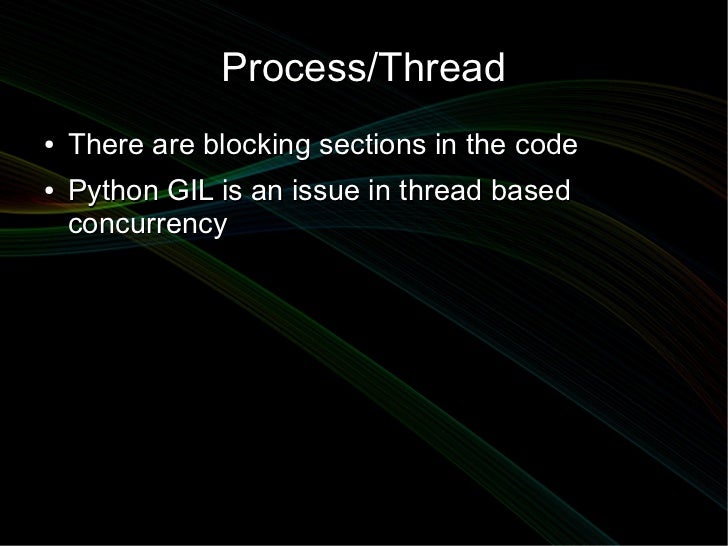

  5. 5. Process/Thread● There are blocking sections in the code● Python GIL is an issue in thread based concurrency

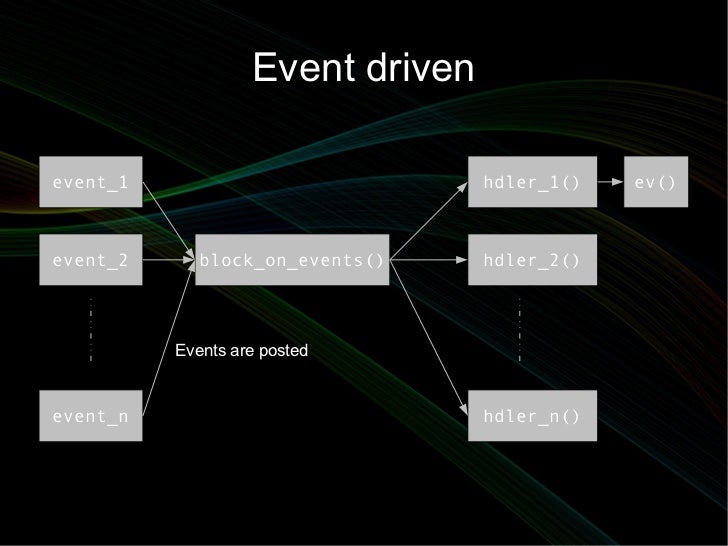

  6. 6. Event drivenevent_1 hdler_1() ev()event_2 block_on_events() hdler_2() Events are postedevent_n hdler_n()
  7. 7. Event driven web server request open(fp) reg() opened parse() event_loop() read_sql() reg()sql_read wri_sql() reg()sql_writ sock_wr() reg()responded close()

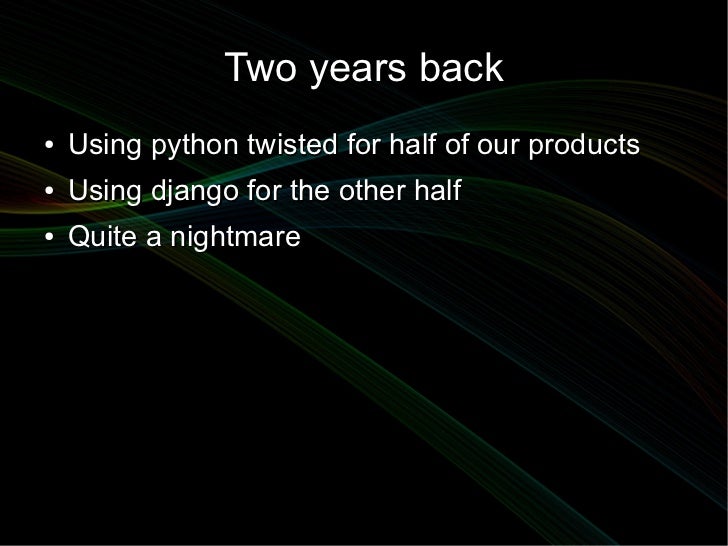

  8. 8. Two years back● Using python twisted for half of our products● Using django for the other half● Quite a nightmare

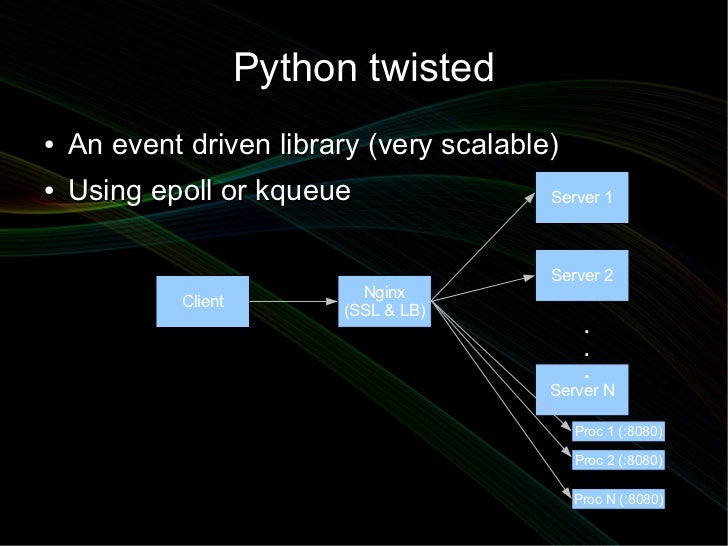

  9. 9. Python twisted● An event driven library (very scalable)● Using epoll or kqueue Server 1 Server 2 Nginx Client (SSL & LB) . . . Server N Proc 1 (:8080) Proc 2 (:8080) Proc N (:8080)

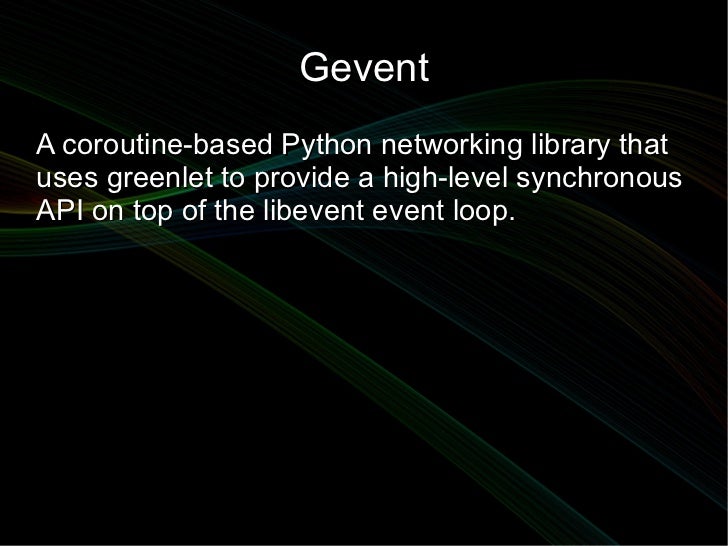

  10. 10. GeventA coroutine-based Python networking library thatuses greenlet to provide a high-level synchronousAPI on top of the libevent event loop.
  11. 11. GeventA coroutine-based Python networking library thatuses greenlet to provide a high-level synchronousAPI on top of the libevent event loop.

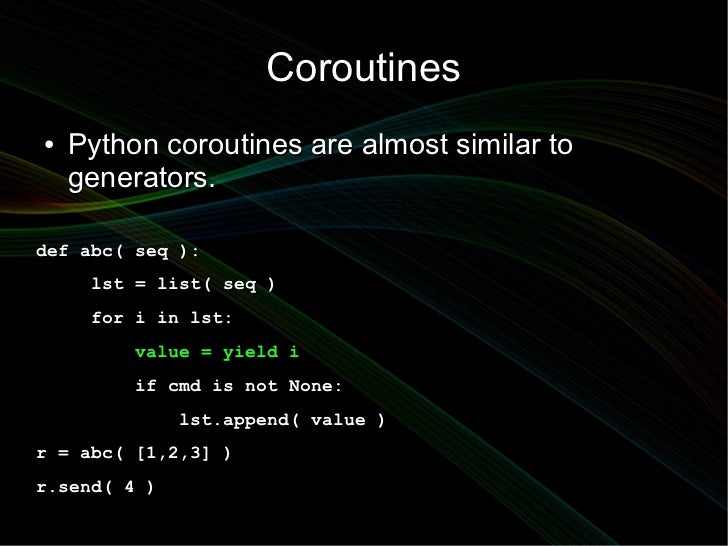

  12. 12. Coroutines● Python coroutines are almost similar to generators.def abc( seq ): lst = list( seq ) for i in lst: value = yield i if cmd is not None: lst.append( value )r = abc( [1,2,3] )r.send( 4 )

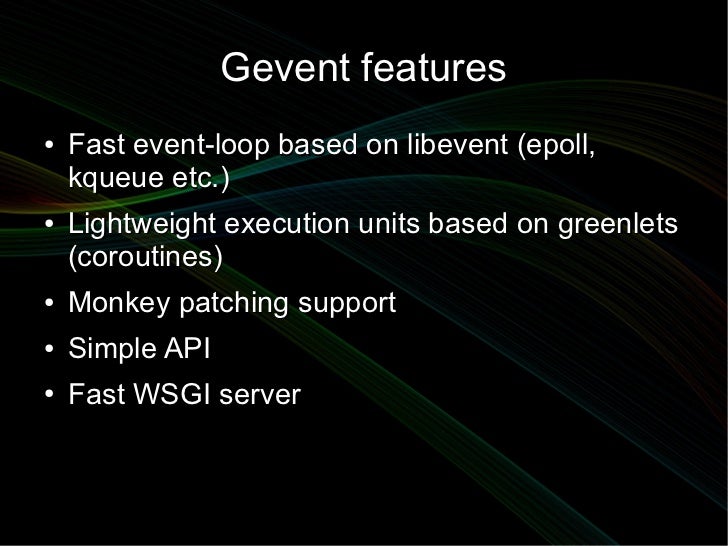

  13. 13. Gevent features● Fast event-loop based on libevent (epoll, kqueue etc.)● Lightweight execution units based on greenlets (coroutines)● Monkey patching support● Simple API● Fast WSGI server

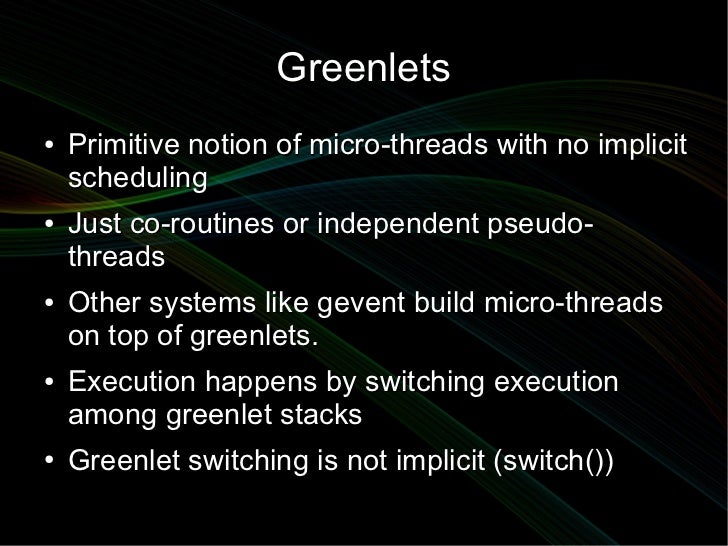

  14. 14. Greenlets● Primitive notion of micro-threads with no implicit scheduling● Just co-routines or independent pseudo- threads● Other systems like gevent build micro-threads on top of greenlets.● Execution happens by switching execution among greenlet stacks● Greenlet switching is not implicit (switch())

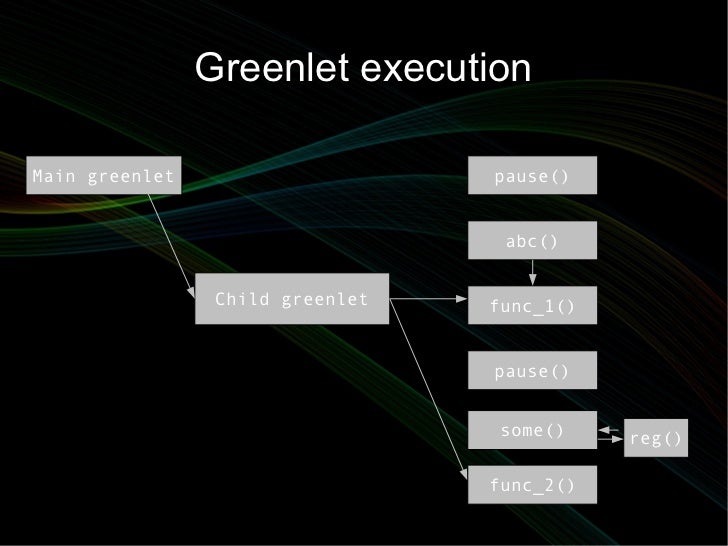

  15. 15. Greenlet executionMain greenlet pause() abc() Child greenlet func_1() pause() some() reg() func_2()

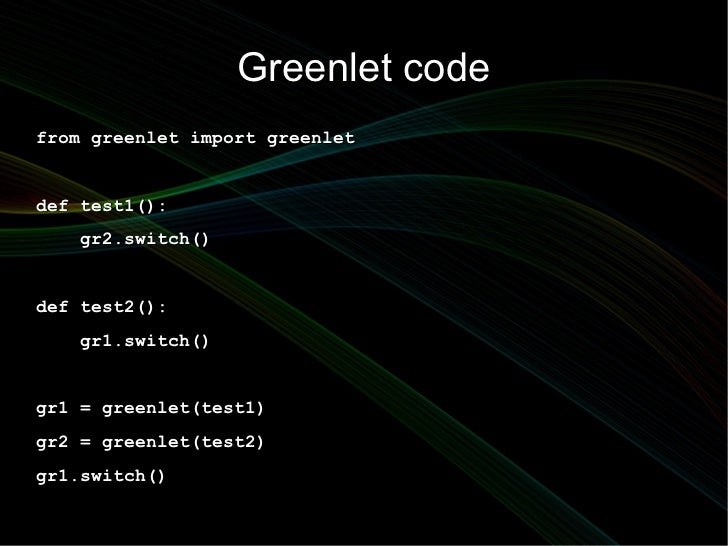

  16. 16. Greenlet codefrom greenlet import greenletdef test1(): gr2.switch()def test2(): gr1.switch()gr1 = greenlet(test1)gr2 = greenlet(test2)gr1.switch()

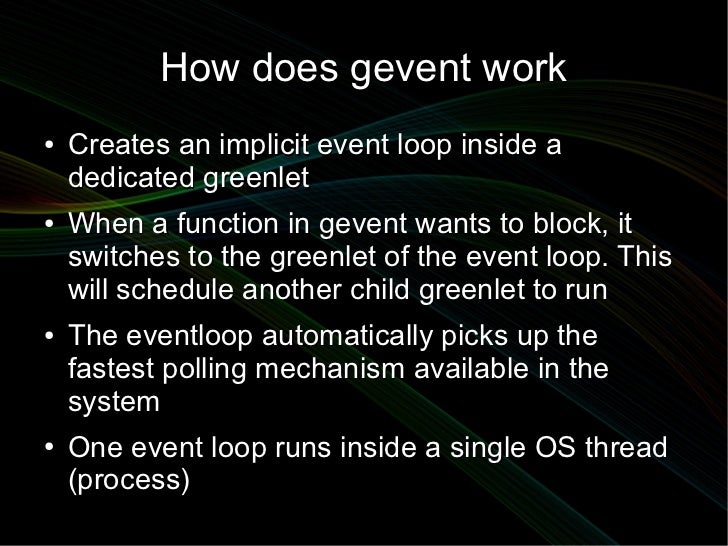

  17. 17. How does gevent work● Creates an implicit event loop inside a dedicated greenlet● When a function in gevent wants to block, it switches to the greenlet of the event loop. This will schedule another child greenlet to run● The eventloop automatically picks up the fastest polling mechanism available in the system● One event loop runs inside a single OS thread (process)

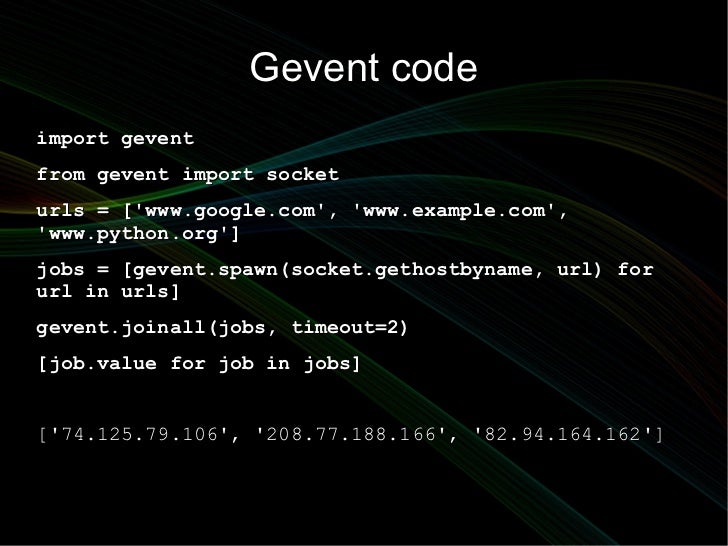

  18. 18. Gevent codeimport geventfrom gevent import socketurls = [www.google.com, www.example.com,www.python.org]jobs = [gevent.spawn(socket.gethostbyname, url) forurl in urls]gevent.joinall(jobs, timeout=2)[job.value for job in jobs][74.125.79.106, 208.77.188.166, 82.94.164.162]

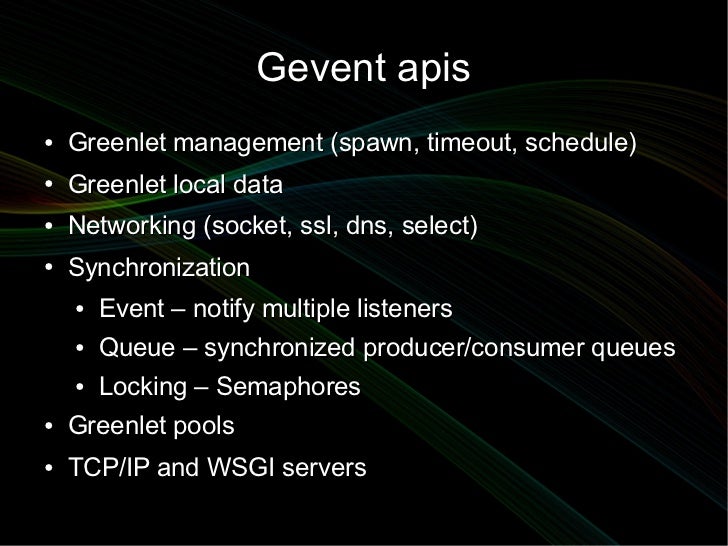

  19. 19. Gevent apis● Greenlet management (spawn, timeout, schedule)● Greenlet local data● Networking (socket, ssl, dns, select)● Synchronization ● Event – notify multiple listeners ● Queue – synchronized producer/consumer queues ● Locking – Semaphores● Greenlet pools● TCP/IP and WSGI servers

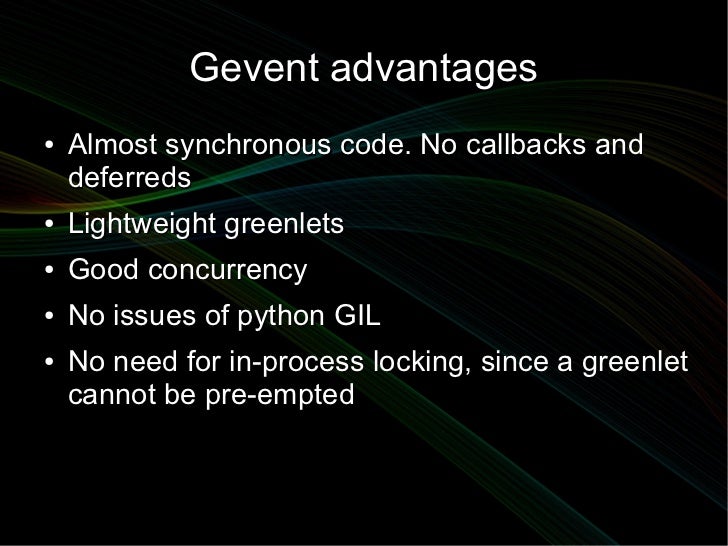

  20. 20. Gevent advantages● Almost synchronous code. No callbacks and deferreds● Lightweight greenlets● Good concurrency● No issues of python GIL● No need for in-process locking, since a greenlet cannot be pre-empted

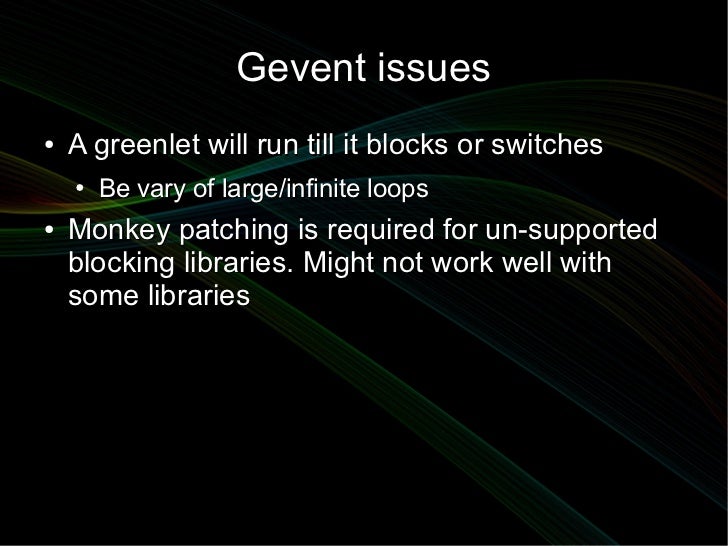

  21. 21. Gevent issues● A greenlet will run till it blocks or switches ● Be vary of large/infinite loops● Monkey patching is required for un-supported blocking libraries. Might not work well with some libraries

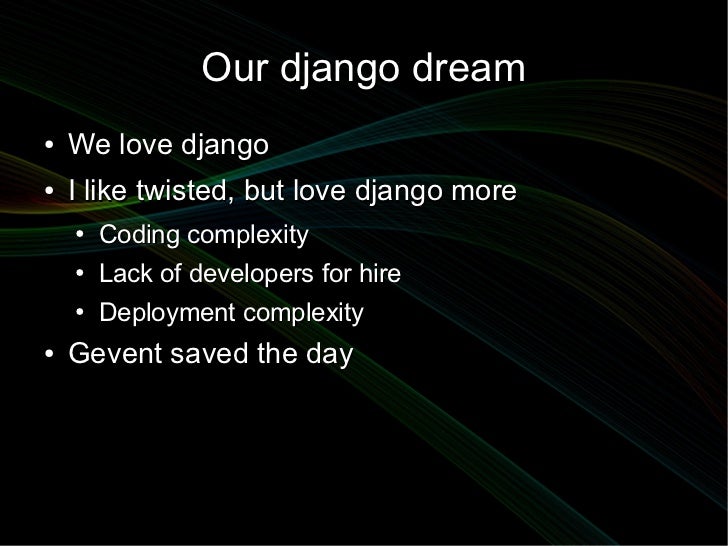

  22. 22. Our django dream● We love django● I like twisted, but love django more ● Coding complexity ● Lack of developers for hire ● Deployment complexity● Gevent saved the day

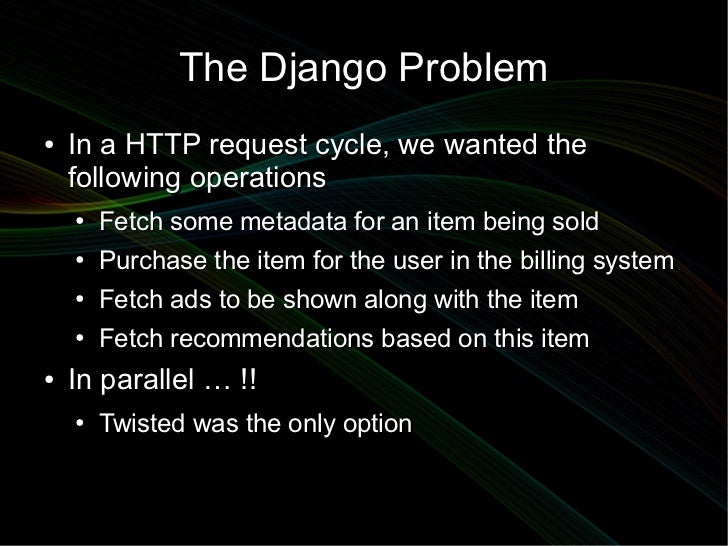

  23. 23. The Django Problem● In a HTTP request cycle, we wanted the following operations ● Fetch some metadata for an item being sold ● Purchase the item for the user in the billing system ● Fetch ads to be shown along with the item ● Fetch recommendations based on this item● In parallel … !! ● Twisted was the only option
  24. 24. Twisted codedef handle_purchase( rqst ): defs = [] defs.append( biller() ) defs.append( ads() ) defs.append( recos() ) defs.append( meta() ) def = DeferredList( defs, … ) def.addCallback( send_response() ) return NOT_DONE_YET

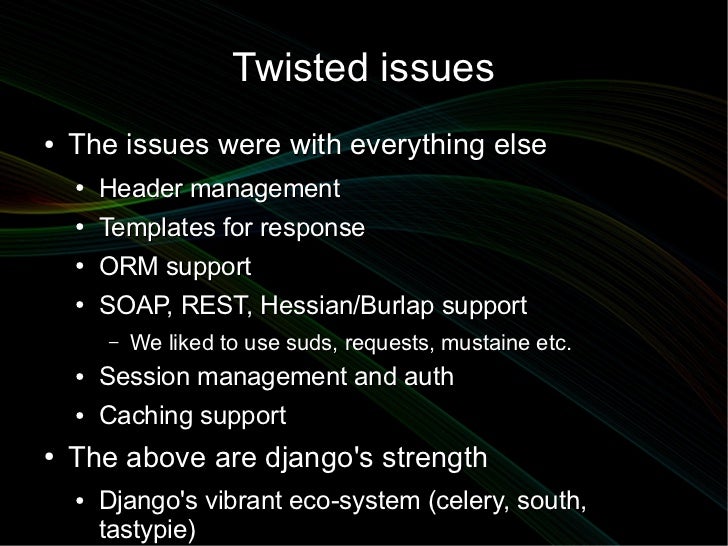

  25. 25. Twisted issues● The issues were with everything else ● Header management ● Templates for response ● ORM support ● SOAP, REST, Hessian/Burlap support – We liked to use suds, requests, mustaine etc. ● Session management and auth ● Caching support● The above are djangos strength ● Djangos vibrant eco-system (celery, south, tastypie)

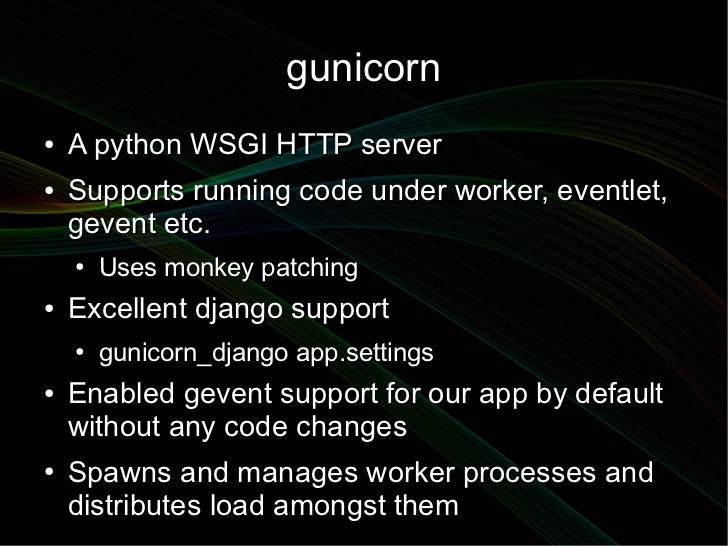

  26. 26. gunicorn● A python WSGI HTTP server● Supports running code under worker, eventlet, gevent etc. ● Uses monkey patching● Excellent django support ● gunicorn_django app.settings● Enabled gevent support for our app by default without any code changes● Spawns and manages worker processes and distributes load amongst them

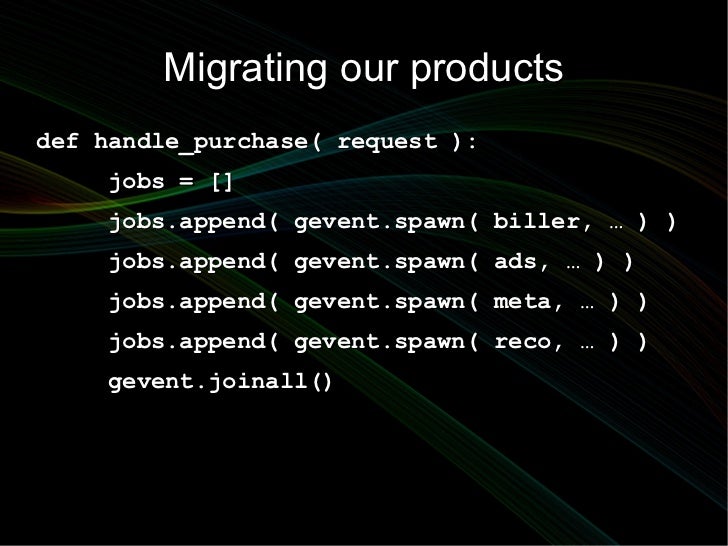

  27. 27. Migrating our productsdef handle_purchase( request ): jobs = [] jobs.append( gevent.spawn( biller, … ) ) jobs.append( gevent.spawn( ads, … ) ) jobs.append( gevent.spawn( meta, … ) ) jobs.append( gevent.spawn( reco, … ) ) gevent.joinall()

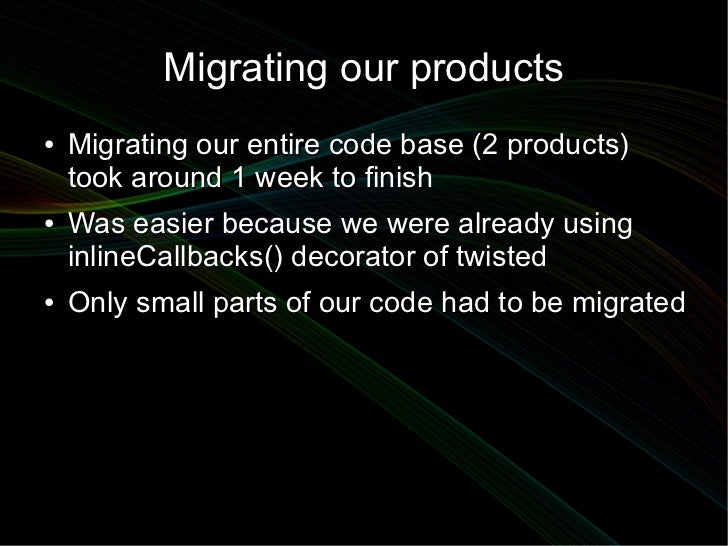

  28. 28. Migrating our products● Migrating our entire code base (2 products) took around 1 week to finish● Was easier because we were already using inlineCallbacks() decorator of twisted● Only small parts of our code had to be migrated

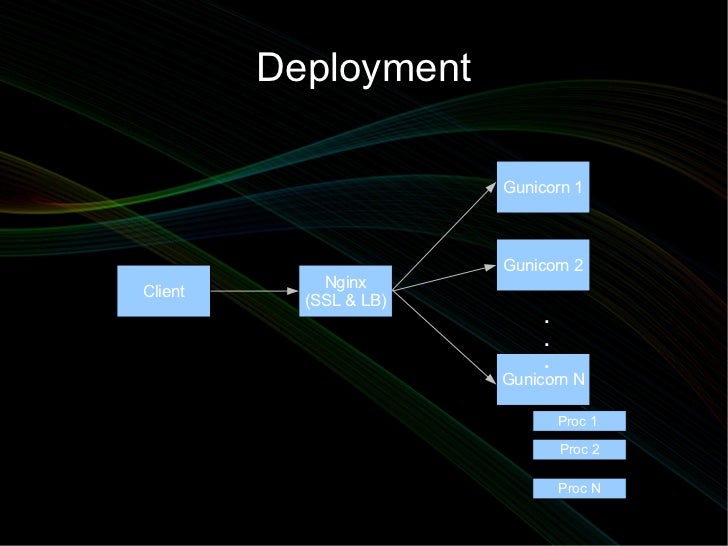

  29. 29. Deployment Gunicorn 1 Gunicorn 2 NginxClient (SSL & LB) . . . Gunicorn N Proc 1 Proc 2 Proc N

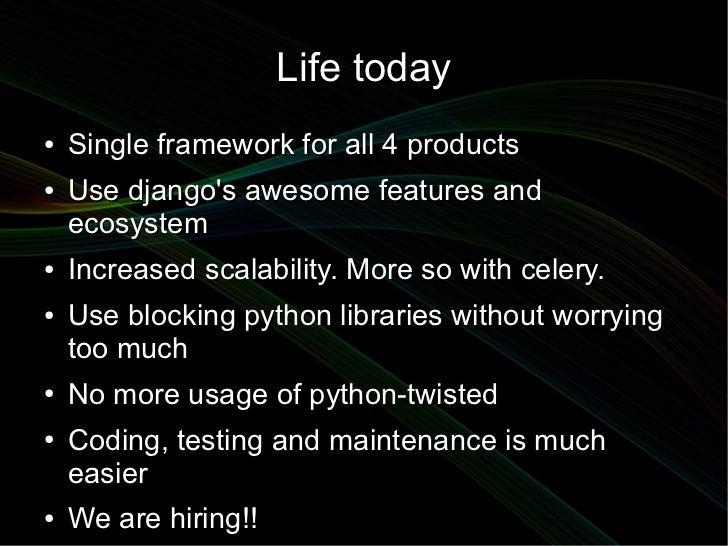

  30. 30. Life today● Single framework for all 4 products● Use djangos awesome features and ecosystem● Increased scalability. More so with celery.● Use blocking python libraries without worrying too much● No more usage of python-twisted● Coding, testing and maintenance is much easier● We are hiring!!

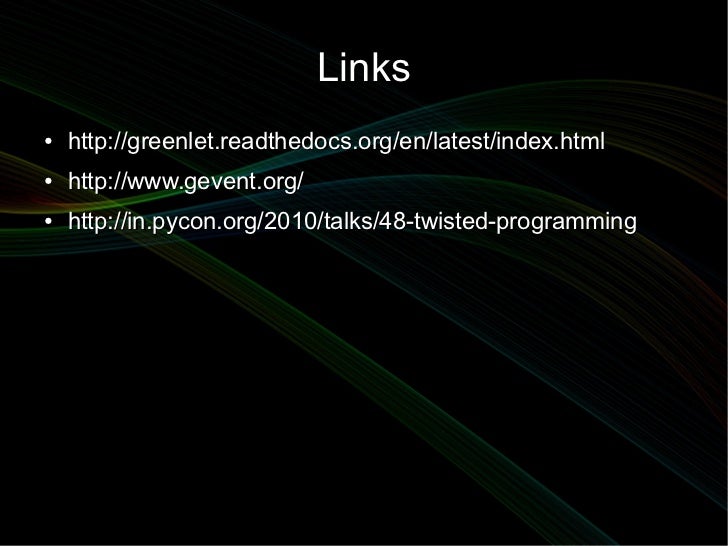

  31. 31. Links● http://greenlet.readthedocs.org/en/latest/index.html● http://www.gevent.org/● http://in.pycon.org/2010/talks/48-twisted-programming
