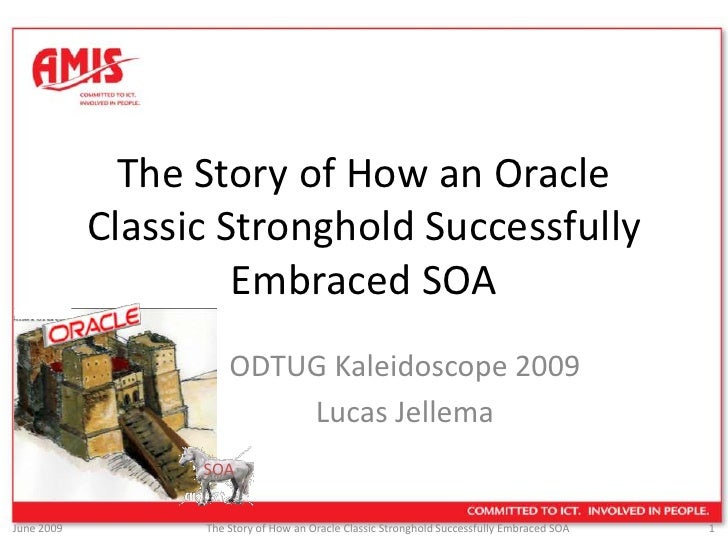

The Story of How an Oracle Classic Stronghold Successfully Embraced SOA<br />ODTUG Kaleidoscope 2009<br />Lucas Jellema<br...
Overview<br />What is an Oracle stronghold?<br />Triggers to start moving towards Services<br />Levels of embracing Servic...
What is an Oracle stronghold?<br />The typical Oracle stronghold<br />Using Oracle RDBMS & Oracle Development tools<br />L...
My central case…<br />Oracle Forms application tightly integrated with an Oracle RDBMS<br />The database is known by the n...
Similar cases …<br />Oracle Forms application for assigning homes offered SaaS-style<br />SaaS Customers want the details ...
Then wat happened… (2)<br />Car Lease company has various custom applications and databases per department<br />Business r...
Then wat happened… (3)<br />Agricultural company supports ‘cow insemination’ process with Forms application<br />Farmers a...
Common Characteristics<br />Cross Boundaries<br />Cross Technology - .Net, Uniface, Java, Tibco<br />Cross Channel – Back ...
Objectives<br />Business Agility<br />(Faster) responses to changing demands<br />Or at least an urgent, currently pending...
Objectives<br />(longer term) Higher Quality and Faster Process execution<br />Automated data exchange cross boundaries<br...
SOA = BAD<br />
Business<br />Agility through<br />Decoupling<br />SOA =<br />
Decoupling≈Managing Dependencies<br />minimize impact of change while maximizing reusability<br />
Types of decoupling<br />Functional <br />Interface - Encapsulation of implementation<br />Design by Contract, Implement b...
Decoupling Applications & Data<br />Application(User Interface)<br />Application(User Interface)<br />Data<br />Data<br />
Decoupling Applications & Data<br />Application(User Interface)<br />Application(User Interface)<br />Data<br />
Decoupling Applications & Data<br />Application<br />(User Interface)<br />Data<br />
Decoupling Applications & Data<br />Application<br />(User Interface)<br />WorkflowEngine<br />CMS<br />Email<br />IM<br /...
Data Ownership<br />Data no longer exclusively owned by a single application<br />Data (query and manipulation) available ...
Decoupling from Table to ESB+<br />http<br />WEBDAV<br />FTP<br />WSRP<br />http<br />WS/SOAP<br />WS*<br />WS*<br />WS*<b...
Tables in Database<br />SQL for retrieval and manipulation<br />Data Model in plain “view”<br />Decoupling between DML and...
View in Database<br />Hide (encapsulate) Data Model<br />Manage access privileges<br />SQL for retrieval and manipulation<...
Package in Database<br />Hide (encapsulate) SQL<br />Procedure calls for retrieval and manipulation<br />Potentially compl...
Database Object Types<br />
Package in Database (2)<br />Hide (encapsulate) SQL and Oracleand user defined Types <br />Procedure calls for retrieval a...
Handling XML<br />Structured, multi-level data in a string: XML<br />Oracle Database has XMLType<br />Can be created from ...
XML based PL/SQL interface<br />
AQ for Asynchronous<br />Decouple consumer and providerin time – asynchronuous processing<br />Consumer is registered on t...
Hiding the database<br />http<br />WEBDAV<br />FTP<br />http<br />WS/SOAP<br />WS*<br />WS*<br />WS*<br />
Publish package as http-based API using dbms_epg<br />http<br />Hide database protocol<br />Not its physical location nor ...
HTTP API – directly on top of the RDBMS<br />
Publish static resources on various protocols with XMLDB<br />Hide database protocol<br />support FTP, WEBDAV, HTTP(S)<br ...
Publishing RDBMS resources in a decoupled fashion<br />
SOAP based WebServices<br />http<br />WEBDAV<br />FTP<br />WSRP<br />http<br />WS/SOAP<br />WS*<br />WS*<br />WS*<br />
SOAP WebServices<br />All messages (input and output) are XML<br />The message consists of two parts inside an envelope (a...
Oracle RDBMS 11g - Native Database WebServices<br />WS/SOAP<br />Schema can be published throughnative database web servic...
Limited control over WSDL & XSD
Use case: internal, cross technology, WS enabled client, no ESB or Application Server available</li></li></ul><li>WebServi...
Enterprise Service Bus<br />App 2<br />External Partner<br />Service<br />Service<br />Service<br />Service<br />Service<b...
The Enterprise Service Bus<br />Should first of all be considered ‘a pattern’<br />Virtualizes services – hides the real s...
Canonical Data Model<br />Common Business Language <br />Esperanto for service invokers<br />Service<br />Service<br />Dat...
The Enterprise Service Bus (2)<br />Handles various QoS & SLA aspects<br />sometimes in concert with tools like OWSM<br />...
Publish PL/SQL Package through ESB<br />WS*<br />Use Database Adapter to createService, combine with ESB Routing Service<b...
Enterprise Service Busin action<br />One team responsible for exposing services to external consumers<br />Working with th...
Evaluation – end of phase 1<br />Done well<br />Working “application” in production!<br />Worked together (across teams an...
Evaluation – end of phase 1<br />Done well<br />Achieved good way of working with database team developing packages undern...
Evaluation – end of phase 1<br />Done well<br />Ambitions, drive - However: technology driven<br />To be improved<br />Def...
Evaluation – end of phase 1<br />To be improved<br />Share success with business and other IT teams<br />Establish a mecha...
End of Phase 1<br />Working service implementation and infrastructure – across departments<br />End-to-end from backoffice...
Improve & Broaden the scope of the Canonical Data Model<br />Involve business representatives for all of business<br />Add...
Pending “Research”<br />How to make use of cache infrastructure to prevent services being called unnecessarily<br />Yet gu...
Phase 2<br />A new user interface (internet website) on top of the back office database<br />Partially covered by existing...
Introducing BPEL for Service<br />WS*<br />BPEL adds to service<br />Long running (stateful) ‘service instances’<br />Comp...
Publish Business Events<br />Extremely Decoupled Architecture <br />Any system – including database – reports events that ...
Event Driven Architecture (EDA)<br />External Partner<br />App 2<br />Service<br />Service<br />Service<br />Service<br />...
Database publishing events<br />WS*<br />Table Trigger intercepts DML<br />Checks for Business Events such as new employee...
Publishing Service with UI<br />Instead of only publishing a programmatic service interface<br />A service can be publishe...
Decoupling from Table to ESB+<br />http<br />WEBDAV<br />FTP<br />WSRP<br />http<br />WS/SOAP<br />WS*<br />WS*<br />WS*<b...
Increasingly decoupled<br />More hiding of the implementation<br />More Formal Interface Contract<br />Less (proprietary) ...
Comes at a cost…<br />More run time overhead<br />Additional tiers<br />XML serialization and deserialization<br />More in...
Pitfalls<br />Do SOA from the IT/technology side only<br />Inconsistent, illegible, unstructured namespaces and (XML) cano...
Pitfalls<br />The greedy clutches of enterprise architects<br />Think globally, talk, (high level) design, draw & write, p...
Pitfalls<br />No DTAP process & environment <br />And/or completely manual<br />Involving DBAs/Administrators way too late...
Useful <br />Use Mock Service implementations during development and test<br />Developers that depend on services not yet ...
Summary<br />Objective: agility through decoupling<br />Managing dependencies<br />Crossing boundaries – functional, techn...
