  • Transcript

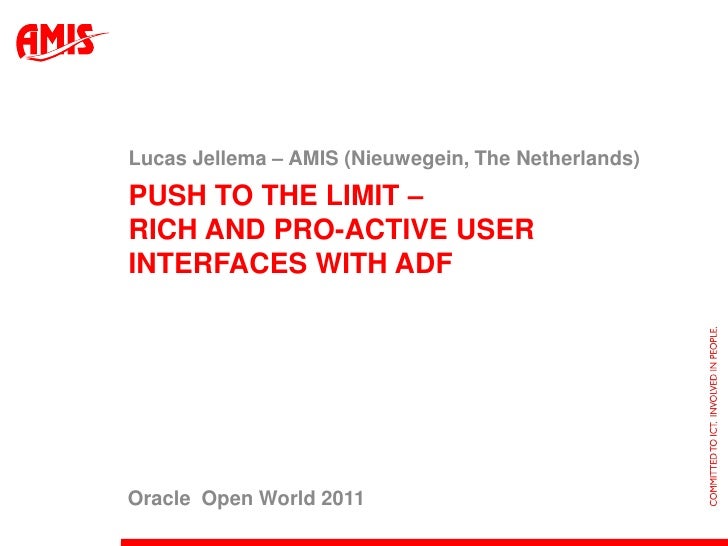

    • 1. Push to the limit – rich and pro-active user interfaces with ADF
      Lucas Jellema – AMIS (Nieuwegein, The Netherlands)
      Oracle Open World 2011
    • 2. Overview
      Real time architecture
      Push – ADF middle tier to browser
      Active Data Service
      Custom Push
      Push triggering pull
      Push – Database to middle tier
      Push all the way across the tiers
      Client to Client Push
    • 3. Asynchronous communication in the real world
      “I’ll get back to you”
      “Don’t call us,…”
      Low fuel warning in car
      “Please let me know”
      “Return to sender – address unknown”
      Newspaper delivery
      Next instruction from car navigation system
      Telephone ringing
      Alarm clock buzzing
      Parking sensors beeping
      Fire alarm screaming
    • 4. Asynchronous interactions and push in the IT landscape
      More timely information
      Notification as soon as possible
      Proactive offering
      Do not ask and you shall be given
      Lower load on back end – don’t call us (all the time) …
      Stop hitting the F5 button!
      Multi-channel information manipulation and dissemination
      Changes and events come in from everywhere
      Decouple system components through generic infrastructure for handling events and push
      Yet integrate
    • 5. Pushing it … into the user interface
      Automatically refreshing (part of) a page
      Update table
      Redrawing chart
      Displaying popup to alert user to an event
      Arrival of message (email or chat)
      Signing in or out of contact (presence)
      Lock or release of some resource
      Notification
      Changing status of items on the page
      Highlight change indicator
      Show icon
      Change text to italic
      Play a sound
    • 6. 3rd party
      Mobile Device
      Mobile Device
      Web Browser
      Web Browser
      JEE Application Server
      JEE Application Server
      Complex Event Processor
      Non
      Java
      Server
      RDBMS
      Email Server
      Chat Server
      RDBMS
    • 7. The ‘Only tell when asked’ game
    • 8. Introducing ADF Active Data Service
      Built in mechanism in ADF to push updates from the middle tier to the browser
      active UI components that refresh upon reception of the push (table, image, output text, DVT graphs)
      client side infrastructure to process received push messages
      a multiplexed (multi-event) channel to push to client – leveraging WebLogic Server push capabilities
      Long poll today, WebSockets or SPDY tomorrow
      server side infrastructure to manage active beans and turn events into pushed messages
      Active data control:
      BAM Data Control for push from BAM’s Active Data Cache all the way to data bound UI components
    • 9. Overview of ADS infrastructure
    • 10. Using ADF active Data Service to embed chat client in web application
      Instant Messaging should be instant
      Requirement to push incoming messages to client
      Common IM protocol is XMPP (over TCP)
      Extensible Messaging and Presence Protocol
      XMPP Java Libraries help to connect to and communicate with XMPP servers
      For example Smack
      To embed chat in in ADF application we need to
      consume messages over XMPP
      and push them to the Web Client
      The ADS approach:
      Use ‘active’ UI Components
      Bind them to bean that implements ActiveDataModel
      Turning the IM messages into entries in ActiveDataModel
    • 11. Example of ADS: Google Talk
      Web Browser
      JEE Application Server
    • 12. Example of ADS: Google Talk
      Web Browser
      JEE Application Server
    • 13. Push trough Active Data Service
      Web Browser
      ADS
      MessageReceiver
    • 14. Push trough Active Data Service
      Web Browser
      ADS
      MessageReceiver
    • 15. Introducing Business Activity Monitoring
      Operational Business Intelligence
      Data fed in from many sources:
      RFID sensors, BPEL, Database Triggers, RSS, ODI
      Real Time insight
      Dashboard
      Live updates
      Looking for threshold crossing, exceptions, trends, missing events
      Display visually and turn into alerts & notifications
    • 16. Introducing Business Activity Monitoring
      ADF Application
    • 17. Embedding real time displays in ADF based on BAM Data Control
      Configure connection to BAM Server
      Create BAM Data Control
      Based on Data Objects inActive Data Cache
      Drag & Drop Data Control’scollections & attributes toADF Faces pages
      Just like ADF BC Data Control
      However: BAM Data Control is active
    • 18. Live volleyball reporting
      Web Browser
      JMS Queue
      BAM
      Data Object
    • 19. Create BAM Data control
    • 20. Programmatic cross tier interaction
      Web Browser
      JEE Application Server
    • 21. Client
      JavaScript
      Components
      manipulate
      component
      user action
      JavaScript Function
      component
      clientListener
      component
      userorprogrammaticaction
      partialSubmitautoSubmit
      Load JSON, CSS, Image, XML, JS
      property change
      Requestdata orPush message
      poll
      setPropertyListener
      partial triggers, added targets
      Queue Custom Event
      serverListener
      activeOutputText
      ERKS ‘ppr script’
      partial page refresh
      Full pagereload
      push
      add JS toexecute (ERKS)
      Server (middle tier)
      component
      activeOutputText
      component
      add componentsas partial target
      actionListener, valueChangeListener, …Listener
      Bean
      serverListener
      Active DataModel
      Object
      Components
      Beans & Objects
      push (DB QRCN)
      Database
      Client Server interactions vv.
    • 22. The push-to-nudge trick(Matthias Wessendorf)
      Client Listener Function
      • Show popup
      • 23. Update field value
      • 24. Modify style property
      • 25. Call Server (PPR)
      activeOutputText
      clientListener
      type=propertyChange
      Servlet
      Active Bean
      Active data
      register
      Event Handler
      JMS Listener
      Scheduled Job
      &
      Event Listener
    • 26. Simple nudge to client
    • 27. Simple nudge to client
    • 28. Client to client push – slide synchronization
    • 29. Client to client push – slide synchronization
    • 30.
    • 31. activeImageBean
      activeImageBean
    • 32. Cross tier push – architecture pattern
      listener
      listener
      listener
      register
      event handler
      Payload Retriever
      Scheduled Poll Job
      Push Receptor
      ‘Events collector’
    • 33. Cross gap push mechanisms
      Many channels are available to push messages from one entity to another,
      across application, technology and location boundaries
      JMS
      (one way) WebService (SOAP or REST)
      “HTTP Channel”
      WebSockets
      Http Call to Servlet
      XMPP
    • 34. Client to Client pusH
      Usually really a combination of
      Client-to-Server
      and Server-to-the-other-Client push
      Exception: Blue Tooth, Near-Field Communication
    • 35. Server to mobile push:multiplexed, semi-poll based
    • 36. Push from Database to middle tier
      Middle tier asks database – through JDBC, ODBC, SQL*Net, HTTP, …
      The database is reactive only – not pushy at all
      Some mechanisms allow the database to take the initiative and start to push
      Database Query Result Change Notification
      Http calls from utl_http or JSP
      Table with Multiplexed Poll
    • 37. The Hollywood Principle: Query ResultSet Change Notification
      POJO / ADF BC
    • 38. Cache Refresh triggered by DB
      Oracle RDBMS invokes Java Listener with event details
      POJO / ADF BC
      Register DatabaseChangeNotification
      SQL query
      PL/SQL
    • 39. Shared Application Modules
      Regular Application Module instances are session level – i.e. not shared across (web) sessions
      Shared Application Module instances are shared across sessions like an Application Scope Managed Bean
      Used for Static Data Sets: Look Up Data and Reference Tables
      Sessions can reuse the data from a shared Application Module without having to access the database
      And without loading the data in session level memory scope
      View Accessors can be used to access data in the Shared Application Module’s VOs
      For example for use in LOVs or Validation Rules
    • 40. Shared Application Module Instance
    • 41. Auto Refresh for View Objects
      ViewObjects in a Shared Application Module can be registered for auto refresh
      Typically such application wide VOs are near-static
      Whenever the underlying data set changes (in the database), the VO rowset should be refreshed
      By setting Auto Refresh (to true) for the ViewObject, the VO will be refreshed whenever the database is changed
      ADF registers the VO query with the Database (11g) Result Set Change Notification mechanism through JDBC
      Note: the VO should not have an Order By clause nor select a Date column
    • 42. Steps for auto refresh enabling
      Create Shared Application Module
      New application module that is added to list of Application Level instances in the Project properties
      Create the ViewObject that queries the ‘static data’ and add to Shared Application Module
      Set the Auto Refresh property to true for VO instance
      Database must be 11g (and have parameter compatible set to 11.1.0 or above)
      database user must have the Change Notification privilege
      To piggy back changes to page, set changeEventPolicy to autoPPR on data binding
    • 43. Set Auto Refresh for ViewObject
      Set Auto Refresh for ViewObject
      Grant Change Notification todatabase user
    • 44. Demo: Database push to View Object in action
      DBQRCN
    • 45. Auto-PPR for immediate refresh of Data Bound components
      To have ADF automatically refresh data bound components when underlying value binding has changed its value
      Set changeEventPolicy=ppr on iterator
      Refresh as piggy back on any request cycle
      No partialTriggers attribute required!
    • 46. JEE Application Server
      Alternative Database to middle tier push implementation
      Session scope bean
      listener
      listener
      listener
      register
      Application scope bean
      event handler
      servlet
      Payload Retriever
      Scheduled Poll Job
      Push Receptor
      utl_http
      RDBMS
      ‘Events collector’
      trigger
    • 47. Cross Tier Push
      Web Browser
      table
      activeOT
      Cache refresher
      JEE Application Server
      evtlsnr
      servlet
      RDBMS
      job
      trg
    • 48. Initiate ‘normaL’ PPR cycle in which to refresh ui components
      Client Listener Function
      component
      queue event
      activeOutputText
      someComponent
      serverListener
      clientListener
      type=propertyChange
      refresh page
      PPR request
      Bean
      Iterator
      Auto ppr
      retrieve data
      View
      clear cache
      Entity
      RDBMS
    • 49. Server Push challenges
      How to push against the ‘one way direction’ and despite limitations
      HTTP and JDBC are request/response – not response only
      Browser limit of only two channels to one server
      Server side ‘event handling’
      Session has to have an active life beyond requests
      Or requests have a life beyond response
      Higher load on the server
      How to handle the (potential) volume of ‘concurrent’ channels and the number of open threads
      NIO, Servlet 3.0, Jetty Continuations, Tomcat Advanced I/O
    • 50. Server Push challenges (2)
      Where do events to push actually come from?
      Who perceives/receives (real-time) events (on the server side)
      How are they tied in to the appropriate sessions?
      Client (consumer) side: how to asynchronously receive events and how to process them/turn them into action and UI updates
      How to correlate an asynchronously received message with a previously sent request or a subscription
      For example: mobile phone showing SMS or WhatsApp messages in a conversation thread style
    • 51. Future Developments
      The real time enterprise
      The event driven enterprise
      Further evolution of push notification at every tier
      Mobile perhaps leading the way
      Infrastructure and frameworks providing push mechanisms
      Such as Active Data Service
      Servlet 3.0, Java NIO, WebSockets,SPDY, XMPP and other lighter weight solutions for bi-directional communication over TCP
      And broad support in browsers and application servers
    • 52. Summary
      Push
      Pro active or at least real time user interface
      Real time user to user interaction
      Decrease load on infrastructure (refresh over and over)
      Real push hardly exists
      Smart poll/pull is often underlying implementation
      Piggy backing, Multiplexing, decoupling etc. are required to scale
      ADS is powerful
      Especially with the ‘nudge now you do a fine grained fetch or refresh’ pattern
      Database can push too – using DBQRCN, HTTP, ….
      ADF can push to Android or iOS
      Using Google and Apple Push Notification Services
      ADF Mobile should support push notification as well
    • 53. Session Plugging
      Sunday – Gold Nuggets in ADF (S32502)3.15-4.15, Moscone West-2000
      Tuesday – Reaching Out from PL/SQL (S08625 )10.15-11.15, Mariott Marquis, Salon 7
      Tuesday – (JavaOne) Cross Tier Push Architecture (Don’t call us, we’ll push you) (S24722)4.30-5.15 PM, Hotel Nikko, Monterey I/II
      Wednesday – Push to the Limit: Rich and Proactive User Interfaces with Oracle ADF (S08620)5-6 PM, Mariott Marquis, Golden Gate A
      Thursday –Instant Agility in Oracle Fusion Middleware through Design Time @ Run Time (S08623)4-5 PM, Moscone West – 2020

    ×
