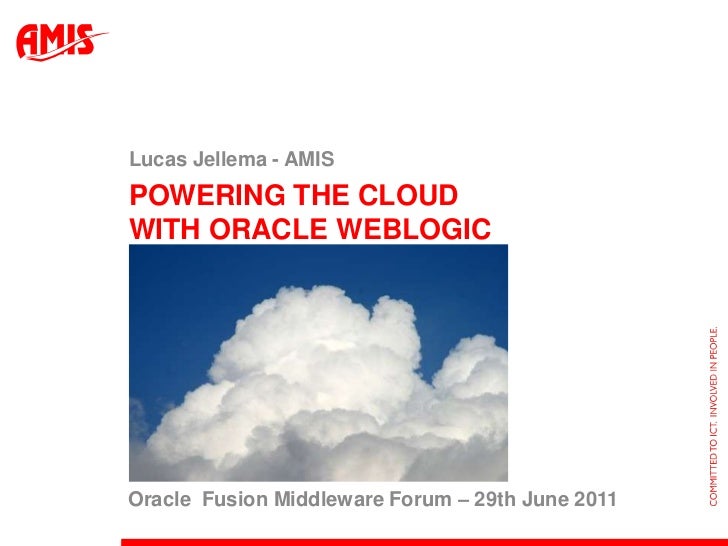

Powering the Cloud with Oracle WebLogic<br />Lucas Jellema - AMIS<br />Oracle  Fusion Middleware Forum – 29th June 2011<br />
Powering the cloud…<br />
Lucas Jellema<br />CTO with AMIS Services<br />Solution architect, developer, trainer<br />Oracle ACE Director FusionMiddl...
Castle in the clouds<br />
Jan Snel – Flexible Building<br />No up-front investment<br />Scale Up – quickly expand into new units<br />Scale Down – h...
Incorporation<br />
Or no Incorporation<br />
Three brothers…<br />
The Three SNEL brothers<br />Piet<br />Jan<br />Simon<br />
The Snel Brothers<br />Piet Snel – provides the plot on which to build (including electricity, water, sewerage,…)<br />So ...
The Cloud … at your service<br />Software<br />Platform<br />Infrastructure<br />
The cloud puzzle<br />Application<br />Application<br />Application<br />Application Server<br />Database<br />O/S<br />VM...
Brief history of the Application Server<br />Application Server<br />
Brief history of the Application Server<br />1st generation web 1.0 browsers <br />html<br />Application Server<br />CGI<b...
2nd & 3rd  generation <br />web 2.0 & 3.0 browsers <br />Brief history of the Application Server<br />B2B Partners<br />me...
Brief history and future of The application<br />
Brief history and future of The application (2)<br />
Brief history and future of The application (3)<br />
Brief history and future of The application (4)<br />
Weblogic and Fusion Middleware<br />
Super Container<br />Fusion Applications<br />OSB project<br />SOA Composite<br />Forms App<br />Space<br />WS*, Java/JEE ...
WebLogic is the Cloud platform<br />Oracle Database and WebLogic Server (with selected FMW components) provide PaaS in the...
Cloud promises and challenges<br />Quick start up<br />Flexible (agile) scalability<br />Performance and Availability<br /...
Scalability WebLogic: Scale Out with Clustering<br />Scale out by<br /><ul><li>Adding server instances to cluster on exist...
Adding machines to cluster to host incremental server instances</li></ul>Without interruption of service<br />Scale Down w...
WebLogicScalability with Oracle Real Application Clusters<br /><ul><li>Oracle RAC installation =  Standard Oracle database
RAC coordinates access to shared data for consistency, integrity
Add nodes to RAC cluster easily
No need to partition data
Horizontally scale database tier as usage grows
By adding RAC nodes, storage, or both
Scale WebLogic by adding data source that maps to new RAC node </li></ul>WebLogic<br />WebLogic<br />GridLink<br />GridLin...
Do not do it…More often than required<br />If it has been produced before…<br />Reuse before re-produce!<br />If it has be...
Do not do it…More often than required<br />Save on network trips, context switches and tiers to cross<br />Save on ‘reprod...
Cookies
 HTML 5 db</li></ul>Edge Cache<br />JEE Application Server<br />Cache<br />Cluster Fail-Over<br />(Session State)<br />Res...
Active Caching in Weblogic with Oracle Coherence memory grid<br />28<br />WebLogic Server<br />WebLogic Server<br />Cohere...
Scale linearly to hundreds of nodes
