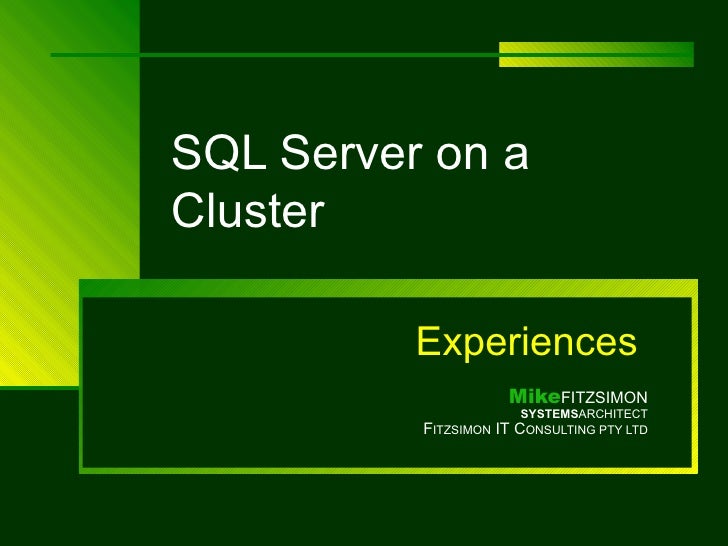

    • 1. SQL Server on a Cluster Experiences Mike FITZSIMON SYSTEMS ARCHITECT F ITZSIMON IT C ONSULTING PTY LTD
    • 2. Why use SQL Server on a Cluster?
      • High Availability
      • Fault Tolerance (?)
      • Failback
      • Manageability
      • Scalability (?)
    • 3. Hardware Architecture – Single Tier
      • Web Server
      • Business Logic COM Components
      • SQL Server
    • 4. Hardware Architecture – Two Tier SQL Server Database Server Web Server Business Logic COM Components
    • 5. Hardware Architecture – Three Tier SQL Server Database Server Business Logic COM Components Web Server
    • 6. Hardware Architecture – Scalable Three Tier
      • SQL Server Database Server
      Application Server Farm Web Server Farm
    • 7. H/w Architecture - OzEvents.com
      • Router distributes http requests
      • 2-Server Web Farm (Test site on one server)
      • SQL Server (Production & Test databases)
      • Exchange Server
    • 8. Hardware Architecture – Scalable Three Tier
      • SQL Server Database Server
      • Single point of failure?
      Application Server Farm Web Server Farm
    • 9. Hardware Architecture - Cluster Server
      • Two or more Servers
      • Private LAN (heartbeat, <500ms ping)
      • Shared SCSI bus (separate to System SCSI bus)
      • Applications & Data on RAID
      Server A Server B LAN Private LAN RAID Applications & Data Shared SCSI SCSI SCSI
    • 10. IMS Locations Brisbane Sydney Melbourne
      • Cluster Servers in each State Office
      • Frame Relay Service
    • 11. High Availability Cluster Servers
      • IBM Netfinity 5500 Servers
      • Physical machines named eaven and ell
      • Virtual machines named neSQL and neIIS
      • Required 4 IP addresses !
    • 12. High Availability Cluster Servers
      • RAID-1 Mirrored internal disk drives
      • Can be used as an emergency backup during a system upgrade
    • 13. High Availability Cluster Servers
      • External RAID array
      • StorageTek
      • Raid-1 9Gb Quorum Disk (persistent arbitration)
      • Raid-5 18 Gb Data disks
    • 14. High Availability Cluster Servers
      • External RAID array:
      Dual Power supplies Dual Network adaptors
    • 15. Hardware Architecture - Cluster Server
      • Normal Active/Active configuration
      • Server A: IIS & MTS Resource Groups
      • Server B: SQL Resource Group
      • Web pages and SQL MDF files on RAID
      Server A Server B LAN Private LAN RAID Applications & Data Shared SCSI SCSI SCSI
    • 16. Multi-Node Clusters
      • Still need only two NICs per machine (one for public network, one for private network)
      • Need a Hub
      • To support at least 4-nodes, need Windows Server 2003 Enterprise Edition or Windows Server 2003 Datacenter Edition
      • Windows Clustering is installed by default; configure a cluster by starting Cluster Administrator or Cluster.exe
    • 17. Writing your own Cluster-Aware Application
      • LooksAlive (By default, SQL calls this every 5 seconds)
      • IsAlive (By default, SQL calls this every 60 seconds)
    • 18. Clustering Resources
      • Quorum Drive Configuration Information http://support.microsoft.com/?id=280345
      • Available Features in Windows Server 2003 Clusters http://support.microsoft.com/?id=278007
      • Step by step guide to install a 2000 Cluster: http://www.microsoft.com/windows2000/techinfo/planning/server/clustersteps.asp
    • 19. Questions
      • Mike Fitzsimon [email_address]
      • This ppt available from www.fitzsimon.com.au/qmsdnug

    ×
