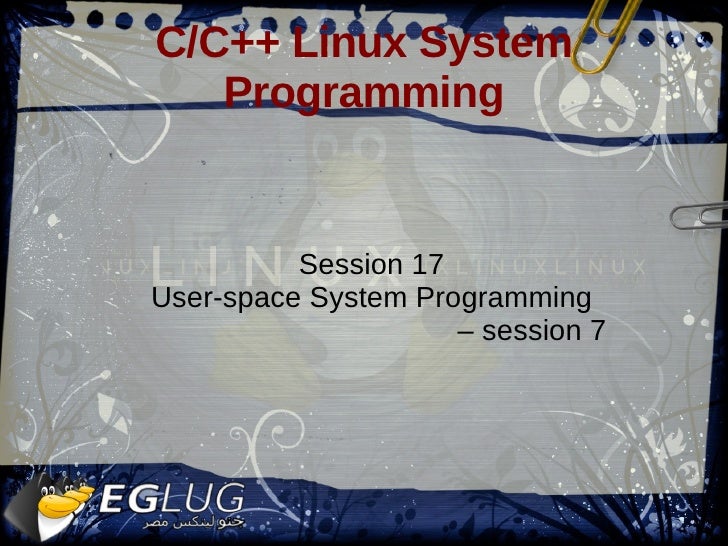

C/C++ Linux System Programming <ul><ul><li>Session 17 </li></ul></ul><ul><ul><li>User-space System Programming </li></ul><...
Outline <ul><li>Device File I/O ops </li></ul><ul><li>Networking Concepts </li></ul><ul><li>Socket Concepts and Ops </li><...
DEVICES <ul><li>Major and minor numbers </li></ul><ul><ul><li>int mknod(const char *pathname, mode_t mode, dev_t dev); </l...
I/O Multiplexing <ul><li>int select(int nfds, fd_set *readfds, fd_set *writefds, fd_set *exceptfds, struct timeval *timeou...
Epoll  <ul><li>Decouple interest set registration from poll </li></ul><ul><ul><li>+: O(1) on the wait </li></ul></ul><ul><...
IOCTL <ul><li>Device / special file control </li></ul><ul><li>int ioctl(int d, int request, ...); </li></ul><ul><li>Reques...
Filesystem events <ul><li>int inotify_init(void); // desc, need close </li></ul><ul><li>int inotify_add_watch(int fd, cons...
int inotifyd_main(int argc UNUSED_PARAM, char **argv) { unsigned mask = IN_ALL_EVENTS; // assume we want all events struct...
Asynchronous I/O <ul><li>Only on O_DIRECT </li></ul>struct aiocb { int aio_filedes;  /* file descriptor * int aio_lio_opco...
Network Architecture Application – telnet/ftp/http...etc Presentation --  intended for e.g. encryption Session --  e.g. iS...
Focus <ul><li>Link is handled by HW and drivers </li></ul><ul><li>Network: IP, handled by kernel, affects addressing and b...
Network Layer Concerns <ul><li>Byte ordering  </li></ul><ul><ul><li>Network byte order  vs Host byte order  </li></ul></ul...
Network Byte Order <ul><li>uint32_t htonl(uint32_t hostlong); </li></ul><ul><li>uint16_t htons(uint16_t hostshort); </li><...
IP Address Casting struct sockaddr { sa_family_t sa_family; char  sa_data[14]; } struct sockaddr_in { sa_family_t  sin_fam...
Name Service <ul><li>what hosts (sometimes, what service) </li></ul><ul><li>DNS/BIND, NIS/YP, LDAP </li></ul><ul><li>DNS: ...
Name / Address Info <ul><li>address ==> name </li></ul><ul><li>Name ==> address(es) </li></ul><ul><li>String ==> Address <...
Legacy Name/Address Info <ul><li>struct hostent *gethostbyname(const char *name); </li></ul><ul><li>struct hostent *gethos...
Sockets  <ul><li>Model </li></ul><ul><ul><li>Virtual hookup (like the phone) </li></ul></ul><ul><ul><li>A special “descrip...
Reliable Sockets <ul><li>Connect to server address </li></ul><ul><ul><li>int connect(int sockfd, const struct sockaddr *se...
Socket States  Stevens et al
Socket Options <ul><li>int getsockopt(int s, int level, int optname, void *optval, socklen_t *optlen); </li></ul><ul><li>i...
Unreliable Communication <ul><li>ssize_t sendto(int s, const void *buf, size_t len, int flags, const struct sockaddr *to, ...
I/O  <ul><li>Like File I/O: </li></ul><ul><ul><li>read/write/readv/writev/poll/select/ fcntl-SIGIO... </li></ul></ul><ul><...
Message-Based Transfers <ul><li>ssize_t recvmsg(int s, struct msghdr *msg, int flags); </li></ul><ul><li>ssize_t sendmsg(i...
Design Decisions <ul><li>UDP, TCP, Raw </li></ul><ul><li>On connection server </li></ul><ul><ul><li>Iterative vs Concurren...
Some examples <ul><li>TCP sshd  </li></ul><ul><li>Raw ping </li></ul><ul><li>UDP snmp </li></ul>
UNIX Domain Sockets <ul><li>IPC </li></ul><ul><li>Ancillary data: </li></ul><ul><ul><li>SOL_SOCKET level </li></ul></ul><u...
