Scaling Massive ElasticSearch          Clusters    Rafał Kuć – Sematext International   @kucrafal @sematext sematext.com

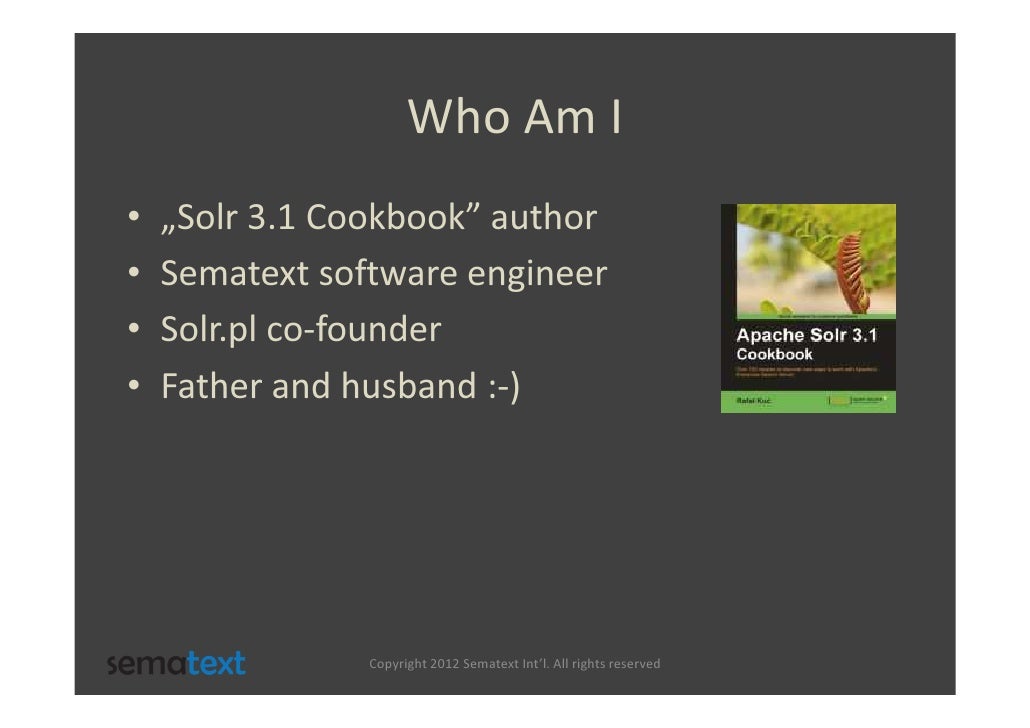

Who Am I•   „Solr 3.1 Cookbook” author•   Sematext software engineer•   Solr.pl co-founder•   Father and husband :-)      ...

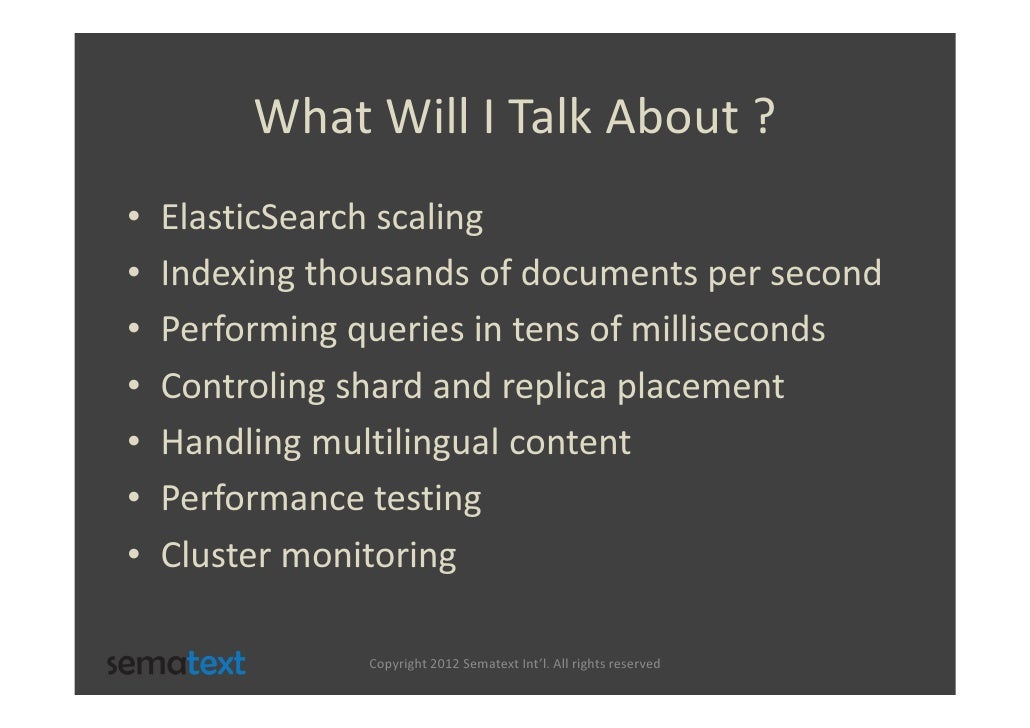

What Will I Talk About ?•   ElasticSearch scaling•   Indexing thousands of documents per second•   Performing queries in t...

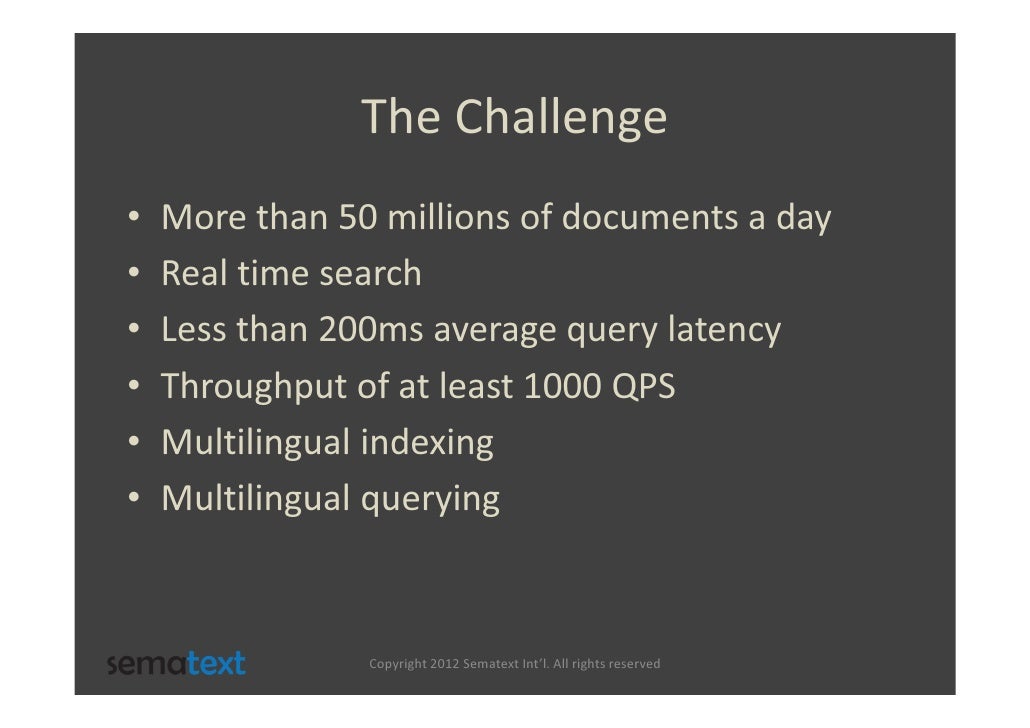

The Challenge•   More than 50 millions of documents a day•   Real time search•   Less than 200ms average query latency•   ...

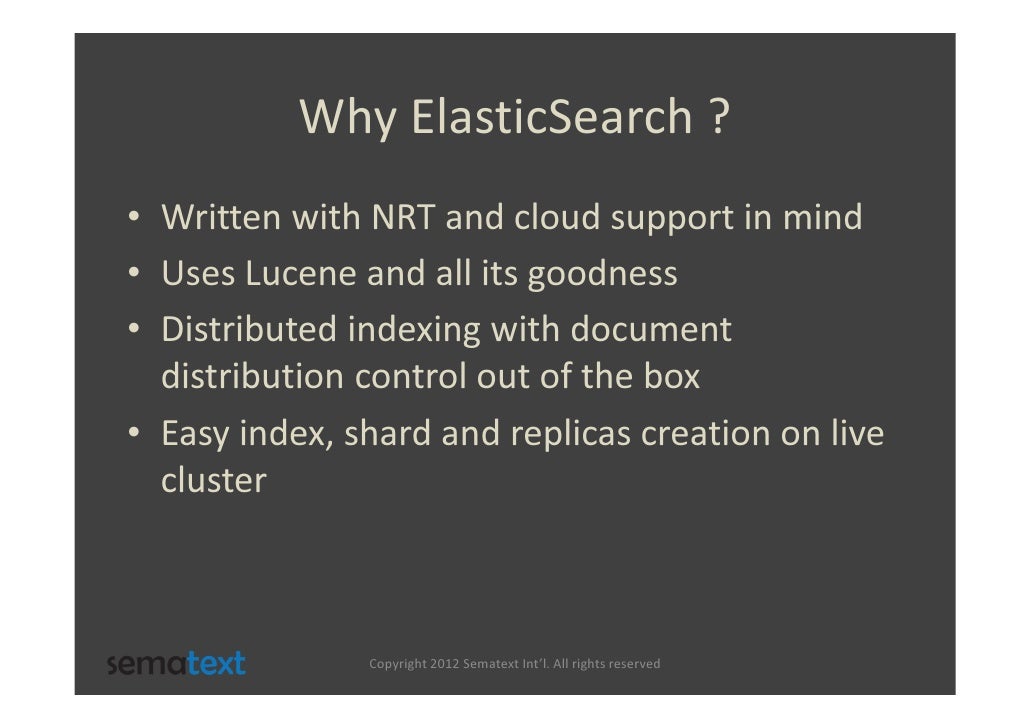

Why ElasticSearch ?• Written with NRT and cloud support in mind• Uses Lucene and all its goodness• Distributed indexing wi...

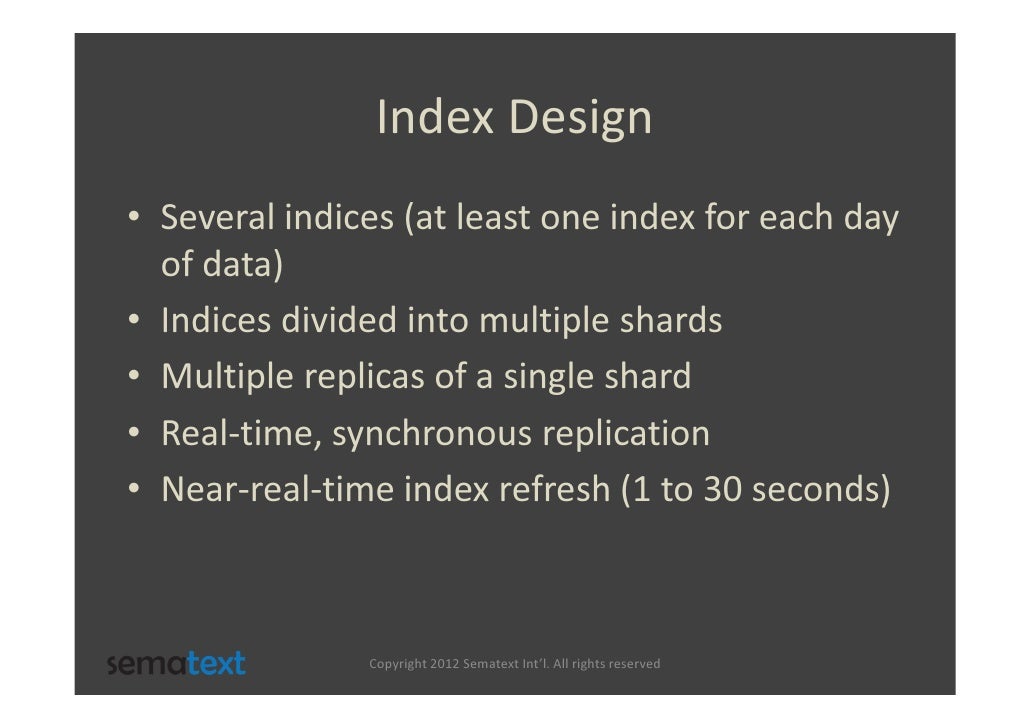

Index Design• Several indices (at least one index for each day  of data)• Indices divided into multiple shards• Multiple r...

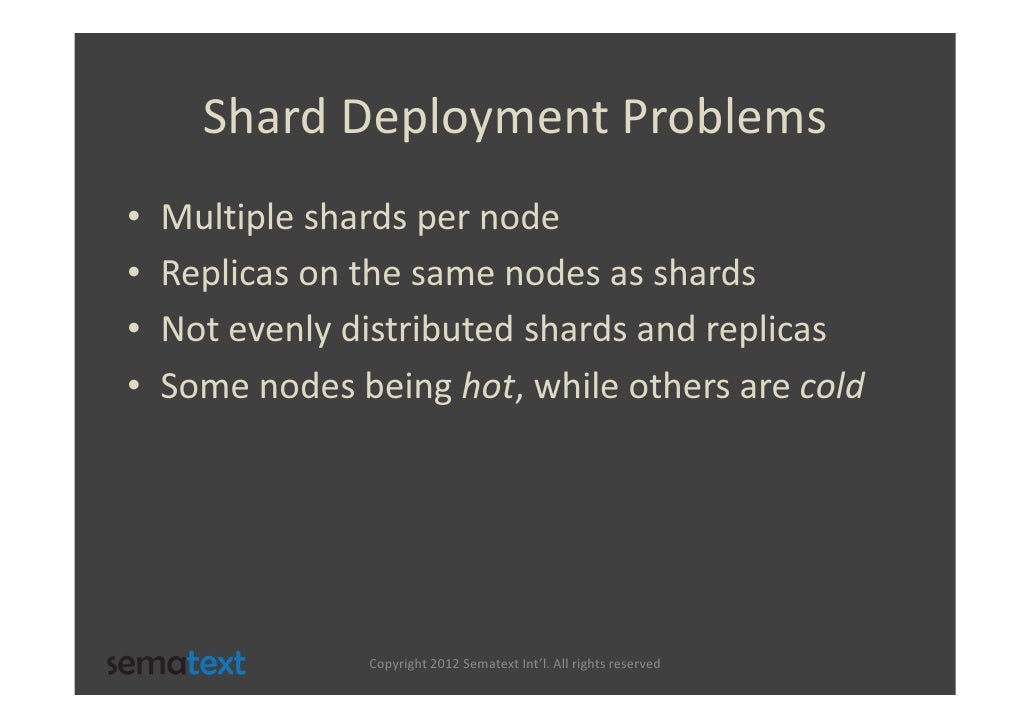

Shard Deployment Problems•   Multiple shards per node•   Replicas on the same nodes as shards•   Not evenly distributed sh...

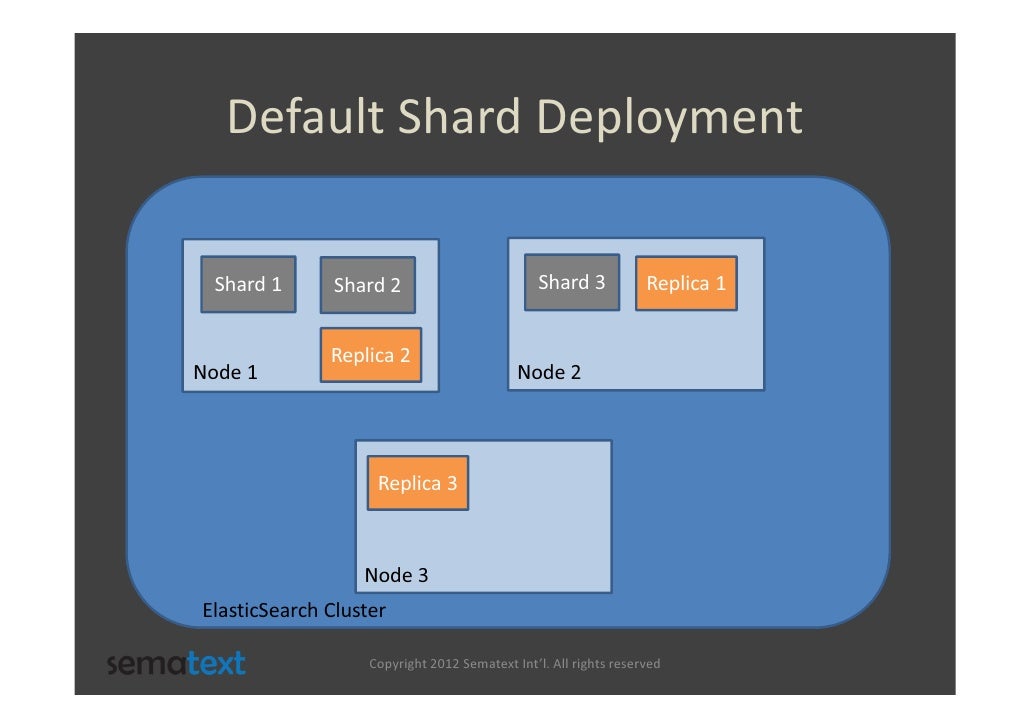

Default Shard Deployment Shard 1       Shard 2                         Shard 3            Replica 1              Replica 2...
What Can We Do With Shards Then ?• Contol shard placement with node tags:  – index.routing.allocation.include.tag  – index...

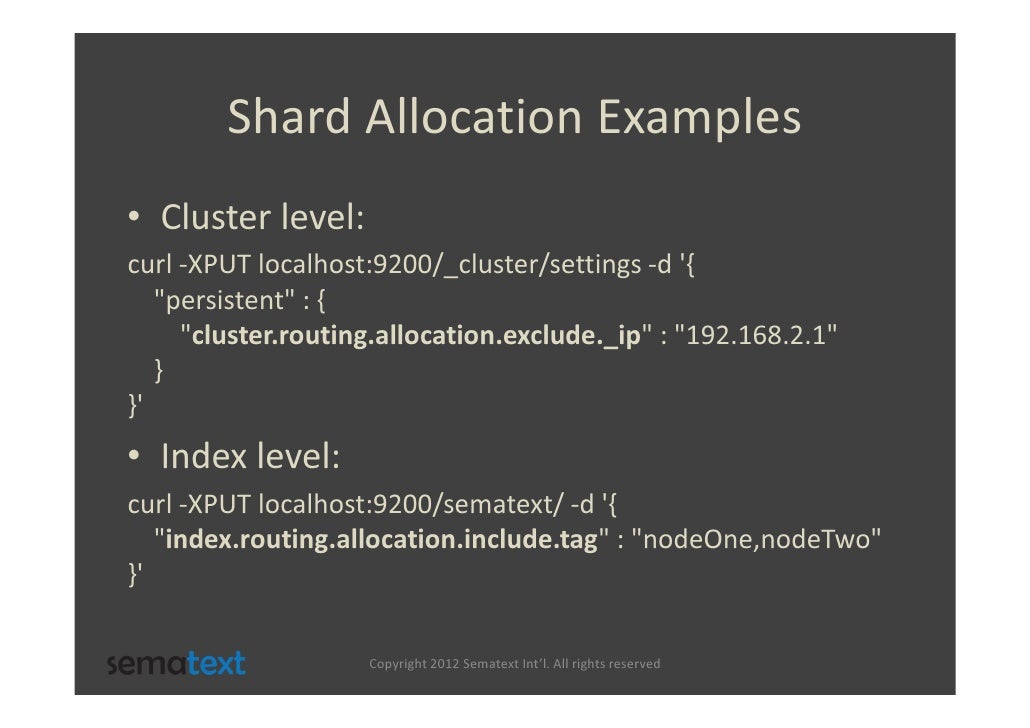

Shard Allocation Examples• Cluster level:curl -XPUT localhost:9200/_cluster/settings -d {   "persistent" : {     "cluster....
Number of Shards Per Node• Allows one to specify number of shards per  node• Specified on index level• Can be changed on l...

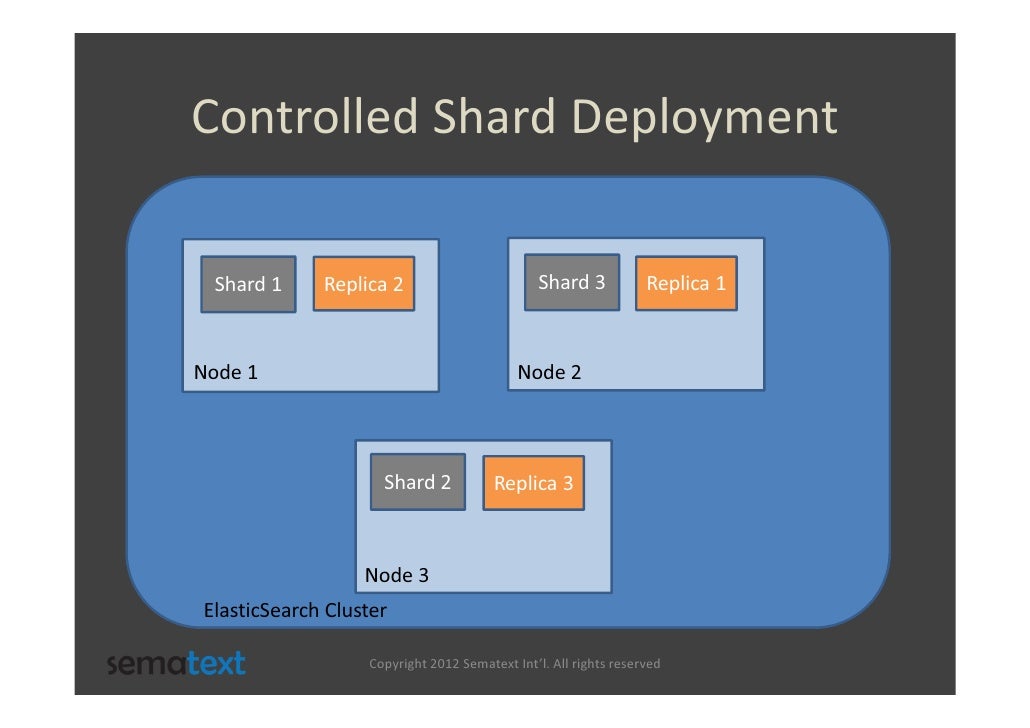

Controlled Shard Deployment Shard 1     Replica 2                        Shard 3            Replica 1Node 1               ...

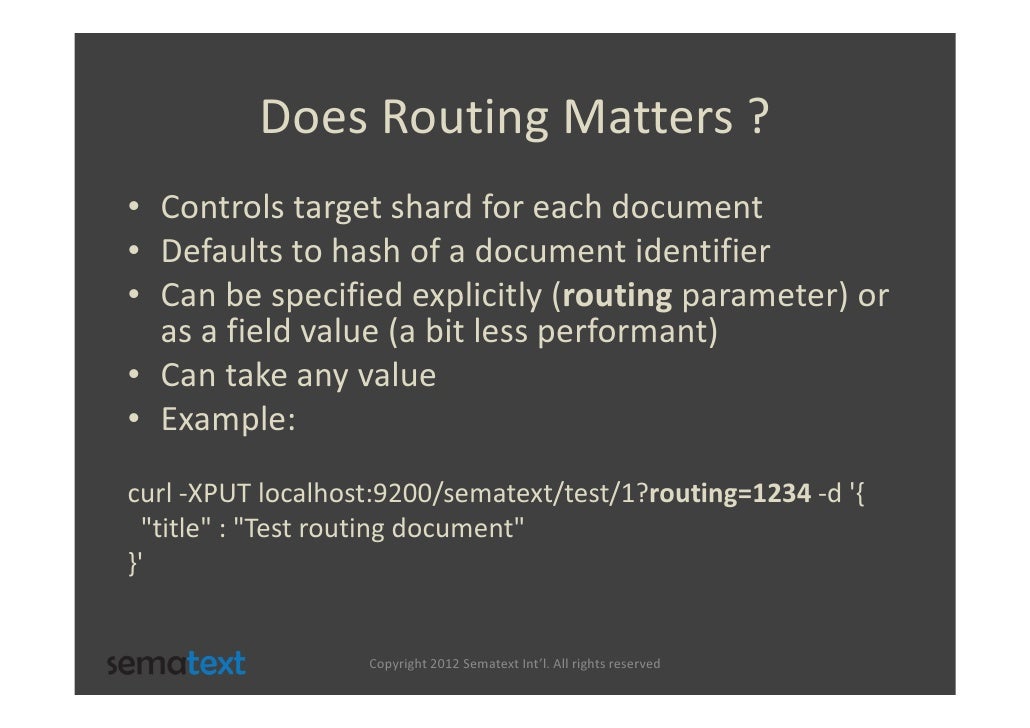

Does Routing Matters ?• Controls target shard for each document• Defaults to hash of a document identifier• Can be specifi...
Indexing the Data  Shard       Replica                              Shard           Replica    1           2              ...

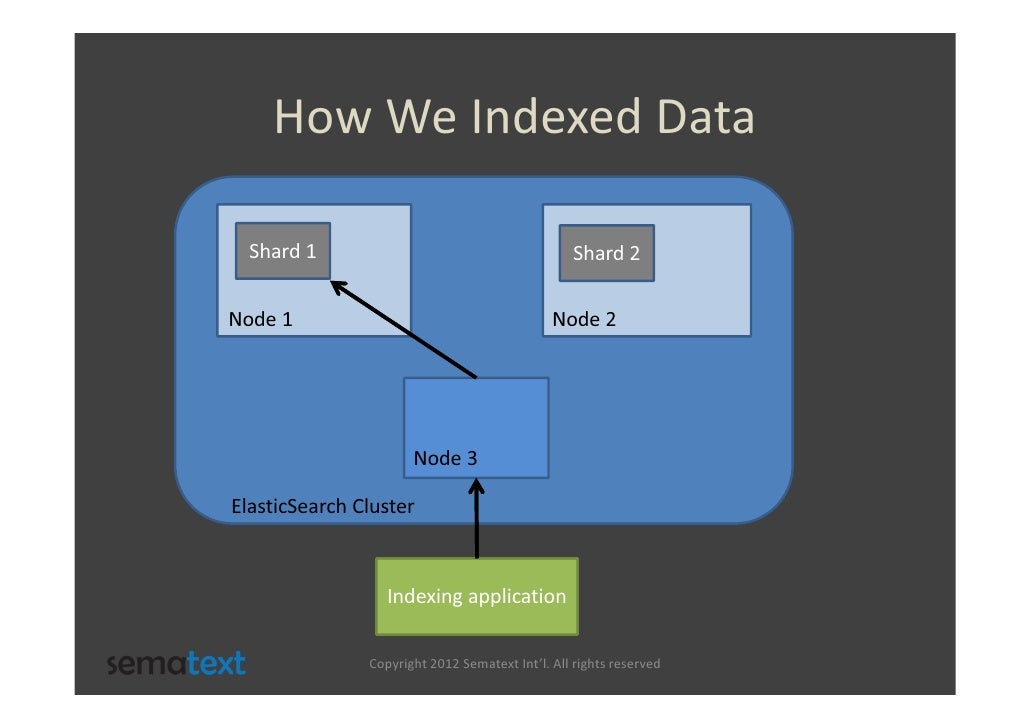

How We Indexed Data  Shard 1                                        Shard 2Node 1                                        N...

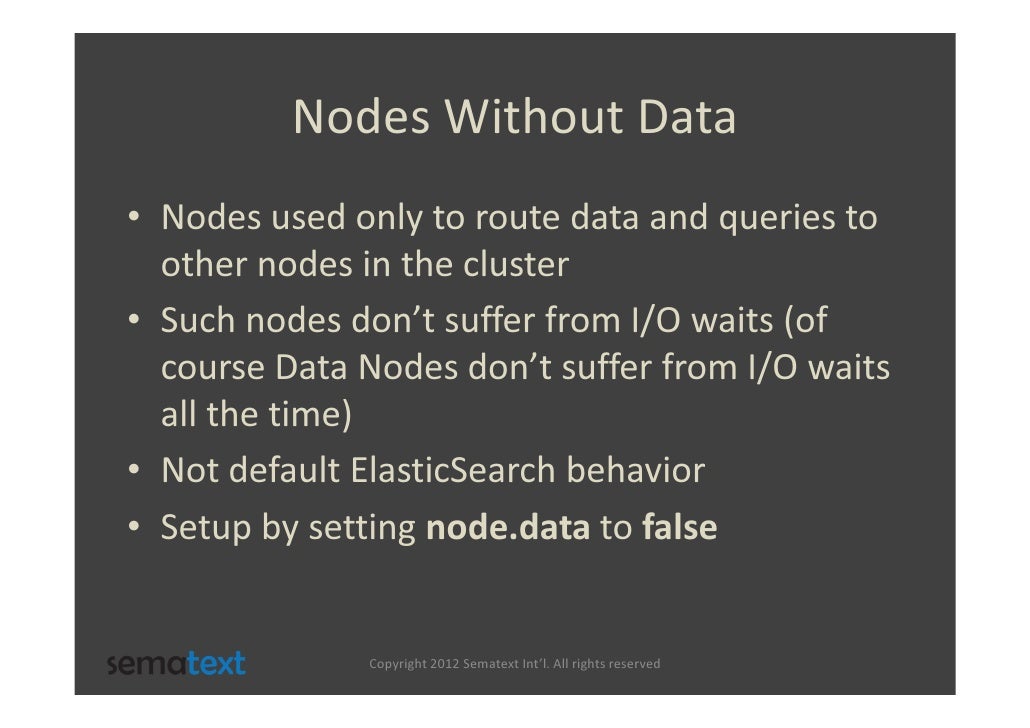

Nodes Without Data• Nodes used only to route data and queries to  other nodes in the cluster• Such nodes don’t suffer from...

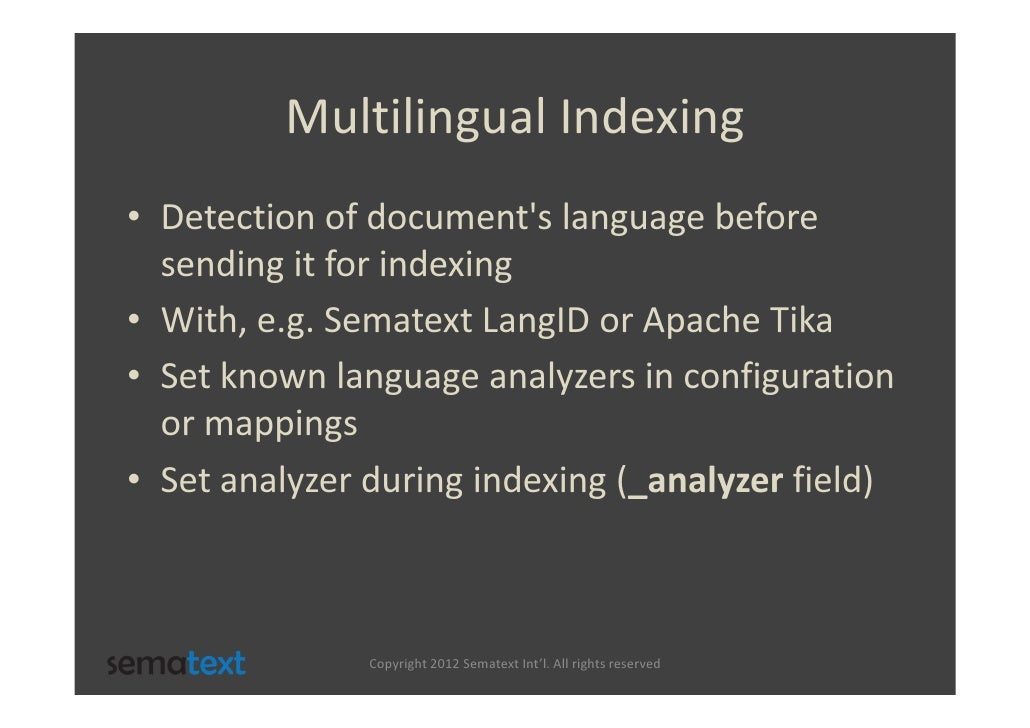

Multilingual Indexing• Detection of documents language before  sending it for indexing• With, e.g. Sematext LangID or Apac...

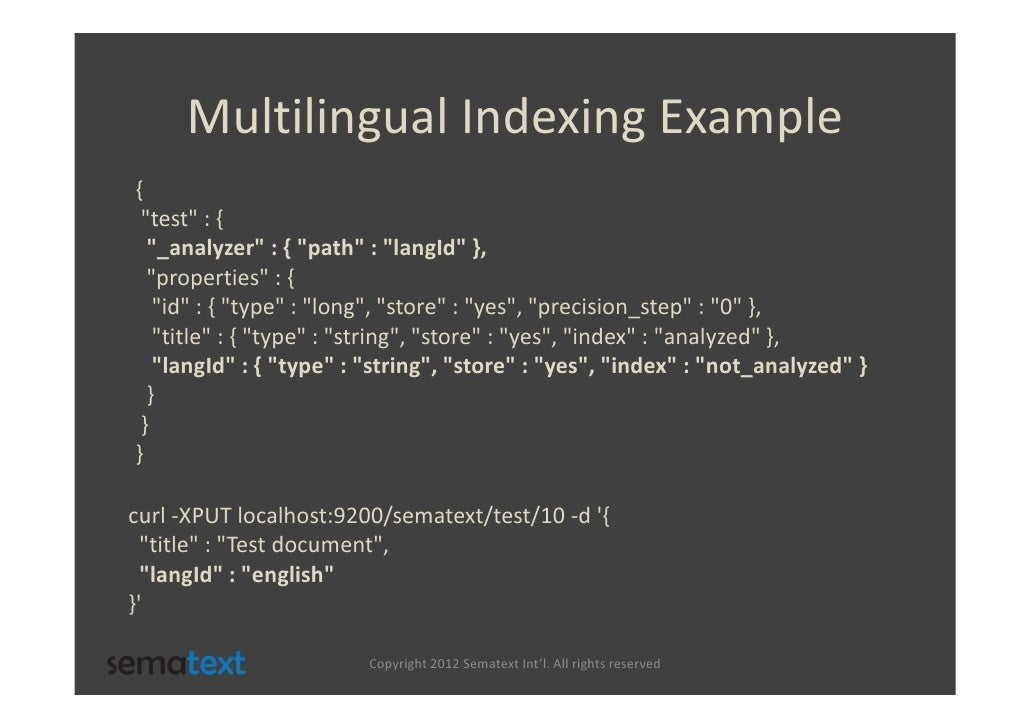

Multilingual Indexing Example{ "test" : {  "_analyzer" : { "path" : "langId" },  "properties" : {   "id" : { "type" : "lon...

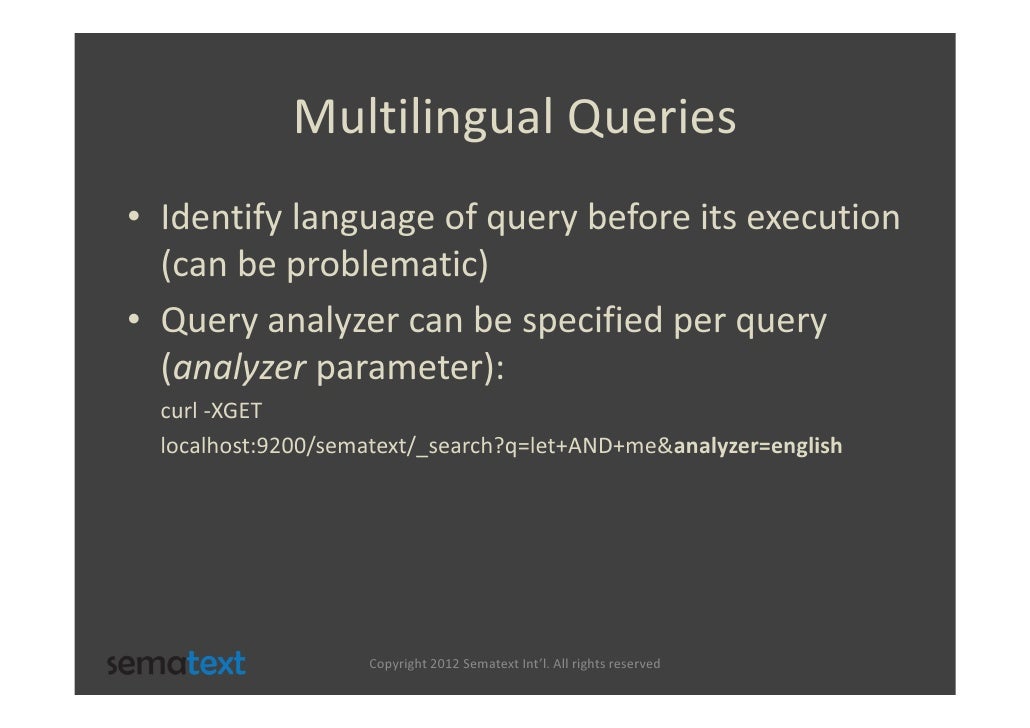

Multilingual Queries• Identify language of query before its execution  (can be problematic)• Query analyzer can be specifi...

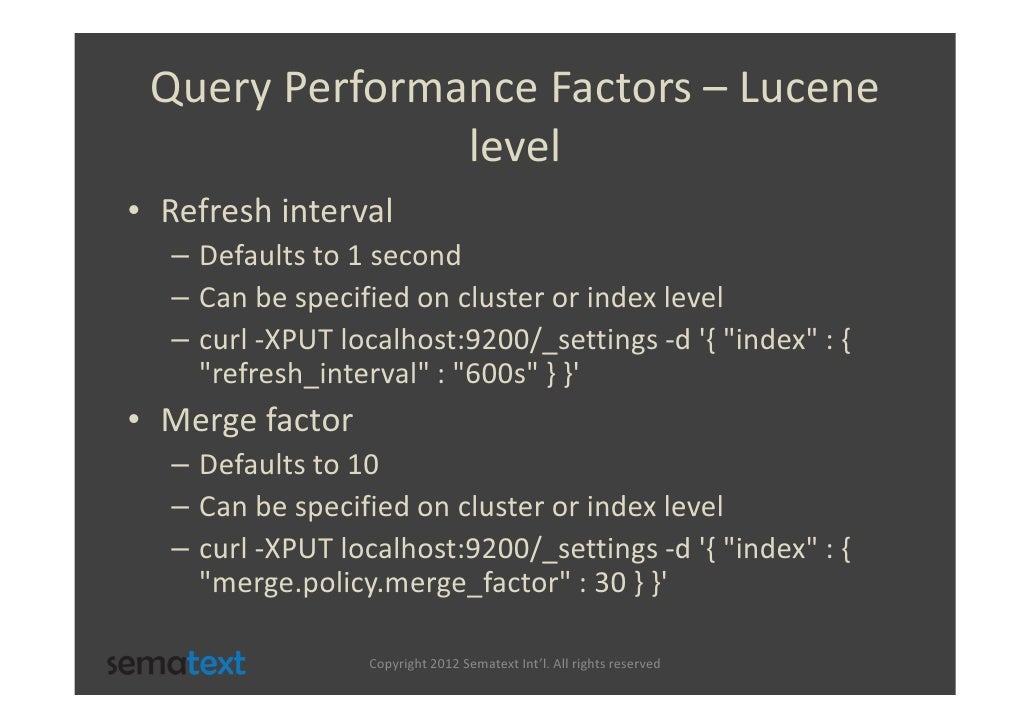

Query Performance Factors – Lucene               level• Refresh interval  – Defaults to 1 second  – Can be specified on cl...

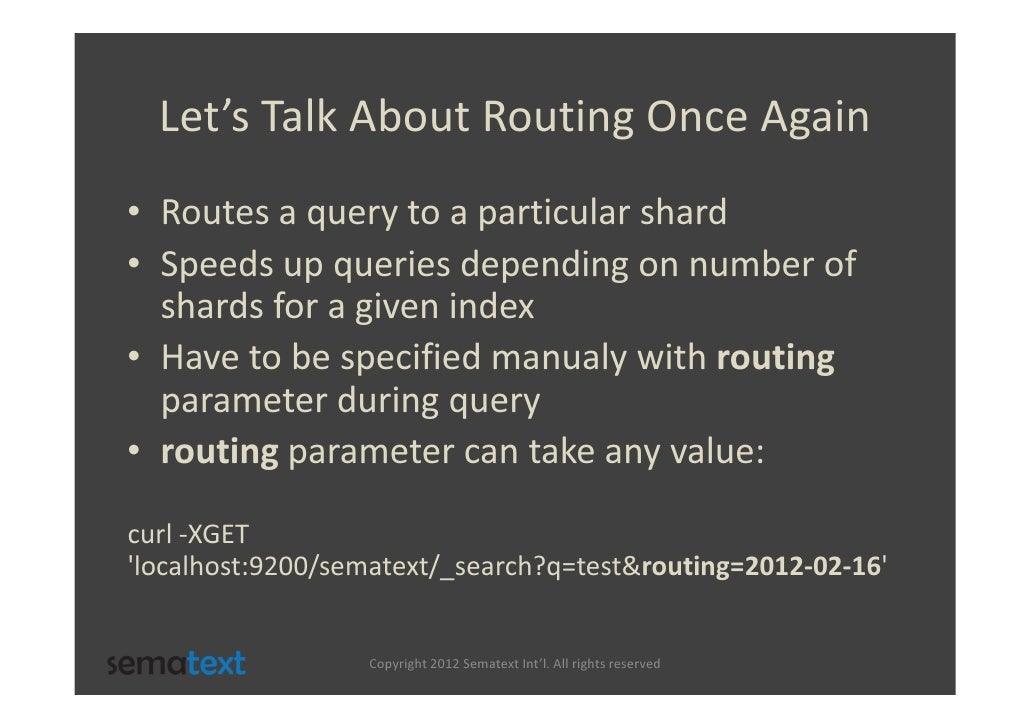

Let’s Talk About Routing Once Again• Routes a query to a particular shard• Speeds up queries depending on number of  shard...

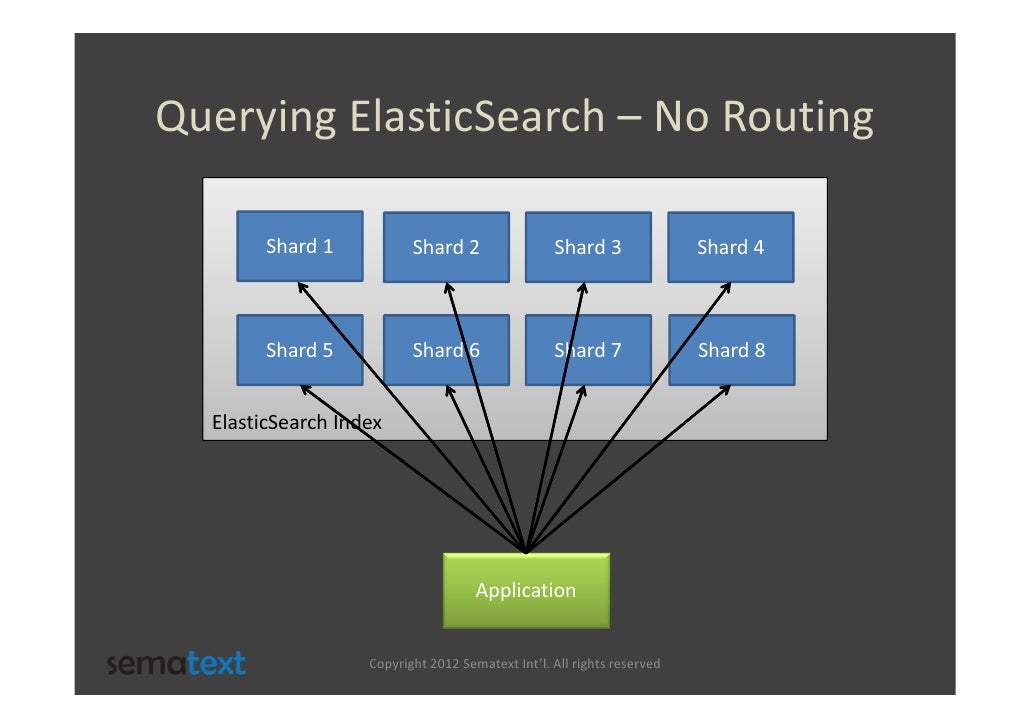

Querying ElasticSearch – No Routing        Shard 1           Shard 2                 Shard 3               Shard 4        ...

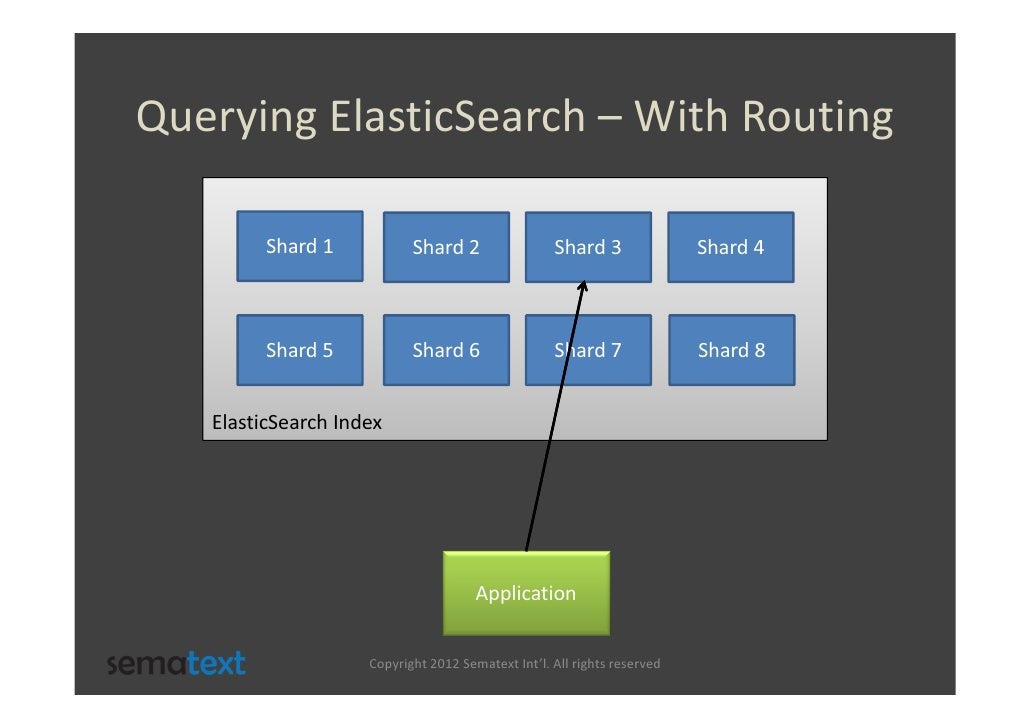

Querying ElasticSearch – With Routing         Shard 1           Shard 2                 Shard 3               Shard 4     ...

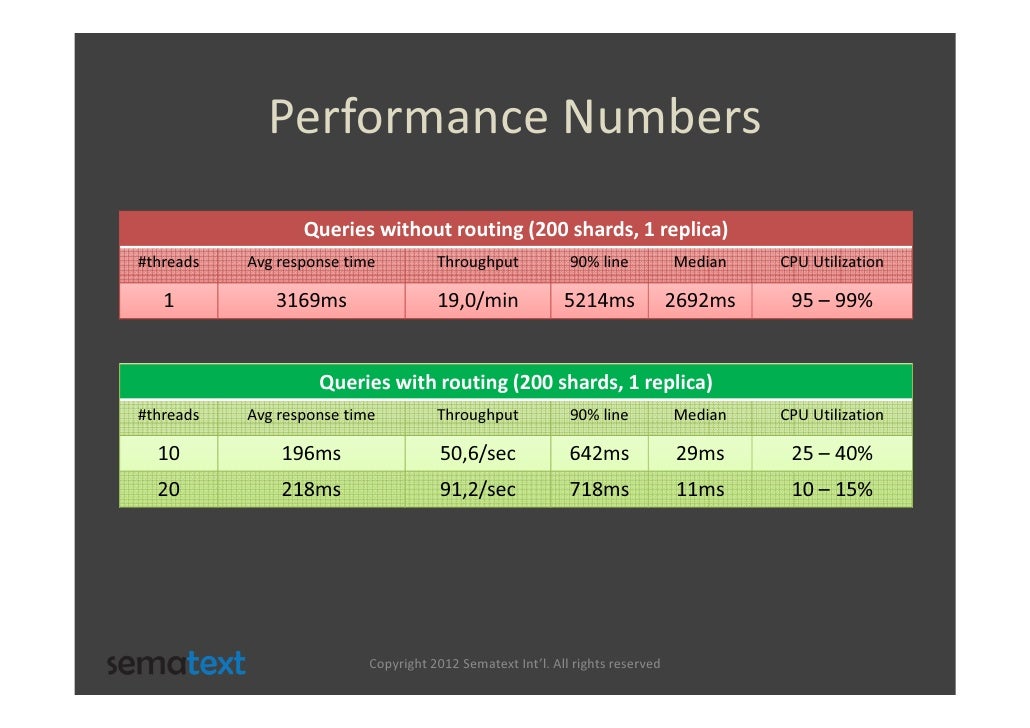

Performance Numbers                  Queries without routing (200 shards, 1 replica)#threads   Avg response time          ...

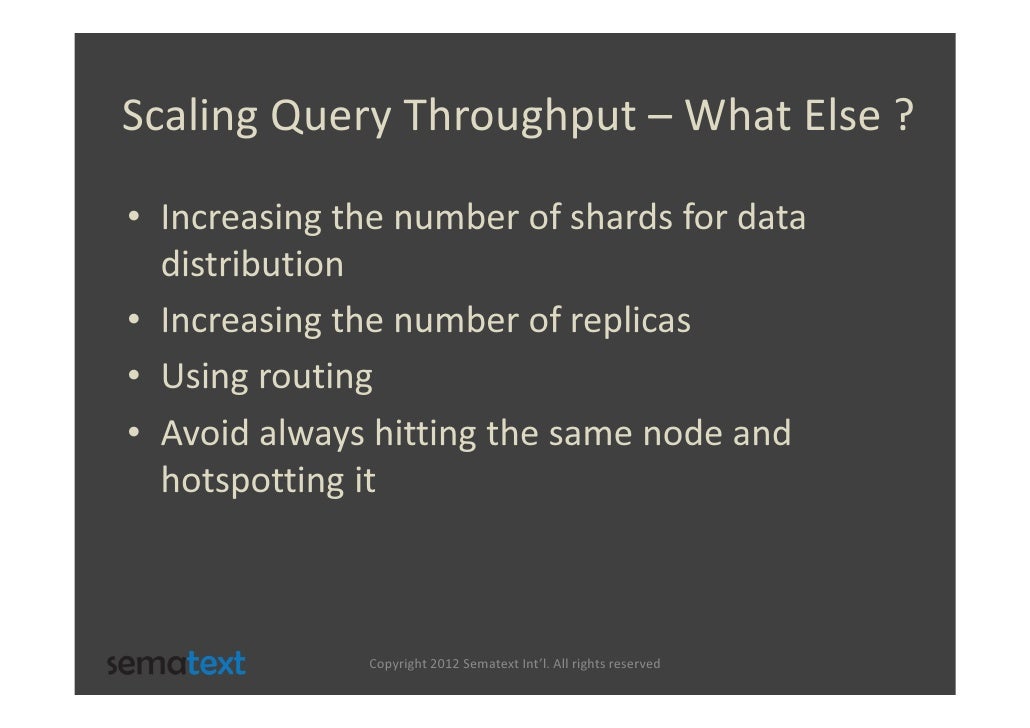

Scaling Query Throughput – What Else ?• Increasing the number of shards for data  distribution• Increasing the number of r...
FieldCache and OutOfMemory• ElasticSearch default setup doesn’t limit field  data cache size               Copyright 2012 ...

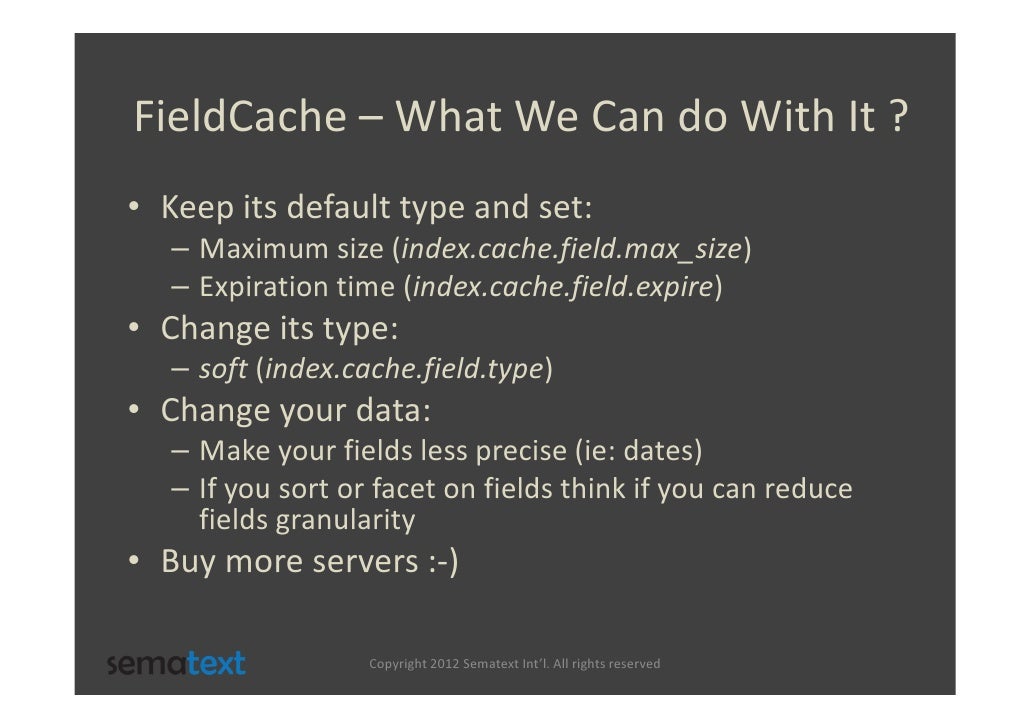

FieldCache – What We Can do With It ?• Keep its default type and set:   – Maximum size (index.cache.field.max_size)   – Ex...

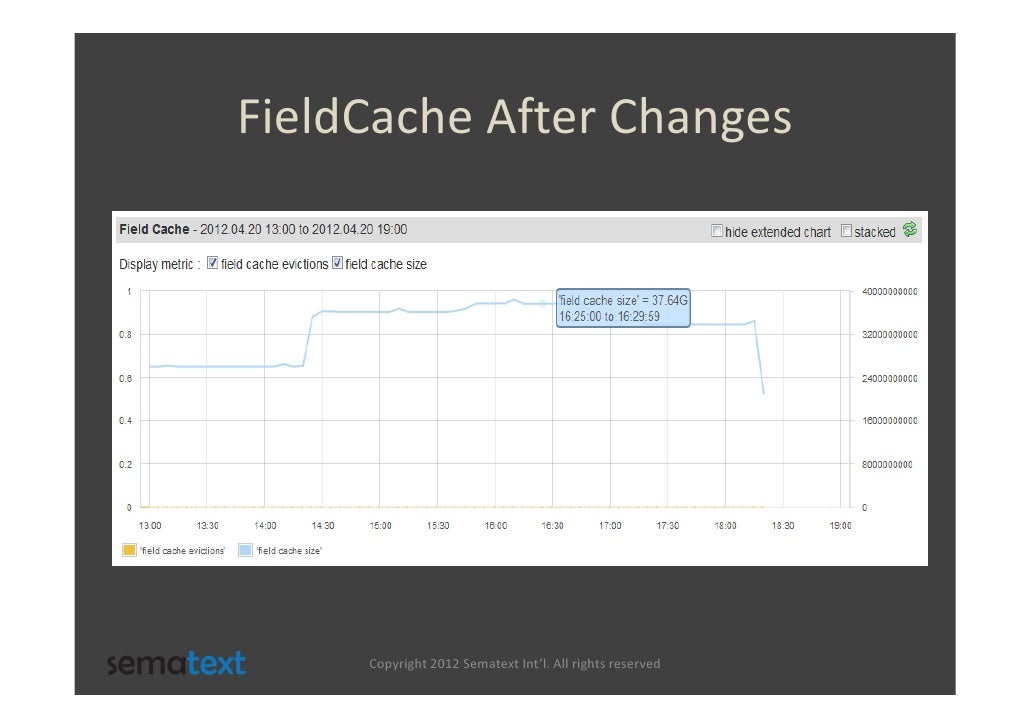

FieldCache After Changes     Copyright 2012 Sematext Int’l. All rights reserved

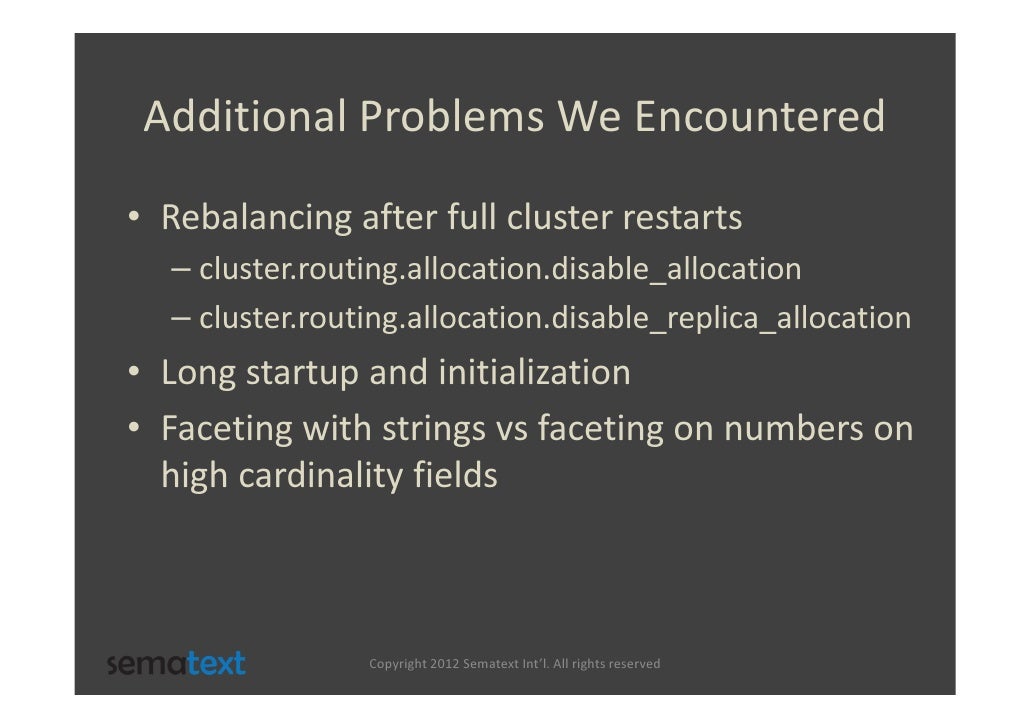

Additional Problems We Encountered• Rebalancing after full cluster restarts  – cluster.routing.allocation.disable_allocati...

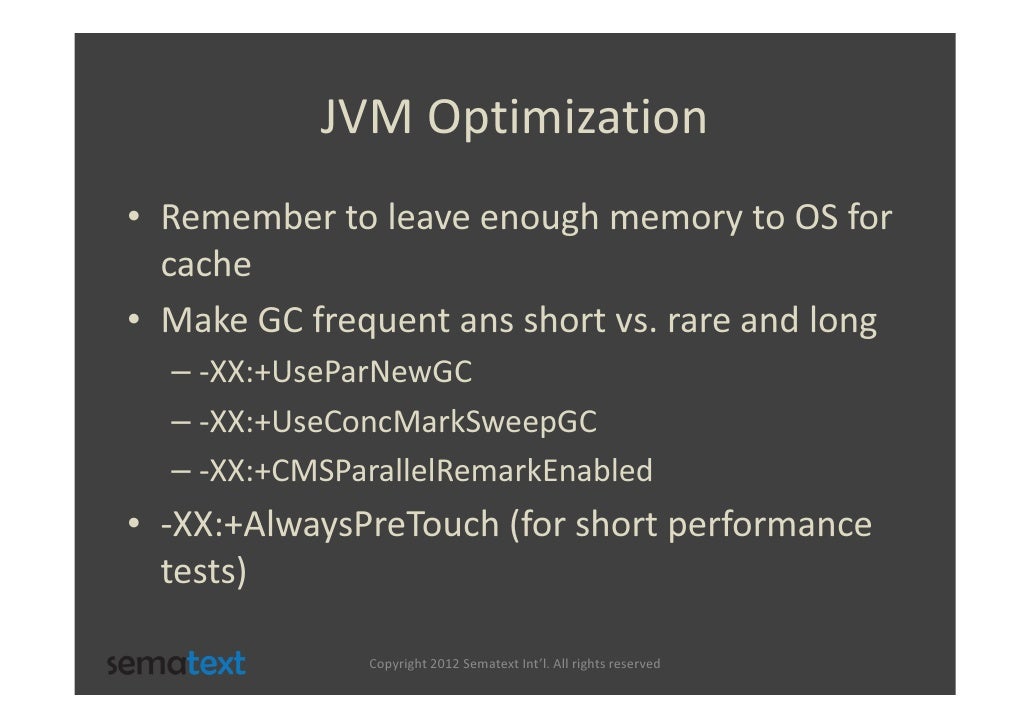

JVM Optimization• Remember to leave enough memory to OS for  cache• Make GC frequent ans short vs. rare and long  – -XX:+U...

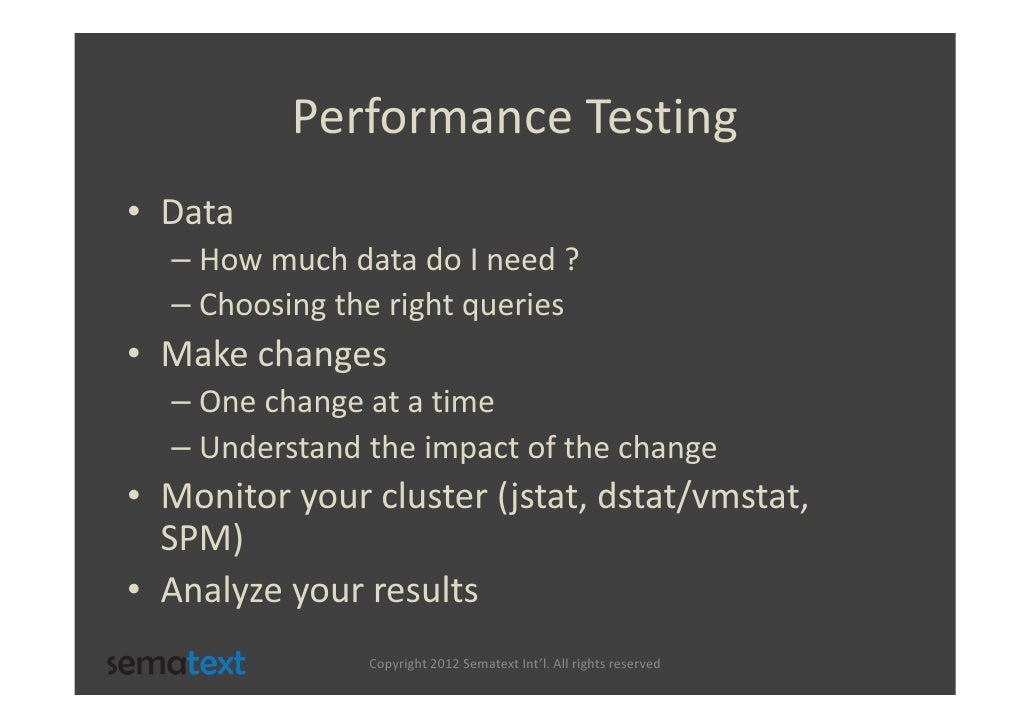

Performance Testing• Data  – How much data do I need ?  – Choosing the right queries• Make changes  – One change at a time...

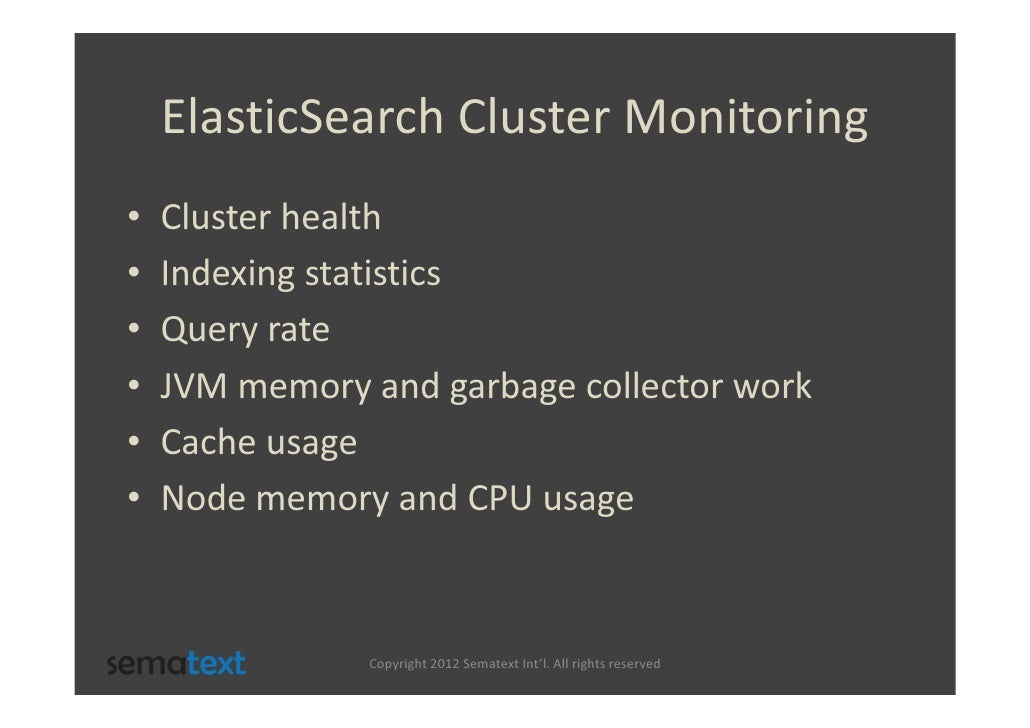

ElasticSearch Cluster Monitoring•   Cluster health•   Indexing statistics•   Query rate•   JVM memory and garbage collecto...

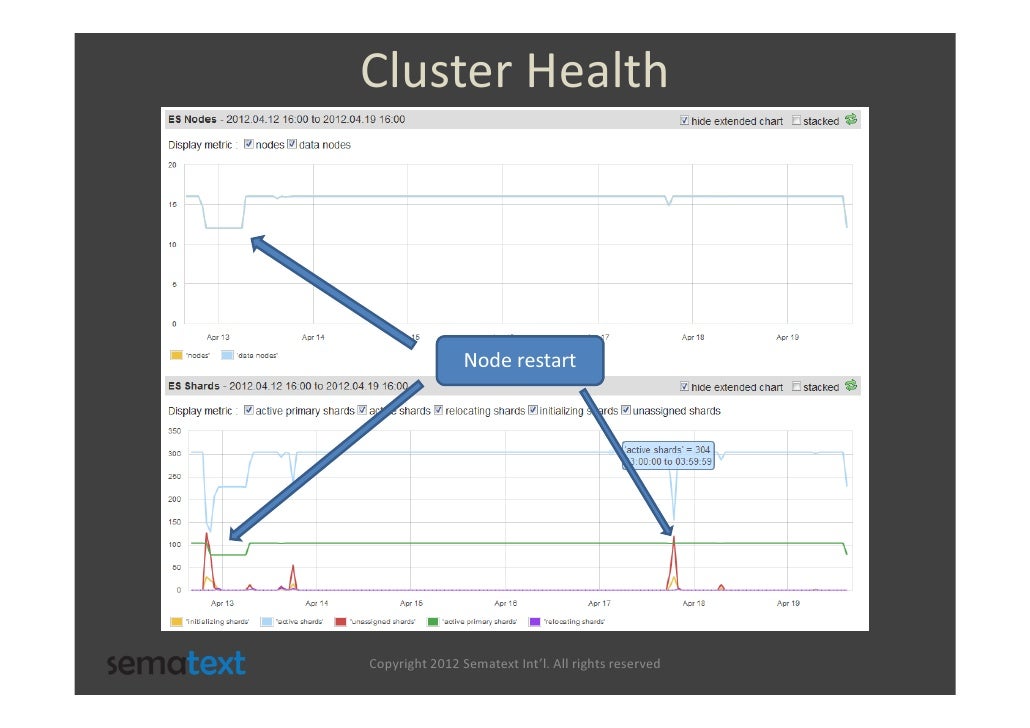

Cluster Health                Node restartCopyright 2012 Sematext Int’l. All rights reserved

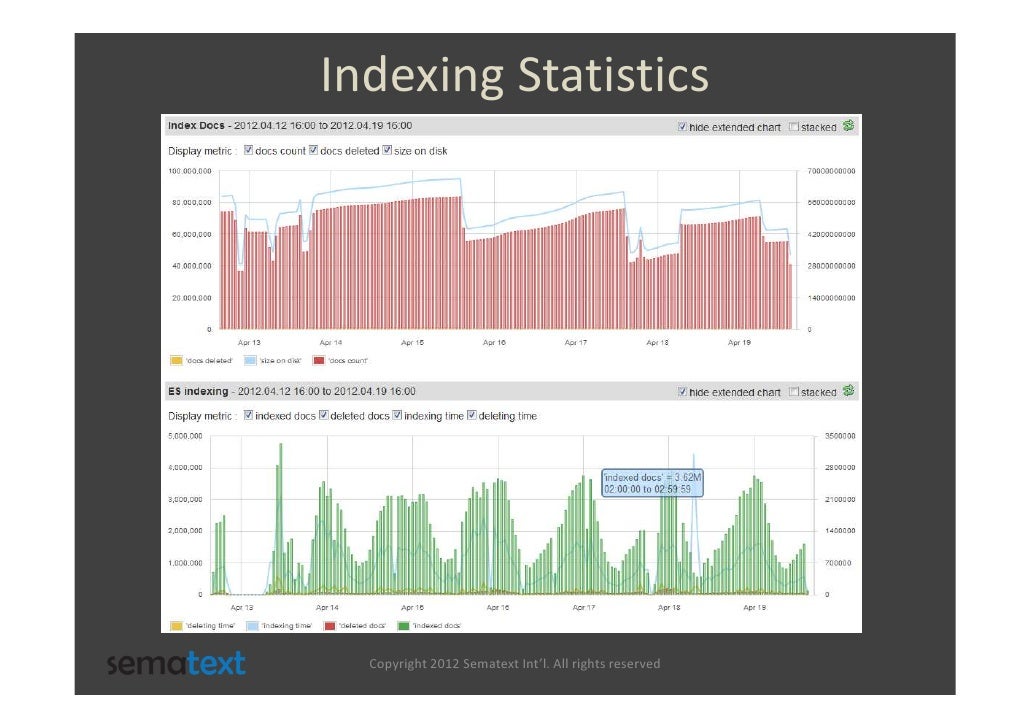

Indexing Statistics  Copyright 2012 Sematext Int’l. All rights reserved
Query RateCopyright 2012 Sematext Int’l. All rights reserved
JVM Memory and GC   Copyright 2012 Sematext Int’l. All rights reserved

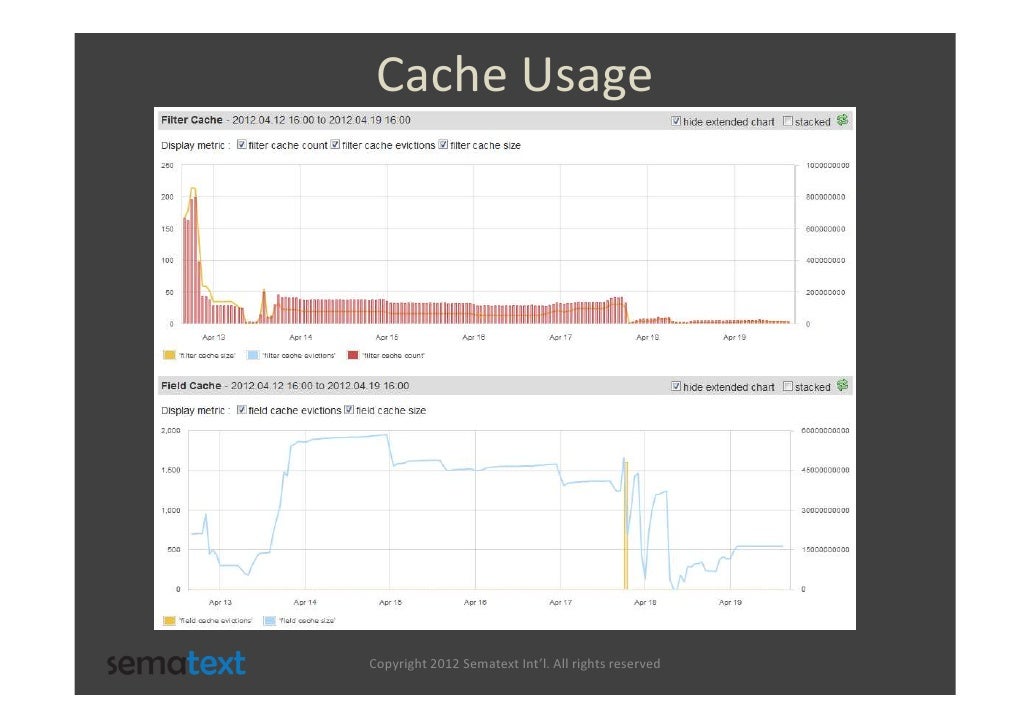

Cache UsageCopyright 2012 Sematext Int’l. All rights reserved

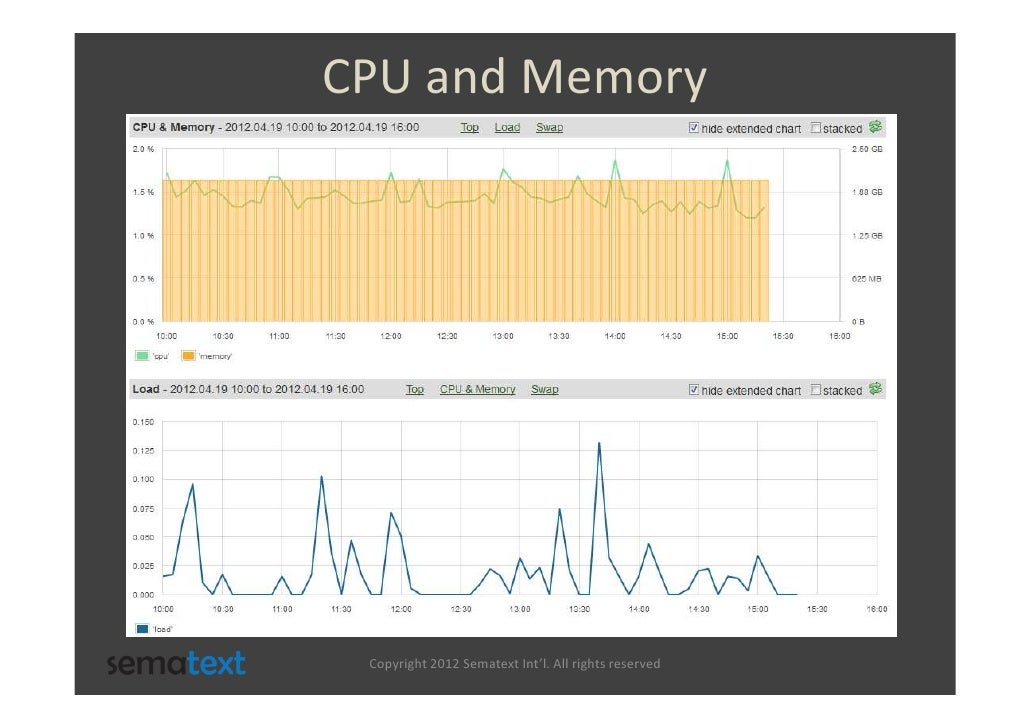

CPU and Memory Copyright 2012 Sematext Int’l. All rights reserved

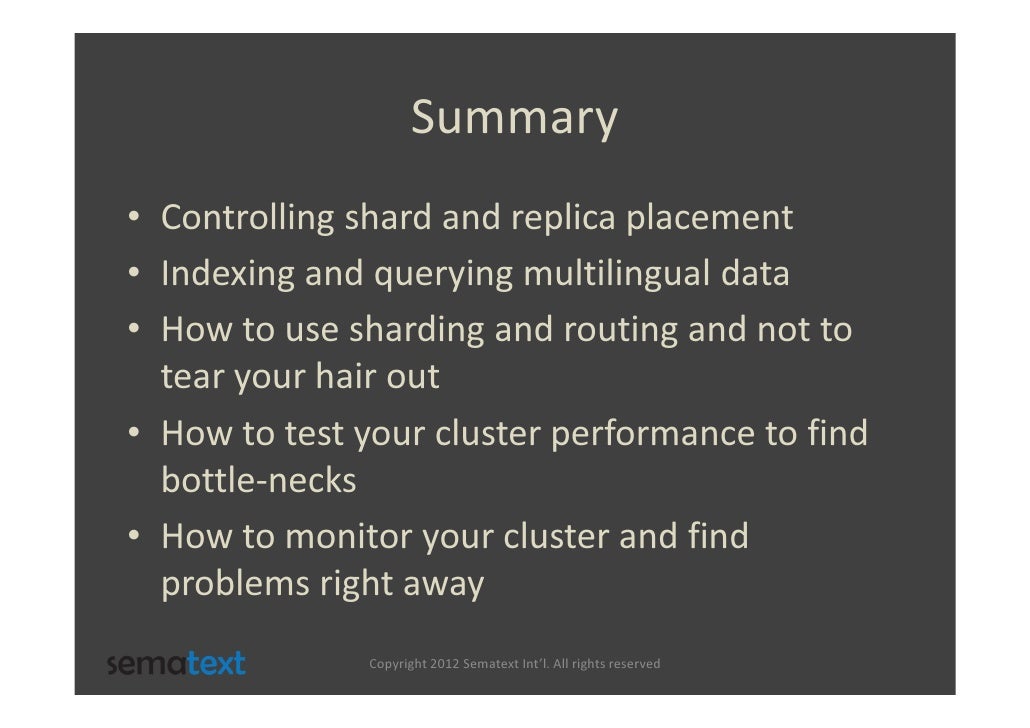

Summary• Controlling shard and replica placement• Indexing and querying multilingual data• How to use sharding and routing...
We Are Hiring !•   Dig Search ?•   Dig Analytics ?•   Dig Big Data ?•   Dig Performance ?•   Dig working with and in open ...

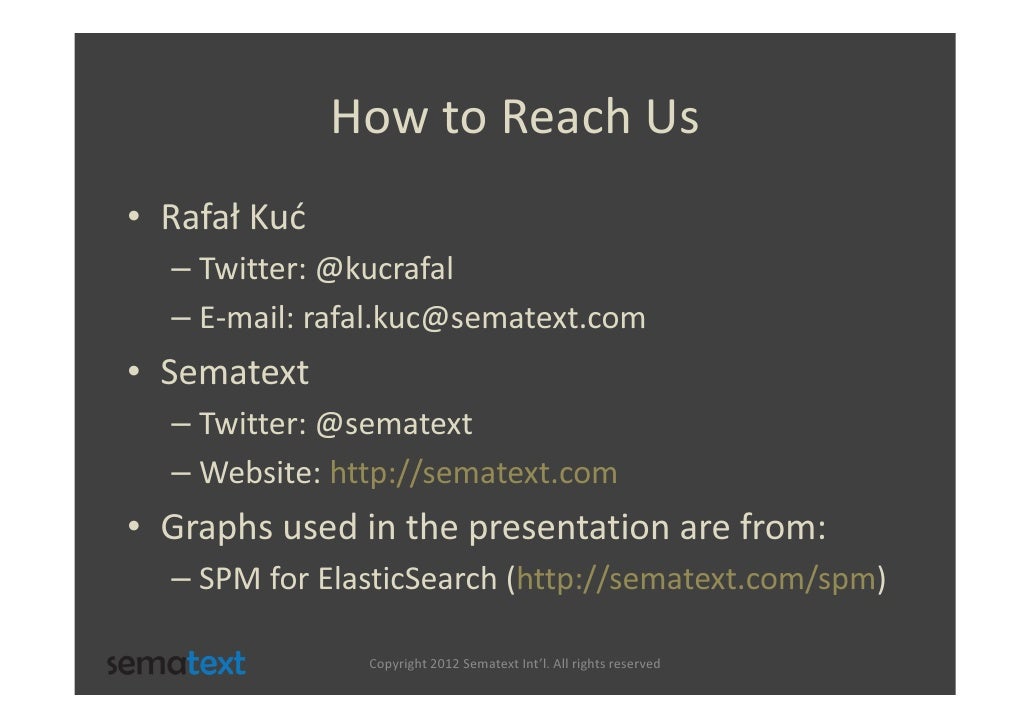

How to Reach Us• Rafał Kuć  – Twitter: @kucrafal  – E-mail: rafal.kuc@sematext.com• Sematext  – Twitter: @sematext  – Webs...
Thank You For Your Attention
