  • zen and the art of SQL optimization

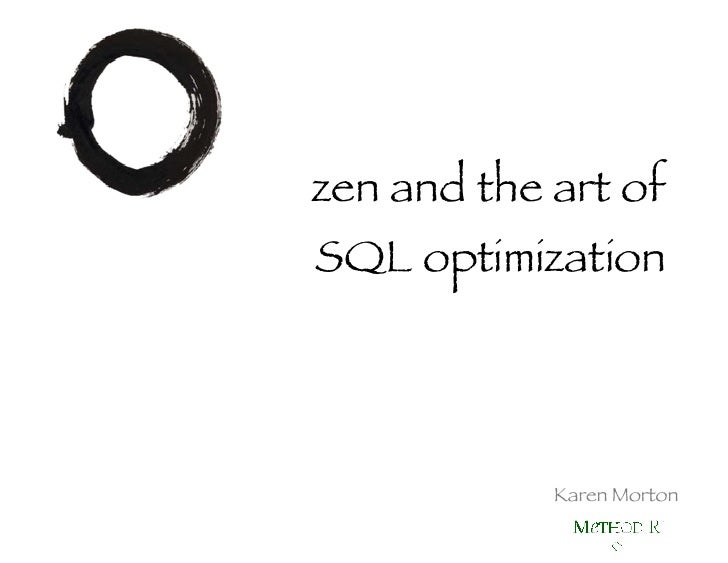

    1. zen and the art of SQL optimization Karen Morton
    2.
    3.
    4. Simplicity
    5. “ Make everything as simple as possible but no simpler. ” <ul><li>Albert Einstein </li></ul>
    6.
    7.
    8. “ Normally, we do not so much look at things as overlook them.” <ul><li>Alan Watts </li></ul>
    9. simple vs simple-minded
    10. Oracle 9.2.0.6 SELECT to_char( to_date(:B1,‘DD-MON-YYYY’)+1, ‘DD-MON-YYYY’ ) FROM dual;
    11. What about its effect?
    12. 32.9% % of total R
    13. 1,087,770 # of executions
    14. 3,263,033 # of LIOs
    15. v_date_str := to_char( to_date( :B1,‘DD-MON-YYYY’ ) + 1, ‘ DD-MON-YYYY’ ) ;
    16. Focus
    17. ETCIBMVIPNASAFBI
    18. ETC IBM VIP NASA FBI
    19. SELECT rowid, load_no, load_status, manifest_no, manifest_date FROM cs_loads WHERE load_no = 552888 ; VARCHAR2(15) SELECT rowid, load_no, load_status, manifest_no, manifest_date FROM cs_loads WHERE load_no = 552888 ; datatype mismatch causes FULL SCAN SELECT rowid, load_no, load_status, manifest_no, manifest_date FROM cs_loads WHERE load_no =‘552888’;
    20. SELECT rowid, load_no, load_status, manifest_no, manifest_date FROM cs_loads WHERE load_no = :B1 ;
    21. Keys to Optimizing SQL
    22. Tune the question, not the query.
    23. What output should the query provide?
    24. What special conditions need to be handled?
    25. “ If you don’t know where you are going, you’ll end up somewhere else.” <ul><li>Yogi Berra </li></ul>
    26. Reduce. Reuse.
    27. Decrease row source sizes quickly
    28. Access objects once and reuse the result set
    29. “ Not enough gets said about the importance of abandoning crap.” - Ira Glass
    30. Practice.
    31. Never stop learning
    32. Stay connected
    33. Think in sets
    34. Test Test Test (then test again)
    35.
    36. “ Practice, practice, practice. Until it becomes your practice.” <ul><li>Unknown </li></ul>
    37. Going Zen
    38. <ul><li>1 </li></ul>
    39. <ul><li>SELECT invoice_id, distribution_line_number </li></ul><ul><li>FROM ap.ap_invoice_distributions_all ap2 </li></ul><ul><li>WHERE ap2.project_id > 0 </li></ul><ul><li>AND ap2.pa_addition_flag = 'T' </li></ul><ul><li>MINUS </li></ul><ul><li>SELECT invoice_id, distribution_line_number </li></ul><ul><li>FROM ap.ap_invoice_distributions_all ap, </li></ul><ul><li>pa.pa_cost_distribution_lines_all pa </li></ul><ul><li>WHERE ap.project_id > 0 </li></ul><ul><li>AND ap.pa_addition_flag = 'T' </li></ul><ul><li>AND pa.system_reference2 IS NOT NULL </li></ul><ul><li>AND TO_NUMBER(pa.system_reference2) = ap.invoice_id </li></ul><ul><li>AND TO_NUMBER(pa.system_reference3) = ap.distribution_line_number </li></ul><ul><li>ORDER BY invoice_id; </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:20.09 60,941 57,116 6 </li></ul>
    40. <ul><li>SELECT invoice_id, distribution_line_number </li></ul><ul><li>FROM (SELECT invoice_id, distribution_line_number, </li></ul><ul><li>system_reference2, system_reference3 </li></ul><ul><li>FROM ap.ap_invoice_distributions_all ap, </li></ul><ul><li>(SELECT TO_NUMBER(system_reference2) system_reference2, </li></ul><ul><li>TO_NUMBER(system_reference3) system_reference3 </li></ul><ul><li>FROM pa.pa_cost_distribution_lines_all </li></ul><ul><li>WHERE system_reference2 IS NOT NULL) </li></ul><ul><li>WHERE system_reference2 (+) = ap.invoice_id </li></ul><ul><li>AND system_reference3 (+) = ap.distribution_line_number </li></ul><ul><li>AND ap.project_id > 0 AND ap.pa_addition_flag = 'T' ) </li></ul><ul><li>WHERE system_reference2 IS NULL AND system_reference3 IS NULL </li></ul><ul><li>ORDER BY invoice_id; </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:03.09 1,824 453 6 </li></ul>
    41. <ul><li>2 </li></ul>
    42. <ul><li>SELECT t.* </li></ul><ul><li>FROM RMS.tasks t, RMS.status s </li></ul><ul><li>WHERE t.status_id = s.id </li></ul><ul><li>AND (EXISTS ( SELECT null FROM RMS.tasks ta, RMS.resources r </li></ul><ul><li> WHERE t.id = ta.parent_task_id AND ta.project_code = :p </li></ul><ul><li> AND ta.task_type_code = 'A' AND ta.resource_id = r.id </li></ul><ul><li> AND r.reporting_id = :r ) </li></ul><ul><li> OR (t.project_code = :p AND t.task_type_code = 'T') ); </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:09.50 287,330 992 3 </li></ul>
    43. <ul><li>SELECT t.* FROM RMS.tasks t, RMS.status s </li></ul><ul><li>WHERE t.status_id = s.id AND EXISTS </li></ul><ul><li> (SELECT null FROM RMS.tasks ta,RMS.resources r </li></ul><ul><li> WHERE t.id = ta.parent_task_id AND ta.project_code = :p </li></ul><ul><li>AND ta.task_type_code = 'A' AND ta.resource_id = r.id </li></ul><ul><li>AND r.reporting_id = :r ) </li></ul><ul><li>UNION </li></ul><ul><li>SELECT t.* FROM RMS.tasks t, RMS.status s </li></ul><ul><li>WHERE t.status_id = s.id AND t.id IN </li></ul><ul><li>(SELECT t.parent_task_id FROM RMS.tasks t, RMS.status s </li></ul><ul><li> WHERE t.status_id = s.id AND </li></ul><ul><li>EXISTS (SELECT null FROM RMS.tasks ta, RMS.resources r </li></ul><ul><li> WHERE t.id = ta.parent_task_id AND ta.project_code = :p </li></ul><ul><li> AND ta.task_type_code = 'A' AND ta.resource_id = r.id </li></ul><ul><li> AND r.reporting_id = :r ); </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:00.01 128 0 3 </li></ul>
    44. <ul><li>3 </li></ul>
    45. <ul><li>SELECT J.emplid, J.empl_rcd, J.effdt, J.effseq </li></ul><ul><li>FROM PS_JOB J </li></ul><ul><li>WHERE J.effdt = (SELECT MAX(effdt) FROM PS_JOB </li></ul><ul><li> WHERE emplid = J.emplid </li></ul><ul><li> AND empl_rcd = J.empl_rcd </li></ul><ul><li> AND effdt <= SYSDATE ) </li></ul><ul><li>AND J. effseq = (SELECT MAX(effseq) FROM PS_JOB </li></ul><ul><li> WHERE emplid = J.emplid </li></ul><ul><li> AND empl_rcd = J.empl_rcd </li></ul><ul><li> AND effdt = J.effdt ) ; </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:08.04 337,908 0 30,107 </li></ul>
    46. <ul><li>SELECT J.emplid, J.empl_rcd, J.effdt, J.effseq </li></ul><ul><li>FROM </li></ul><ul><li>(SELECT J.emplid, J.empl_rcd, J.effdt, J.effseq, MAX(J.effdt) </li></ul><ul><li> OVER (PARTITION BY J.emplid, J.empl_rcd ) max_effdt, </li></ul><ul><li>LAST_VALUE(J.effseq) OVER (PARTITION BY J.emplid, J.empl_rcd </li></ul><ul><li>ORDER BY J.efdt, J.effseq ROWS BETWEEN CURRENT ROW AND </li></ul><ul><li> UNBOUNDED FOLLOWING ) max_effseq </li></ul><ul><li> FROM PS_JOB J </li></ul><ul><li>WHERE J.effdt <= SYSDATE ) J </li></ul><ul><li>WHERE J.effdt = J.max_effdt </li></ul><ul><li>AND J.effseq = J.max_effseq; </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:00.44 1,009 0 30,107 </li></ul>
    47. <ul><li>4 </li></ul>
    48. <ul><li>SELECT utrsotp_desc </li></ul><ul><li>FROM utrsotp, ucbsvco </li></ul><ul><li>WHERE ucbsvco_sotp_code = utrsotp_code </li></ul><ul><li>AND ucbsvco_dispatch_date = </li></ul><ul><li>(SELECT MAX(ucbsvco_dispatch_date) </li></ul><ul><li>FROM ucbsvco </li></ul><ul><li>WHERE ucbsvco_cust_code = 1320908 </li></ul><ul><li>AND ucbsvco_prem_code = '507601' </li></ul><ul><li>AND ucbsvco_stus_code = 'C' </li></ul><ul><li>AND ucbsvco_dispatch_ind IS NOT NULL) </li></ul><ul><li>AND ucbsvco_stus_code = 'C' </li></ul><ul><li>AND ucbsvco_dispatch_ind IS NOT NULL </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:20.16 106,693 0 1 </li></ul>
    49. <ul><li>SELECT utrsotp_desc </li></ul><ul><li>FROM utrsotp, </li></ul><ul><li>(SELECT ucbsvco_sotp_code, ucbsvco_dispatch_date, </li></ul><ul><li>MAX(ucbsvco_dispatch_date) OVER(PARTITION BY </li></ul><ul><li> ucbsvco_cust_code, ucbsvco_prem_code) max_dispatch_dt </li></ul><ul><li>FROM ucbsvco </li></ul><ul><li>WHERE ucbsvco_cust_code = 1320908 </li></ul><ul><li>AND ucbsvco_prem_code = '507601' </li></ul><ul><li>AND ucbsvco_stus_code = 'C' </li></ul><ul><li>AND ucbsvco_dispatch_ind IS NOT NULL) svco </li></ul><ul><li>WHERE svco.ucbsvco_dispatch_date = svco.max_dispatch_dt </li></ul><ul><li>AND svco.ucbsvco_sotp_code = utrsotp_code </li></ul><ul><li>Elapsed Time LIO Blocks PIO Blocks Total Rows </li></ul><ul><li>------------ ---------- ---------- ---------- </li></ul><ul><li> 00:00:00.18 15 0 1 </li></ul>
    50.
    51. Simplicity is powerful…
    52. … but it is neither simple nor easy to achieve.
    53. It is obtained through the careful reduction of the nonessential.
    54. While simplicity is the goal…
    55. … it is possible to be “too simple.”
    56. Your job is to find the balance most appropriate to your situation.
    57. Thank You
    58. http://www.method-r.com http://karenmorton.blogspot.com [email_address]

    ×
