Perl Usage In Security and Penetration testing

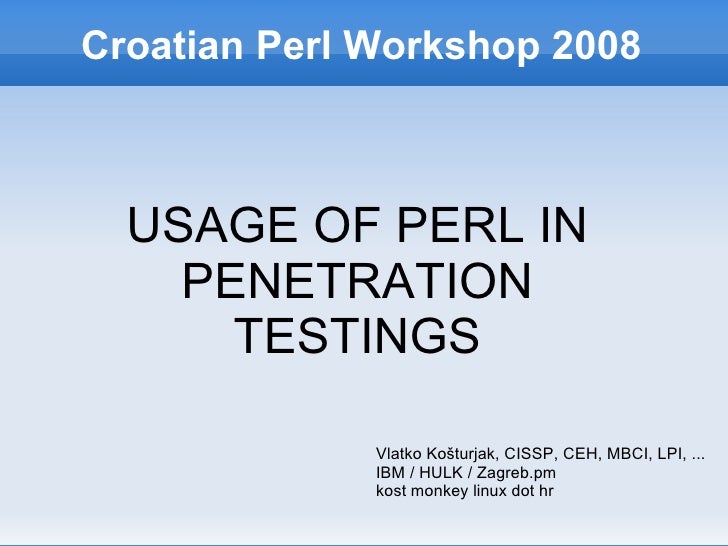

  1. 1. Croatian Perl Workshop 2008 USAGE OF PERL IN PENETRATION TESTINGS Vlatko Košturjak, CISSP, CEH, MBCI, LPI, ... IBM / HULK / Zagreb.pm kost monkey linux dot hr
  2. 2. Perl usage in security <ul><li>Usage of Perl in security </li></ul><ul><ul><li>every day </li></ul></ul><ul><ul><ul><li>log parsing, system hardening, system monitoring, ... </li></ul></ul></ul><ul><ul><li>in forensics </li></ul></ul><ul><ul><ul><li>log/evidence parsing/analyzing </li></ul></ul></ul><ul><ul><li>in penetration tests </li></ul></ul><ul><ul><ul><li>network layer testing </li></ul></ul></ul><ul><ul><ul><li>application layer testing </li></ul></ul></ul><ul><ul><ul><li>web application testing </li></ul></ul></ul><ul><ul><ul><li>buffer overflow helpers </li></ul></ul></ul><ul><ul><ul><li>fuzzing </li></ul></ul></ul><ul><ul><ul><li>implementing Proof of Concepts (PoC) </li></ul></ul></ul>
  3. 3. Perl in Security World <ul><li>Monitoring </li></ul><ul><ul><li>mon, nagios, ... </li></ul></ul><ul><ul><li>nodewatch, syswatch, ... </li></ul></ul><ul><li>Sherpa </li></ul><ul><ul><li>system security configuration tool </li></ul></ul><ul><li>File Integrity checkers (think: tripwire) </li></ul><ul><ul><li>ViperDB, Fcheck, Triplight, ... </li></ul></ul><ul><li>Honeypots </li></ul><ul><ul><li>rsucker, honeydsum, mydoom.pl, ... </li></ul></ul><ul><li>... </li></ul>
  4. 4. Perl in Penetration World <ul><li>Nikto </li></ul><ul><ul><li>web vulnerability scanner </li></ul></ul><ul><li>Metasploit <=2.7 </li></ul><ul><ul><li>exploit framework </li></ul></ul><ul><ul><li>Metasploit >= 3.0 in Ruby </li></ul></ul><ul><li>Fuzzled - fuzzying framework </li></ul><ul><li>snoopy </li></ul><ul><ul><li>simple SNMP security scanner </li></ul></ul><ul><li>NSS, dnswalk, snark (MiTM), ... </li></ul><ul><li>... </li></ul>
  5. 5. Simple TCP portscanner <ul><li>perl -MIO::Socket -e 'for($i=1;$i<65536;$i++) { if (my $s=IO::Socket::INET->new(PeerAddr=>$ARGV[0],PeerPort=>$i,Proto =>'tcp')) { print &quot;$i &quot;; close ($s); } } print &quot; &quot;;' </li></ul><ul><li>Yes, I do Perl golfing.... </li></ul><ul><li>You can too - try to shorten this if you dare :) </li></ul><ul><ul><ul><li>whitespace optimization excluded </li></ul></ul></ul>
  6. 6. Simple TCP portscanner <ul><li>perl -MIO::Socket -e 'for($i=1;$i<65536;$i++) { if (my $s=IO::Socket::INET->new(PeerAddr=>$ARGV[0],PeerPort=>$i,Proto =>'tcp')) { print &quot;$i &quot;; close ($s); } } print &quot; &quot;;' localhost </li></ul><ul><li>Example of running port scanner oneliner: </li></ul>
  7. 7. Generating custom packets <ul><li>#!/usr/bin/perl </li></ul><ul><li>use Net::RawIP; </li></ul><ul><li>$raw_net = new Net::RawIP({icmp =>{}}); </li></ul><ul><li>$raw_net -> set( </li></ul><ul><li>{ </li></ul><ul><li>ip => </li></ul><ul><li>{ </li></ul><ul><li>saddr => '192.168.1.1', </li></ul><ul><li>daddr => '192.168.1.15' </li></ul><ul><li>}, </li></ul><ul><li>icmp => </li></ul><ul><li>{ </li></ul><ul><li>type => 8, </li></ul><ul><li>data => &quot;41414141414141414141414141414141&quot; </li></ul><ul><li>} </li></ul><ul><li>} </li></ul><ul><li>); </li></ul><ul><li>$raw_net -> send(1,1000); </li></ul><ul><li>Example of generating spoofed ICMP packet </li></ul>
  8. 8. Generating custom protocol testers <ul><li>You can layer up what you have... </li></ul><ul><ul><li>CPAN modules for almost every protocol </li></ul></ul><ul><ul><ul><li>It has even for really rare and the old ones </li></ul></ul></ul><ul><ul><ul><ul><li>Perl is old language, you know... :) </li></ul></ul></ul></ul><ul><ul><ul><li>Even for SSL based ones </li></ul></ul></ul><ul><li>...and then write the part which is custom </li></ul>
  9. 9. Easy MiTM <ul><li>ssl_proxy.pl </li></ul><ul><ul><li>MiTM Proof of concept </li></ul></ul><ul><ul><li>not working well </li></ul></ul><ul><li>Wrote MiTM for </li></ul><ul><ul><li>socket </li></ul></ul><ul><ul><li>HTTP </li></ul></ul><ul><ul><li>HTTPS </li></ul></ul><ul><ul><li>I'll put it somewhere on the web eventually, </li></ul></ul><ul><ul><ul><li>mail me if you need it quicker! :) </li></ul></ul></ul>
  10. 10. Buffer overflow helpers <ul><li>not common vulnerability in Perl </li></ul><ul><li>from theory to practice </li></ul><ul><li>from discovery to exploitation </li></ul><ul><li>some of the methods (not only for buffer overflows...) </li></ul><ul><ul><li>analyzing source </li></ul></ul><ul><ul><li>analyzing machine code </li></ul></ul><ul><ul><li>fuzzying </li></ul></ul><ul><ul><li>reverse engineering patches </li></ul></ul><ul><ul><li>... </li></ul></ul>
  11. 11. Generating vulnerable inputs <ul><li>mostly oneliners to check length of buffer of vulnerable program </li></ul><ul><li>on command line </li></ul><ul><ul><li>./vuln –vulnbuf `perl -e 'print ”A”x1000'` </li></ul></ul><ul><li>enviroment </li></ul><ul><ul><li>export VULNENV=`perl -e 'print ”A”x1000'` </li></ul></ul><ul><ul><li>./vuln </li></ul></ul><ul><li>network protocol </li></ul><ul><ul><li>perl -e 'print &quot;GET /&quot;.&quot;A&quot;x1000; print &quot; HTTP/1.0 &quot;' | nc www.vuln.host 80 </li></ul></ul>
  12. 12. Writing exploits with Perl <ul><li>Metasploit helper (<= 2.7) </li></ul><ul><li>Helps you in finding length of vulnerable buffer </li></ul><ul><li>Generate buffer with Perl helper script </li></ul><ul><li>perl -I lib -e 'use Pex; print Pex::Text::PatternCreate(1090)' </li></ul><ul><li>Run debugger (gdb, ollydbg, ...), note EIP </li></ul><ul><li>run another Perl helper script with EIP </li></ul><ul><li>sdk/patternOffset.pl 0x68423768 1090 </li></ul><ul><li>Too easy </li></ul><ul><ul><li>It's not just fun any more... </li></ul></ul>
  13. 13. Fuzzying <ul><li>Custom fuzzying </li></ul><ul><ul><li>CPAN modules for almost every protocol </li></ul></ul><ul><ul><li>You have to use lower protocol in order to fuzz the protocol itself </li></ul></ul><ul><li>Using existing helpers </li></ul><ul><ul><li>Fuzlled </li></ul></ul><ul><ul><ul><li>have some protocol drivers inside </li></ul></ul></ul><ul><ul><ul><li>have some good logic for fuzzing </li></ul></ul></ul><ul><ul><ul><li>I recommend </li></ul></ul></ul><ul><li>Permutations, manglings, ... </li></ul>
  14. 14. Web vulnerabilities <ul><li>Nikto </li></ul><ul><li>libwhisker </li></ul><ul><li>libwww </li></ul><ul><li>WWW::Mechanize </li></ul><ul><li>Sockets </li></ul><ul><ul><li>IO::Socket </li></ul></ul><ul><ul><li>IO::Socket::SSL </li></ul></ul>
  15. 15. Example usage of Mechanize <ul><li>perl -MWWW::Mechanize -e '$_ = shift; ($y, $i) = m#(http://www.youtube.com)/watch?v=(.+)#; $m = WWW::Mechanize->new; ($t = $m->get(&quot;$y/v/$i&quot;)->request->uri) =~ s/.*&t=(.+)/$1/; $m->get(&quot;$y/get_video?video_id=$i&t=$t&quot;, &quot;:content_file&quot; => &quot;$i.flv&quot;)' </li></ul>author: Peteris Krumins <ul><li>Youtube video ripper - oneliner </li></ul>
  16. 16. Web services vulnerabilities <ul><li>XML </li></ul><ul><ul><li>XML::Simple </li></ul></ul><ul><ul><li>LibXML </li></ul></ul><ul><li>SOAP </li></ul><ul><ul><li>SOAP::Lite </li></ul></ul><ul><li>XML RPC </li></ul><ul><ul><li>RPC::XML </li></ul></ul><ul><li>Custom protocol </li></ul><ul><ul><li>no problem :) </li></ul></ul>
  17. 17. Example of custom fuzzying
  18. 18. Example of custom fuzzying 2 PERL script doing MiTM Fuzzying each request and response to client/server
  19. 19. Conclusion <ul><li>You don't want to write vulnerable security programs to test other vulnerabilities </li></ul><ul><ul><li>You have Encase case ;) </li></ul></ul><ul><ul><li>or fakebo :)) </li></ul></ul><ul><li>It's hard to write vulnerable program in Perl </li></ul><ul><ul><li>at least buffer overflow vulnerable </li></ul></ul><ul><ul><li>there's still input validation (taint?) </li></ul></ul><ul><li>You don't want to spend months writing proof of concept (PoC) </li></ul><ul><ul><li>don't use low level :) </li></ul></ul><ul><ul><ul><li>except if you're learning... or ..whatever :) </li></ul></ul></ul><ul><ul><li>use high level language like Perl </li></ul></ul>
  20. 20. References <ul><li>http://www.sans.org </li></ul><ul><li>http://securityfocus.com </li></ul><ul><li>http://net-security.org </li></ul><ul><li>http://packetstormsecurity.nl/ </li></ul><ul><li>http://www.softpanorama.org/Security/perl_sec_scripts.shtml </li></ul><ul><li>http://metasploit.org </li></ul><ul><li>http://www.cirt.net/nikto2 </li></ul><ul><li>http://www.ioactive.com/tools.html </li></ul><ul><li>http://www.l0t3k.org/security/tools/honeypot/ </li></ul><ul><li>http://www.catonmat.net/blog/ </li></ul><ul><li>... </li></ul>
  21. 21. Croatian Perl Workshop 2008 ? QUESTIONS (and maybe answers) Vlatko Košturjak, CISSP, CEH, MBCI, LPI, ... IBM / HULK / Zagreb.pm kost monkey linux dot hr
