  • The canvas has been invented by Apple to create features like coverflow in iTunes.
  • The canvas element has been quickly adopted by Firefox, Opera, Safari and Chrome (Webkit). It is missing in Internet Explorer, and although JavaScript libraries like Google’s excanvas.js try to emulate the behaviour in IE, their capabilities are limited. Gears has some canvas support and thus could be used to sneak-in canvas in IE, but the userbase among IE users is probably small.
  • A comprehensive compatibility chart of supported canvas features in various browsers.
  • A canvas consists of the canvas HTML5 element. Apart from global attributes like “id” the only HTML attributes of a canvas are “width” and “height”. The canvas element may contain other code as a fallback for browsers that don’t support the canvas tag, similar to an object element.
  • All other features are added with JavaScript. First check if the method “getContext” is available in a browser. Then the context of a HTML object is set to getContext(‘2d’). After that you can do stuff in the canvas, like drawing an image.
  • Creating a wet floor effect with canvas is extremely powerful as you can pull-in photos from flickr and add effects on the fly, without Photoshop.
  • Importing an image into a canvas: first copy the image to the canvas. When you’re done save the current state to return to it later.
  • Drawing the mirror image: Restore the saved state, flip the image vertically by using the scale() method, move it to the bottom of the original with the translate() method, the draw the mirror image.
  • Drawing the gradient for the wet floor fading effect: restore the original image, flip it vertically, create a gradient with an RGBa opacity of 50-100%, fill a rectangle with the gradient.
  • The transform() method combines the other three (scale, rotate, translate) and can be used to slant an image, thus creating a pseudo perspective effect.
  • We have to realize that a canvas is much more than just something to draw upon. Danny O’Brian said “it’s like having a little Apple ][ in your browser.” And that’s so true, even the restrictions of creating games with JavaScript and canvas are comparable to computer games in the 1990ies or mobile games a few years ago, as you will see later.
  • Paul Bakaus from jQuery UI used such a transformation together with JavaScript events to create a coverflow effect. Although he did it with CSS3 transform, that is the same concept as in canvas, and canvas inherited a lot of ideas from SVG. Even the names of the methods are identical. Video: http://www.flickr.com/photos/martin-kliehm/3668713241/in/set-72157620689437384/
  • Another example of using transform (in CSS3) to create a 3D effect of a cube. Note that even HTML buttons can be mapped on such surfaces.
  • Plotr uses canvas transformations to create 3D graphs, showing the numeric values on hover. Video: http://www.flickr.com/photos/martin-kliehm/3668738661/in/set-72157620689437384/
  • Canvas can enhance the user experience, making it more intuitive. Dragging images into a normal textarea copies the URL of the image into the textarea, whereas dragging them into a textarea with canvas keeps the image in there. What’s more they can be manipulated there with JavaScript, so you can scale, move or rotate the images. This could be powerful for editing profile pictures. Video: http://www.flickr.com/photos/martin-kliehm/3668738713/in/set-72157620689437384/ + http://www.flickr.com/photos/martin-kliehm/3669611402/in/set-72157620689437384/
  • Another example from Ernest Delgado, a developer at Google who created this impressive example of image manipulation in a canvas. Note that canvas JavaScript objects can be nested. Video: http://www.flickr.com/photos/martin-kliehm/3668845237/in/set-72157620689437384/
  • Other people have created games in a canvas. This an extreme example where somebody wrote a JavaScript emulator for the original Space Invaders runtime engine. Video: http://www.flickr.com/photos/martin-kliehm/3669699238/in/set-72157620689437384/
  • Myles Eftos presented his font rendering at Web Jam 2007 in Australia. He wrote a script to translate SVG into canvas so that he could use the SVG paths defined in a True Type Font to render text. Video: http://www.flickr.com/photos/martin-kliehm/3669711754/in/set-72157620689437384/
  • Native canvas text support was added in Firefox 3.
  • Cufón does the same as Myles’ script, translating fonts into canvas. Of course the same accessibility issues arise with cufón as in sIFR regarding scalability and the inability of a user style sheet to overwrite the colour and background colours of the generated text.
  • Mozilla’s Bespin experiment took it even further by creating a code editor in canvas. Apparently it’s more flexible to use a canvas than using the built in isEditable function in JavaScript.
  • Currently the biggest issue with canvas is it’s lack of accessibility. A canvas is just a flat bitmap without any DOM structure which is faster as you’ll see later, but at the same time this lack of a structure makes it inaccessible for assistive technologies.
  • The canvas element is invisible to the MSAA. Event the nested fallback image does not appear anymore. Video: http://www.flickr.com/photos/martin-kliehm/3668917051/in/set-72157620689437384/
  • At the same time canvas is a powerful tool for enhancing accessibility. We have known filters for ages from Internet Explorer, now the same functionality is available in canvas. Pixel by pixel can be changed to another colour. Enhancing the colour contrast is a possible application, simulating colour blindness, or using filters with edge detection algorithms to identify objects in an image.
  • You have seen earlier that SVG paths can be translated to canvas paths. Now openstreetmap.org offers an export function to SVG, and I believe Yahoo! Has made it’s paths public recently (although I can’t find the URL any more). The proof of concept by Ernest Delgado is slightly related although he doesn’t render the maps in canvas but imports the slices from openstreetmap.org
  • Canvas is faster for rendering objects than SVG, and it has been built into Google Maps in November 2008. Video: http://www.flickr.com/photos/martin-kliehm/3669738142/in/set-72157620689437384/
  • A parallelogram is not equal to a trapezium – a slanted image is not the same as a perspective correct 3D image. Since 3D isn’t natively built in into canvas at the moment, people search for workarounds.
  • A solution has been proposed by Ernest Delgado on the YUI blog: slice an image into 1px wide sections.
  • Since a canvas works with copies of an image as an array of references to the original instance instead of creating hundreds of new images, slicing can be done without extra load.
  • Video: http://www.flickr.com/photos/martin-kliehm/3669770716/in/set-72157620689437384/
  • There is a problem with the slices: it is a rough technique that results in little steps at the edges.
  • What we need is something like anti-aliasing.
  • This is called subpixel accuracy. Dividing a pixel into smaller subpixels will enhance the smoothness. There are various algorithms to achieve this, and game developers have come up with a more performant bit-shifting technique for inverse square foots to avoid expensive division. Note the jittering on the lower left animation compared to the smooth rendering of the others. Video: http://www.flickr.com/photos/martin-kliehm/3669901222/in/set-72157620689437384/
  • A faster solution for texture mapping is subdivision into triangles. In affine mapping the triangles are just slanted, a technique used in early games like Doom that restricted the world to vertical walls and horizontal walls and ceilings. However, perspective correct rendering re-calculates the position of every pixel.
  • Here is an example of perspective correct texture mapping in a JavaScript game of Castle Wolfenstein in canvas. However, bump mapping of objects and walls could be improved. Video: http://www.flickr.com/photos/martin-kliehm/3669789940/in/set-72157620689437384/
  • Another accessibility problem in 3D worlds like games or Second Live is providing a structure for objects. In game development this is called a “scenegraph”: a nested list of objects and their child objects. Thus a room in Second Live could contain a list of persons who are in that room. A shopping mall in the future of 3D internet could be represented as a nested list of shops on different “floors”. I would leave it to the operating system to enable blind people with information about the current position and proximity of objects, just as the iPhone 3G S does.
  • However, working with perspective rendering in 3D worlds requires a solid knowledge of math. Here is an example from jsgl.js, a representation of OpenGL in JavaScript, where matrix multiplication is applied. As long as there aren’t libraries or tools that take the pain out of 3D rendering, I don’t believe this will take off.
  • Rotating planes pulling images from the Lost Boys photo group in flickr with applied triangle subdivision. An accessible structure would contain a nested list of three planes each having two sides with nine images. Video: http://www.flickr.com/photos/martin-kliehm/3669829424/in/set-72157620689437384/
  • Adaptive triangle subdivision takes the amount of distortion into account and further subdivides triangles into smaller triangles if necessary. Video: http://www.flickr.com/photos/martin-kliehm/3669837798/in/set-72157620689437384/
  • Opera has built a 3D canvas model into a special version of the browser ... Video: http://www.flickr.com/photos/martin-kliehm/3669836864/in/set-72157620689437384/
  • ... so is Mozilla ...
  • ... and Google is working on something similar. They cooperate in the Khronos Group for “3D acceleration on the web”. So it appears that the future of the web could be 3D. We must take every possible precaution to keep it accessible. Video: http://www.youtube.com/watch?v=uofWfXOzX-g
  • HTML5 video has been added as an input format for canvas. Real-time pixel filtering in videos like setting the RGBa alpha channel of green pixels to become transparent is possible now as it has been before for still images. Video: http://www.flickr.com/photos/martin-kliehm/3669844662/in/set-72157620689437384/
  • This is an example in SVG, but colour manipulation and edge detection is also possible in a canvas video now. Video: http://www.flickr.com/photos/martin-kliehm/3669889522/in/set-72157620689437384/
  • With edge and object detection new intuitive interfaces could be created allowing direct object manipulation. (This example is merely to show the possibilities, it hasn’t been created in a canvas – yet.) Video: http://www.youtube.com/watch?v=ib_g7F6WKAA
  • Although “face gestures” were an April Fool’s Day joke from Opera, with edge detection filtering face recognition controls would become possible. Video: http://www.youtube.com/watch?v=kkNxbyp6thM
  • So whatever the future will be, it will be exciting!

Standards.Next: Canvas Standards.Next: Canvas Presentation Transcript

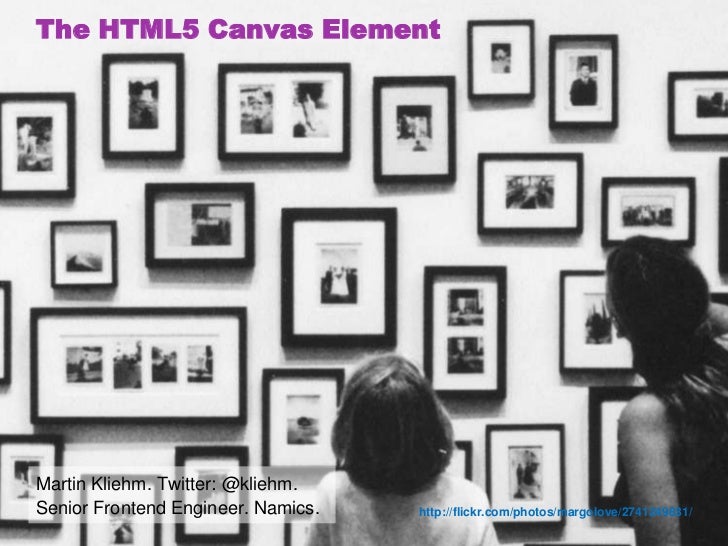

  • Standards.Next: HTML5 Canvas Martin Kliehm @kliehm Senior Frontend Engineer. Photo: Spencer Eakin Namics. http://www.flickr.com/photos/true2death/244309118/
  • What’s a canvas?
  • For IE: excanvas.js (limited) (Google) Gears
  • http://philip.html5.org/tests/canvas/suite/tests/results.html
  • http://flickr.com/photos/tais/2411643409/
  • You can draw on it.
  • Boring.
  • Better.
  • You can put photos on it.
  • <canvas id="canvas" width="500" height="350"> <img src="fallback.jpg" width="500" height="350" alt="Pulp Fiction Minifigs" /> </canvas> http://www.flickr.com/photos/minifig/72091618/
  • <script type="text/javascript"> var canvas = document.getElementById( 'canvas' ); if ( canvas.getContext ) { var ctx = canvas.getContext( '2d' ); ctx.drawImage( img, sx, sy, sWidth, sHeight, dx, dy, dWidth, dHeight ); } </script>
  • http://flickr.com/photos/energeticspell/2332820792/ http://flickr.com/photos/tais/2411643409/
  • You can do creative things with a canvas.
  • var canvas = document.getElementById('canvas'); if ( canvas.getContext ) { // Get the image object var img = document.images[0]; // Set canvas 2D context var ctx = canvas.getContext( '2d' ); /* Draw image: drawImage( * image object, sx, sy, sWidth, sHeight, * dx, dy, dWidth, dHeight) */ ctx.drawImage( img, 0, 0, img.width, img.height, 0, 0, img.width, img.height ); // Save current state ctx.save(); [...]
  • [...] // Draw mirror image // Restore saved state ctx.restore(); // Flip vertically: scale(x,y) ctx.scale( 1, -1 ); // Move beneath the original image ctx.translate( 0, -img.height ); // Draw mirror image ctx.drawImage( img, 0, 0, img.width, img.height, 0, -img.height, img.width, img.height ); [...]
  • [...] // Drawing the fading gradient // Restore saved state ctx.restore(); // Flip vertically: scale(x,y) ctx.scale( 1, -1 ); // Draw gradient var mirrorHeight = img.height * 0.5; var gradient = ctx.createLinearGradient( 0, 0, 0, mirrorHeight ); gradient.addColorStop( 0, 'rgba( 0, 0, 0, 0.5 )' ); gradient.addColorStop( 1, 'rgba( 0, 0, 0, 1.0 )' ); // Fill rectangle with gradient ctx.fillStyle = gradient; ctx.rect( 0, 0, img.width, mirrorHeight ); ctx.fill(); }
  • You can distort it.
  • /* transform( * scaleX, skewY, skewX, scaleY, * translateX, translateY ) */ ctx.transform( 1, Math.PI * 2 / 18, 0, 1, 0, 0 );
  • What’s a canvas, really?
  • “It’s like having a little Apple ][ in your http://www.oblomovka.com/wp/2008/08/08/the-edge-at-sxsw/ browser.”
  • http://paulbakaus.com/2008/05/31/coverflow-anyone/ css3-safari-coverflow-pbakaus.avi
  • http://hacks.mozilla.org/2009/06/3d-transforms-isocube/
  • http://radnan.public.iastate.edu/plotr/ http://www.500null.com/?p=16
  • Manipulation.
  • http://www.ernestdelgado.com/archive/drag-and-drop-without-drag-and-drop/
  • http://www.ernestdelgado.com/public-tests/canvasphoto/demo/canvas.html
  • http://www.bluishcoder.co.nz/2008/09/javascript-space-invaders-emulator.html
  • Text.
  • http://myles.eftos.id.au/experiments/font_render.html
  • https://developer.mozilla.org/En/Drawing_text_using_a_canvas
  • http://cufon.shoqolate.com/generate/ http://www.cameronmoll.com/articles/cufon/
  • http://bespin.mozilla.com
  • http://esw.w3.org/topic/HTML/AddedElementCanvas http://www.paciellogroup.com/blog/?p=362 http://www.flickr.com/photos/tussenpozen/144712446/in/set-560609/
  • http://www.codeplex.com/MsaaVerify
  • Filters. http://labs.pimsworld.org/2009/05/a-javascript-implementation-of-the-content-aware-image-resizing-algorithm/
  • Applications.
  • Applications. http://openstreetmap.org http://ernestdelgado.com/public-tests/ canvas-gpsmap/
  • http://www.ernestdelgado.com/gmaps/canvas/ddemo1.html http://groups.google.com/group/Google-Maps-API/msg/3599cee1f7190e30 http://www.borismus.com/canvas-vs-svg-performance/
  • 3D Canvas.
  • !=
  • Slices http://yuiblog.com/blog/2008/06/23/slicing/
  • http://flickr.com/photos/jerizm/2602242647/
  • http://www.blarnee.com/projects/cflow/ http://www.ernestdelgado.com/archive/chromeflow/
  • http://aggpas.org/aggpas-demo.htm http://www.lomont.org/Math/Papers/2003/InvSqrt.pdf
  • http://en.wikipedia.org/wiki/Texture_mapping
  • http://blog.nihilogic.dk/2008/04/javascript-wolfenstein-3d.html
  • http://www.flipcode.com/archives/3D_Graphics_on_Mobile_Devices-Part_3_Polygon_Graphics.shtml
  • Matrix Math. jsgl.js /* Apply the affine 3x4 matrix transform to point |p|. |p| should * be a 3 element array, and |t| should be a 16 element array... * Technically transformations should be a 4x4 matrix for * homogeneous coordinates, but we're not currently using the * extra abilities so we can keep things cheaper by avoiding the * extra row of calculations. */ function applyRotation( t, p ) { return { x: t.e0 * p.x + t.e4 * p.y + t.e8 * p.z, y: t.e1 * p.x + t.e5 * p.y + t.e9 * p.z, z: t.e2 * p.x + t.e6 * p.y + t.e10 * p.z };
  • http://lbi.lostboys.nl/blog/artikelen/canvas-in-full-3d/
  • http://tulrich.com/geekstuff/canvas/perspective.html
  • The future: real 3D.
  • http://my.opera.com/timjoh/blog/2007/11/13/taking-the-canvas-to-another-dimension
  • http://my.opera.com/timjoh/blog/2007/11/13/taking-the-canvas-to-another-dimension https://wiki.mozilla.org/Canvas:3D
  • http://code.google.com/apis/o3d/ http://blog.largeanimal.com/demo/ http://www.youtube.com/watch?v=uofWfXOzX-g
  • Video.
  • https://developer.mozilla.org/samples/video/chroma-key/index.xhtml (Firefox 3.5 required)
  • http://people.opera.com/howcome/2007/video/svg/video-filter.svg (special version of Opera 9.5 required)
  • http://www.youtube.com/watch?v=ib_g7F6WKAA
  • http://labs.opera.com/news/2009/04/01/
  • Thank you. twitter: @kliehm Links: delicious.com/kliehm/standardsnext Videos: flic.kr/p/6AeoAT
