Message Oriented Architecture
using NServiceBus
Lars-Erik Kindblad
Senior Consultant
Twitter: @kindblad
E-mail: le@kindbla...

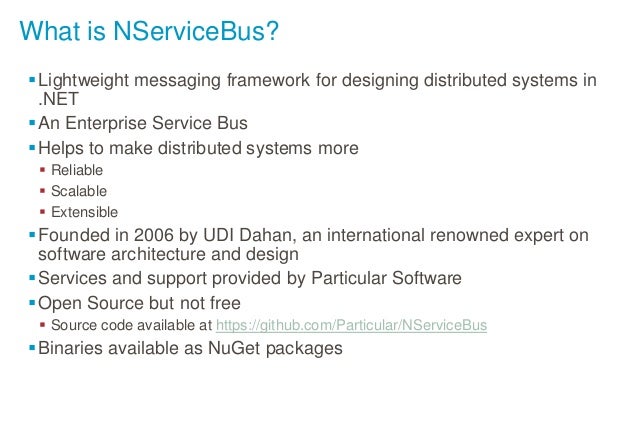

What is NServiceBus?
 Lightweight messaging framework for designing distributed systems in
.NET
 An Enterprise Service B...

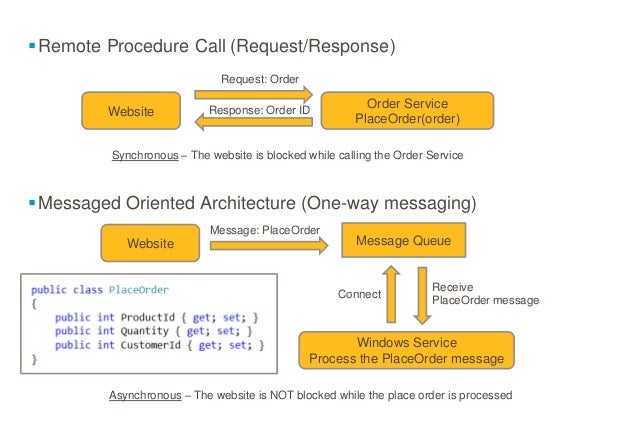

 Remote Procedure Call (Request/Response)
Request: Order

Website

Response: Order ID

Order Service
PlaceOrder(order)

S...

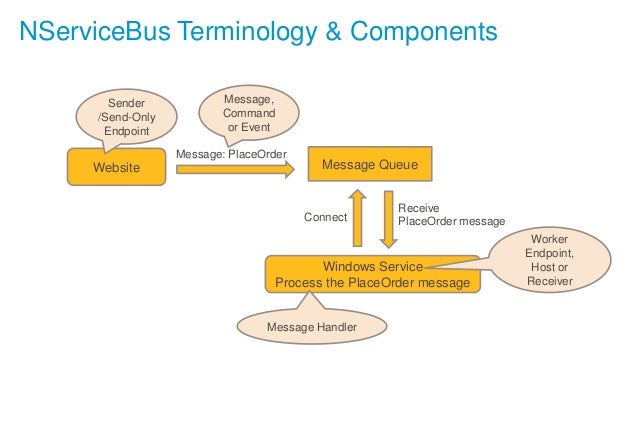

NServiceBus Terminology & Components
Sender
/Send-Only
Endpoint

Message,
Command
or Event
Message: PlaceOrder

Website

M...

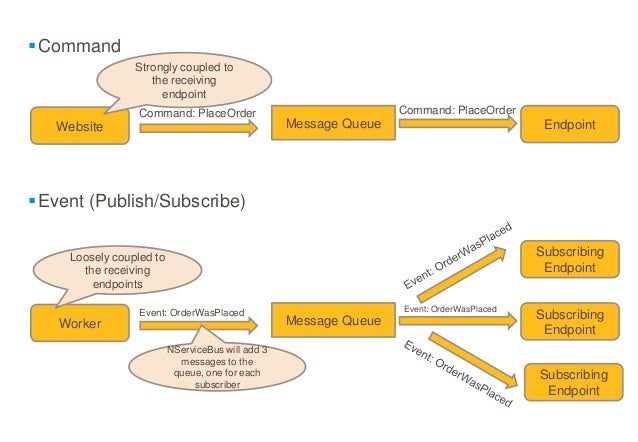

Messages in NServiceBus
 Just simple .NET classes with properties

 2 types of messages
 Command
• Do something: PlaceO...
 Command
Strongly coupled to
the receiving
endpoint
Command: PlaceOrder

Website

Command: PlaceOrder

Message Queue

End...

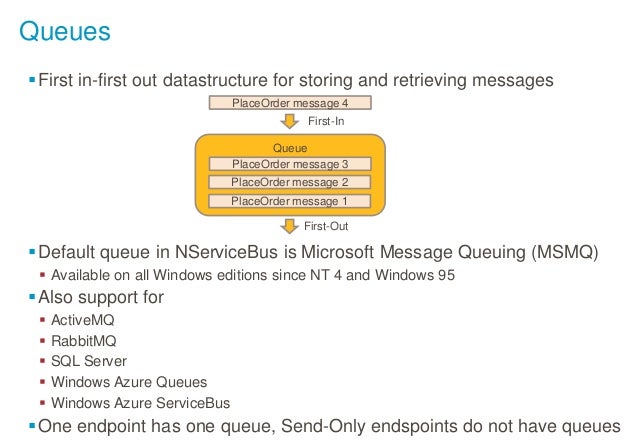

Queues
 First in-first out datastructure for storing and retrieving messages
PlaceOrder message 4
First-In
Queue
PlaceOrd...
How to Send & Handle Messages
Command: PlaceOrder

Website

Send

Command: PlaceOrder

Message Queue

Endpoint

Handle
(Co...

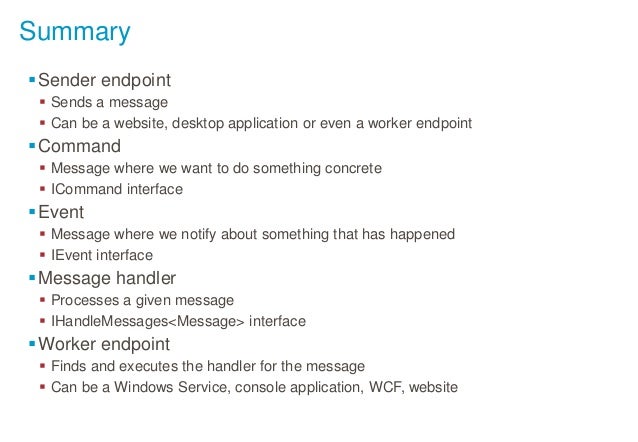

Summary
 Sender endpoint
 Sends a message
 Can be a website, desktop application or even a worker endpoint

 Command
...

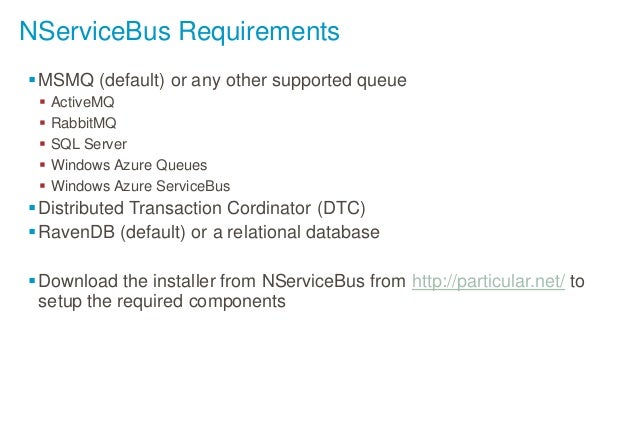

NServiceBus Requirements
 MSMQ (default) or any other supported queue






ActiveMQ
RabbitMQ
SQL Server
Windows Azu...

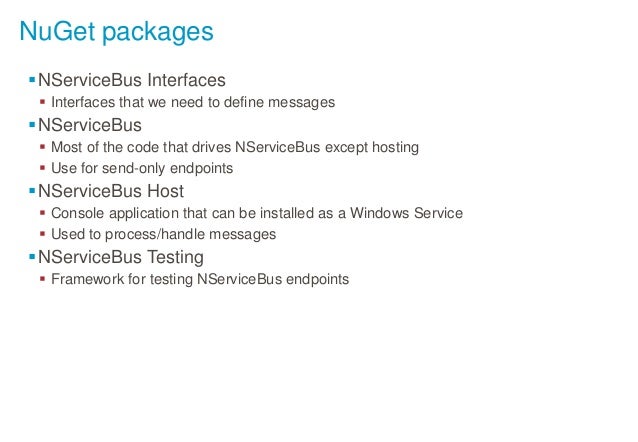

NuGet packages
 NServiceBus Interfaces
 Interfaces that we need to define messages

 NServiceBus
 Most of the code tha...

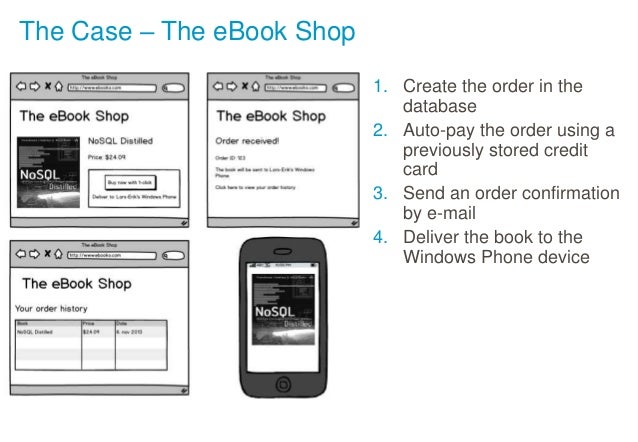

The Case – The eBook Shop
1. Create the order in the
database
2. Auto-pay the order using a
previously stored credit
card
...

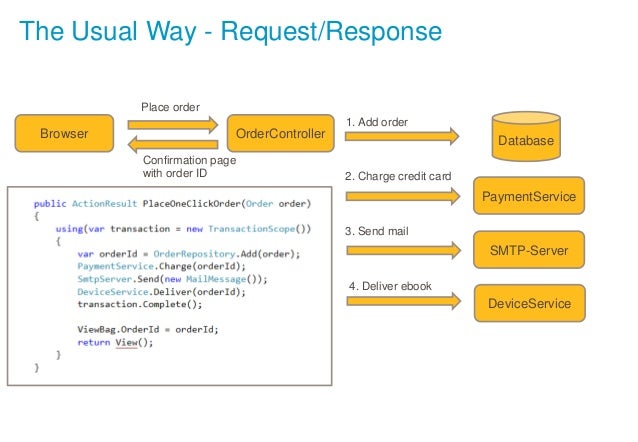

The Usual Way - Request/Response
Place order
1. Add order

Browser

OrderController
Confirmation page
with order ID

Datab...
Problem #1 – The order is lost during an error
Place order
1. Add order

Browser

OrderController

Database

Error page
Ex...

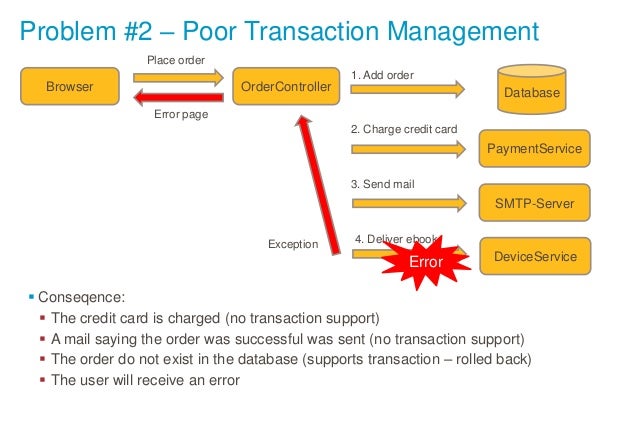

Problem #2 – Poor Transaction Management
Place order
1. Add order

Browser

OrderController

Database

Error page
2. Charg...

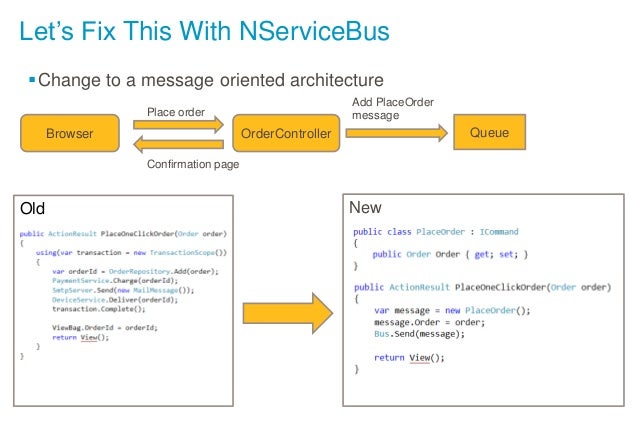

Let’s Fix This With NServiceBus
 Change to a message oriented architecture
Add PlaceOrder
message

Place order

Browser

...

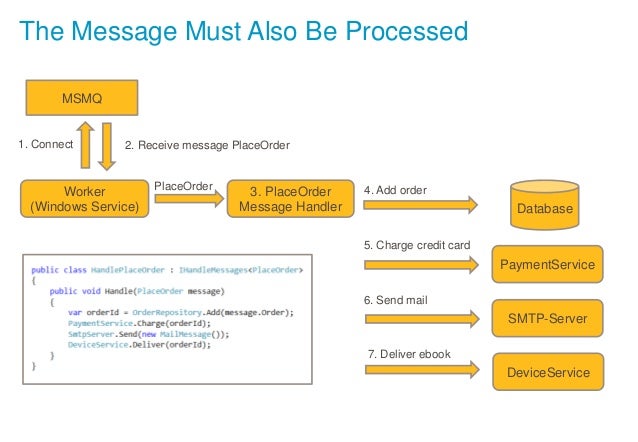

The Message Must Also Be Processed
MSMQ

1. Connect

2. Receive message PlaceOrder

Worker
(Windows Service)

PlaceOrder

...

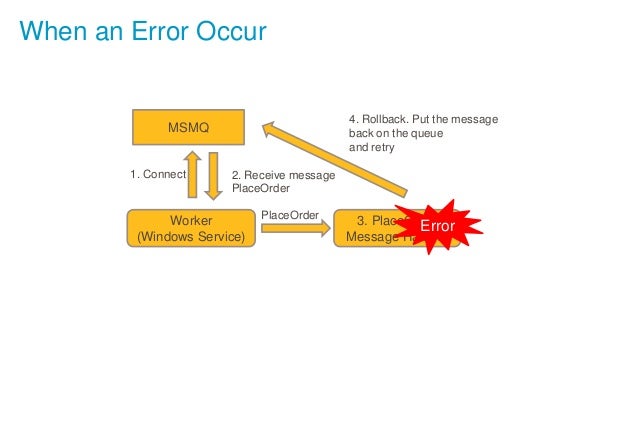

When an Error Occur

4. Rollback. Put the message
back on the queue
and retry

MSMQ

1. Connect

2. Receive message
PlaceO...

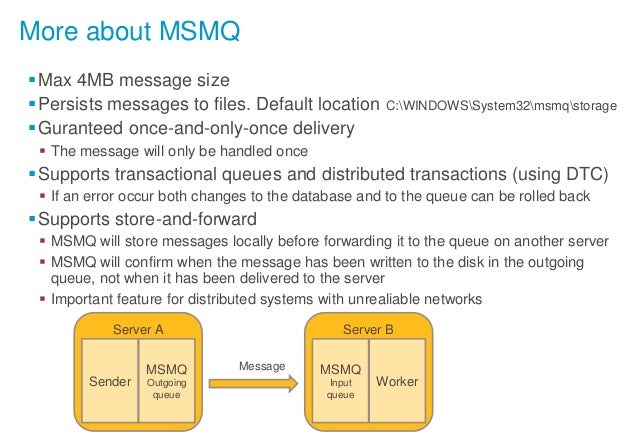

More about MSMQ
 Max 4MB message size
 Persists messages to files. Default location C:WINDOWSSystem32msmqstorage
 Guran...

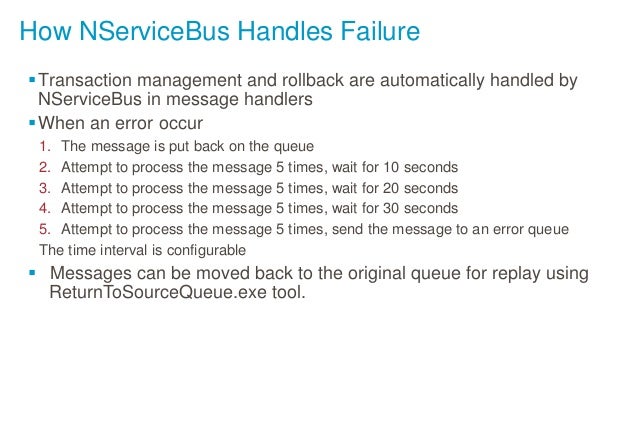

How NServiceBus Handles Failure
 Transaction management and rollback are automatically handled by
NServiceBus in message ...

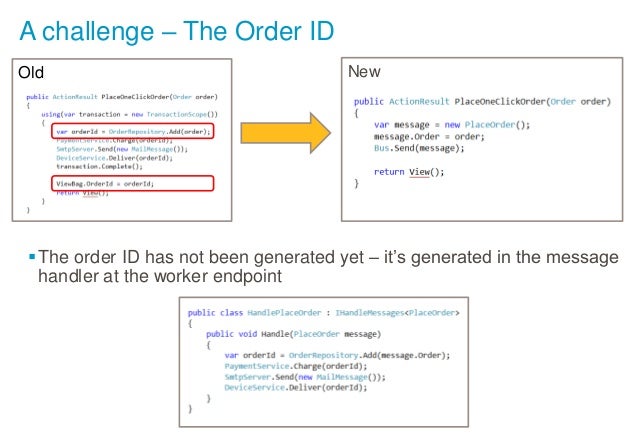

A challenge – The Order ID
Old

New

 The order ID has not been generated yet – it’s generated in the message
handler at ...

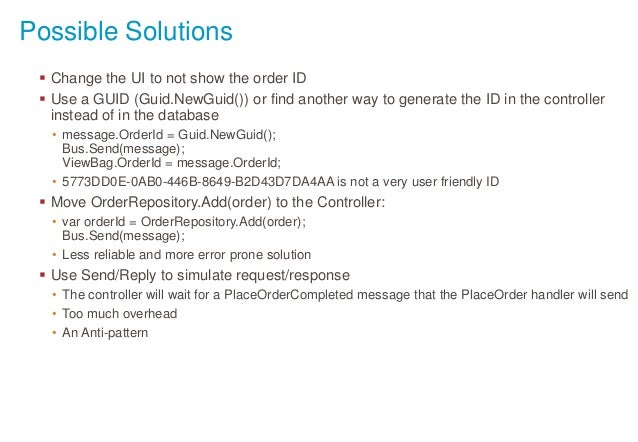

Possible Solutions
 Change the UI to not show the order ID
 Use a GUID (Guid.NewGuid()) or find another way to generate ...

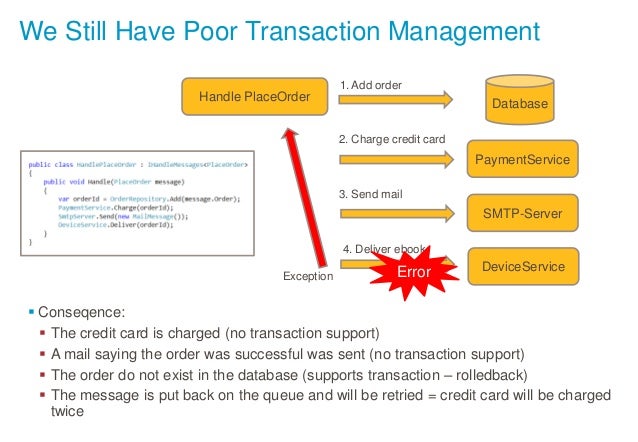

We Still Have Poor Transaction Management
1. Add order

Handle PlaceOrder

Database
2. Charge credit card

PaymentService
...
Solution
 Split into man small messages - One message per transactional boundary
Place order

OrderController

Browser

1...

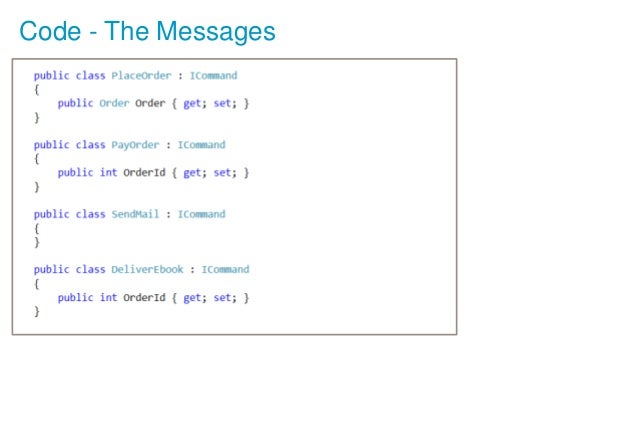

Code - The Messages

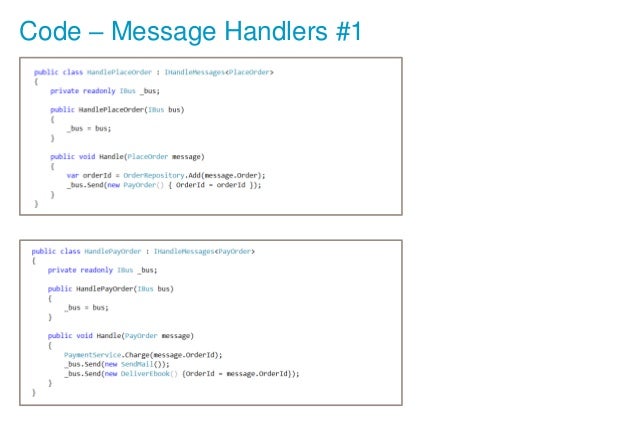

Code – Message Handlers #1
Code – Message Handlers #2

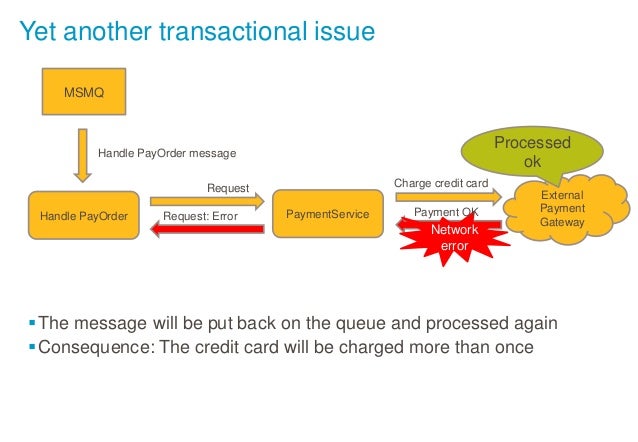

Yet another transactional issue
MSMQ

Processed
ok

Handle PayOrder message

Charge credit card

Request
Handle PayOrder

...

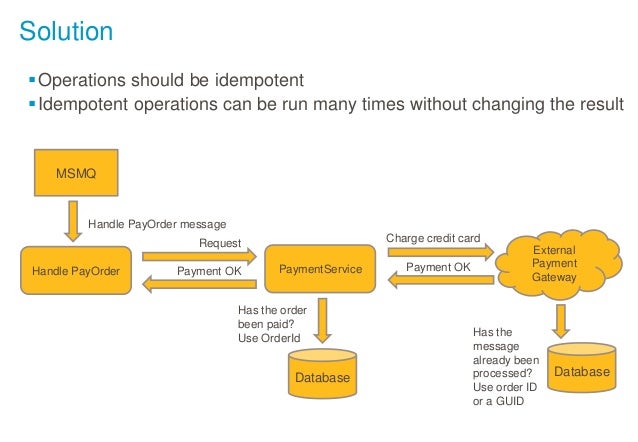

Solution
 Operations should be idempotent
 Idempotent operations can be run many times without changing the result

MSMQ...

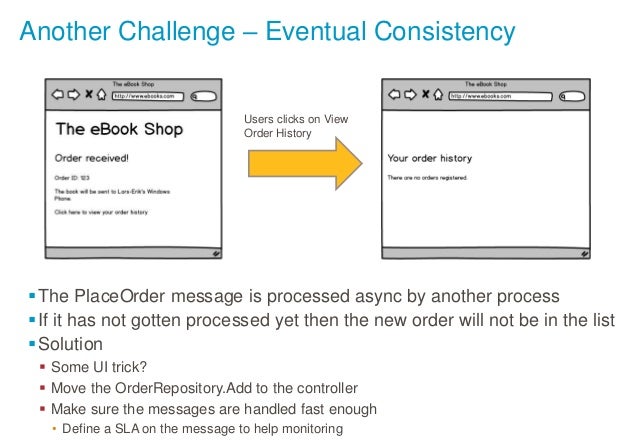

Another Challenge – Eventual Consistency

Users clicks on View
Order History

 The PlaceOrder message is processed async ...
Publish/Subscribe
Place order

OrderController

Browser

1. Add PlaceOrder message
PlaceOrder command

2. Handle PlaceOrde...

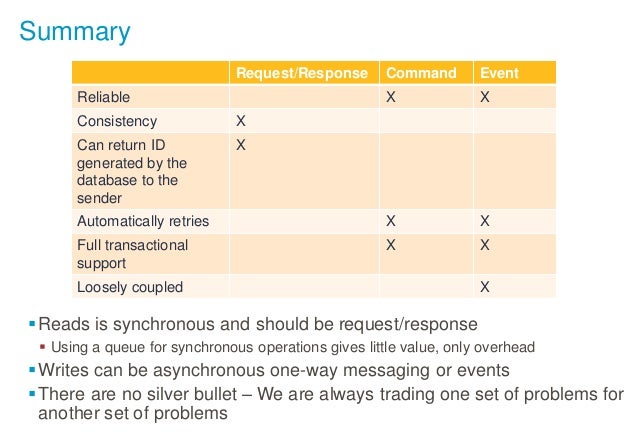

Summary
Request/Response

Command

Event

X

X

Automatically retries

X

X

Full transactional
support

X

X

Reliable
Co...

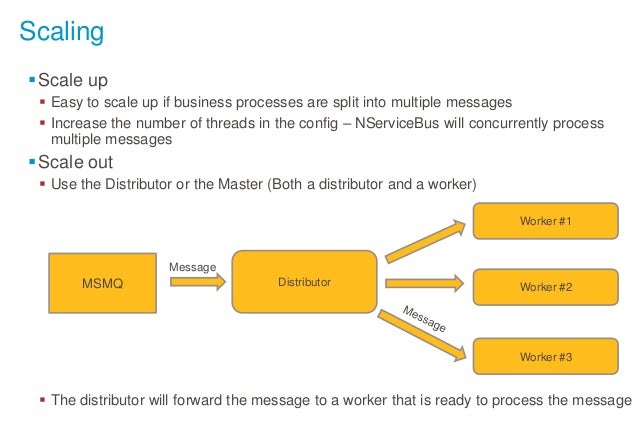

Scaling
 Scale up
 Easy to scale up if business processes are split into multiple messages
 Increase the number of thre...

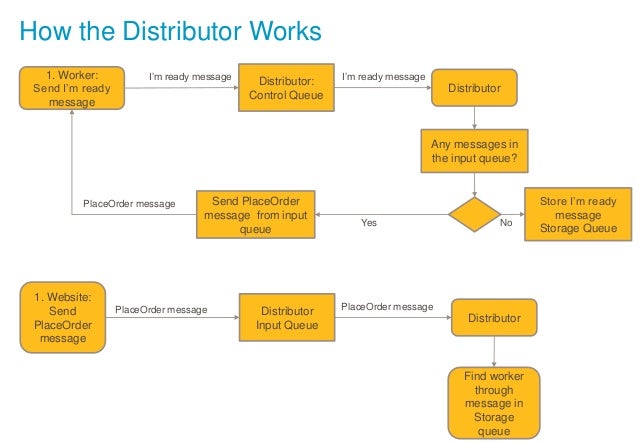

How the Distributor Works
1. Worker:
Send I’m ready
message

I’m ready message

Distributor:
Control Queue

I’m ready mess...

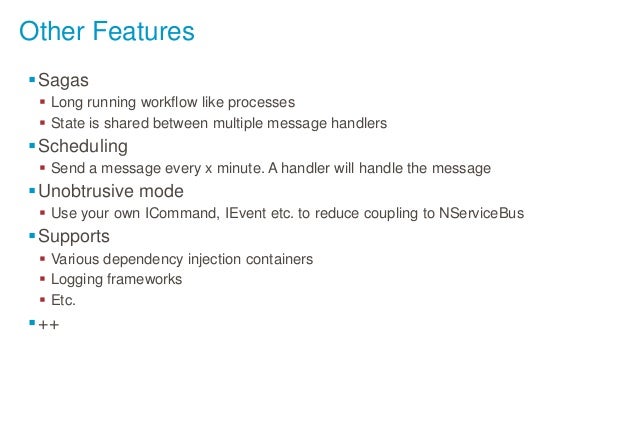

Other Features
 Sagas
 Long running workflow like processes
 State is shared between multiple message handlers

 Sched...

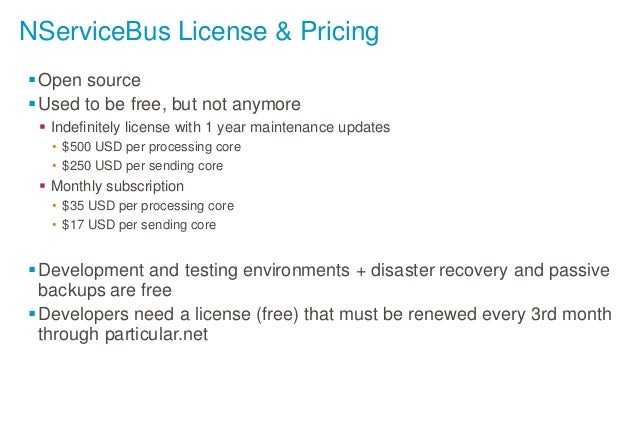

NServiceBus License & Pricing
 Open source
 Used to be free, but not anymore
 Indefinitely license with 1 year maintena...
Demo
About Capgemini
With more than 120,000 people in 40 countries, Capgemini is one
of the world's foremost providers of consu...
