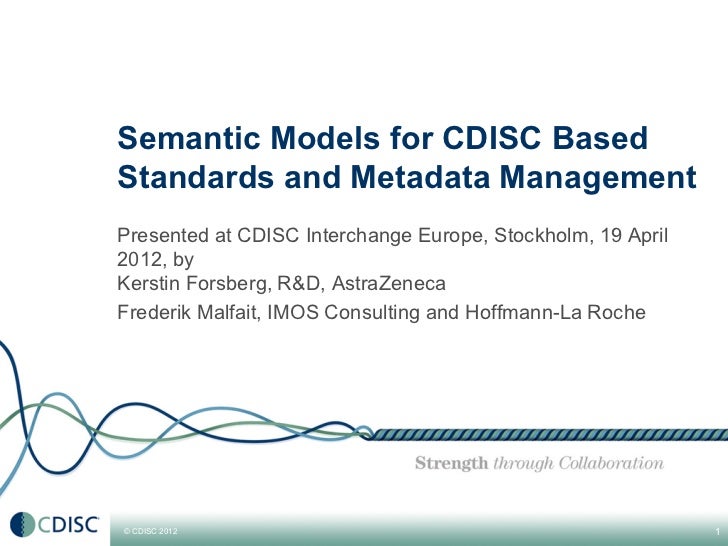

Semantic Models for CDISC BasedStandards and Metadata ManagementPresented at CDISC Interchange Europe, Stockholm, 19 April...
Key Message• Things converge to create new and unique  opportunities.       The coverage and maturity of existing CDISC s...
Two real world use of semantic webstandards and linked data principles© CDISC 2012                           3
Today’s Situation• “Not if and when, but how” to best adopt CDISC  based data standards is becoming the leading  question....
An Emerging Insight• The CDISC standards is all about the meaning of  what is studied in the biological and clinical reali...
RDF Triples• Resource Description Framework (RDF)  A general model of how any piece of data, and  representations of knowl...
RDF Triples• Triples can be aggregated into graphs with subject  and objects as nodes, and predicates as arcs.            ...
RDF Triples             • Graphs of triples can be extended across different               sources and for different purpo...
RDF Triples               • RDF Schema and the RDF based Web Ontology                 Language (OWL) add a typing mechanis...
RDF Triples                • Google, Bing (Microsoft) and Yahoo use OWL                  publish a joint vocabulary.      ...
RDF Triples              • NCI use OWL to publish NCI Thesaurus (the                source for CDISC’s CT:s) in an RDF/XML...
Linked Open Data Cloudhttp://lod-cloud.net/Richard Cyganiak and Anja Jentzsch              © CDISC 2012           12
Real world use• Two examples of how sponsors have started to  use semantic web standards and apply linked data  principles...
Roche Biomedical MDRSchema Architecture          Production                           Partial / Future                    ...
Roche Biomedical MDRContent• External content       SDTM 1.2, SDTMIG 3.1.2       NCI Thesaurus, CDISC Controlled Termino...
Roche Biomedical MDR                                                      Production                                      ...
Roche Biomedical MDRSystem Architecture                       Content                       Management                    ...
Roche Biomedical MDRValue Proposition• Current       Integrated knowledge, metadata, and data standards        management...
Key Message• We now see all of these things converge to create  new and unique opportunities.       The coverage and matu...
TopBraid Semantic               Modeling Workbench© CDISC 2012                        20
© CDISC 2012   21
© CDISC 2012   22
© CDISC 2012   23
© CDISC 2012   24
© CDISC 2012   25
© CDISC 2012   26
© CDISC 2012   27
© CDISC 2012   28
Roche Global Data               Standards Browser© CDISC 2012                       29
© CDISC 2012   30
© CDISC 2012   31
© CDISC 2012   32
© CDISC 2012   33
© CDISC 2012   34
© CDISC 2012   35
© CDISC 2012   36
© CDISC 2012   37
Publishing and Item               Level Versioning© CDISC 2012                         38
© CDISC 2012   39
© CDISC 2012   40
© CDISC 2012   41
Using Web Services to               Export to…© CDISC 2012                           42
© CDISC 2012   43
Oh well, if you really               want that Excel sheet© CDISC 2012                            44
© CDISC 2012   45
© CDISC 2012   46
© CDISC 2012   47
© CDISC 2012   48
© CDISC 2012   49
© CDISC 2012   50
© CDISC 2012   51
© CDISC 2012   52
© CDISC 2012   53
