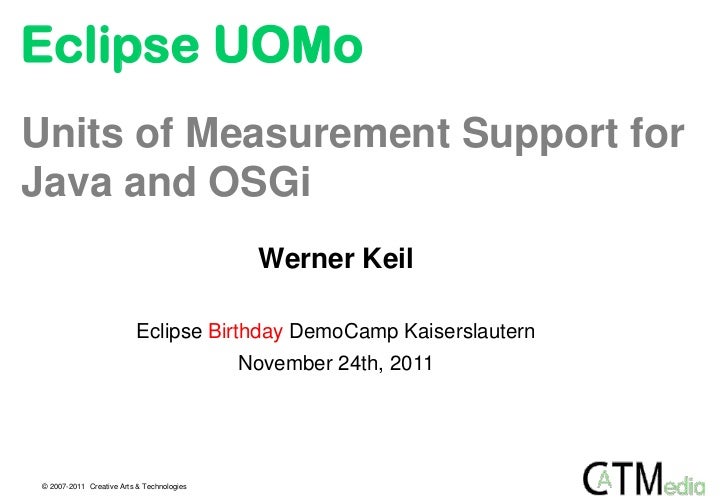

Eclipse UOMoUnits of Measurement Support forJava and OSGi                                             Werner Keil         ...
EmphasisMost of today‟s technologies including the Java Language so far lack support for common non- trivial Arithmetic pr...
Overview• Present Situation       • Historic IT Errors and Bugs       • Cause of Conversion Errors• Proposed Changes      ...
What do these disasters have in common?• Patriot Missile  The cause was an inaccurate calculation of the  time since boot ...
What do these disasters have in common?• Gimli Glider (near disaster)    Fuel loading was miscalculated through misunderst...
NASA “Star Wars” Initiative, 1983                      23rd March 1983. Ronald Reagan                      announces SDI (...
1985  Mirror on underside of   SDI Experiment:          shuttle                           The Plan  Big mountain in Hawaii
1985       SDI Experiment:       What really       happened
1985: What happened?
NASA Mars Climate Orbiter, 1999
Unit Tests wouldn„t find these…  Despite their name• All previous example illustrate three categories of  errors difficult...
Causes of Conversion Errors• Ambiguity on the unit       • Gallon Dry / Gallon Liquid       • Gallon US / Gallon UK       ...
Present Situation• Java does not have strongly typed primitive types  (like e.g. Ada language).• For performance reasons m...
JSR-275          Base Classes and Packages          • Namespace: javax.measure.*          • Only one interface and one abs...
The King is Dead…          Units of Measurement API          • Namespace: org.unitsofmeasurement.*          • Only interfa...
Unit-API | Operations   Results with   Same Dimension               Different Dimension   Binary Operations            Bin...
JSR-256          Mobile Sensor API          • Namespace: javax.microediton.sensor*          • Focusing on Sensors, but it ...
JSR-256          Sensor States20   © 2007-2011 Creative Arts & Technologies
JSR-256          Sensor Groups          • Context types categorize sensors into three groups:                    1.       ...
JSR-256          Quantity          • The quantity provides a more precise qualifier. The unit            and the quantity ...
OSGi          Measurement Package          • Namespace: org.osgi.util.measurement          • SI only Unit API “in the clos...
Unit FrameworksDEMO
Eclipse UOMo  One Small Step…
Eclipse UOMo          One Unit Framework to Measure them All          • Namespace: org.eclipse.uomo.*          • Two main ...
Eclipse UOMo          Bundles          • UOMo currently consists of                    • UOMo Core                        ...
Eclipse UOMo          Bundles (2)                    • UOMo Units                              • Based on Units of Measure...
UOMo Units | System of Units29   © 2007-2011 Creative Arts & Technologies
UOMo UCUM          Unified Code for Units of Measure          • The Unified Code for Units of Measure is a code system    ...
UOMo UCUM          Unified Code for Units of Measure          The Unified Code for Units of Measure is inspired by and    ...
Eclipse UOMo  DEMO
UOMo Business | Monetary System          Monetary systems are part of UOMo Business. This          illustrates, how easily...
UOMo Business | Monetary Types34   © 2007-2011 Creative Arts & Technologies
UOMo Business | Money Demo (1)          We‟ll extend MoneyDemo to show fuel costs in Indian Rupees.          First by addi...
UOMo Business | Money Demo (2)            Next set the Exchange Rate for Rp.          ((Currency) INR).setExchangeRate(0.0...
UOMo Business | Money Demo (3)          Then we add the following line to the “Display          cost.” section of MoneyDem...
UOMo Business | Trading Example           What happens, if we use built in java.util.Currency and Standard JSP formats38  ...
UOMo Business  DEMO
Links   Eclipse – Project UOMo   http://www.eclipse.org/uomo/   Units of Measurement API   http://www.unitsofmeasurement.o...
Let„s talkQ&A
Contact          werner@catmedia.us                   or          uomo@catmedia.us          Twitter: @wernerkeil          ...
