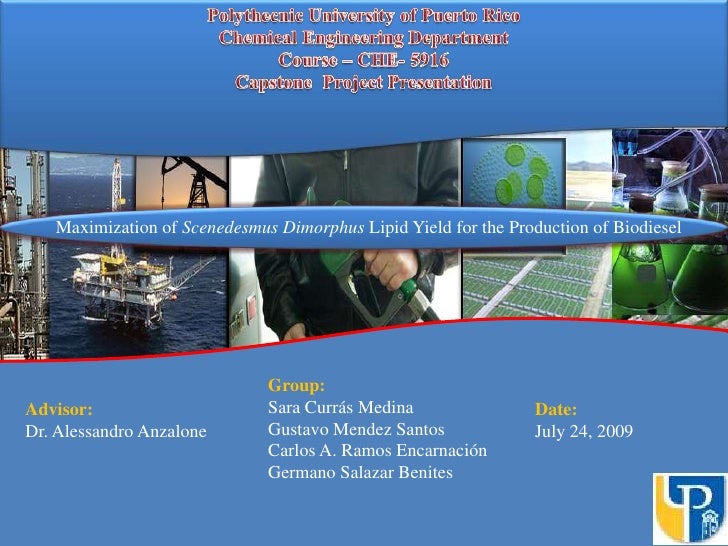

Polythecnic University of Puerto Rico<br />Chemical Engineering Department<br />Course – CHE- 5916 <br />Capstone Project ...
Acknowledgment<br />Prof. Sylvia M. VélezVillamil<br />	Biology Department<br />	University of Puerto Rico at Humacao<br /...
Agenda<br />
Problem Statement<br />
Introduction<br />
Introduction: Algae Fuel<br />Introduction<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biod...
ResearchDescription<br />
ResearchObjectives<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Research Contributions<br />Determine if the use of CO2  during algae cultivation is beneficial to its growth and lipid co...
Literature Review<br />
Biodiesel fromAlgae<br />Production of Oil from differentcrops<br />Advantages:<br /><ul><li>The yields of oil and fuels a...
Grows practically anywhere, ensuring no competition with food crops.
Excellent bioremediation agents - they have the potential to absorb massive amounts of CO2 and can play an important role ...
Only feedstock that has the potential to completely replace world's consumption of transportation fuels.</li></li></ul><li...
Microscopic (µm)
Saline or fresh water
Grow extremely quickly
Large amounts of lipids within their cell structure
Multicellular
Macroscopic (up to 60 m)
Saline or fresh water
Grow extremely quickly
Food, medicine, fertilizer</li></li></ul><li>Properties of Green Microalgae<br />
Microalgae Strain<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Scenedesmusdimorphus<br />
Production of Lipids from Microalgae<br />Light (Photons)<br />CO2<br />O2<br />Microalgae<br />(Photosynthetic CO2 fixati...
Cultivation<br />
Cell growth<br />
Temperature<br />
CO2<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Nutrients<br /><ul><li>After Carbon, Nitrogen is the most important nutrient.
Contributes to the biomass production.
Influence on algae lipid yield
Response to nitrogen limitations, mechanism of survival, increase lipid content.
Stops its divisions and start to store energy in the form of lipids.</li></li></ul><li>Nitrogen; Urea<br /><ul><li>Urea
Each strain prefers different source.
Kansas State University
Best source for Scenedesmusdimorphusgrowth.
Replacing nitrogen source KNO3</li></li></ul><li>Harvesting<br />
Flocculation<br />
Flocculation<br />
Extraction<br />
Lipid Extraction<br />Concentrated Algae<br />Cell Disruption<br />Mechanical<br />Chemical<br />Press<br />Solvents<br />...
Lipid Extraction - Solvents<br />
Transesterification<br />
Transesterification<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Transesterification Reaction<br />
Proposed Experiment<br />Co2 vs. non Co2<br />Algae Culture<br />Daily<br />Cell Count<br />N Measure<br />After 17 days<b...
Cell Count<br />
Nitrogen Measure<br />
Biomass and Lipid Weight<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Proposed Experiment<br />Optimal Lipid Yield<br />Algae Culture<br />1.2, 1.8, 2.4 g/L Urea<br />Daily<br />Cell Count<br ...
Cell Count<br />
Nitrogen Measure<br />
Biomass and Lipid Weight<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Proposed Experiment<br />Biodiesel Production<br />Algae Culture<br />Daily<br />Cell Count<br />After  a fixed period<br ...
Biomass and Lipid Weight<br />Maximization of ScenedesmusDimorphusLipid Yield for the Production of Biodiesel<br />
Stock Culture<br />  Prepare the Stock Culture (SC) in a beaker of 1000mL.<br />1.<br />algae<br />1000mL<br />SC<br />
Stock Culture<br />Leave the algae to grow and reproduce for about 7 days before using it.<br />12:12<br />2.<br />Agitati...
