Asynchronous Processing
               Jonathan Dahl




              (and RailSpikes,
                    Slantwise,
   ...
I.
    What is it, and
why should I care?

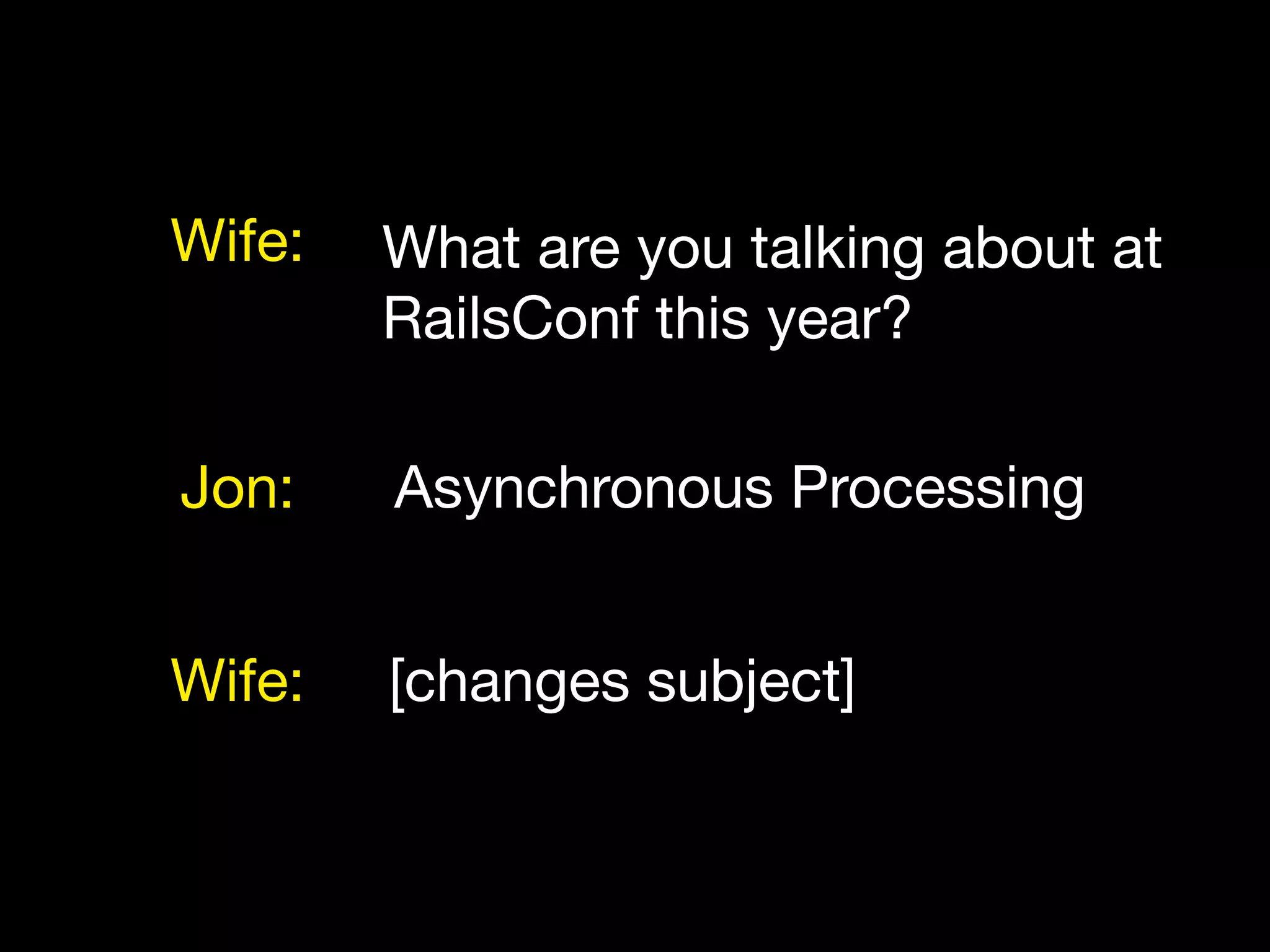

Wife:   What are you talking about at
        RailsConf this year?

Jon:    Asynchronous Processing


Wife:   [changes sub...
important
     tool
(ahem...)
Related Concepts

• Background Processing
• Parallel Processing
• Distributed Processing

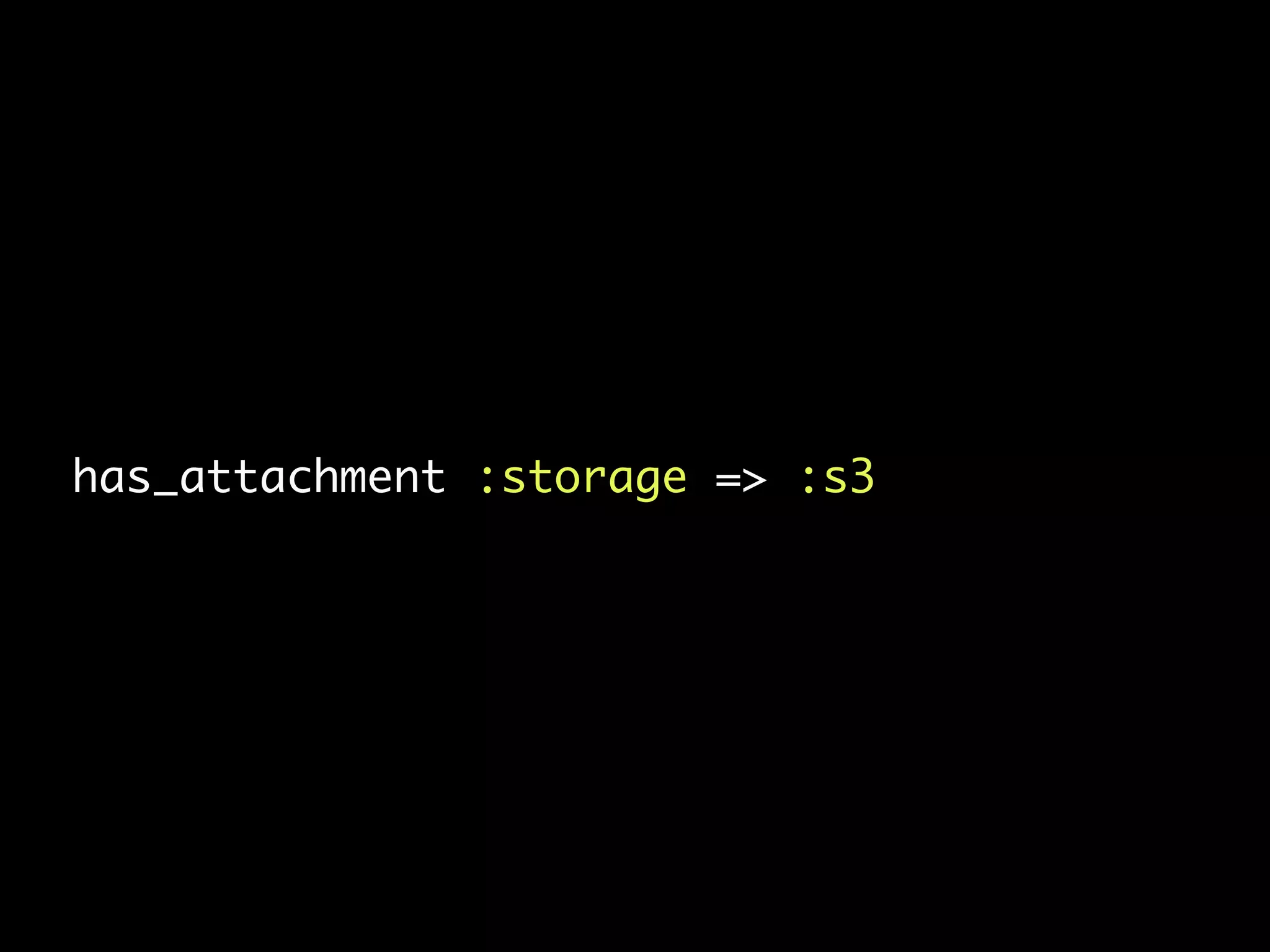

has_attachment :storage => :s3

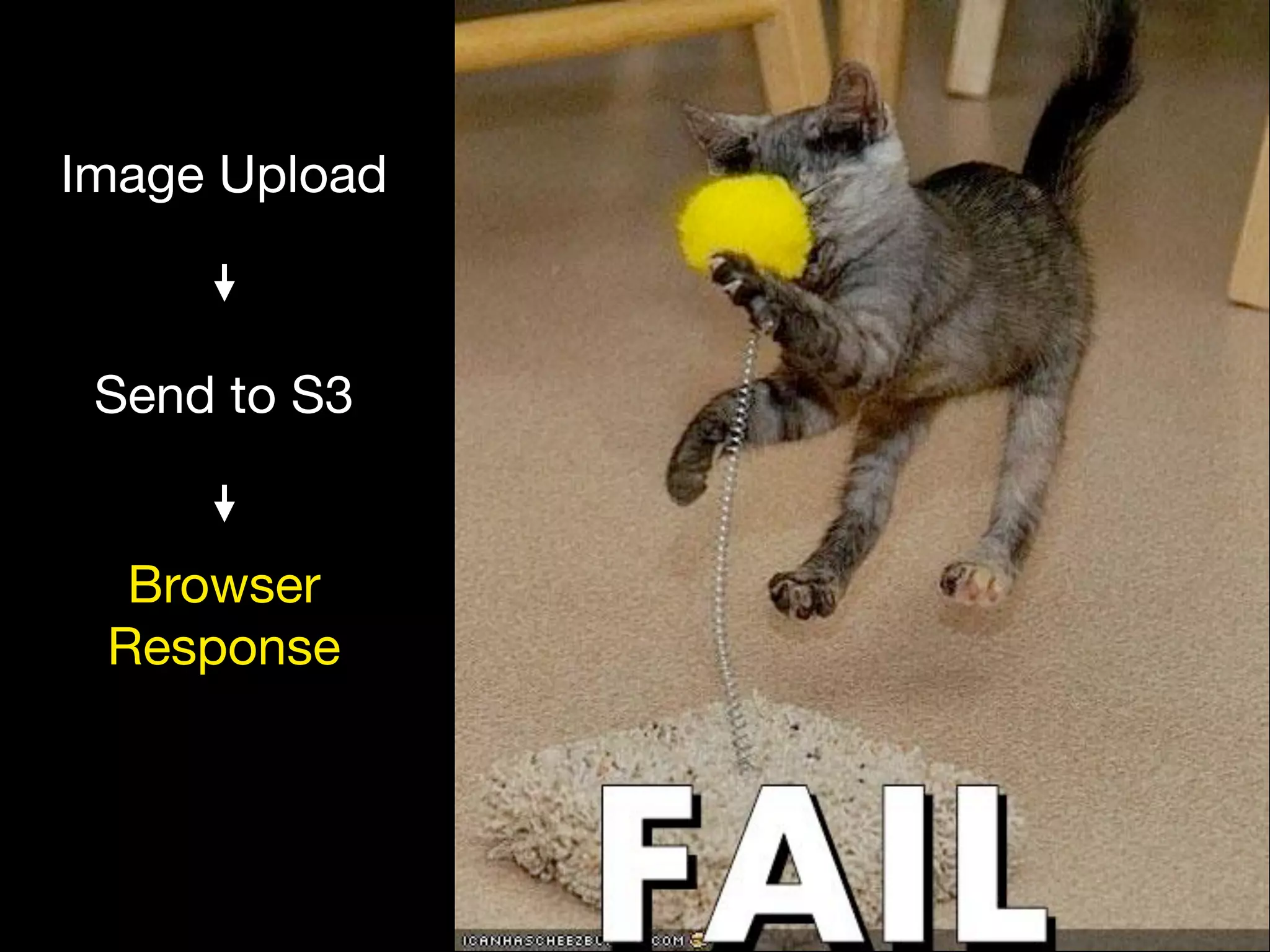

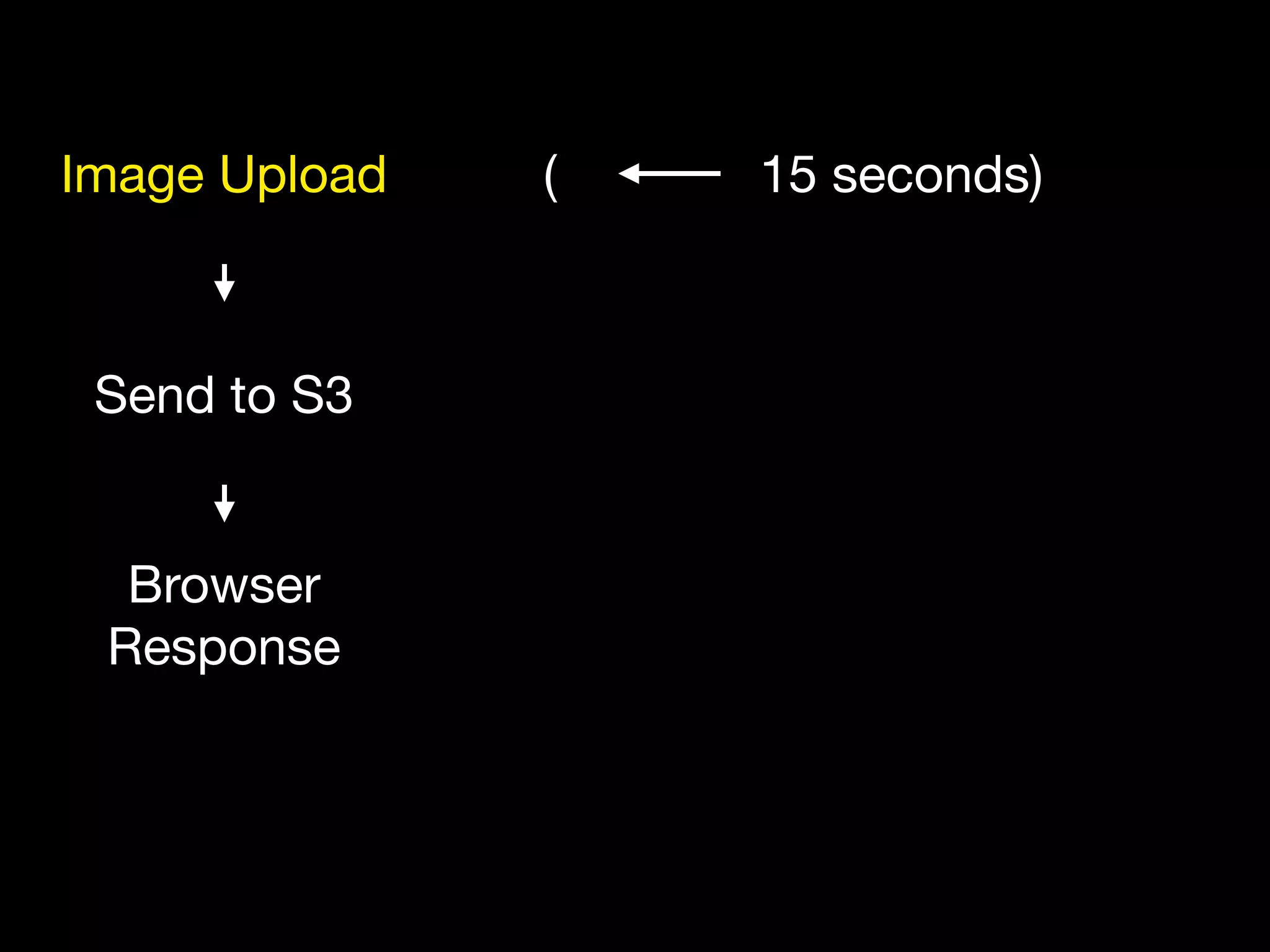

Image Upload   (   15 seconds)



 Send to S3


  Browser
 Response

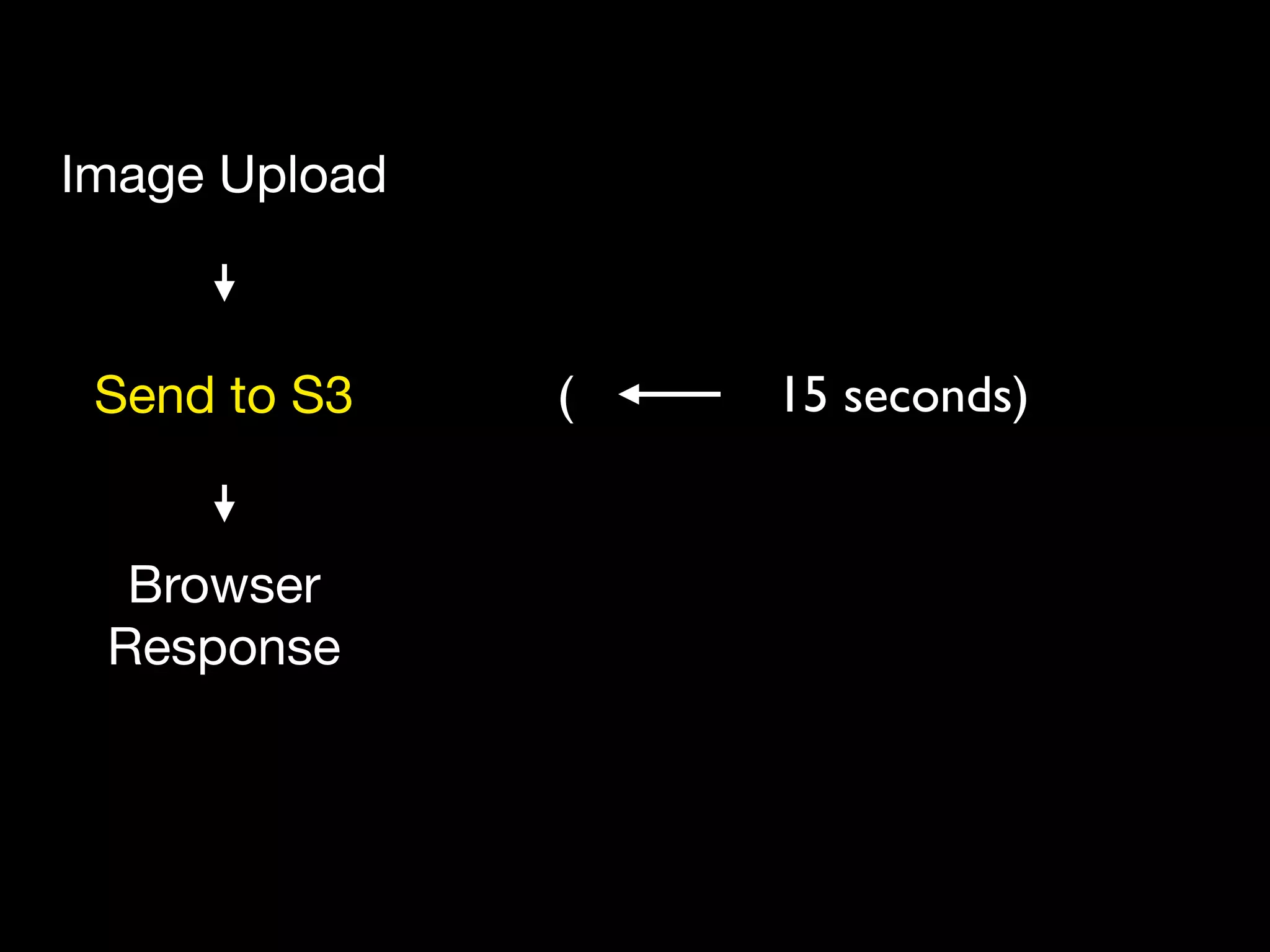

Image Upload



 Send to S3    (   15 seconds)


  Browser
 Response

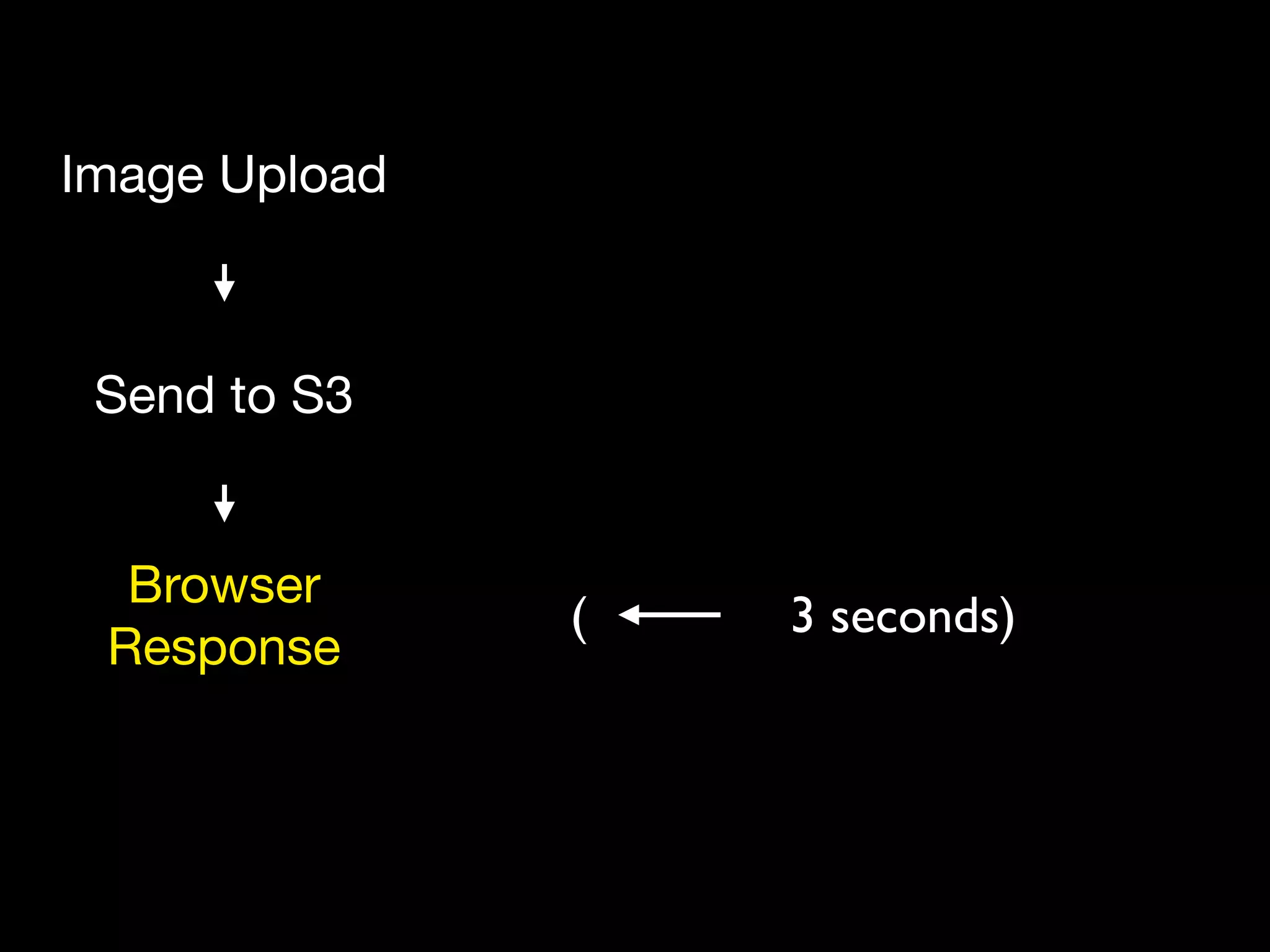

Image Upload



 Send to S3


  Browser
               (   3 seconds)
 Response
Image Upload



 Send to S3


  Browser
 Response

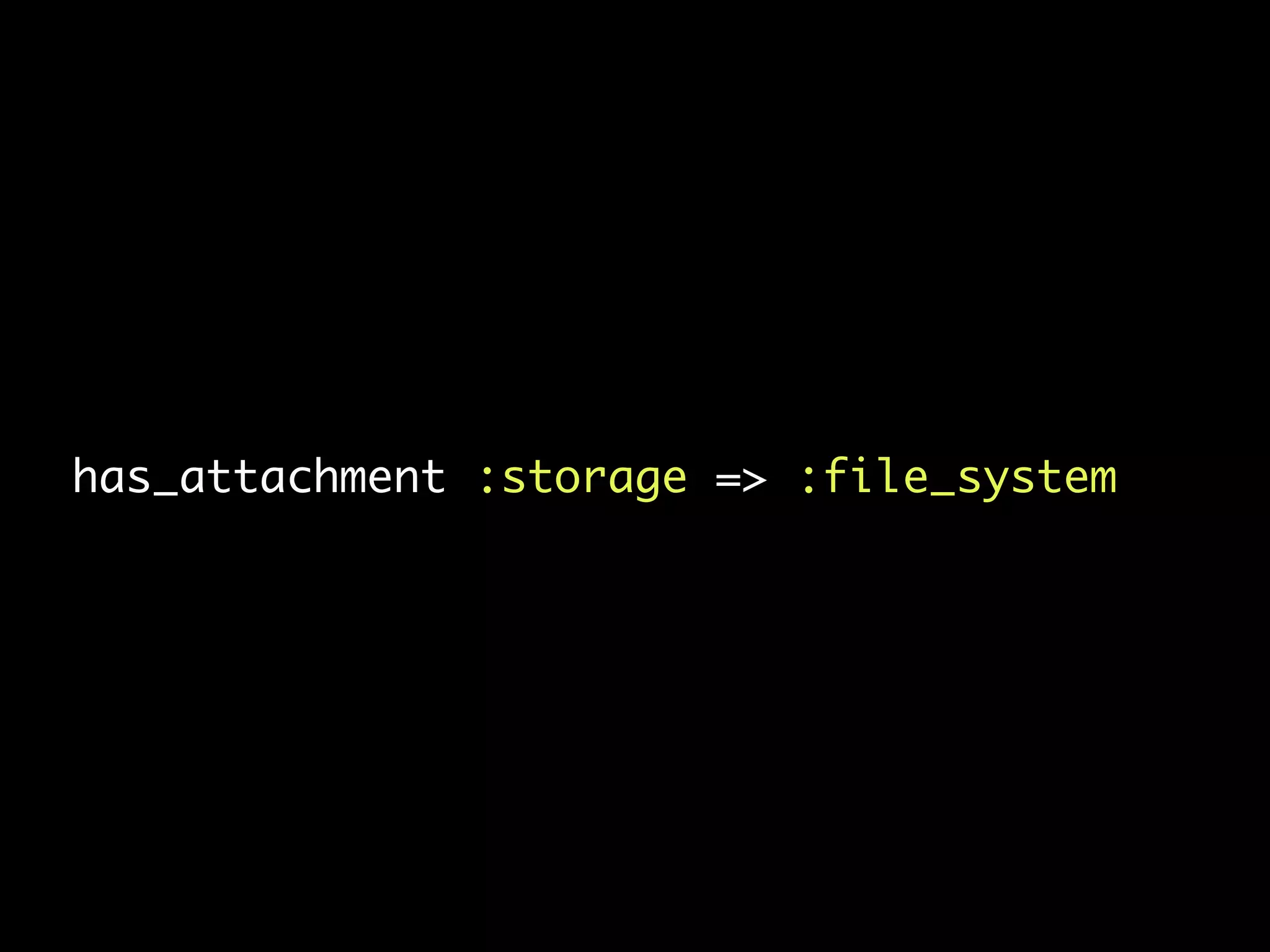

has_attachment :storage => :file_system

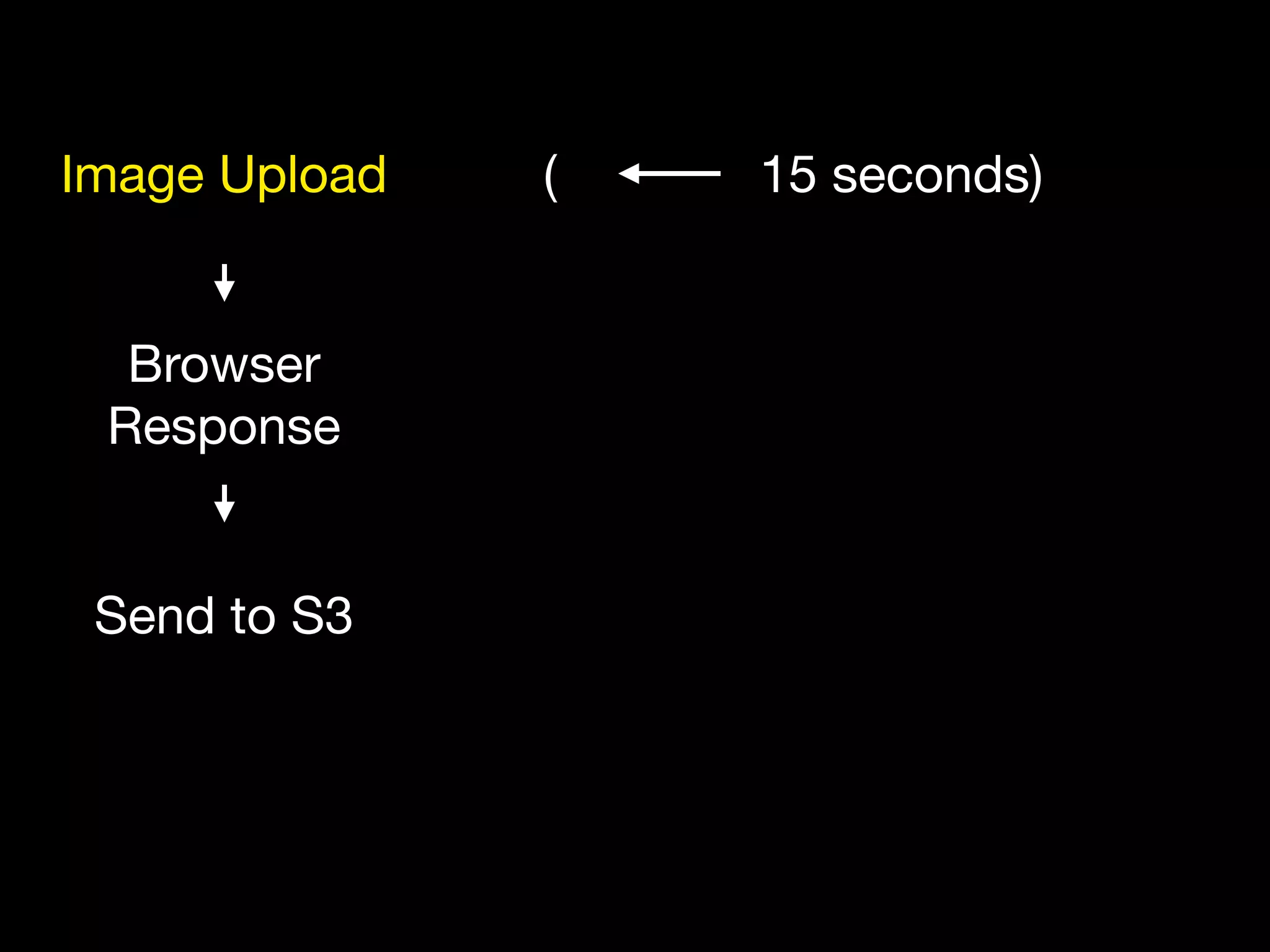

Image Upload   (   15 seconds)


  Browser
 Response


 Send to S3

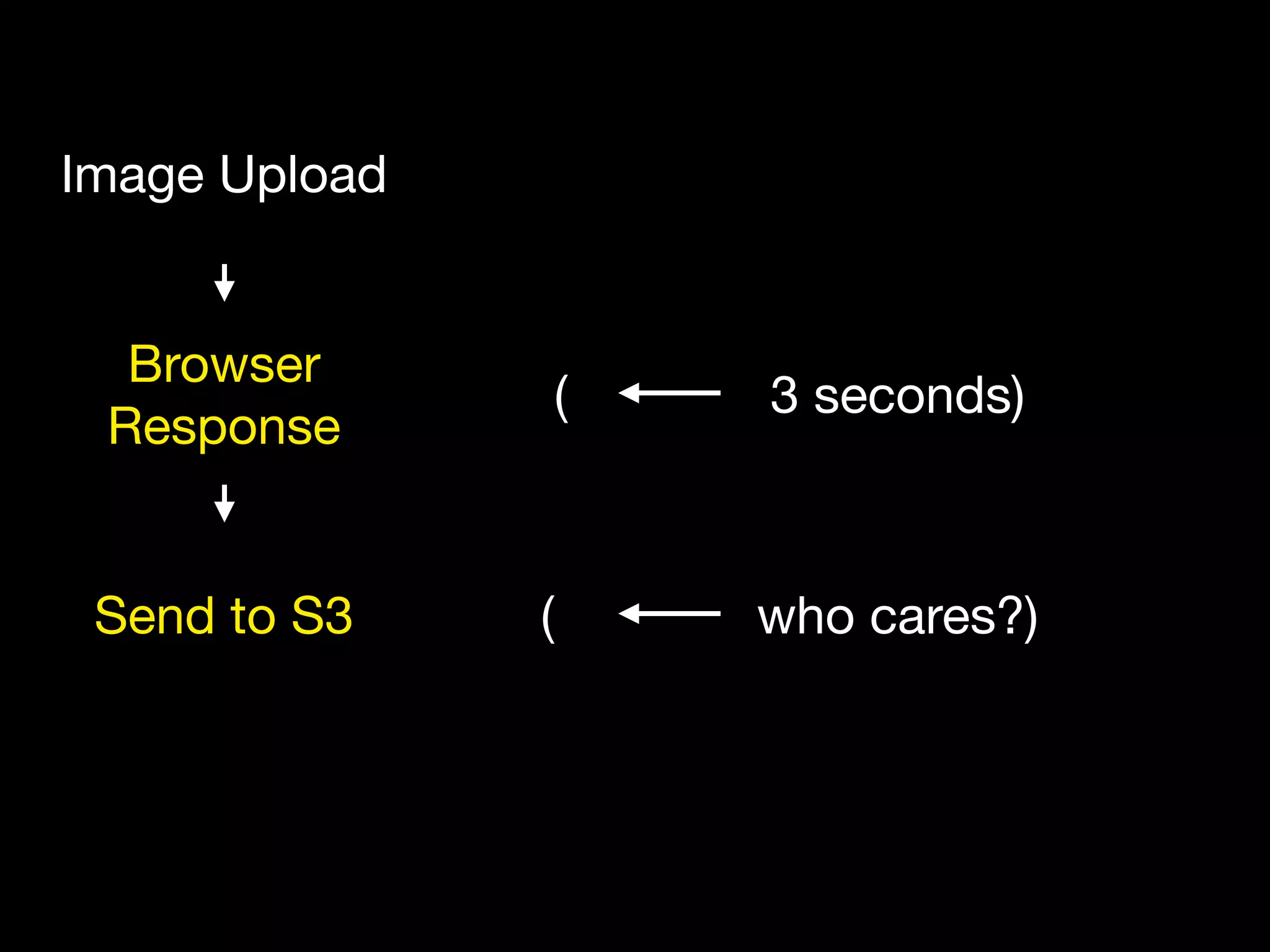

Image Upload


  Browser
               (   3 seconds)
 Response


 Send to S3    (   who cares?)

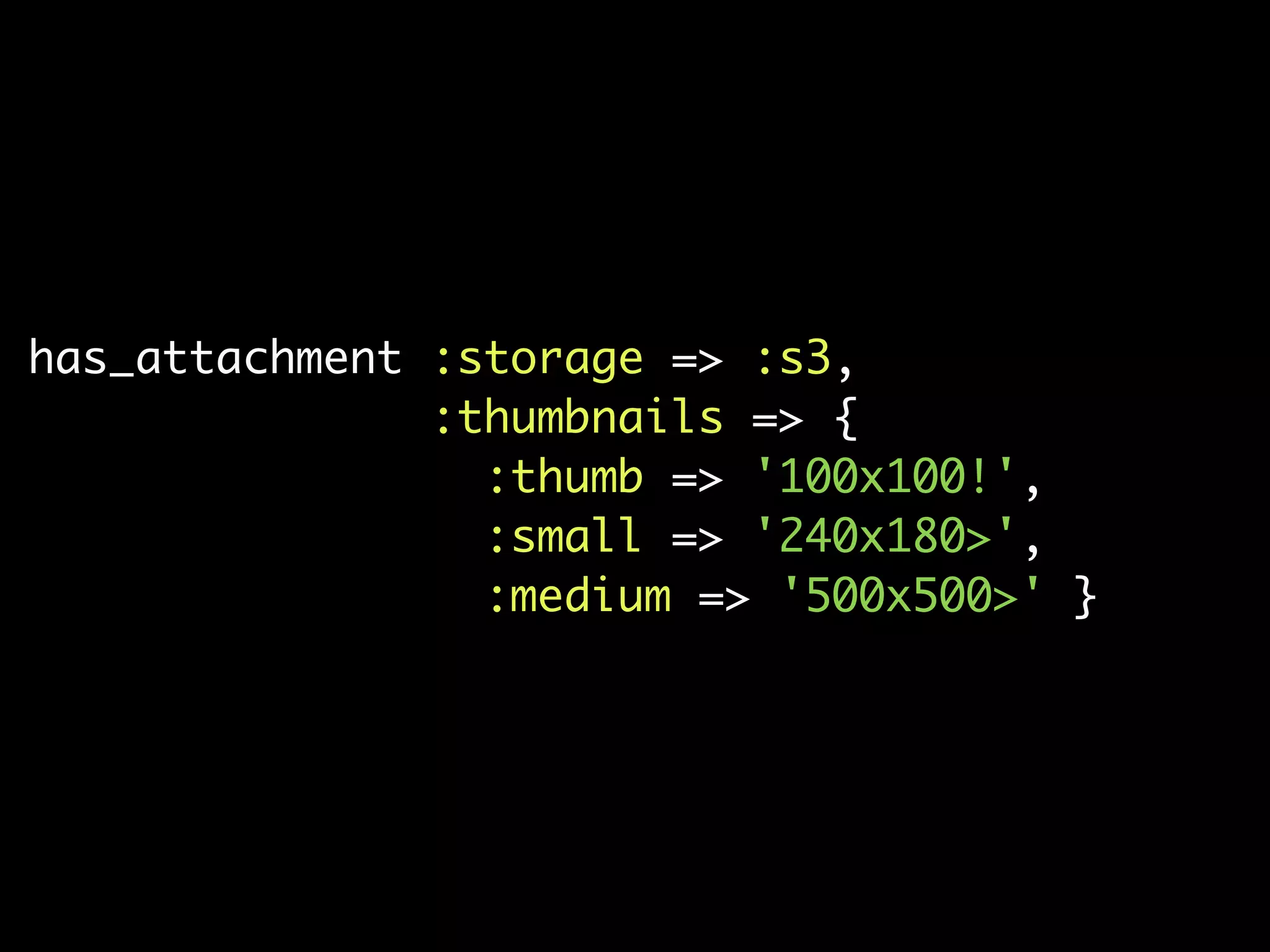

has_attachment :storage => :s3,
               :thumbnails => {
                 :thumb => '100x100!',
                 :s...

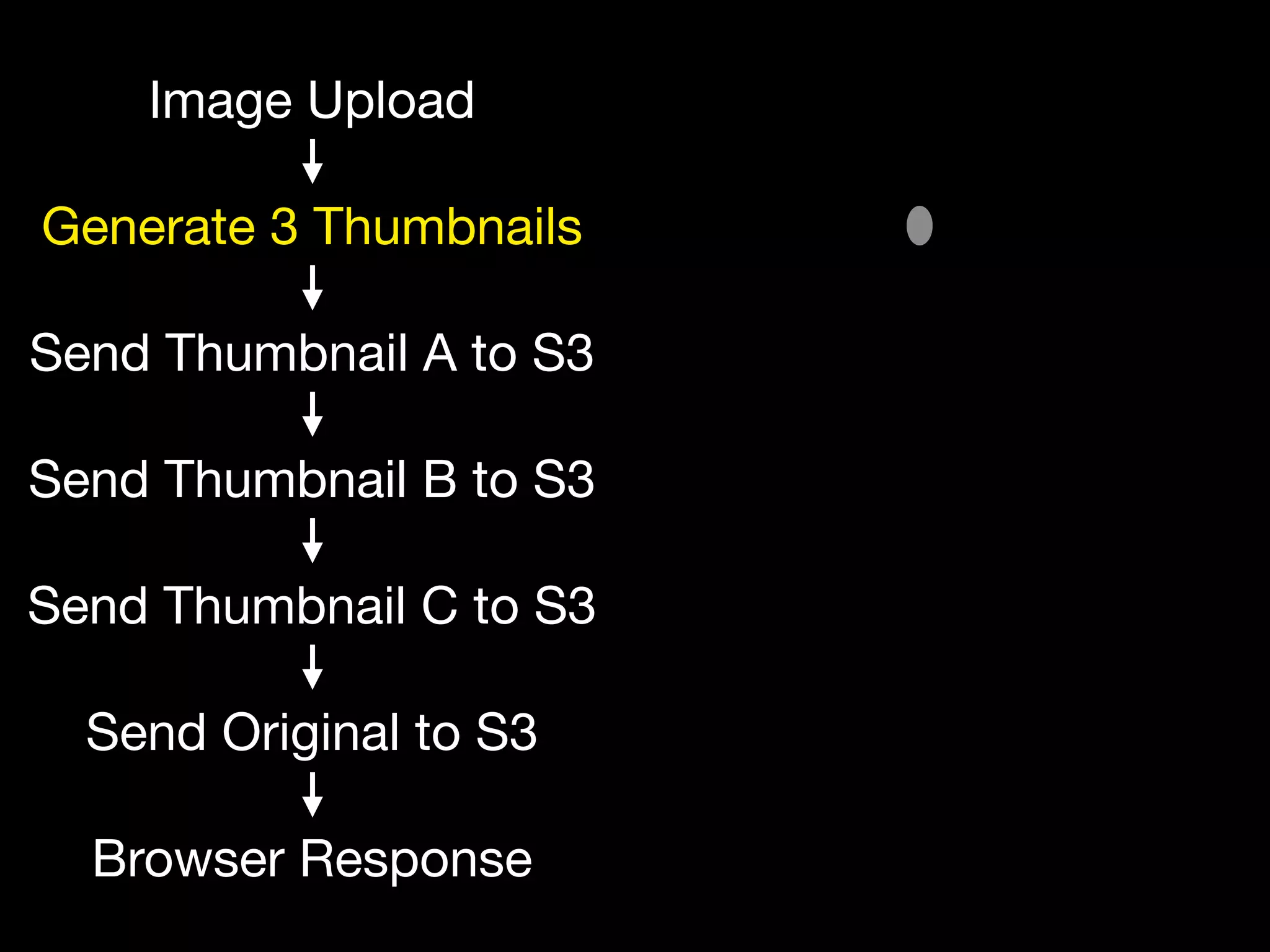

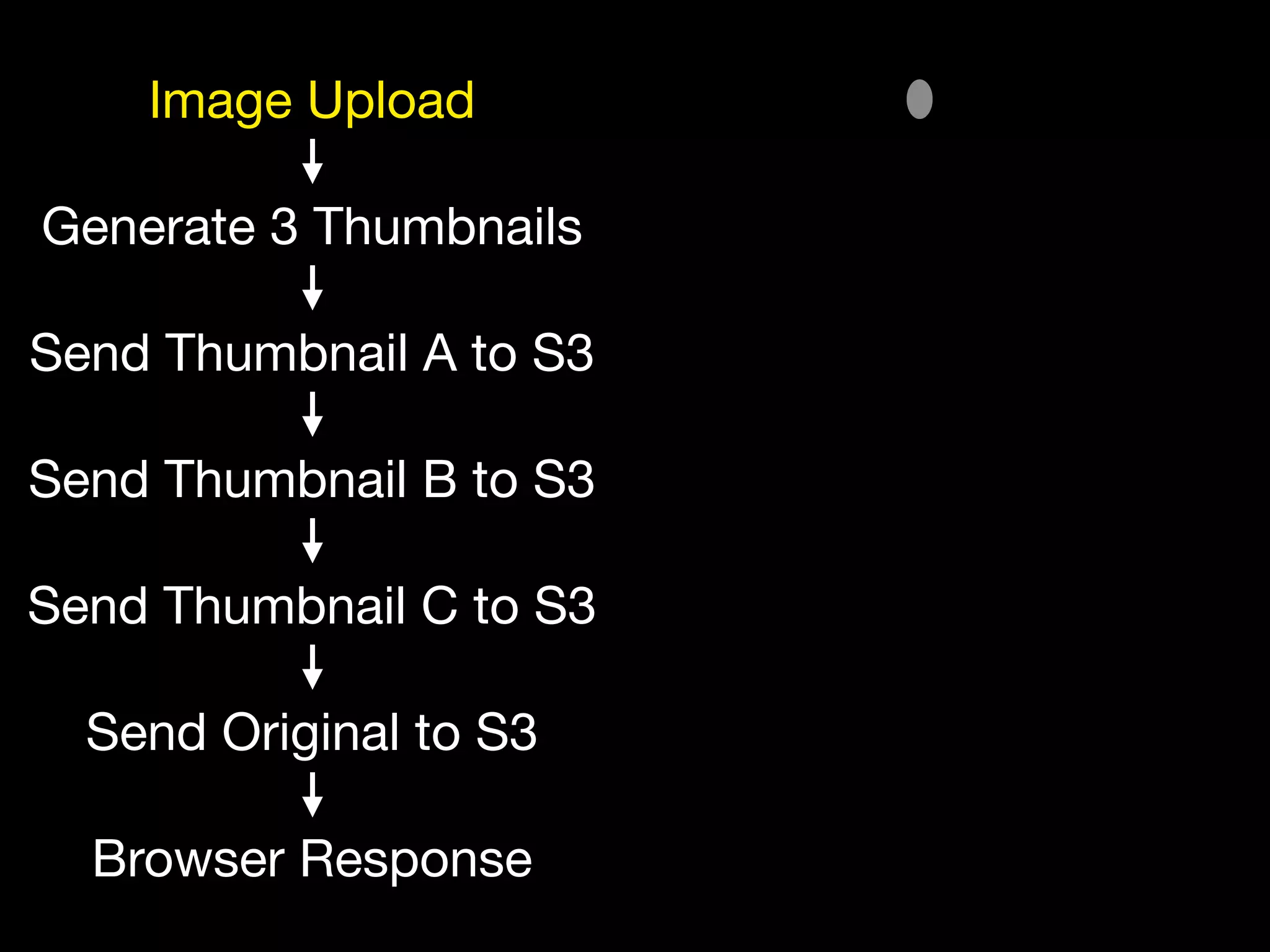

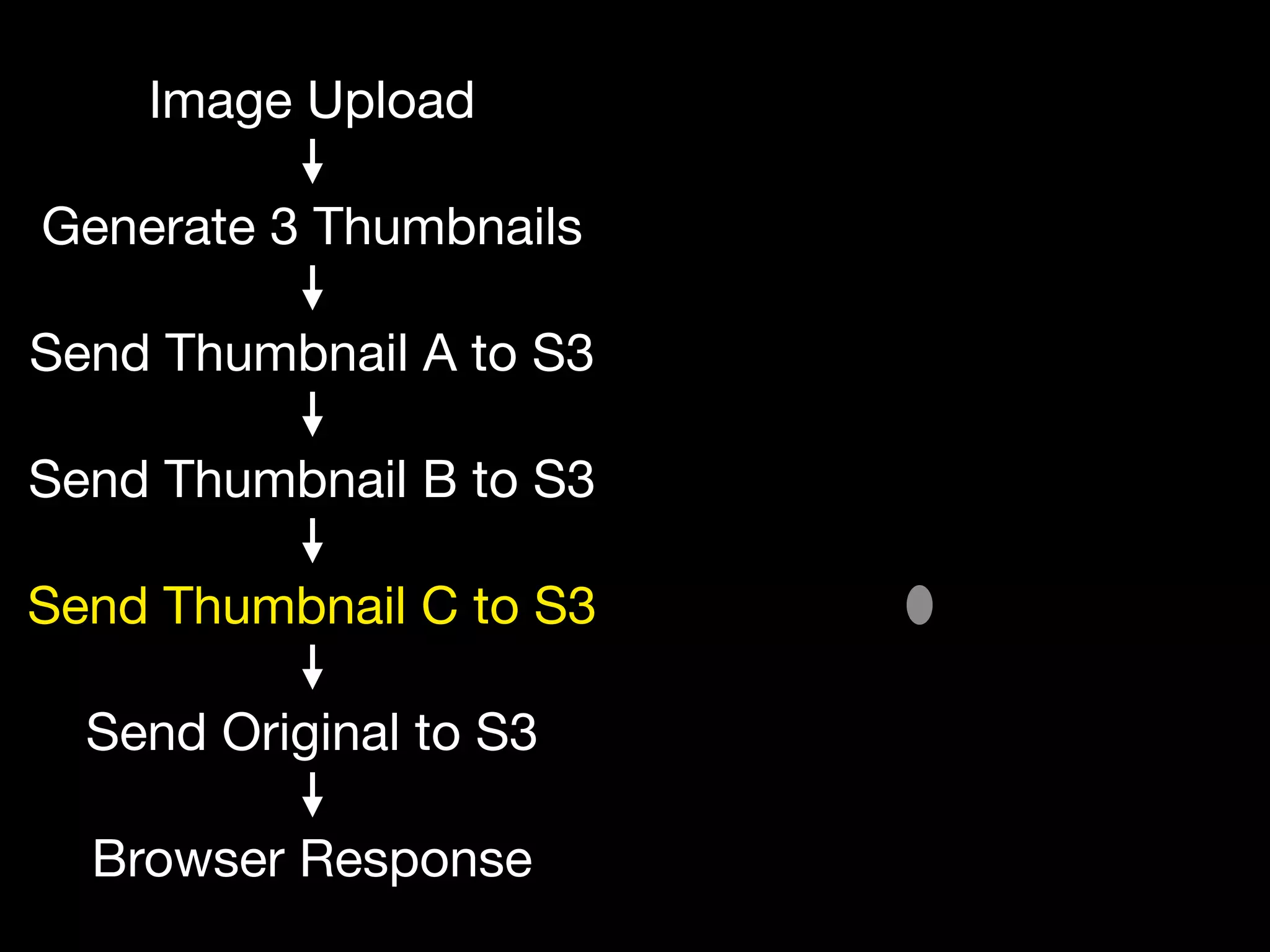

Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...

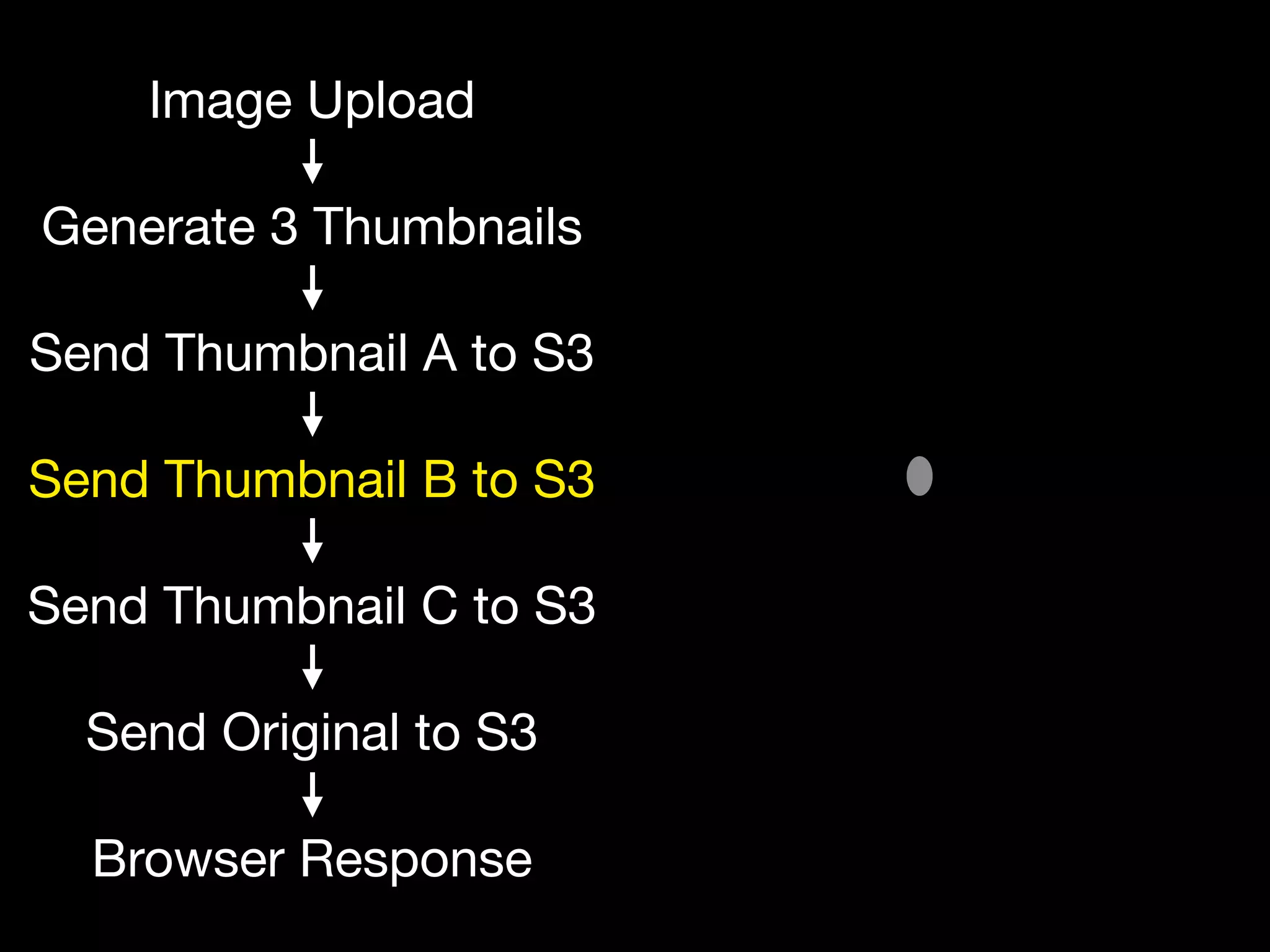

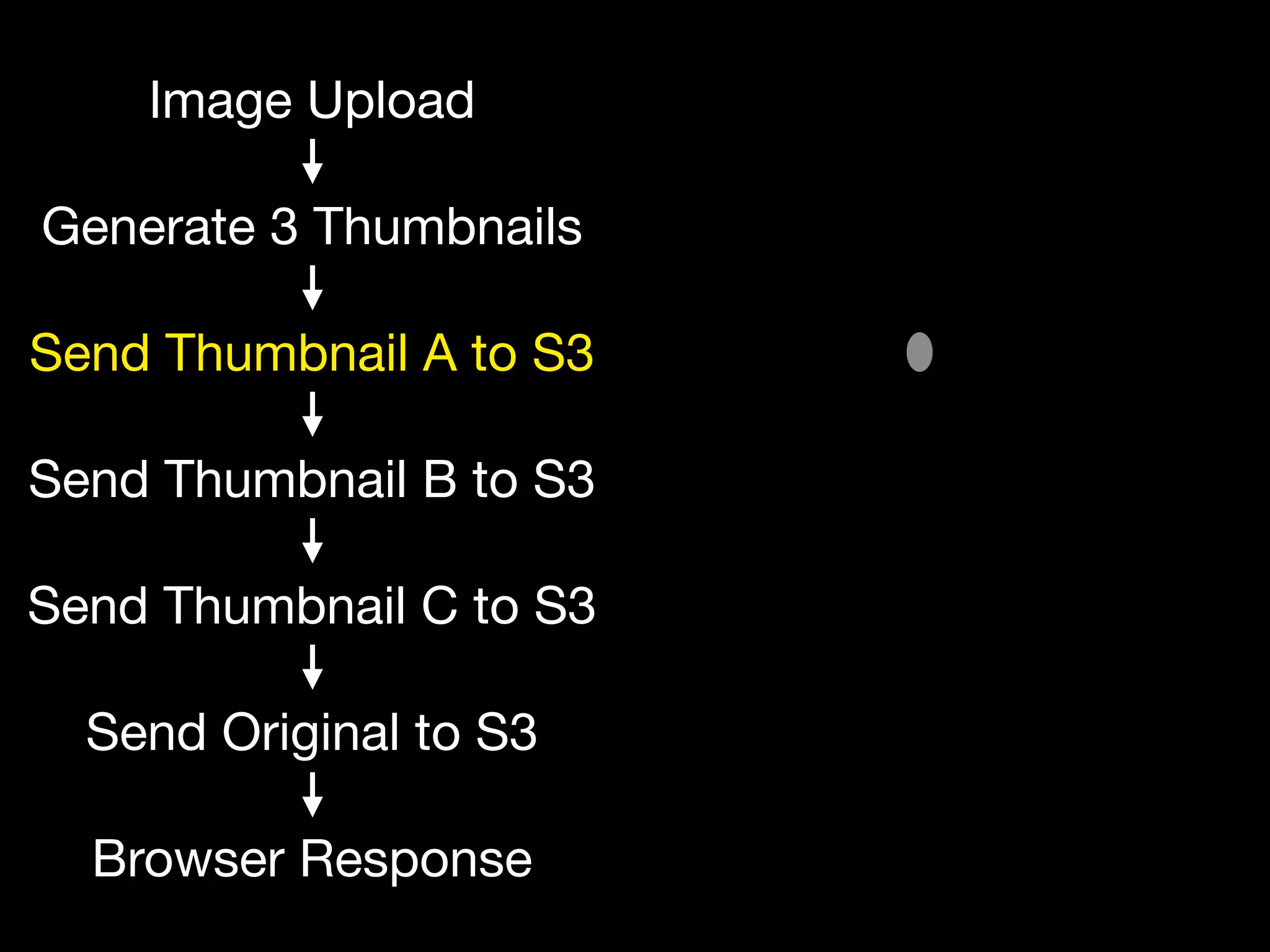

Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...
Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...

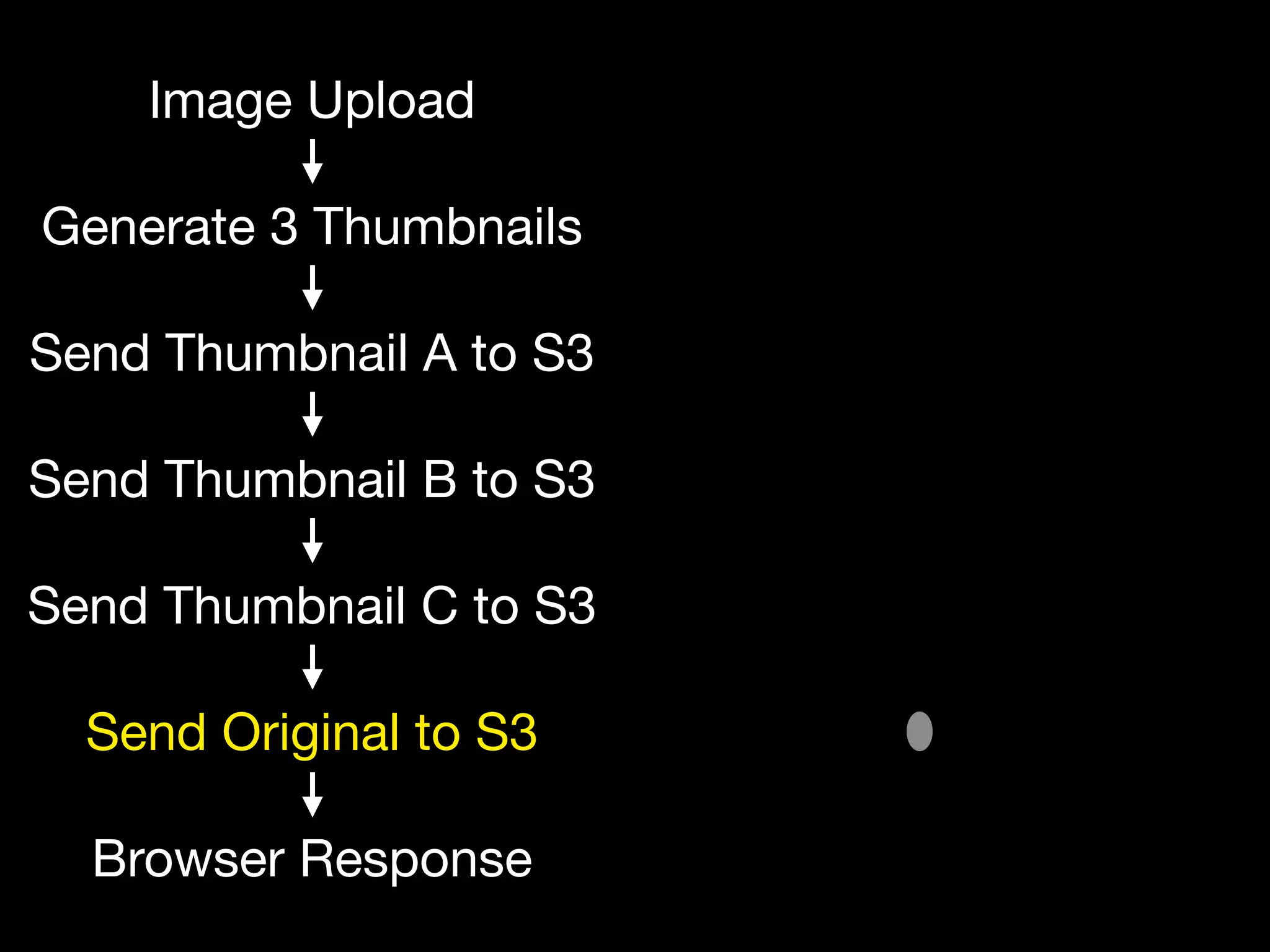

Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...
Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...
Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...

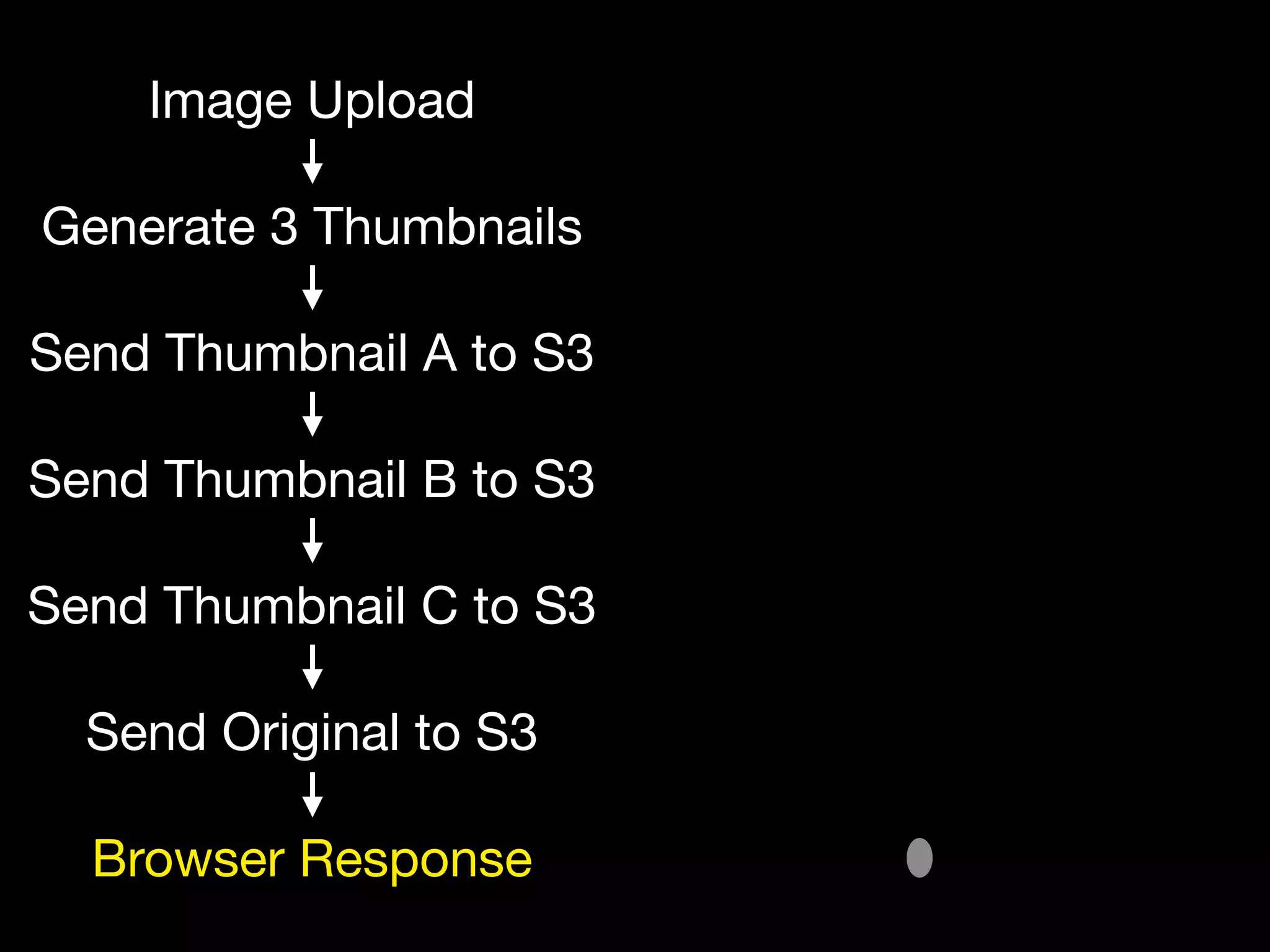

Image Upload

Generate 3 Thumbnails

Send Thumbnail A to S3

Send Thumbnail B to S3

Send Thumbnail C to S3

  Send Origin...
II.
When do I need it?
Time
Request

• Method (GET, POST)
• URI (host, port, path)
• Parameters

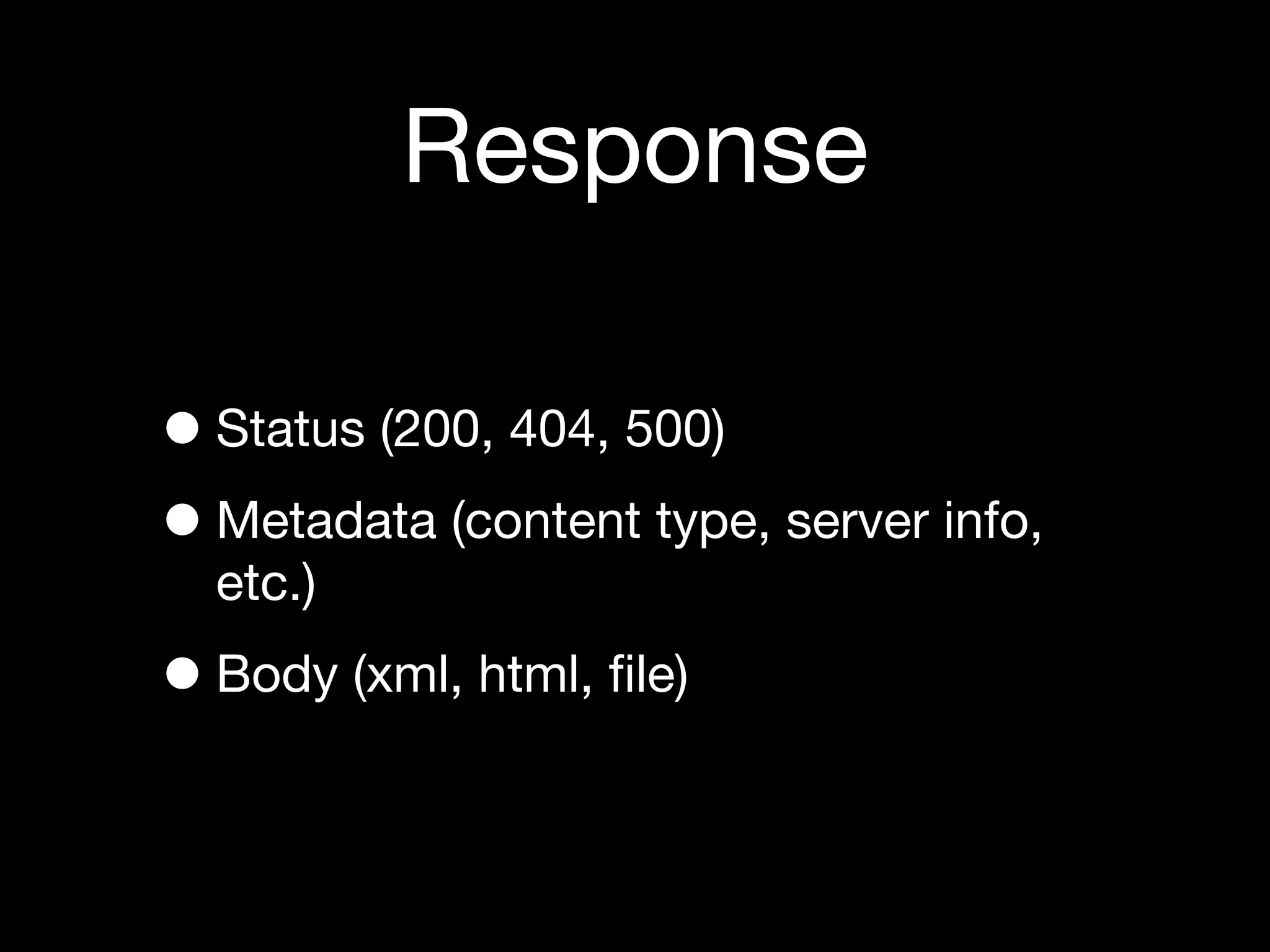

Response

• Status (200, 404, 500)
• Metadata (content type, server info,
  etc.)

• Body (xml, html, file)
Resources
Trigger

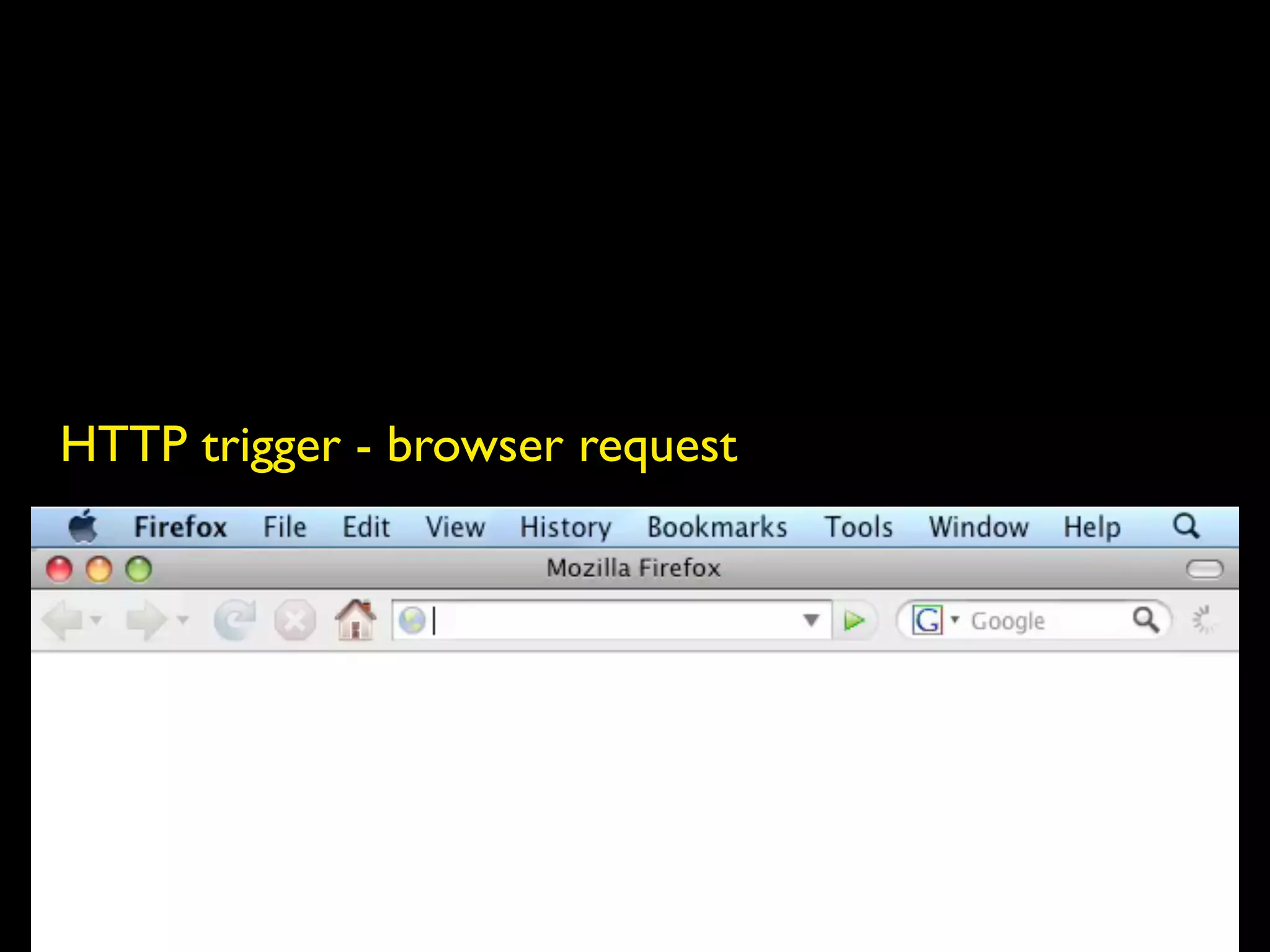

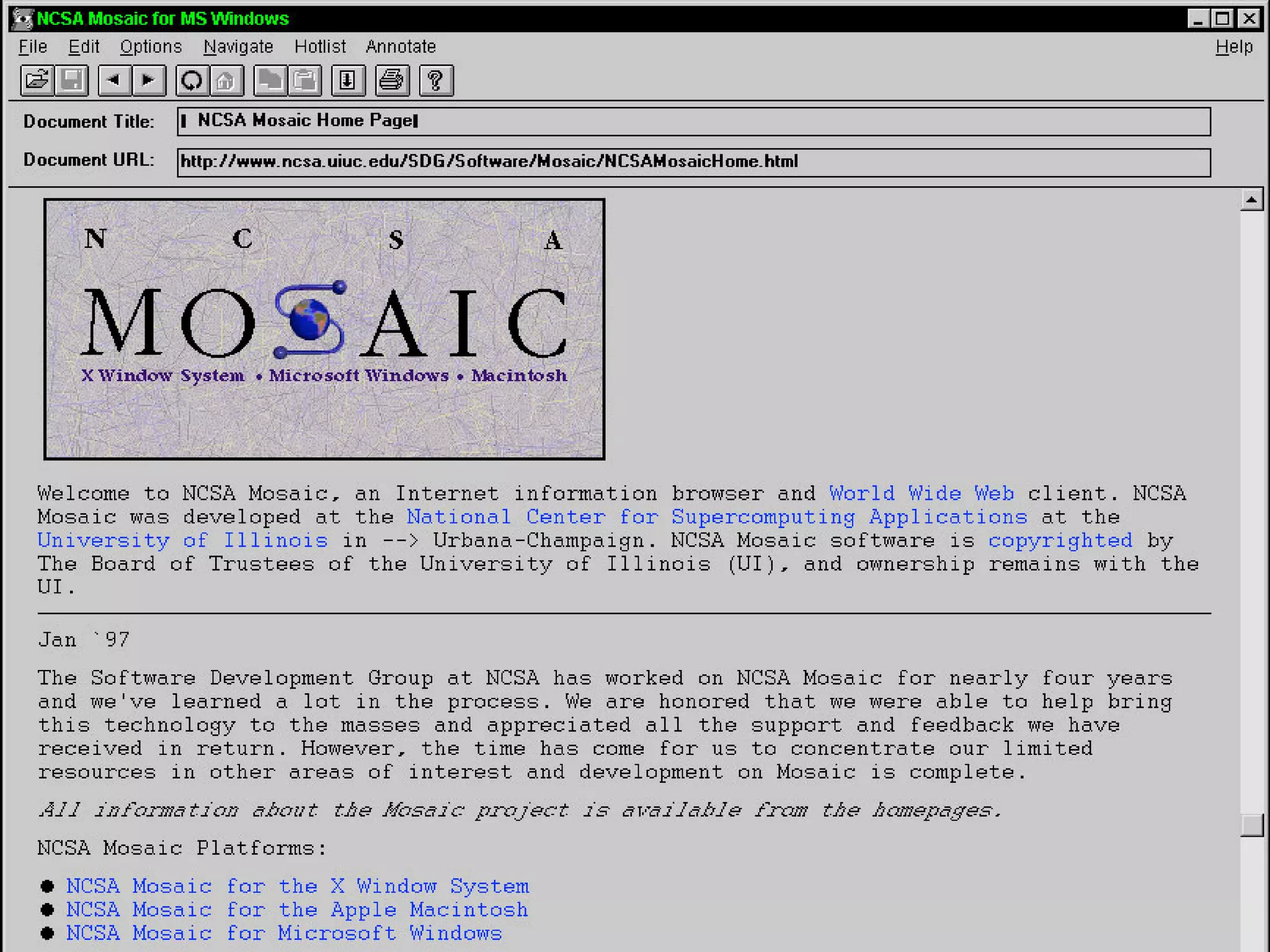

HTTP trigger - browser request

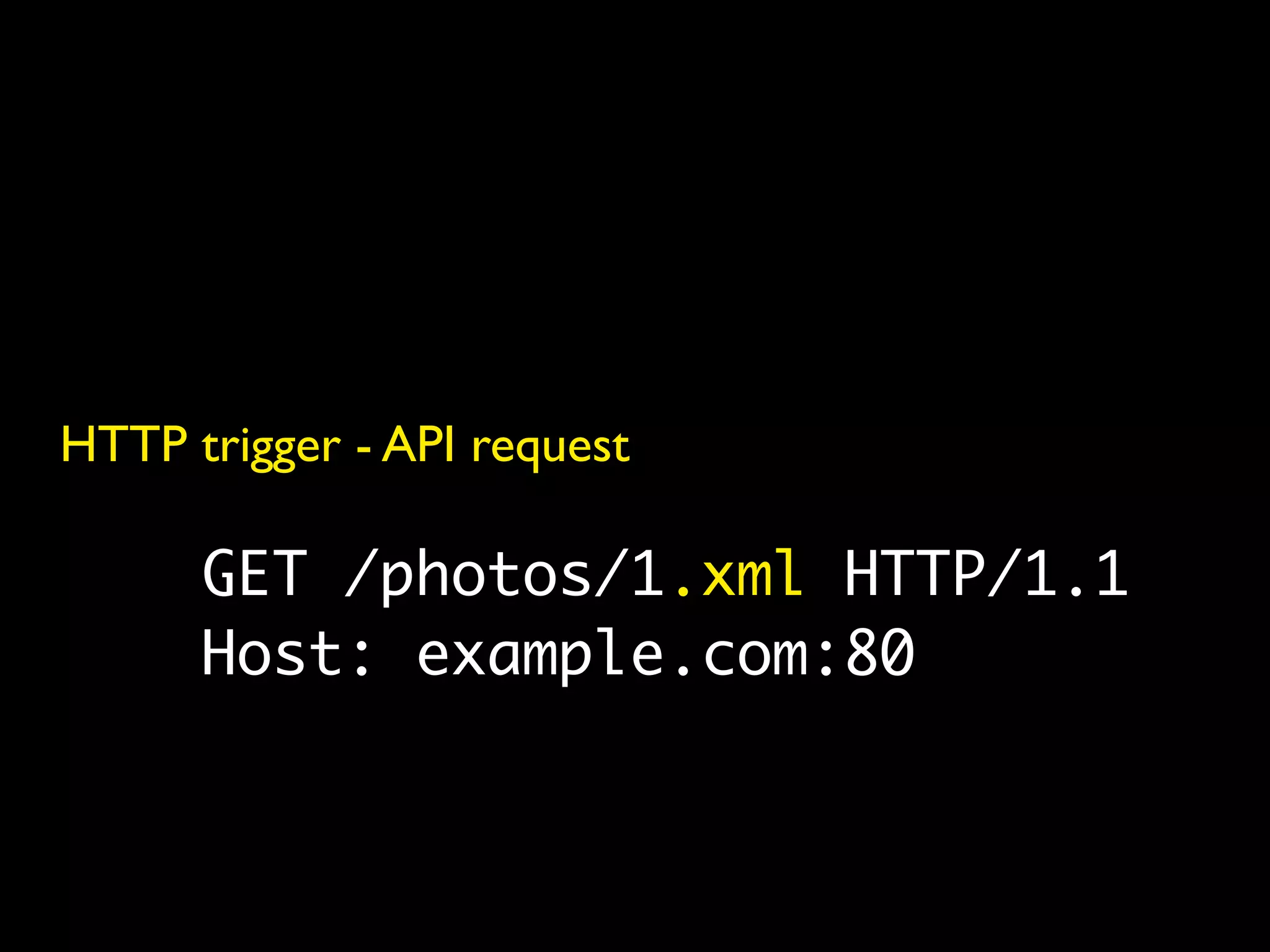

HTTP trigger - API request

      GET /photos/1.xml HTTP/1.1
      Host: example.com:80
Human trigger - capistrano

      cap staging deploy

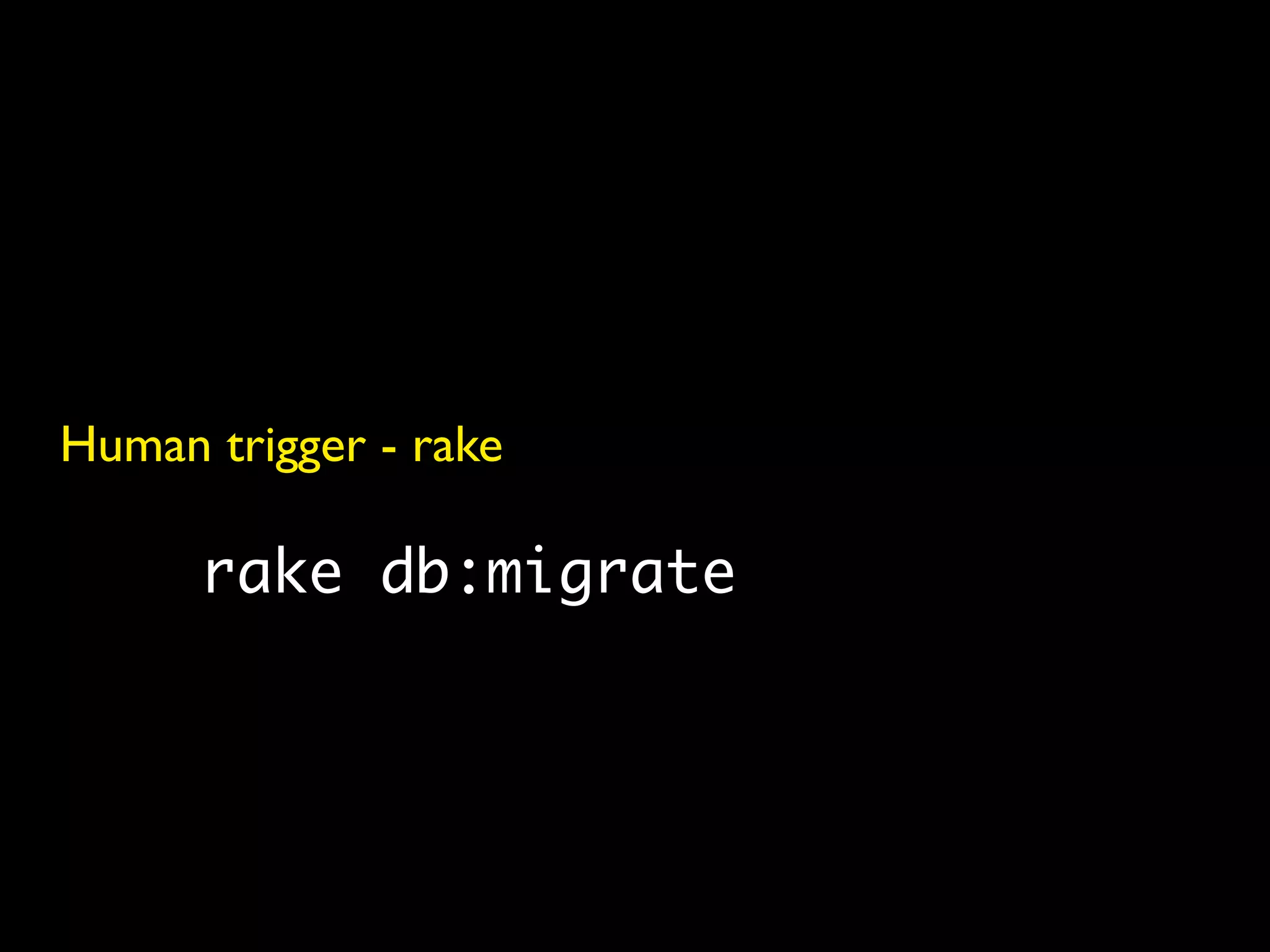

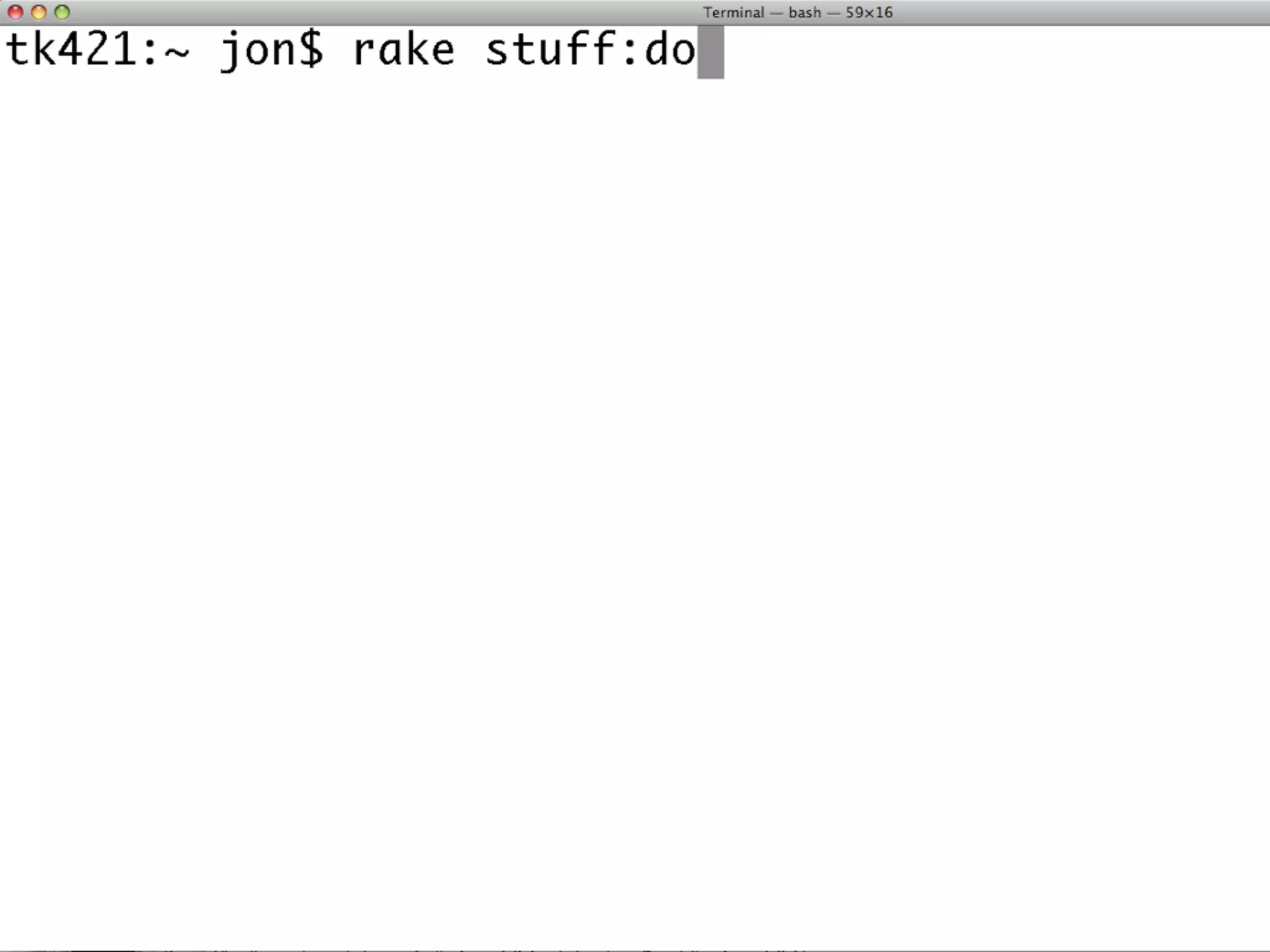

Human trigger - rake

      rake db:migrate

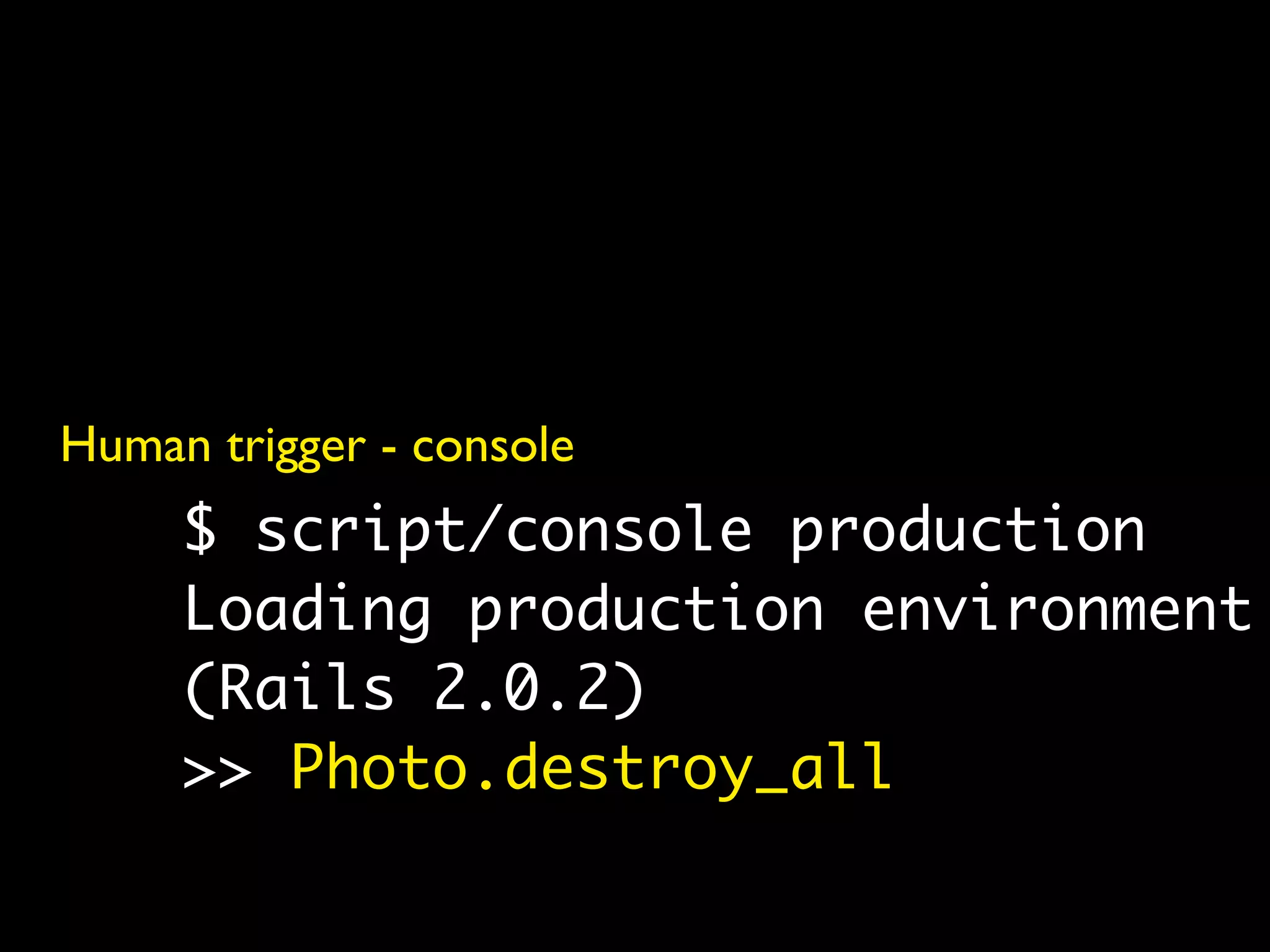

Human trigger - console
     $ script/console production
     Loading production environment
     (Rails 2.0.2)
     >> Ph...

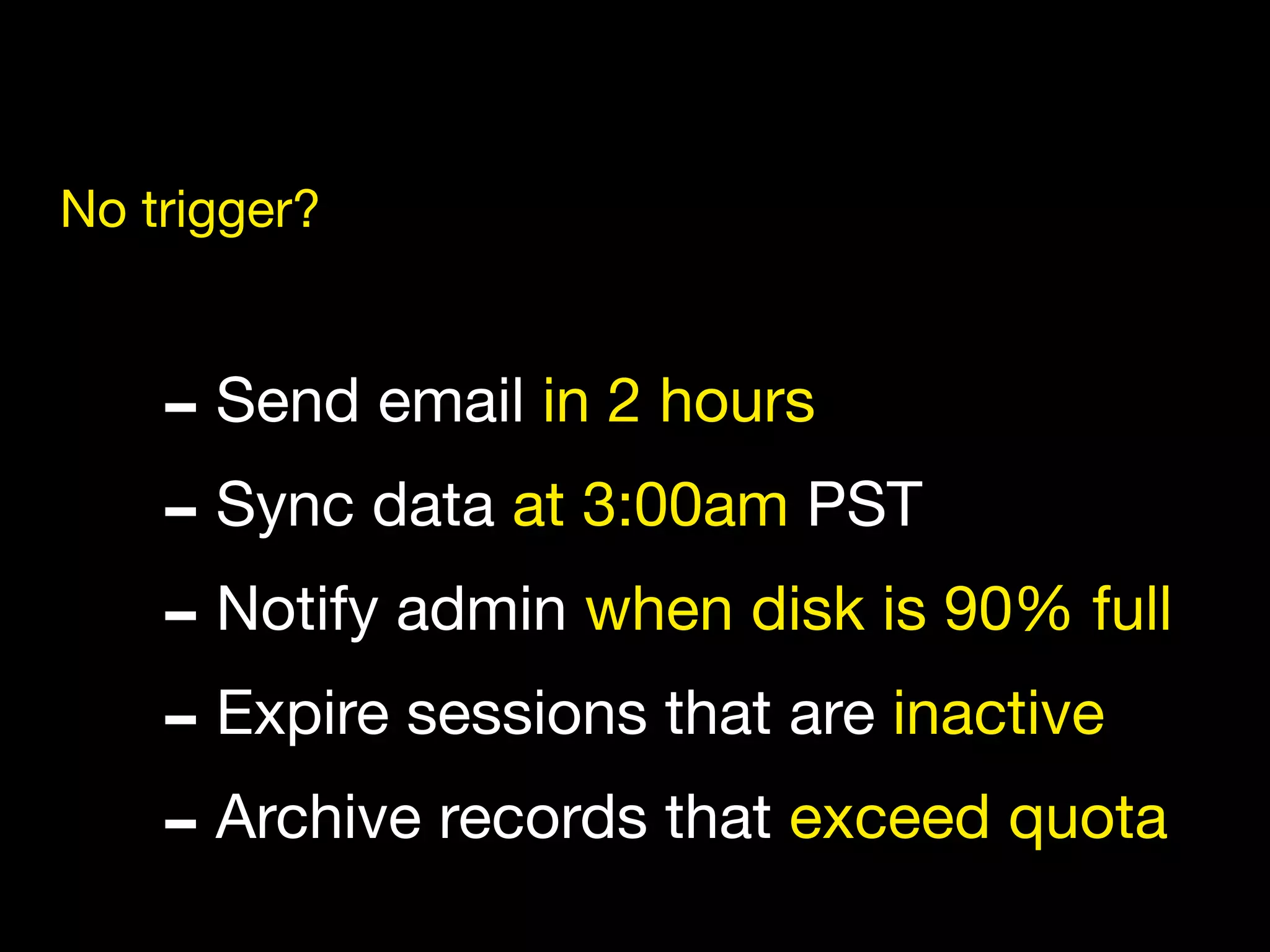

No trigger?



    - Send email in 2 hours
    - Sync data at 3:00am PST
    - Notify admin when disk is 90% full
    - Ex...
1. Time
2. Resources
3. Trigger

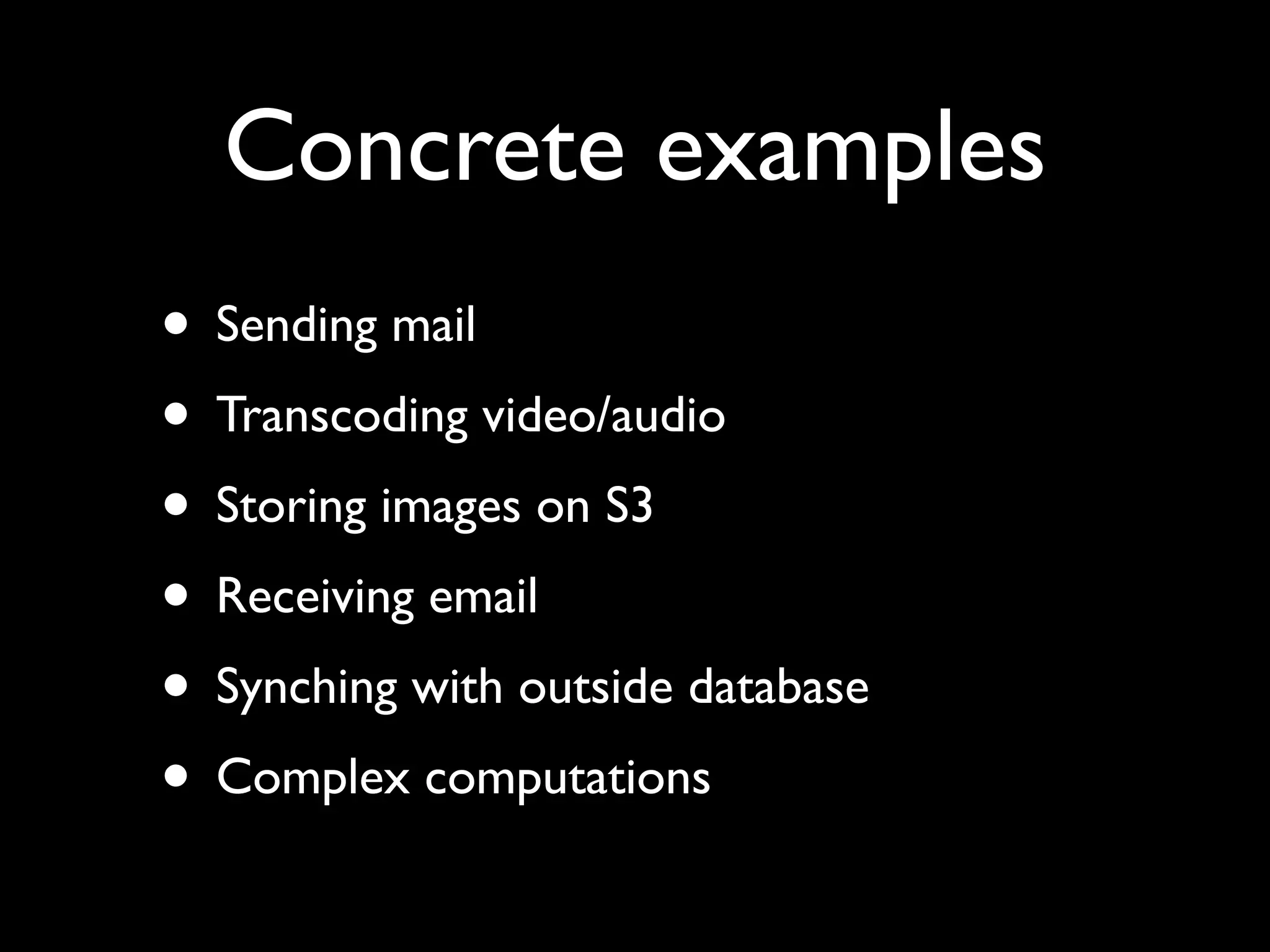

Concrete examples
• Sending mail
• Transcoding video/audio
• Storing images on S3
• Receiving email
• Synching with outsid...

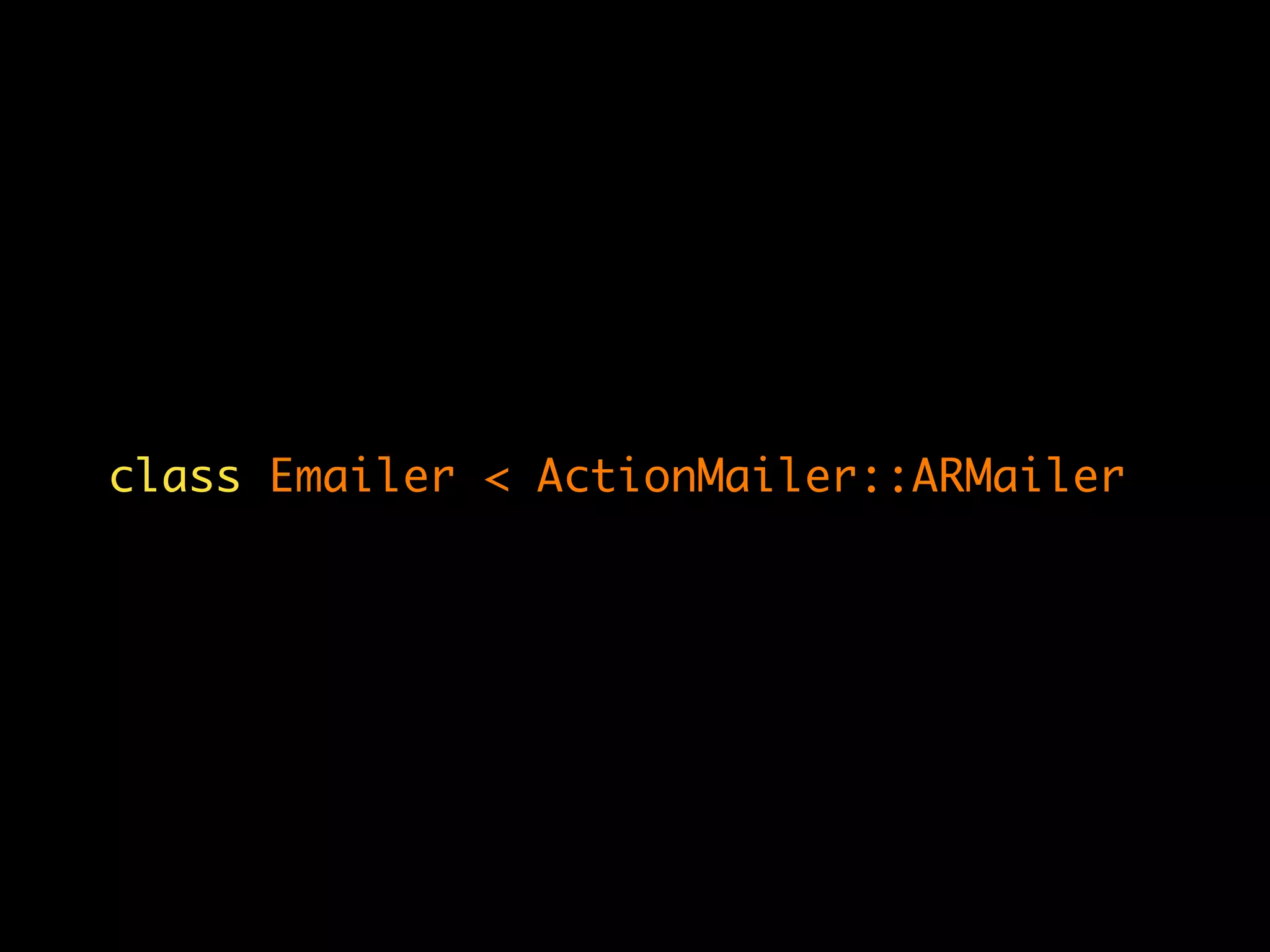

class Emailer < ActionMailer::ARMailer

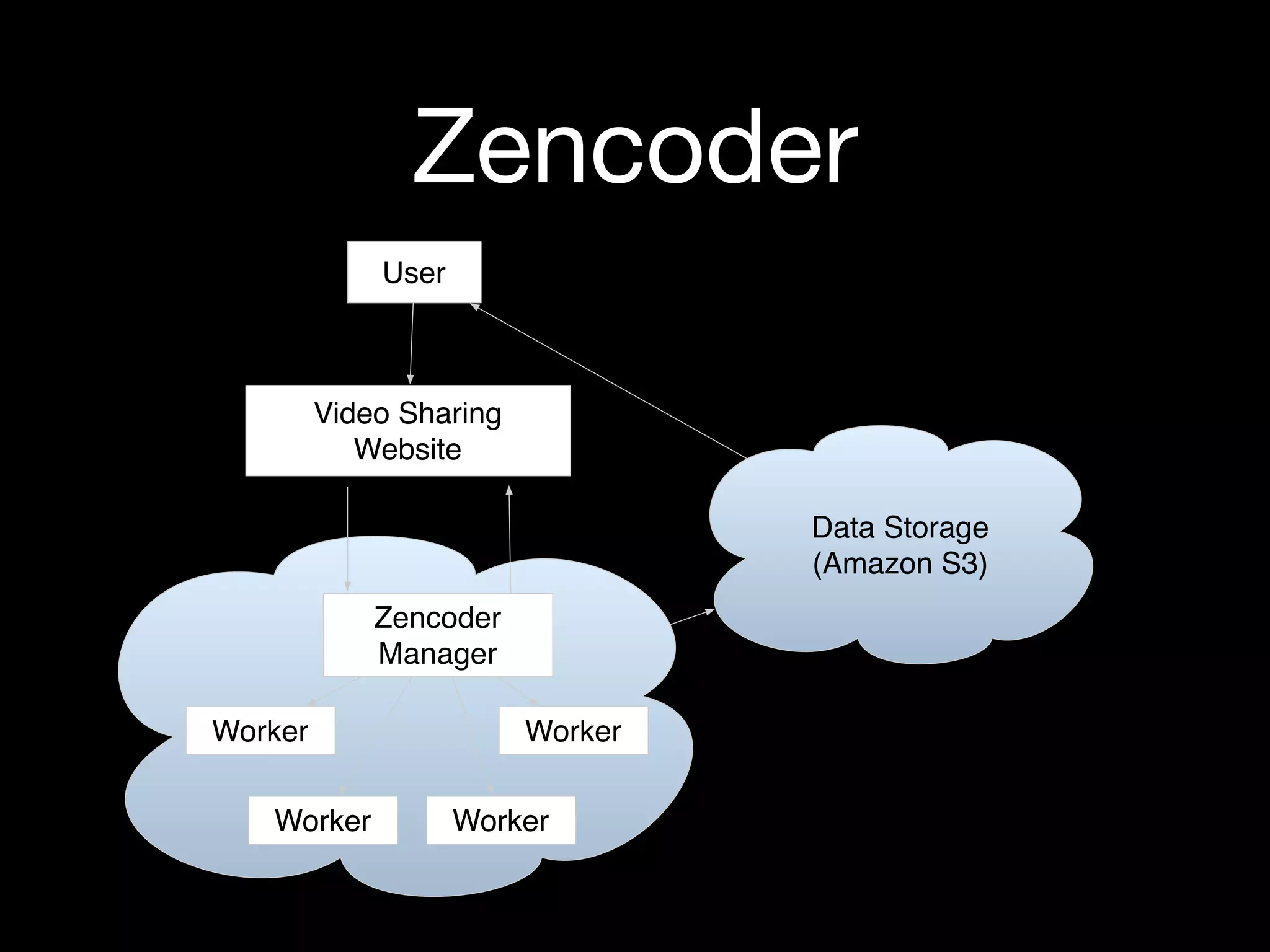

Zencoder
             User



         Video Sharing
            Website

                                  Data Storage
 ...

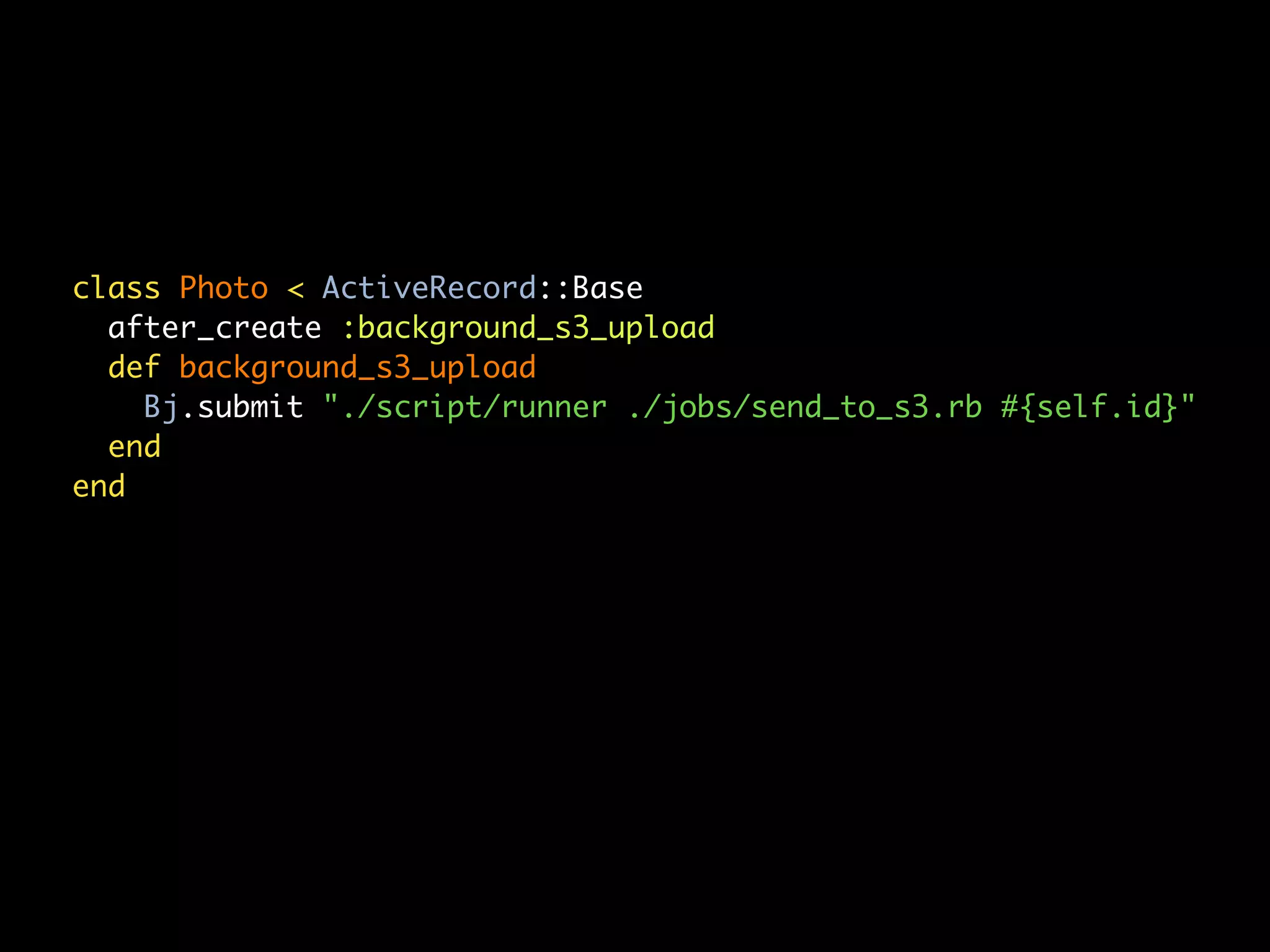

class Photo < ActiveRecord::Base
  after_create :background_s3_upload
  def background_s3_upload
    Bj.submit quot;./scri...

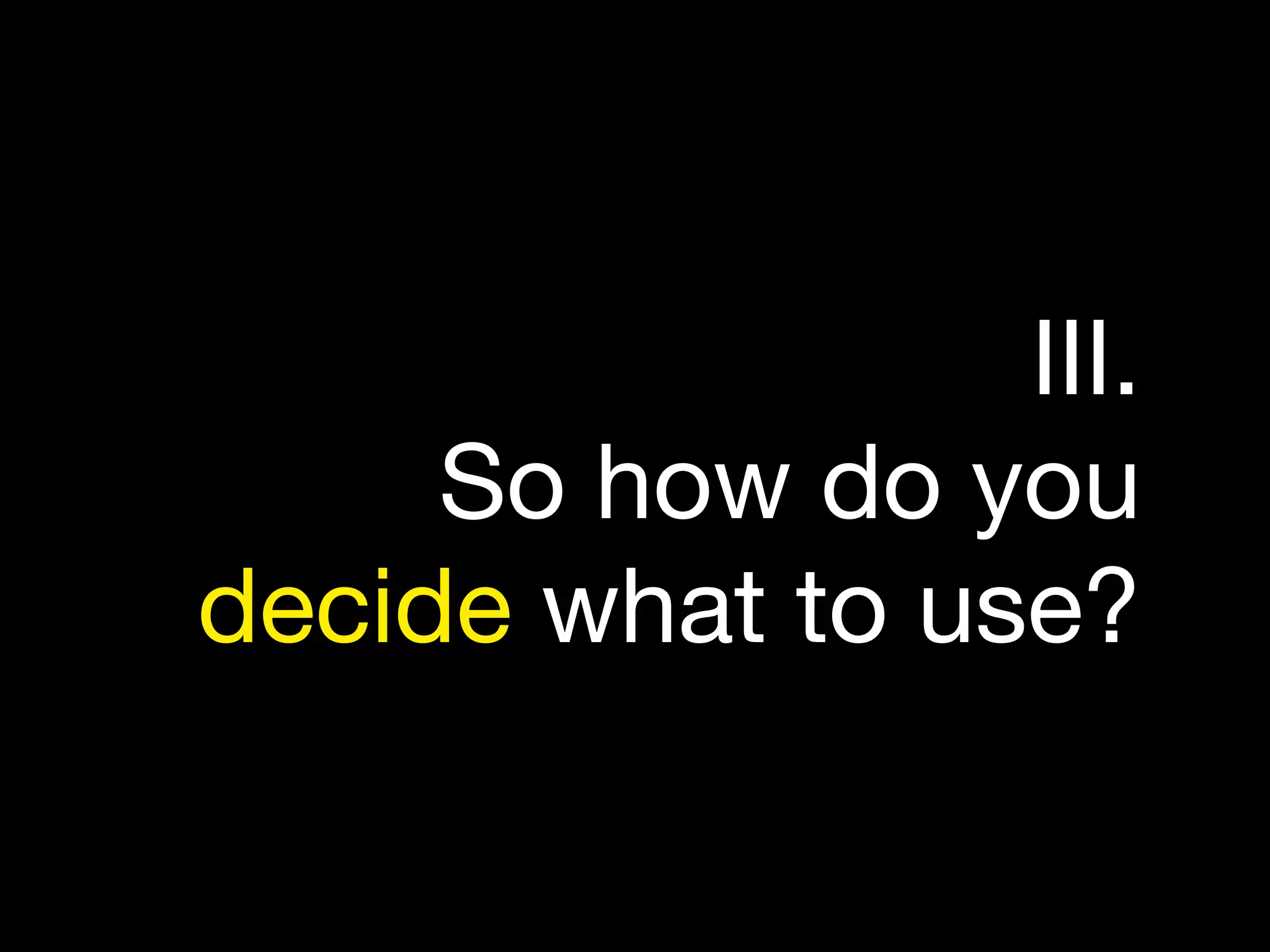

III.
     So how do you
decide what to use?
be seamless

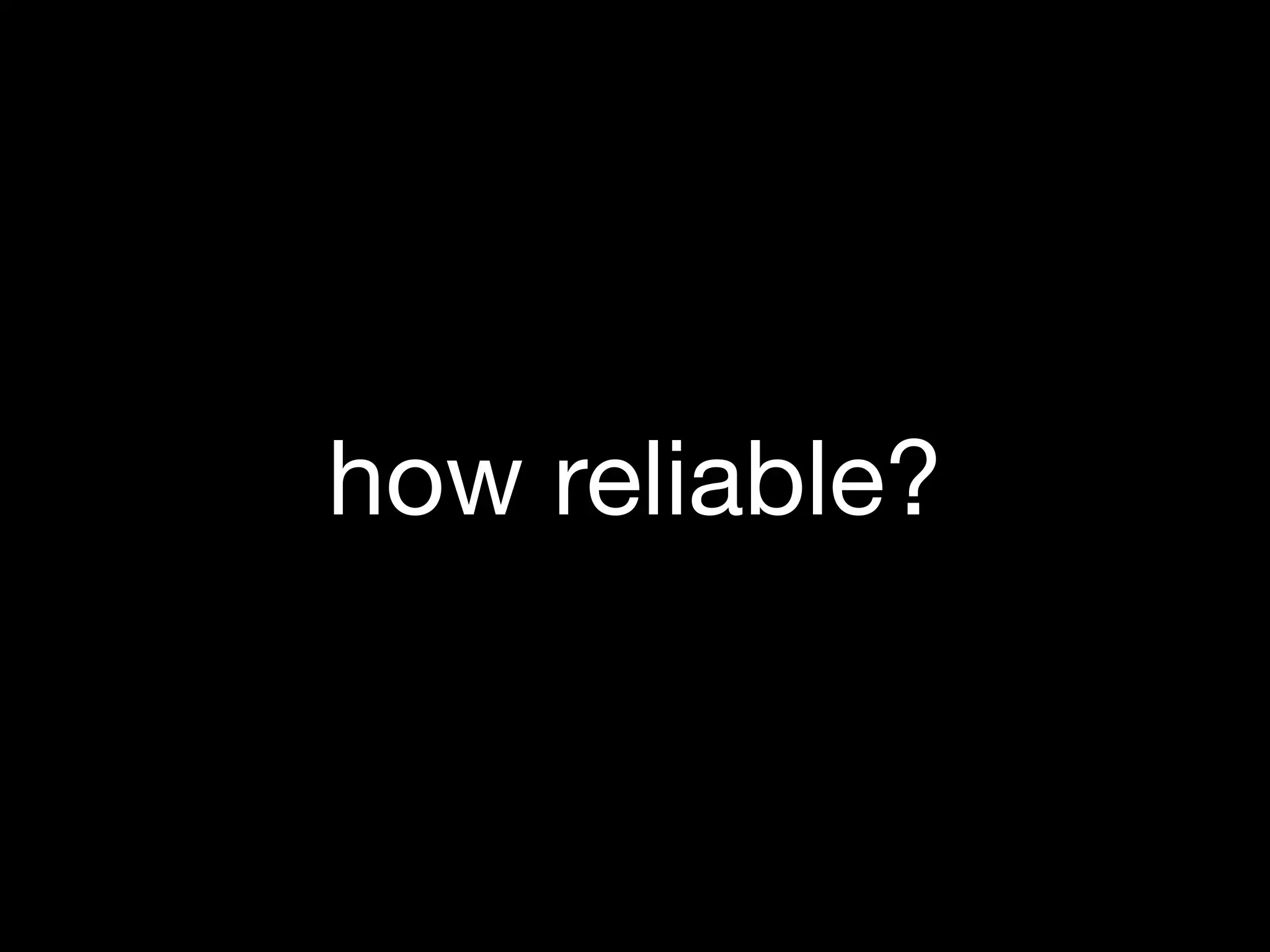

how reliable?
when should it run?

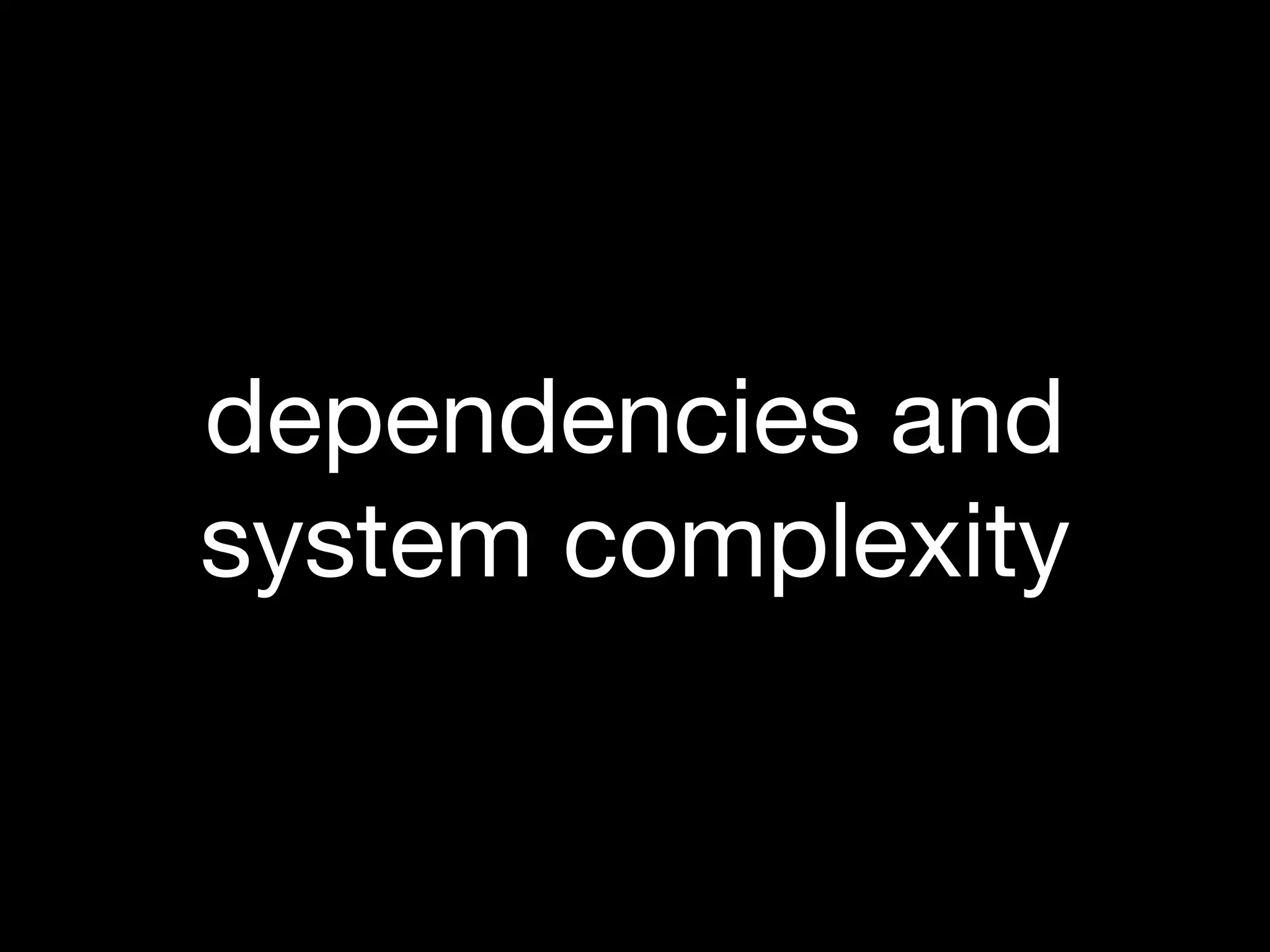

dependencies and
system complexity
scaling
   and/or
performance
IV.
The simple solution:
      fork or thread
Parallel vs. Background

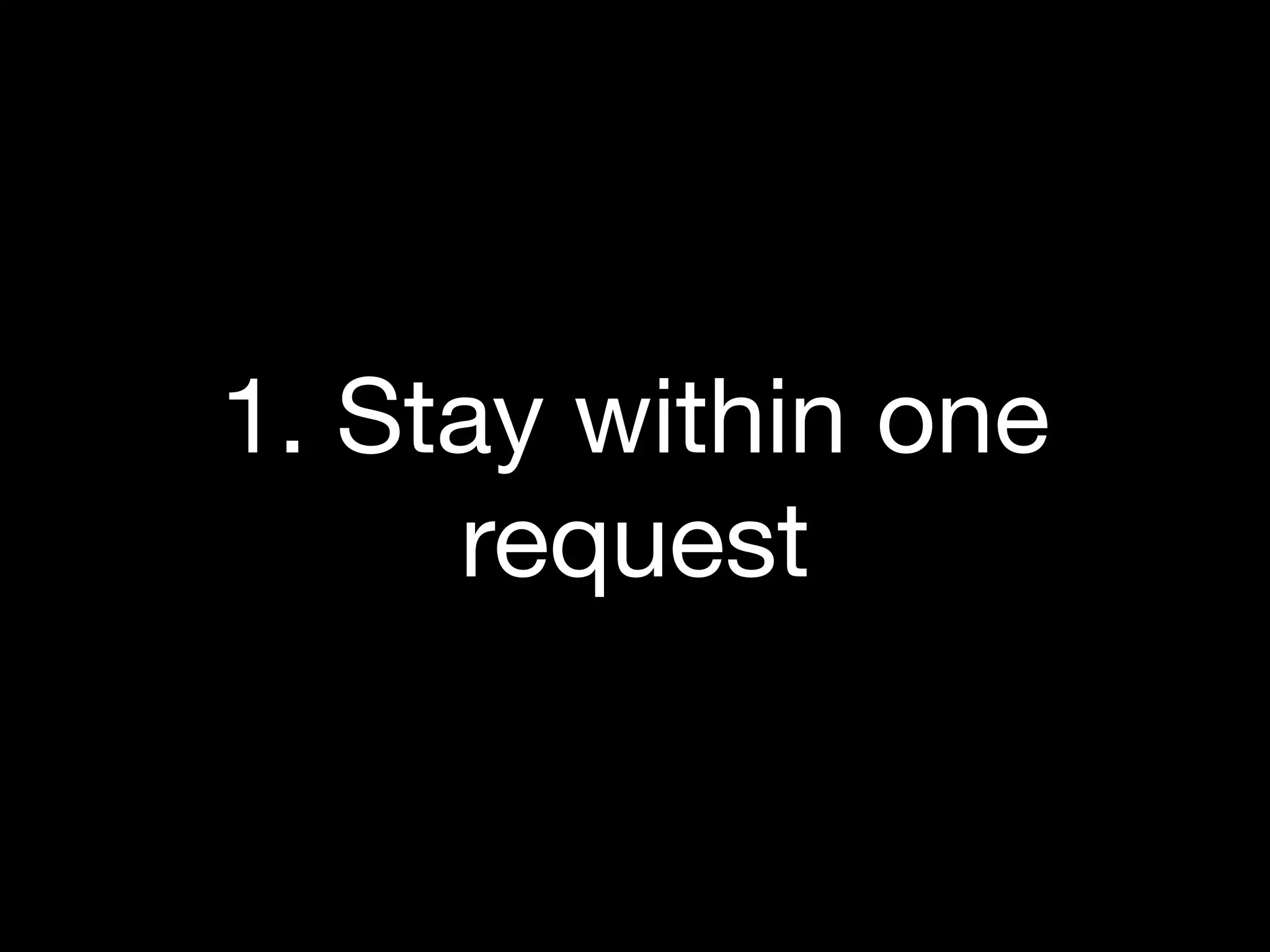

1. Stay within one
     request
2. thread.join

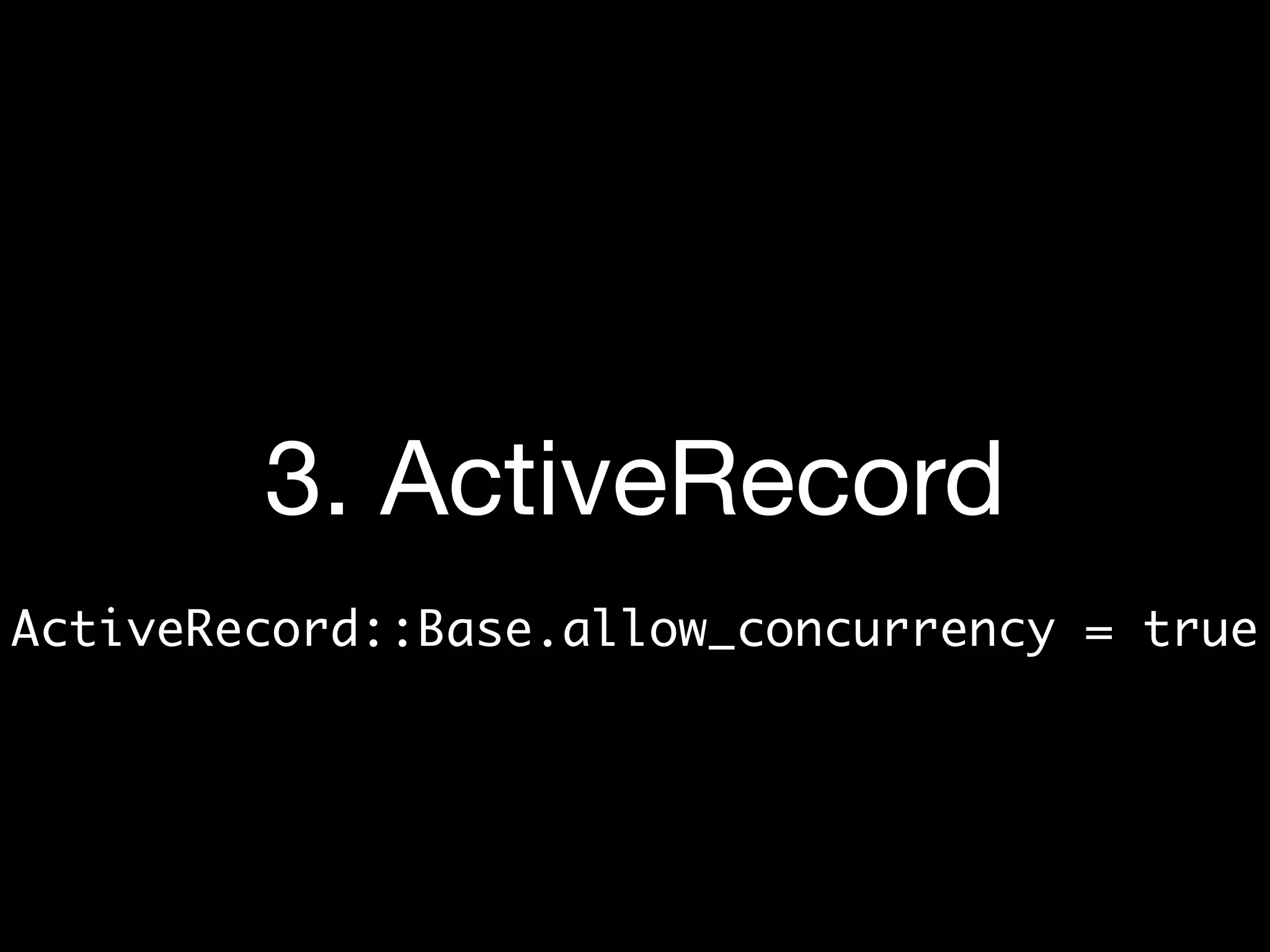

3. ActiveRecord
ActiveRecord::Base.allow_concurrency = true

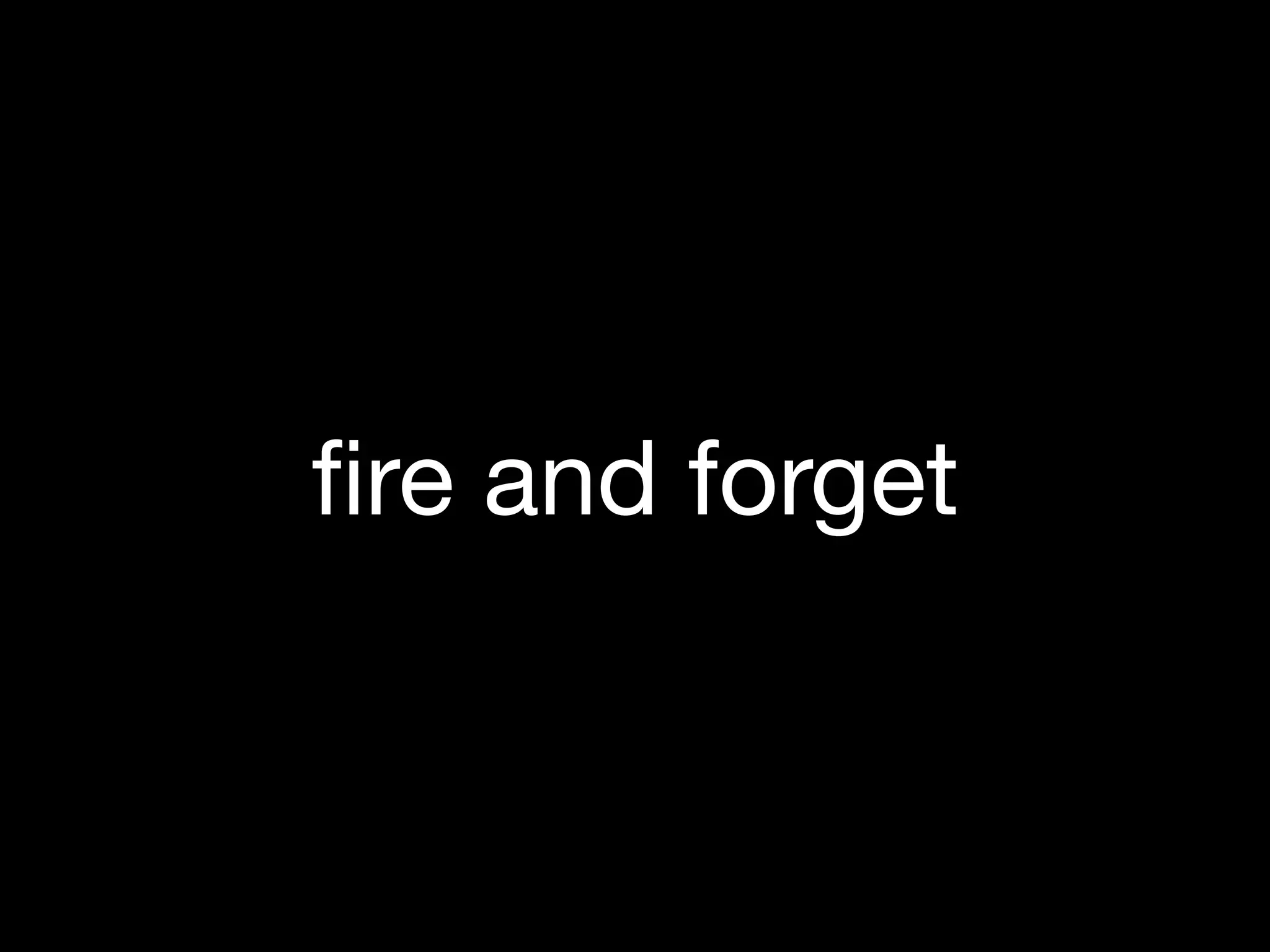

fire and forget

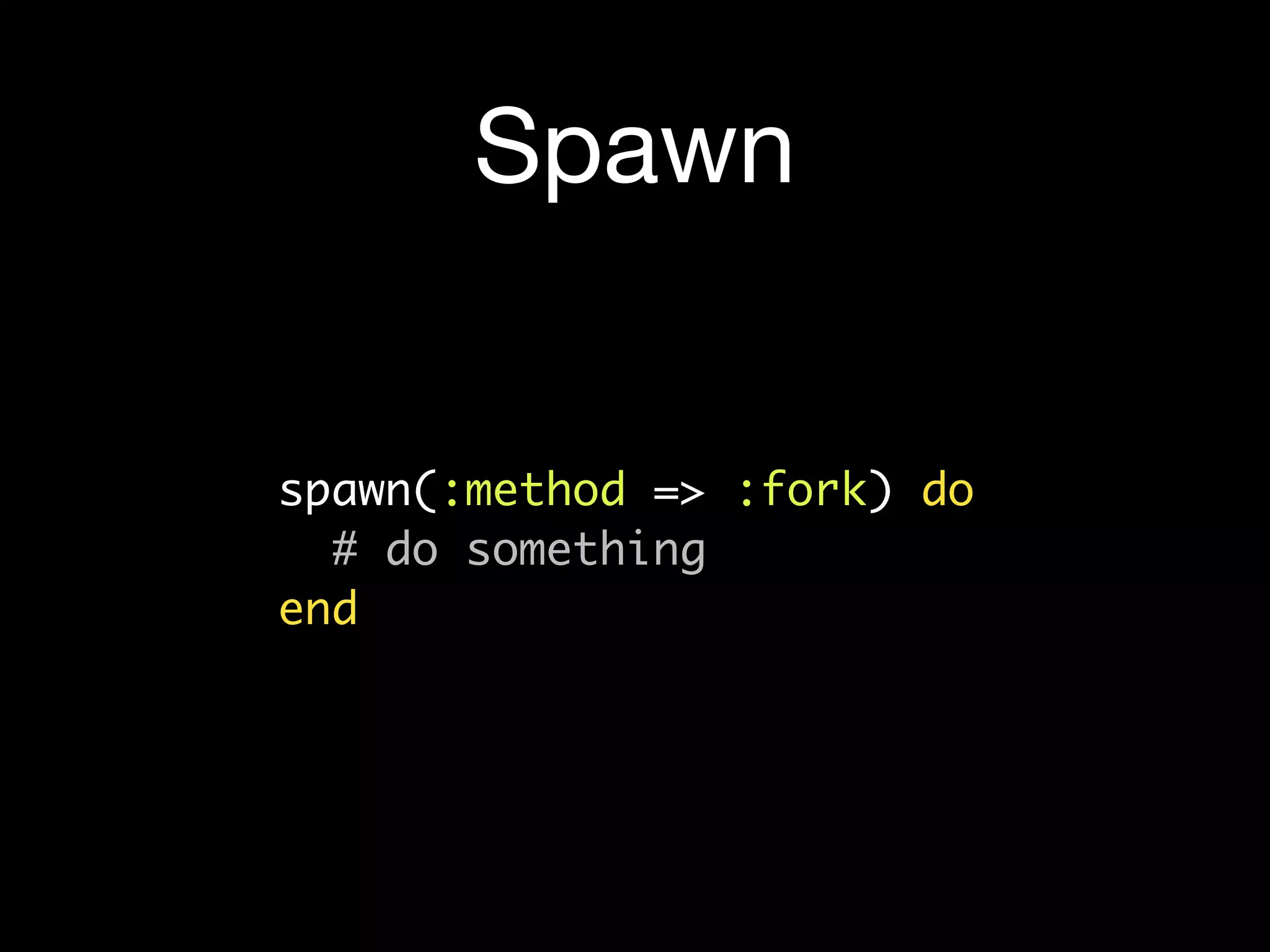

Spawn


spawn(:method => :fork) do
  # do something
end
1. Time
2. Resources
  3. Trigger
V.
More robust
  solutions

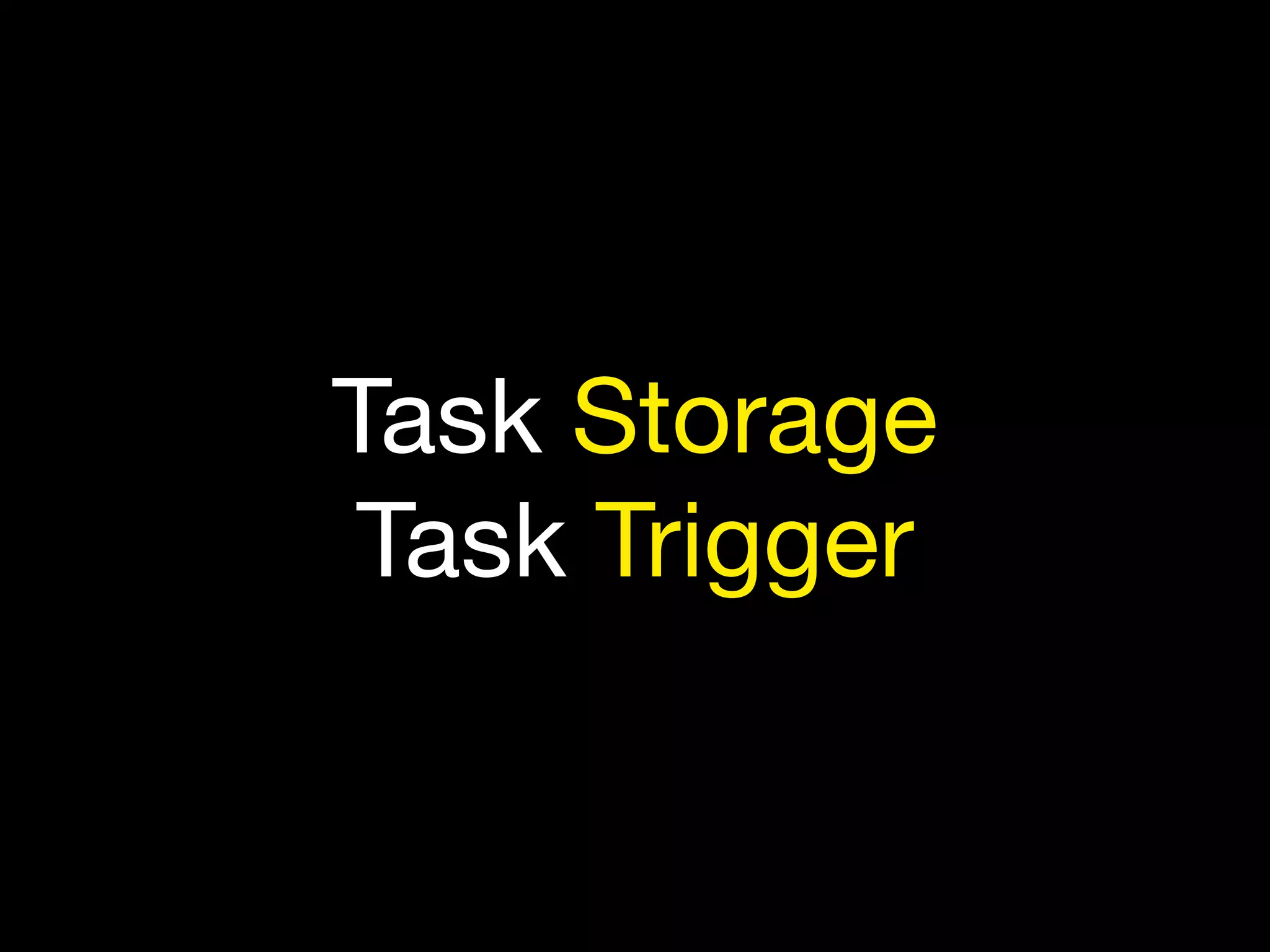

Task Storage
Task Trigger

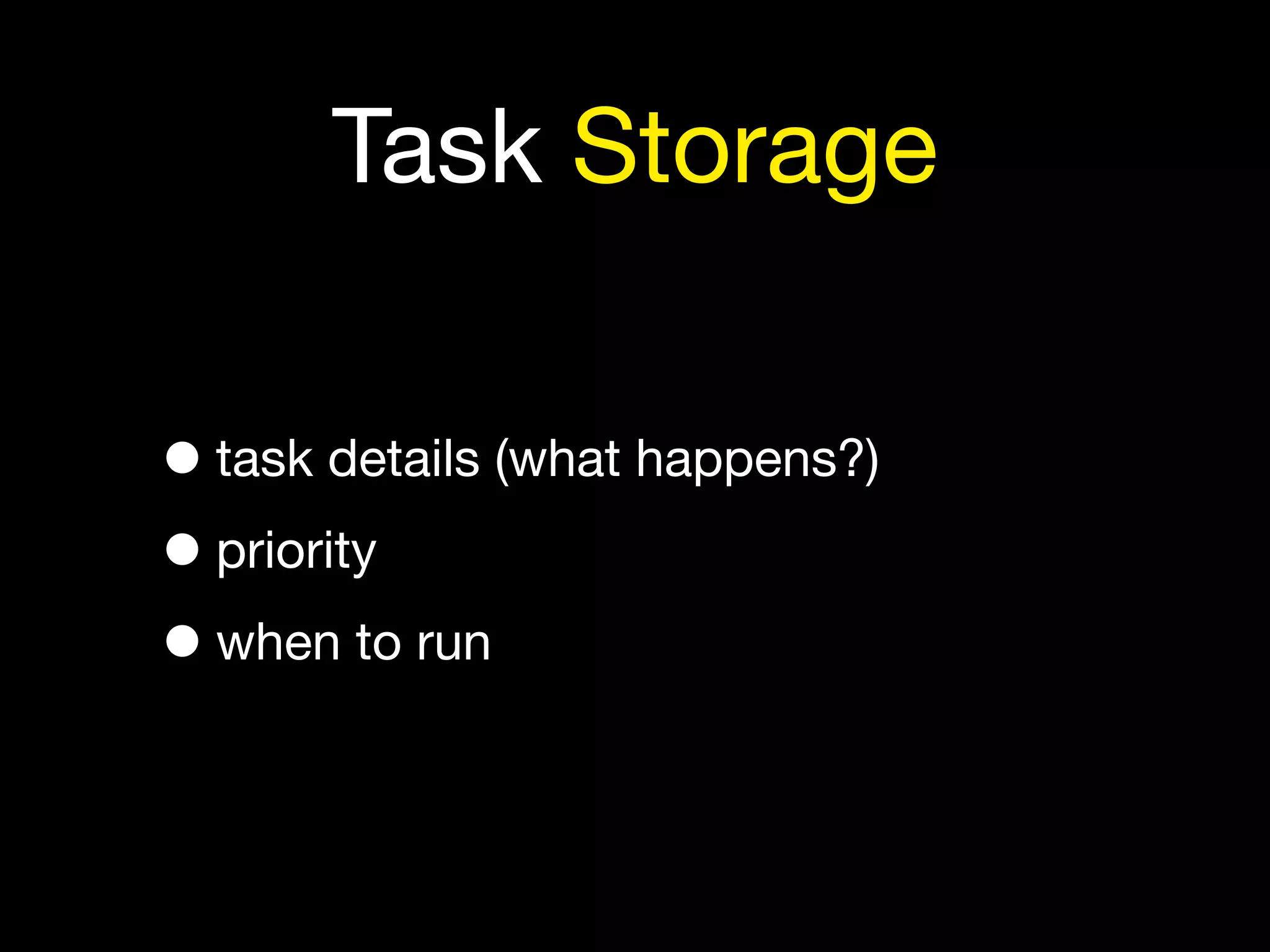

Task Storage

• task details (what happens?)
• priority
• when to run

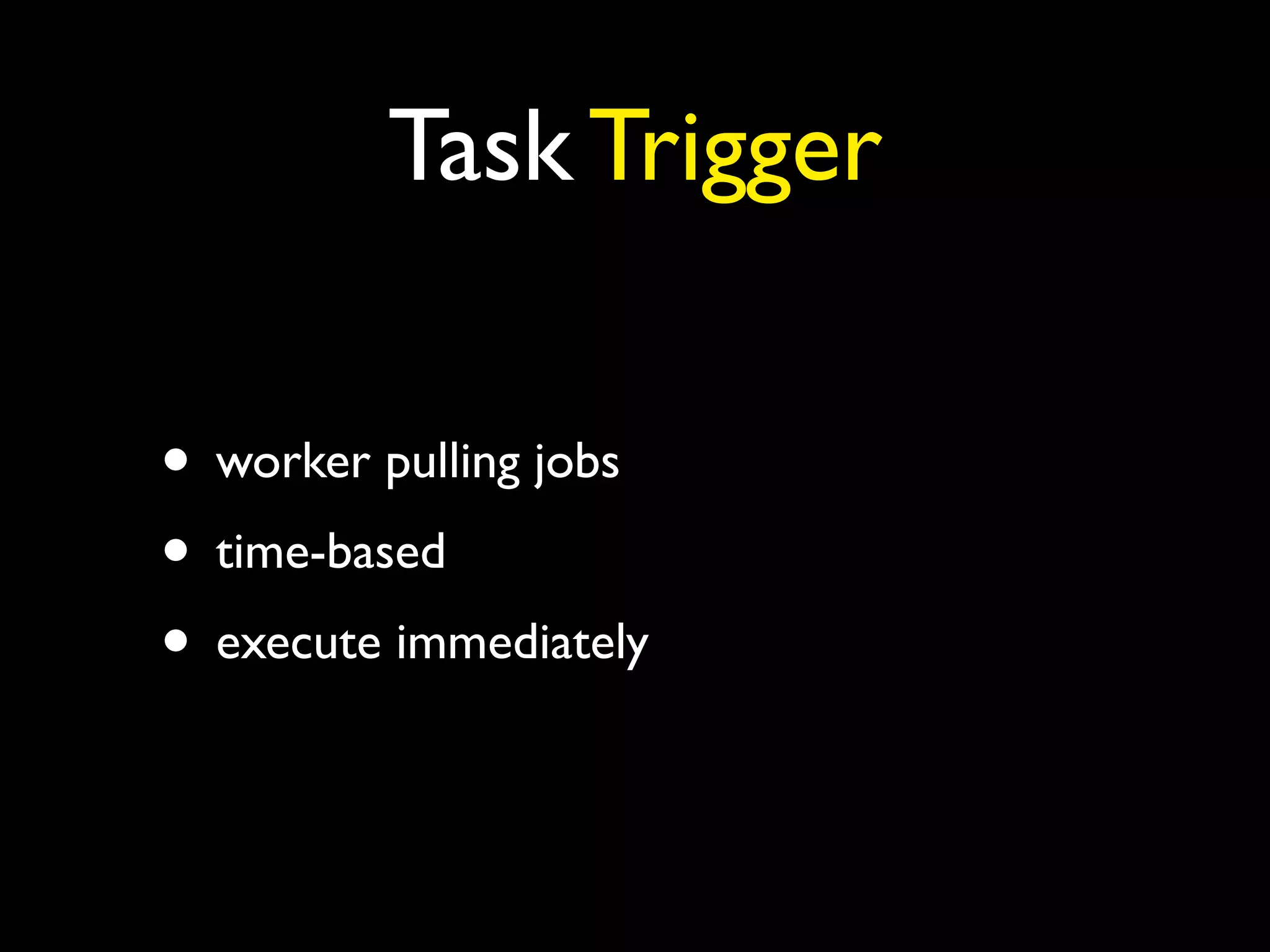

Task Trigger

• worker pulling jobs
• time-based
• execute immediately
Task Storage   Task Trigger
   Database       daemon
Message Queue      cron

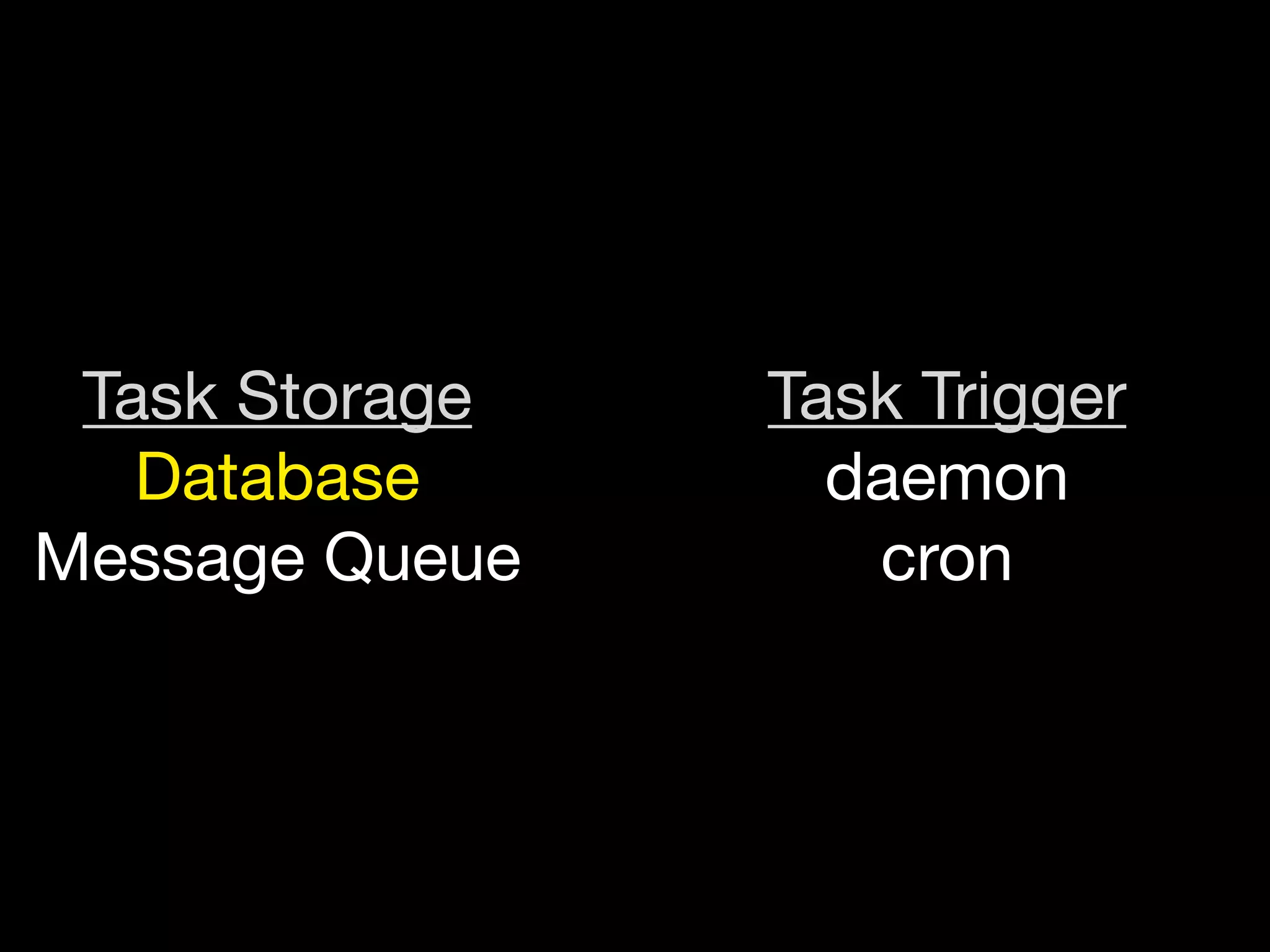

Task Storage   Task Trigger
   Database       daemon
Message Queue      cron

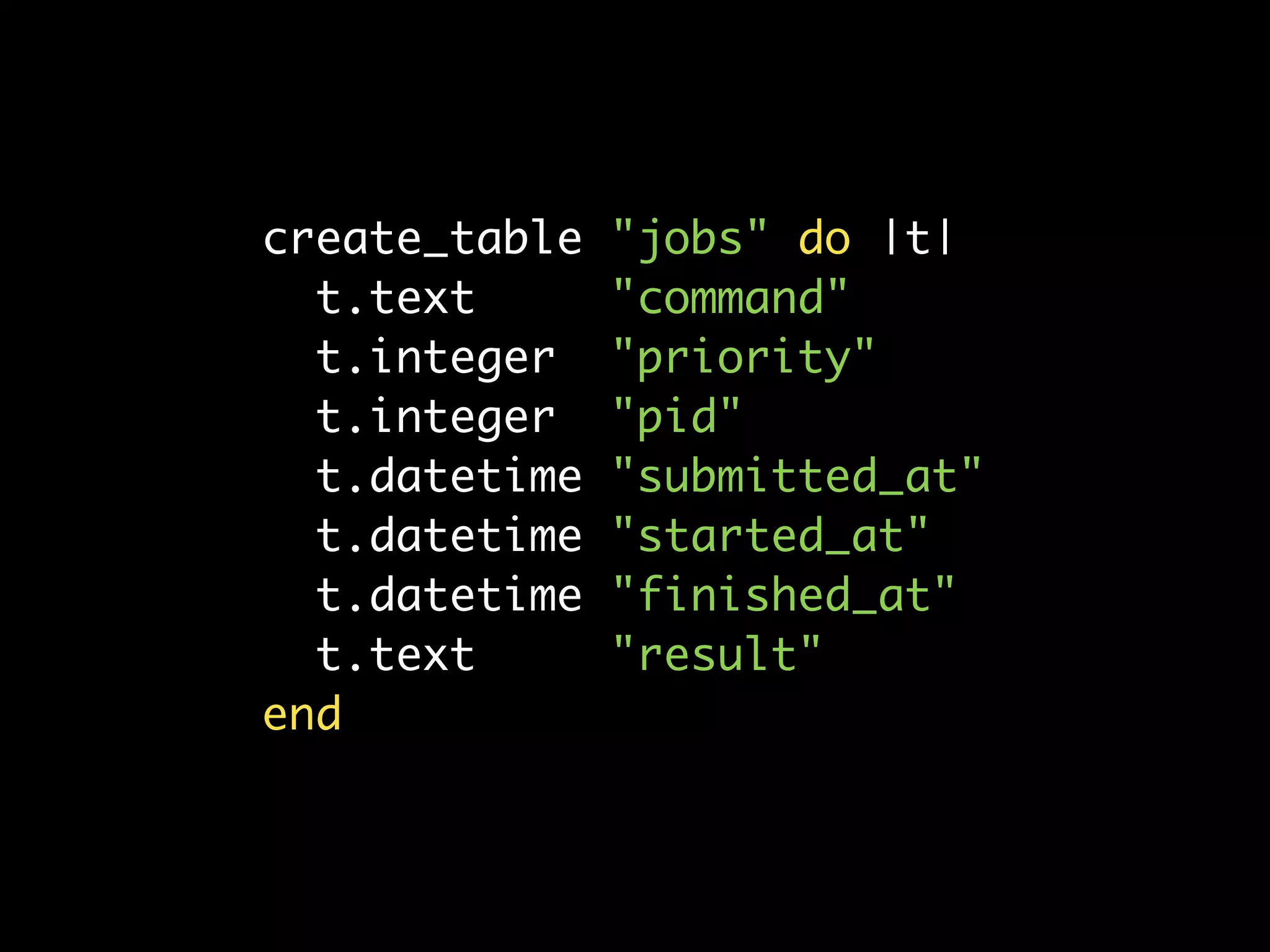

create_table   quot;jobsquot; do |t|
  t.text       quot;commandquot;
  t.integer    quot;priorityquot;
  t.integer    quo...

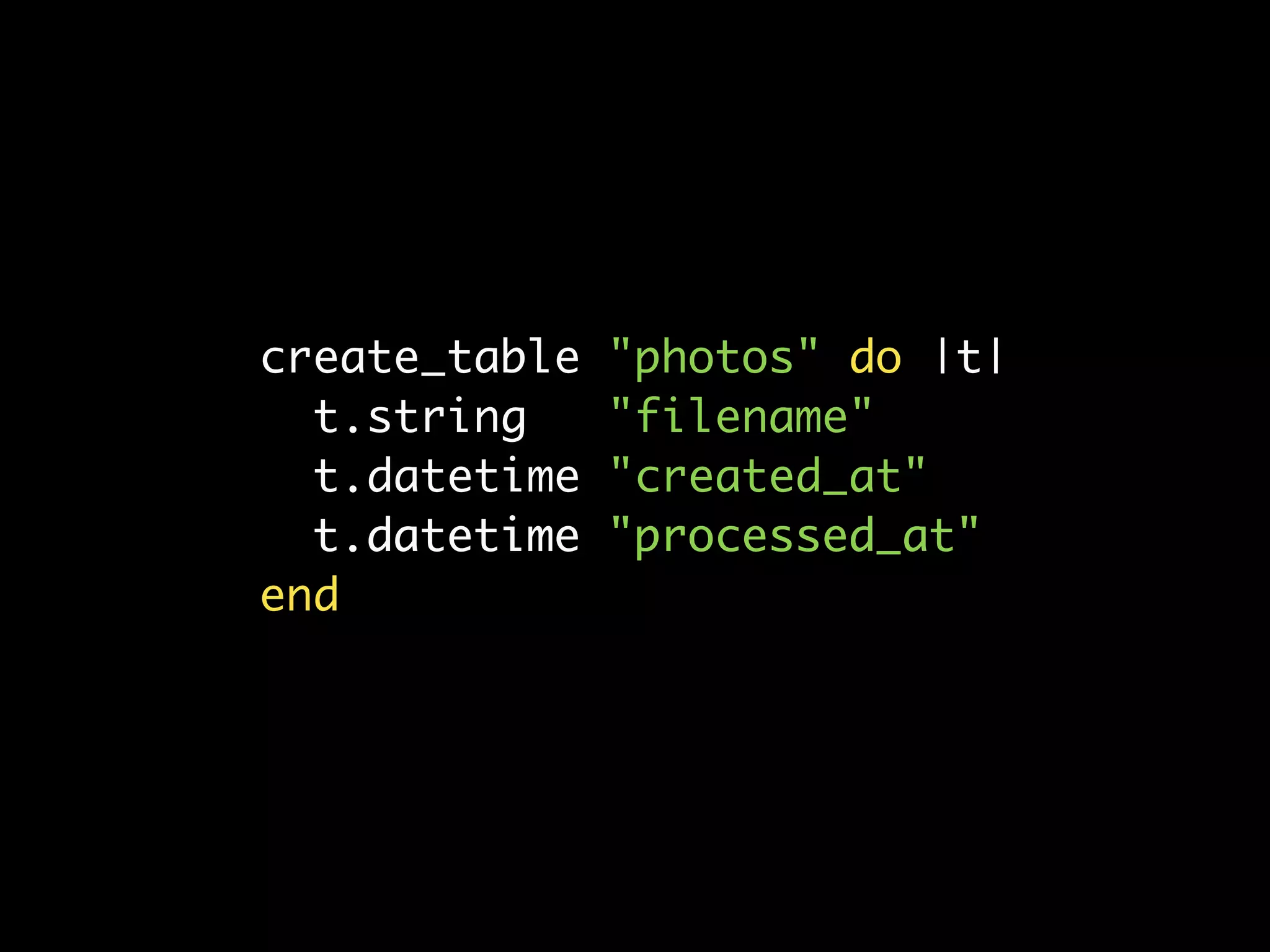

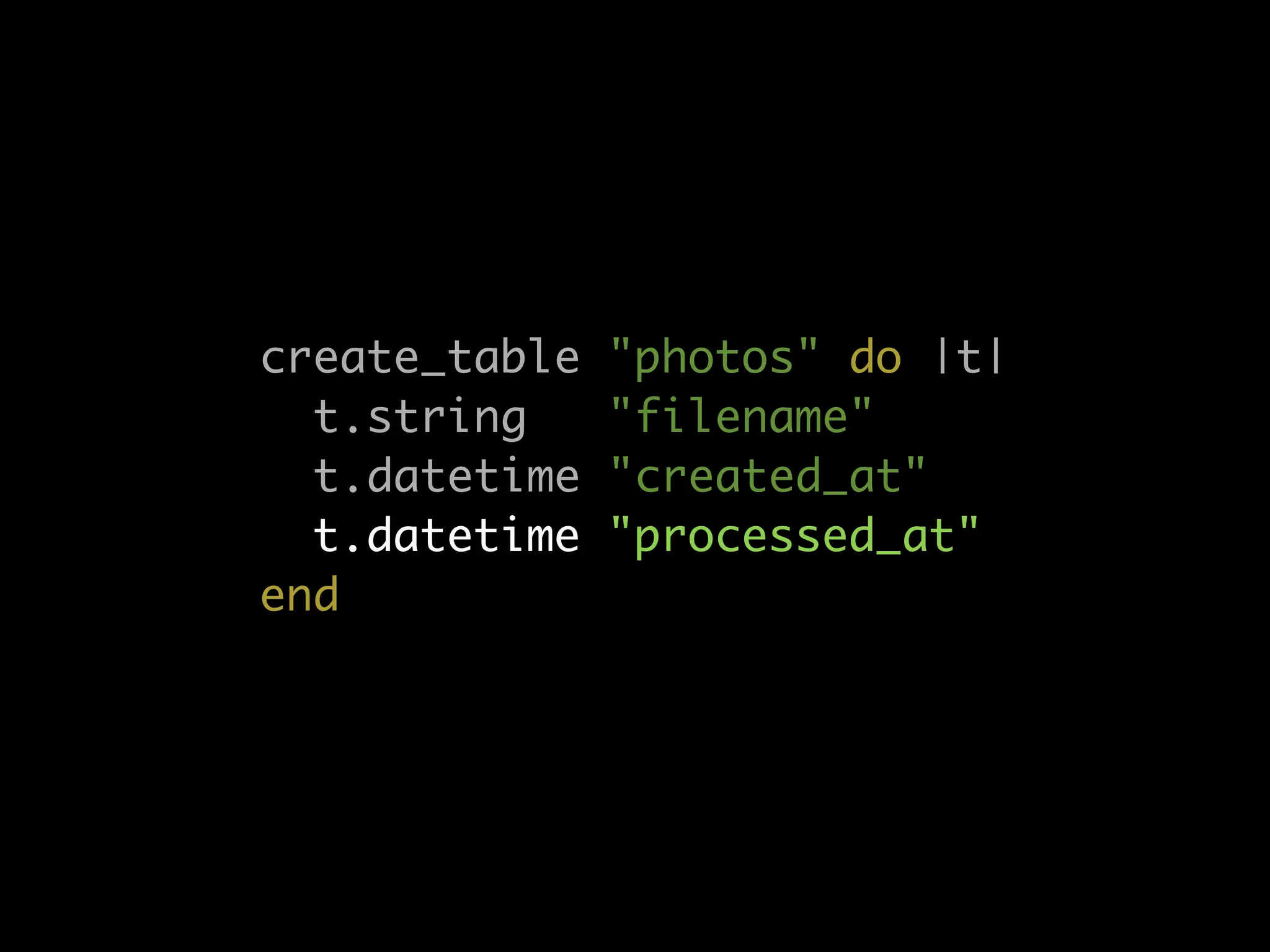

create_table   quot;photosquot; do |t|
  t.string     quot;filenamequot;
  t.datetime   quot;created_atquot;
  t.datetime ...
create_table   quot;photosquot; do |t|
  t.string     quot;filenamequot;
  t.datetime   quot;created_atquot;
  t.datetime ...

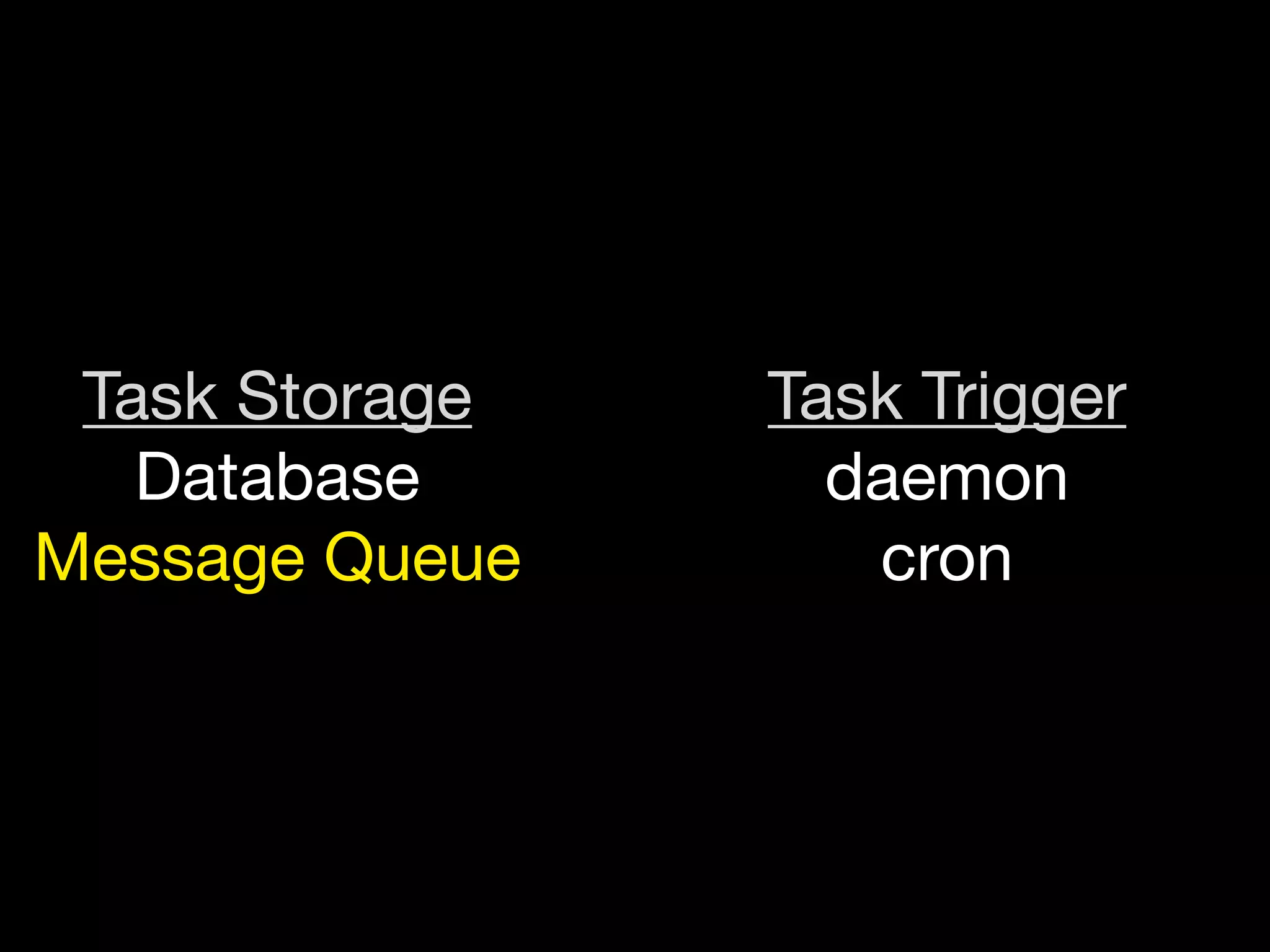

Task Storage   Task Trigger
   Database       daemon
Message Queue      cron
Task Storage   Task Trigger
   Database       daemon
Message Queue      cron

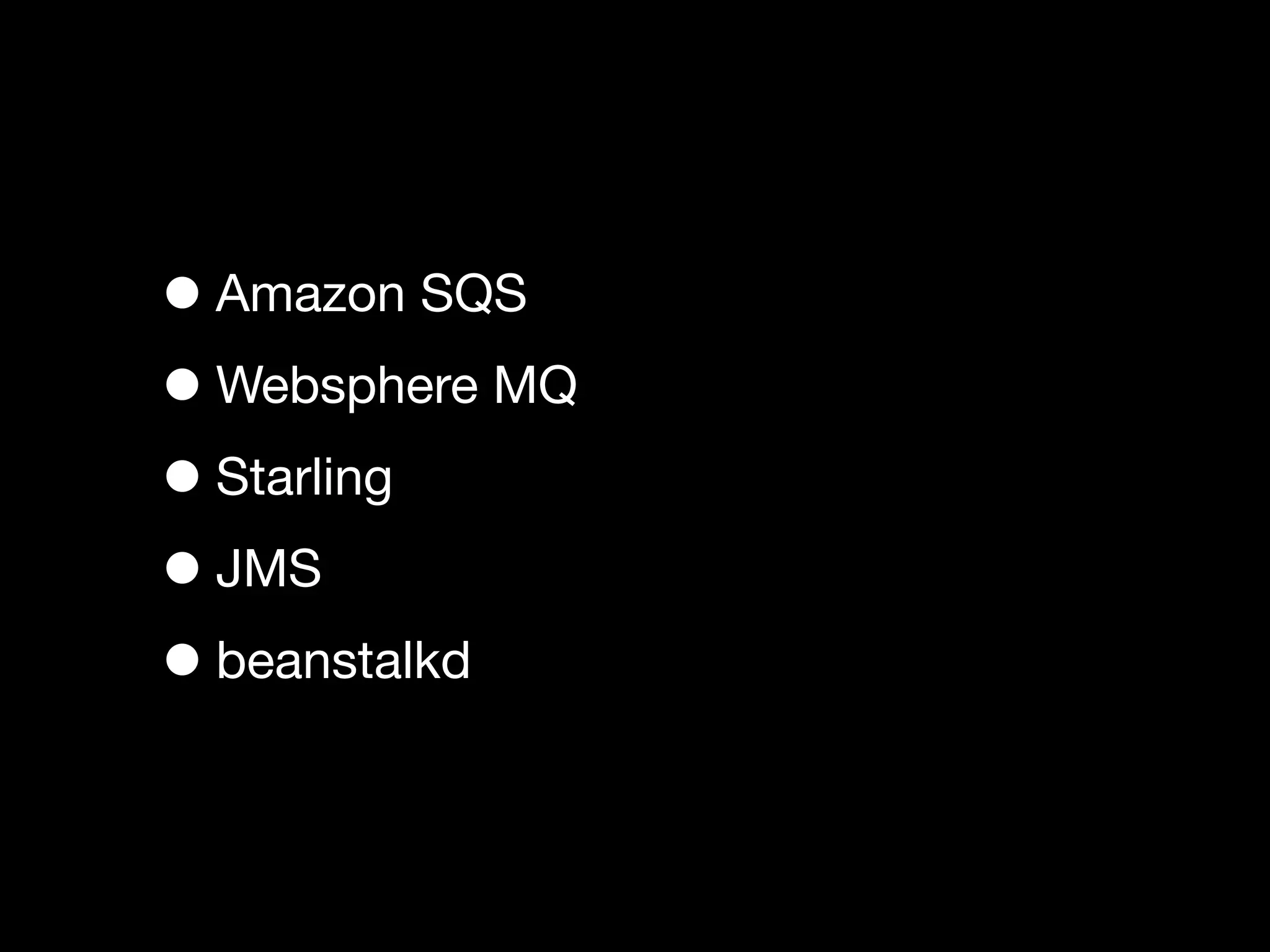

• Amazon SQS
• Websphere MQ
• Starling
• JMS
• beanstalkd

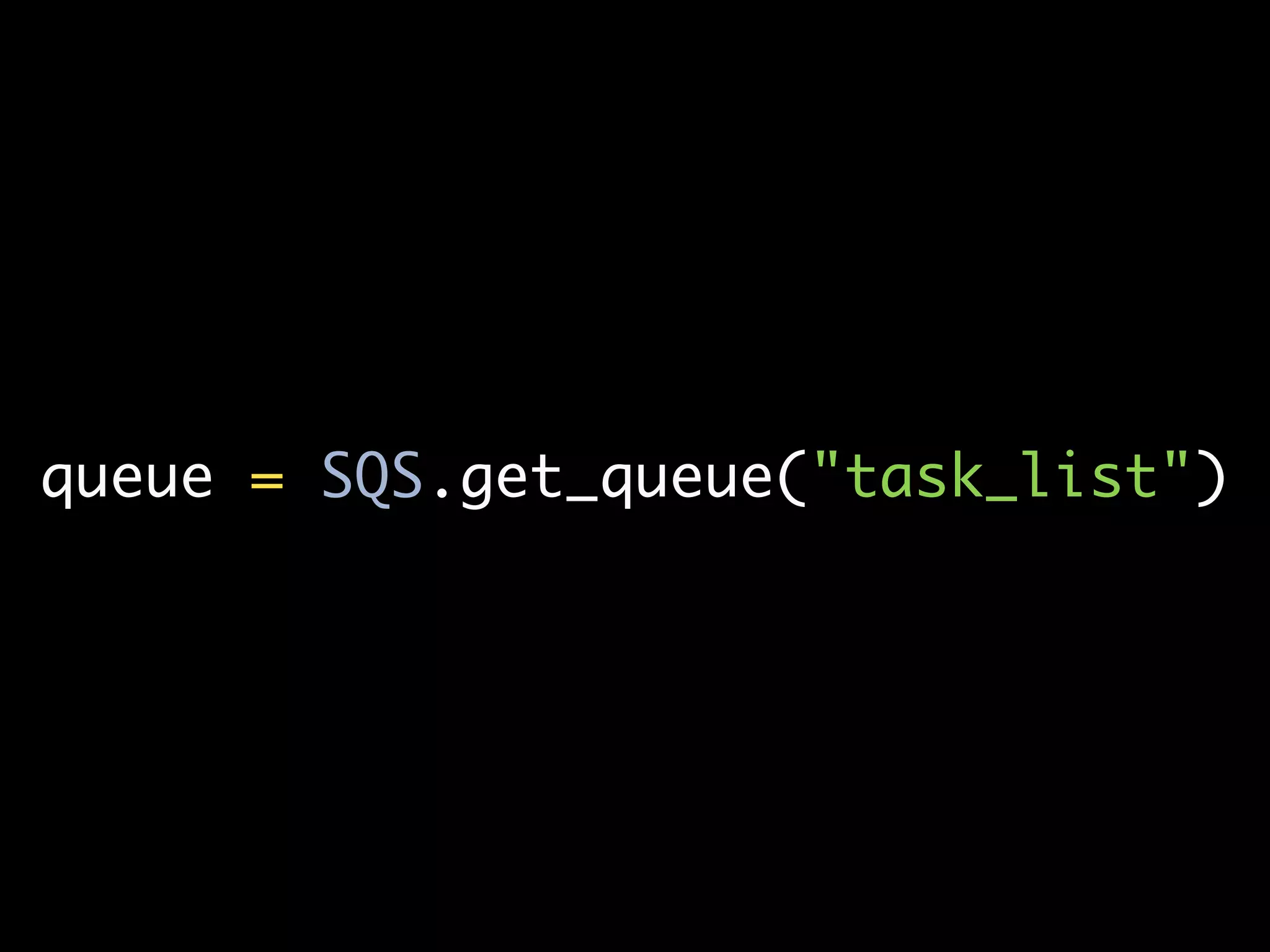

queue = SQS.get_queue(quot;task_listquot;)

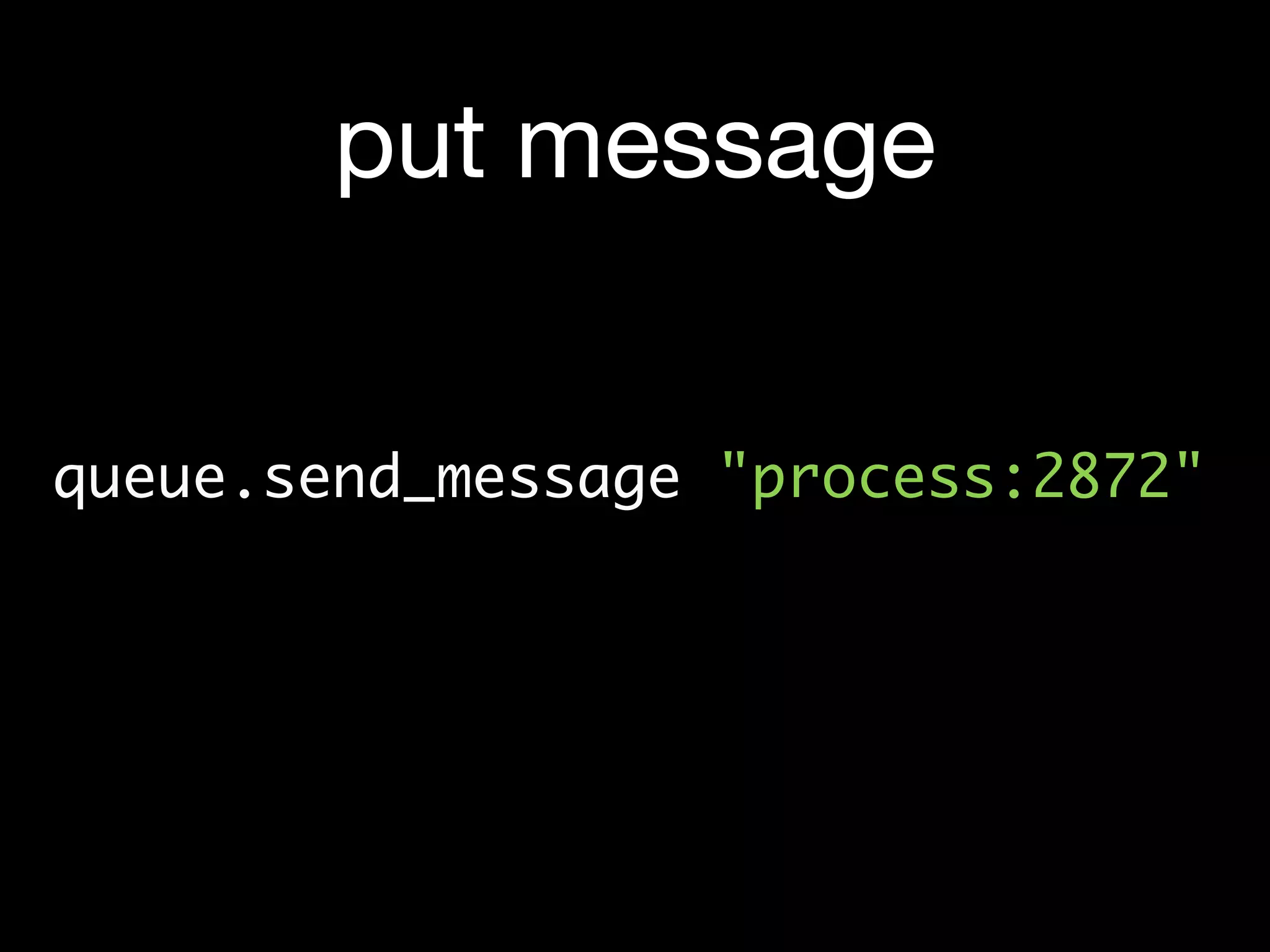

put message


queue.send_message quot;process:2872quot;
receive message


message = queue.receive_message

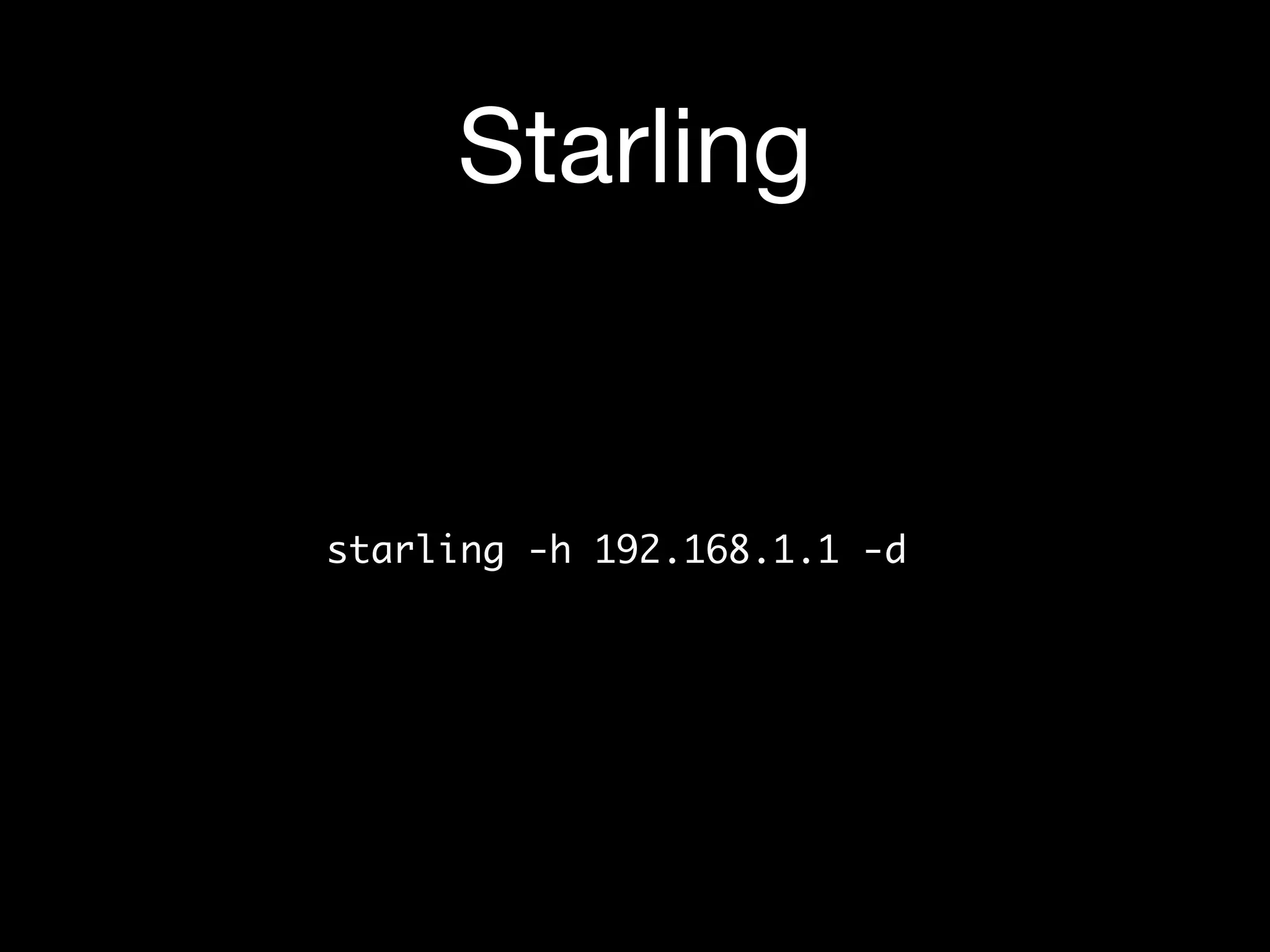

Starling


starling -h 192.168.1.1 -d

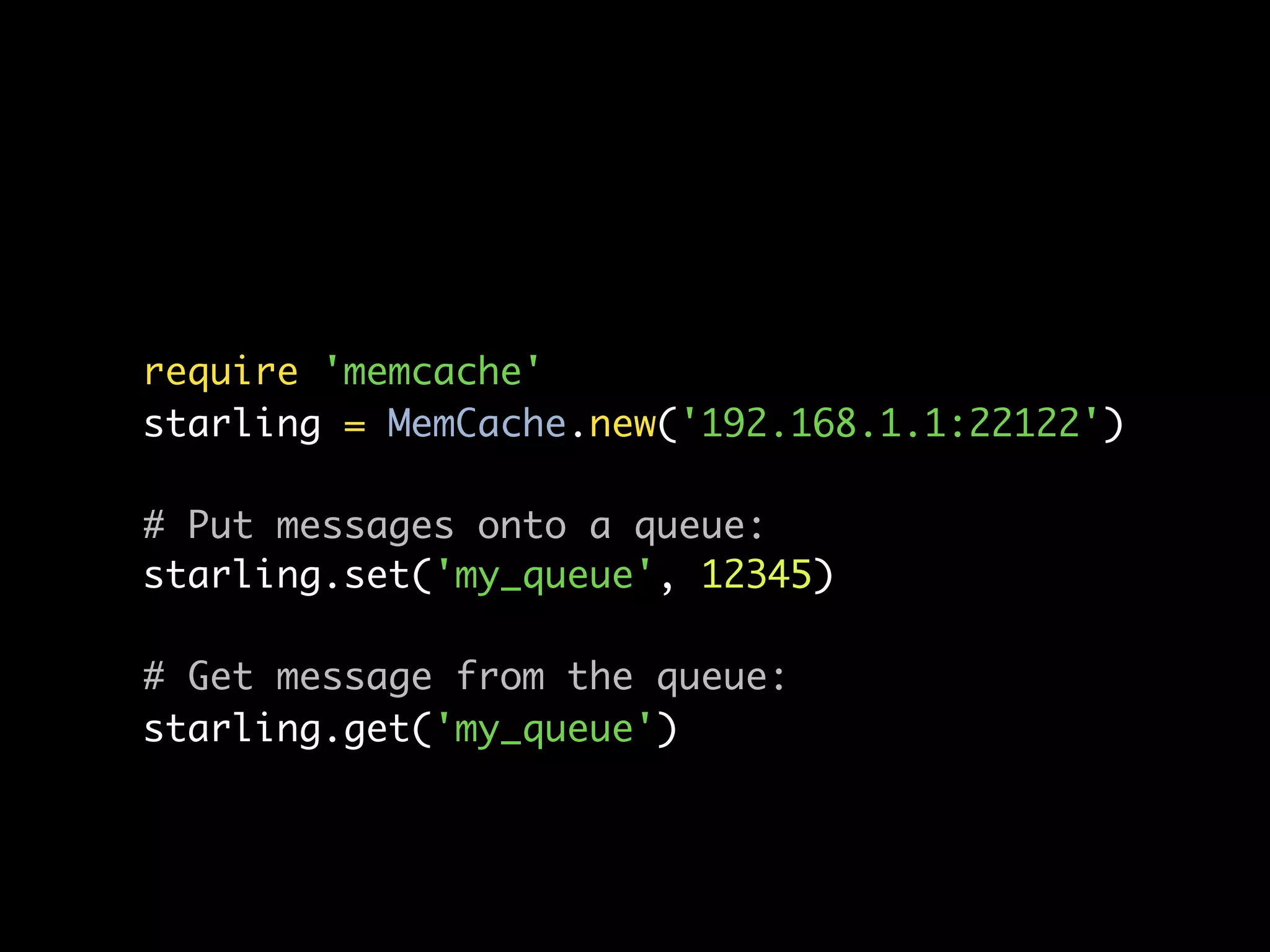

require 'memcache'
starling = MemCache.new('192.168.1.1:22122')

# Put messages onto a queue:
starling.set('my_queue', 123...
Task Storage   Task Trigger
   Database       daemon
Message Queue      cron
storage choice?


• queue: optimized for performance
• database: you’ve already got one
Task Storage   Task Trigger
   Database       daemon
Message Queue      cron

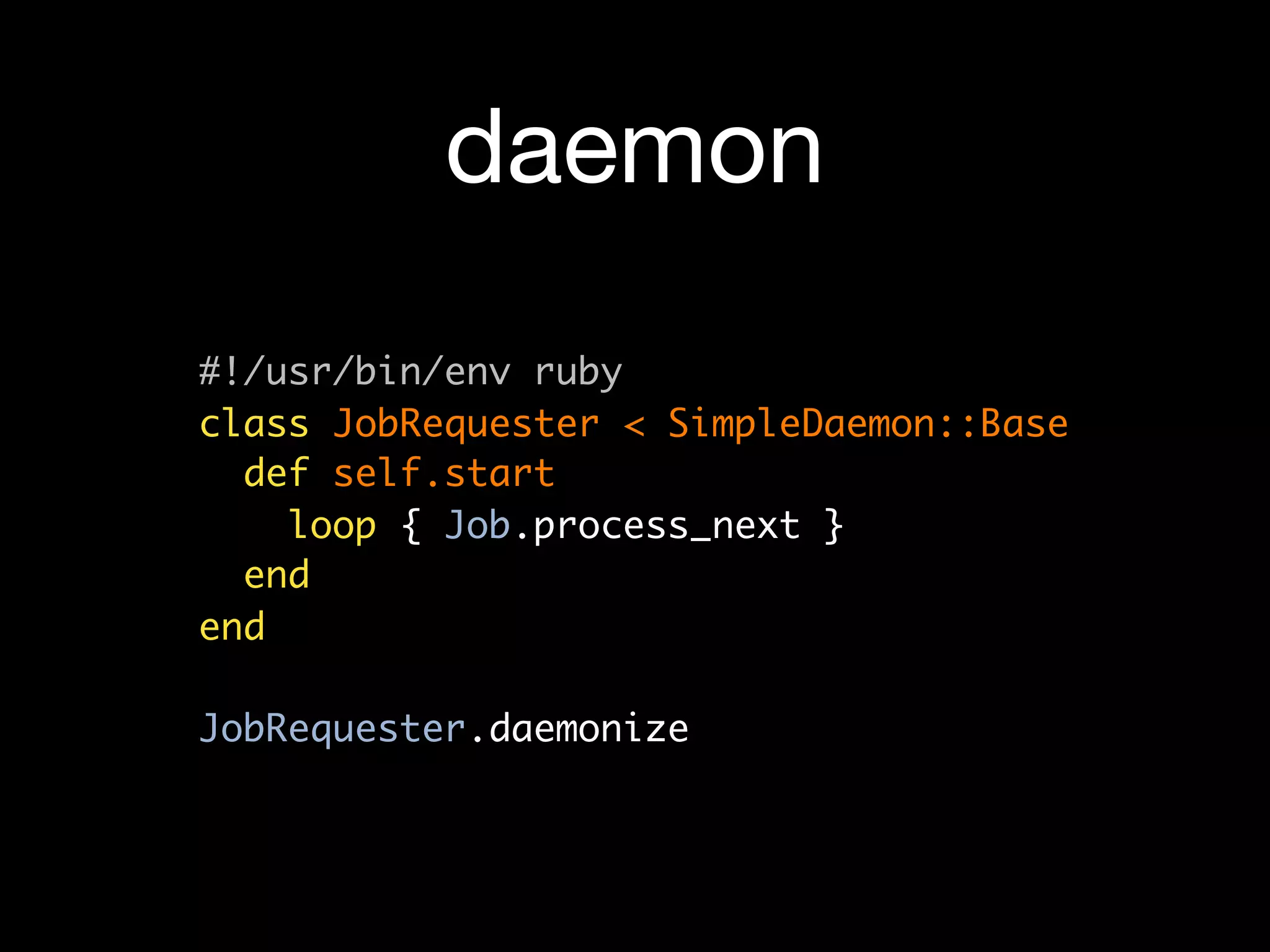

daemon
#!/usr/bin/env ruby
class JobRequester < SimpleDaemon::Base
  def self.start
    loop { Job.process_next }
  end
en...

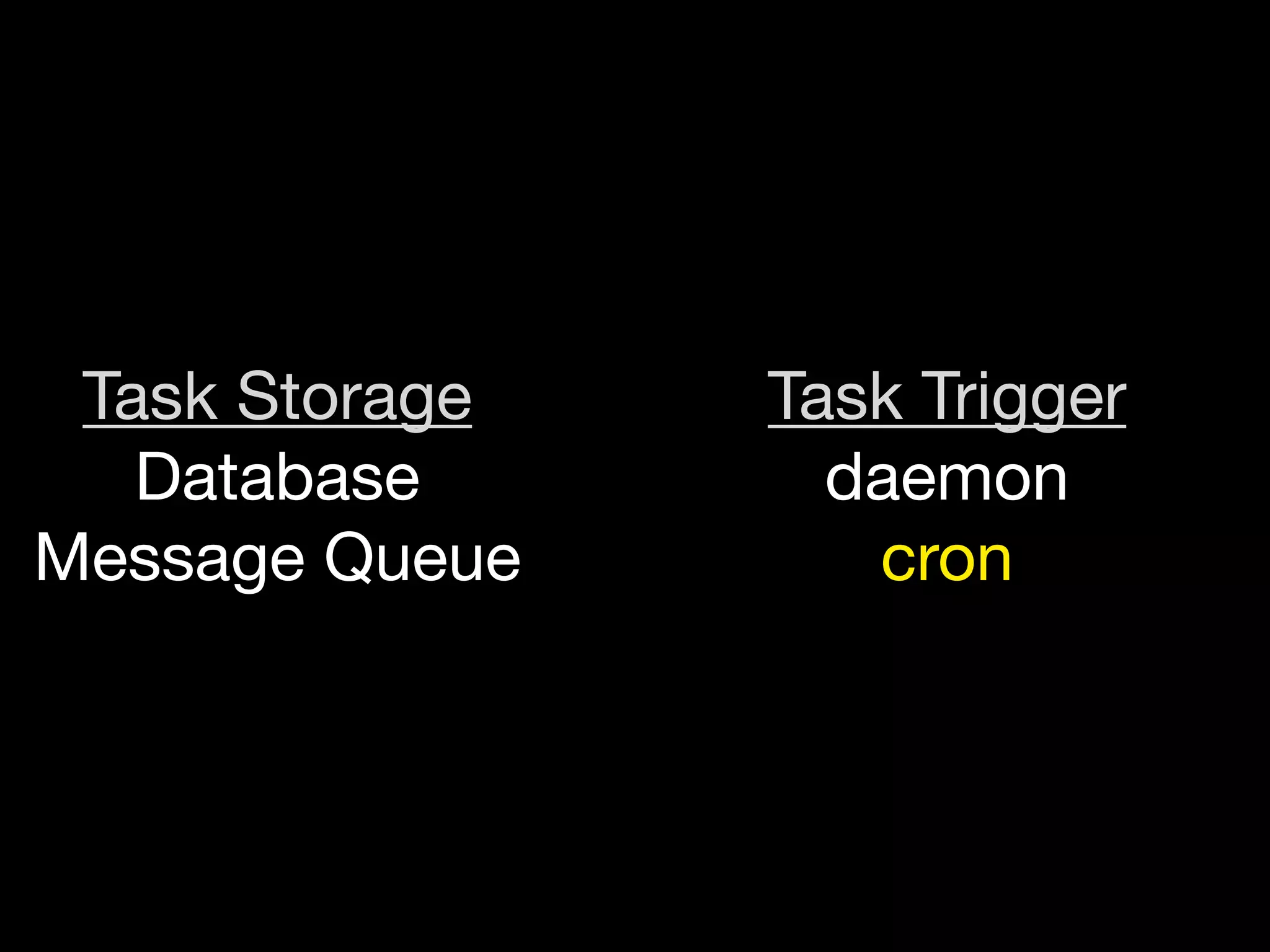

Task Storage   Task Trigger
   Database       daemon
Message Queue      cron

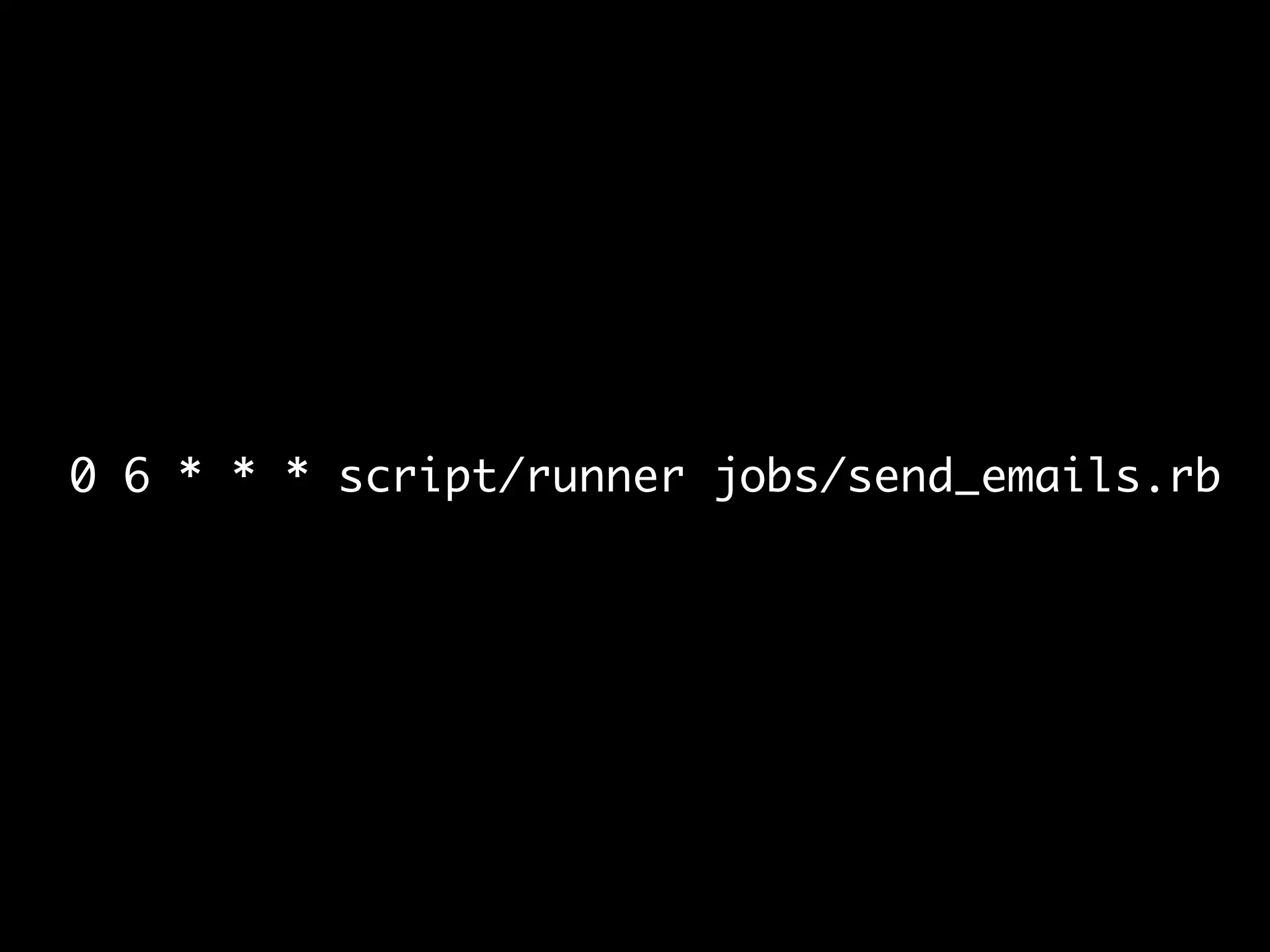

0 6 * * * script/runner jobs/send_emails.rb

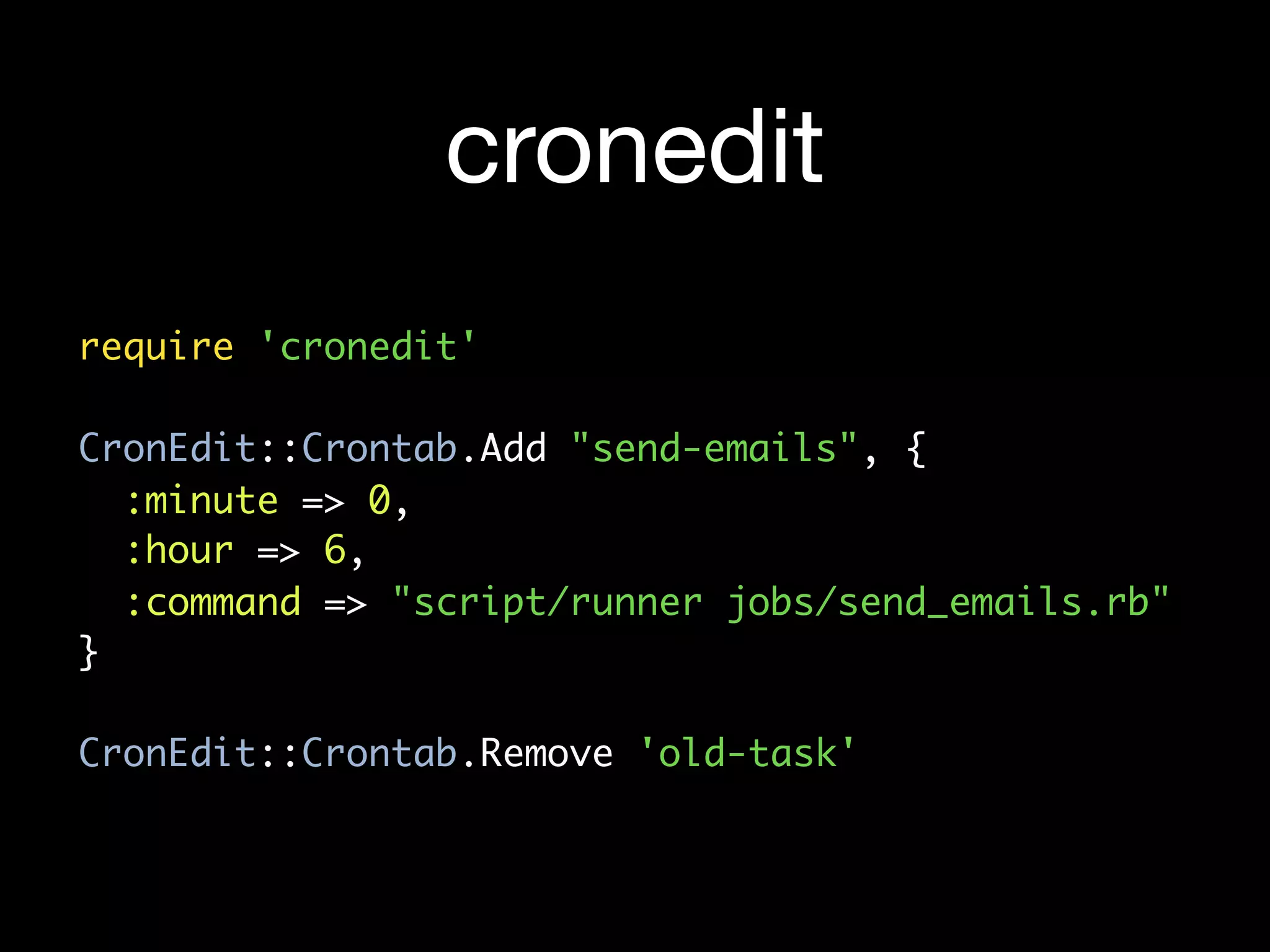

cronedit
require 'cronedit'

CronEdit::Crontab.Add quot;send-emailsquot;, {
  :minute => 0,
  :hour => 6,
  :command => qu...
trigger choice


• process: always running
• cron: as reliable as your operating
  system

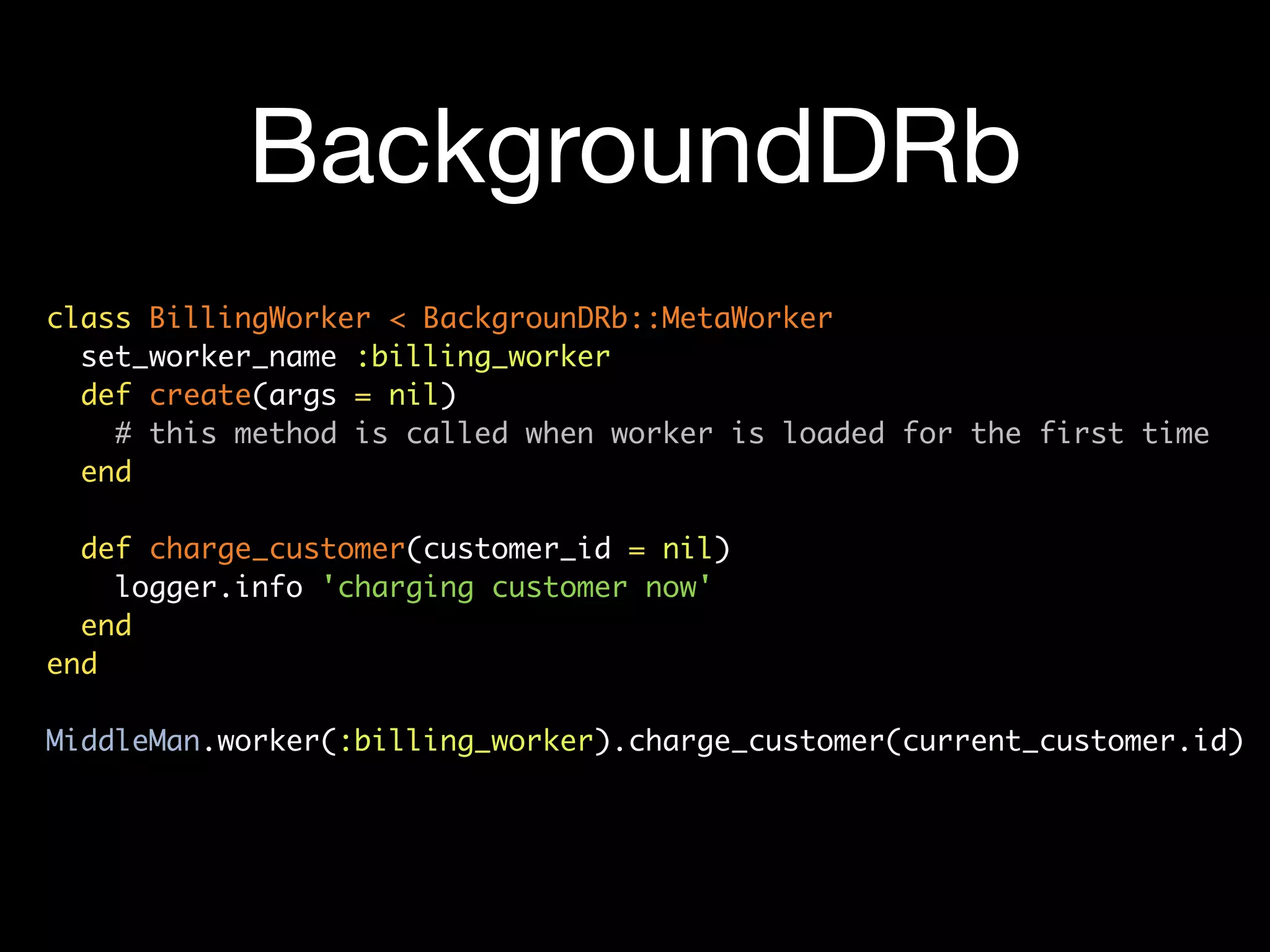

BackgroundDRb
class BillingWorker < BackgrounDRb::MetaWorker
  set_worker_name :billing_worker
  def create(args = nil)
  ...
:backgroundrb:
  :ip: 0.0.0.0

:development:
  :backgroundrb:
    :port: 11111
    :log: foreground

:production:
  :backg...

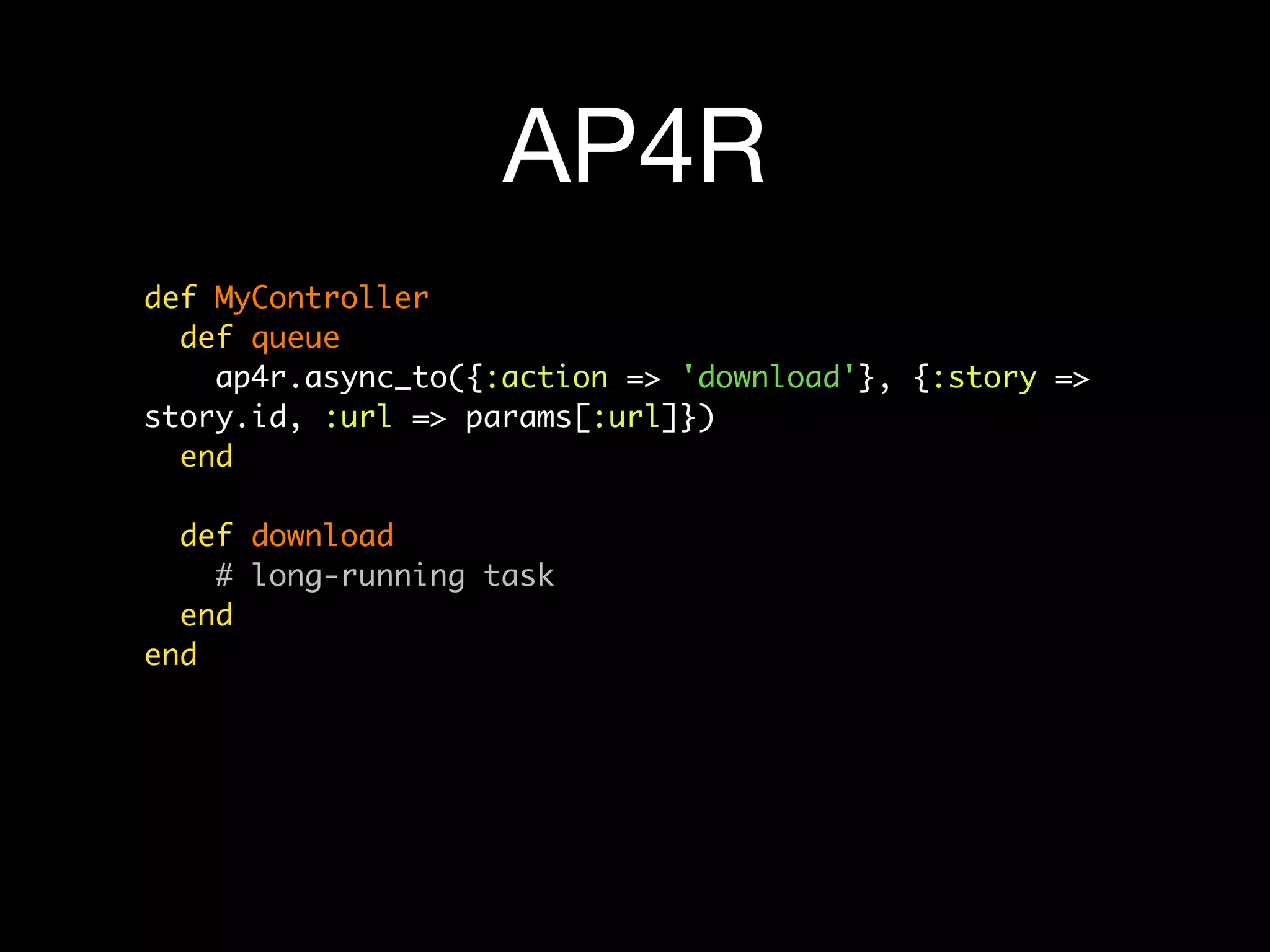

AP4R
def MyController
  def queue
    ap4r.async_to({:action => 'download'}, {:story =>
story.id, :url => params[:url]})
 ...
Bj


Acronym

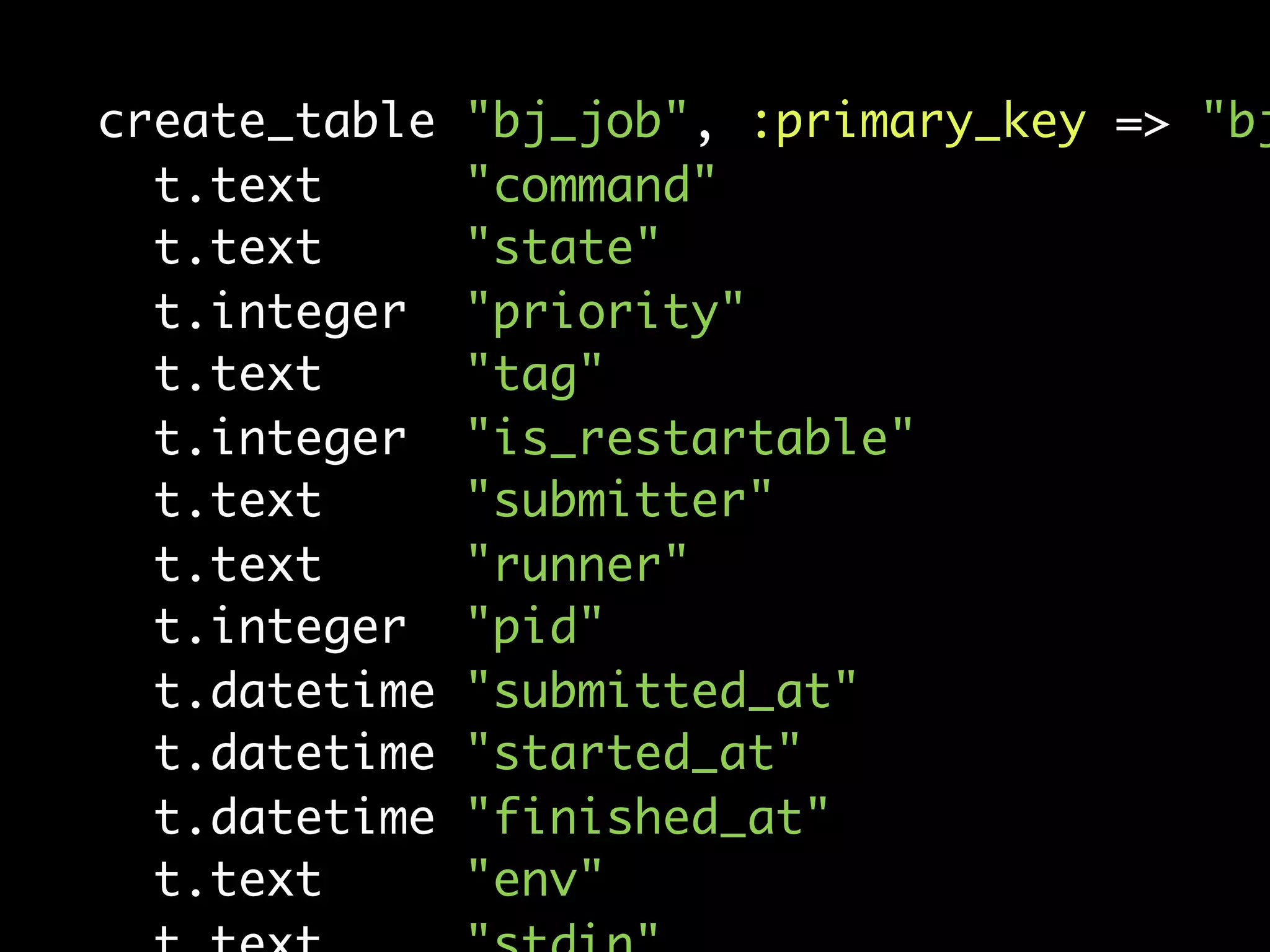

create_table   quot;bj_jobquot;, :primary_key => quot;bj
  t.text       quot;commandquot;
  t.text       quot;statequot;
 ...

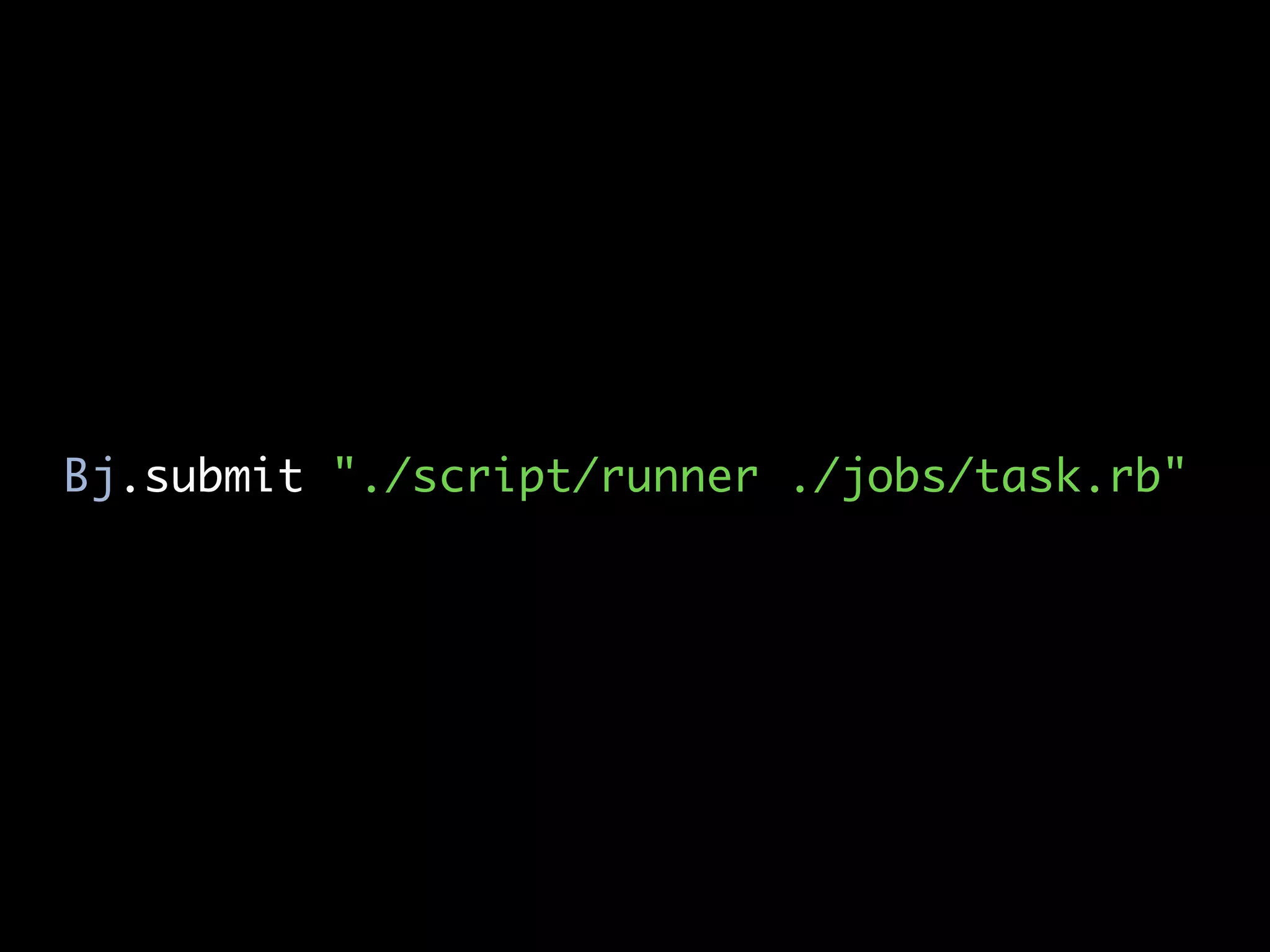

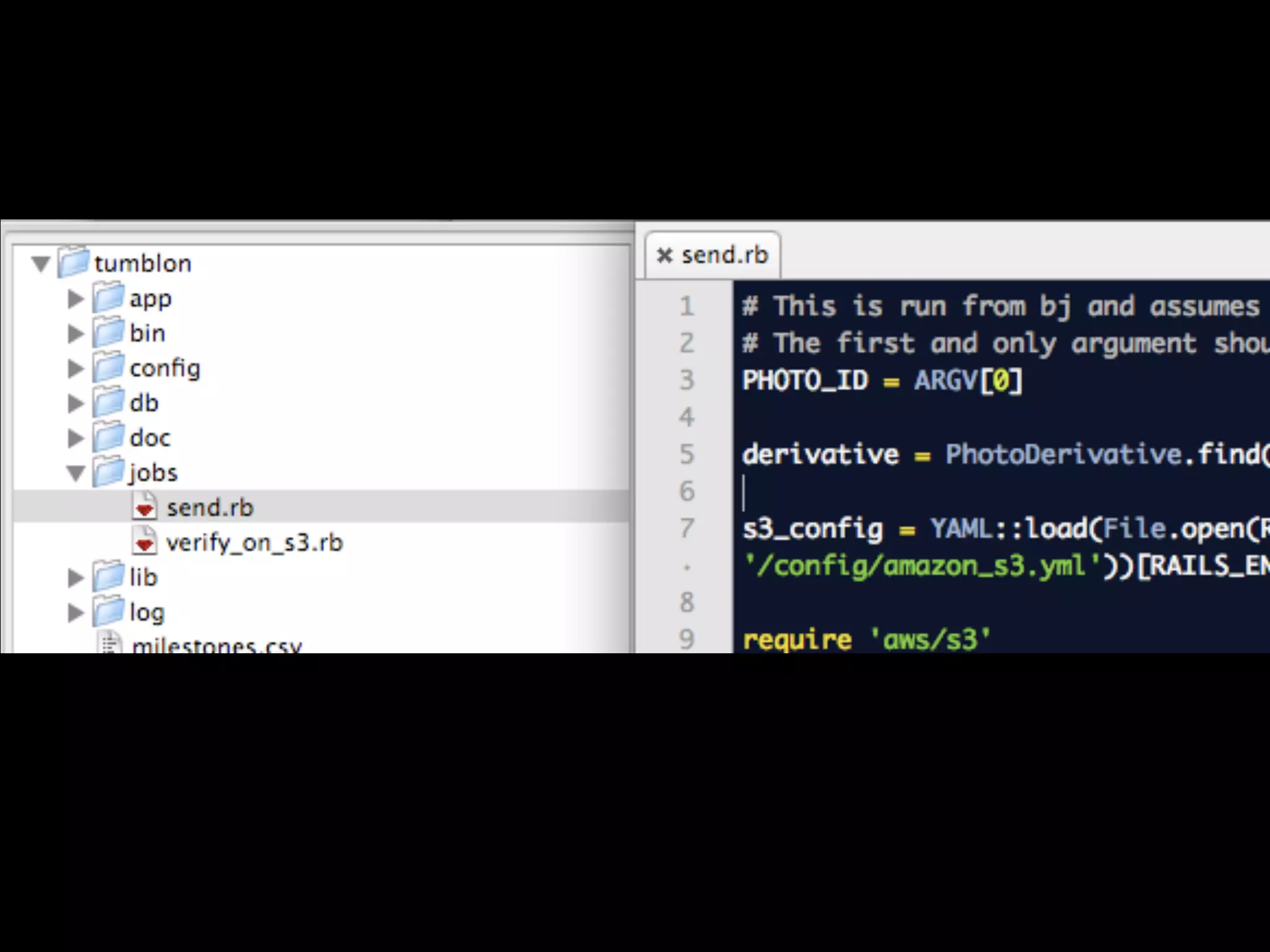

Bj.submit quot;./script/runner ./jobs/task.rbquot;

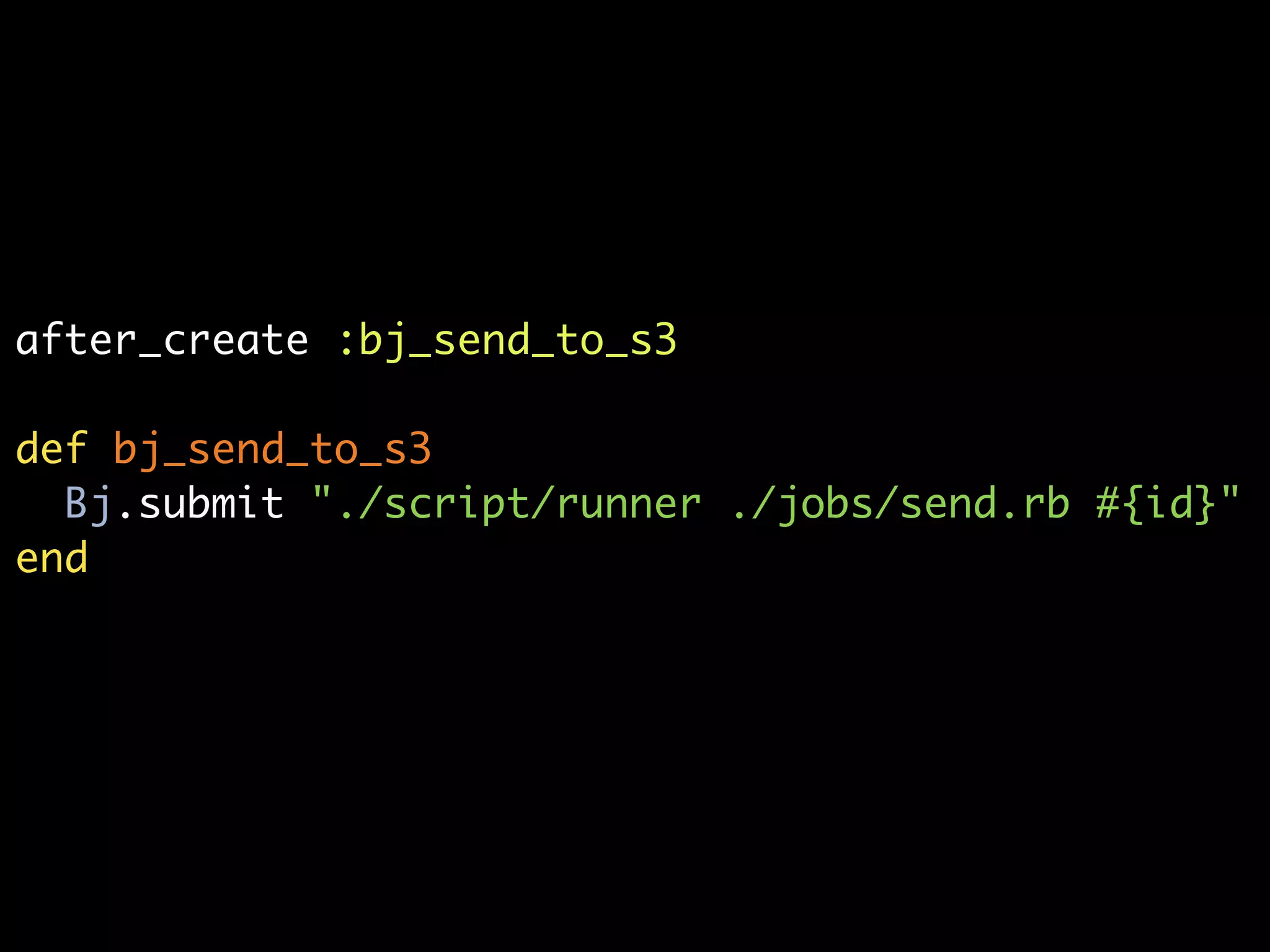

after_create :bj_send_to_s3

def bj_send_to_s3
  Bj.submit quot;./script/runner ./jobs/send.rb #{id}quot;
end

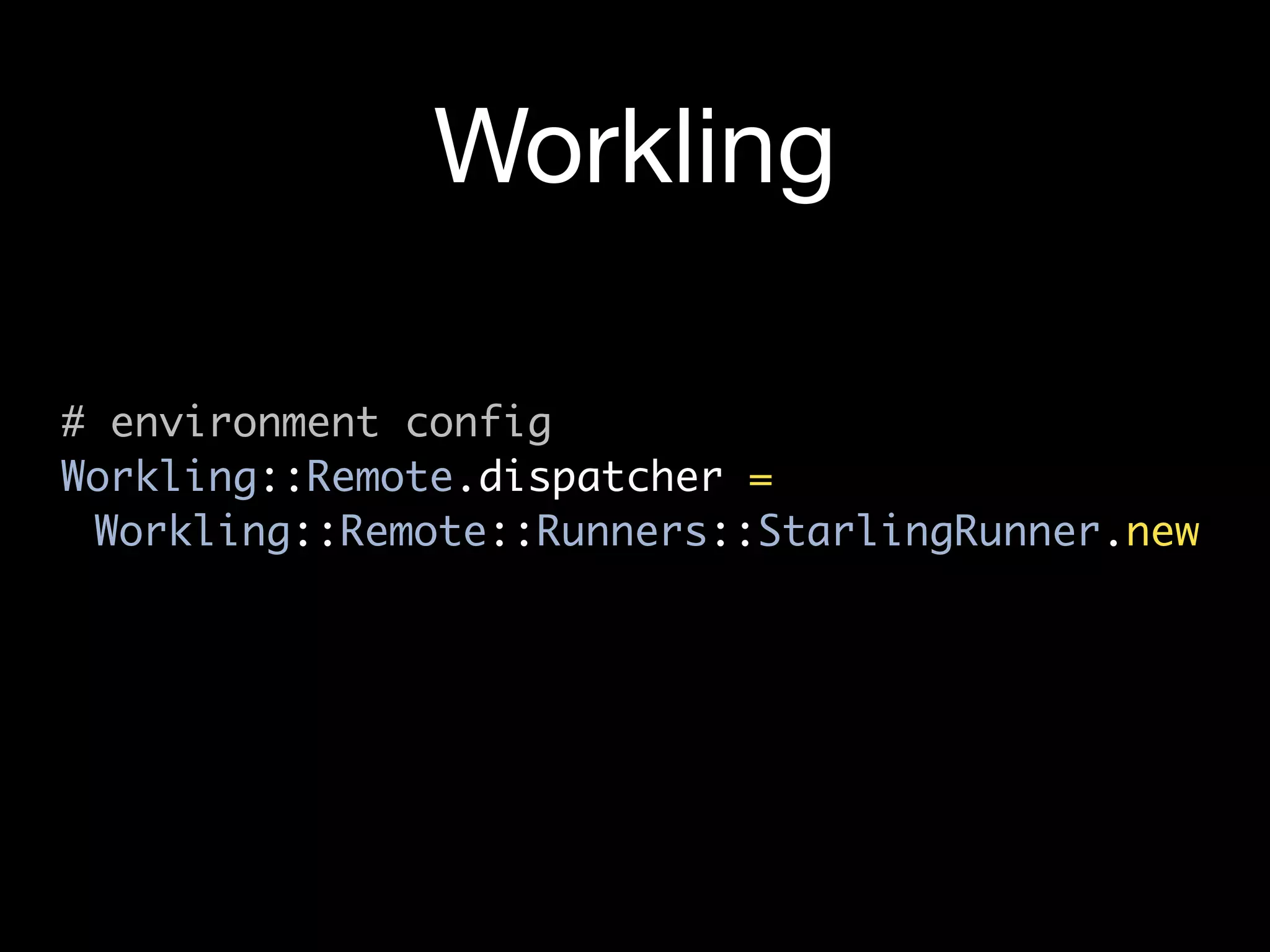

Workling

# environment config
Workling::Remote.dispatcher =
 Workling::Remote::Runners::StarlingRunner.new
# task class
class ImageWorker < Workling::Base
  def send_to_s3(options = {})
    # put file to S3
  end
end
# trigger asynchronous job
ImageWorker.asynch_send_to_s3(:image_id => 2927)

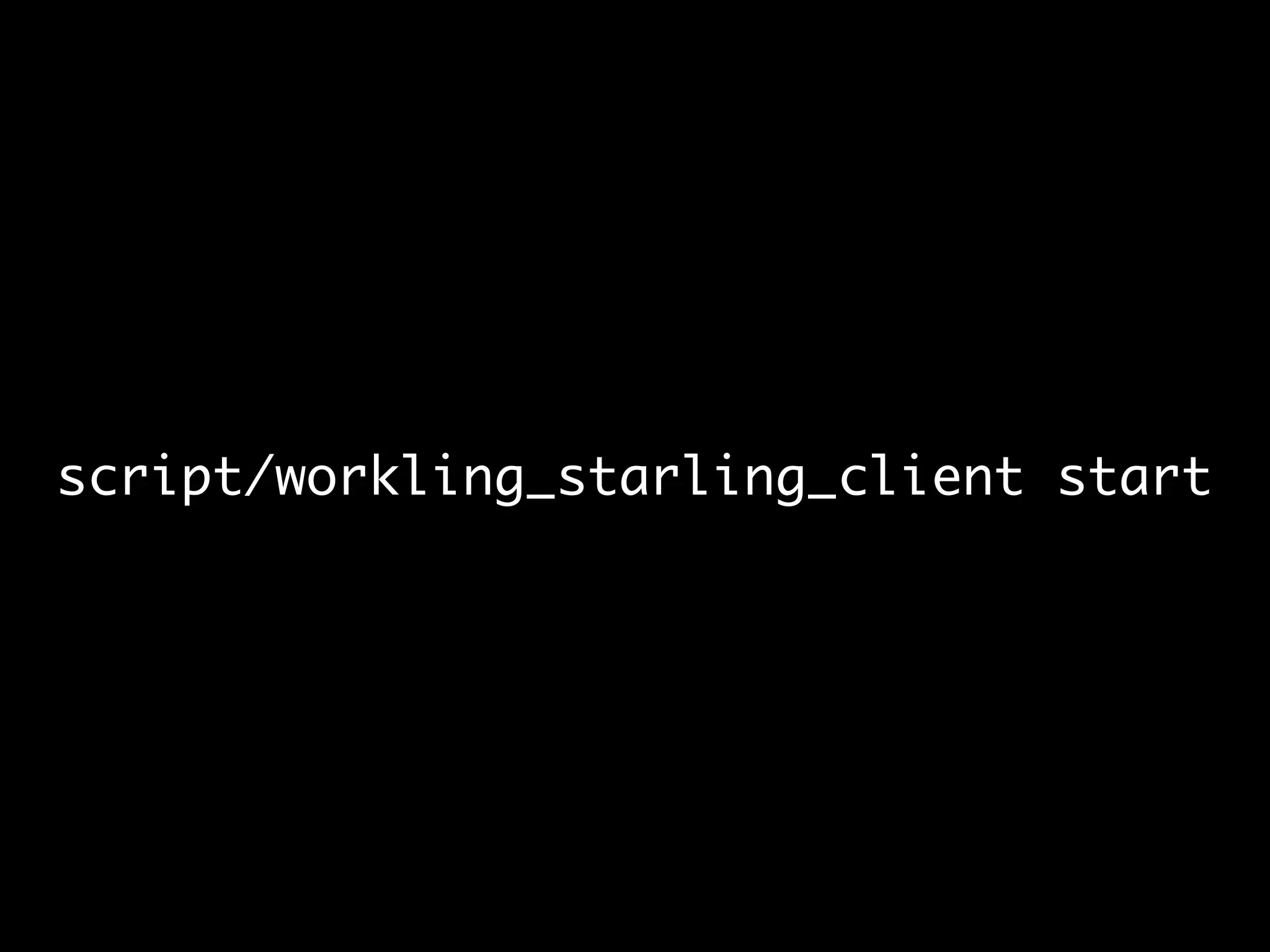

script/workling_starling_client start
Pitfalls

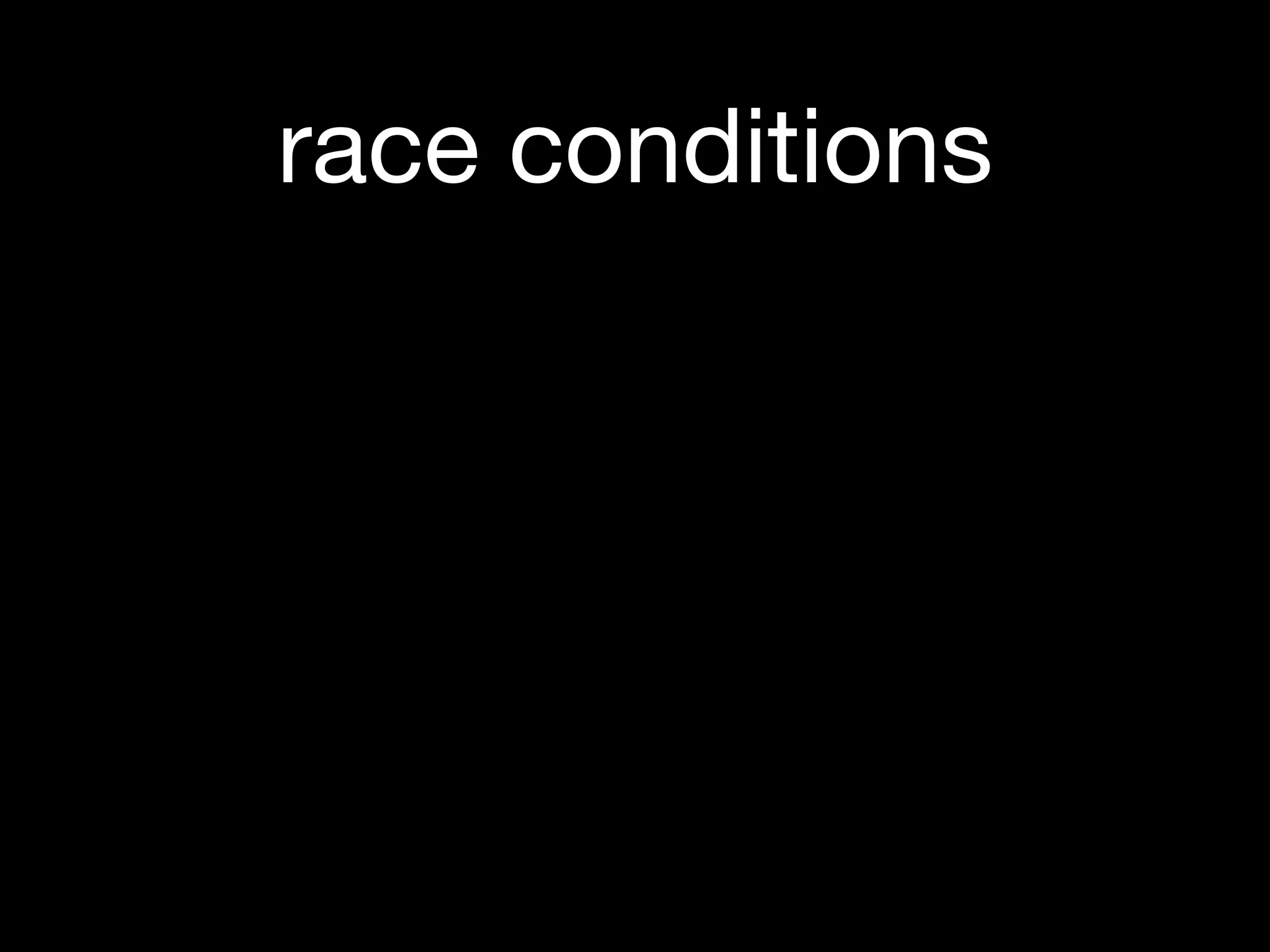

race conditions
alive, but stalled
VI.
         some
recommendations

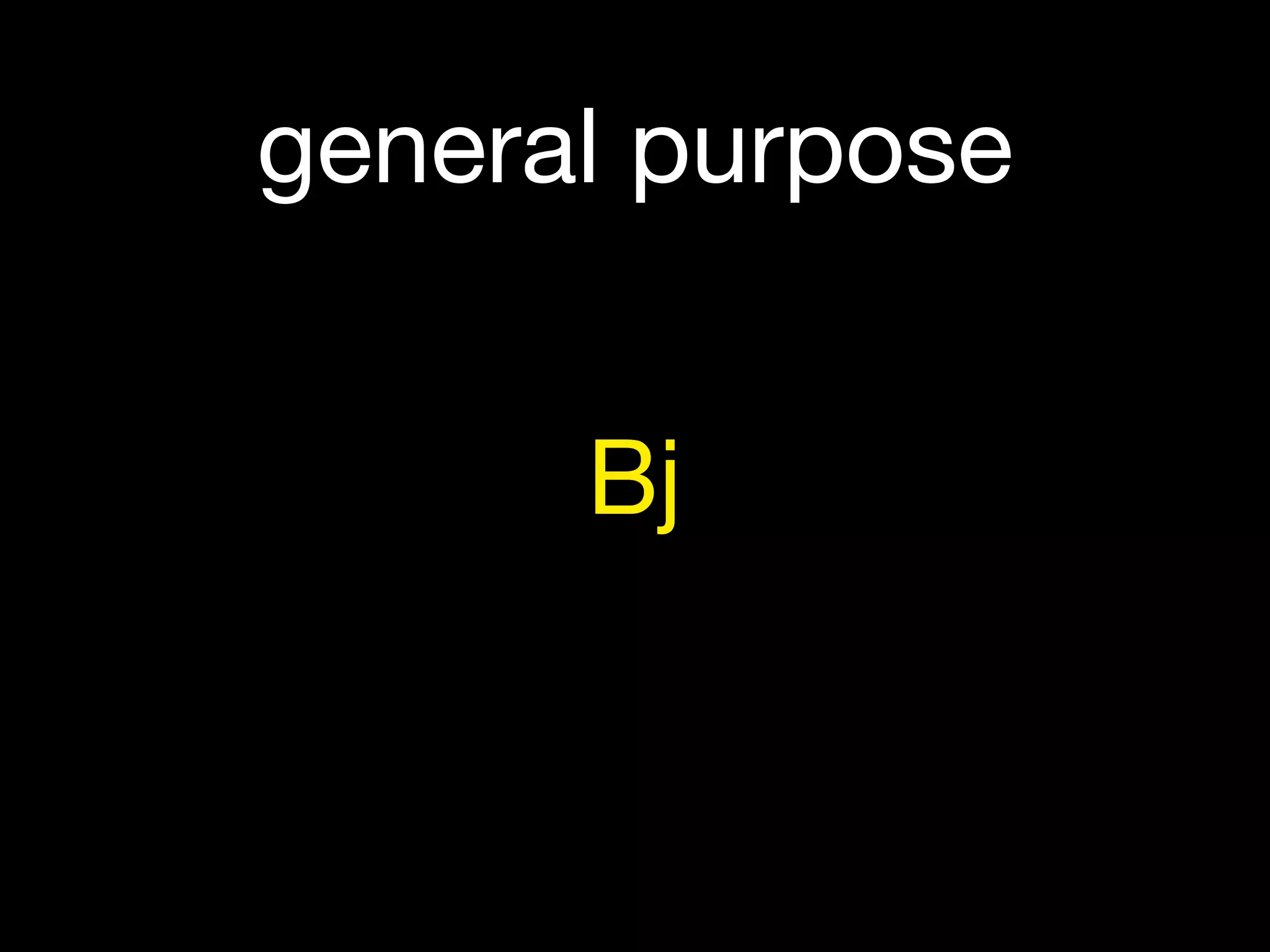

general purpose


      Bj
distributed processing


         SQS
  (+ custom worker)

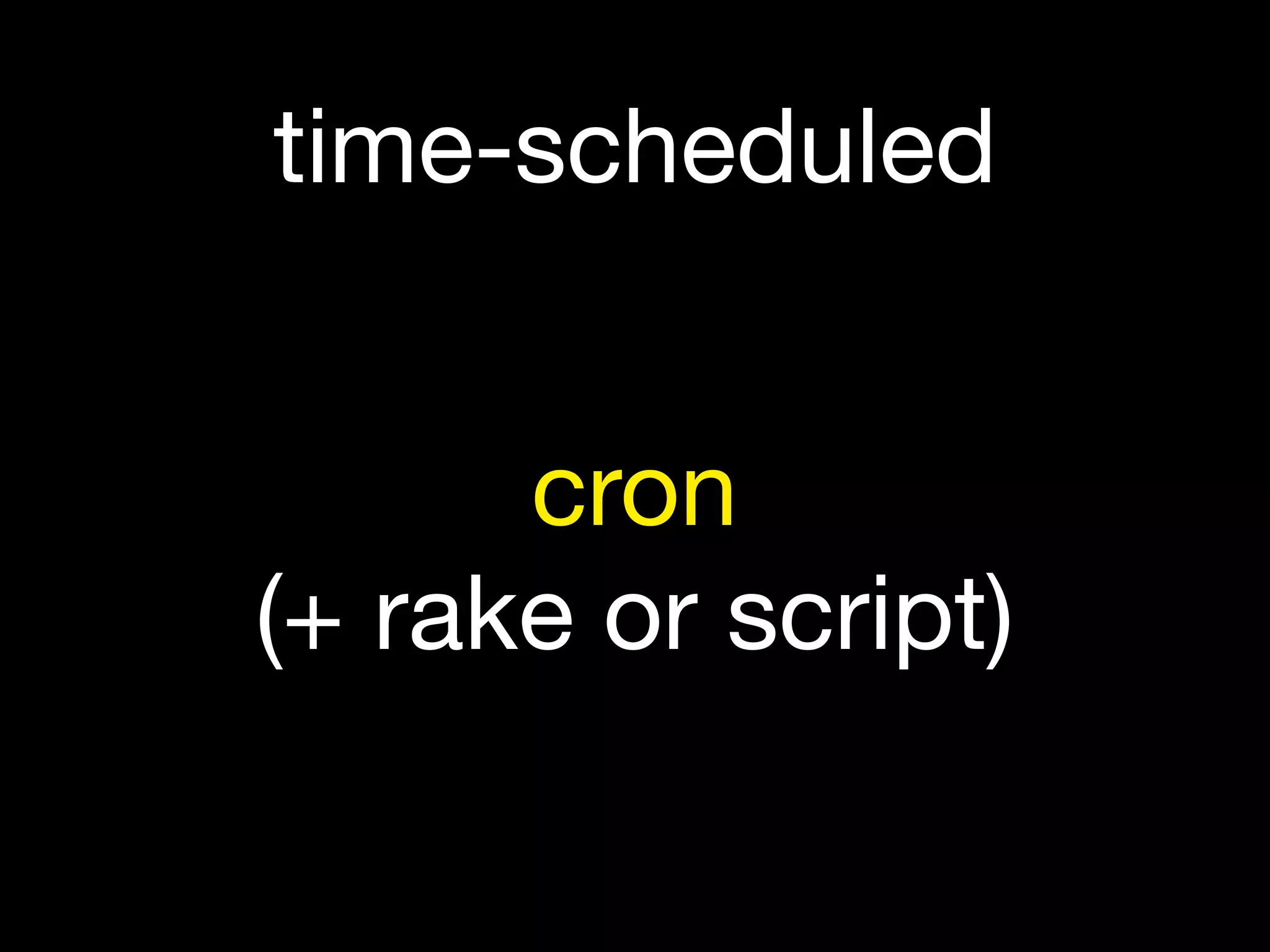

time-scheduled


      cron
(+ rake or script)
speed + scalability


Starling/Workling
Thanks!
 Jonathan Dahl



Slides at RailSpikes
http://railspikes.com
