JavaScript Libraries (Kings of Code) Presentation Transcript

  • 1. JavaScript Libraries John Resig - May 2008 http://ejohn.org/ http://twitter.com/jeresig/
  • 2. Question: How do you want to write JavaScript?

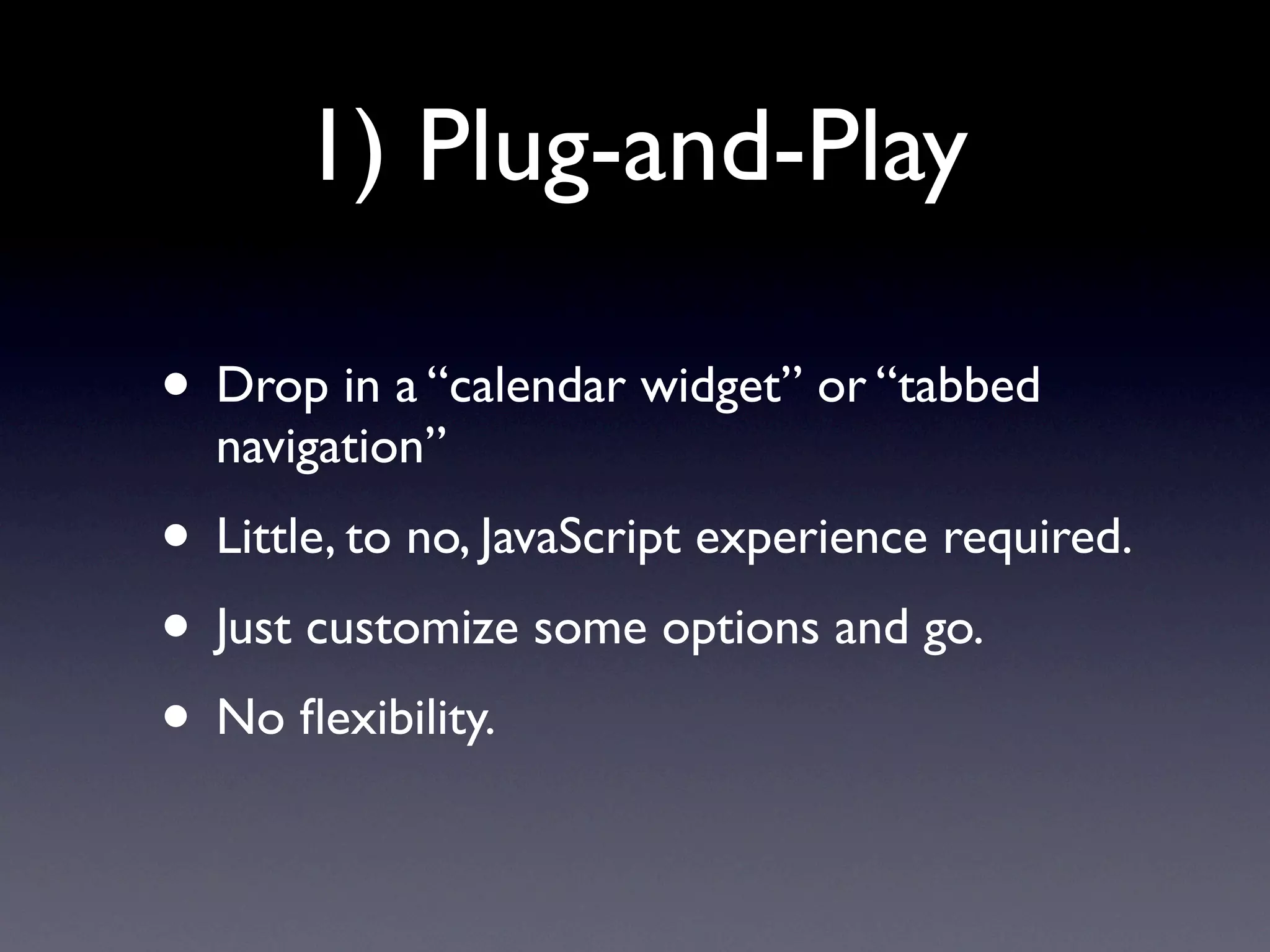

  • 3. 1) Plug-and-Play • Drop in a “calendar widget” or “tabbed navigation” • Little, to no, JavaScript experience required. • Just customize some options and go. • No flexibility.
  • 4. 2) Some Assembly Required • Write common utilities • Click a link, load a page via Ajax • Build a dynamic menu • Creating interactive forms • Use pre-made code to distance yourself from browser bugs. • Flexible, until you hit a browser bug.

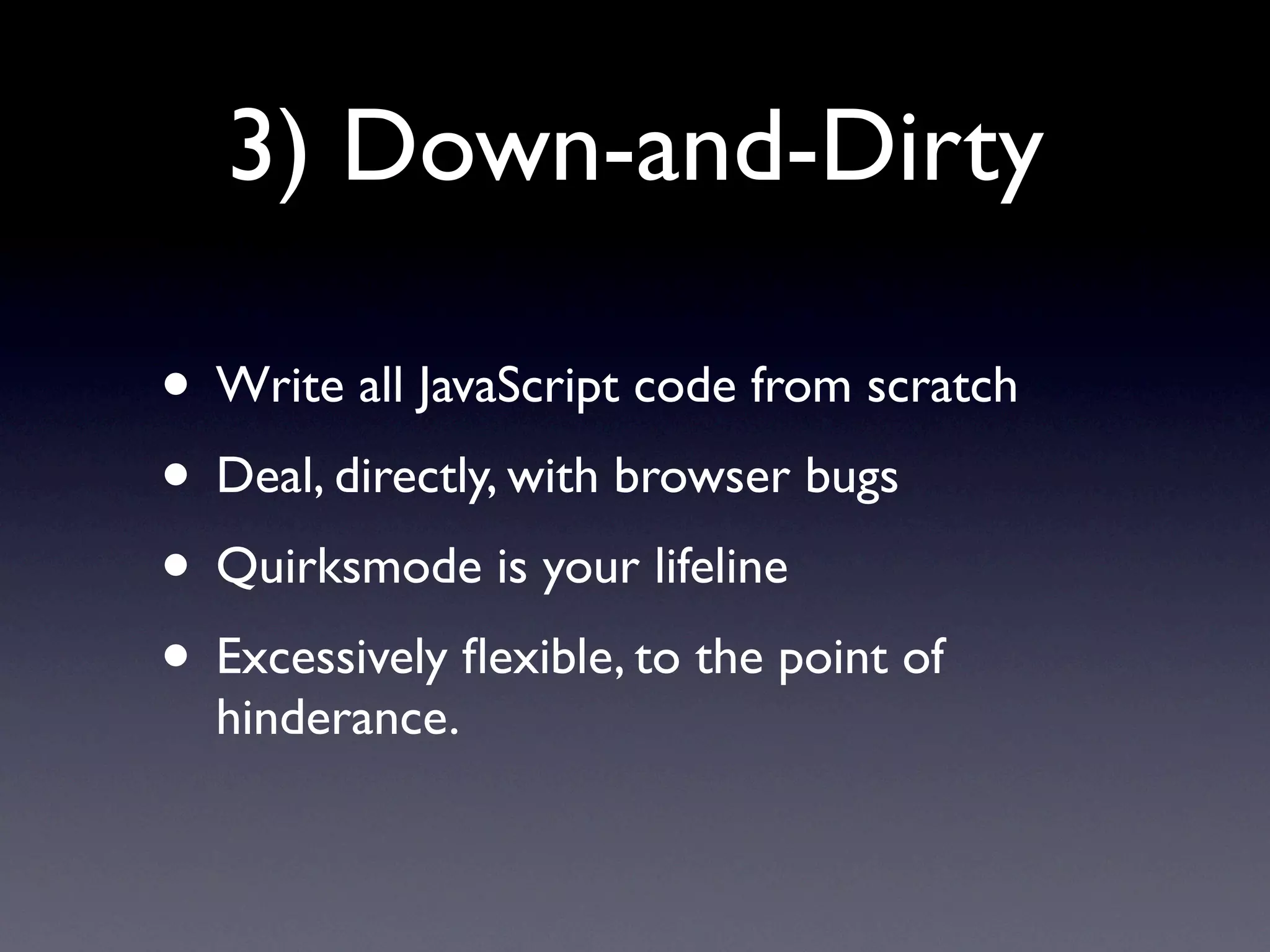

  • 5. 3) Down-and-Dirty • Write all JavaScript code from scratch • Deal, directly, with browser bugs • Quirksmode is your lifeline • Excessively flexible, to the point of hinderance.

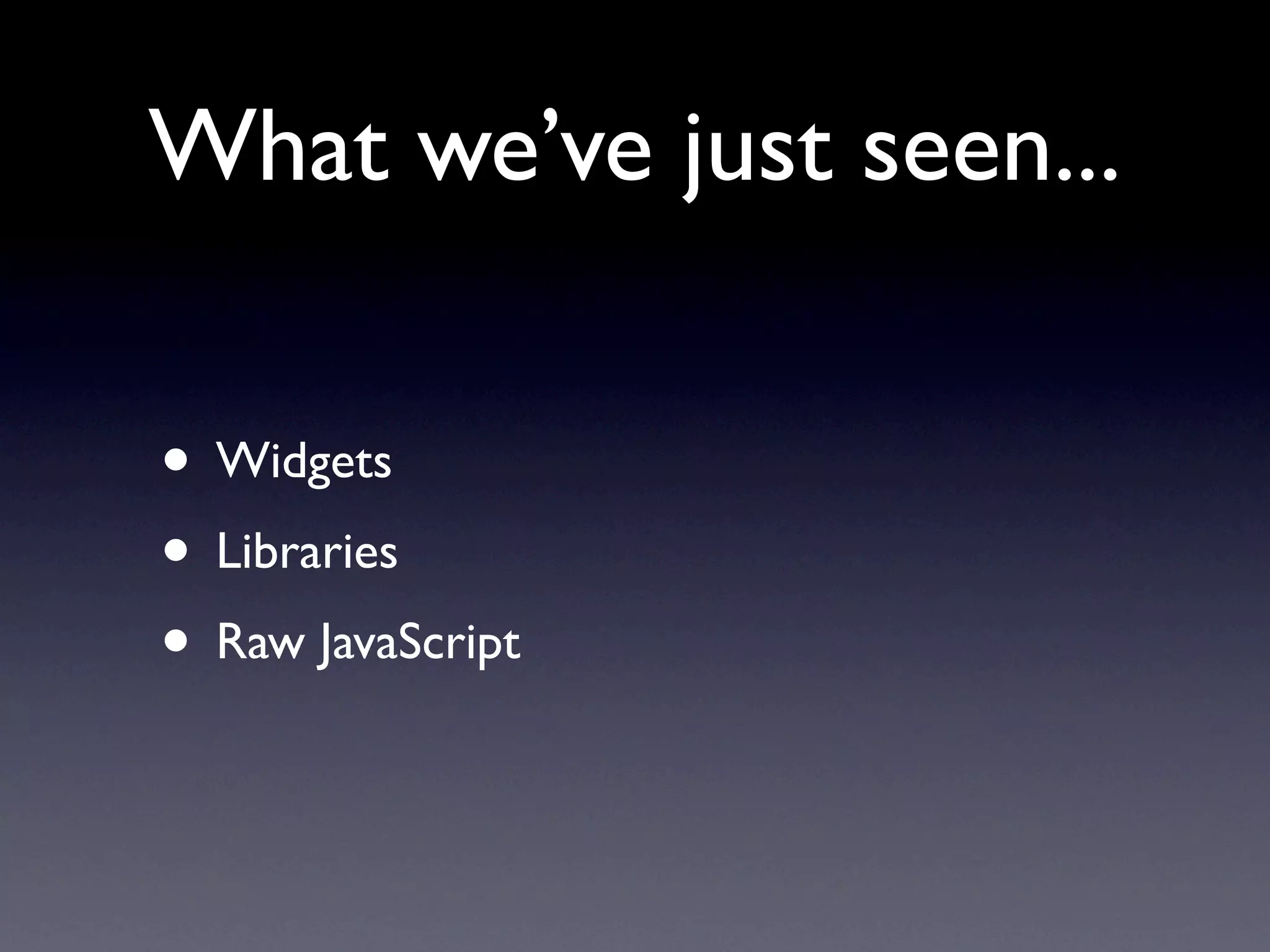

  • 6. What we’ve just seen... • Widgets • Libraries • Raw JavaScript

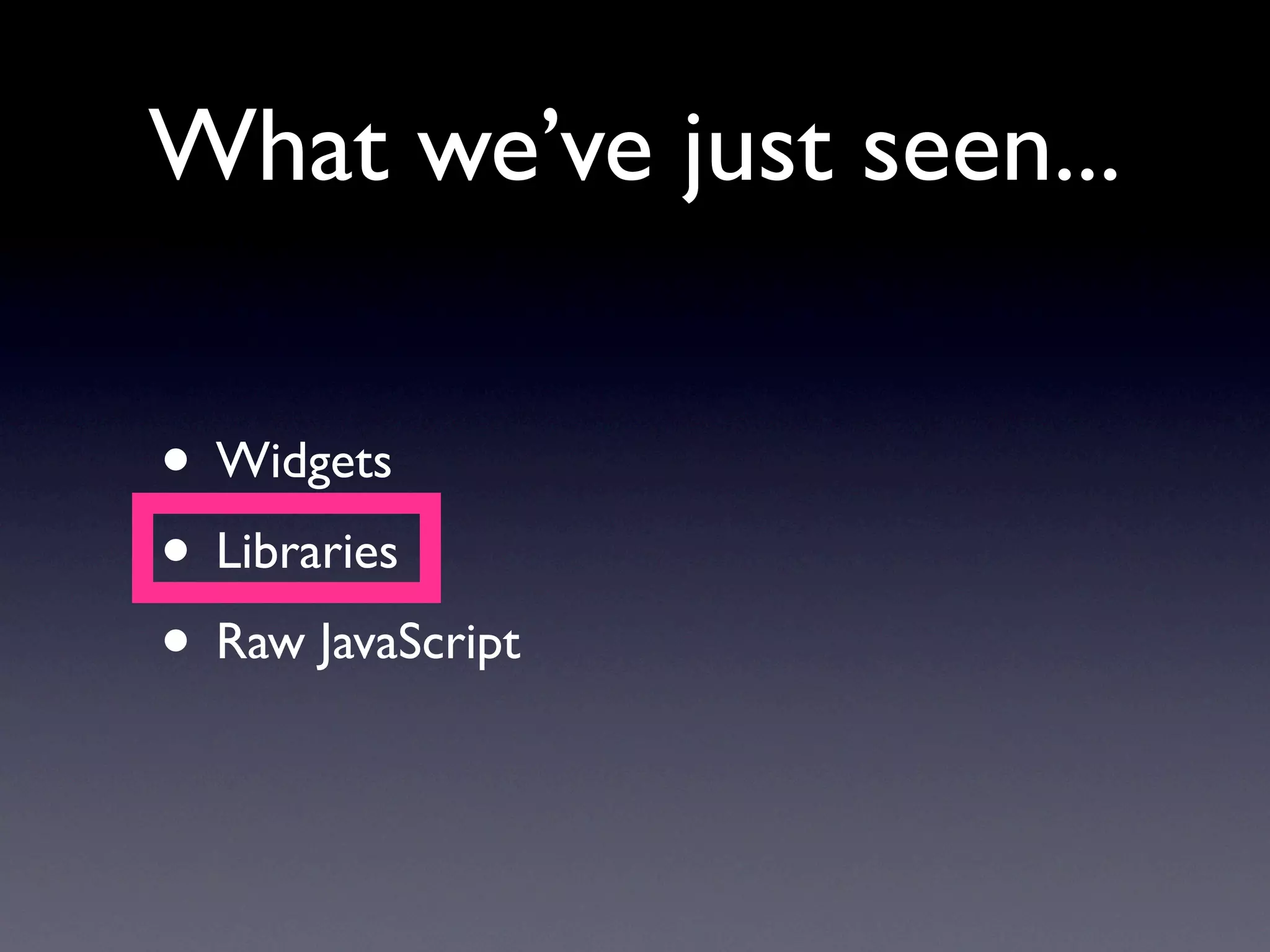

  • 7. What we’ve just seen... • Widgets • Libraries • Raw JavaScript

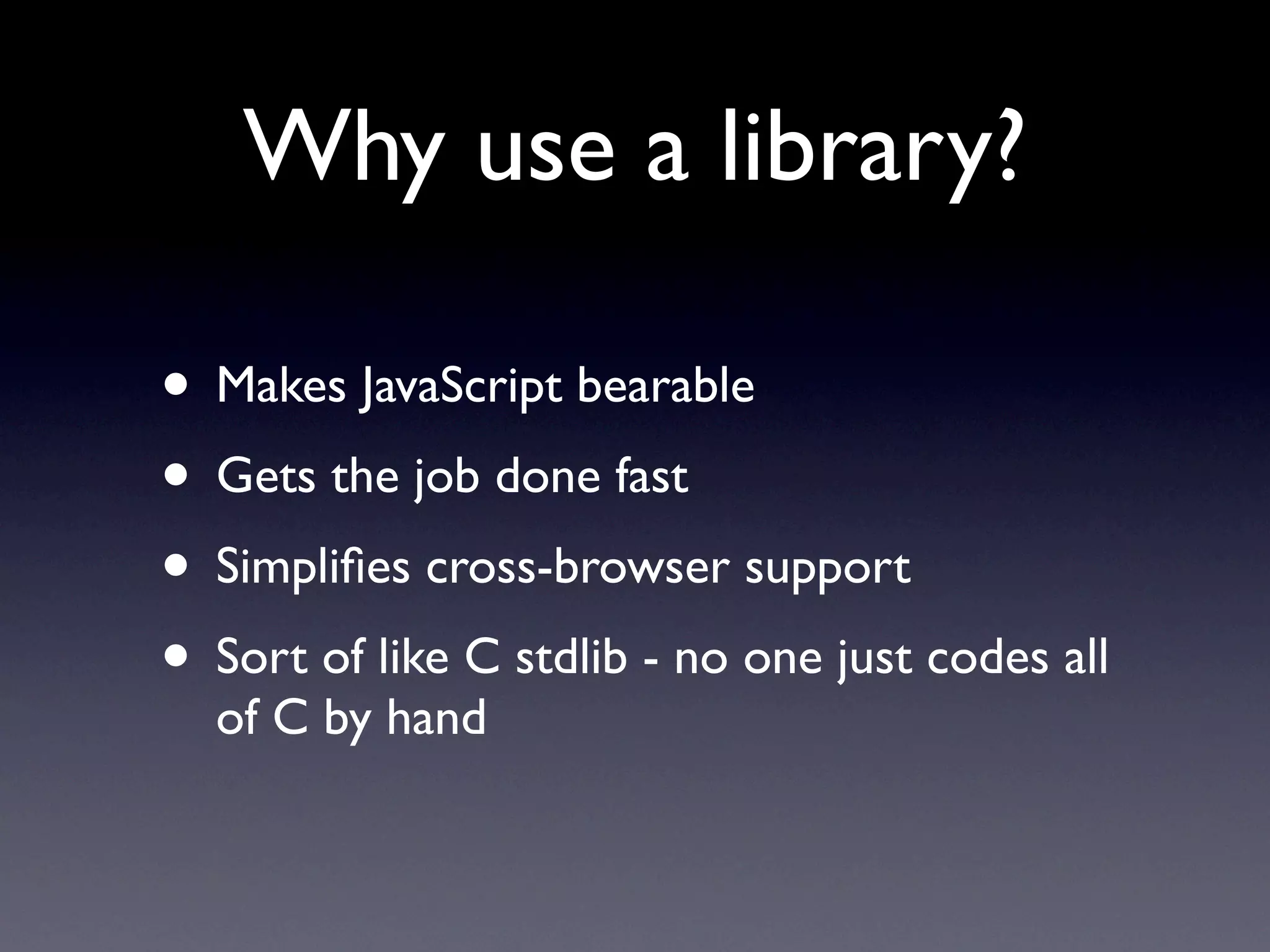

  • 8. Why use a library? • Makes JavaScript bearable • Gets the job done fast • Simplifies cross-browser support • Sort of like C stdlib - no one just codes all of C by hand

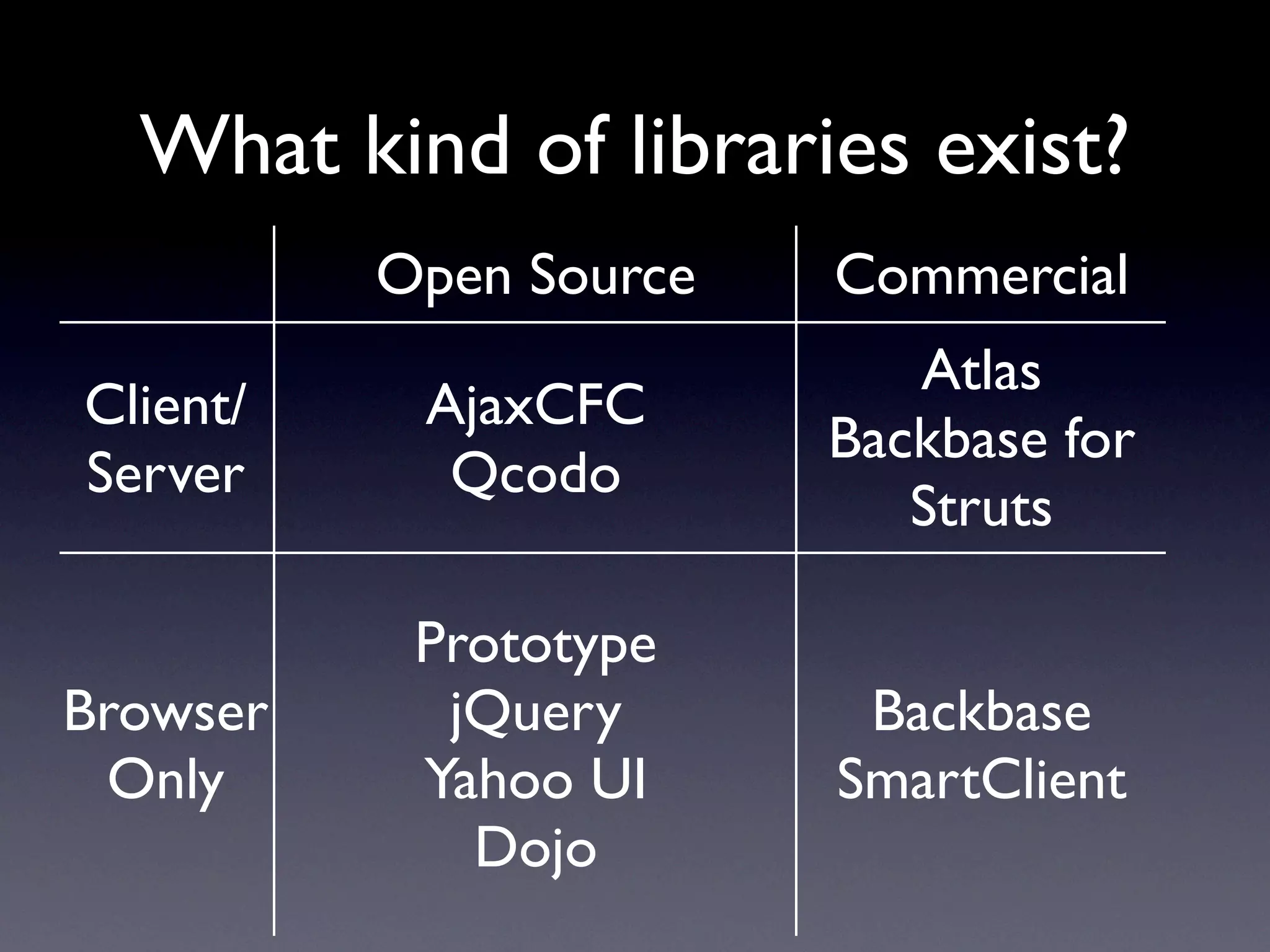

  • 9. What kind of libraries exist? Open Source Commercial Atlas Client/ AjaxCFC Backbase for Server Qcodo Struts Prototype Browser jQuery Backbase Only Yahoo UI SmartClient Dojo

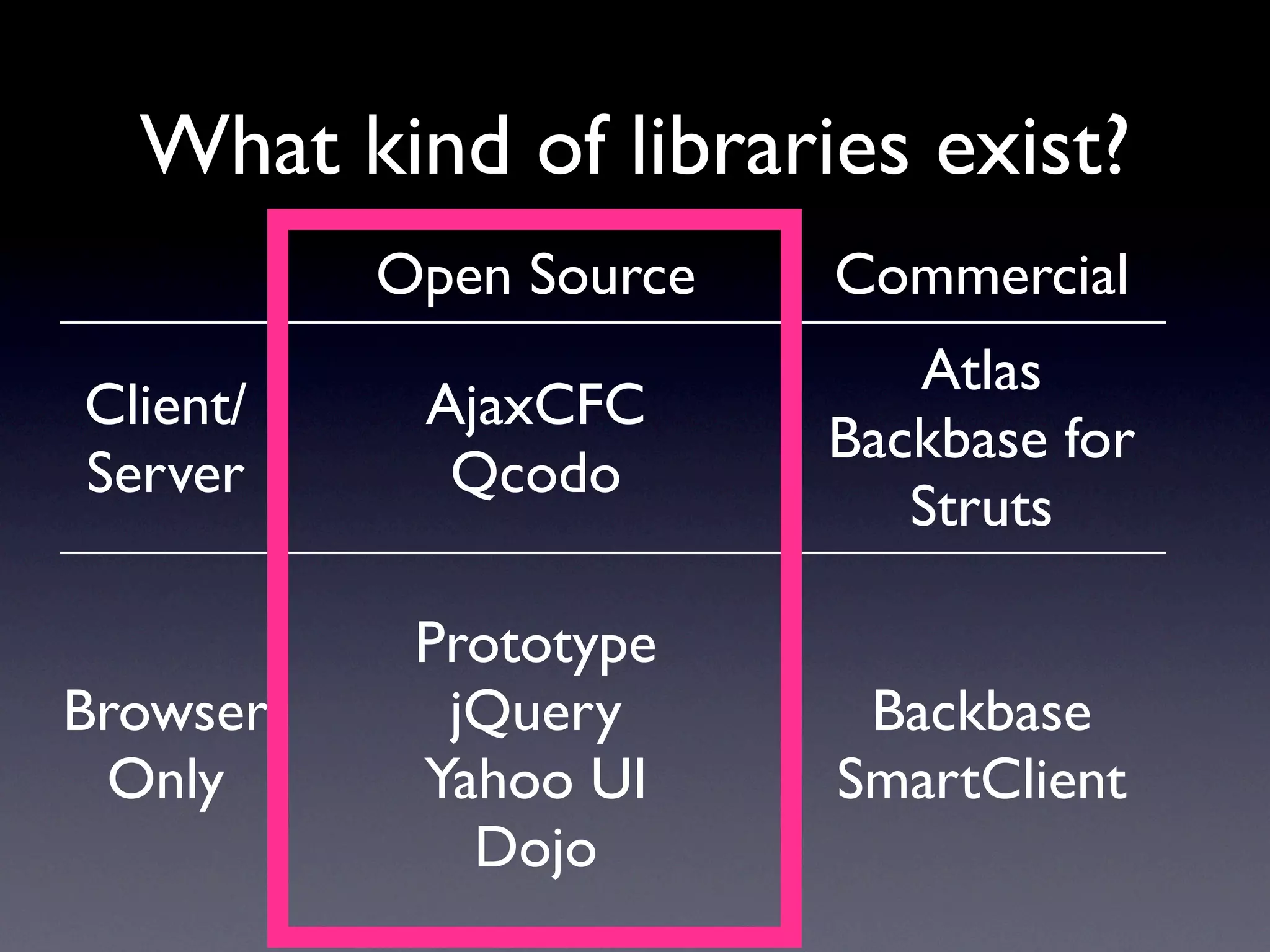

  • 10. What kind of libraries exist? Open Source Commercial Atlas Client/ AjaxCFC Backbase for Server Qcodo Struts Prototype Browser jQuery Backbase Only Yahoo UI SmartClient Dojo

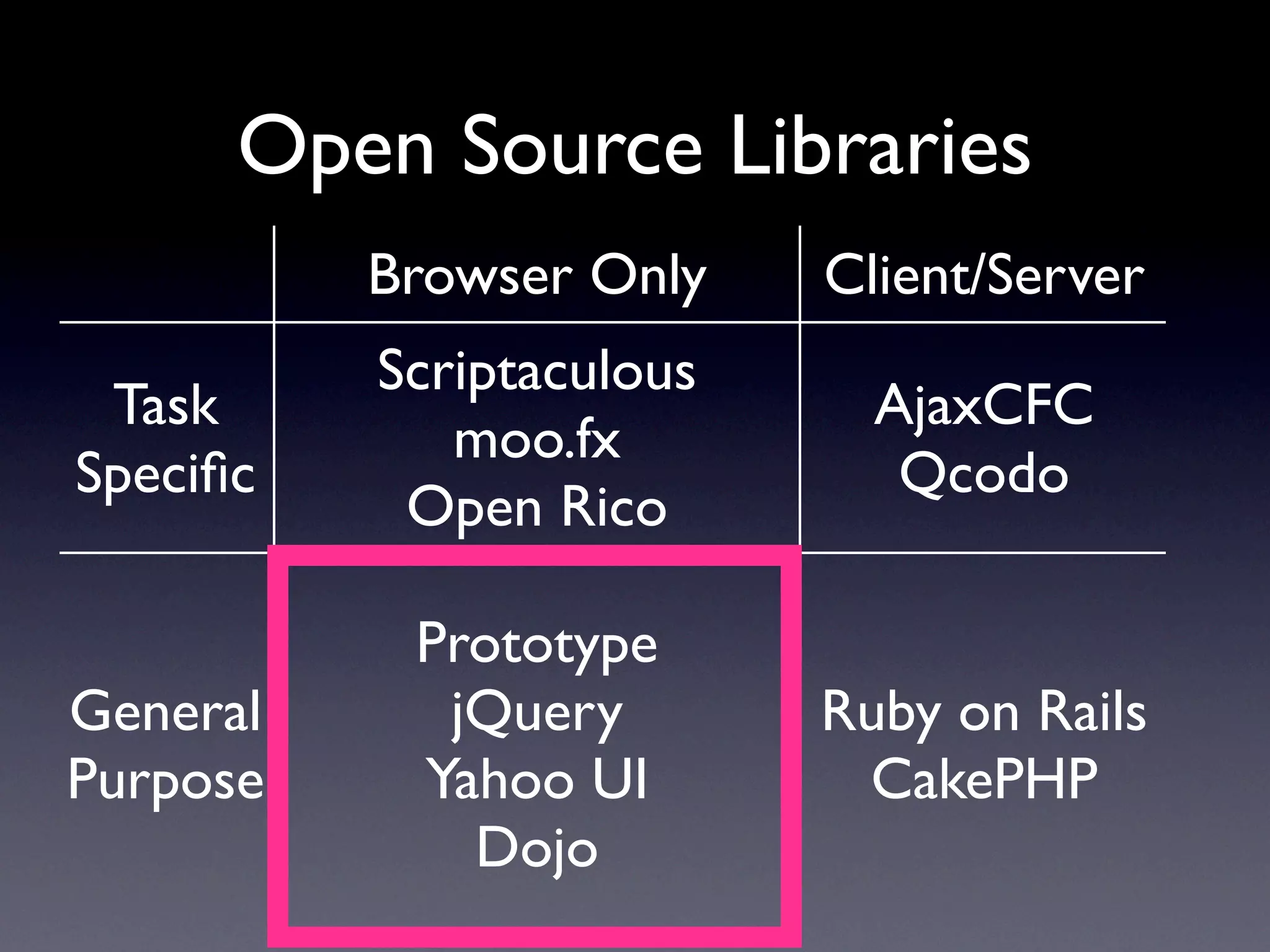

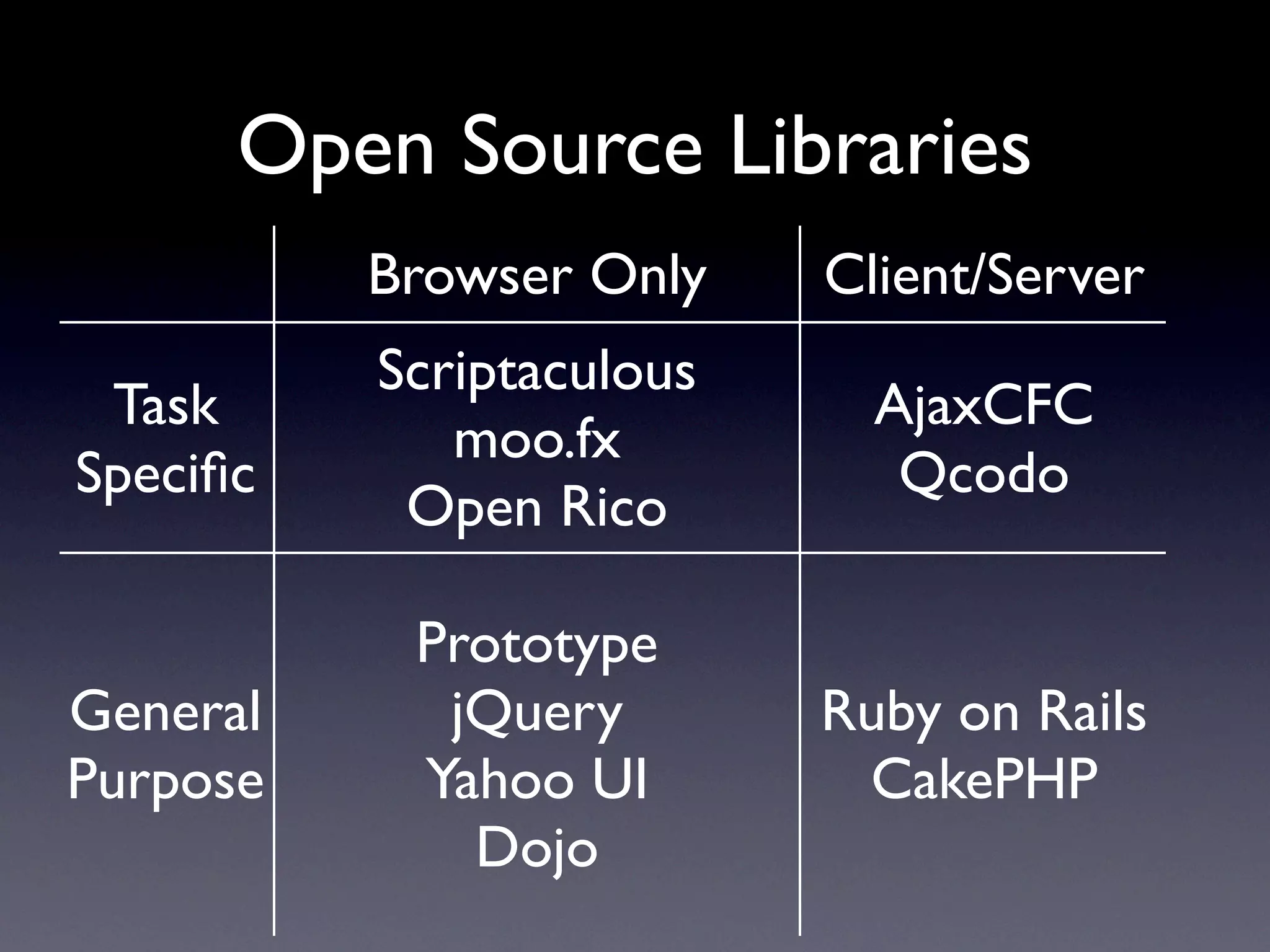

  • 11. Open Source Libraries Browser Only Client/Server Scriptaculous Task AjaxCFC moo.fx Specific Qcodo Open Rico Prototype General jQuery Ruby on Rails Purpose Yahoo UI CakePHP Dojo
  • 12. Open Source Libraries Browser Only Client/Server Scriptaculous Task AjaxCFC moo.fx Specific Qcodo Open Rico Prototype General jQuery Ruby on Rails Purpose Yahoo UI CakePHP Dojo

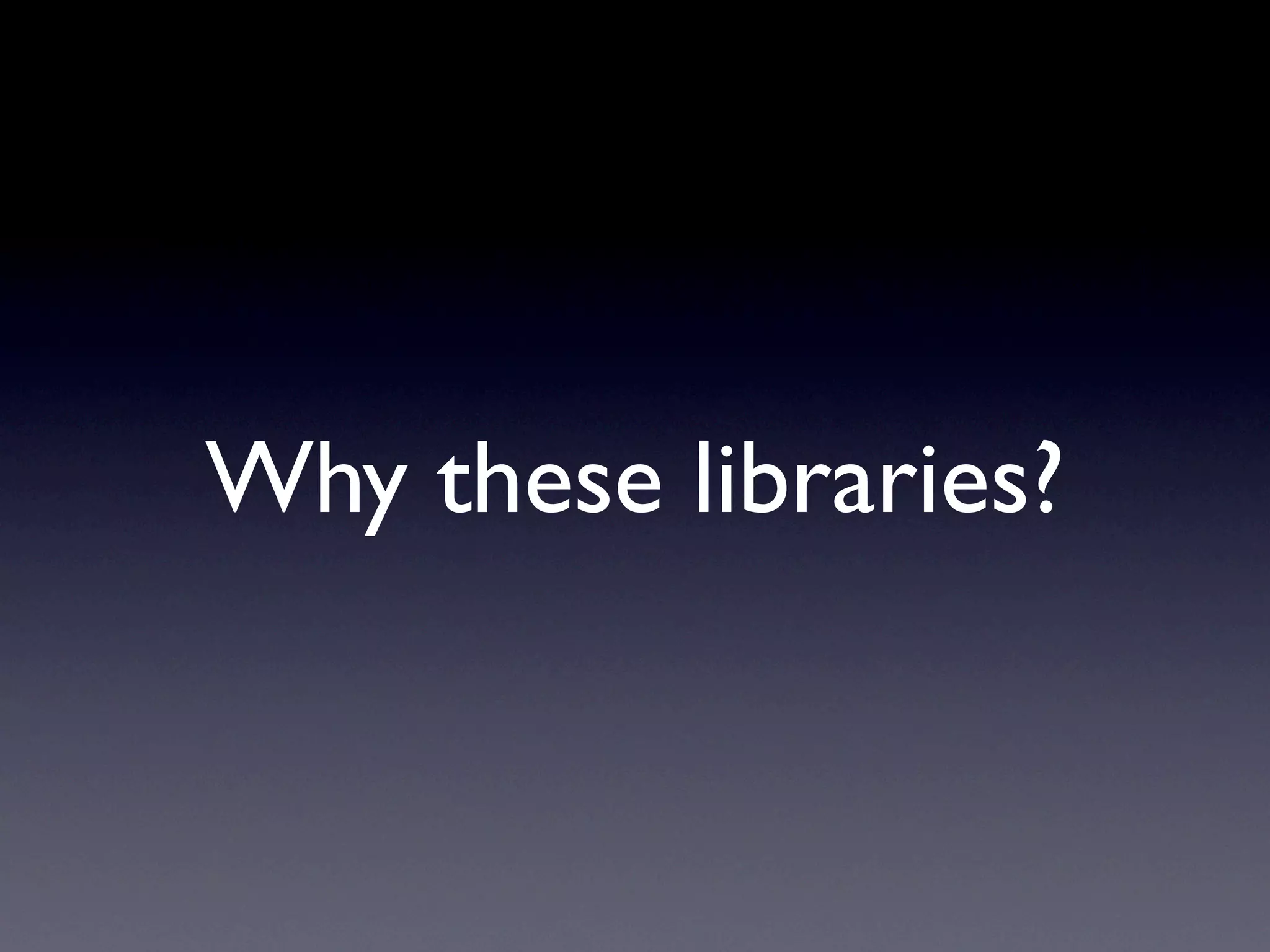

  • 13. Why these libraries?

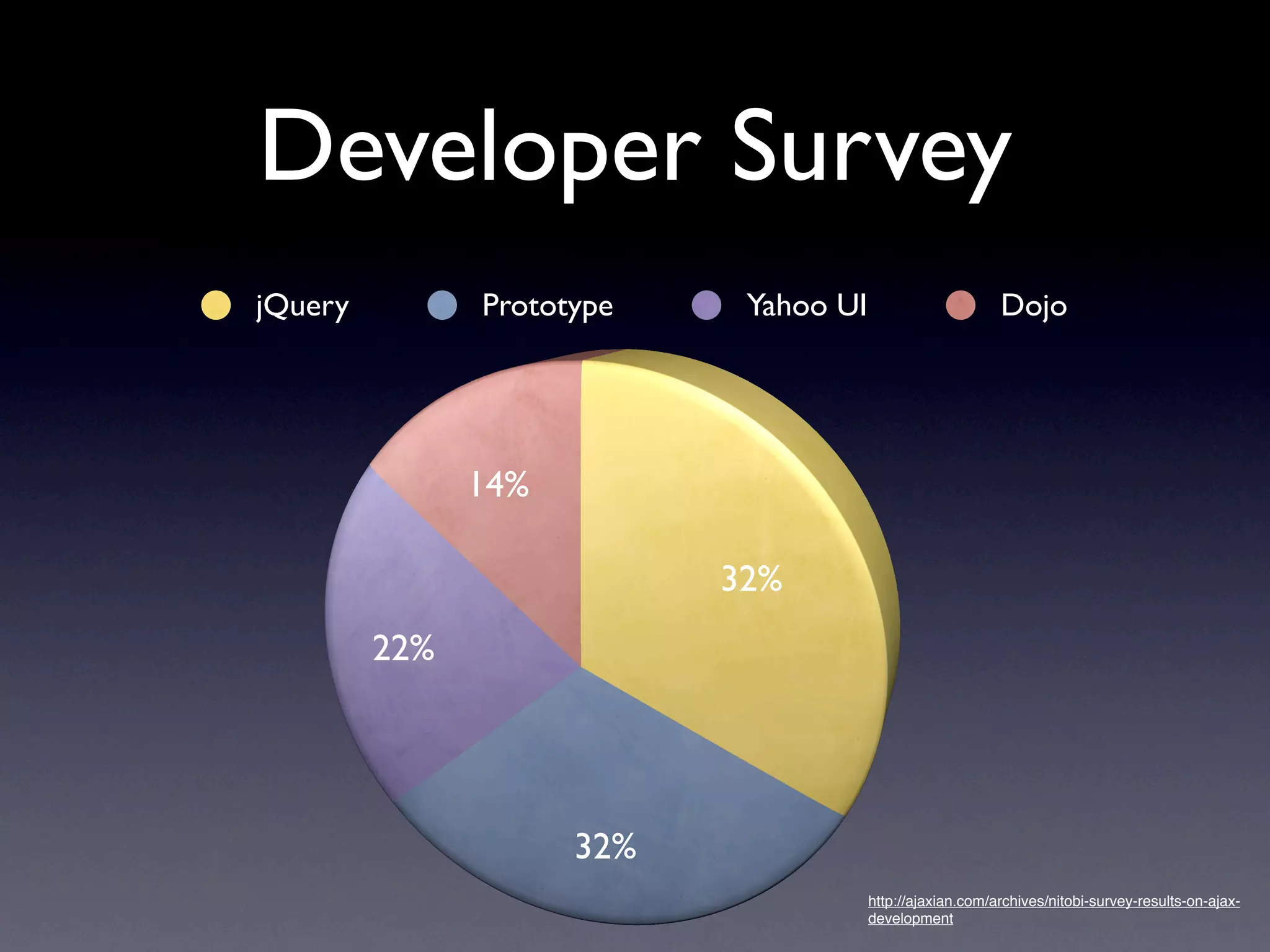

  • 14. Developer Survey jQuery Prototype Yahoo UI Dojo 14% 32% 22% 32% http://ajaxian.com/archives/nitobi-survey-results-on-ajax- development

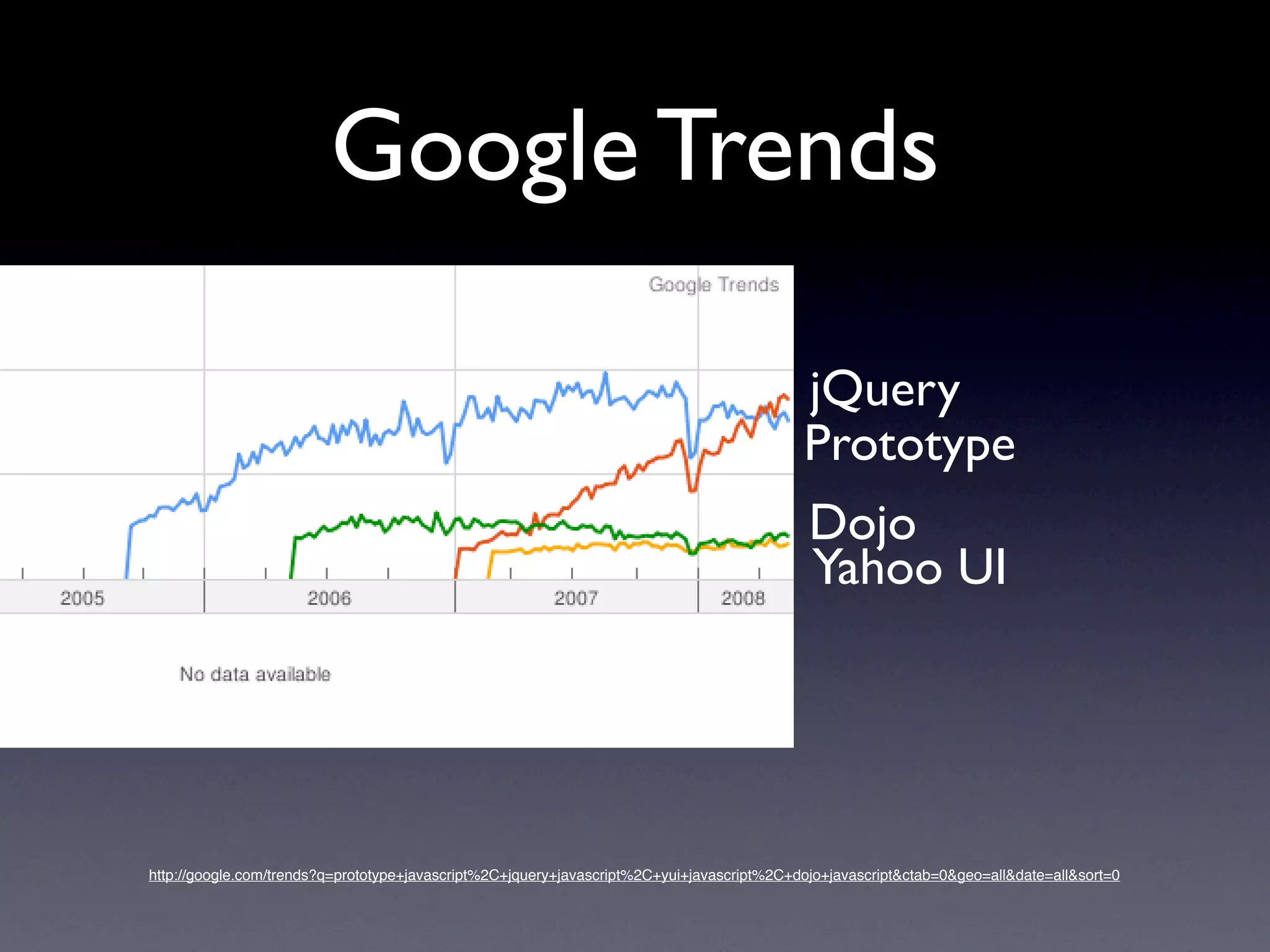

  • 15. Google Trends jQuery Prototype Dojo Yahoo UI http://google.com/trends?q=prototype+javascript%2C+jquery+javascript%2C+yui+javascript%2C+dojo+javascript&ctab=0&geo=all&date=all&sort=0

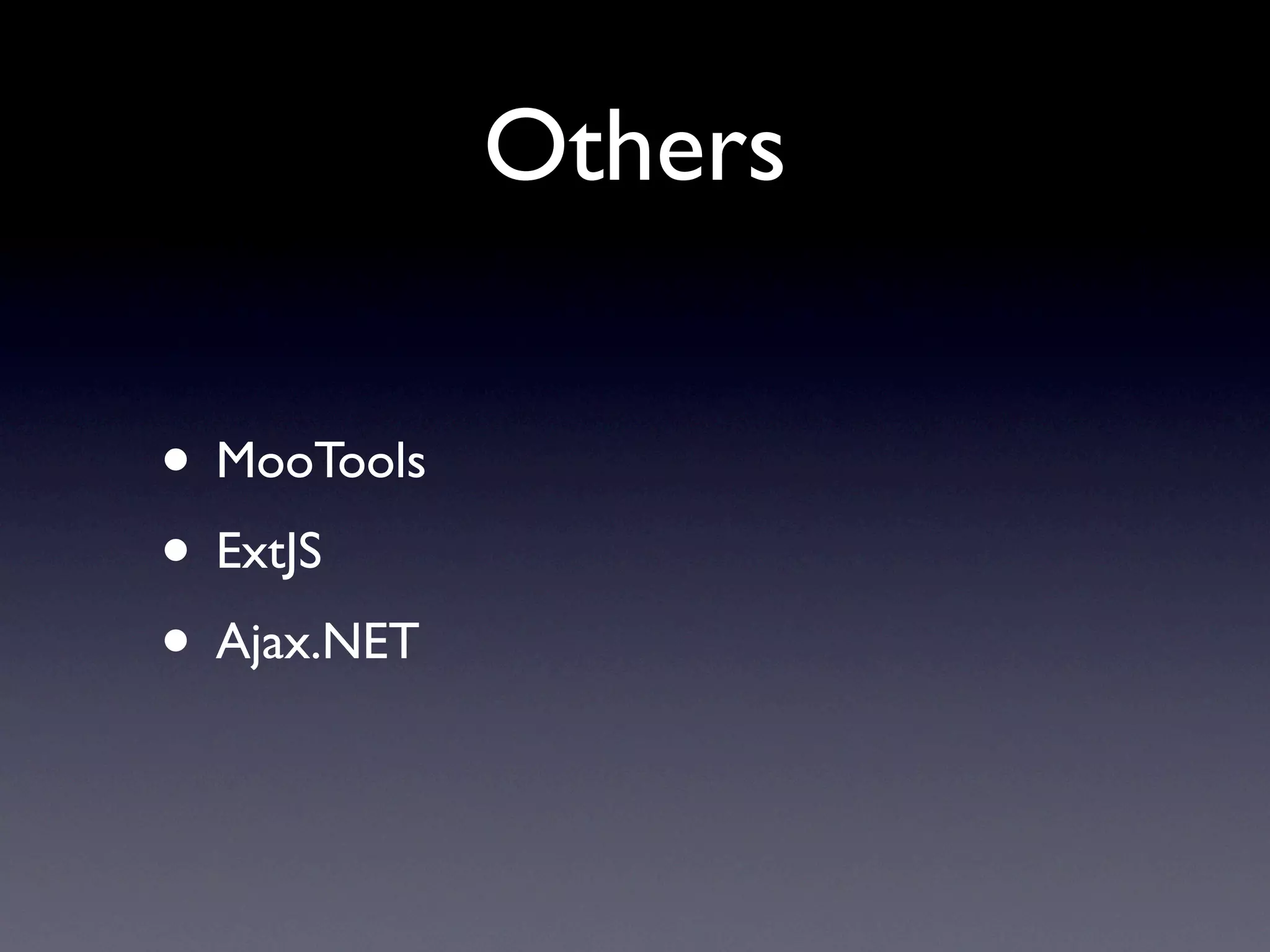

  • 16. Others • MooTools • ExtJS • Ajax.NET

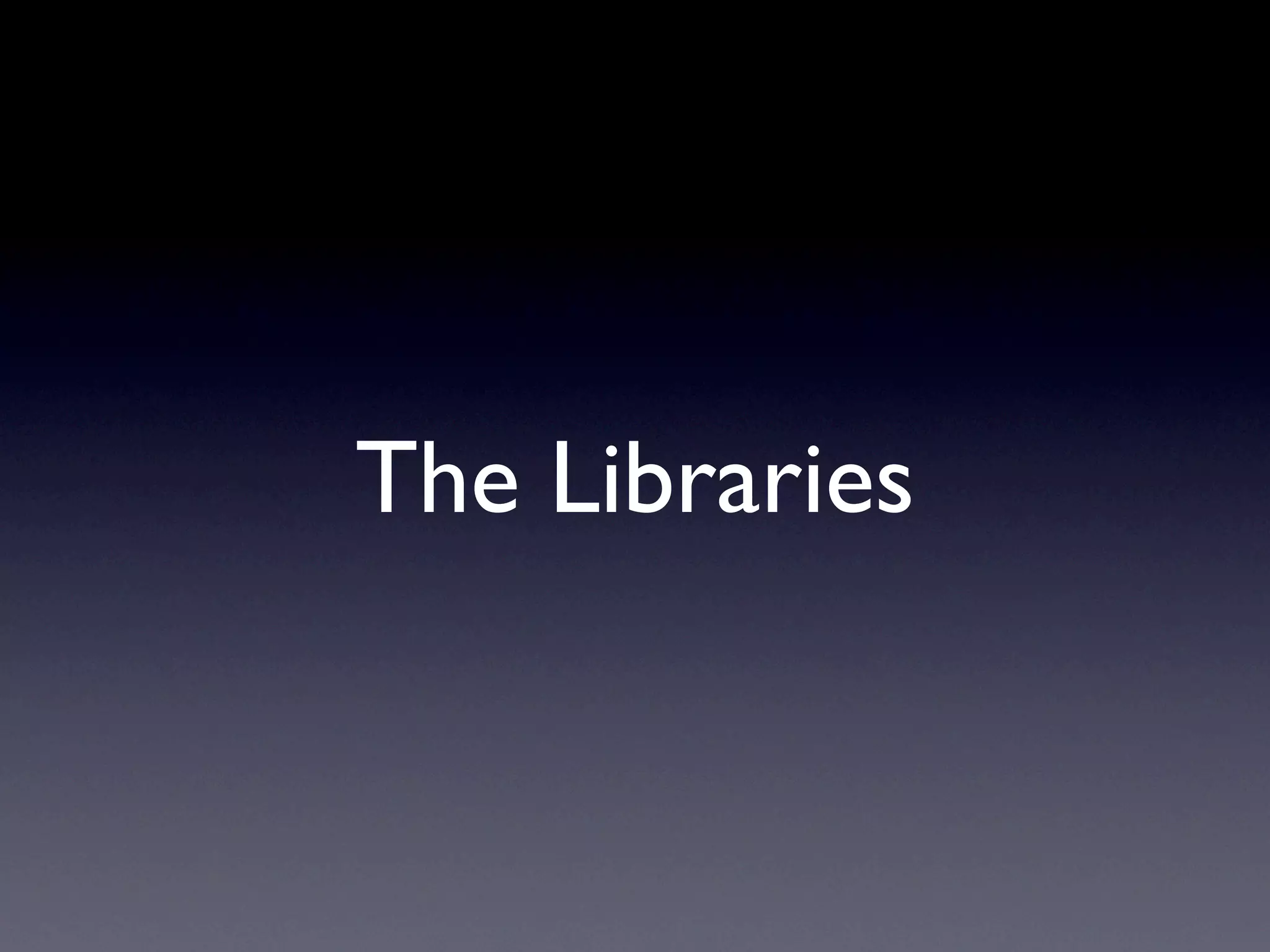

  • 17. The Libraries

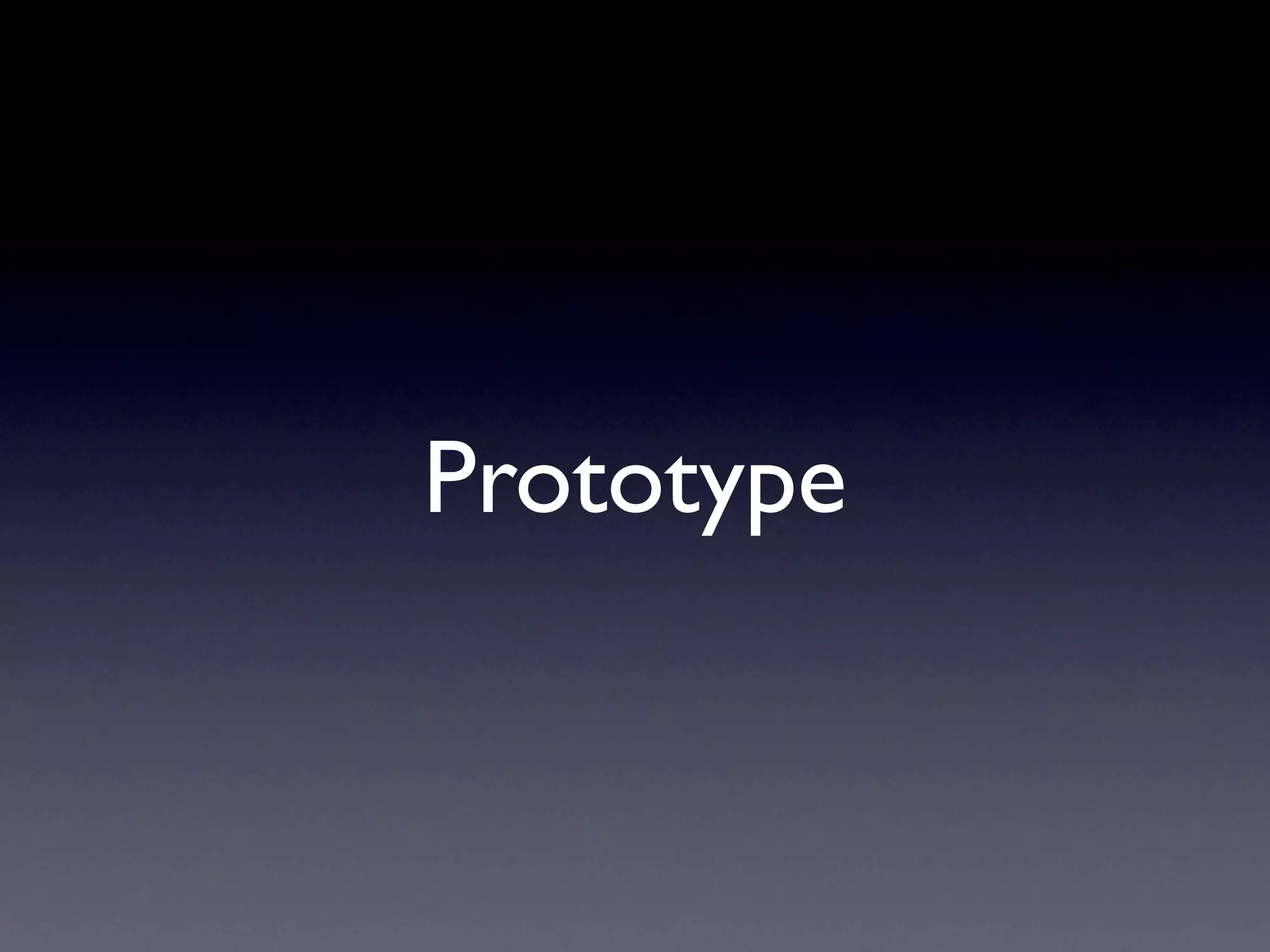

  • 18. Prototype

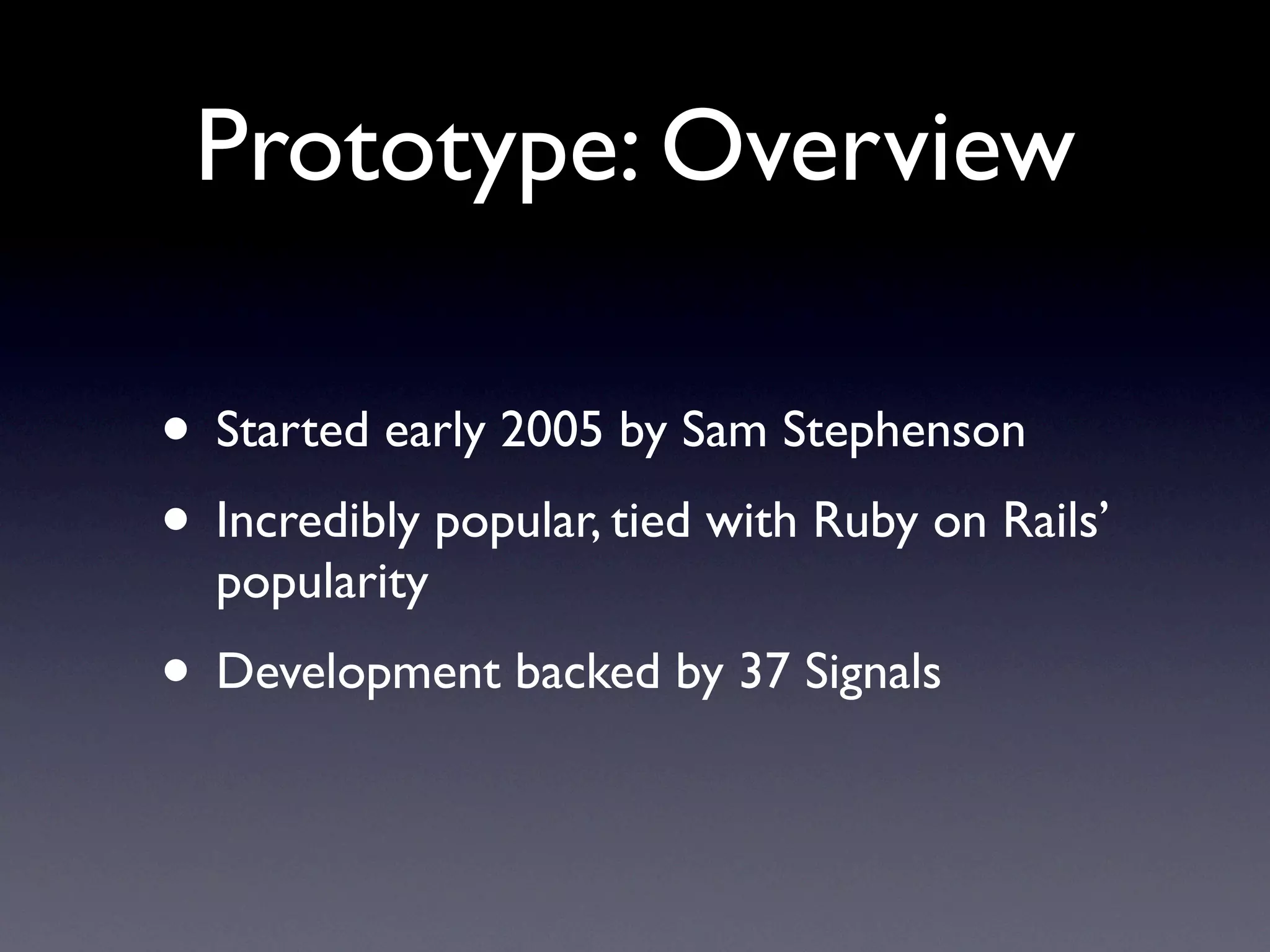

  • 19. Prototype: Overview • Started early 2005 by Sam Stephenson • Incredibly popular, tied with Ruby on Rails’ popularity • Development backed by 37 Signals

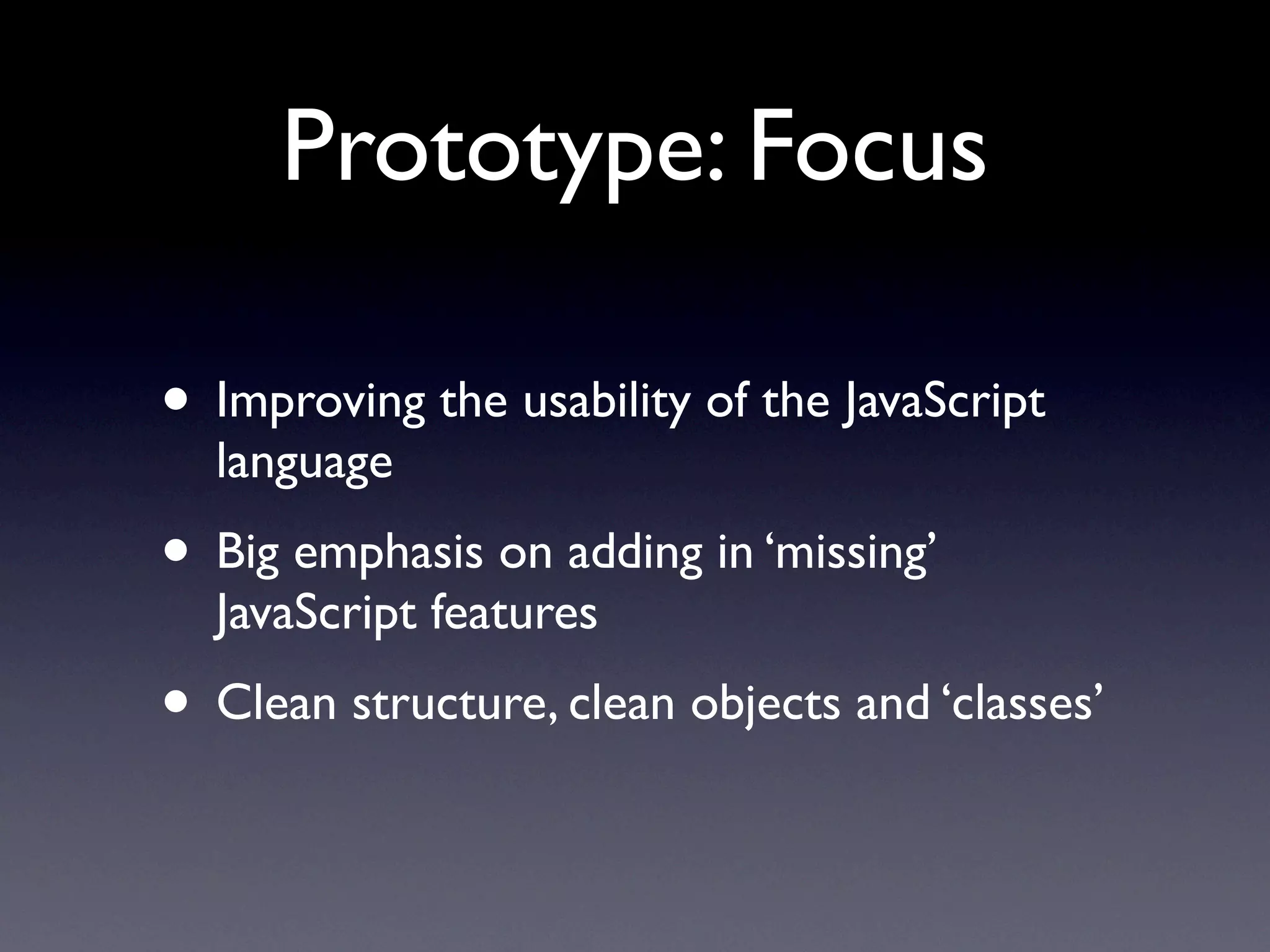

  • 20. Prototype: Focus • Improving the usability of the JavaScript language • Big emphasis on adding in ‘missing’ JavaScript features • Clean structure, clean objects and ‘classes’

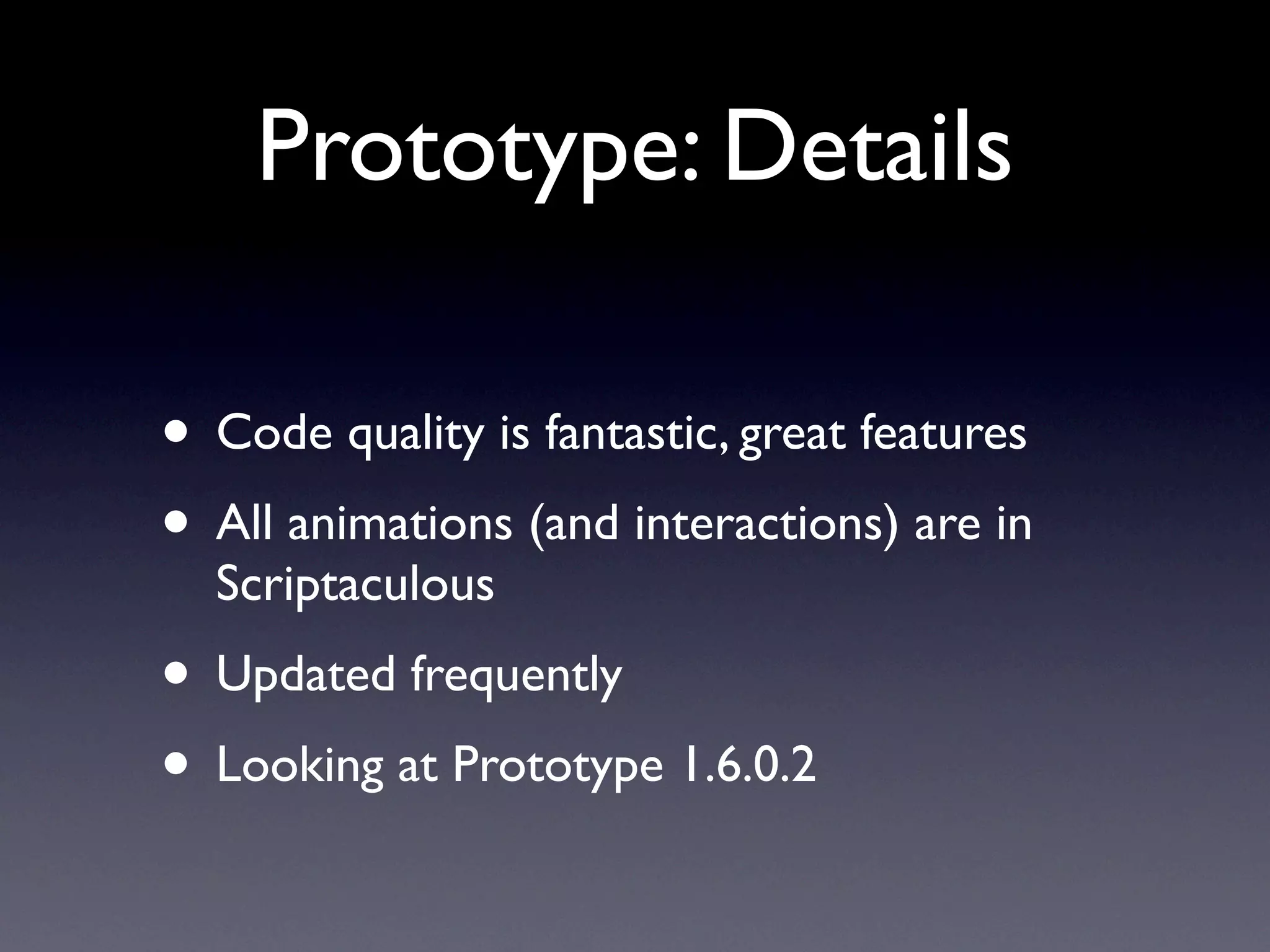

  • 21. Prototype: Details • Code quality is fantastic, great features • All animations (and interactions) are in Scriptaculous • Updated frequently • Looking at Prototype 1.6.0.2

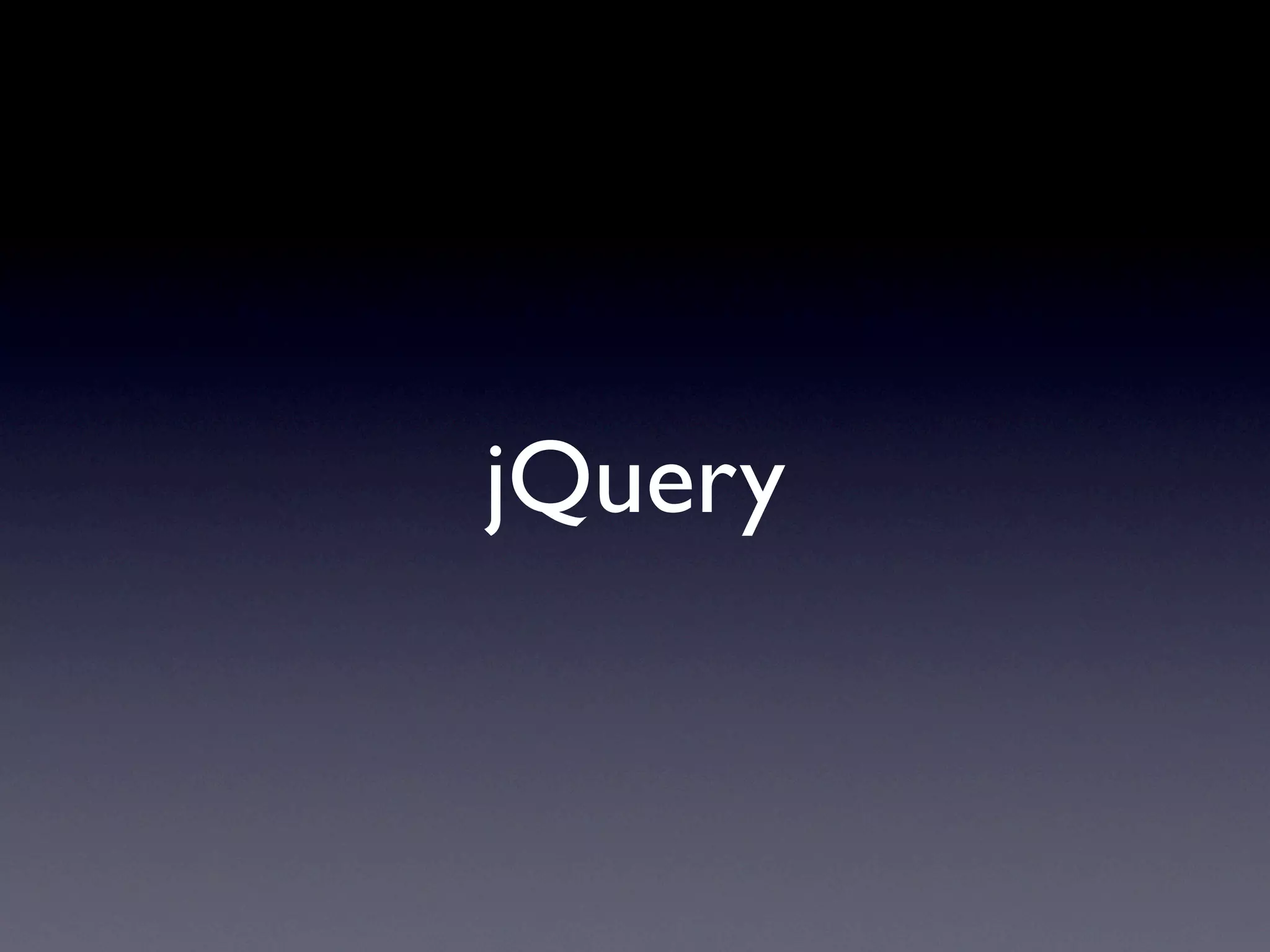

  • 22. jQuery

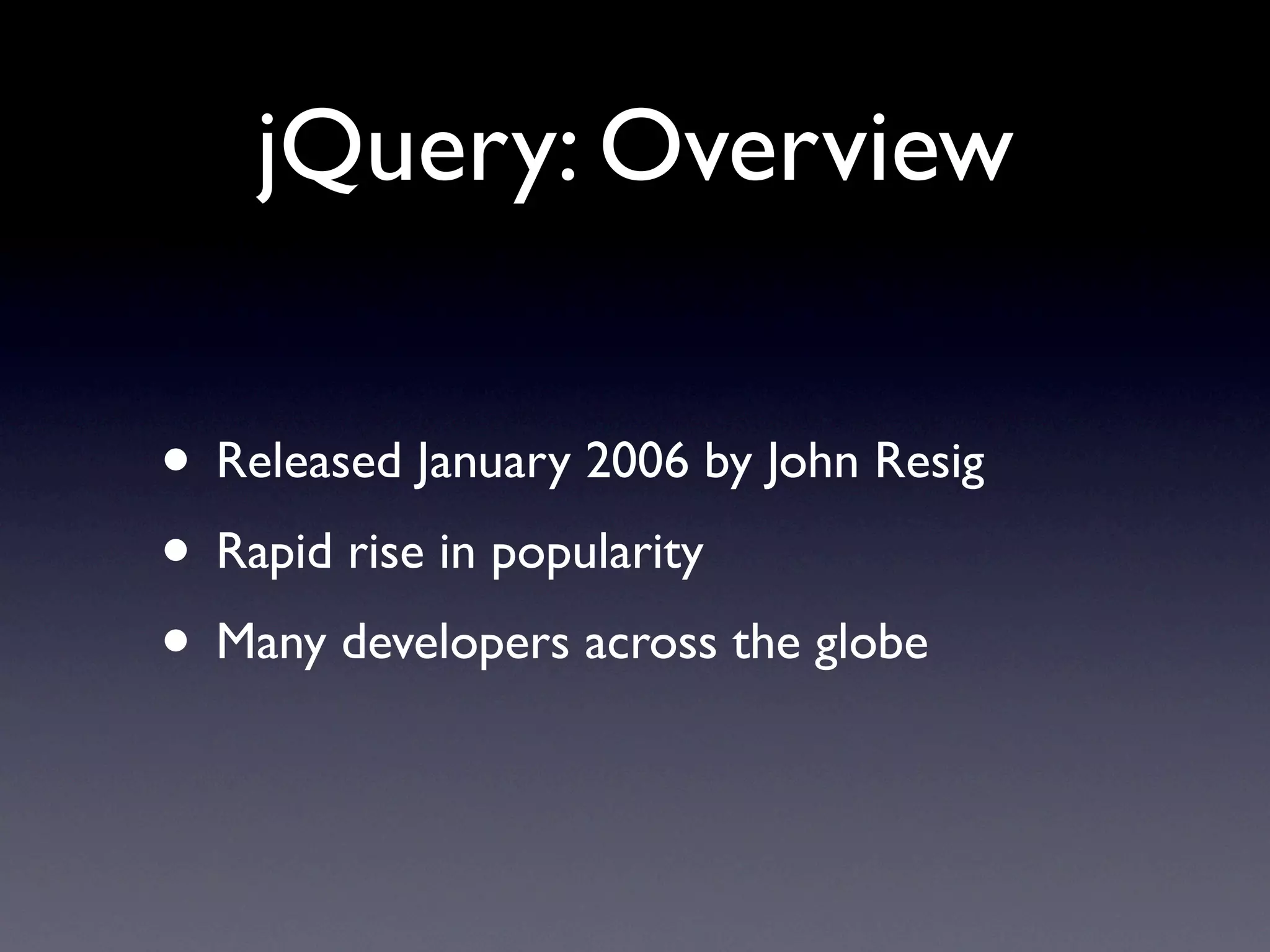

  • 23. jQuery: Overview • Released January 2006 by John Resig • Rapid rise in popularity • Many developers across the globe

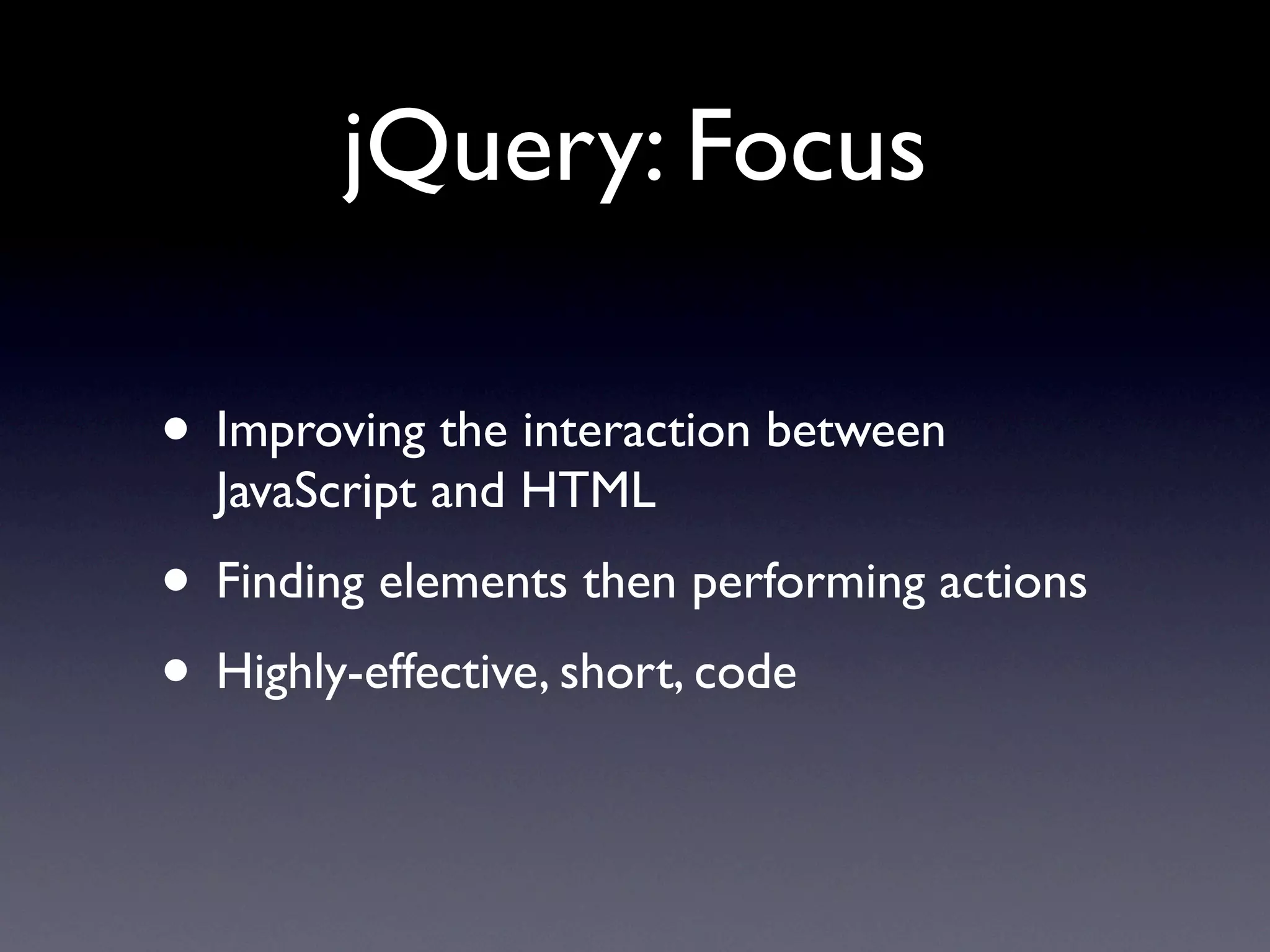

  • 24. jQuery: Focus • Improving the interaction between JavaScript and HTML • Finding elements then performing actions • Highly-effective, short, code

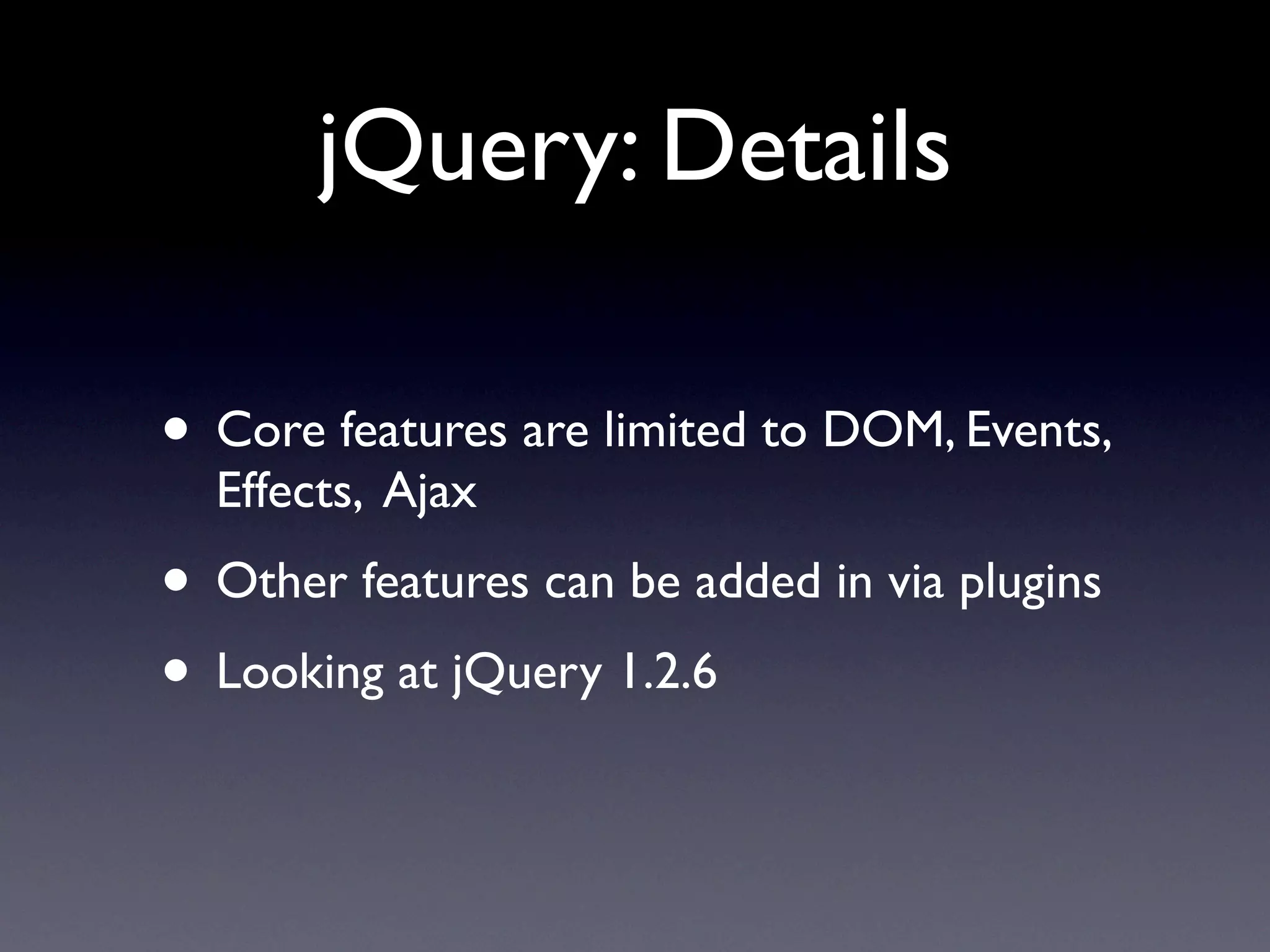

  • 25. jQuery: Details • Core features are limited to DOM, Events, Effects, Ajax • Other features can be added in via plugins • Looking at jQuery 1.2.6
  • 26. Yahoo! UI

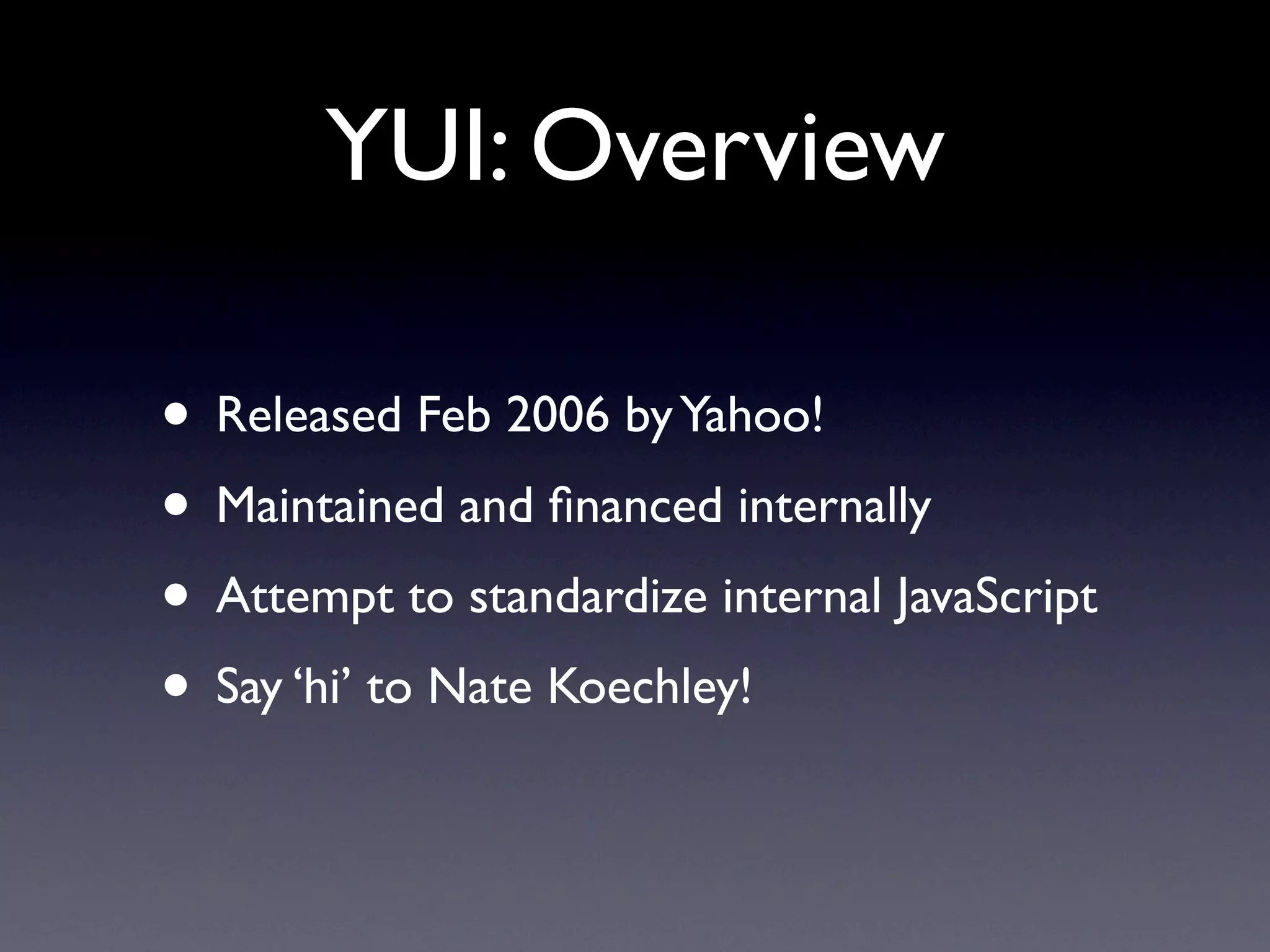

  • 27. YUI: Overview • Released Feb 2006 by Yahoo! • Maintained and financed internally • Attempt to standardize internal JavaScript • Say ‘hi’ to Nate Koechley!

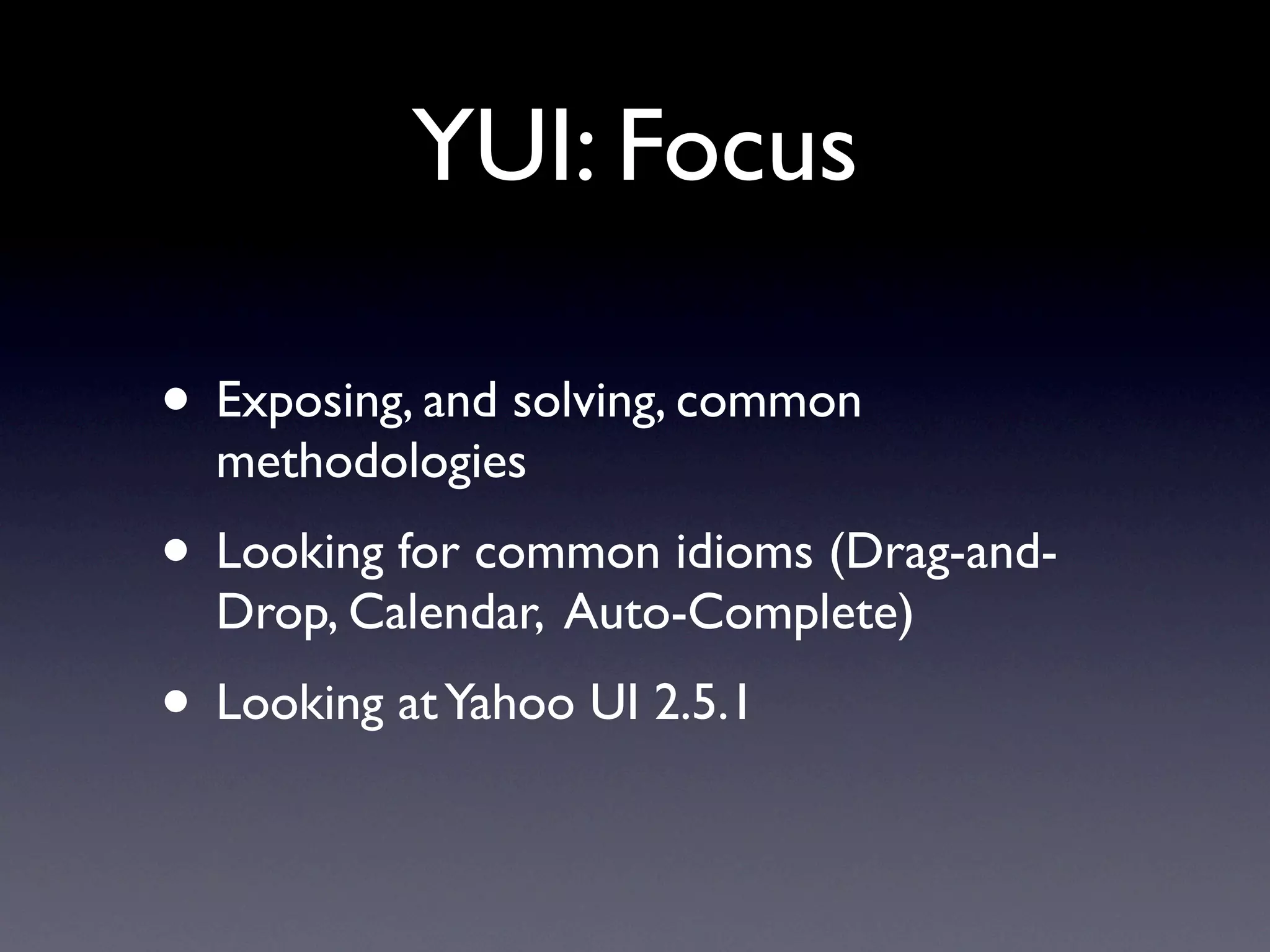

  • 28. YUI: Focus • Exposing, and solving, common methodologies • Looking for common idioms (Drag-and- Drop, Calendar, Auto-Complete) • Looking at Yahoo UI 2.5.1
  • 29. Dojo

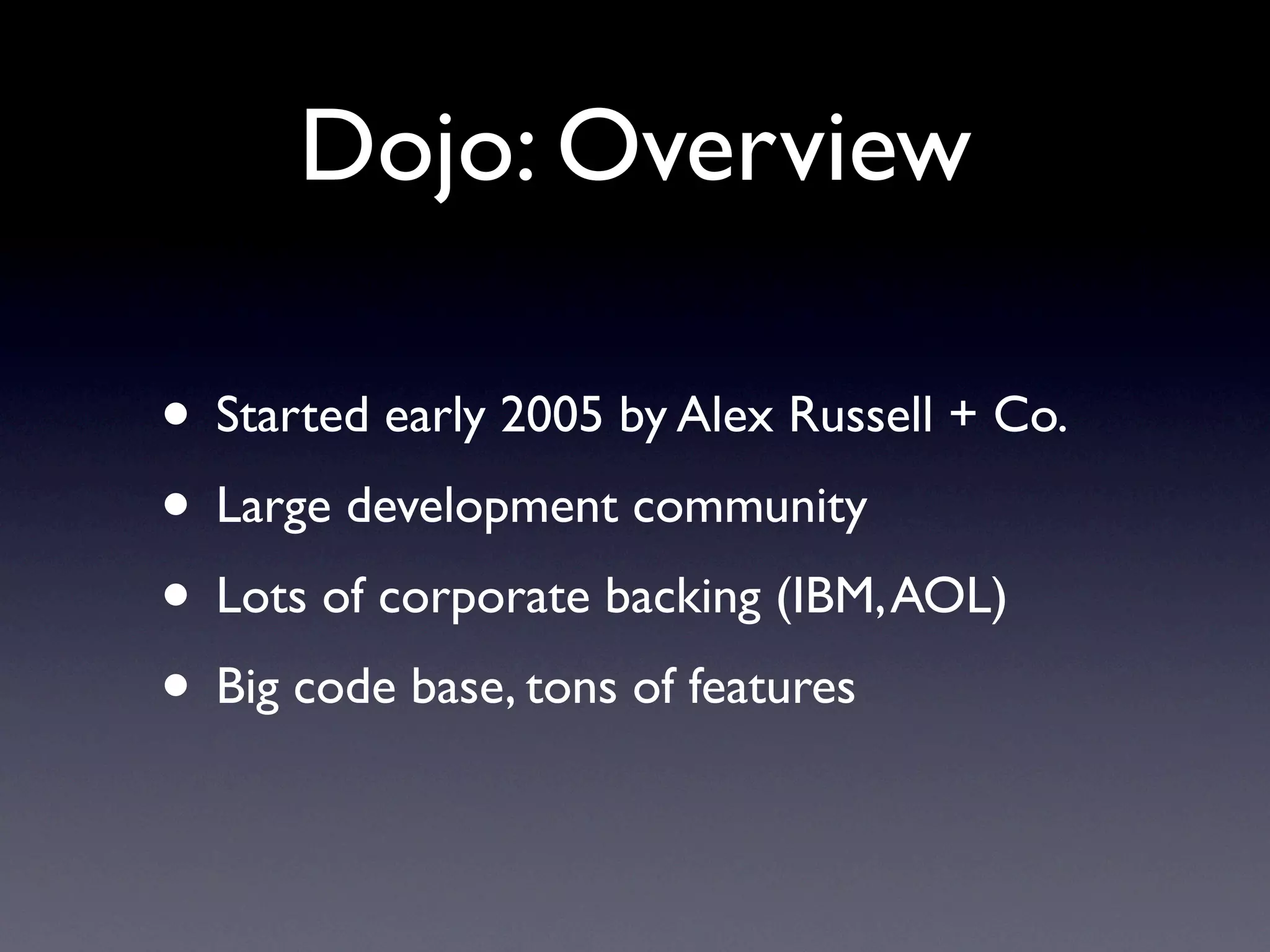

  • 30. Dojo: Overview • Started early 2005 by Alex Russell + Co. • Large development community • Lots of corporate backing (IBM, AOL) • Big code base, tons of features
  • 31. Dojo: Focus • Building complete web applications • A package heirarchy, e.g.: dojo.addClass( ... ) • Focus has transcended into widgets (Dijit) • Huge number of features • Today we’re looking at Dojo 1.1.1
  • 32. What should a library have?
  • 33. Code Base • Core Functionality • DOM • Events • Ajax • Animations • User Interface Widgets
  • 34. Development • Good Architecture • Open Licensing • Wide Browser Support • Small File Size
  • 35. Project • Development Team (Open, Funded) • Code in SVN / Bug Tracker • Good Unit Test Coverage
  • 36. Documentation • Full API Coverage • Plenty of Tutorials • Some Books • Wide variety of Demos
  • 37. Community • Active Mailing List / Forum • Support and Training • Popularity
  • 38. Code Base • Core Functionality • DOM • Events • Ajax • Animations • User Interface Widgets
  • 39. Core Functionality • Bare minimum needed to make a dynamic “Ajax” web site: • DOM (Traversal and Manipulation) • Events • Ajax • Animations

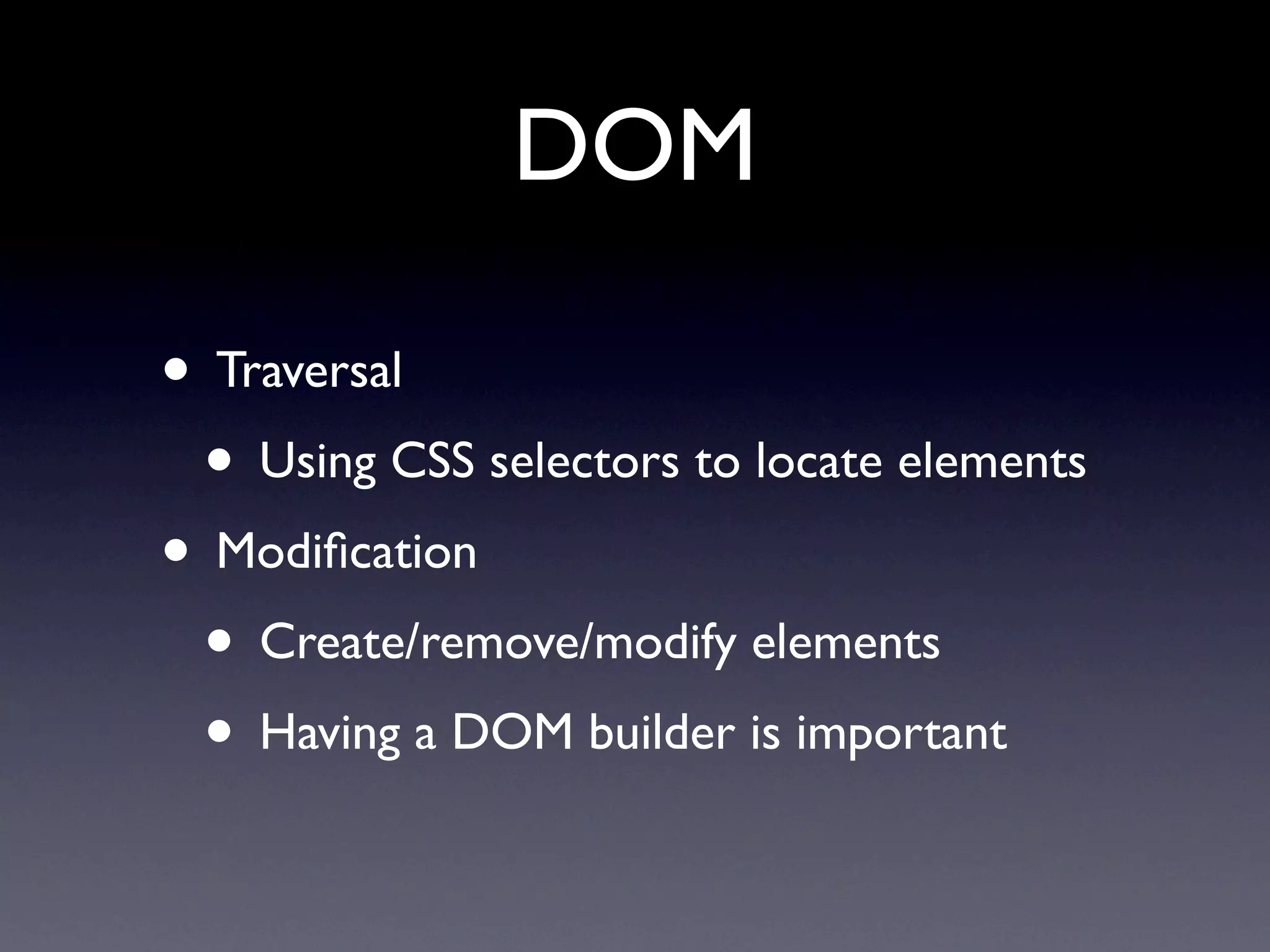

  • 40. DOM • Traversal • Using CSS selectors to locate elements • Modification • Create/remove/modify elements • Having a DOM builder is important

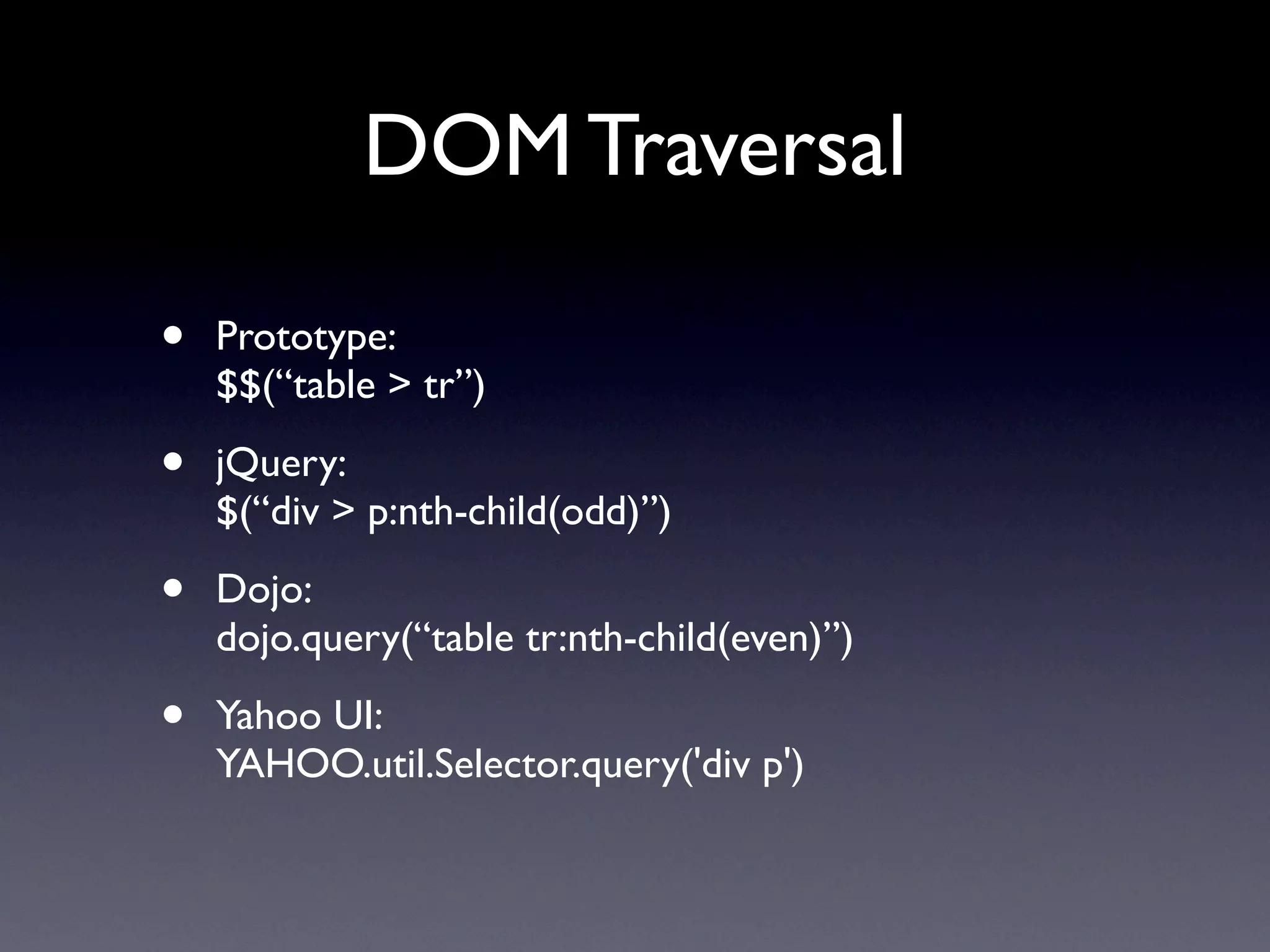

  • 41. DOM Traversal • Prototype: $$(“table > tr”) • jQuery: $(“div > p:nth-child(odd)”) • Dojo: dojo.query(“table tr:nth-child(even)”) • Yahoo UI: YAHOO.util.Selector.query('div p')

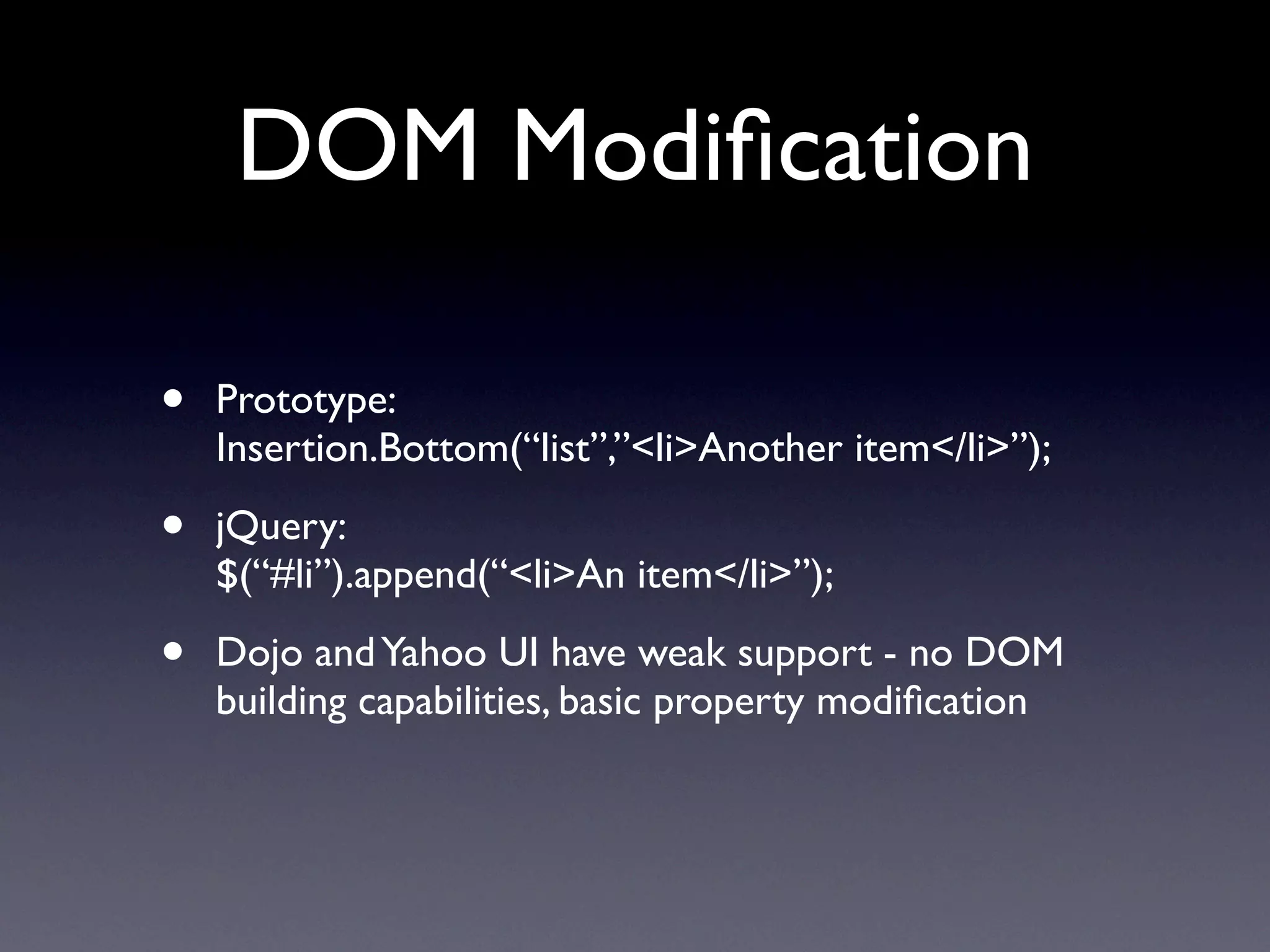

  • 42. DOM Modification • Prototype: Insertion.Bottom(“list”,”<li>Another item</li>”); • jQuery: $(“#li”).append(“<li>An item</li>”); • Dojo and Yahoo UI have weak support - no DOM building capabilities, basic property modification

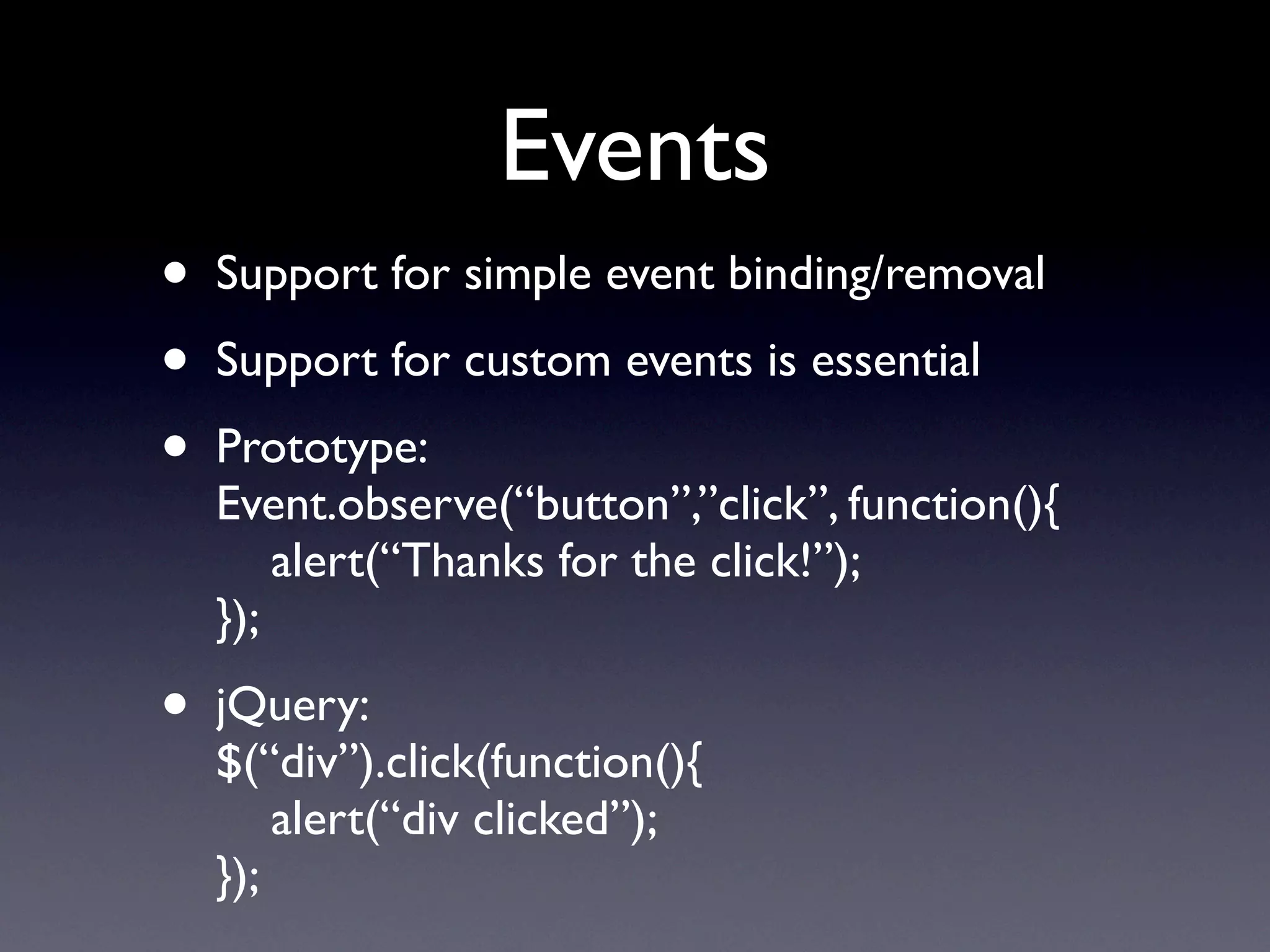

  • 43. Events • Support for simple event binding/removal • Support for custom events is essential • Prototype: Event.observe(“button”,”click”, function(){ alert(“Thanks for the click!”); }); • jQuery: $(“div”).click(function(){ alert(“div clicked”); });

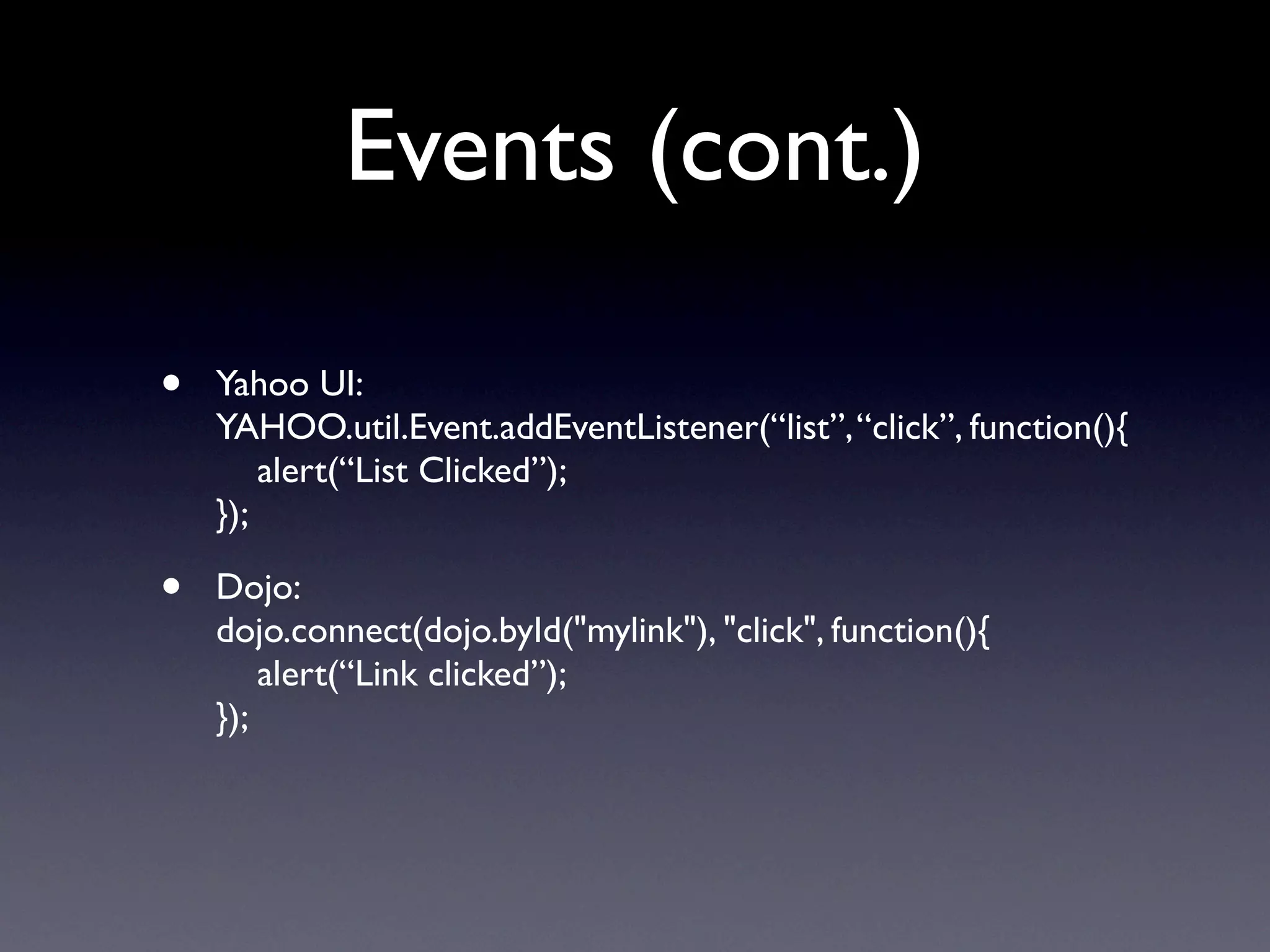

  • 44. Events (cont.) • Yahoo UI: YAHOO.util.Event.addEventListener(“list”, “click”, function(){ alert(“List Clicked”); }); • Dojo: dojo.connect(dojo.byId(quot;mylinkquot;), quot;clickquot;, function(){ alert(“Link clicked”); });

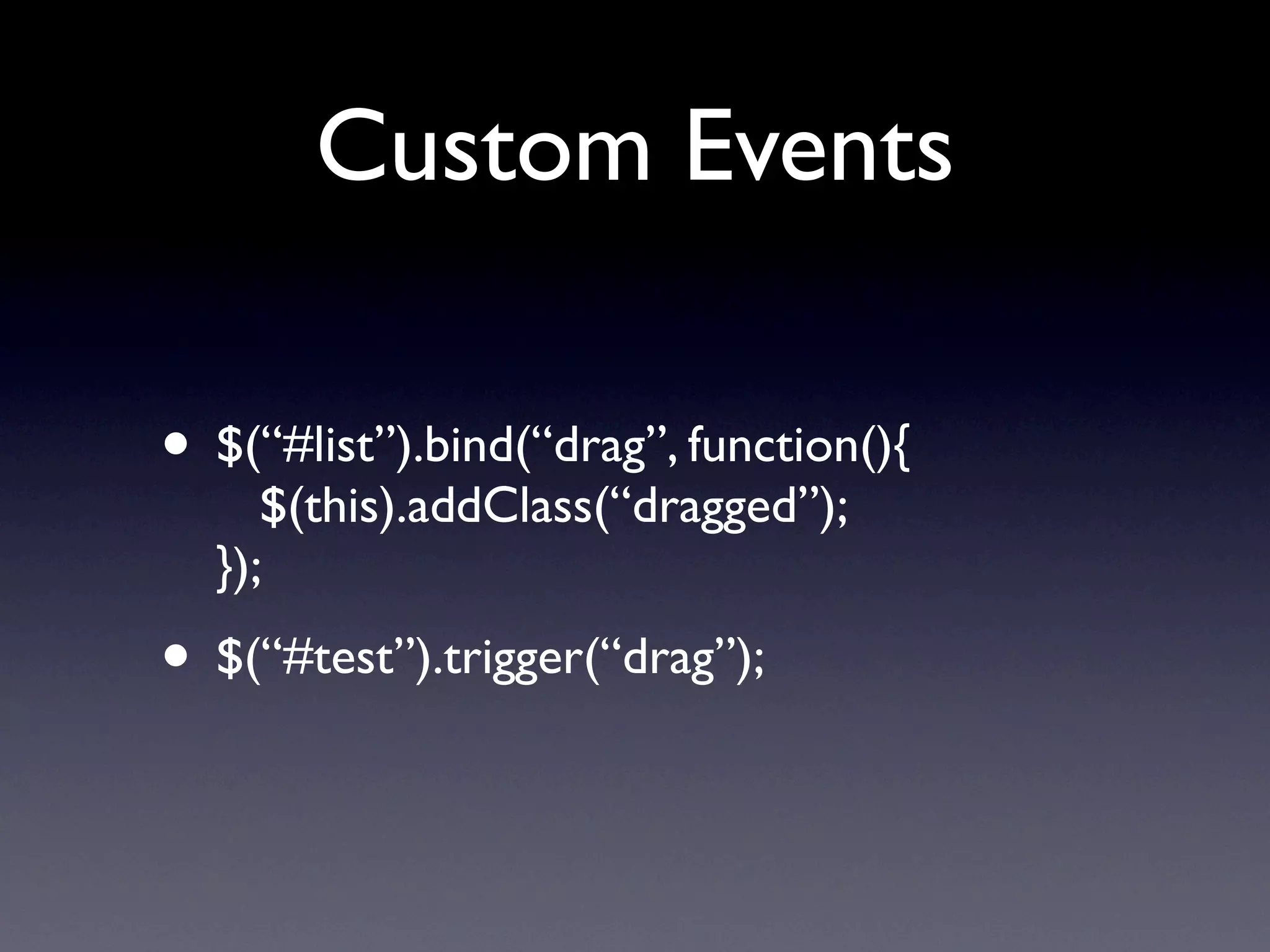

  • 45. Custom Events • $(“#list”).bind(“drag”, function(){ $(this).addClass(“dragged”); }); • $(“#test”).trigger(“drag”);

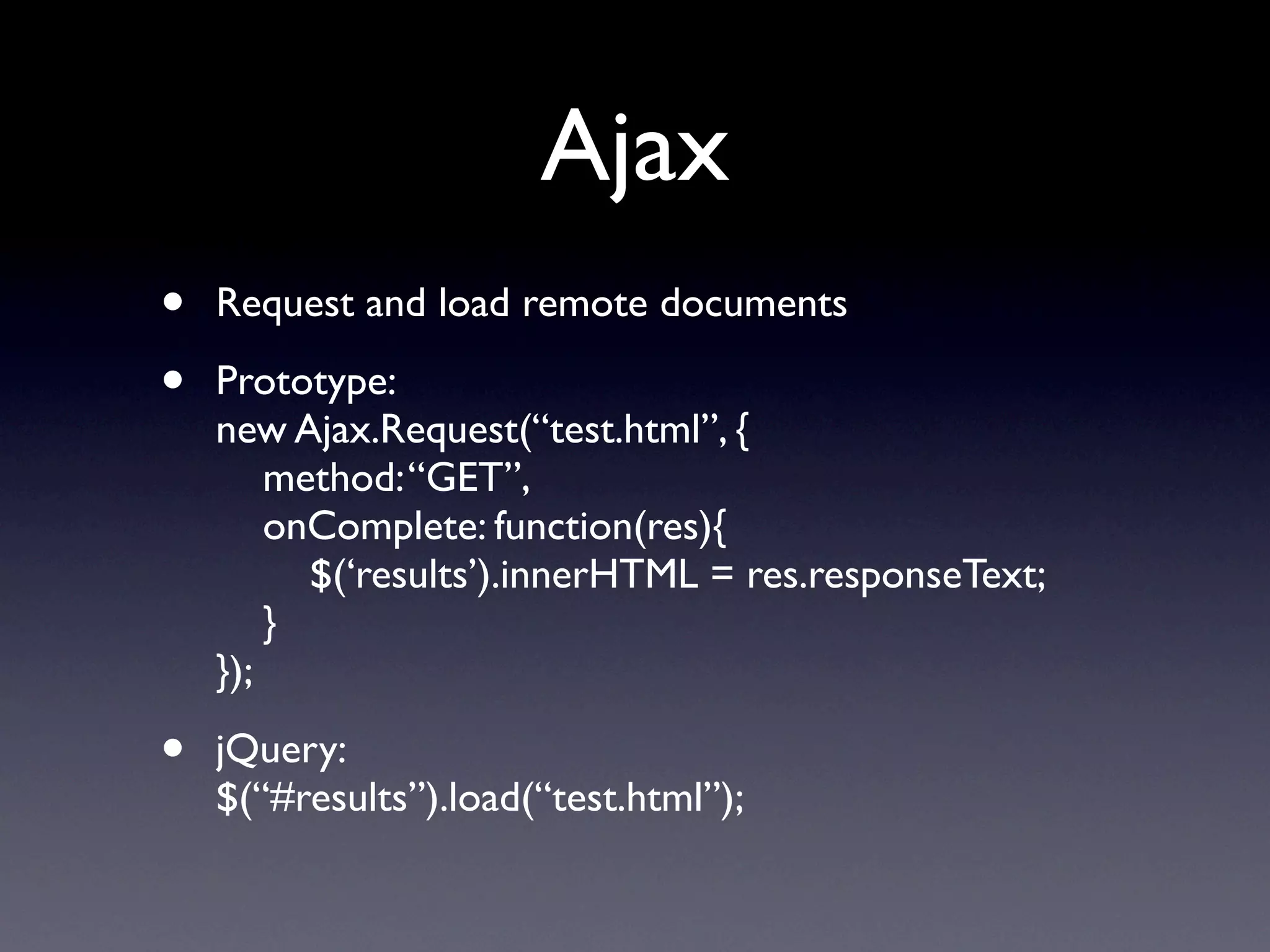

  • 46. Ajax • Request and load remote documents • Prototype: new Ajax.Request(“test.html”, { method: “GET”, onComplete: function(res){ $(‘results’).innerHTML = res.responseText; } }); • jQuery: $(“#results”).load(“test.html”);

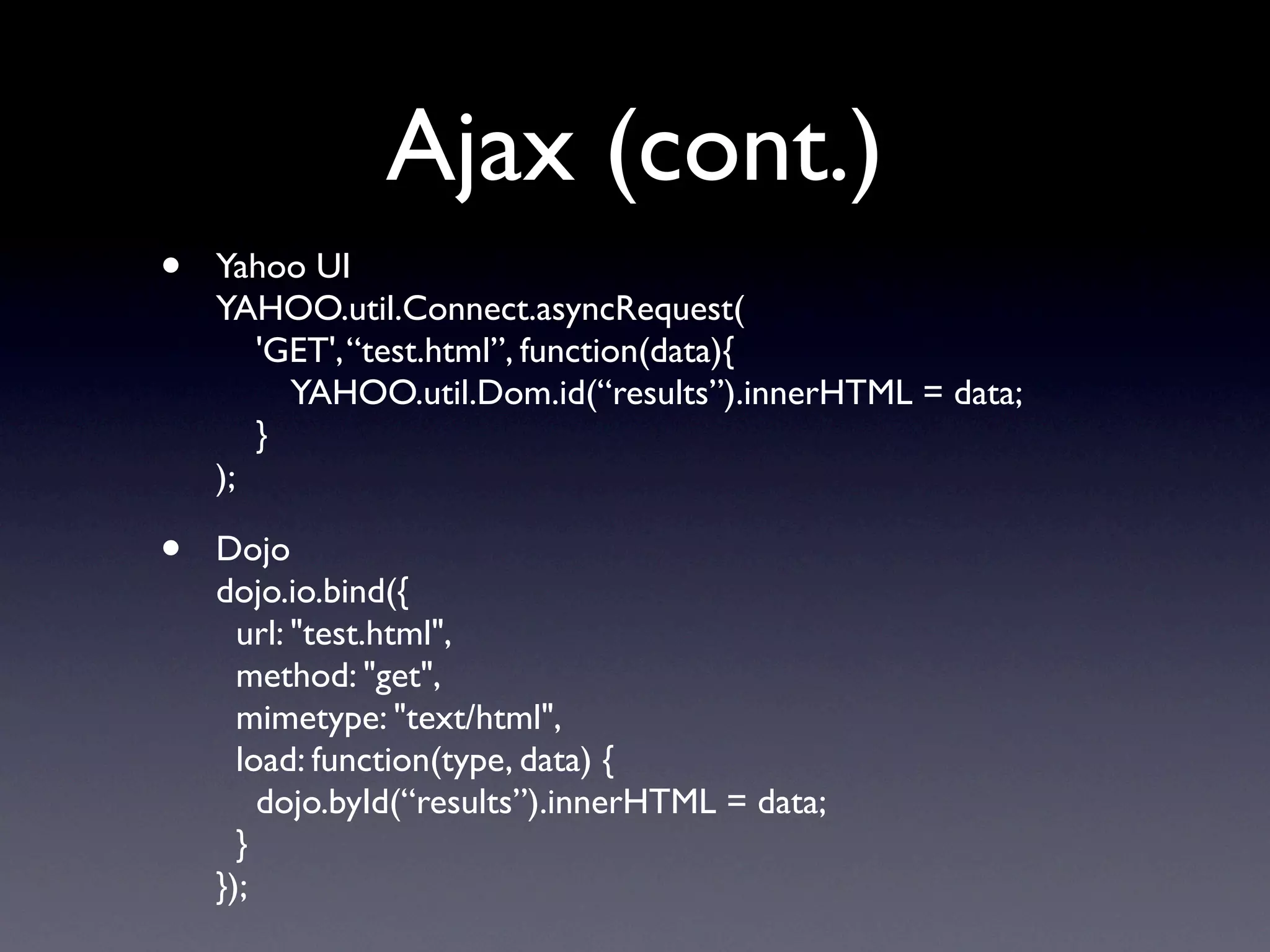

  • 47. Ajax (cont.) • Yahoo UI YAHOO.util.Connect.asyncRequest( 'GET', “test.html”, function(data){ YAHOO.util.Dom.id(“results”).innerHTML = data; } ); • Dojo dojo.io.bind({ url: quot;test.htmlquot;, method: quot;getquot;, mimetype: quot;text/htmlquot;, load: function(type, data) { dojo.byId(“results”).innerHTML = data; } });

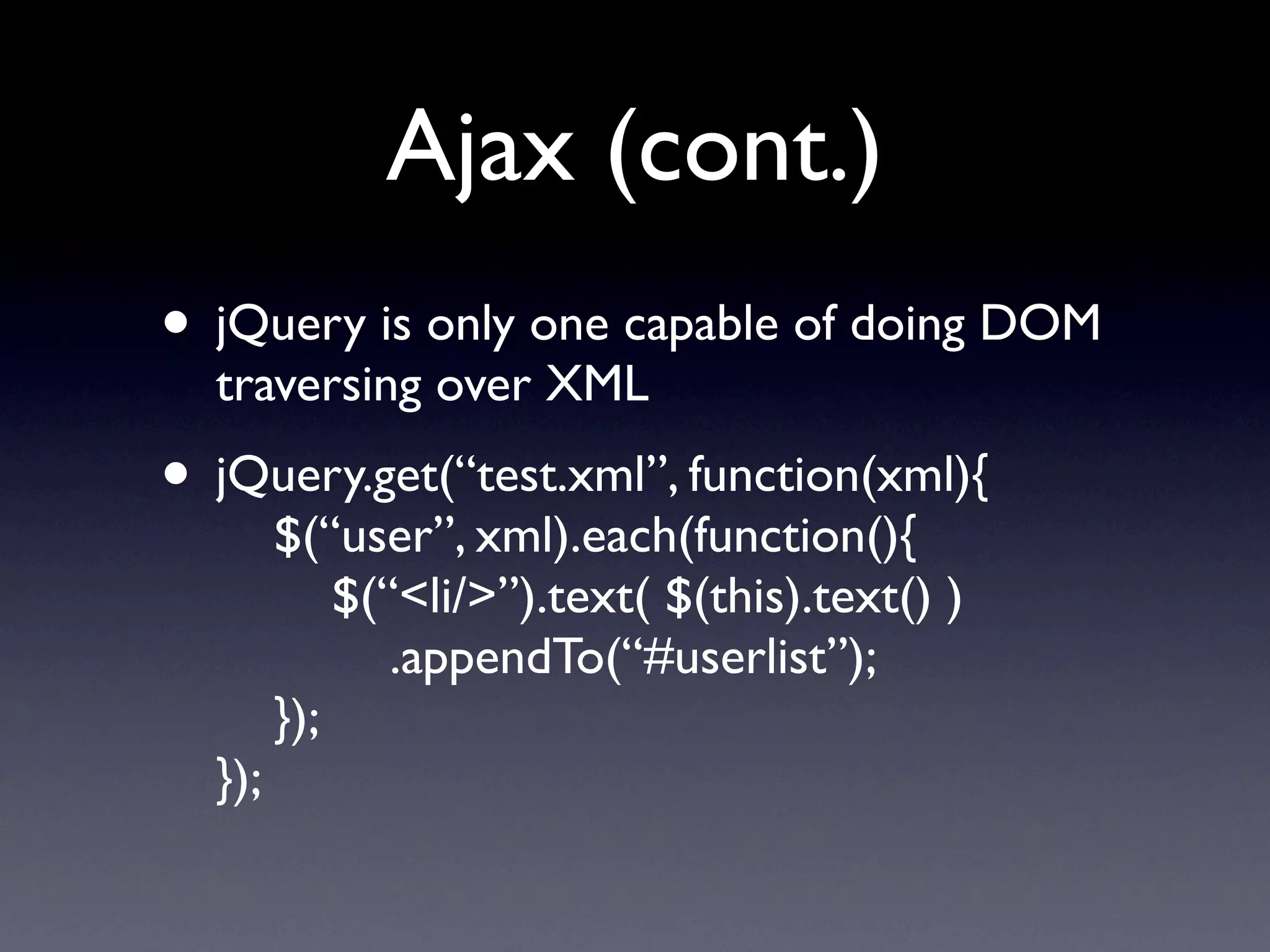

  • 48. Ajax (cont.) • jQuery is only one capable of doing DOM traversing over XML • jQuery.get(“test.xml”, function(xml){ $(“user”, xml).each(function(){ $(“<li/>”).text( $(this).text() ) .appendTo(“#userlist”); }); });

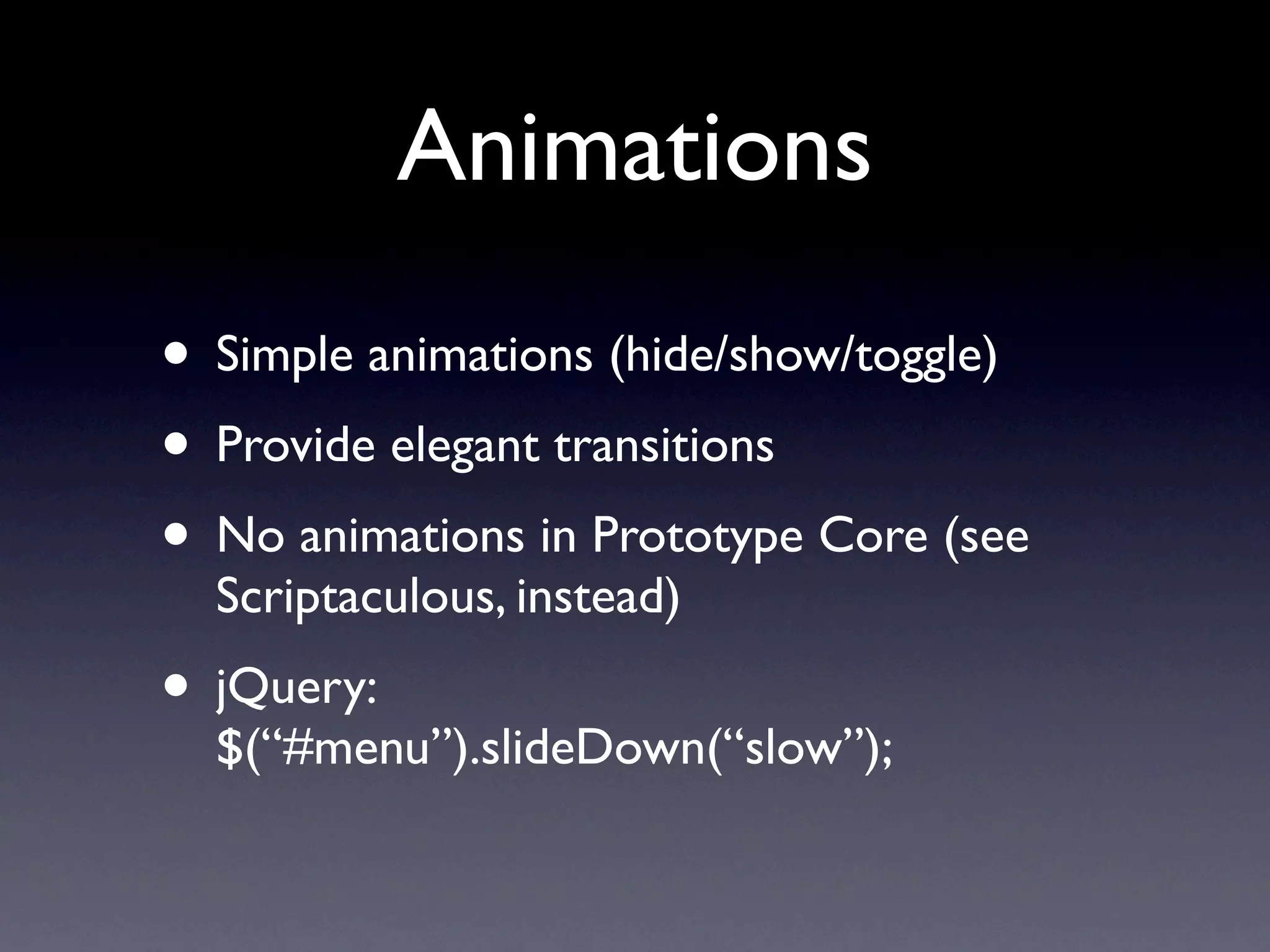

  • 49. Animations • Simple animations (hide/show/toggle) • Provide elegant transitions • No animations in Prototype Core (see Scriptaculous, instead) • jQuery: $(“#menu”).slideDown(“slow”);

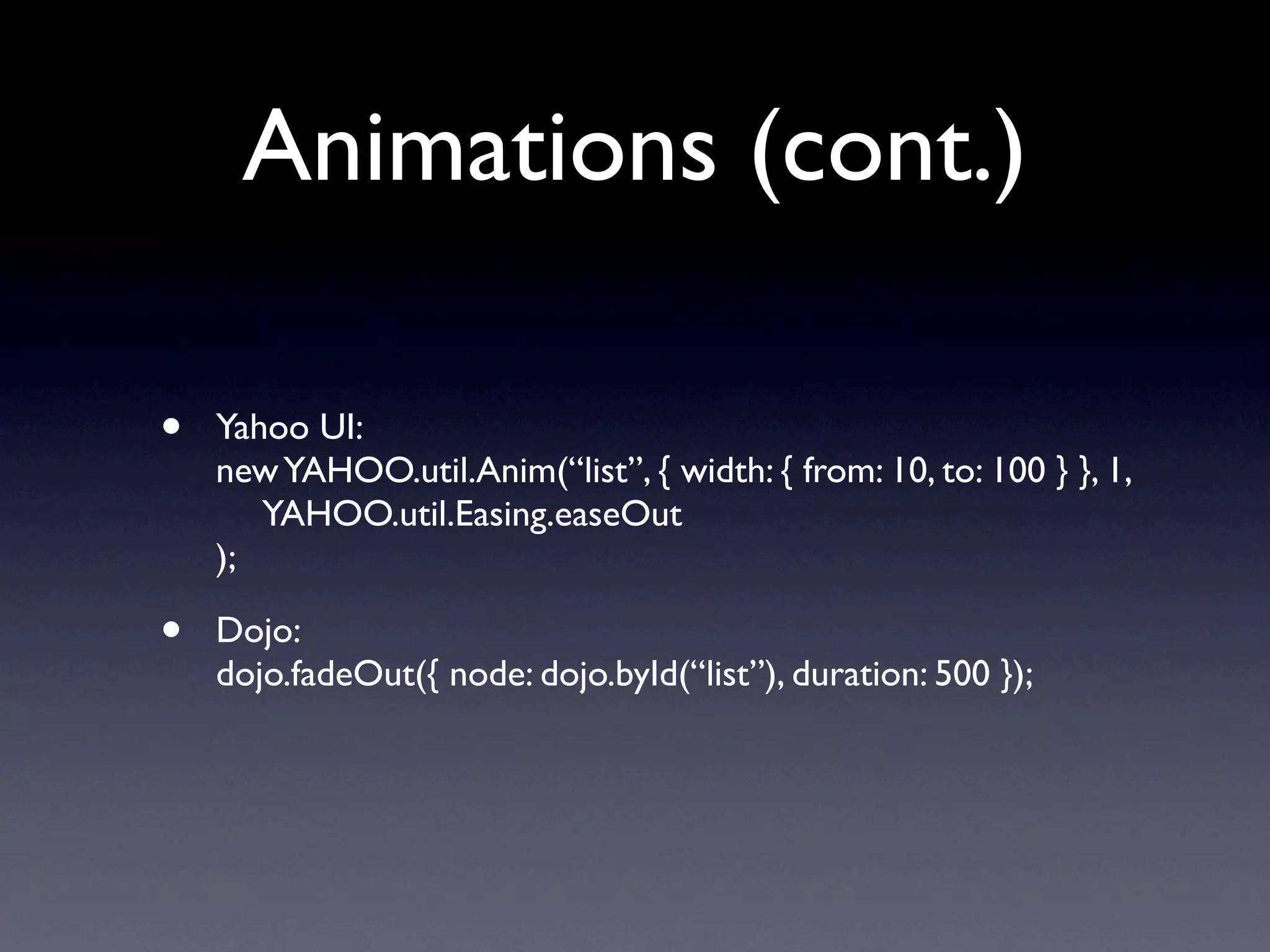

  • 50. Animations (cont.) • Yahoo UI: new YAHOO.util.Anim(“list”, { width: { from: 10, to: 100 } }, 1, YAHOO.util.Easing.easeOut ); • Dojo: dojo.fadeOut({ node: dojo.byId(“list”), duration: 500 });

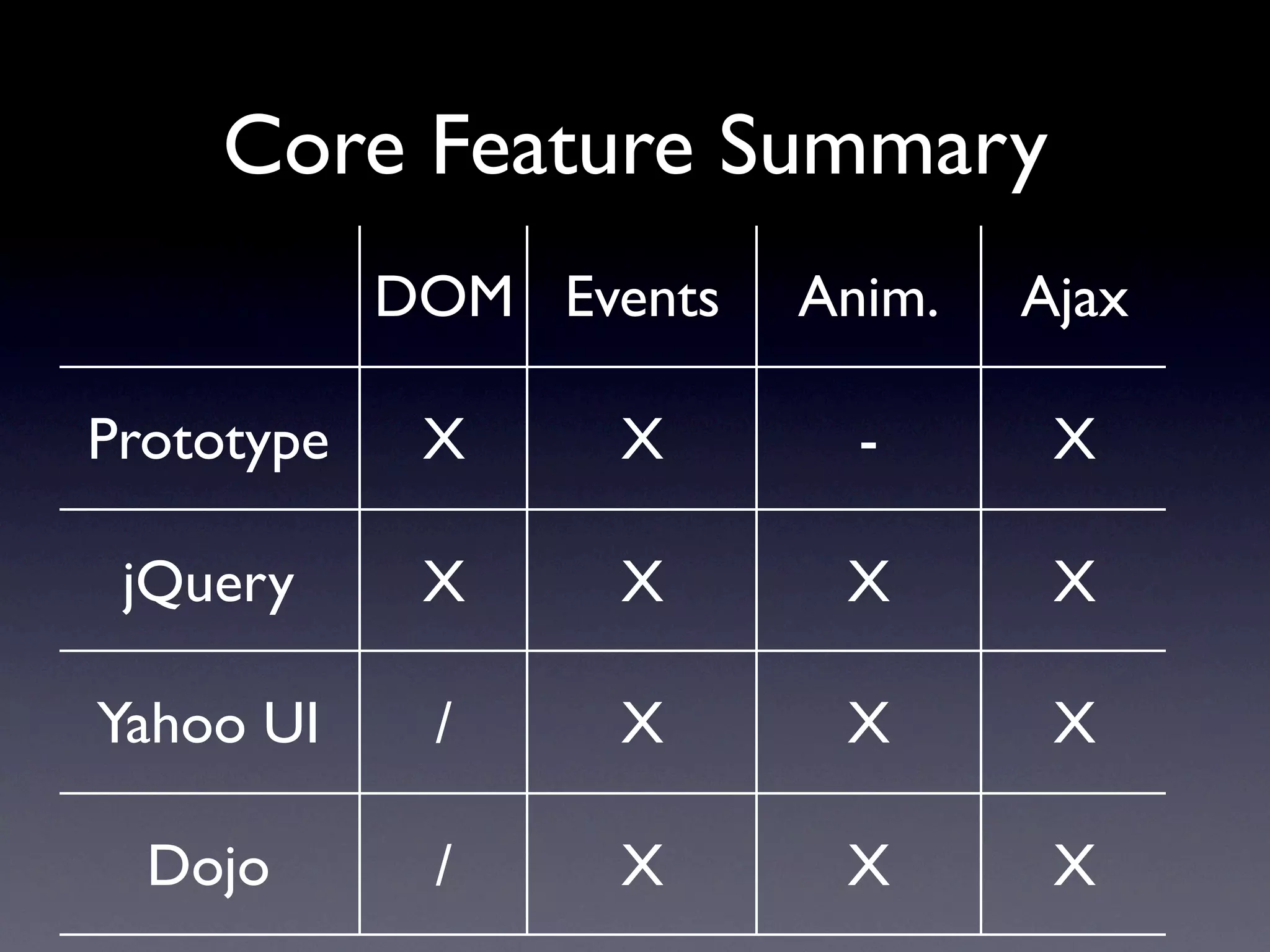

  • 51. Core Feature Summary DOM Events Anim. Ajax Prototype X X - X jQuery X X X X Yahoo UI / X X X Dojo / X X X

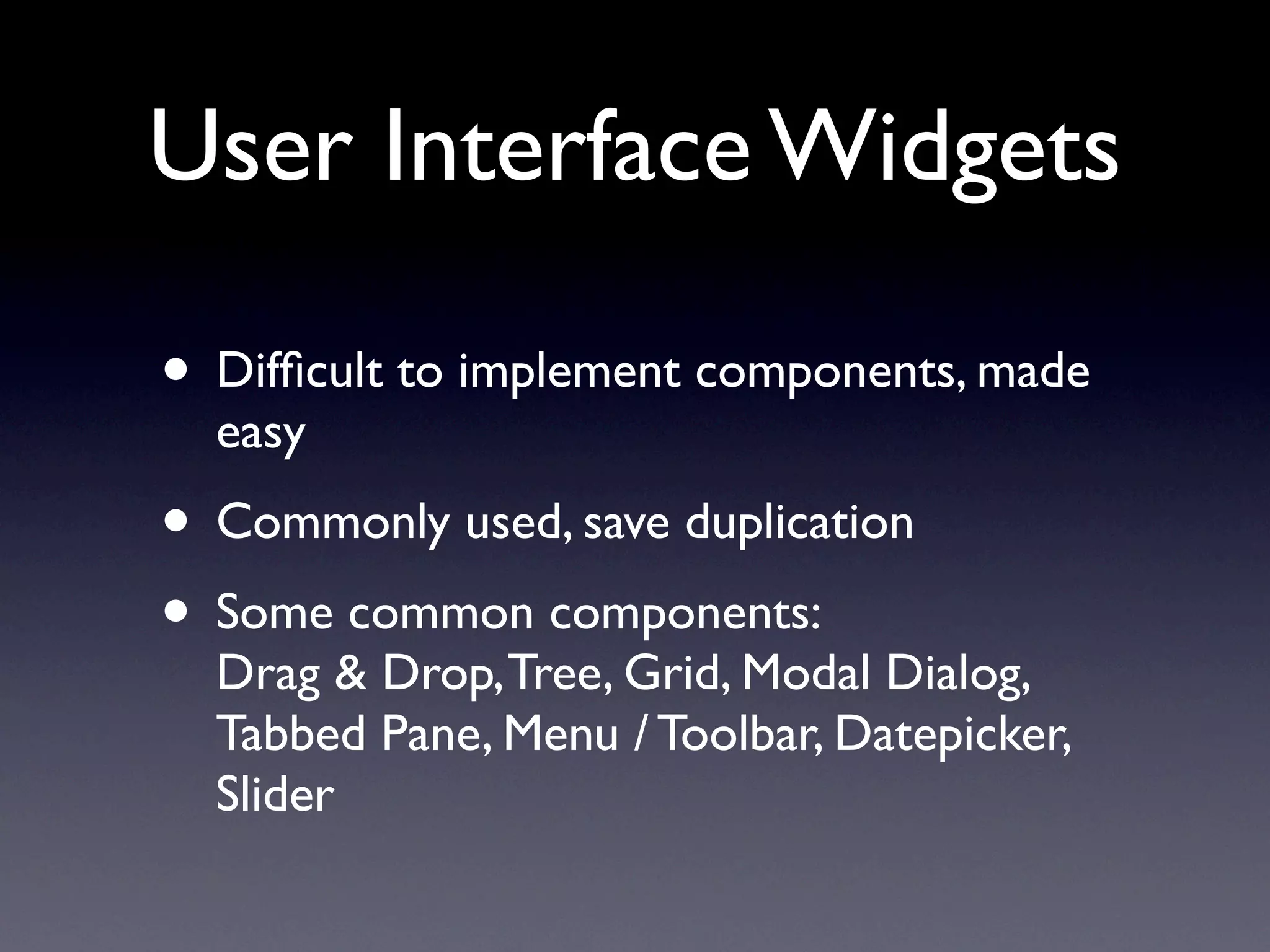

  • 52. User Interface Widgets • Difficult to implement components, made easy • Commonly used, save duplication • Some common components: Drag & Drop, Tree, Grid, Modal Dialog, Tabbed Pane, Menu / Toolbar, Datepicker, Slider
  • 53. User Interface Packages • Only looking at officially-supported code: • Prototype has Scriptaculous • jQuery has jQuery UI • Dojo has Dijit • Included in Yahoo UI

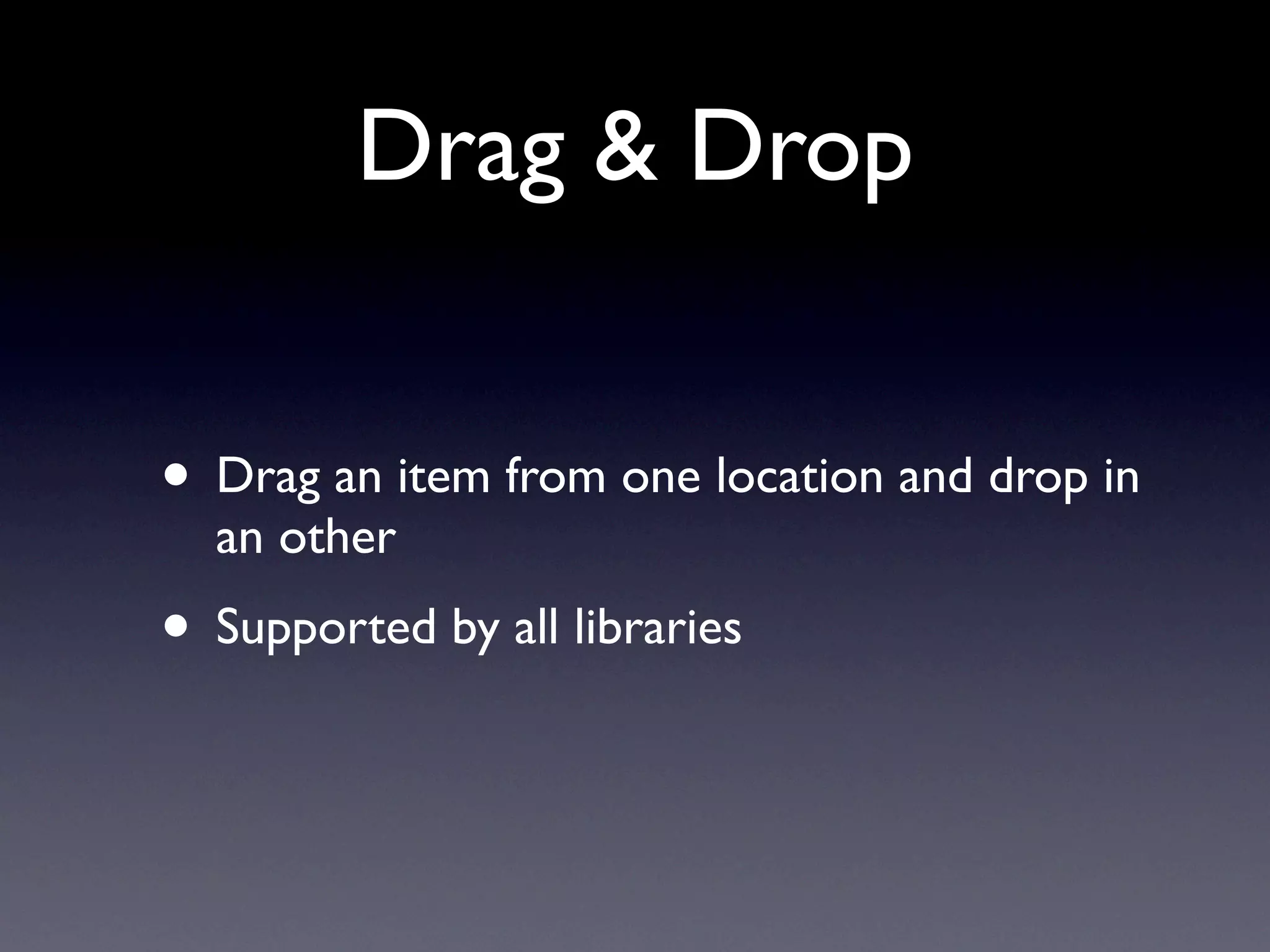

  • 54. Drag & Drop • Drag an item from one location and drop in an other • Supported by all libraries

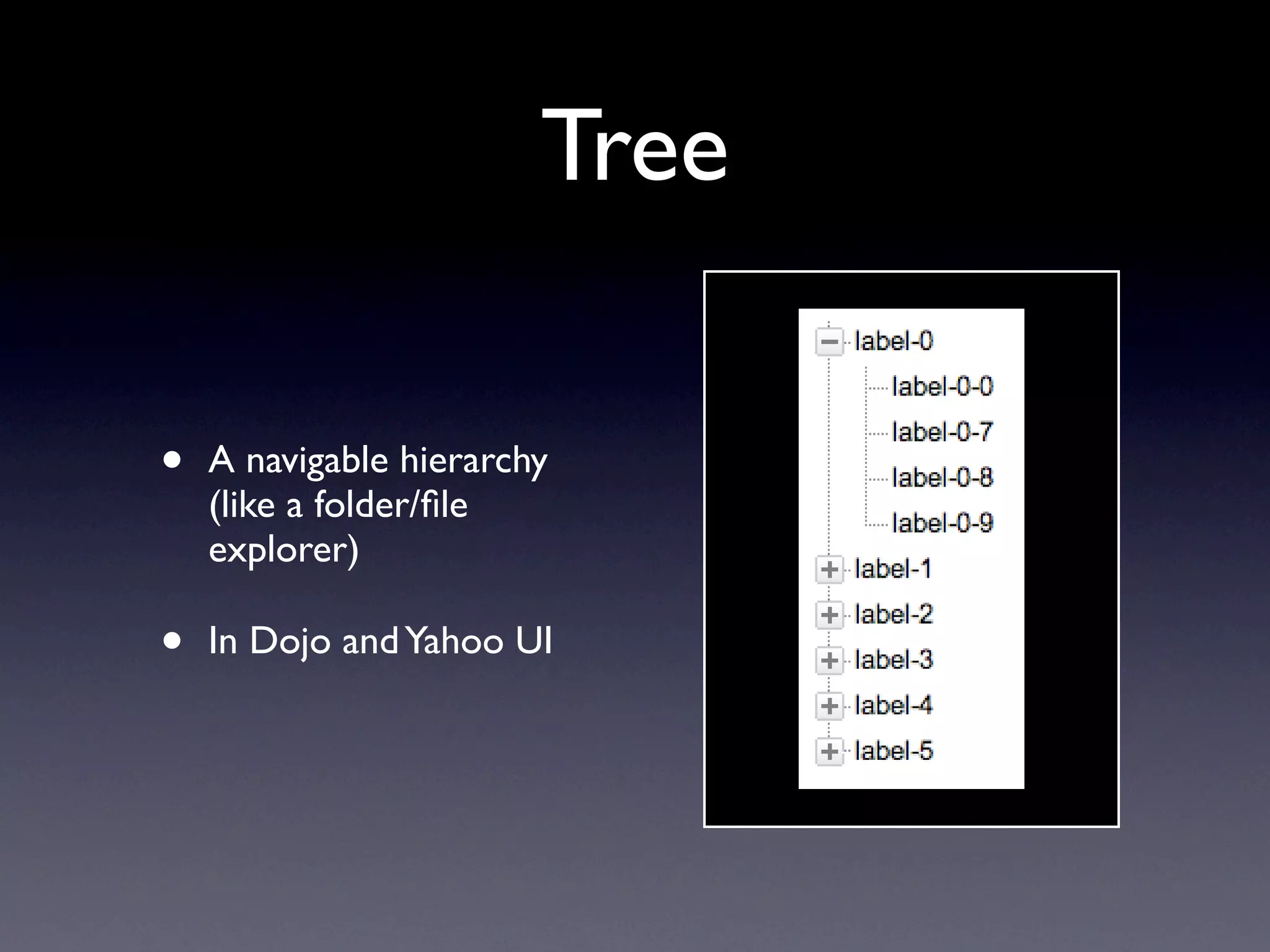

  • 55. Tree • A navigable hierarchy (like a folder/file explorer) • In Dojo and Yahoo UI

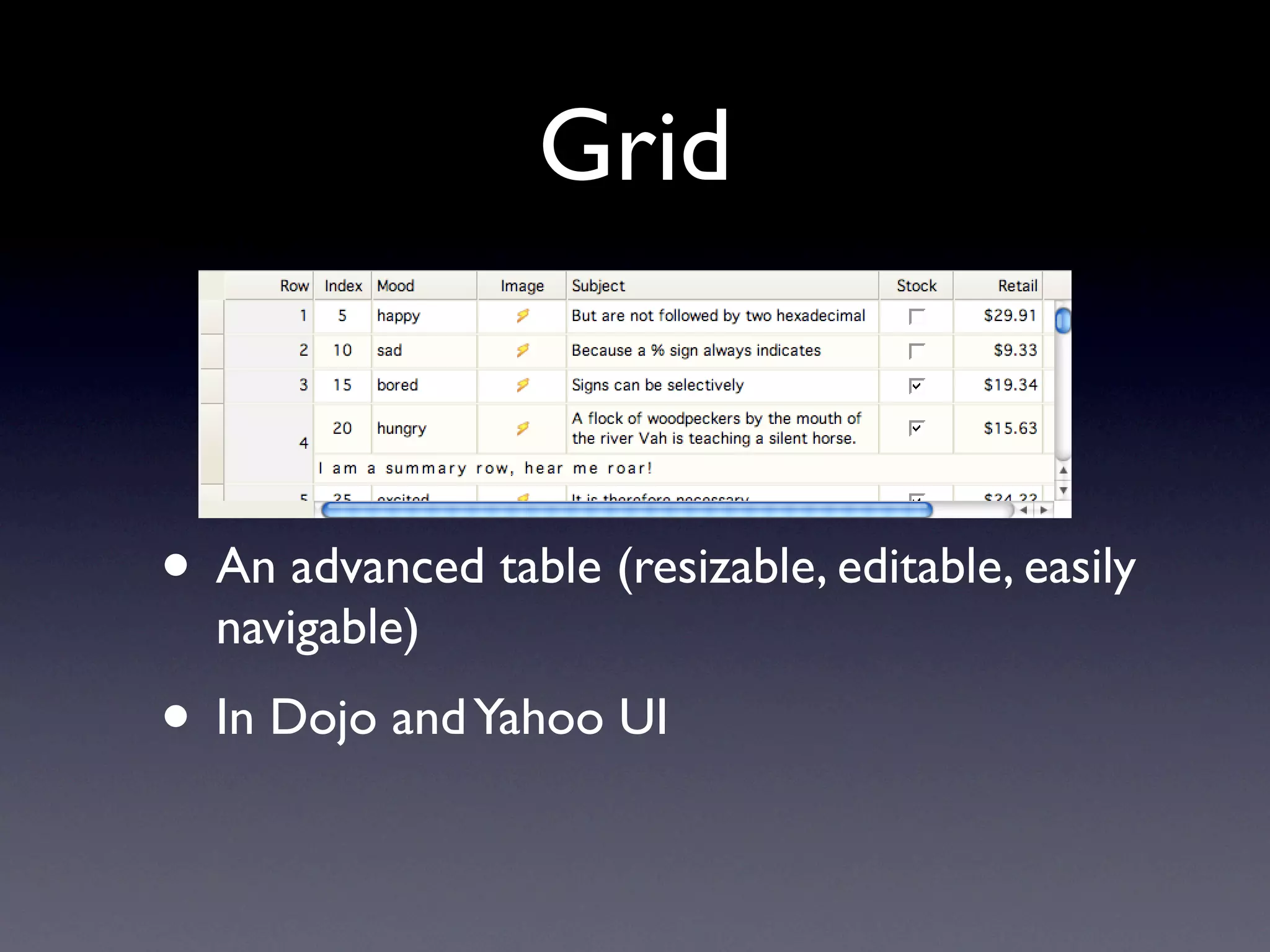

  • 56. Grid • An advanced table (resizable, editable, easily navigable) • In Dojo and Yahoo UI

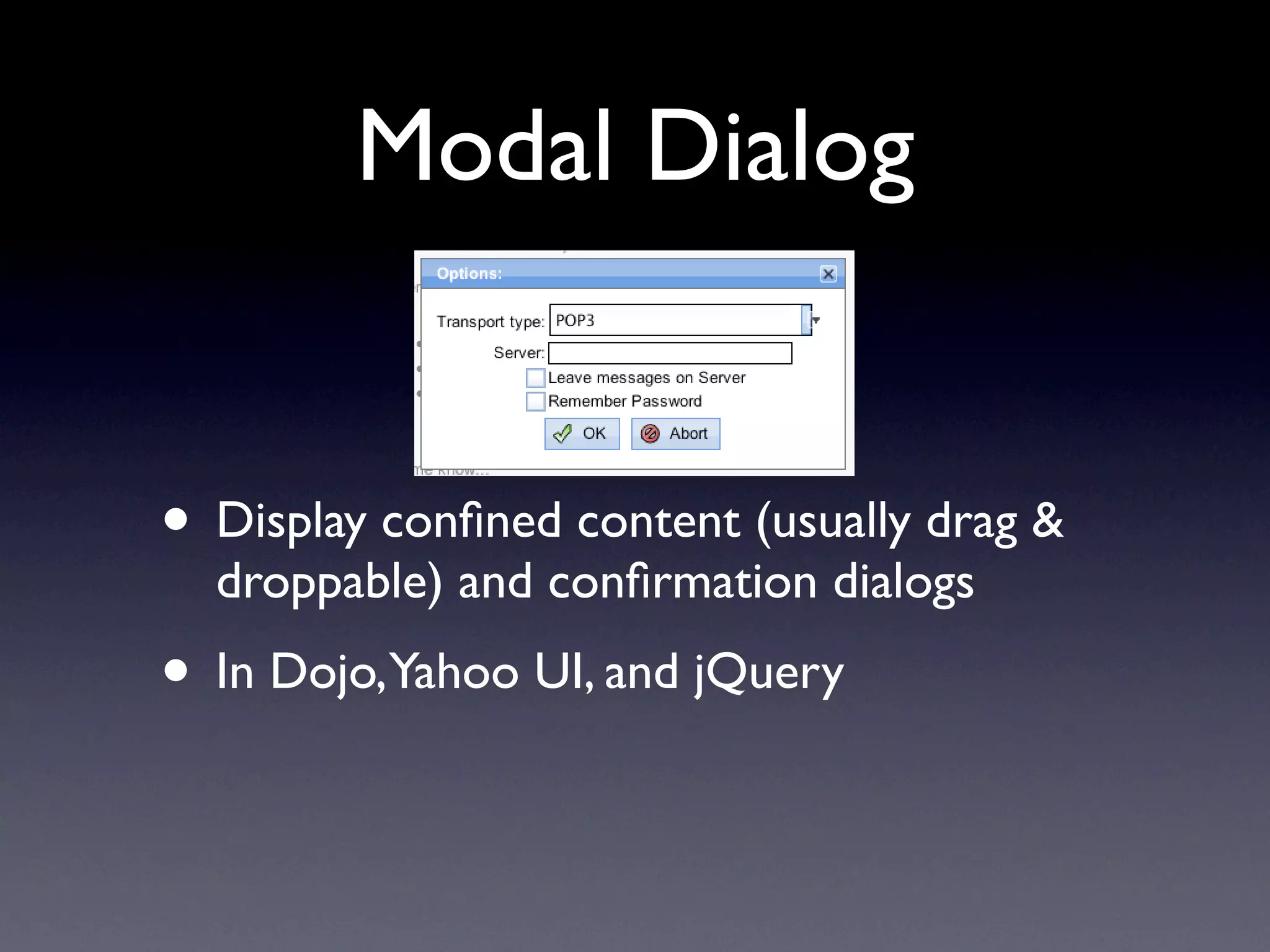

  • 57. Modal Dialog • Display confined content (usually drag & droppable) and confirmation dialogs • In Dojo,Yahoo UI, and jQuery

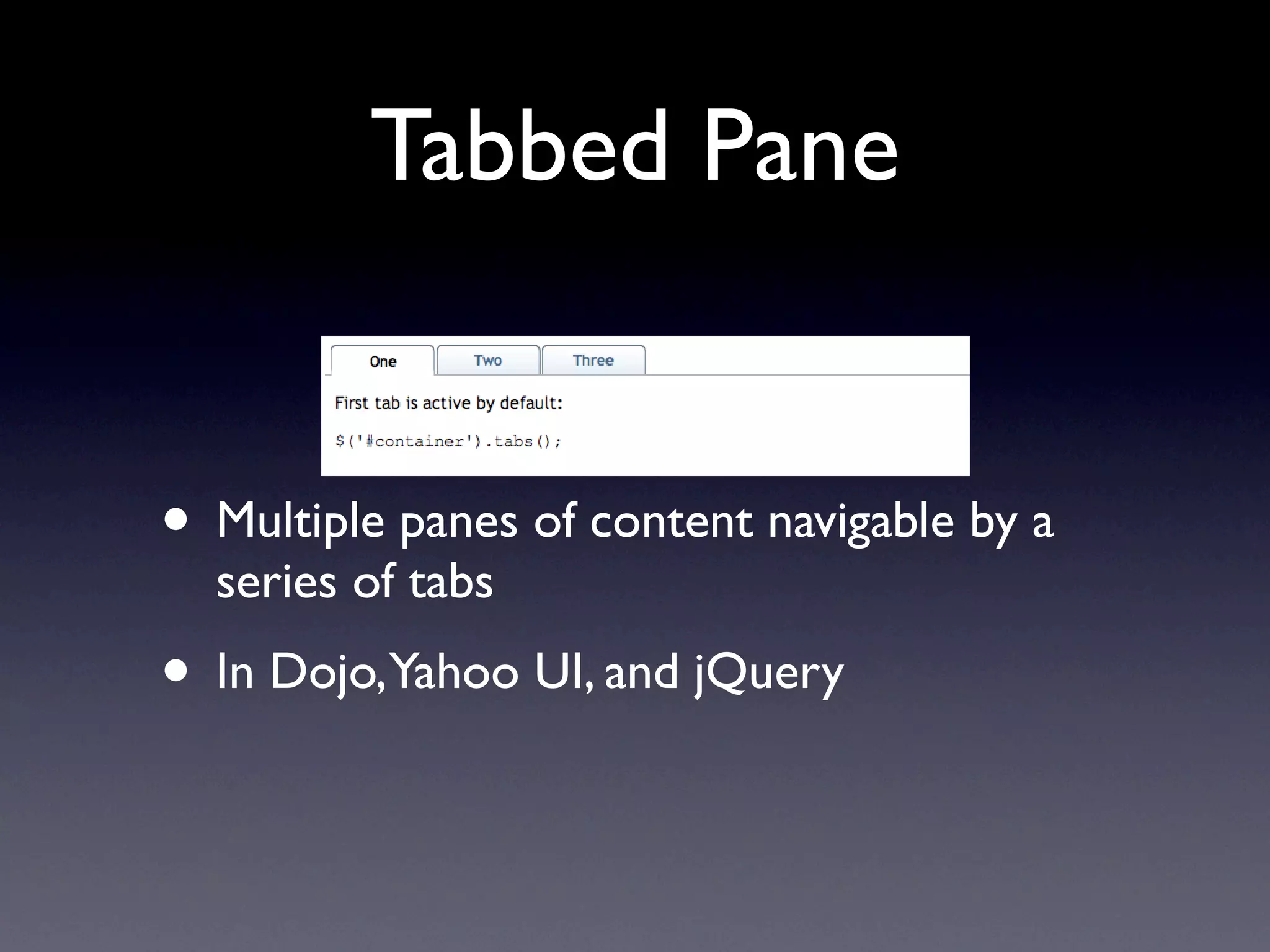

  • 58. Tabbed Pane • Multiple panes of content navigable by a series of tabs • In Dojo,Yahoo UI, and jQuery

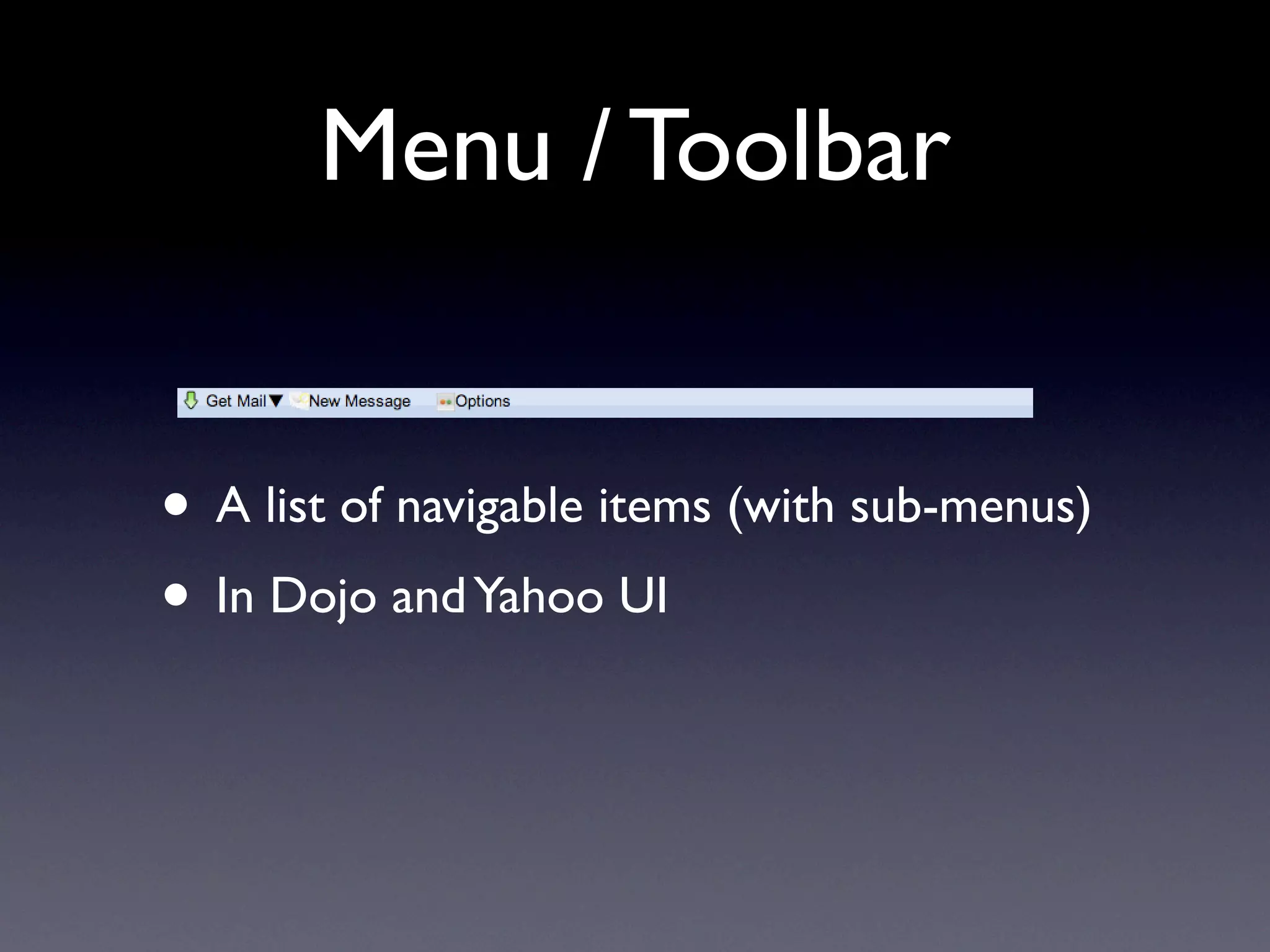

  • 59. Menu / Toolbar • A list of navigable items (with sub-menus) • In Dojo and Yahoo UI
  • 60. Datepicker • An input for selecting a date (or a range of dates) • In Dojo,Yahoo UI, and jQuery

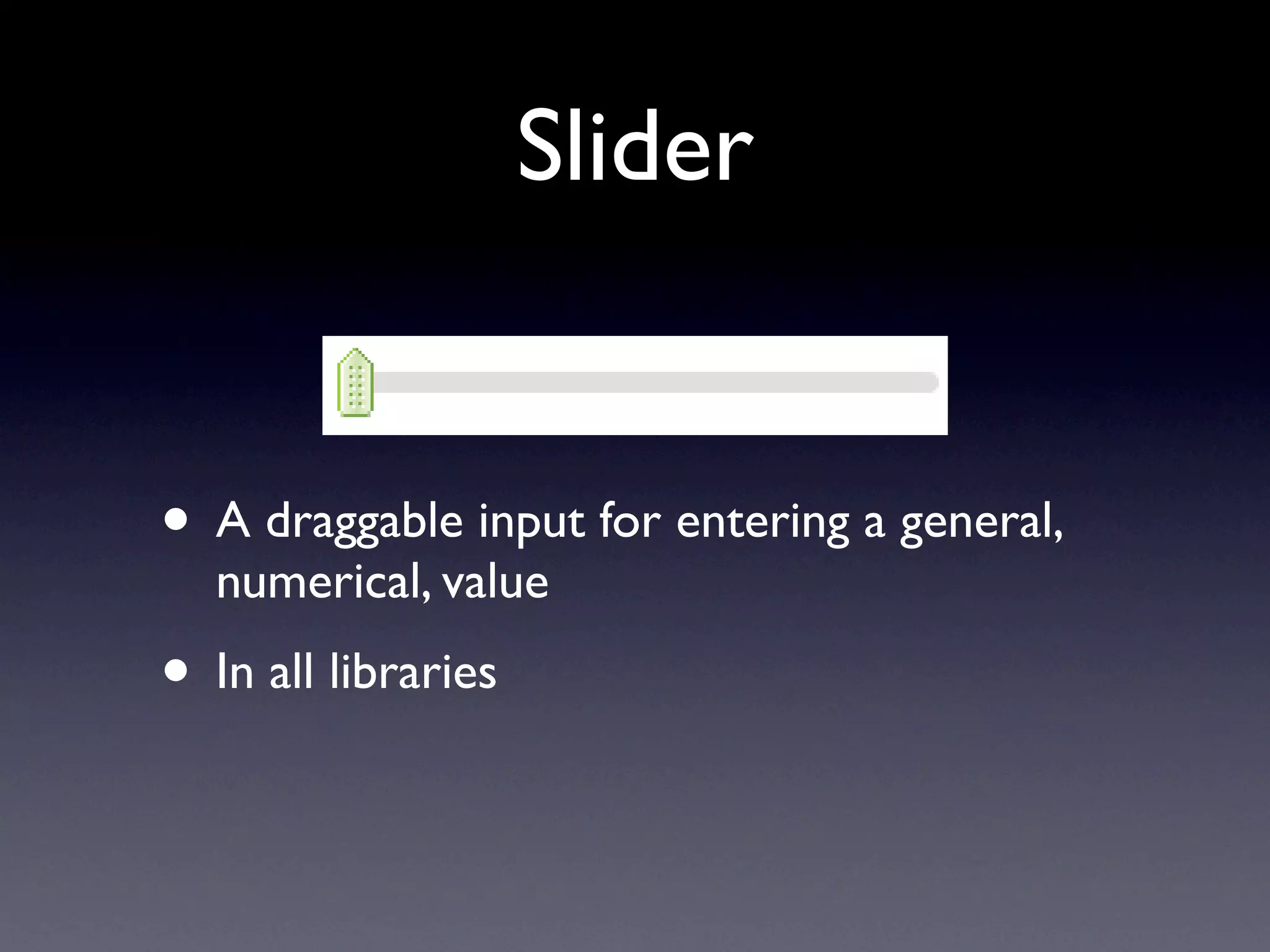

  • 61. Slider • A draggable input for entering a general, numerical, value • In all libraries

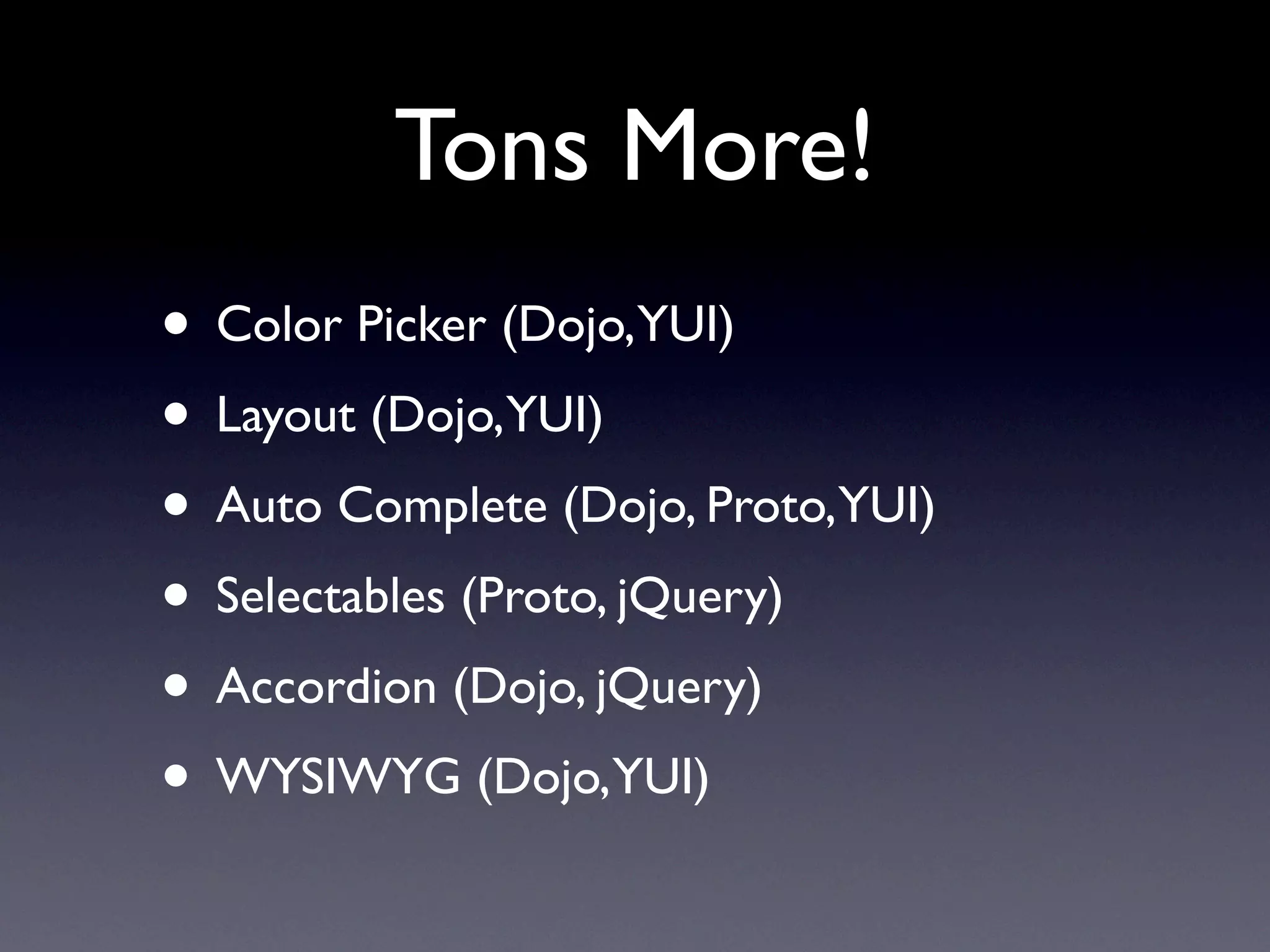

  • 62. Tons More! • Color Picker (Dojo,YUI) • Layout (Dojo,YUI) • Auto Complete (Dojo, Proto,YUI) • Selectables (Proto, jQuery) • Accordion (Dojo, jQuery) • WYSIWYG (Dojo,YUI)

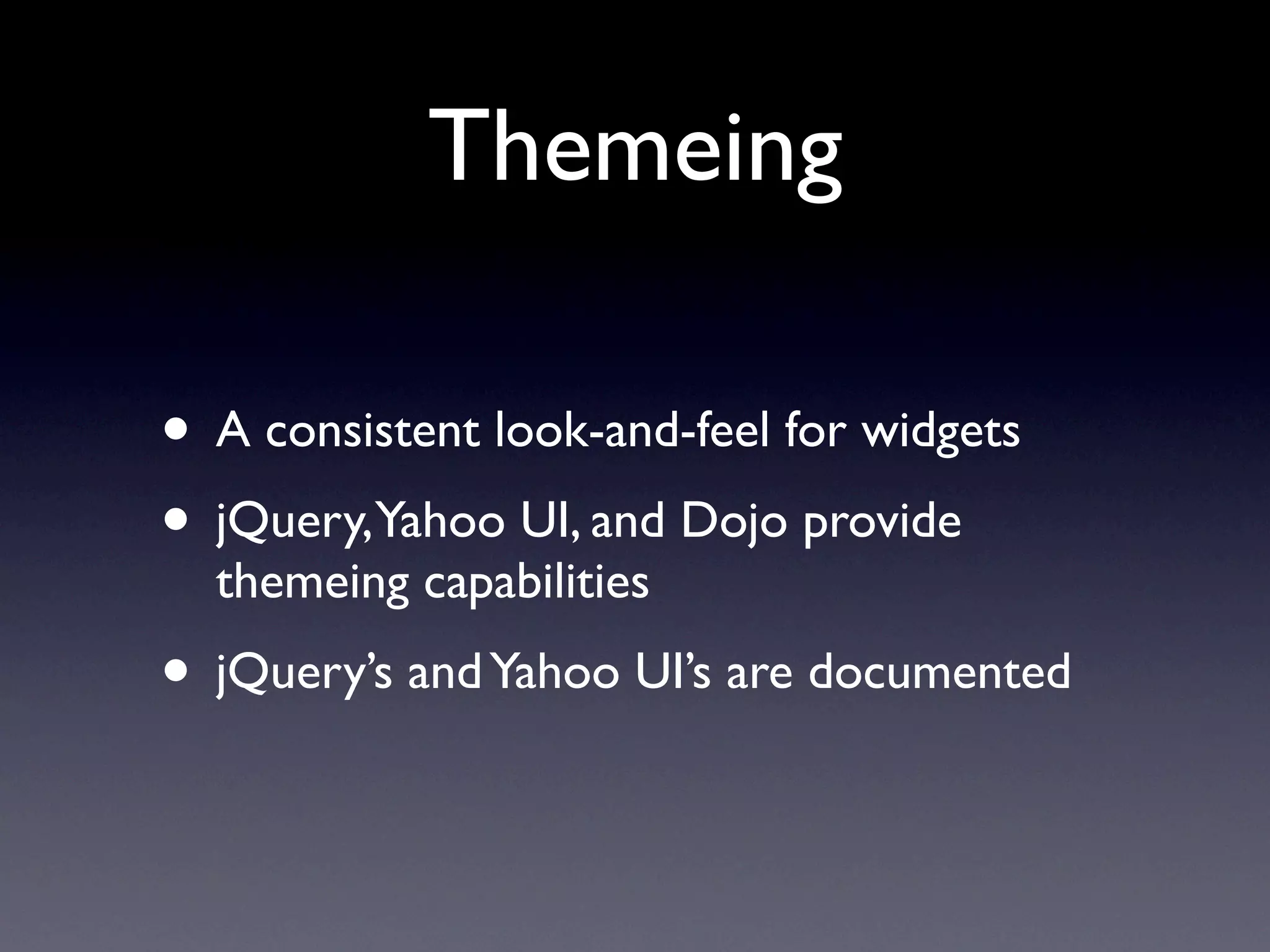

  • 63. Themeing • A consistent look-and-feel for widgets • jQuery,Yahoo UI, and Dojo provide themeing capabilities • jQuery’s and Yahoo UI’s are documented

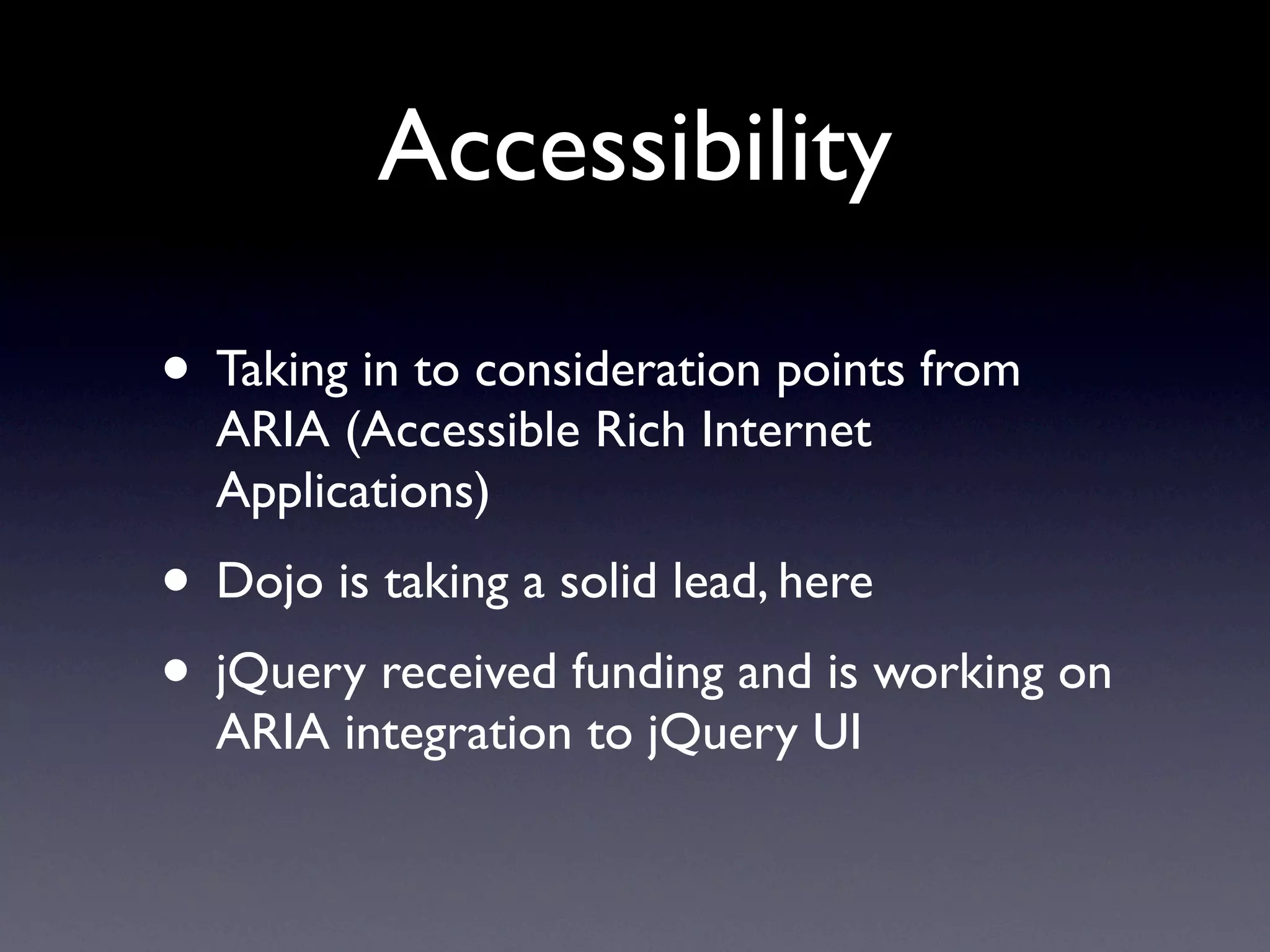

  • 64. Accessibility • Taking in to consideration points from ARIA (Accessible Rich Internet Applications) • Dojo is taking a solid lead, here • jQuery received funding and is working on ARIA integration to jQuery UI

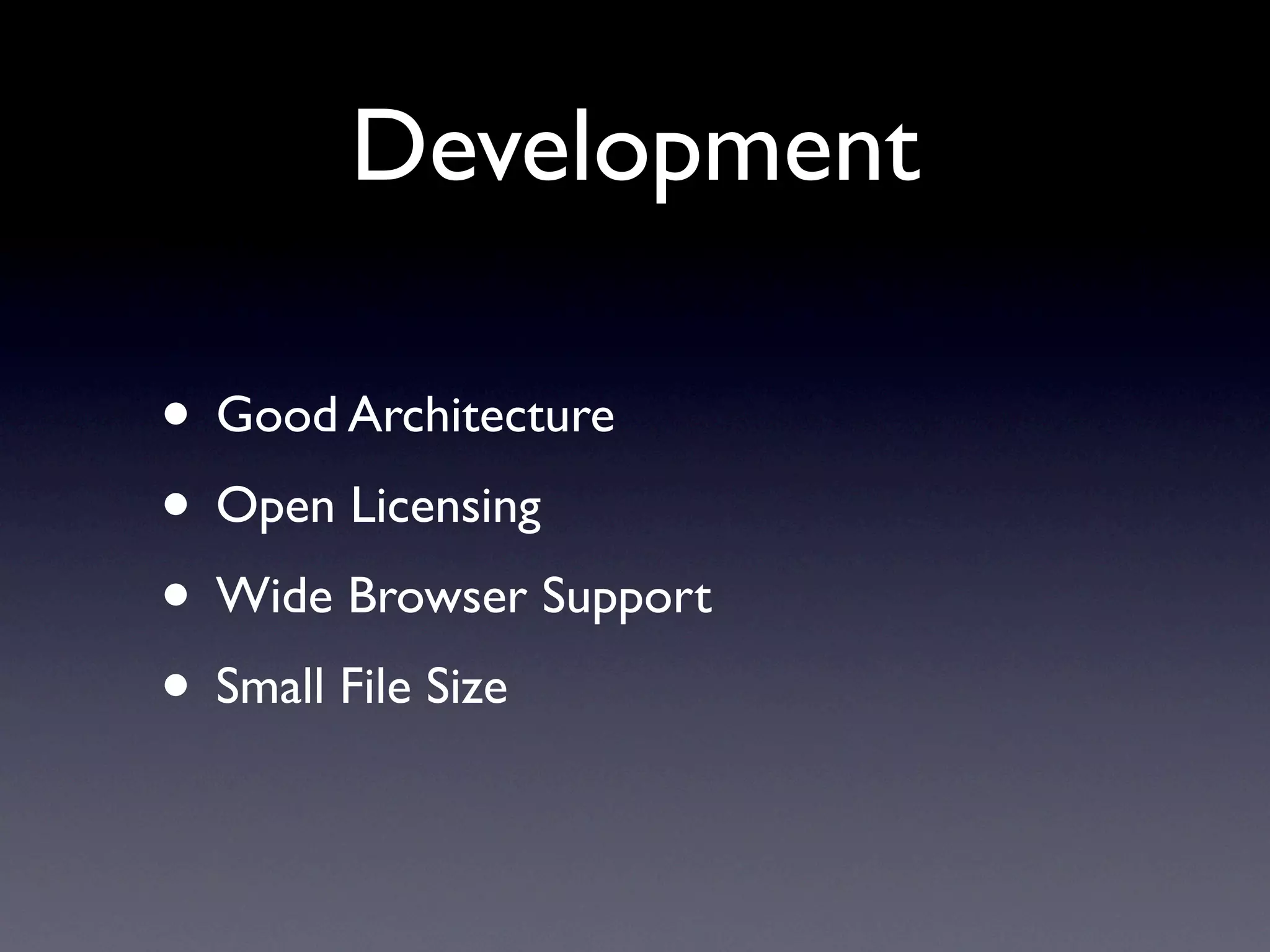

  • 65. Development • Good Architecture • Open Licensing • Wide Browser Support • Small File Size

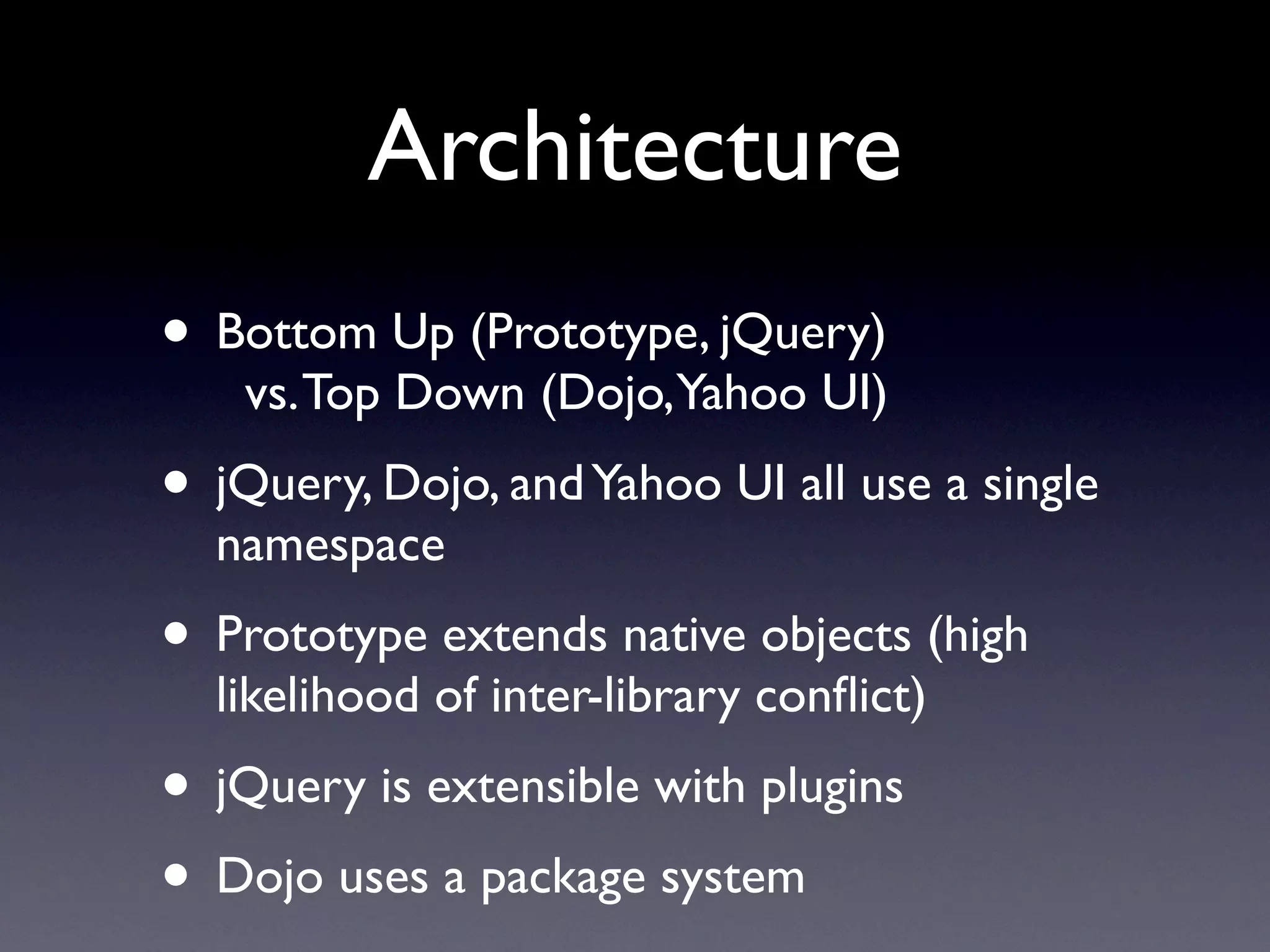

  • 66. Architecture • Bottom Up (Prototype, jQuery) vs. Top Down (Dojo,Yahoo UI) • jQuery, Dojo, and Yahoo UI all use a single namespace • Prototype extends native objects (high likelihood of inter-library conflict) • jQuery is extensible with plugins • Dojo uses a package system

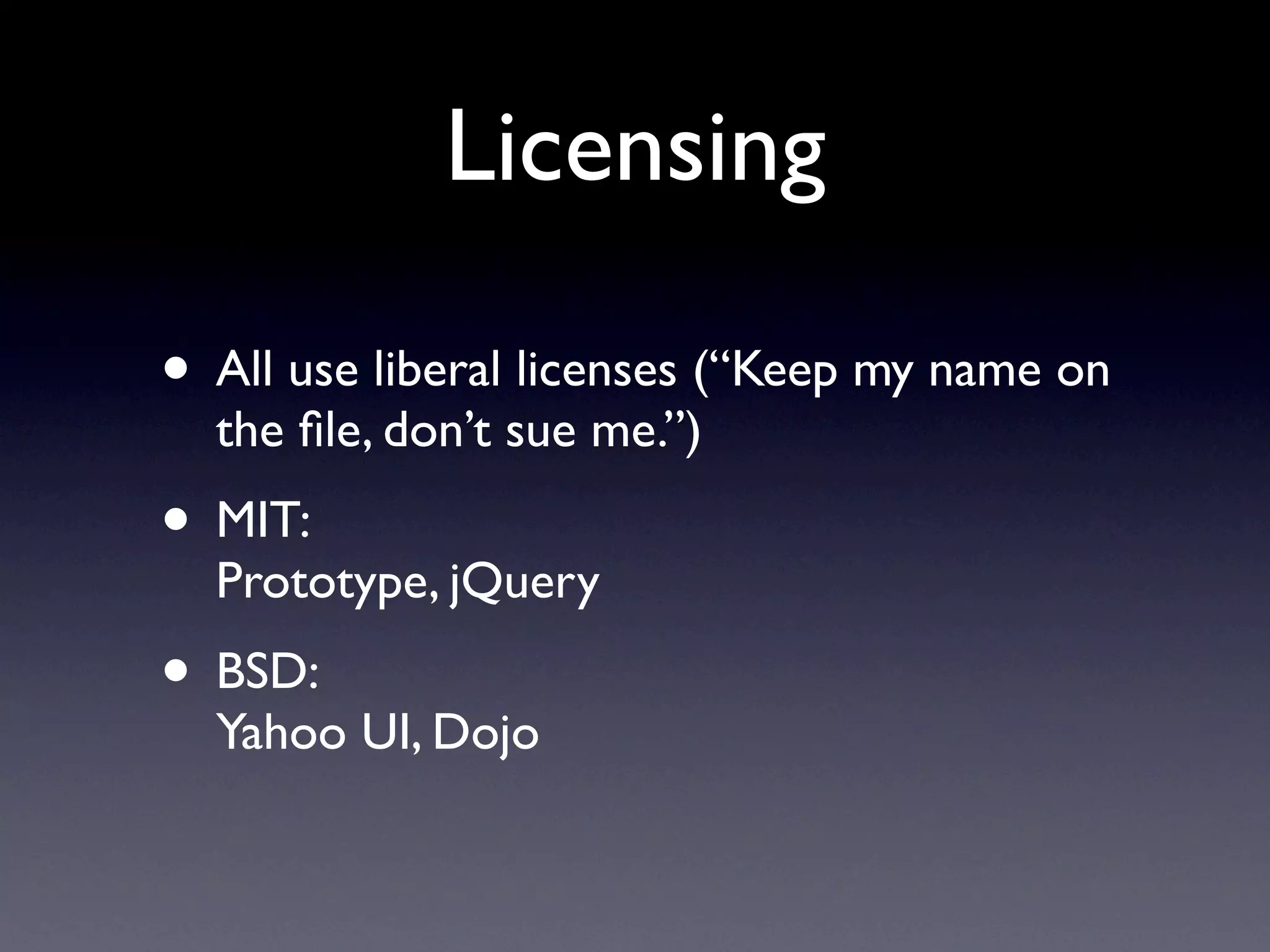

  • 67. Licensing • All use liberal licenses (“Keep my name on the file, don’t sue me.”) • MIT: Prototype, jQuery • BSD: Yahoo UI, Dojo

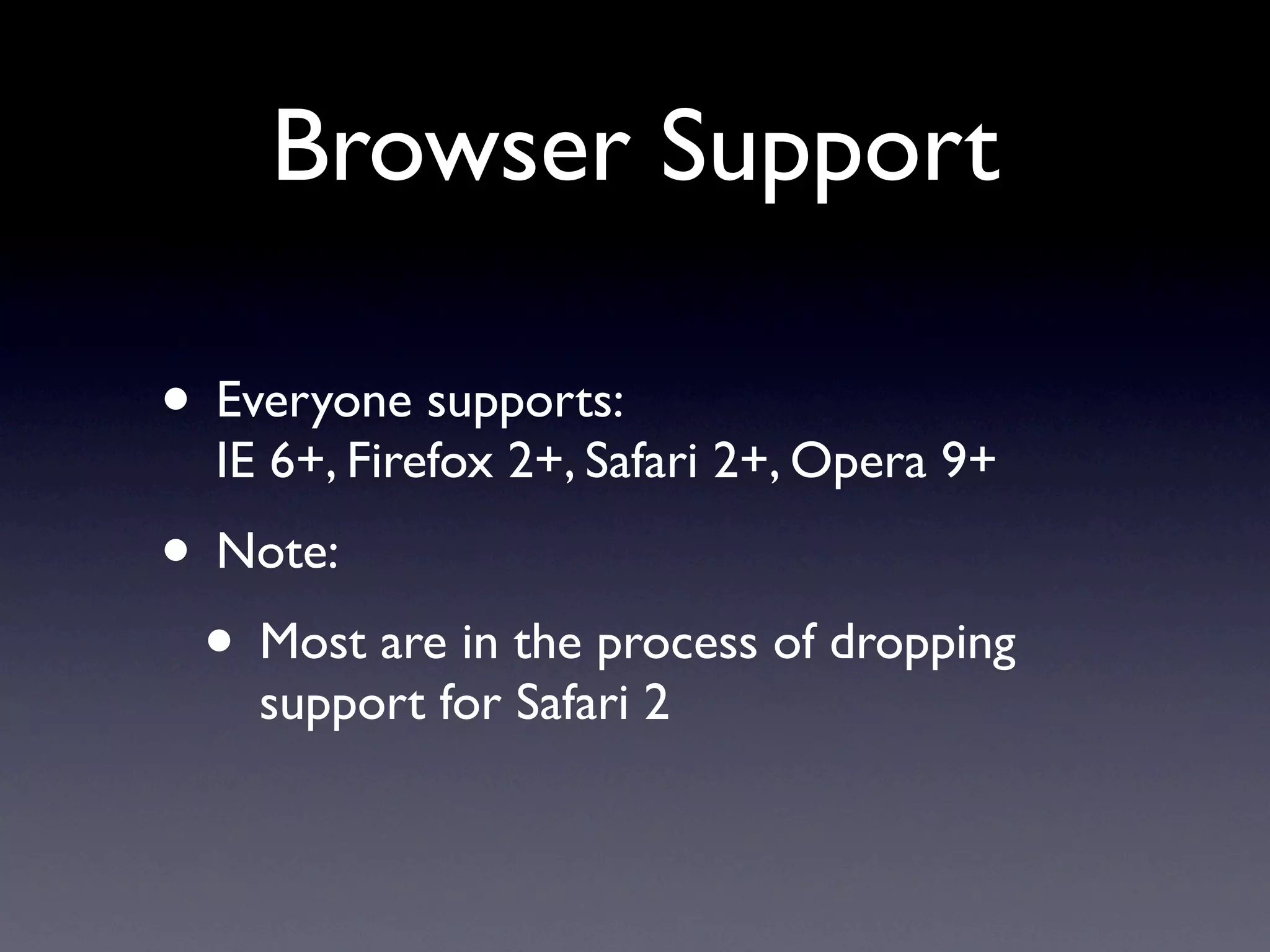

  • 68. Browser Support • Everyone supports: IE 6+, Firefox 2+, Safari 2+, Opera 9+ • Note: • Most are in the process of dropping support for Safari 2

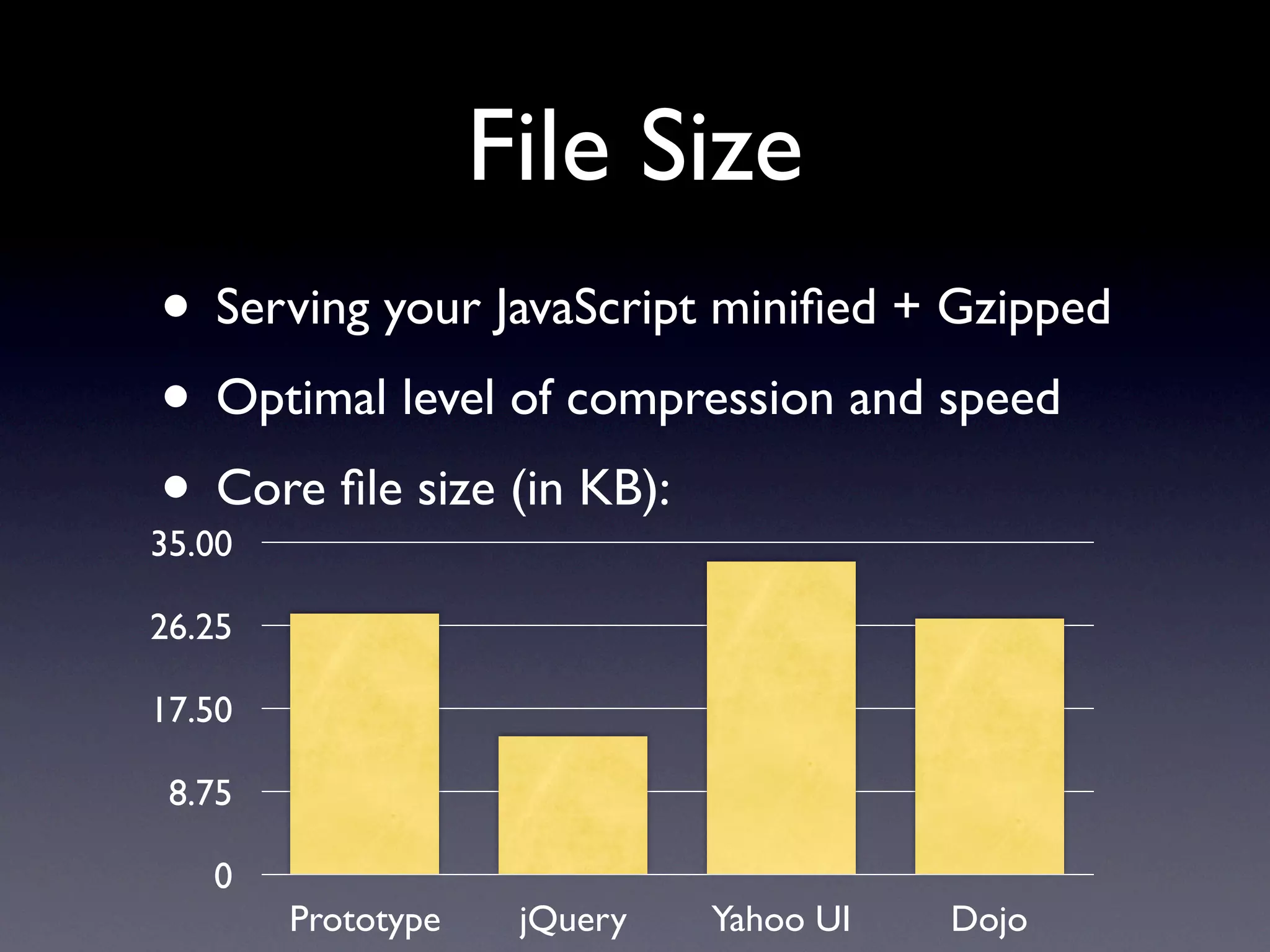

  • 69. File Size • Serving your JavaScript minified + Gzipped • Optimal level of compression and speed • Core file size (in KB): 35.00 26.25 17.50 8.75 0 Prototype jQuery Yahoo UI Dojo

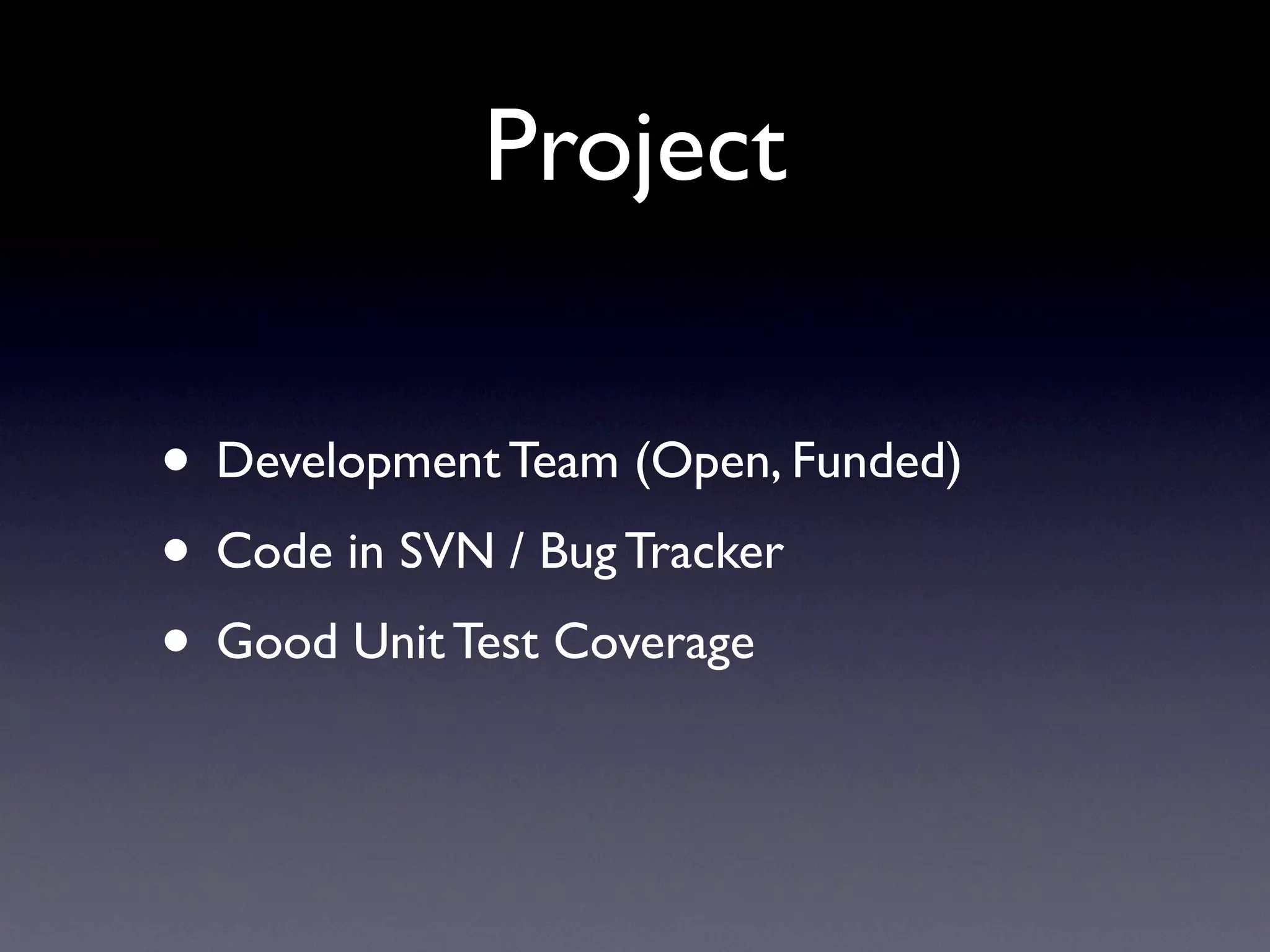

  • 70. Project • Development Team (Open, Funded) • Code in SVN / Bug Tracker • Good Unit Test Coverage

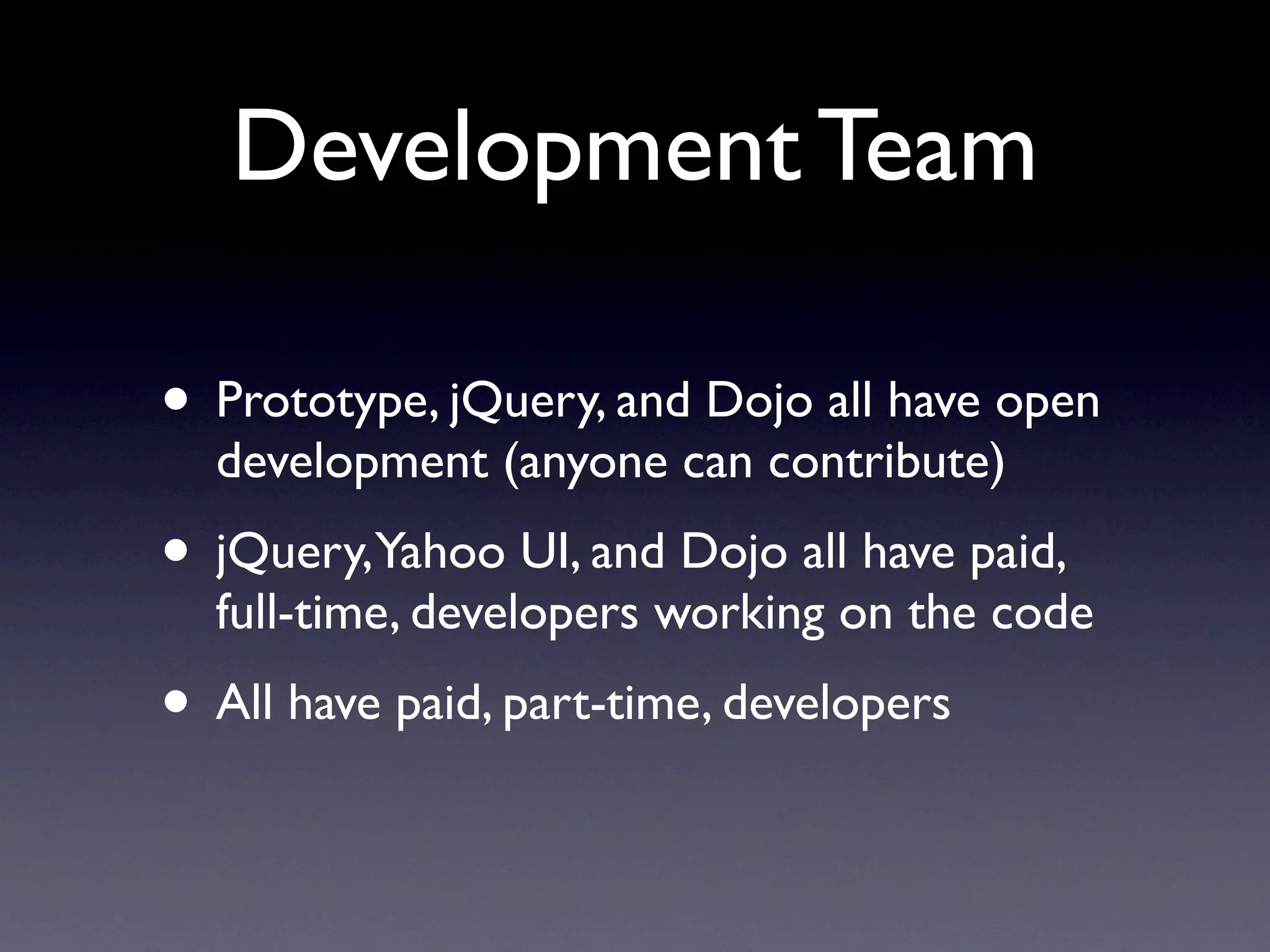

  • 71. Development Team • Prototype, jQuery, and Dojo all have open development (anyone can contribute) • jQuery,Yahoo UI, and Dojo all have paid, full-time, developers working on the code • All have paid, part-time, developers

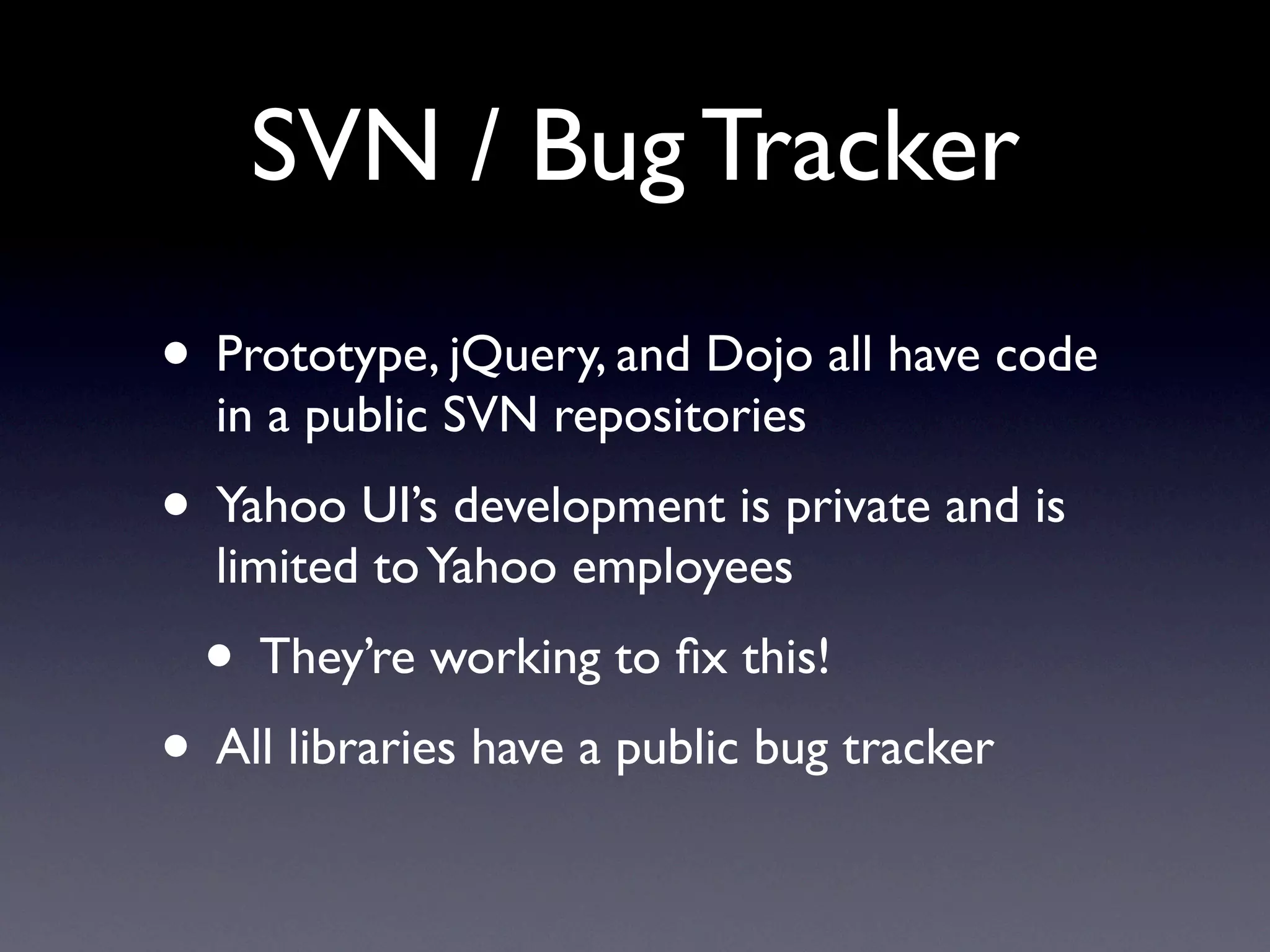

  • 72. SVN / Bug Tracker • Prototype, jQuery, and Dojo all have code in a public SVN repositories • Yahoo UI’s development is private and is limited to Yahoo employees • They’re working to fix this! • All libraries have a public bug tracker

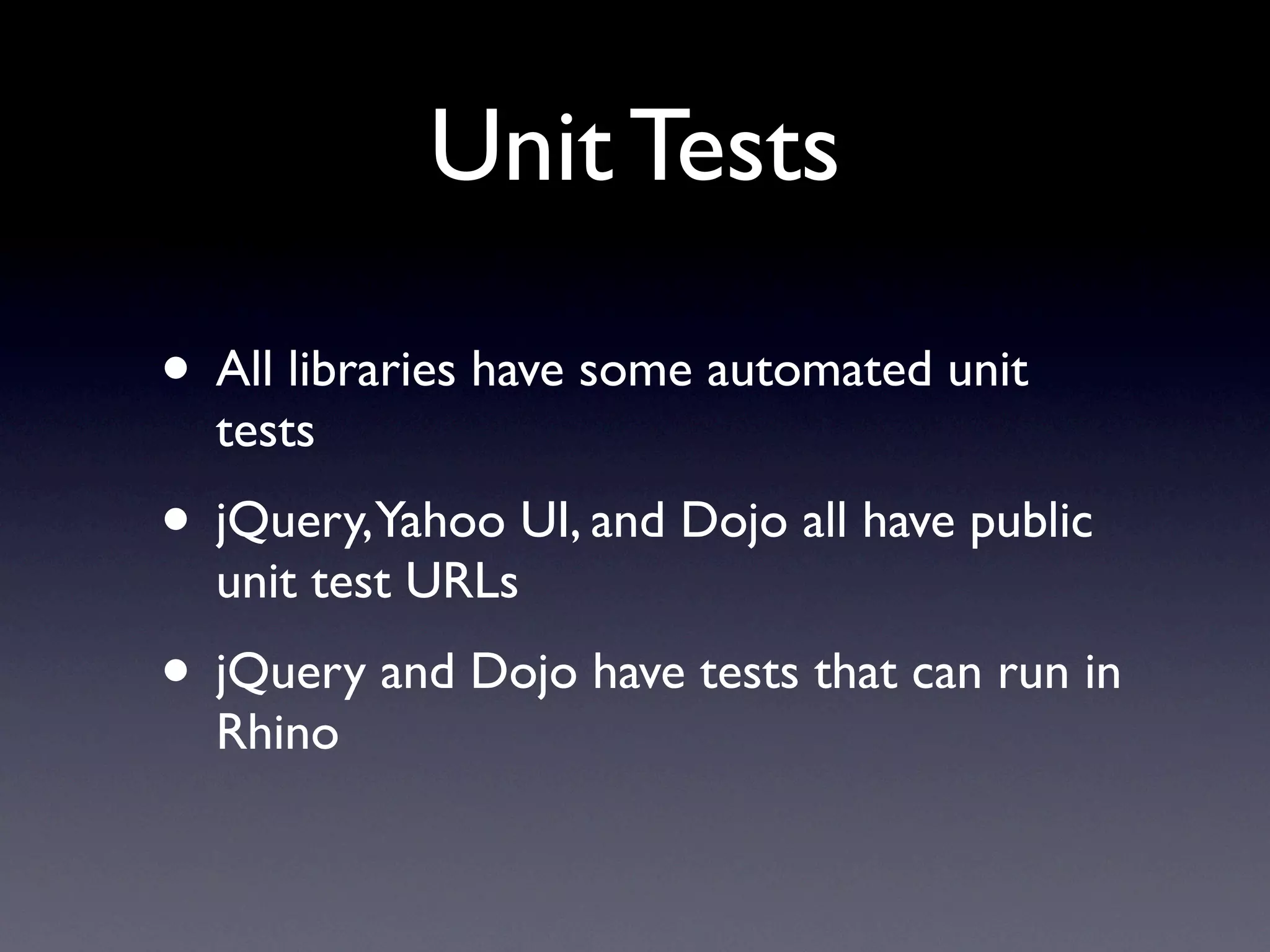

  • 73. Unit Tests • All libraries have some automated unit tests • jQuery,Yahoo UI, and Dojo all have public unit test URLs • jQuery and Dojo have tests that can run in Rhino

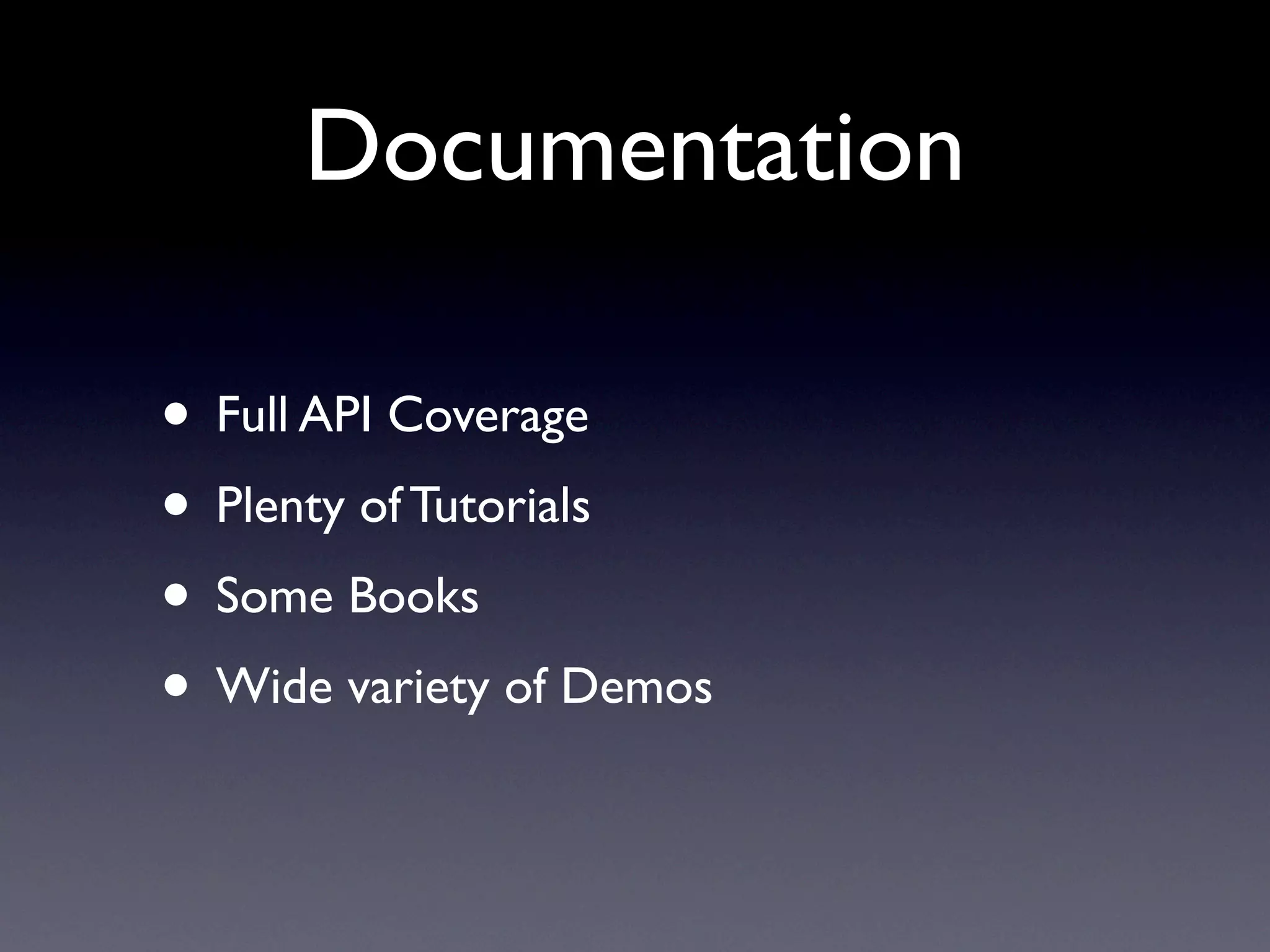

  • 74. Documentation • Full API Coverage • Plenty of Tutorials • Some Books • Wide variety of Demos
  • 75. API Documentation • Prototype, jQuery, and Yahoo UI all have full coverage • jQuery provides runnable examples with each API item • Dojo’s coverage is improving - work in progress (dojocampus.org, etc.)

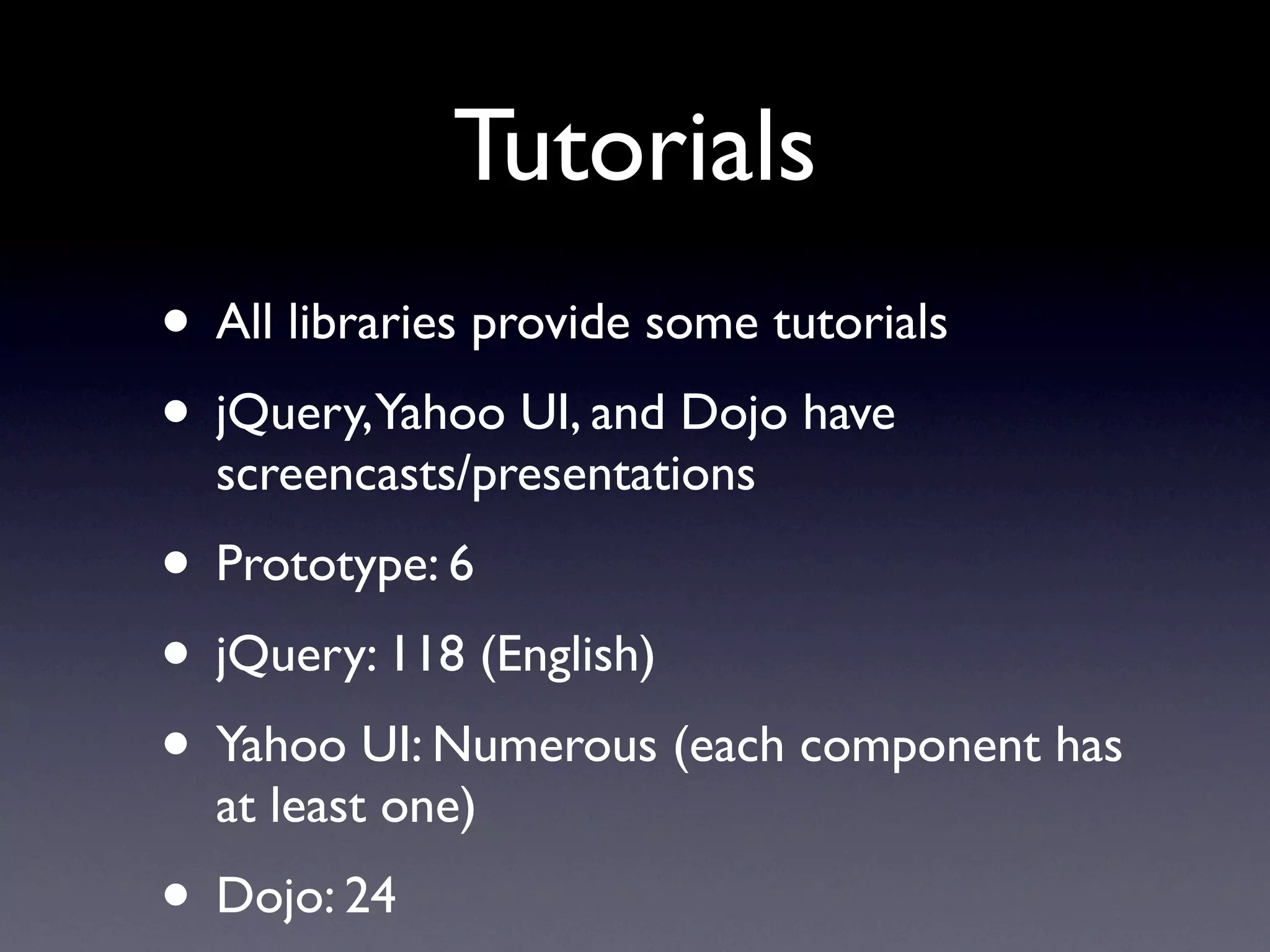

  • 76. Tutorials • All libraries provide some tutorials • jQuery,Yahoo UI, and Dojo have screencasts/presentations • Prototype: 6 • jQuery: 118 (English) • Yahoo UI: Numerous (each component has at least one) • Dojo: 24

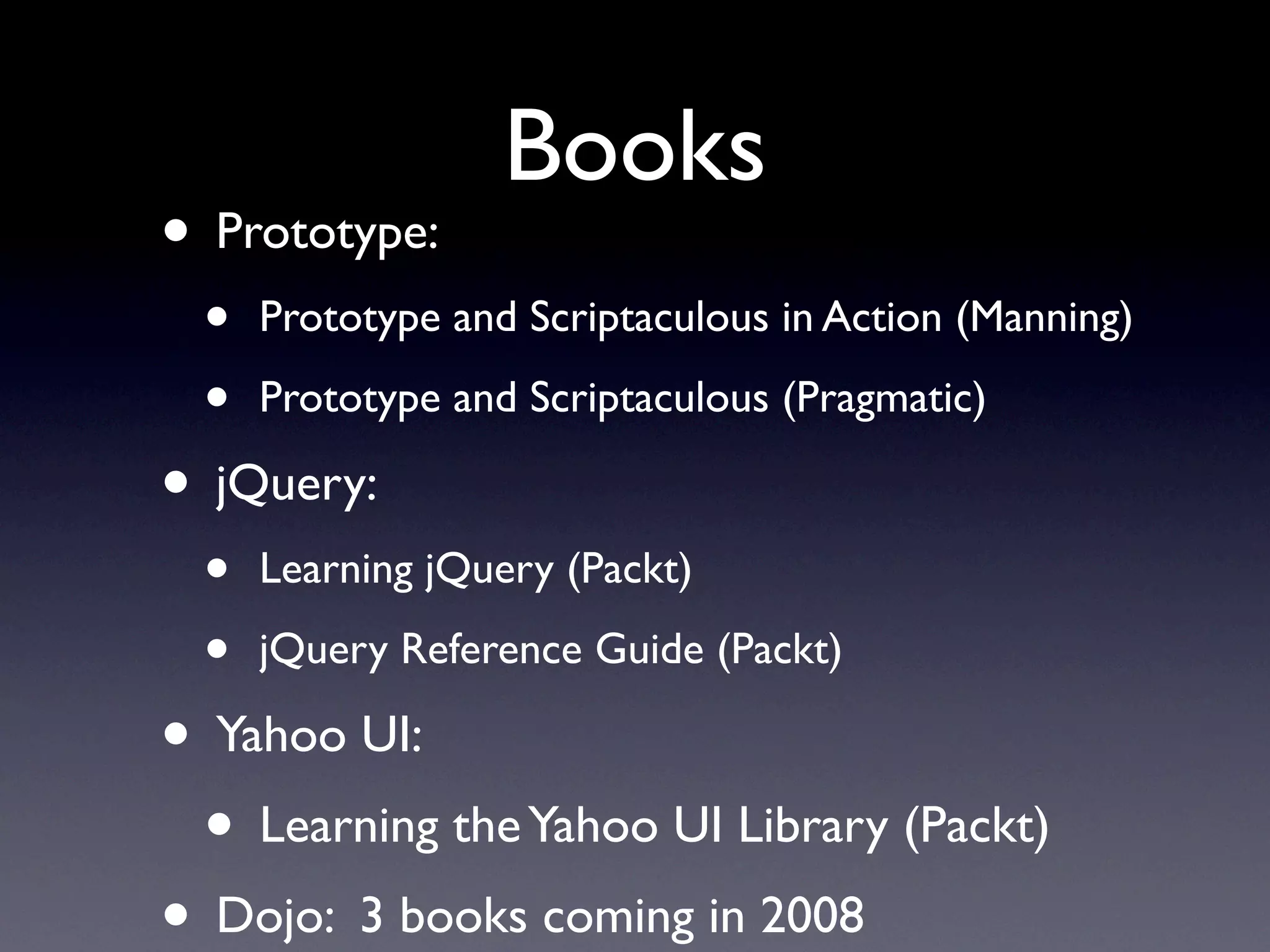

  • 77. Books • Prototype: • Prototype and Scriptaculous in Action (Manning) • Prototype and Scriptaculous (Pragmatic) • jQuery: • Learning jQuery (Packt) • jQuery Reference Guide (Packt) • Yahoo UI: • Learning the Yahoo UI Library (Packt) • Dojo: 3 books coming in 2008

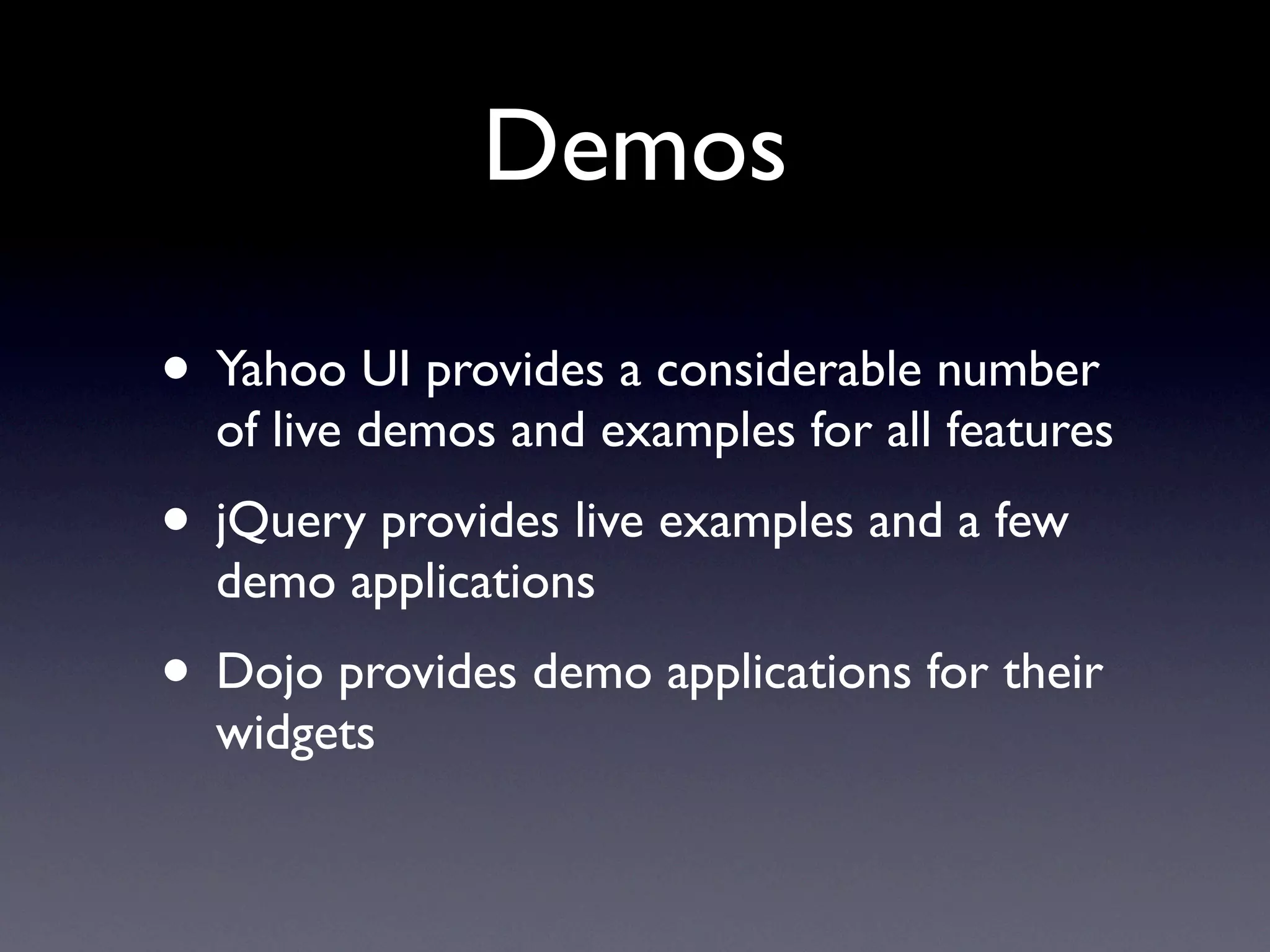

  • 78. Demos • Yahoo UI provides a considerable number of live demos and examples for all features • jQuery provides live examples and a few demo applications • Dojo provides demo applications for their widgets

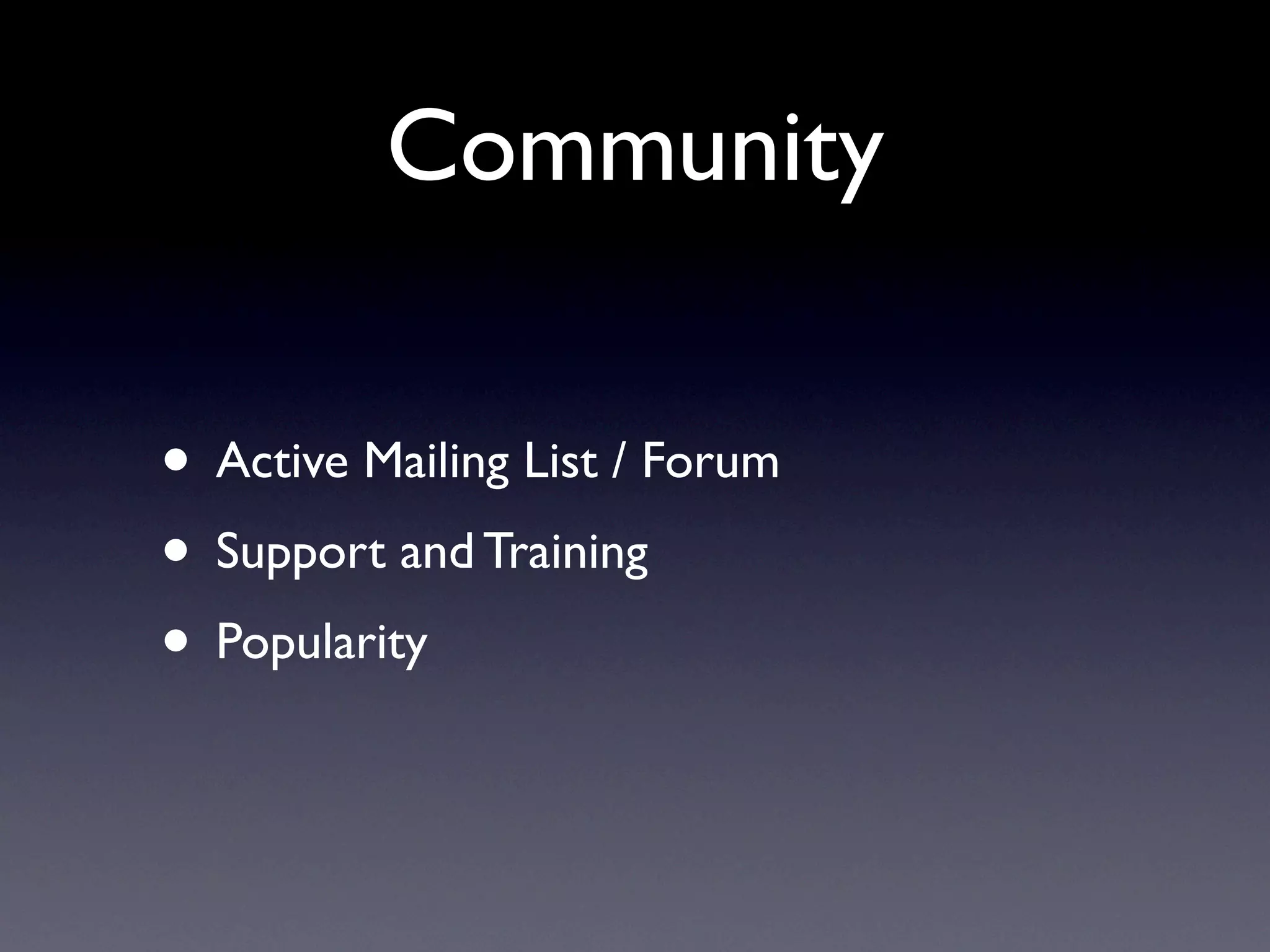

  • 79. Community • Active Mailing List / Forum • Support and Training • Popularity

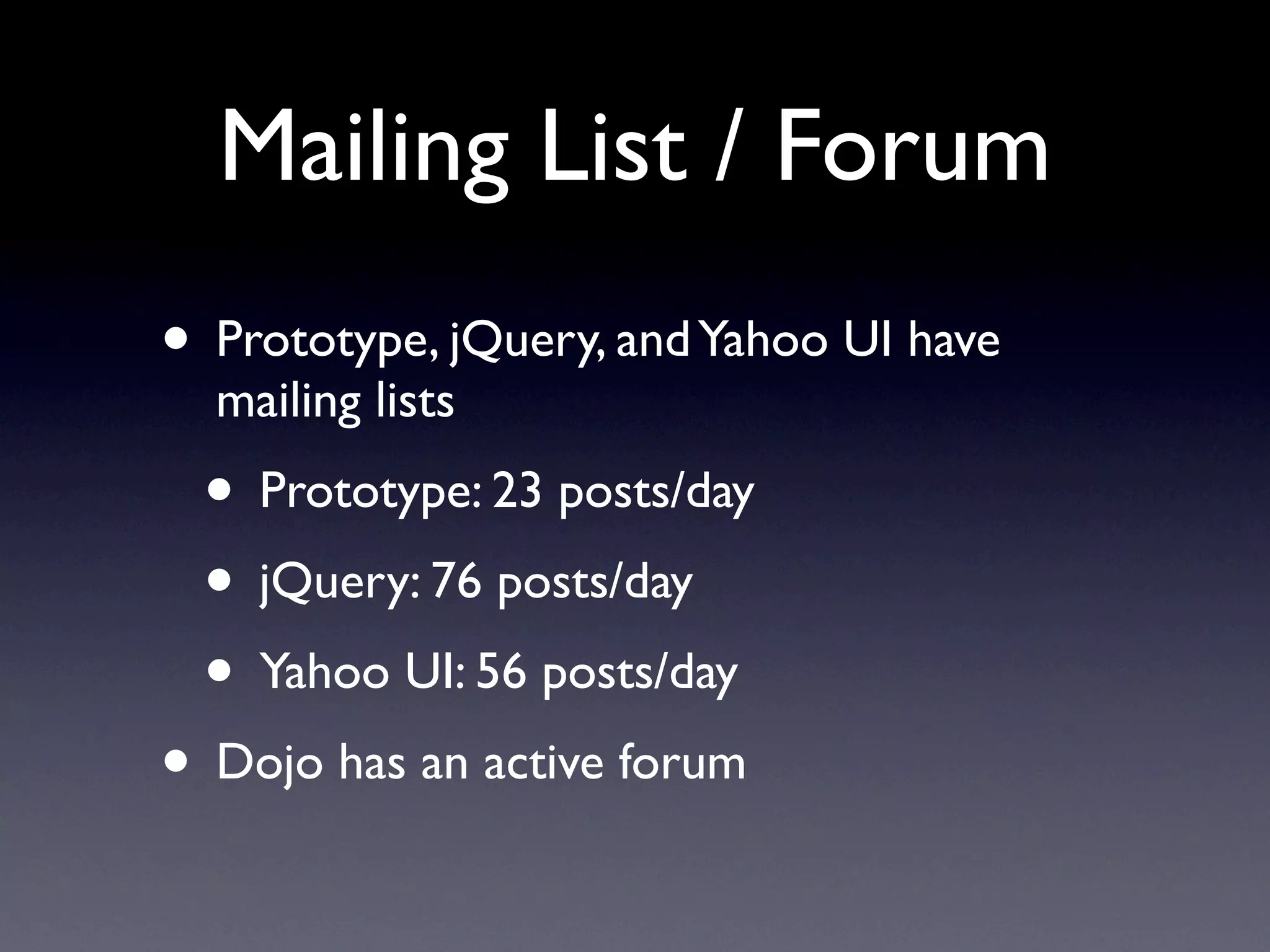

  • 80. Mailing List / Forum • Prototype, jQuery, and Yahoo UI have mailing lists • Prototype: 23 posts/day • jQuery: 76 posts/day • Yahoo UI: 56 posts/day • Dojo has an active forum

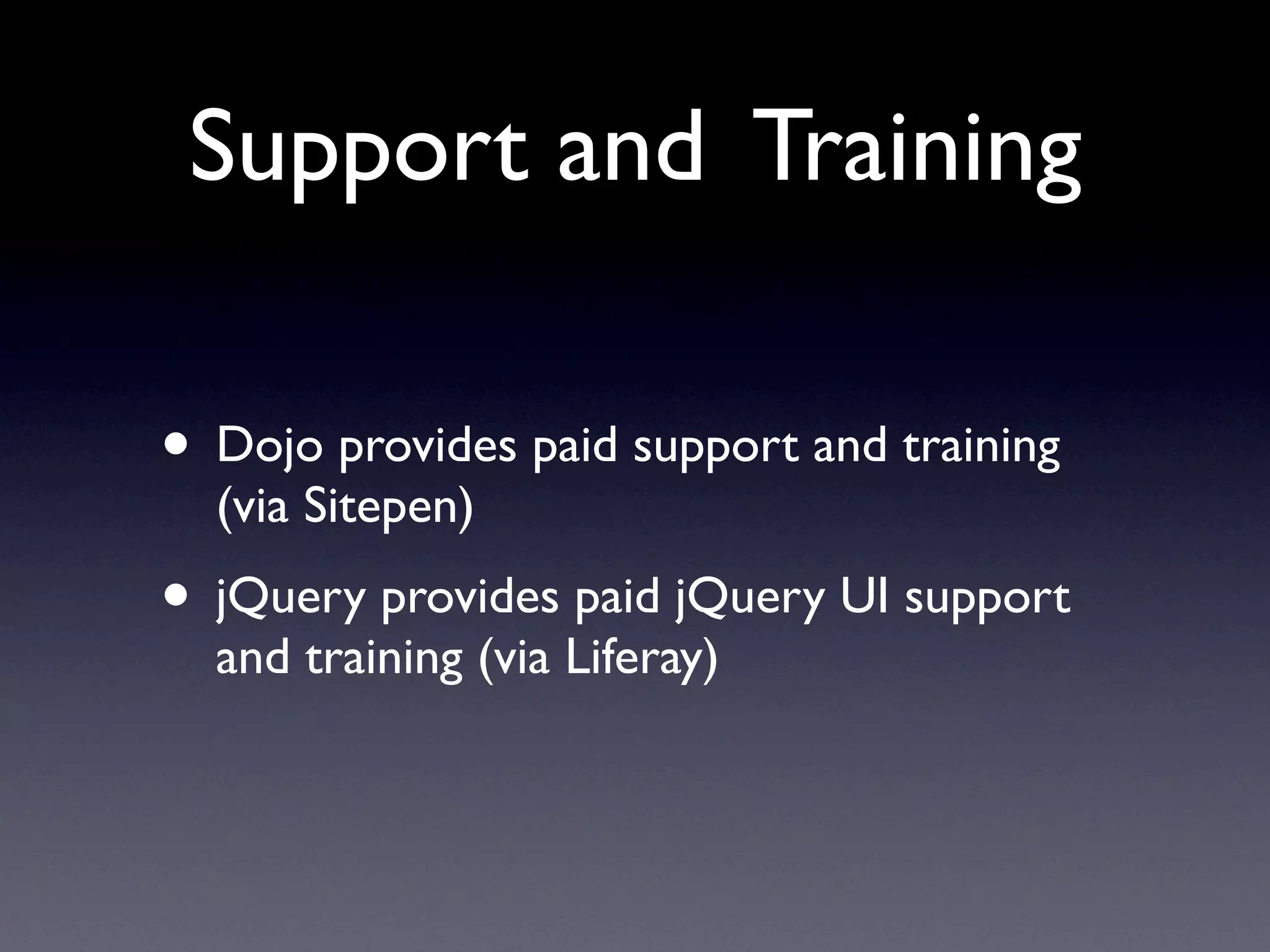

  • 81. Support and Training • Dojo provides paid support and training (via Sitepen) • jQuery provides paid jQuery UI support and training (via Liferay)

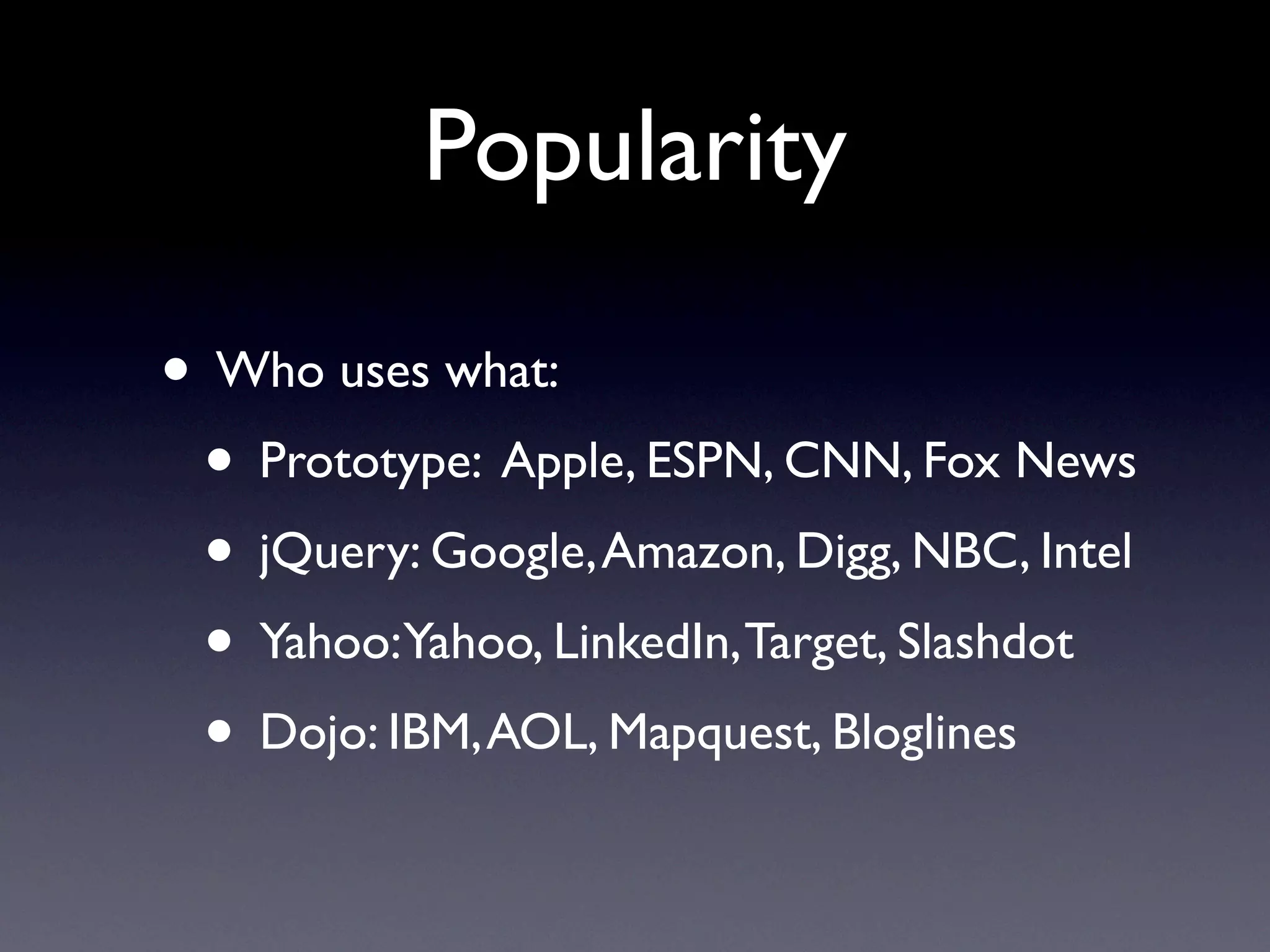

  • 82. Popularity • Who uses what: • Prototype: Apple, ESPN, CNN, Fox News • jQuery: Google, Amazon, Digg, NBC, Intel • Yahoo:Yahoo, LinkedIn, Target, Slashdot • Dojo: IBM, AOL, Mapquest, Bloglines

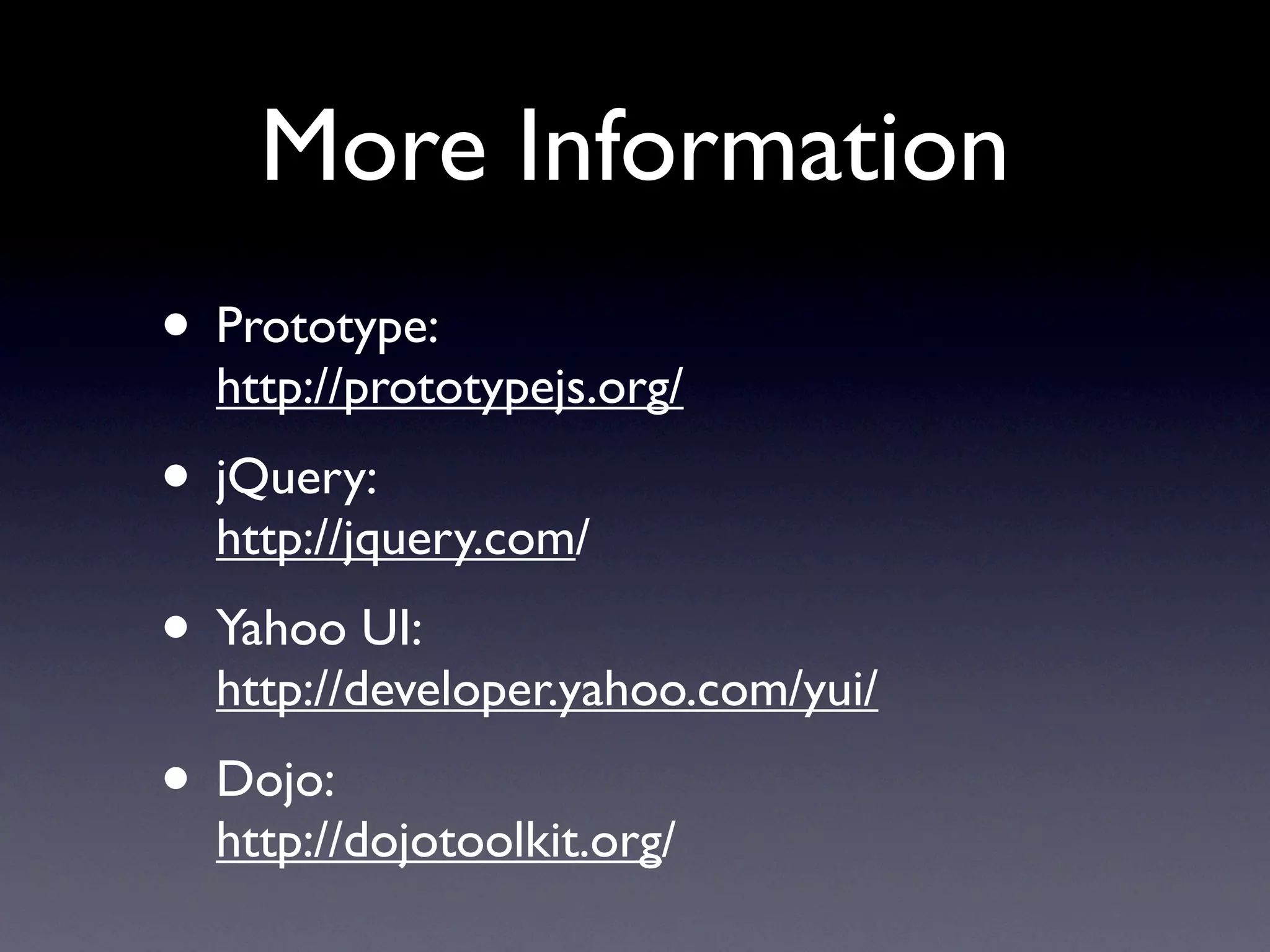

  • 83. More Information • Prototype: http://prototypejs.org/ • jQuery: http://jquery.com/ • Yahoo UI: http://developer.yahoo.com/yui/ • Dojo: http://dojotoolkit.org/
