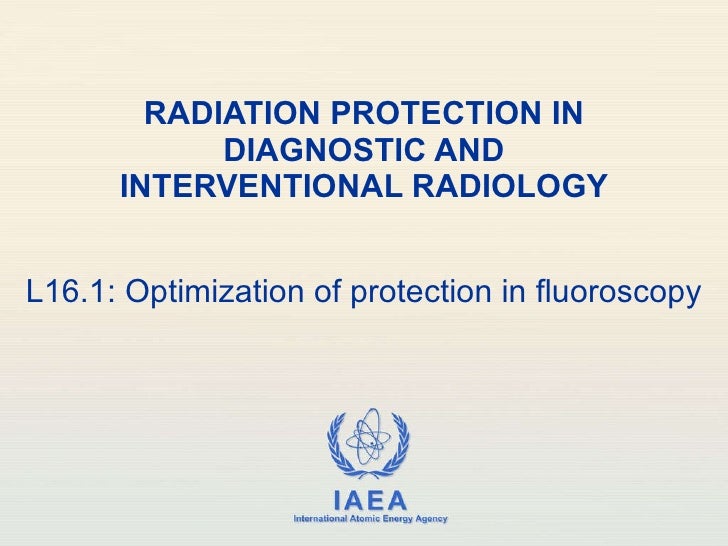

RADIATION PROTECTION IN DIAGNOSTIC AND INTERVENTIONAL RADIOLOGY L16.1: Optimization of protection in fluoroscopy
Introduction <ul><li>Subject matter : fluoroscopy equipment and accessories </li></ul><ul><li>Different electronic compone...
Topics <ul><ul><li>Example of fluoroscopy systems </li></ul></ul><ul><ul><li>Image intensifier component and parameters </...
Overview <ul><li>To become familiar with the component of the fluoroscopy system (design, technical parameters that affect...
Part 16.1: Optimization of protection in fluoroscopy Topic 1:  Example of fluoroscopy systems IAEA Training Material on Ra...
Fluoroscopy: a “see-through” operation with motion <ul><li>Used to visualize motion of internal fluid, structures </li></u...
Fluoroscopy <ul><li>X-ray transmitted trough patient </li></ul><ul><li>The photographic plate replaced by fluorescent scre...
Direct Fluoroscopy: obsolete In older fluoroscopic examinations radiologist stands behind screen and view the picture Radi...
Older Fluoroscopic Equipment (still in use in some countries) Staff in DIRECT beam Even no protection
Direct fluoroscopy <ul><li>AVOID USE OF DIRECT FLUOROSCOPY </li></ul><ul><li>Directive 97/43Euratom Art 8.4. </li></ul><ul...
Modern Image Intensifier based fluoroscopy system
Modern fluoroscopic system components Automatic control display brightness radiation dose film exposure Timer Display cont...
Different fluoroscopy systems <ul><li>Remote control systems </li></ul><ul><ul><li>Not requiring the presence of medical s...
Different fluoroscopy systems <ul><li>Interventional radiology systems </li></ul><ul><ul><li>Requiring specific safety con...
Part 16.1: Optimization of protection in fluoroscopy Topic 2: Image Intensifier component and parameters IAEA Training Mat...
The image intensifier (I.I.) + I.I. Input Screen I.I.Output Screen Photocathode Electrode E 1 Electrode E 3 Electrode E 2 ...
Image intensifier systems
Image intensifier component <ul><li>Input screen : conversion of incident X Rays into light photons (CsI) </li></ul><ul><u...
Image intensifier parameters (I) <ul><li>Conversion coefficient  ( Gx ): the ratio of the output screen brightness to the ...
Image intensifier parameters (II) <ul><li>Brightness Uniformity : the input screen brightness may vary from the center of ...
Image distortion
Image intensifier parameters (III) <ul><li>Spatial resolution limit : the value of the highest spatial frequency that can ...
Line pair gauges
Line pair gauges <ul><li>GOOD RESOLUTION POOR RESOLUTION </li></ul>
Image intensifier parameters  (IV) <ul><li>Overall image quality - threshold contrast-detail detection   </li></ul><ul><li...
Image intensifier parameters  (V) <ul><li>Overall image quality can be assessed using a suitable threshold contrast-detail...
Overall image quality
Part 16.1: Optimization of protection in fluoroscopy Topic 3: Image Intensifier and TV system IAEA Training Material on Ra...
Image intensifier - TV system <ul><li>Output screen image can be transferred to different optical displaying systems: </li...
VIDICON FILM PM REFERENCE kV CONTROLLER X Ray TUBE kV GENERAL SCHEME OF FLUOROSCOPY
VIDICON FILM PM CONTROLLER X Ray TUBE kV CINE MODE I 2 Ref. I 3 C 1 I 1 C 2
Type of TV camera <ul><li>VIDICON TV  camera </li></ul><ul><ul><li>improvement of contrast </li></ul></ul><ul><ul><li>impr...
TV camera and video signal (I) <ul><li>The output phosphor of the image intensifier is optically coupled to a television c...
TV camera and video signal (II) <ul><li>Older fluoroscopy equipment will have a television system using a camera tube.  </...
Photoconductive camera tube Focussing optical lens Input plate Steering coils Deviation coil Alignement coil Accelarator g...
TV camera and video signal (III) <ul><li>The surface of the photoconductor is scanned with an electron beam and the amount...
TV camera and video signal (IV) <ul><li>This scanning electron beam moves across the surface of the TV camera tube in a se...
Different types of scanning INTERLACED  SCANNING PROGRESSIVE SCANNING 12 2 14 4 16 18 6 1 8 20 13 15 17 10 11 3 21 19 5 7 ...
TV camera and video signal (V) <ul><li>On most fluoroscopy units, the  resolution  of the system  is governed  by the  num...
TV camera and video signal (VI) <ul><li>Many modern fluoroscopy systems used CCD (charge coupled devices) TV cameras.  </l...
Schematic structure of a charged couple device (CCD)
TV camera and video signal (VII) <ul><li>A series of electronic circuits move the scanning beams of the TV camera and moni...
TV image  sampling SYNCHRO 12 µs LIGHT INTENSITY SAMPLING 64 µs VIDEO SIGNAL (1 LINE)   52 µs IMAGE LINE  SINGLE LINE TIME...
Digital radiography principle Clock Memory ADC I Iris t t ANALOGUE SIGNAL DIGITAL SIGNAL   See more in Lecture L20
Digital Image recording <ul><li>In newer fluoroscopic systems film recording replaced with digital image recording.  </li>...
<ul><li>It is possible to adjust the brightness and contrast settings of the TV monitor to improve the quality of the disp...
Summary <ul><li>The main components of the fluoroscopy imaging chain and their role are explained: </li></ul><ul><ul><li>I...
Where to Get More Information <ul><li>Physics of diagnostic radiology, Curry et al, Lea & Febiger, 1990 </li></ul><ul><li>...
