Concept: The Multi Tube facade system is developed to create a comfortable indoor climate by encapsulating all installations in the facade providing diffuse lighting, diffuse ventilation and diffuse heating and cooling over the entire double curved surface.
The Multi Tube facade system is based on a triple layer design. The two outer layers are made of twined pvc tubes of which the verticals span the double curved surface and the horizontal tubes contain a liquid controlling the building physics. The tubes change direct sunlight into a uniform diffusely lit surface and control the temperature. The inner layer of etfe foil cushions controls the ventilation and provides insulation.
The tubes on the outside also work as a windbreaker and as a solar energy collector in which the liquid is used as a medium to store the energy in the soil. At low temperatures the tubes are emptied and act as an extra insulation layer. The tubes on the inside also contain liquid which is preheated or –cooled and thereby control the temperature of the interior.
Fresh air is ventilated through the facade while controlled by the inner layer consisting of etfe foil cushions which allow air to pass when a mechanism slightly separates them. Mechanical ventilation is added between the cushions and the tubes layer on the inside to prevent draft and have full control over the temperature.


This project was designed as educational project within the Architecture, Urbanism & Building Sciences master program (1st semester) at Delft University of Technology (TU Delft).

Team: Jasper Moelker, Jasper Overkleeft

Published in: Education, Business, Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
1,084
On SlideShare
0
From Embeds
0
Number of Embeds
4
Actions
Shares
0
Downloads
24
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Multi Tube Facade System (educational project) - Poster (Jun 2007)

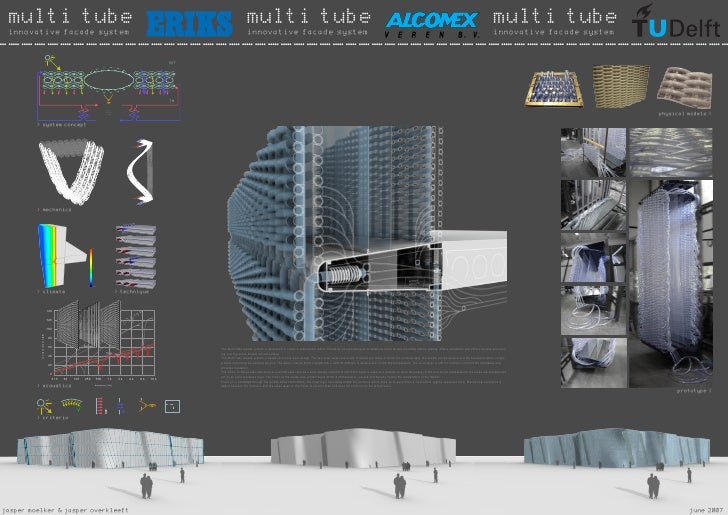

  1. 1. multi tube multi tube multi tube _________________________________________________________ innovative facade system innovative facade system innovative facade system OUT IN soil water pump physical models < > system concept > mechanics 10 0 -10 C > climate > technique 140 120 100 sound resistance [dB] 80 3 - 20 - 4 60 R(3) + R(4) + 6 The Multi Tube facade system is developed to create a comfortable indoor climate by encapsulating all installations in the facade providing diffuse lighting, diffuse ventilation and diffuse heating and cool- 7mm 4mm ing over the entire double curved surface. 40 3mm The Multi Tube facade system is based on a triple layer design. The two outer layers are made of twined pvc tubes of which the verticals span the double curved surface and the horizontal tubes contain 20 a liquid controlling the building physics. The tubes change direct sunlight into a uniform diffusely lit surface and control the temperature. The inner layer of etfe foil cushions controls the ventilation and provides insulation. 0 The tubes on the outside also work as a windbreaker and as a solar energy collector in which the liquid is used as a medium to store the energy in the soil. At low temperatures the tubes are emptied and 31.5 63 125 250 500 1k 2k 4k 8k 16 k act as an extra insulation layer. The tubes on the inside also contain liquid which is preheated or –cooled and thereby control the temperature of the interior. Fresh air is ventilated through the facade while controlled by the inner layer consisting of etfe foil cushions which allow air to pass when a mechanism slightly separates them. Mechanical ventilation is > acoustics frequency [Hz] added between the cushions and the tubes layer on the inside to prevent draft and have full control over the temperature. prototype < > criteria jasper moelker & jasper overkleeft june 2007

×
