Morphology is a theory and technique for the analysis and processing of geometrical
structures, based on set theory and random functions. Morphology is most commonly
applied to digital images, but it can be employed as well on graphs, meshes, solids,
and many other spatial structures. Morphology was originally developed for binary
images, and was later extended to grayscale functions and images. The purpose of
morphological processing is primarily to remove imperfections added during segmentation.
The basic operations are erosion and dilation .Using the basic operations we can perform
opening and closing More advanced morphological operation can then be implemented
using combination of all of these.

Statistics

Views

Total Views
12,749
Views on SlideShare
12,456
Embed Views
293

Actions

Likes
4
Downloads
634
Comments
1

4 Embeds 293

http://www.aliencoders.com 279
http://www.slideshare.net 10
http://aliencoders.com 3
http://translate.googleusercontent.com 1

Accessibility

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel

11 of 1 previous next

  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

    Morphological Image Processing Morphological Image Processing Document Transcript

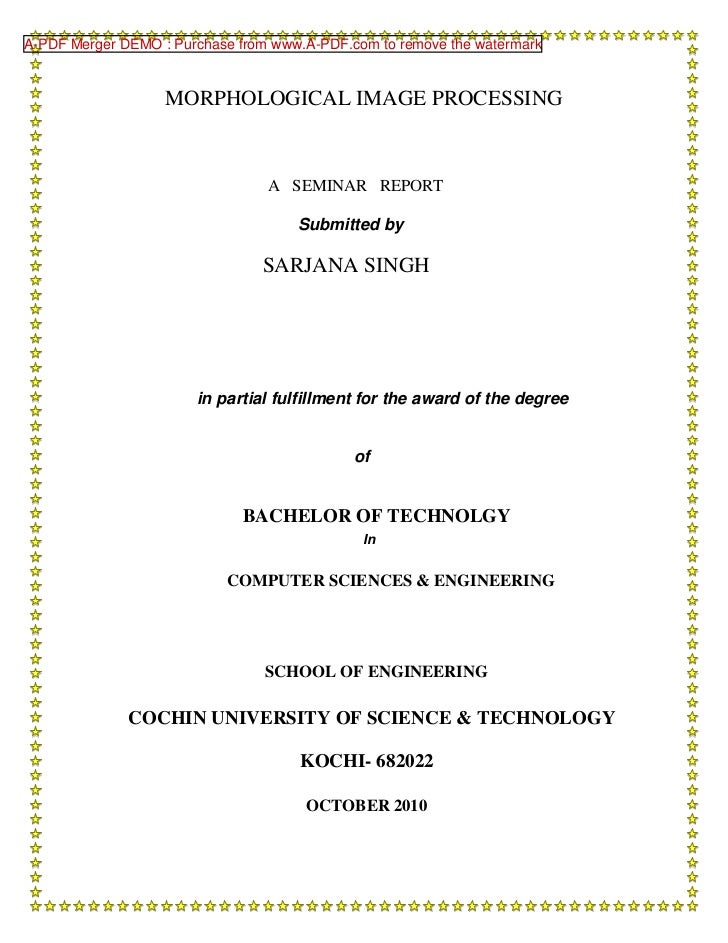

    • A-PDF Merger DEMO : Purchase from www.A-PDF.com to remove the watermark MORPHOLOGICAL IMAGE PROCESSING A SEMINAR REPORT Submitted by SARJANA SINGH in partial fulfillment for the award of the degree of BACHELOR OF TECHNOLGY In COMPUTER SCIENCES & ENGINEERING SCHOOL OF ENGINEERING COCHIN UNIVERSITY OF SCIENCE & TECHNOLOGY KOCHI- 682022 OCTOBER 2010
