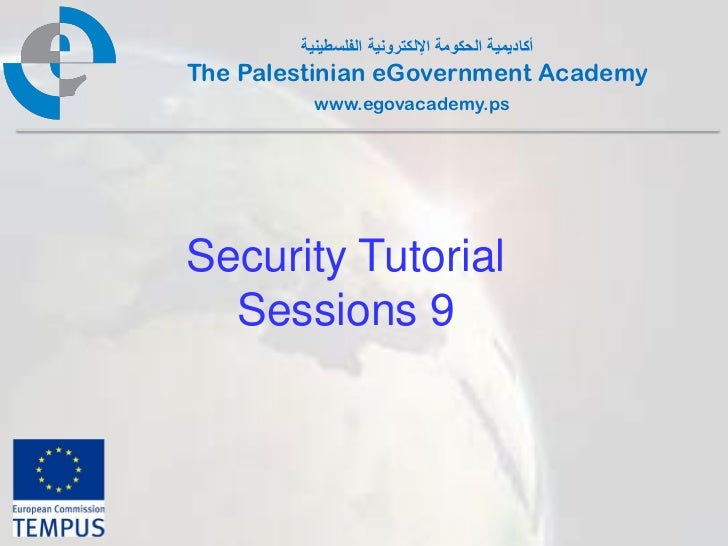

‫أكاديمية الحكومة اإللكترونية الفلسطينية‬The Palestinian eGovernment Academy          www.egovacademy.psSecurity Tutorial ...
AboutThis tutorial is part of the PalGov project, funded by the TEMPUS IV program of theCommission of the European Communi...
© Copyright NotesEveryone is encouraged to use this material, or part of it, but should properlycite the project (logo and...
Tutorial 5:     Information SecuritySession 9: Federated Identity Management(FIM)Session 9 Outline:  • Session 9 ILO’s.  •...
Tutorial 5: Session 9: (FIM) - ILOsThis session will contribute to the followingILOs:•   A: Knowledge and Understanding   ...
Tutorial 5:     Information SecuritySession 9: Federated Identity Management(FIM)Session 9 Outline:  • Session 9 ILO’s.  •...
Federated Identity Management.• Introduction• Overview of HTTP authentications,  Cookies, MS Passports and  Captchas.• Tru...
Introduction (1)• Many recognized sensitive but  unclassified (SBU) networks and  information systems like different  mini...
Introduction (2)• Need to ensure that the right individuals  have access to the authorized resources  they need regardless...
Introduction (3)• Security and privacy of information are  major impediments to information  exchange and system interoper...
Federated Identity Management.• Introduction• Overview of HTTP  authentications and Cookies.• Trust Domains and Access Cas...
But first some background info HTTP           Cookies• Cookies – allow a web server/site to store state information for  i...
HTTP Redirect and Form-POST• Http Redirect – allows one server to pass information  to another server via the browser, as ...
Privacy Protection -• User can choose to share e-mail address, name and other  profile information with all participating ...
CAPTCHAs• Completely Automated Public Turing test to tell Computers and  Humans Apart• Designed to stop automated user reg...
Federated Identity Management.• Introduction• Overview of HTTP authentications  and Cookies,• Trust Domains and Access  Ca...
Trust Domains DefinitionTrust domains describe the boundaries of a securityinfrastructure operating under a consistent set...
Problems with Trust DomainsProblem:  •Authentication and Authorization are  typically recognized only within a  given trus...
Different Access Cases•Case 1 : One user Access oneapplication or service.•Case 2: One user accessing manyapplications•Cas...
Case 1:        One user accessing one application                    Steps in provisioning access:                    • Ve...
Case 2:     One user accessing many applicationsSteps in provisioning access:             ×N• Vetting• Permissions• Creden...
Case 3: Many users accessing many applicationsSteps in provisioning access:                      Too many                 ...
If not checked correctly !!!1.   John Wandelt, Georgia Tech Research Institute (GTRI), August 2007, www.it.ojp.gov/GFIPM  ...
Proposed Solution (1)          Provisioning identity and            user attributes (vetting            and credentialing)...
Proposed Solution (2)• Huge savings in vetting and credentialing  M<<M×N• Vetting is better – closer to the user since own...
Federated Identity Management.• Introduction• Overview of HTTP authentications,  Cookies.• Trust Domains and Access Cases....
Some Definitions• Identity:   – A whole set of attributes that in combination uniquely characterise     a person  – hair c...
Some Definitions (2)• Attribute assertion:   – Statement made by an authority that an entity has a     particular attribut...
FIM DefinitionFrom the RSA Web Site• “A federated identity is a single user identity that  can be used to access a group o...
FIM Definition (cont)• From Microsoft’s web site• “Federated systems need to interoperate across  organizational boundarie...
FIM Process• Identifiers are assigned within a domain to  uniquely identify an entity. They usually have no  meaning outsi...
A better FIM Definition• A group of organisations (ministries,  associations, municipalities etc...) that set up  trust re...
User-to-Application          PalGov © 2011   33
System-to-System         PalGov © 2011   34
Credentials• Authentic credentials are ones that  have not been tampered with and  are received exactly as issued by  the ...
Federated Identity Management.• Introduction• Overview of HTTP authentications,  Cookies.• Trust Domains and Access Cases....
FIM Examples• Old Systems – Microsoft’s Passport – UK Athens• Current FIM Systems –   Shibboleth –   Oauth –   Liberty All...
Exampe1: Microsoft’s .NET Passport• .NET Passport is an authentication system that  allows users to access multiple sites ...
The Registration Process                       Passport site stores user                       credential and profile     ...
Credentials referenced by Passports UID• The following are mandatory: e-mail address (unique  identifier) and password• Th...
.NET Passport Authentication            PalGov © 2011      41
Intra-Site Authentication Process• When a user moves to another Participating  Site (step 1), the site redirect the user t...
Intra-Site Authentication Process• The Participating Sites cookie on the user’s  machine is updated by Passport and the us...
Disadvantages of MS Passport ?• Because all user transactions have to involve  Microsoft, as it is responsible for authent...
Example 2: Shibboleth• Internet2 consortium project• Uses an OASIS standard protocol (SAML)  for authentication at home si...
Shibboleth Access Stages• Obtaining an authentication assertion for a  user from his home site (IdP)• Using this to get a ...
User Authentication using Shibboleth [2]Identity Provider Authentication                    WAYF    Web Service    Service...
The WAYF Service             PalGov © 2011   48
Authorization using Shibboleth [2]AuthnService                                         Web Service           User    10.  ...
Shibboleth disadvantages• Single attribute authority to the service  provider• Subject to phishing attacks.• No single sig...
Bibliography1. John Wandelt, Georgia Tech   Research Institute (GTRI), August   2007, www.it.ojp.gov/GFIPM2. Lecture Notes...
Summary• In this session we discussed the  following:  – Federated Identity Management with    different examples.        ...
Thanks         Dr. Radwan Tahboub               PalGov © 2011   53
