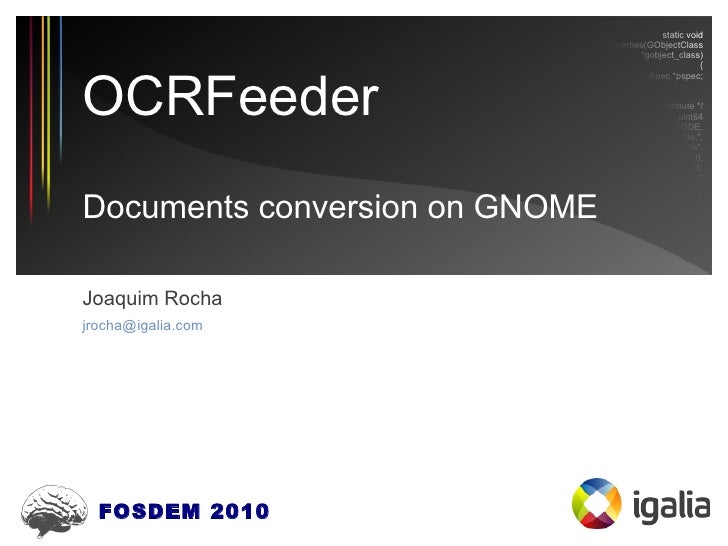

static void
                       _f_do_barnacle_install_properties(GObjectClass
                                        ...
What is it?

Document Analysis and Optical
   Character Recognition
        for GNOME


                   Joaquim Rocha (...
Why is it?

 Paper has a number of problems

No applications for GNU/Linux to do
             a fair job

                ...
Paper problems:
   Security




                        Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
          CC Phot...
Paper problems:
 Preservation




                        Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
   CC Photo by:...
Paper problems:
Data processing




                     Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
     CC Photo by...
Paper problems:
   Ecology




                          Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
        CC Photo...
No fair conversion apps for
          GNU/Linux

apart from OCR engines, but...



                   Joaquim Rocha (Igali...
OCR != Document Conversion

    (it only deals with chars)
 (does not consider the layout)
(does not distinguish contents)...
what you want is

  Document Analysis and
      Recognition

(conversion of documents to an
        electronic format)
   ...
Where are were we at?

   * Some closed solutions
* Only for proprietary systems
        * Various prices
   * still... ar...
How?




       Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
How




      Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
Base concept:

          1. Clip the contents
            2. Classify them
 2.1. They are graphics → Paste on
            ...
So many layouts...




                              Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
          CC Photo b...
Layouts vary with the type of
            document

What works on detecting one, won't
         work on others


         ...
OCRFeeder focus on contents, not
         on layouts!




                    Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM ...
Key concept:

   If a document image can be
divided in windows of 1 (content)
         or 0 (not content),
then it is poss...
Sliding Window Algorithm:

1. A NxN pixel window runs through
 the document top to bottom, left to
                right

...
Sliding Window Algorithm:

2. For every iteration, if there's a
 pixel inside the window which
 contrasts with the backgro...
Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
Sliding Window Algorithm:

It does not check all the pixels so
   there is a better performance




                      ...
Sliding Window Algorithm:

     3. After all windows
   have a value assigned,
the ones with the value 1 are
            g...
Sliding Window Algorithm:

 4. Every time a set of 1s is
  grouped, each window is
   reassigned the value 0


  (these ar...
Sliding Window Algorithm:

 5. When all windows have
 the value 0, the algorithm
      reached the end


                 ...
Block structure:




            Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
Joining Blocks:

Blocks are check with each other
  and joined when appropriate

When no blocks can be joined the
   analy...
Recognition:

System-wide OCR engines are used

 Engines are configured from the
        GUI or XML files

               ...
Engine configuration:

<?xml version="1.0" encoding="UTF-8"?>
<engine>
   <name>Tesseract</name>
   <image_format>TIFF</im...
Classification:


          It is graphics if:

          * Text is empty

  * More than 50% of the chars are
failure char...
Font Size Detection:

“Measures” in pixels the size of
        each text line




 Although it results in different
      ...
Font Size Detection:

The value equal or greater than the
        average is chosen


(results in values equal or close to...
Font Size Detection:

The font size is calculated in inches
      using the resolution (DPI)
(if there's no resultion info...
Exportation to ODT:

     Uses ODFPy

(abstracts ODF creation)
   (just above XML)

                Joaquim Rocha (Igalia)...
User interaction:

   Users can edit everything
and review the algorithm's results

So, UI can work in attended and
      ...
ABBY Finereader test




Nuance Omnipage test




                       Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
Finereader's
                                              results


Omnipage's
results




             Joaquim Rocha (Ig...
Demo time!




         Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
Other features:

   * PDF importation
* Unpaper preprocessor
   * Font style edition
 * Exportation to HTML
* Project savi...
Future:

     * Integrate Ocropus as an
    alternative analysis backend
* More exportation formats: HOCR,
               ...
GNOME:

Development moved to GNOME's
 infrastructure since last month




                    Joaquim Rocha (Igalia) · OCR...
Webpage:
http://live.gnome.org/OCRFeeder

               git:
 http://git.gnome.org/ocrfeeder

          Bugzilla:
       ...
Thank you!

         Joaquim Rocha (Igalia) · OCRFeeder · FOSDEM 2010
