GPON Truths“GPON vs. Gigabit Ethernet inCampus Networking”Rebuttal to the Cisco touted Lippis Consulting IndustryPaper ent...
Lippis “GPON vs Gigabit Ethernet” White Paper Rebuttal                                                                    ...
Background – Abstract Rebuttal PointsThe Passive Optical Network standard has been led by the International Telecom Union ...
GPON Argument – Point and Counterpoint - FACTHalf-Truth #1: “Vivek Kundra championed Green IT” while partially correct, th...
GPON vs. Traditional Ethernet Network Differences:There are a number of solution providers in the xPON space today and mor...
Ethernet vs. GPON Architecture Comparison           Switched Ethernet Design                                              ...
Mr. Lippis states that “some OLT vendors are starting to offer VLAN-aware products”. This is patently incorrect. OLTssuppo...
VLANs and groups, and down to individual ports provides                                                          performan...
GPON Power Consumption in a 2500 node networkLippis again misleads readers. Using the same assumptions, we assert that the...
PON simplifies the network design by eliminating the Ethernet distance restrictions and equipmenthierarchy that plague tra...
Current LAN gear - SUNSETTING                          HP ProCurve 3500yl         Cisco 3750-E               IP UtiliNET L...
 Cabling Cost          Recently, IP UtiliNET provided a competitive cabling cost for a GA based education institution. In...
 GPON vs. GbE Network Design AttributesPoint 1: GPON offers a Lack of Network Design FlexibilityThe physical layout of a ...
Every manufacturer including Cisco makes a range of switches or ONT products that offer differentcapacities, thus we can r...
the mix of intelligent core and rats nest of physical distribution. The best troubleshooting tool iselimination of the cop...
Switched networks limit the user to Ethernet based data while GPON opens new vistas for convergedmultiservice network capa...
ConclusionFiber Optics are the less costly investment for your local area and campus network because of itsnearly limitles...
Upcoming SlideShare
Loading in...5
×

GPON vs. Gigabit Ethernet - Just the Facts

23,961

Published on

Rebuttal to Lippis Consulting "GPON vs Gigabit Ethernet in Campus Networks". You make decisions every day. The Game has Changed for decisions regarding campus networks and you can continue to do what you have done and expect different results .. or .. you can consider a future that sets your business apart from the competition.

Published in: Technology, Business
1 Comment
10 Likes
Statistics
Notes
No Downloads
Views
Total Views
23,961
On Slideshare
0
From Embeds
0
Number of Embeds
6
Actions
Shares
0
Downloads
1,683
Comments
1
Likes
10
Embeds 0
No embeds

No notes for slide

GPON vs. Gigabit Ethernet - Just the Facts

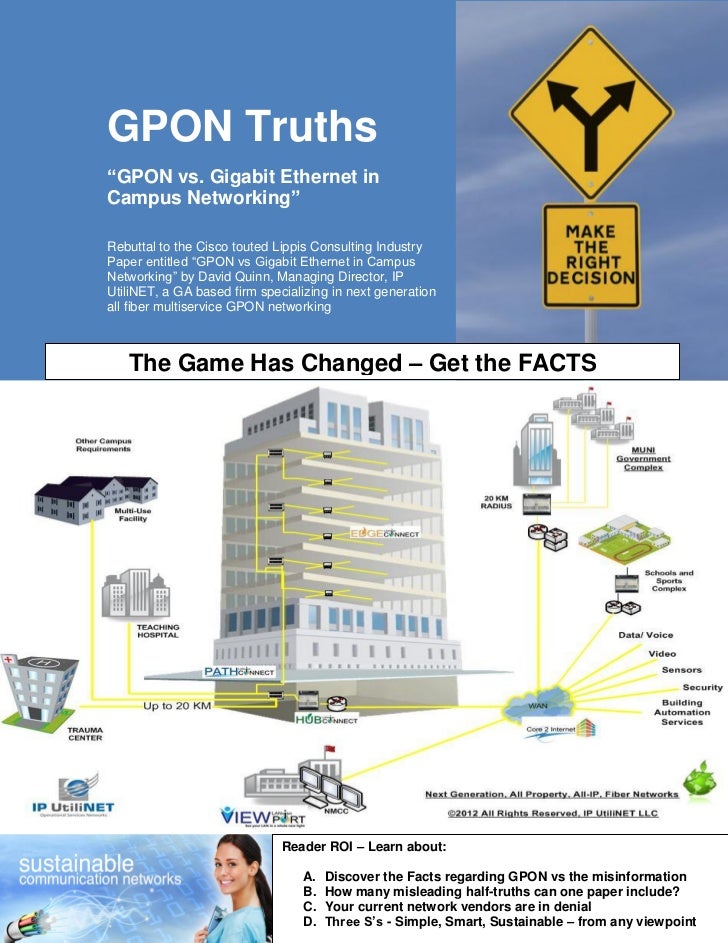

  1. 1. GPON Truths“GPON vs. Gigabit Ethernet inCampus Networking”Rebuttal to the Cisco touted Lippis Consulting IndustryPaper entitled “GPON vs Gigabit Ethernet in CampusNetworking” by David Quinn, Managing Director, IPUtiliNET, a GA based firm specializing in next generationall fiber multiservice GPON networking The Game Has Changed – Get the FACTS Reader ROI – Learn about: A. Discover the Facts regarding GPON vs the misinformation B. How many misleading half-truths can one paper include? C. Your current network vendors are in denial D. Three S’s - Simple, Smart, Sustainable – from any viewpoint
