Statistics 101 for System Administrators

  1. 1. Statistics 101 for System Administrators EuroPython 2014, 22th July - Berlin Roberto Polli - roberto.polli@babel.it Babel Srl P.zza S. Benedetto da Norcia, 33 00040, Pomezia (RM) - www.babel.it 22 July 2014 Roberto Polli - roberto.polli@babel.it

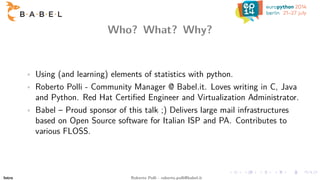

  2. 2. Who? What? Why? • Using (and learning) elements of statistics with python. • Roberto Polli - Community Manager @ Babel.it. Loves writing in C, Java and Python. Red Hat Certified Engineer and Virtualization Administrator. • Babel – Proud sponsor of this talk ;) Delivers large mail infrastructures based on Open Source software for Italian ISP and PA. Contributes to various FLOSS. Intro Roberto Polli - roberto.polli@babel.it

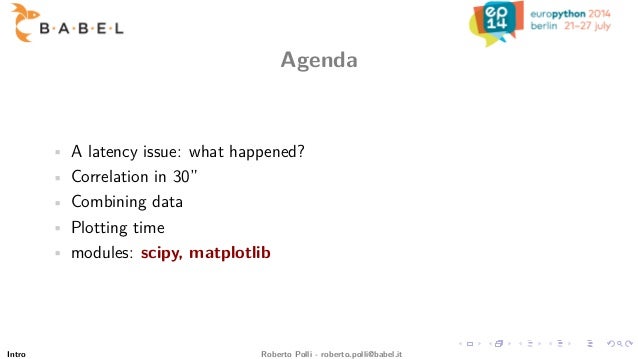

  3. 3. Agenda • A latency issue: what happened? • Correlation in 30” • Combining data • Plotting time • modules: scipy, matplotlib Intro Roberto Polli - roberto.polli@babel.it

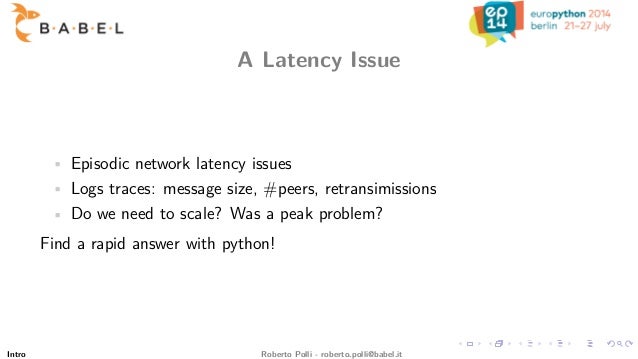

  4. 4. A Latency Issue • Episodic network latency issues • Logs traces: message size, #peers, retransimissions • Do we need to scale? Was a peak problem? Find a rapid answer with python! Intro Roberto Polli - roberto.polli@babel.it

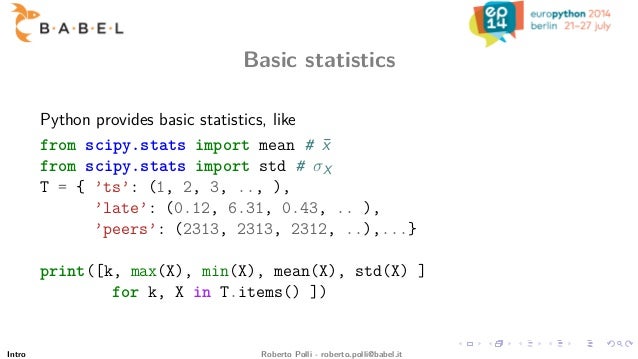

  5. 5. Basic statistics Python provides basic statistics, like from scipy.stats import mean # ¯x from scipy.stats import std # σX T = { ’ts’: (1, 2, 3, .., ), ’late’: (0.12, 6.31, 0.43, .. ), ’peers’: (2313, 2313, 2312, ..),...} print([k, max(X), min(X), mean(X), std(X) ] for k, X in T.items() ]) Intro Roberto Polli - roberto.polli@babel.it

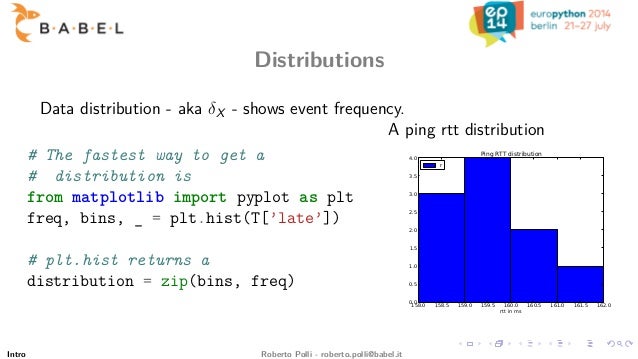

  6. 6. Distributions Data distribution - aka δX - shows event frequency. # The fastest way to get a # distribution is from matplotlib import pyplot as plt freq, bins, _ = plt.hist(T[’late’]) # plt.hist returns a distribution = zip(bins, freq) A ping rtt distribution 158.0 158.5 159.0 159.5 160.0 160.5 161.0 161.5 162.0 rtt in ms 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 Ping RTT distribution r Intro Roberto Polli - roberto.polli@babel.it

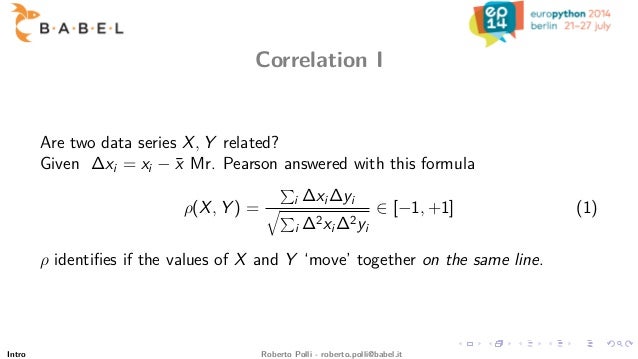

  7. 7. Correlation I Are two data series X, Y related? Given ∆xi = xi − ¯x Mr. Pearson answered with this formula ρ(X, Y ) = i ∆xi ∆yi i ∆2xi ∆2yi ∈ [−1, +1] (1) ρ identifies if the values of X and Y ‘move’ together on the same line. Intro Roberto Polli - roberto.polli@babel.it

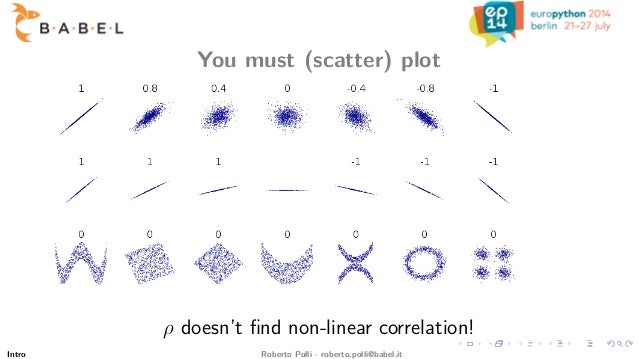

  8. 8. You must (scatter) plot ρ doesn’t find non-linear correlation! Intro Roberto Polli - roberto.polli@babel.it

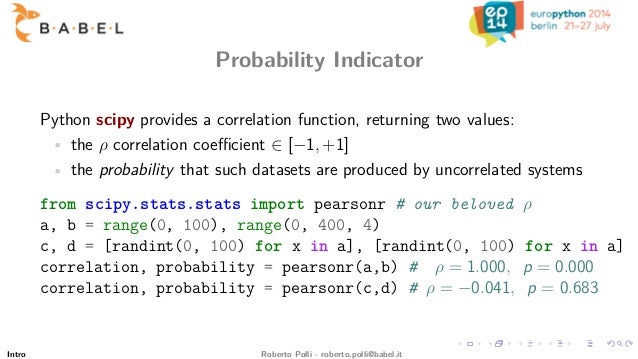

  9. 9. Probability Indicator Python scipy provides a correlation function, returning two values: • the ρ correlation coefficient ∈ [−1, +1] • the probability that such datasets are produced by uncorrelated systems from scipy.stats.stats import pearsonr # our beloved ρ a, b = range(0, 100), range(0, 400, 4) c, d = [randint(0, 100) for x in a], [randint(0, 100) for x in a] correlation, probability = pearsonr(a,b) # ρ = 1.000, p = 0.000 correlation, probability = pearsonr(c,d) # ρ = −0.041, p = 0.683 Intro Roberto Polli - roberto.polli@babel.it

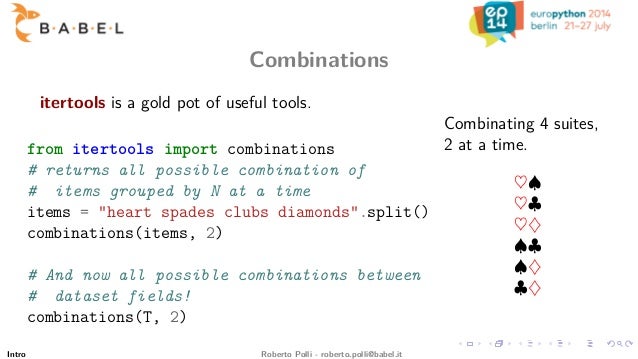

  10. 10. Combinations itertools is a gold pot of useful tools. from itertools import combinations # returns all possible combination of # items grouped by N at a time items = "heart spades clubs diamonds".split() combinations(items, 2) # And now all possible combinations between # dataset fields! combinations(T, 2) Combinating 4 suites, 2 at a time. ♥♠ ♥♣ ♥♦ ♠♣ ♠♦ ♣♦ Intro Roberto Polli - roberto.polli@babel.it
  11. 11. Netfishing correlation I # Now we have all the ingredients for # net-fishing relations between our data! for (k1,v1), (k2,v2) in combinations(T.items(), 2): # Look for correlations between every dataset! corr, prob = pearsonr(v1, v2) if corr > .6: print("Series", k1, k2, "can be correlated", corr) elif prob < 0.05: print("Series", k1, k2, "probability lower than 5%%", prob) Intro Roberto Polli - roberto.polli@babel.it

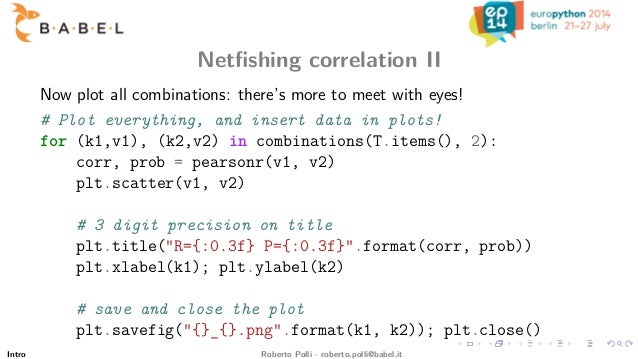

  12. 12. Netfishing correlation II Now plot all combinations: there’s more to meet with eyes! # Plot everything, and insert data in plots! for (k1,v1), (k2,v2) in combinations(T.items(), 2): corr, prob = pearsonr(v1, v2) plt.scatter(v1, v2) # 3 digit precision on title plt.title("R={:0.3f} P={:0.3f}".format(corr, prob)) plt.xlabel(k1); plt.ylabel(k2) # save and close the plot plt.savefig("{}_{}.png".format(k1, k2)); plt.close() Intro Roberto Polli - roberto.polli@babel.it

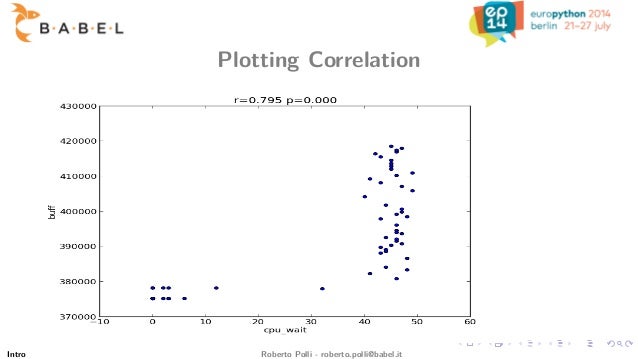

  13. 13. Plotting Correlation Intro Roberto Polli - roberto.polli@babel.it

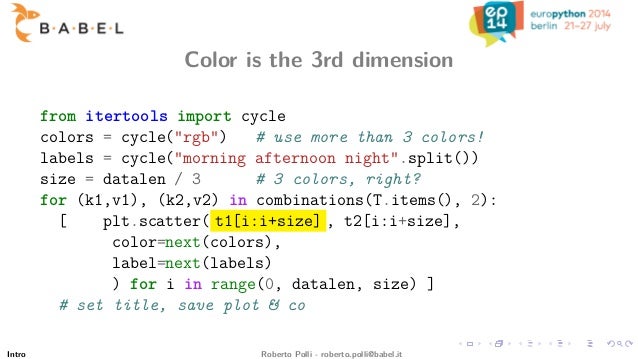

  14. 14. Color is the 3rd dimension from itertools import cycle colors = cycle("rgb") # use more than 3 colors! labels = cycle("morning afternoon night".split()) size = datalen / 3 # 3 colors, right? for (k1,v1), (k2,v2) in combinations(T.items(), 2): [ plt.scatter( t1[i:i+size] , t2[i:i+size], color=next(colors), label=next(labels) ) for i in range(0, datalen, size) ] # set title, save plot & co Intro Roberto Polli - roberto.polli@babel.it
  15. 15. Example Correlation Intro Roberto Polli - roberto.polli@babel.it

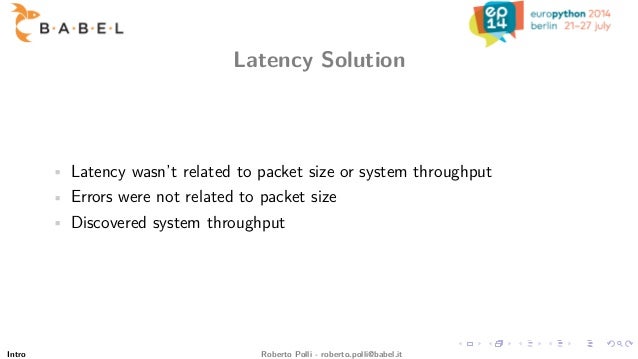

  16. 16. Latency Solution • Latency wasn’t related to packet size or system throughput • Errors were not related to packet size • Discovered system throughput Intro Roberto Polli - roberto.polli@babel.it
  17. 17. Wrap Up • Use statistics: it’s easy • Don’t use ρ to exclude relations • Plot, Plot, Plot • Continue collecting results Intro Roberto Polli - roberto.polli@babel.it
  18. 18. That’s all folks! Thank you for the attention! Roberto Polli - roberto.polli@babel.it Intro Roberto Polli - roberto.polli@babel.it
