Mobile Movies with HTTP Live Streaming (CocoaConf Columbus, Aug '12) Mobile Movies with HTTP Live Streaming (CocoaConf Columbus, Aug '12) Presentation Transcript

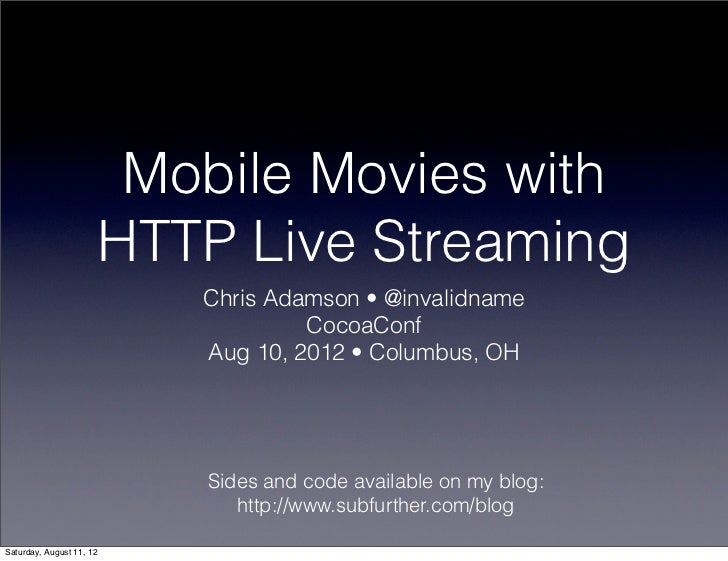

  • Mobile Movies with HTTP Live Streaming Chris Adamson • @invalidname CocoaConf Aug 10, 2012 • Columbus, OH Sides and code available on my blog: http://www.subfurther.com/blogSaturday, August 11, 12
  • So Many Streaming Apps!Saturday, August 11, 12
  • So Many Streaming Apps!Saturday, August 11, 12
  • NetflixSaturday, August 11, 12
  • FlixterSaturday, August 11, 12
  • ABCSaturday, August 11, 12
  • PBSSaturday, August 11, 12
  • NBC Olympics Live ExtraSaturday, August 11, 12
  • DirecTVSaturday, August 11, 12
  • UStreamSaturday, August 11, 12
  • CrunchyrollSaturday, August 11, 12
  • TwitchTVSaturday, August 11, 12
  • Oh, and it can be embedded in the <video> tagSaturday, August 11, 12
  • Sounds good? How do I get in on that?Saturday, August 11, 12
  • What Youll Learn • What streaming is (and isnt) • Setting up HLS on the server • Using HLS streams in iOS apps • Real-world deploymentSaturday, August 11, 12
  • HLS: What It Is (and isnt)Saturday, August 11, 12
  • Good Ol BroadcastSaturday, August 11, 12
  • Broadcast Media • Always live on some channel (a band of EM spectrum). • Every client tuned to that channel sees the same thing, at the same time. • One-way, one-to-many model.Saturday, August 11, 12
  • Internet • Generally one-to-one (host to host). • Multicast IP is an exception, but is rare on the public Internet. • Two-way communication over sockets. • Routing can take many hops, via multiple transport media (wire, wifi, cellular, etc.).Saturday, August 11, 12
  • Impedence Mismatch!Saturday, August 11, 12
  • Ye Olde Streaming • Client makes socket connection and keeps it open for duration of program. • Server sends media at playback speed (plus buffering). • Shoutcast: MP3 files served slowly over HTTP. • Typically use a special port number and special server software.Saturday, August 11, 12
  • Streaming Problems • Difficult and expensive to scale. • Special port numbers routinely blocked by businesses, ISPs, firewalls, etc. • Competing standards: Real Player, Windows Media, QuickTime (all with their own plugins). • No wonder Flash won. • Good luck holding a socket connection on cellular.Saturday, August 11, 12
  • What If… • We didnt need an always-on socket connection? • We could just run over port 80? • We could just adopt industry standards like H. 264 and AAC instead of cooking custom codecs?Saturday, August 11, 12
  • HTTP Live Streaming • Serves media as a series of short flat files, via HTTP, usually on port 80. • Any web server will do. • Client software reassembles the data into a continuous media stream. • Spec does not specify contents, but Apple uses H.264 and AAC, just like all their media apps.Saturday, August 11, 12
  • Serving up HLS • Client URL is an .m3u8 playlist file • Playlist points to the media segment filesSaturday, August 11, 12
  • Saturday, August 11, 12
  • The HLS playlist #EXTM3U #EXT-X-TARGETDURATION:10 #EXT-X-VERSION:3 #EXT-X-MEDIA-SEQUENCE:0 #EXT-X-PLAYLIST-TYPE:VOD #EXTINF:9.975,! fileSequence0.ts #EXTINF:9.975,! fileSequence1.ts #EXTINF:9.975,! fileSequence2.ts #EXTINF:9.9767,! fileSequence3.ts #EXTINF:9.975,! [...] #EXT-X-ENDLISTSaturday, August 11, 12
  • The HLS playlist #EXTM3U Format: .m3u8 format, #EXT-X-TARGETDURATION:10 #EXT-X-VERSION:3 just a list of files to play #EXT-X-MEDIA-SEQUENCE:0 #EXT-X-PLAYLIST-TYPE:VOD #EXTINF:9.975,! fileSequence0.ts #EXTINF:9.975,! fileSequence1.ts #EXTINF:9.975,! fileSequence2.ts #EXTINF:9.9767,! fileSequence3.ts #EXTINF:9.975,! [...] #EXT-X-ENDLISTSaturday, August 11, 12
  • The HLS playlist #EXTM3U Format: .m3u8 format, #EXT-X-TARGETDURATION:10 #EXT-X-VERSION:3 just a list of files to play #EXT-X-MEDIA-SEQUENCE:0 #EXT-X-PLAYLIST-TYPE:VOD Metadata tags describe #EXTINF:9.975,! fileSequence0.ts the contents #EXTINF:9.975,! fileSequence1.ts #EXTINF:9.975,! fileSequence2.ts #EXTINF:9.9767,! fileSequence3.ts #EXTINF:9.975,! [...] #EXT-X-ENDLISTSaturday, August 11, 12
  • The HLS playlist #EXTM3U Format: .m3u8 format, #EXT-X-TARGETDURATION:10 #EXT-X-VERSION:3 just a list of files to play #EXT-X-MEDIA-SEQUENCE:0 #EXT-X-PLAYLIST-TYPE:VOD Metadata tags describe #EXTINF:9.975,! fileSequence0.ts the contents #EXTINF:9.975,! fileSequence1.ts #EXTINF:9.975,! Each segment file fileSequence2.ts #EXTINF:9.9767,! preceded by metadata fileSequence3.ts (e.g., duration) #EXTINF:9.975,! [...] #EXT-X-ENDLISTSaturday, August 11, 12
  • The HLS playlist #EXTM3U Format: .m3u8 format, #EXT-X-TARGETDURATION:10 #EXT-X-VERSION:3 just a list of files to play #EXT-X-MEDIA-SEQUENCE:0 #EXT-X-PLAYLIST-TYPE:VOD Metadata tags describe #EXTINF:9.975,! fileSequence0.ts the contents #EXTINF:9.975,! fileSequence1.ts #EXTINF:9.975,! Each segment file fileSequence2.ts #EXTINF:9.9767,! preceded by metadata fileSequence3.ts (e.g., duration) #EXTINF:9.975,! [...] If no end tag, client #EXT-X-ENDLIST refreshes periodicallySaturday, August 11, 12
  • Web DemoSaturday, August 11, 12
  • <video src="prog_index.m3u8" width="640" height="480" controls autoplay>No video tag support</video>Saturday, August 11, 12
  • How is this better than a flat .m4v file? • Streams can provide variants for different bandwidths (as we’ll see…) • Segments make it easier to scrub into the video • Streams can be live videoSaturday, August 11, 12
  • The “Live” in HLS • A playlist is a live stream if it doesn’t have an #EXT-X-ENDLIST tag • Live playlist will generally just contain the last minute or so of segments • Client will refresh playlist every minute or so, download whatever segments it doesn’t already have, queue them locally • “Live” isn’t really “live” (often a minute behind)Saturday, August 11, 12
  • Serving up HLSSaturday, August 11, 12
  • Saturday, August 11, 12
  • Saturday, August 11, 12
  • Saturday, August 11, 12
  • Saturday, August 11, 12
  • Saturday, August 11, 12
  • mediafilesegmenter • Splits an A/V file into segment files, creates the .m3u8 playlist • Source must be .mov or .m4v with H.264 video, AAC audio • Output segments will be MPEG-2 Transport Stream (.ts) files, or .aac if audio-only • Segment paths are relative, use -b to prepend URL stubSaturday, August 11, 12
  • Technical Note TN2224 The following audio and video formats are supported: • Video: H.264 Baseline Profile Level 3.0 (iPhone/iPod Touch), Main Profile Level 3.1 (iPad 1,2) • Audio: HE-AAC or AAC-LC up to 48 kHz, stereo audio OR MP3 (MPEG-1 Audio Layer 3) 8 kHz to 48 kHz, stereo audio Note: iPhone 3G supports Baseline Profile Level 3.1. If your app runs on older iPhones, however, you should use H.264 Baseline Profile 3.0 for compatibility.Saturday, August 11, 12
  • Yuna:HTTP Live Streaming tests cadamson$ mediafilesegmenter -f basic source/IMG_0251.MOV Jun 24 2012 10:01:24.203: Using floating point is not backward compatible to iOS 4.1 or earlier devices Jun 24 2012 10:01:24.204: Processing file /Users/cadamson/ Documents/HTTP Live Streaming tests/source/IMG_0251.MOV Jun 24 2012 10:01:24.338: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/basic/fileSequence0.ts Jun 24 2012 10:01:24.375: segment bitrate 3.78028e+06 is new max Jun 24 2012 10:01:24.468: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/basic/fileSequence1.ts Jun 24 2012 10:01:24.554: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/basic/fileSequence2.ts Jun 24 2012 10:01:24.631: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/basic/fileSequence3.ts Jun 24 2012 10:01:24.717: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/basic/fileSequence4.tsSaturday, August 11, 12
  • DemoSaturday, August 11, 12
  • Variant Playlists • One bitrate does not fit all: Mac on Ethernet versus iPhone on Edge. • Solution: encode your video at multiple bitrates, offer metadata in playlist about whats available, let client figure out which to use. • HLS clients automatically switch to best variant for current network conditions, switch on the fly.Saturday, August 11, 12
  • variantplaylistcreator • Creates a playlist that itself points to playlists created with mediafilesegmenter. • Each entry contains metadata describing the bitrate and encoding of the variant. • Tool takes argument pairs: file or URL of a variant .m3u8, and metadata .plist created with mediafilesegmenter -I flag • First entry in variant playlist is default; client will try this one firstSaturday, August 11, 12
  • Encoding the variantsSaturday, August 11, 12
  • TN2224 RecommendationsSaturday, August 11, 12
  • Creating variants Yuna:HTTP Live Streaming tests cadamson$ mediafilesegmenter -I -f variants/ broadband/ source/IMG_0254_Broadband.m4v Yuna:HTTP Live Streaming tests cadamson$ mediafilesegmenter -I -f variants/wifi source/IMG_0254_WiFi.m4v Yuna:HTTP Live Streaming tests cadamson$ mediafilesegmenter -I -f variants/ cellular source/IMG_0254_Cellular.m4vSaturday, August 11, 12
  • Creating variant playlist Yuna:HTTP Live Streaming tests cadamson$ variantplaylistcreator -o variants/ variants.m3u8 variants/broadband/ prog_index.m3u8 source/ IMG_0254_Broadband.plist variants/wifi/ prog_index.m3u8 source/ IMG_0254_WiFi.plist variants/cellular/ prog_index.m3u8 source/ IMG_0254_Cellular.plistSaturday, August 11, 12
  • DemoSaturday, August 11, 12
  • Thats Great, but… How do we keep people from stealing our stream?Saturday, August 11, 12
  • Encryption • HLS encrypts files, not transport. • Easy to scale: still serving flat files, but now theyre useless without decryption keys. • Serving the keys still needs to be secure. • Necessary, but not sufficient, for DRM.Saturday, August 11, 12
  • Encrypting a playlist Yuna:HTTP Live Streaming tests cadamson$ mediafilesegmenter - I -k keys -f encrypted/cellular source/IMG_0426_Cellular.m4v Jun 24 2012 18:59:47.115: Using new key/iv rotation period; this is not backward compatible to iOS 3.1.* or earlier devices.  Use the "-encrypt-iv=sequence" option for compatibility with those devices. Jun 24 2012 18:59:47.115: Using floating point is not backward compatible to iOS 4.1 or earlier devices Jun 24 2012 18:59:47.115: Processing file /Users/cadamson/ Documents/HTTP Live Streaming tests/source/ IMG_0426_Cellular.m4v Jun 24 2012 18:59:47.152: changing IV Jun 24 2012 18:59:47.160: Finalized /Users/cadamson/ Documents/HTTP Live Streaming tests/encrypted/cellular/ fileSequence0.ts Jun 24 2012 18:59:47.160: segment bitrate 271257 is new maxSaturday, August 11, 12
  • Encrypted .ts filesSaturday, August 11, 12
  • Encrypted .ts filesSaturday, August 11, 12
  • Encrypted .ts filesSaturday, August 11, 12
  • Encrypted .ts filesSaturday, August 11, 12
  • Protect those keys /www/protected /www/hlsSaturday, August 11, 12
  • DemoSaturday, August 11, 12
  • Live Streaming • mediastreamsegmenter mostly works like the file version, but takes its input from UDP stream or a Unix pipe • How the heck do you create a UDP A/V stream?Saturday, August 11, 12
  • VLC streams .ts/UDP http://stackoverflow.com/questions/3846145Saturday, August 11, 12
  • VLC streams .ts/UDP mediastreamsegmenter -s 3 -D -f /Library/ WebServer/Documents/httplivestreaming/live 127.0.0.1:1234 http://stackoverflow.com/questions/3846145Saturday, August 11, 12
  • Demo (Or Not)Saturday, August 11, 12
  • Client-side HLSSaturday, August 11, 12
  • Opening an HLS stream • Provide the .m3u8 URL to MPMoviePlayerController or AVPlayer • Add the movie view or layer to your UI, customizing size or scaling if necessarySaturday, August 11, 12
  • MPMoviePlayerController // create new movie player self.moviePlayer = [[MPMoviePlayerController alloc] ! ! ! ! ! ! ! ! initWithContentURL:streamURL]; [self.moviePlayer prepareToPlay]; [self.moviePlayer.view setFrame: ! ! ! ! ! ! ! self.movieContainerView.bounds]; [self.movieContainerView addSubview: ! ! ! ! ! ! ! ! self.moviePlayer.view]; self.moviePlayer.scalingMode = ! ! ! ! ! ! ! ! MPMovieScalingModeFill;Saturday, August 11, 12
  • MPMovieScalingMode AspectFitSaturday, August 11, 12
  • MPMovieScalingMode AspectFillSaturday, August 11, 12
  • MPMovieScalingMode  FillSaturday, August 11, 12
  • Accessing Encrypted Streams • Media Player and AV Foundation can use NSURLCredentials that youve provided • Place credentials in NSURLCredentialStorage • Server can provide the keys securely(*) with HTTP Basic or Digest authentication, an HTTPS script, etc. * - For various values of "secure"Saturday, August 11, 12
  • Setting credentials (1) NSURLProtectionSpace *protectionSpace = ! [[NSURLProtectionSpace alloc] ! ! initWithHost:host ! ! port:port ! ! protocol:protocol ! ! realm:realm ! ! authenticationMethod: ! ! ! NSURLAuthenticationMethodDefault];Saturday, August 11, 12
  • Setting credentials (2) NSURLCredential *credential = ! [NSURLCredential credentialWithUser:username ! ! ! ! ! ! ! ! !         password:password ! ! ! ! ! ! ! ! ! ! ! persistence: ! ! ! NSURLCredentialPersistenceForSession]; [[NSURLCredentialStorage ! sharedCredentialStorage] ! ! setDefaultCredential:credential ! ! forProtectionSpace:protectionSpace];Saturday, August 11, 12
  • Streaming in the Real World Its not all about iPhones…Saturday, August 11, 12
  • Streaming Clients • Mobile Devices: iPhone, iPad, iPod Touch… plus Android, Windows Mobile, etc. • Mac and Windows PCs • Over-the-top (OTT) boxes: Apple TV, Roku • Game consolesSaturday, August 11, 12
  • Lets Get Practical • What devices do you have to be on? • What devices will you get for free? • How to encode and deliver to the devices you need?Saturday, August 11, 12
  • HLS Alternatives • Flash still rules on the desktop/browser space, thanks in part to Mozillas obstinance about H.264 in <video> (irony alert: H.264 is the de facto standard for Flash video) • Adobe Dynamic Streaming and Microsoft Smooth Streaming are highly similar to HLS: bitrate-adaptive streams over HTTPSaturday, August 11, 12
  • MPEG-DASH • Attempt at a standardized approach to HTTP adaptive-bitrate streaming. ISO/IEC 23009-1. http://xkcd.com/927/Saturday, August 11, 12
  • Emerging Consensus • Flash for PCs • HTTP Live Streaming for iOS • Plus whatever other devices you need to supportSaturday, August 11, 12
  • Real-World HLS • Can you competently encode all your media at all the variant bitrates you need? • Do you have a way to QC all your streams? • Can you handle the server load?Saturday, August 11, 12
  • Content Delivery Networks http://en.wikipedia.org/wiki/Content_delivery_networkSaturday, August 11, 12
  • Content Delivery Networks • CDNs host your media on edge servers that are closer to your clients. Less strain on your servers and the backbones. • Examples: Akamai, Limelight, EdgeCast • Big media companies may have their own CDN • Most already know how to do HLSSaturday, August 11, 12
  • Buy or BuildSaturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Outsourcing HLS Ads from "Streaming Media" June/July 2012Saturday, August 11, 12
  • Takeaways • HLS is a very practical streaming solution • Only part of the picture if youre multi-platform • Encoding and serving correctly requires some care and expertise • Client-side software requirements are fairly simpleSaturday, August 11, 12
  • Q&A Slides and code will be available on my blog: http://www.subfurther.com/blog http://www.slideshare.net/invalidname @invalidnameSaturday, August 11, 12
