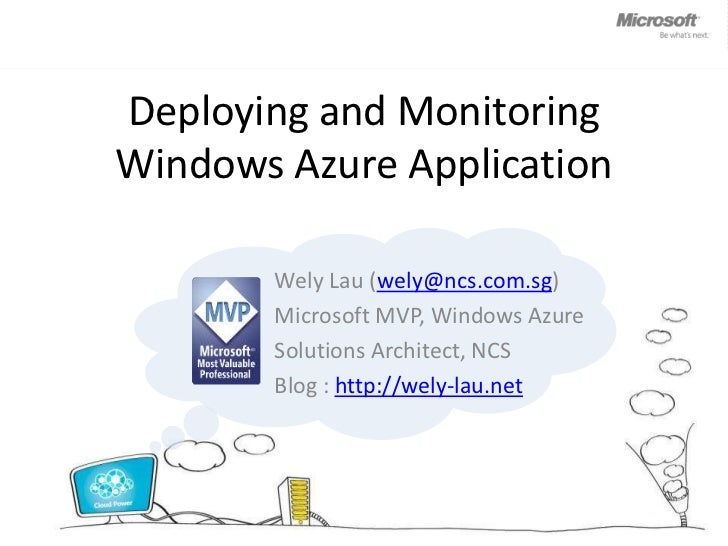

Deploying and Monitoring Windows Azure Application<br />Wely Lau (wely@ncs.com.sg) <br />Microsoft MVP, Windows Azure<br /...
Microsoft Cloud Day<br />Wely Lau Windows Azure MVP / Solutions Architect, NCS Pte Ltd<br />Deploying and Monitoring Windo...
Agenda<br />Basic Concept<br />Deploying <br />Upgrading <br />Monitoring <br />Start-up Task<br />Q & A <br />
Understanding Packaging and Config<br />Windows Azure Services are described by two important artifacts:<br />Service Defi...
Service Definition<br />Contains metadata needed by the Windows Azure environment to understand the requirements of your a...
Service Configuration<br />Sets values for the configuration settings defined in the service definition file and specifies...
Fault and Upgrade Domains<br />Fault Domains<br />Represent groups of resources anticipated to fail together<br />i.e. Sam...
Fault and Upgrade Domains Visualized<br />Fault Domain<br />Fault Domain<br />Rack<br />Rack<br />U/G Domain #1<br />U/G D...
Deployment Environments<br />Two Environments to choose from<br />Nearly Identical…<br /><servicename>.cloudapp.net<br /><...
Agenda<br />Basic Concept<br />Deploying <br />Upgrading <br />Monitoring <br />Start-up Task<br />Q & A <br />
Various Techniques Deploying to the Cloud<br />Windows Azure Portal<br />Visual Studio 2010 <br />Windows Azure Service Ma...
Windows Azure Portal<br /><ul><li>http://windows.azure.com</li></ul>You must create an Azure account, then a service, and ...
Visual Studio<br /><ul><li>Deploy a management certificate
Connect to your service account
Publish inside of VS2010
Easy integration with IntelliTrace and Storage</li></li></ul><li>Windows Azure Service Management Cmdlets<br /><ul><li>Set...
http://archive.msdn.microsoft.com/azurecmdlets
Wraps Management REST API and Diagnostics API
Enables building of sophisticated deployment scripts
Works with rest of .NET CLR</li></li></ul><li>Deploy through Visual Studio<br />Deploy through PowerShell<br />demo<br />
Agenda<br />Basic Concept<br />Deploying <br />Upgrading <br />Monitoring <br />Start-up Task <br />Q & A <br />
Upgrading Windows Azure Application<br />Deployment Consideration<br />Downtime tolerance<br />VIP Address<br />Cost<br />...
Delete & Recreate<br />Down time between deployments<br />You can change almost everything in your app<br />1 X your insta...
In Place Upgrade<br />Reuses existing VMs (Preserves VM state i.e. local cache data)<br />Can update a single role<br />1 ...
In Place Upgrade<br />Rack<br />Rack<br />Web Role<br />Web Role<br />Load Balancer: <br />#1<br />#2<br />#1<br />#2<br /...
Web Deploy<br />Newly built-in in SDK 1.4.1<br />Quickly push incremental changes<br />Caveats:<br />Only applicable for s...
VIP swap <br />Easier to undo<br />Requires 2 identical environments<br />Cannot update endpoints<br />2 X your instance c...
DNS Swap<br />Use DNS as another layer of abstraction<br />Requires your own domain name<br />2 X your instance cost<br />...
Web Deploy<br />VIP Swap<br />demo<br />
Agenda<br />Basic Concept<br />Deploying <br />Upgrading <br />Monitoring <br />Start-up Task<br />Q & A <br />
Diagnostic: Common Task & Challenges<br /><ul><li>Common Diagnostic Task
Performance measurement
Troubleshooting and debugging
Capacity planning
Traffic analysis (users, views, peak times)
Billing & Auditing
Challenges in the Cloud
Many instances
Local storage is not persistence
They move around
Massive amount of data
