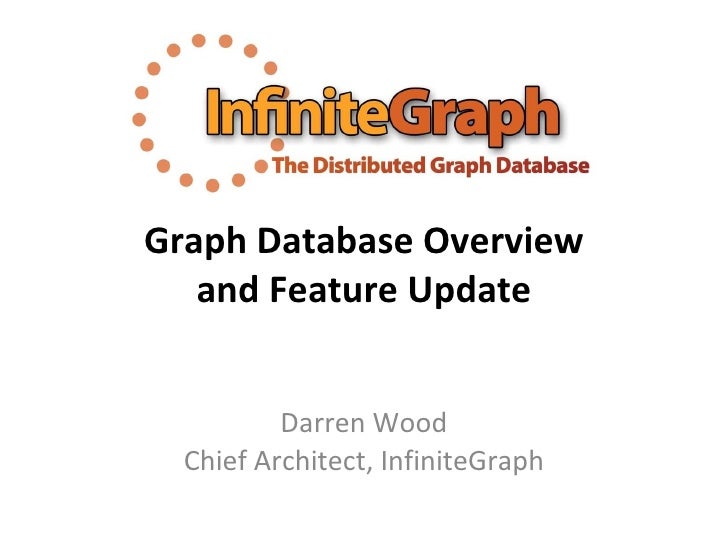

Graph Database Overview and Feature Update Darren Wood Chief Architect, InfiniteGraph
History <ul><li>Objectivity – Massively scalable, distributed object oriented database </li></ul><ul><ul><li>Used in Gover...
Graph Databases <ul><li>Key technical attributes </li></ul><ul><li>How Infinite Graph addresses these </li></ul><ul><li>Qu...
Graph Databases <ul><li>Optimized around data relationships </li></ul><ul><ul><li>Relationships as first class citizens </...
Distributed Graph Must Haves <ul><li>High performance distributed persistence </li></ul><ul><li>Ability to deal with remot...
Some Code Copyright © InfiniteGraph Vertex alice = myGraph.addVertex(new Person(“Alice”));  Vertex bob = myGraph.addVertex...
Physical Storage Comparison Copyright © InfiniteGraph Meetings P1 Place Time P2 Alice Denver 5-27-10 Bob Calls From Time D...
Query and Navigation <ul><li>Queries – but not as you know them </li></ul><ul><li>More like a rules based search and disco...
Navigation Example Copyright © InfiniteGraph // Create a qualifier that describes the target vertex Qualifier findCharlieP...
Management of Large Data Graphs <ul><li>Graphs grow quickly </li></ul><ul><ul><li>Billions of phone calls / day in US </li...
Basic Architecture Copyright © InfiniteGraph IG Core/API Configuration Navigation Execution Management Extensions Blueprin...
Feature Update Copyright © InfiniteGraph 2.0
Accelerated Ingest Copyright © InfiniteGraph IG Core/API Configuration Navigation Execution Management Extensions Session ...
Accelerated Ingest Copyright © InfiniteGraph IG Core/API Configuration Navigation Execution Management Extensions Session ...
InfiniteGraph Visualizer <ul><li>Really nice flexible graph viewer </li></ul><ul><li>Browser style navigation and history ...
InfiniteGraph Visualizer Copyright © InfiniteGraph
InfiniteGraph Visualizer Copyright © InfiniteGraph
Indexing Framework <ul><li>Focused on providing choice ! </li></ul><ul><li>Manual Indexes for grouping data </li></ul><ul>...
<ul><li>Automated Distributed Navigation </li></ul><ul><li>Stored Loadable Navigators </li></ul><ul><li>Visualizer Navigat...
Thankyou ! Copyright © InfiniteGraph [email_address]
