    Optimizing your java applications for multi core hardware Optimizing your java applications for multi core hardware Presentation Transcript

    • Optimizing your Java Applications for multi-core hardware Prashanth K Nageshappa [email_address] Java Technologies IBM

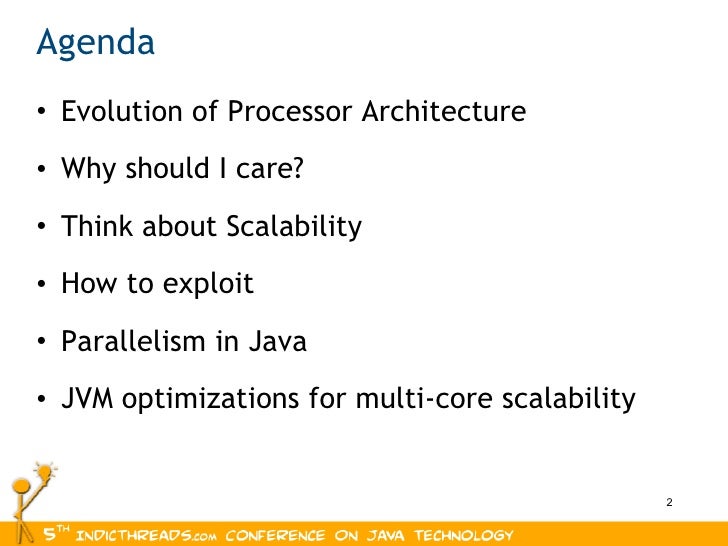

    • Agenda
      • Evolution of Processor Architecture
      • Why should I care?
      • Think about Scalability
      • How to exploit
      • Parallelism in Java
      • JVM optimizations for multi-core scalability
    • As The World Gets Smarter, Demands On IT Will Grow Smart energy grids Smart healthcare Smart food systems Intelligent oil field technologies Smart supply chains Smart retail
      • IT infrastructure must grow to meet these demands global scope, processing scale, efficiency
      Digital data is projected to grow tenfold from 2007 to 2011. Devices will be connected to the internet by 2011 1 Trillion Global trading systems are under extreme stress, handling billions of market data messages each day 25 Billion 70% on average is spent on maintaining current IT infrastructure versus adding new capabilities 10x

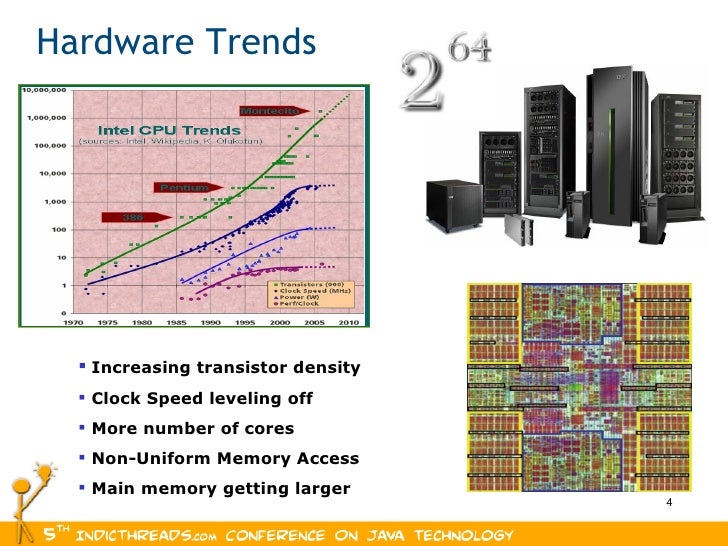

    • Hardware Trends
      • Increasing transistor density
      • Clock Speed leveling off
      • More number of cores
      • Non-Uniform Memory Access
      • Main memory getting larger

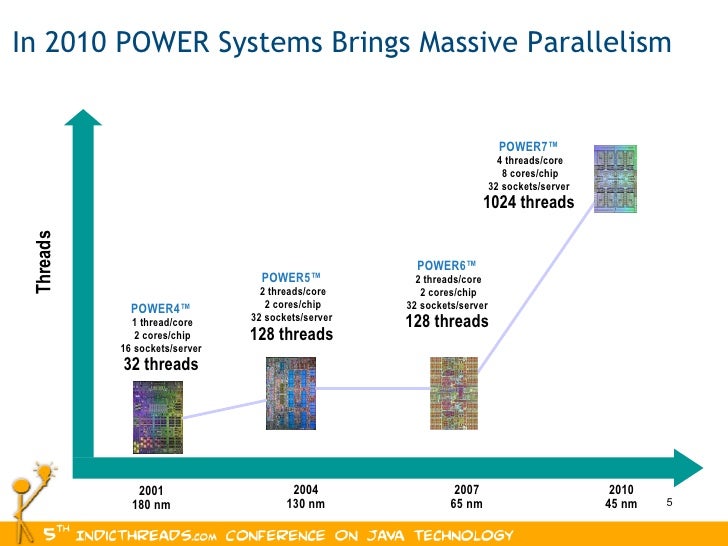

    • In 2010 POWER Systems Brings Massive Parallelism 2001 180 nm 2004 130 nm 2007 65 nm 2010 45 nm POWER7™ 4 threads/core 8 cores/chip 32 sockets/server 1024 threads POWER6™ 2 threads/core 2 cores/chip 32 sockets/server 128 threads POWER5™ 2 threads/core 2 cores/chip 32 sockets/server 128 threads POWER4™ 1 thread/core 2 cores/chip 16 sockets/server 32 threads Threads

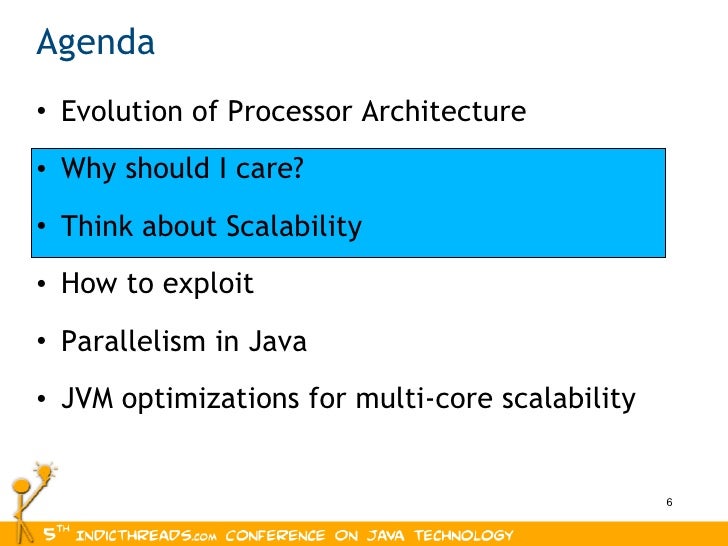

    • Agenda
      • Evolution of Processor Architecture
      • Why should I care?
      • Think about Scalability
      • How to exploit
      • Parallelism in Java
      • JVM optimizations for multi-core scalability
    • Why should I care?
      • Your application may be re-used
      • Better performance
        • Better leverage additional resources
          • Cores, hardware threads, memory etc
    • Think about scalability
      • Serial bottlenecks inhibit scalability
      • Organize your application into parallel tasks
        • Consider TaskExecutor API
        • Too many threads can be just as bad as too few
      • Do not rely on JVM to discover opportunities
        • No automatic parallelization
        • Java class libraries do not exploit vector processor capabilities

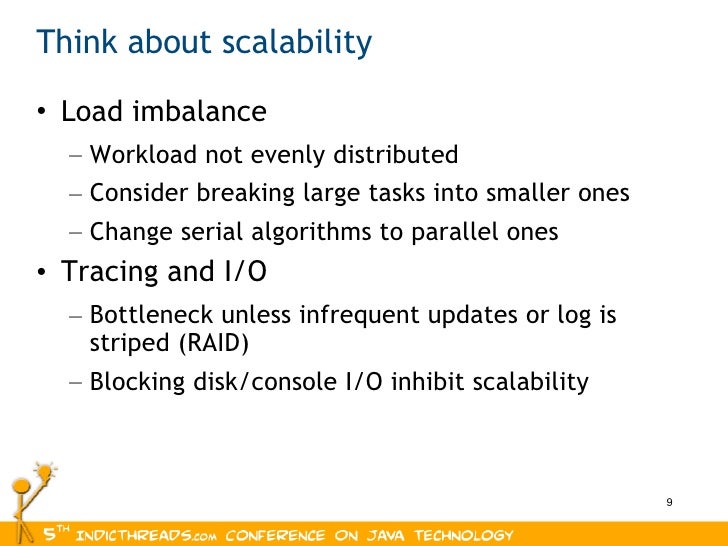

    • Think about scalability
      • Load imbalance
        • Workload not evenly distributed
        • Consider breaking large tasks into smaller ones
        • Change serial algorithms to parallel ones
      • Tracing and I/O
        • Bottleneck unless infrequent updates or log is striped (RAID)
        • Blocking disk/console I/O inhibit scalability

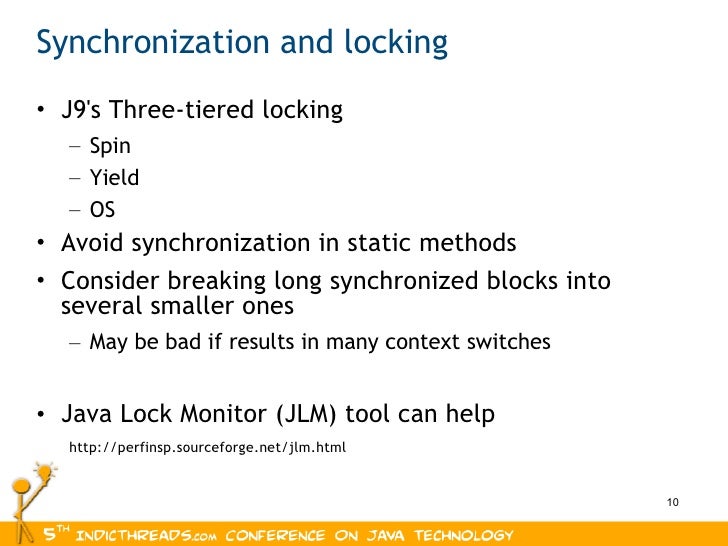

    • Synchronization and locking
      • J9's Three-tiered locking
        • Spin
        • Yield
        • OS
      • Avoid synchronization in static methods
      • Consider breaking long synchronized blocks into several smaller ones
        • May be bad if results in many context switches
      • Java Lock Monitor (JLM) tool can help
        • http://perfinsp.sourceforge.net/jlm.html

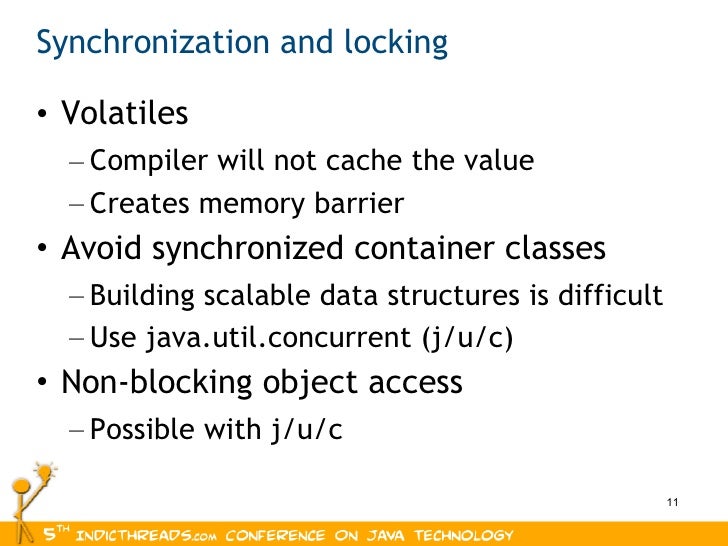

    • Synchronization and locking
      • Volatiles
        • Compiler will not cache the value
        • Creates memory barrier
      • Avoid synchronized container classes
        • Building scalable data structures is difficult
        • Use java.util.concurrent (j/u/c)
      • Non-blocking object access
        • Possible with j/u/c
    • Agenda
      • Evolution of Processor Architecture
      • Why should I care?
      • Think about Scalability
      • How to exploit
      • Parallelism in Java
      • JVM optimizations for multi-core scalability

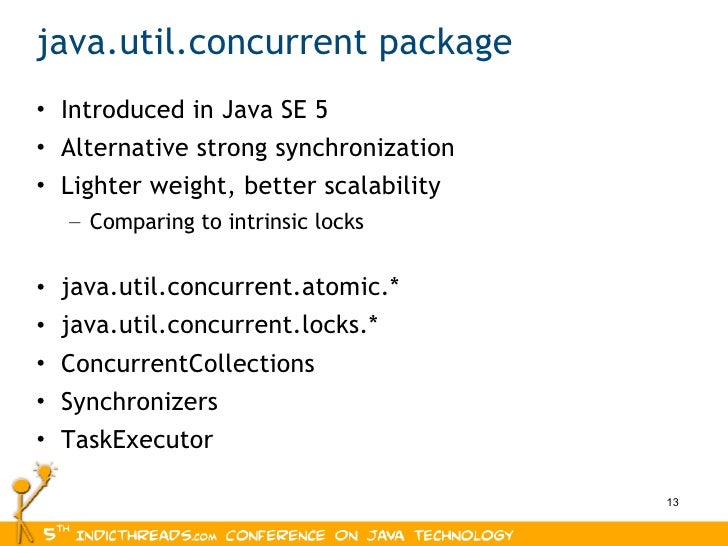

    • java.util.concurrent package
      • Introduced in Java SE 5
      • Alternative strong synchronization
      • Lighter weight, better scalability
        • Comparing to intrinsic locks
      • java.util.concurrent.atomic.*
      • java.util.concurrent.locks.*
      • ConcurrentCollections
      • Synchronizers
      • TaskExecutor

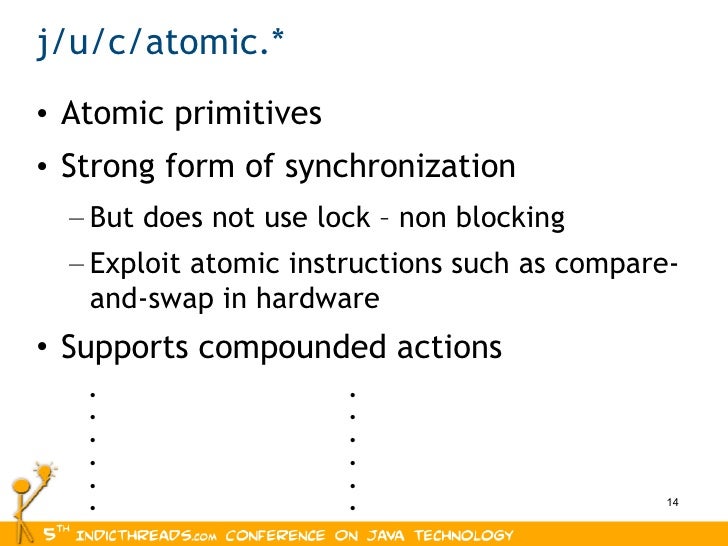

    • j/u/c/atomic.*
      • Atomic primitives
      • Strong form of synchronization
        • But does not use lock – non blocking
        • Exploit atomic instructions such as compare-and-swap in hardware
      • Supports compounded actions
      • AtomicLongFieldUpdater
      • AtomicMarkableReference
      • AtomicReference
      • AtomicReferenceArray
      • AtomicReferenceFieldUpdater
      • AtomicStampedReference
      • AtomicBoolean
      • AtomicInteger
      • AtomicIntegerArray
      • AtomicIntegerFieldUpdater
      • AtomicLong
      • AtomicLongArray

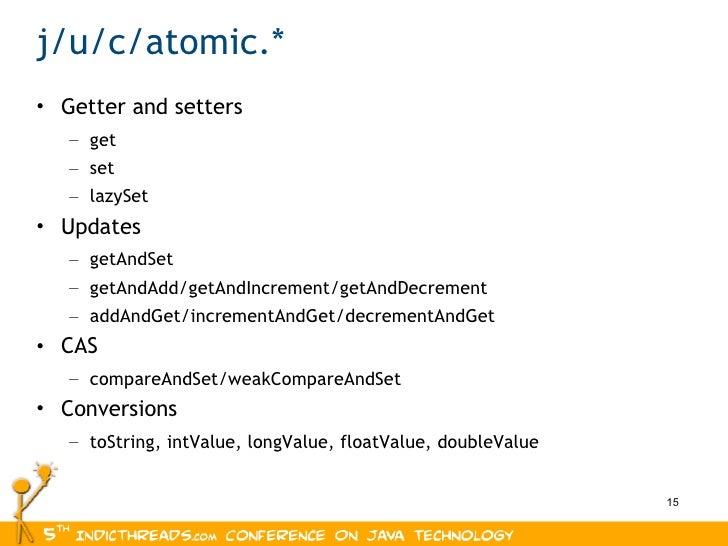

    • j/u/c/atomic.*
      • Getter and setters
        • get
        • set
        • lazySet
      • Updates
        • getAndSet
        • getAndAdd/getAndIncrement/getAndDecrement
        • addAndGet/incrementAndGet/decrementAndGet
      • CAS
        • compareAndSet/weakCompareAndSet
      • Conversions
        • toString, intValue, longValue, floatValue, doubleValue

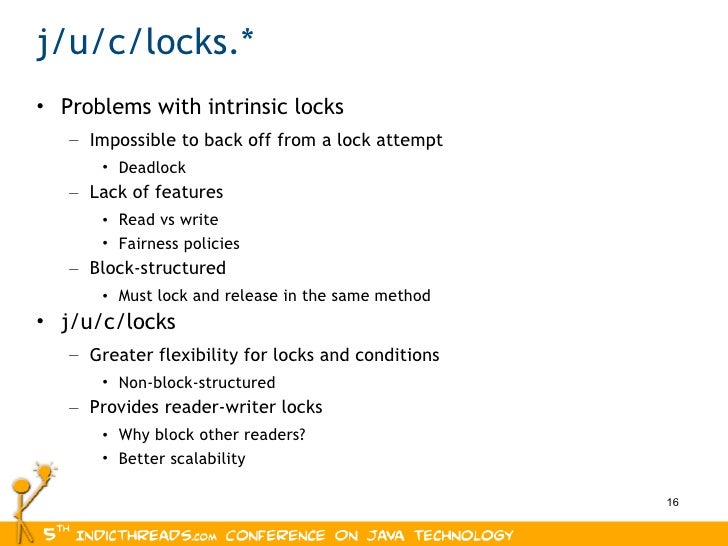

    • j/u/c/locks.*
      • Problems with intrinsic locks
        • Impossible to back off from a lock attempt
          • Deadlock
        • Lack of features
          • Read vs write
          • Fairness policies
        • Block-structured
          • Must lock and release in the same method
      • j/u/c/locks
        • Greater flexibility for locks and conditions
          • Non-block-structured
        • Provides reader-writer locks
          • Why block other readers?
          • Better scalability

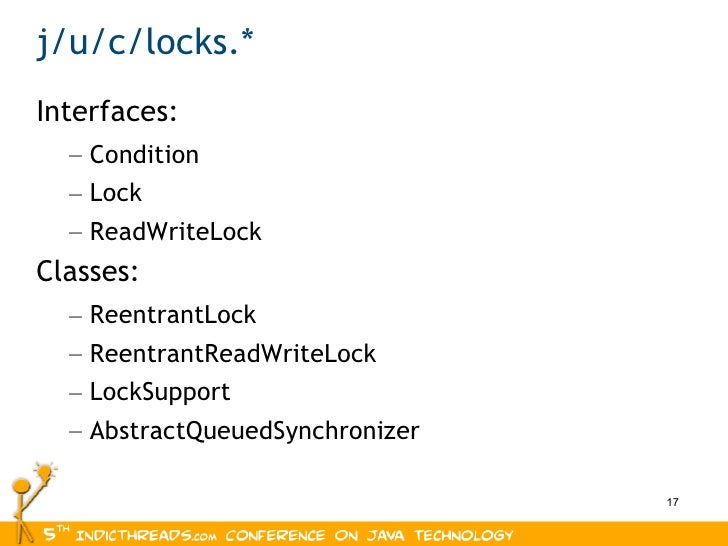

    • j/u/c/locks.*
      • Interfaces:
        • Condition
        • Lock
        • ReadWriteLock
      • Classes:
        • ReentrantLock
        • ReentrantReadWriteLock
        • LockSupport
        • AbstractQueuedSynchronizer

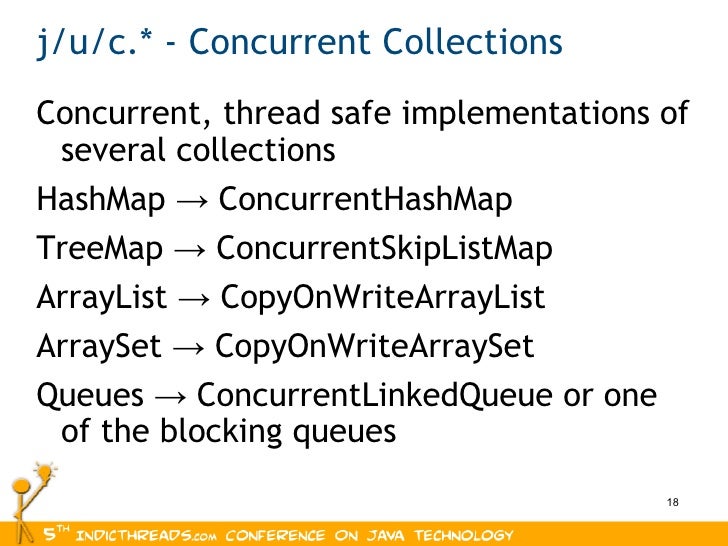

    • j/u/c.* - Concurrent Collections
      • Concurrent, thread safe implementations of several collections
      • HashMap -> ConcurrentHashMap
      • TreeMap -> ConcurrentSkipListMap
      • ArrayList -> CopyOnWriteArrayList
      • ArraySet -> CopyOnWriteArraySet
      • Queues -> ConcurrentLinkedQueue or one of the blocking queues

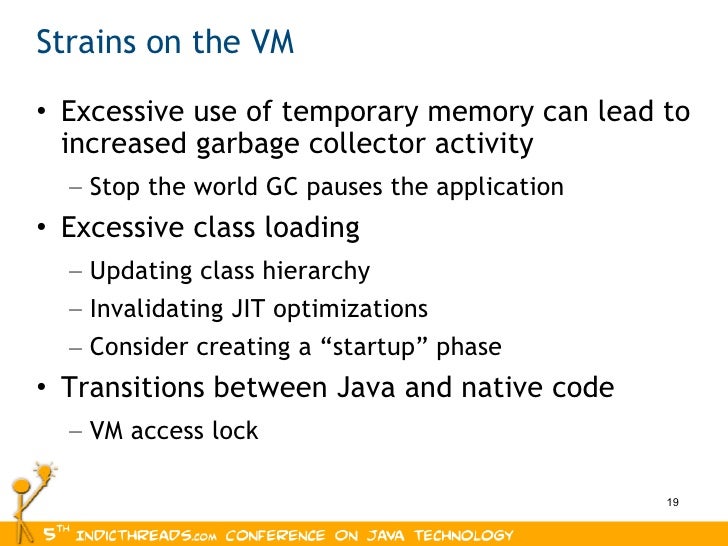

    • Strains on the VM
      • Excessive use of temporary memory can lead to increased garbage collector activity
        • Stop the world GC pauses the application
      • Excessive class loading
        • Updating class hierarchy
        • Invalidating JIT optimizations
        • Consider creating a “startup” phase
      • Transitions between Java and native code
        • VM access lock

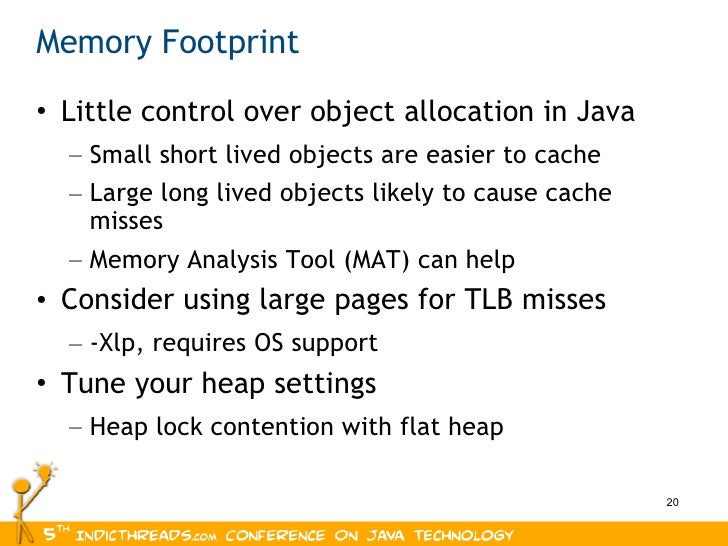

    • Memory Footprint
      • Little control over object allocation in Java
        • Small short lived objects are easier to cache
        • Large long lived objects likely to cause cache misses
        • Memory Analysis Tool (MAT) can help
      • Consider using large pages for TLB misses
        • -Xlp, requires OS support
      • Tune your heap settings
        • Heap lock contention with flat heap

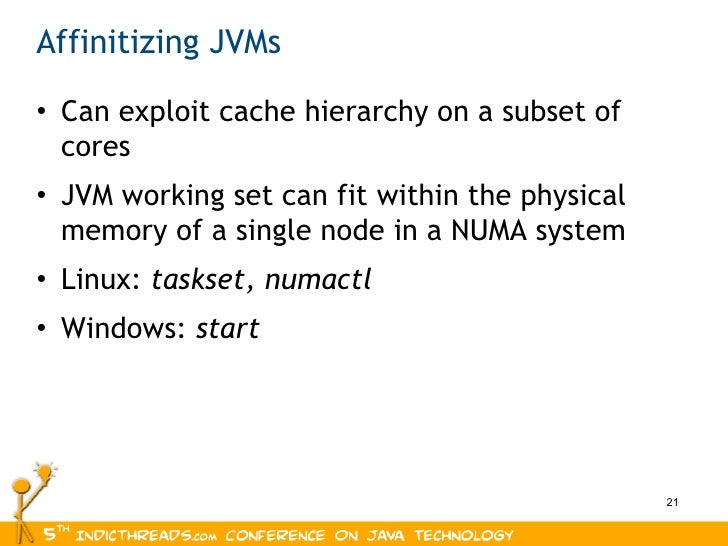

    • Affinitizing JVMs
      • Can exploit cache hierarchy on a subset of cores
      • JVM working set can fit within the physical memory of a single node in a NUMA system
      • Linux: taskset, numactl
      • Windows: start

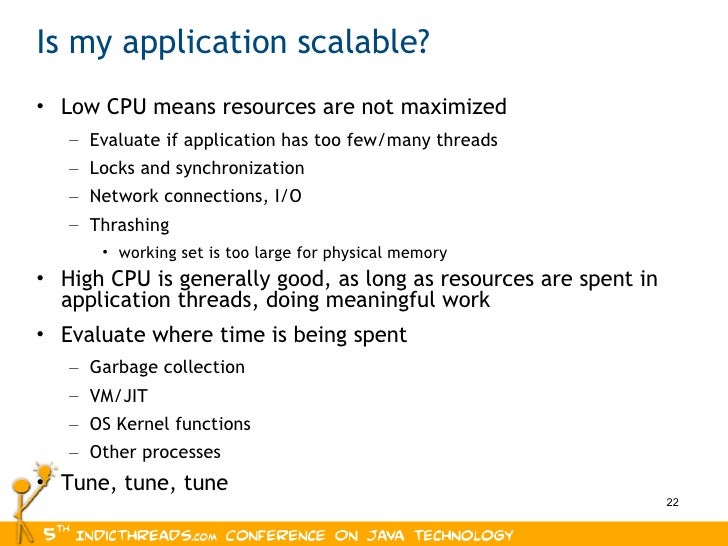

    • Is my application scalable?
      • Low CPU means resources are not maximized
        • Evaluate if application has too few/many threads
        • Locks and synchronization
        • Network connections, I/O
        • Thrashing
          • working set is too large for physical memory
      • High CPU is generally good, as long as resources are spent in application threads, doing meaningful work
      • Evaluate where time is being spent
        • Garbage collection
        • VM/JIT
        • OS Kernel functions
        • Other processes
      • Tune, tune, tune

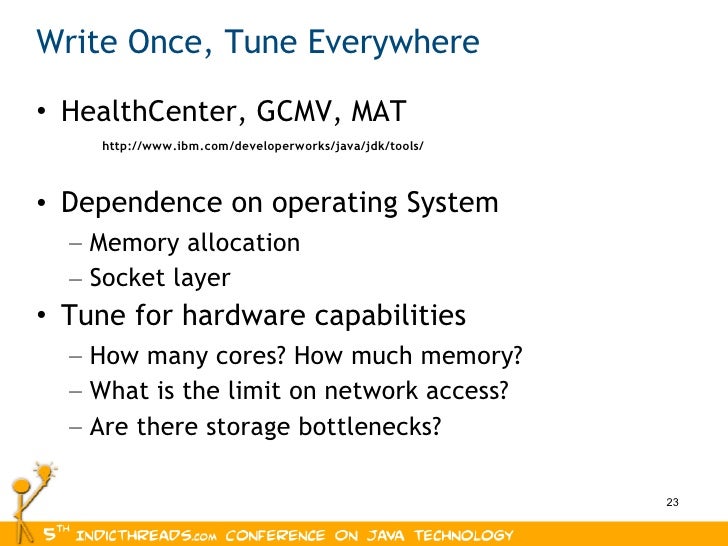

    • Write Once, Tune Everywhere
      • HealthCenter, GCMV, MAT
          • http://www.ibm.com/developerworks/java/jdk/tools/
      • Dependence on operating System
        • Memory allocation
        • Socket layer
      • Tune for hardware capabilities
        • How many cores? How much memory?
        • What is the limit on network access?
        • Are there storage bottlenecks?

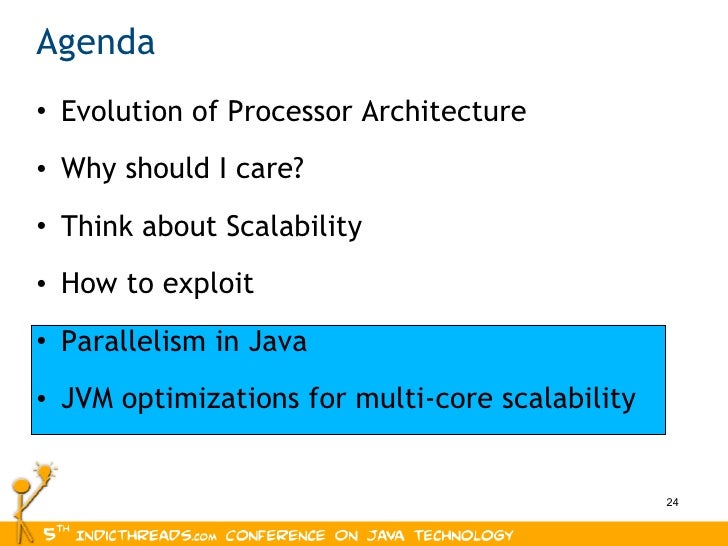

    • Agenda
      • Evolution of Processor Architecture
      • Why should I care?
      • Think about Scalability
      • How to exploit
      • Parallelism in Java
      • JVM optimizations for multi-core scalability

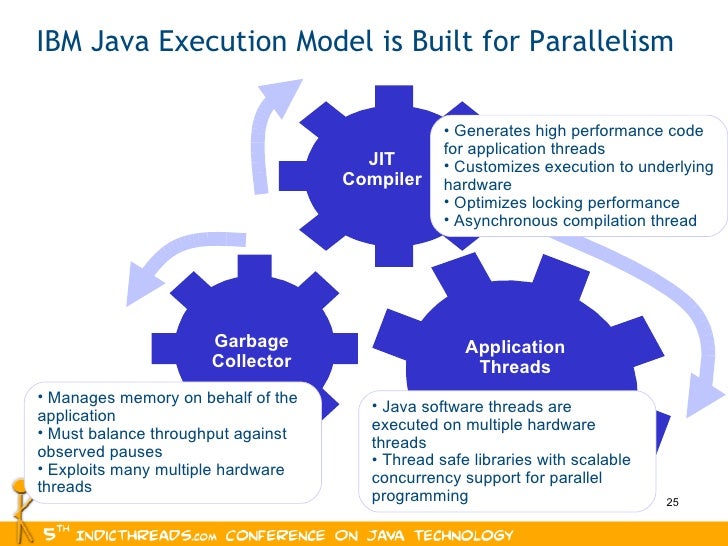

    • IBM Java Execution Model is Built for Parallelism JIT Compiler Garbage Collector Application Threads
      • Generates high performance code for application threads
      • Customizes execution to underlying hardware
      • Optimizes locking performance
      • Asynchronous compilation thread
      • Java software threads are executed on multiple hardware threads
      • Thread safe libraries with scalable concurrency support for parallel programming
      • Manages memory on behalf of the application
      • Must balance throughput against observed pauses
      • Exploits many multiple hardware threads

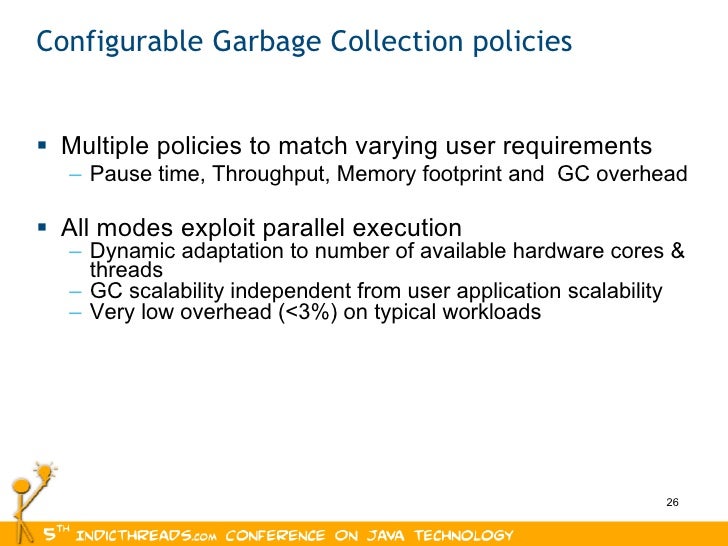

    • Configurable Garbage Collection policies
      • Multiple policies to match varying user requirements
        • Pause time, Throughput, Memory footprint and GC overhead
      • All modes exploit parallel execution
        • Dynamic adaptation to number of available hardware cores & threads
        • GC scalability independent from user application scalability
        • Very low overhead (<3%) on typical workloads

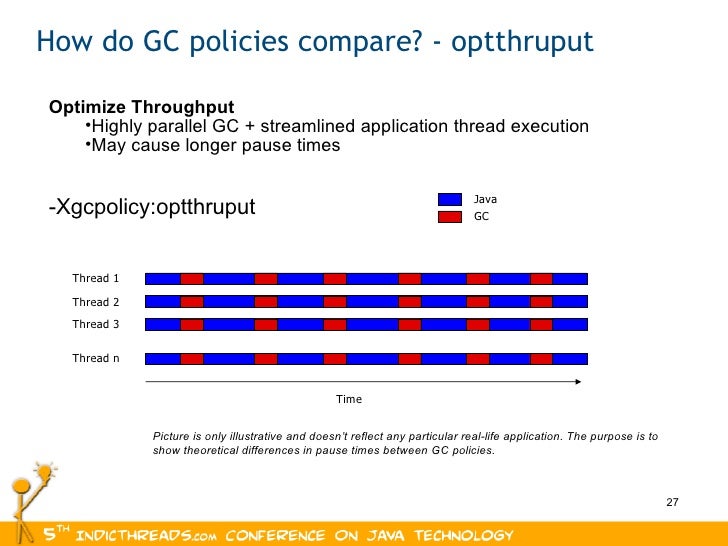

    • How do GC policies compare? - optthruput Time Thread 1 Thread 2 Thread 3 Thread n GC Java
      • Optimize Throughput
        • Highly parallel GC + streamlined application thread execution
        • May cause longer pause times
      • -Xgcpolicy:optthruput
      Picture is only illustrative and doesn’t reflect any particular real-life application. The purpose is to show theoretical differences in pause times between GC policies.

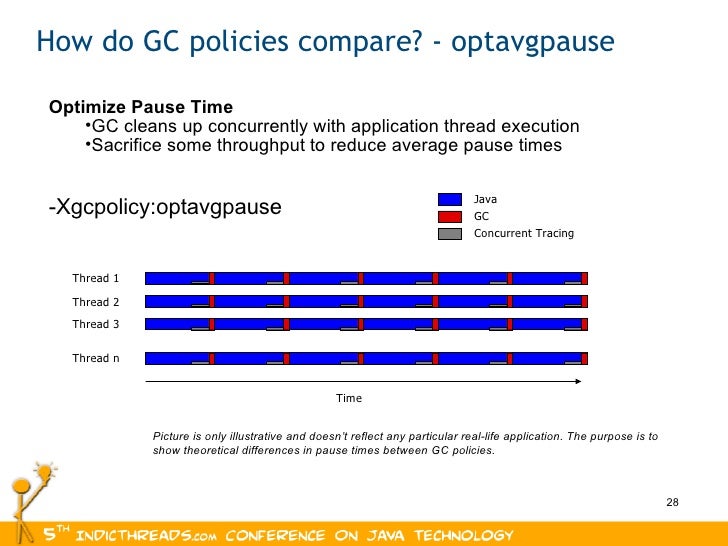

    • How do GC policies compare? - optavgpause Time GC Java Concurrent Tracing
      • Optimize Pause Time
        • GC cleans up concurrently with application thread execution
        • Sacrifice some throughput to reduce average pause times
      • -Xgcpolicy:optavgpause
      Picture is only illustrative and doesn’t reflect any particular real-life application. The purpose is to show theoretical differences in pause times between GC policies. Thread 1 Thread 2 Thread 3 Thread n

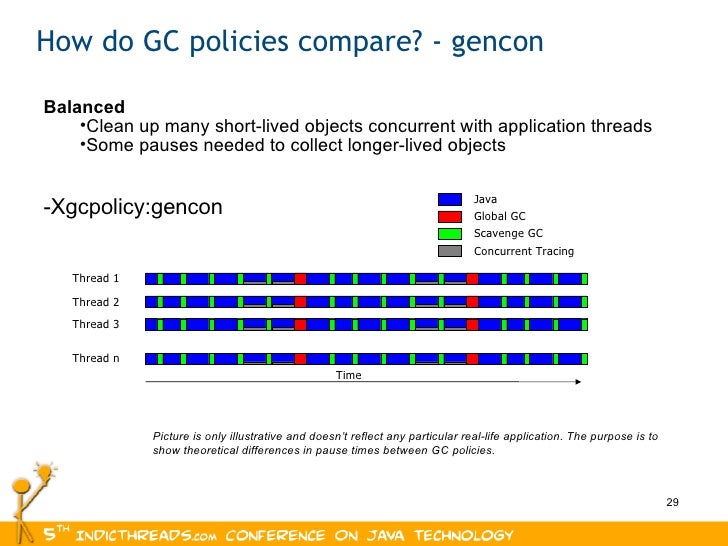

    • How do GC policies compare? - gencon Time Global GC Java Concurrent Tracing Scavenge GC
      • Balanced
        • Clean up many short-lived objects concurrent with application threads
        • Some pauses needed to collect longer-lived objects
      • -Xgcpolicy:gencon
      Picture is only illustrative and doesn’t reflect any particular real-life application. The purpose is to show theoretical differences in pause times between GC policies. Thread 1 Thread 2 Thread 3 Thread n

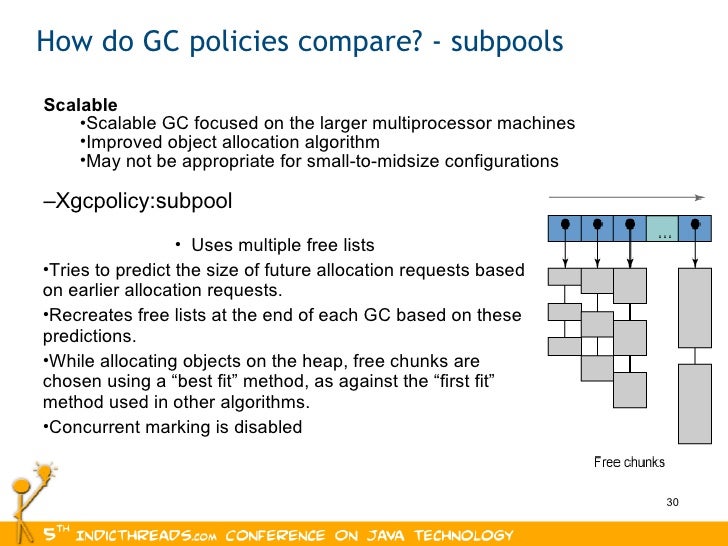

    • How do GC policies compare? - subpools
              • Uses multiple free lists
      • Tries to predict the size of future allocation requests based on earlier allocation requests.
      • Recreates free lists at the end of each GC based on these predictions.
      • While allocating objects on the heap, free chunks are chosen using a “best fit” method, as against the “first fit” method used in other algorithms.
      • Concurrent marking is disabled
      • Scalable
        • Scalable GC focused on the larger multiprocessor machines
        • Improved object allocation algorithm
        • May not be appropriate for small-to-midsize configurations
      • – Xgcpolicy:subpool

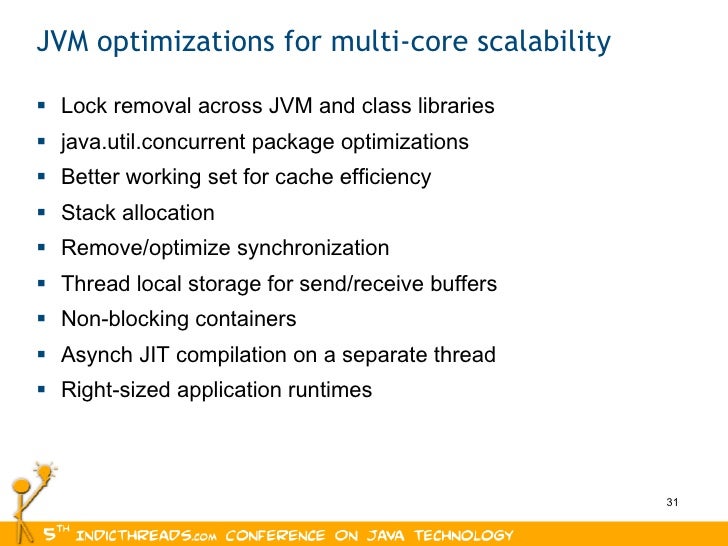

    • JVM optimizations for multi-core scalability
      • Lock removal across JVM and class libraries
      • java.util.concurrent package optimizations
      • Better working set for cache efficiency
      • Stack allocation
      • Remove/optimize synchronization
      • Thread local storage for send/receive buffers
      • Non-blocking containers
      • Asynch JIT compilation on a separate thread
      • Right-sized application runtimes
    • Merci Grazie Gracias Obrigado Danke French Russian German Italian Spanish Brazilian Portuguese Arabic Simplified Chinese Traditional Chinese Thai Korean Thank You
        • Questions?
      • Email: [email_address]
      http://www.ibm.com/developerworks/java/ Japanese

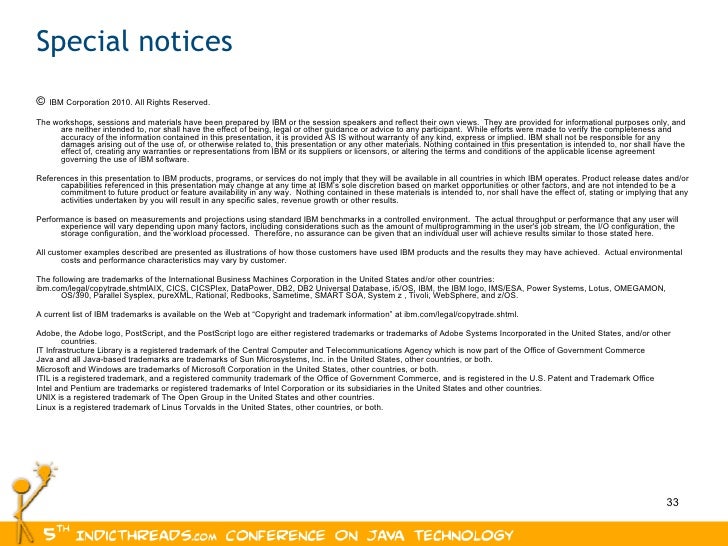

    • Special notices
      • © IBM Corporation 2010. All Rights Reserved.
      • The workshops, sessions and materials have been prepared by IBM or the session speakers and reflect their own views. They are provided for informational purposes only, and are neither intended to, nor shall have the effect of being, legal or other guidance or advice to any participant. While efforts were made to verify the completeness and accuracy of the information contained in this presentation, it is provided AS IS without warranty of any kind, express or implied. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this presentation or any other materials. Nothing contained in this presentation is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
      • References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or capabilities referenced in this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to future product or feature availability in any way. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results.
      • Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.
      • All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer.
      • The following are trademarks of the International Business Machines Corporation in the United States and/or other countries:
      • ibm.com/legal/copytrade.shtmlAIX, CICS, CICSPlex, DataPower, DB2, DB2 Universal Database, i5/OS, IBM, the IBM logo, IMS/ESA, Power Systems, Lotus, OMEGAMON, OS/390, Parallel Sysplex, pureXML, Rational, Redbooks, Sametime, SMART SOA, System z , Tivoli, WebSphere, and z/OS.
      • A current list of IBM trademarks is available on the Web at “Copyright and trademark information” at ibm.com/legal/copytrade.shtml.
      • Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
      • IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency which is now part of the Office of Government Commerce
      • Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
      • Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
      • ITIL is a registered trademark, and a registered community trademark of the Office of Government Commerce, and is registered in the U.S. Patent and Trademark Office
      • Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
      • UNIX is a registered trademark of The Open Group in the United States and other countries.
      • Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.
