Introduction to VLSI

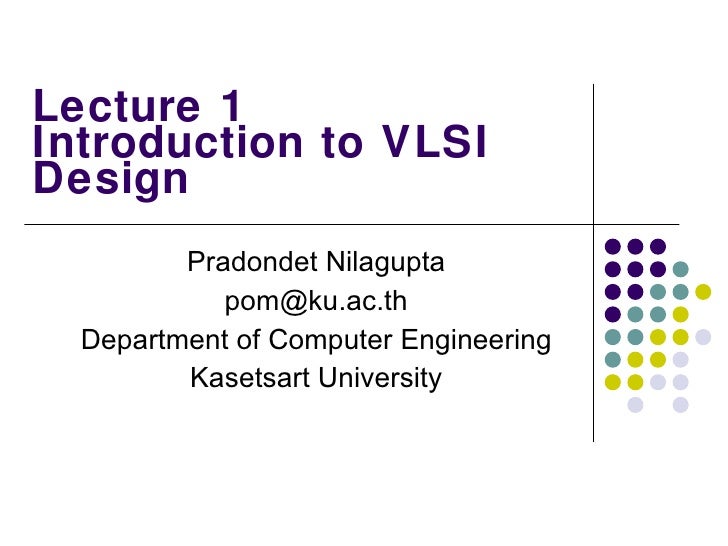

Lecture 1 Introduction to VLSI Design Pradondet Nilagupta [email_address] Department of Computer Engineering Kasetsart University

Acknowledgement
This lecture note has been summarized from lecture note on Introduction to VLSI Design, VLSI Circuit Design all over the world. I can’t remember where those slide come from. However, I’d like to thank all professors who create such a good work on those lecture notes. Without those lectures, this slide can’t be finished.
June 9, 2009 204424 Digital Design Automation

Today’s Topics
Course overview
Objectives
Roadmap for the Semester
Administrative Details
VLSI Overview
Transistor Structure
Static CMOS Logic
Design Methods & Design Styles
VLSI Trends

Course Objectives (1/3)
Students should be able to…
VLSI Circuit Analysis:
Understand MOS transistor operation, design eqns.
Understand parasitics & perform simple calculations
Understand static & dynamic CMOS logic
Estimate delay of CMOS gates, networks, & long wires
Estimate power consumption
Understand design and operation of latches & flip/flops

CMOS Processing and Layout
Understand the VLSI manufacturing process.
Have an appreciation of current trends in VLSI manufacturing.
Understand layout design rules.
Design and analyze layouts for simple digital CMOS circuits
Design and analyze hierarchical circuit layouts.
Understand ASIC Layout styles.

VLSI System Design
Understand register-transfer level design.
Design simple combinational and sequential logic circuits using using a Hardware Description Language (HDL).
Design small to medium circuits consisting of multiple components such as a controller and datapath using a HDL.
Understand the design flows used in industrial IC design.
Design a small standard-cell chip in its entirety using a variety of CAD tools and check it for correct operation.

Roadmap for the term: major topics
VLSI Overview
CMOS Processing & Fabrication
Components: Transistors, Wires, & Parasitics
Design Rules & Layout
Combinational Circuit Design & Layout
Sequential Circuit Design & Layout
Standard-Cell Design with CAD Tools & Verilog
Mixed Signal Concerns: D/A, A/D Conversion
Design Project: Complete Chip

VLSI Overview
Why Make IC
IC Evolution
Common technologies
CMOS Transistors & Logic Gates
Structure
“ Switch-Level” Transistor Model
Basic gates
The VLSI Design Process
Levels of Abstraction
Design steps
Design styles
VLSI Trends

Why Make ICs
Integration improves
size
speed
power
Integration reduce manufacturing costs
(almost) no manual assembly

IC Evolution (1/3)
SSI – Small Scale Integration (early 1970s)
contained 1 – 10 logic gates
MSI – Medium Scale Integration
logic functions, counters
LSI – Large Scale Integration
first microprocessors on the chip
VLSI – Very Large Scale Integration
now offers 64-bit microprocessors, complete with cache memory (L1 and often L2), floating-point arithmetic unit(s), etc.

IC Evolution (2/3)
Bipolar technology
TTL (transistor-transistor logic)
ECL (emitter-coupled logic)
MOS (Metal-oxide-silicon)
although invented before bipolar transistor, was initially difficult to manufacture
nMOS (n-channel MOS) technology developed in 1970s required fewer masking steps, was denser, and consumed less power than equivalent bipolar ICs => an MOS IC was cheaper than a bipolar IC and led to investment and growth of the MOS IC market.

IC Evolution (3/3)
aluminum gates for replaced by polysilicon by early 1980
CMOS (Complementary MOS): n-channel and p-channel MOS transistors => lower power consumption, simplified fabrication process
Bi-CMOS - hybrid Bipolar, CMOS (for high speed)
GaAs - Gallium Arsenide (for high speed)
Si-Ge - Silicon Germanium (for RF)

June 9, 2009 204424 Digital Design Automation Silicon Manufacturing Alternatives Standard Components Application Specific ICs Fixed Application Application by Programming Semi Custom Silicon Compilation Full Custom Logic Families Hardware Programming (MASK) Software Programming TTL CMOS PLA ROM Microprocessor EPROM,EEPROM PLD

VLSI Technology - CMOS Transistors June 9, 2009 204424 Digital Design Automation 2002: L=130nm 2003: L=90nm 2005: L=65nm? Key feature: transistor length L

Transistor Switch Model
NFET or n transistor
on when gate H
"good" switch for logic L
"poor" switch for logic H
"pull-down" device
PFET or p transistor
on when gate L
"good" switch for logic H
"poor" switch for logic L
"pull-up" device

CMOS Logic Design
Complementary transistor networks
Pullup: p transistors
Pulldown - n transistors

CMOS Inverter Operation June 9, 2009 204424 Digital Design Automation

CMOS Logic Example - What’s This? June 9, 2009 204424 Digital Design Automation P Transistors on when gate “L” N Transistors on when gate “H”

VLSI Levels of Abstraction June 9, 2009 204424 Digital Design Automation Specification (what the chip does, inputs/outputs) Architecture major resources, connections Register-Transfer logic blocks, FSMs, connections Circuit transistors, parasitics, connections Layout mask layers, polygons Logic gates, flip-flops, latches, connections

The VLSI Design Process
Move from higher to lower levels of abstraction
Use CAD tools to automate parts of the process
Use hierarchy to manage complexity
Different design styles trade off:
Design time
Non-recurring engineering (NRE) cost
Unit cost
Performance
Power Consumption

VLSI Design Tradeoffs (1/2)
Non-Recurring Engineering (NRE) Costs
Design Costs
Mask “Tooling” costs
Unit Cost - related to chip size
Amount of logic
Current technology
Performance
Clock speed
Implementation

VLSI Design Tradeoffs (2/2)
Power consumption - a relatively new concern
Power supply voltage
Clock speed

VLSI Design Styles
Full Custom
Application-Specific Integrated Circuit (ASIC)
Programmable Logic (PLD, FPGA)
System-on-a-Chip

Full Custom Design
Each circuit element carefully “handcrafted”
Huge design effort
High Design & NRE Costs / Low Unit Cost
High Performance
Typically used for high-volume applications

Application-Specific Integrated Circuit (ASIC)
Constrained design using pre-designed (and sometimes pre-manufactured) components
Also called semi-custom design
CAD tools greatly reduce design effort
Low Design Cost / High NRE Cost / Med. Unit Cost
Medium Performance

Programmable Logic (PLDs, FPGAs)
Pre-manufactured components with programmable interconnect
CAD tools greatly reduce design effort
Low Design Cost / Low NRE Cost / High Unit Cost
Lower Performance

System-on-a-chip (SOC)
Idea: combine several large blocks
Predesigned custom cores (e.g., microcontroller) - “intellectual property” (IP)
ASIC logic for special-purpose hardware
Programmable Logic (PLD, FPGA)
Analog
Open issues
Keeping design cost low
Verifying correctness of design

Perspective on Design Styles
Few engineers will design custom chips
Some engineers will design ASICs & SOCs
Many engineers will design FPGA systems

VLSI Trends: Moore’s Law
In 1965, Gordon Moore predicted that transistors would continue to shrink, allowing:
Doubled transistor density every 18-24 months
Doubled performance every 18-24 months
History has proven Moore right
But, is the end is in sight?
Physical limitations
Economic limitations
June 9, 2009 204424 Digital Design Automation I’m smiling because I was right! Gordon Moore Intel Co-Founder and Chairmain Emeritus Image source: Intel Corporation www.intel.com

Microprocessor Trends (Intel) June 9, 2009 204424 Digital Design Automation Source: http://www.intel.com/pressroom/kits/quickreffam.htm

Microprocessor Trends June 9, 2009 204424 Digital Design Automation Sources: http://www.intel.com/pressroom/kits/quickreffam.htm, www.geek.com Alpha (R.I.P) P4 G4

Microprocessor Trends (Log Scale) June 9, 2009 204424 Digital Design Automation Sources: http://www.intel.com/pressroom/kits/quickreffam.htm, www.geek.com Alpha (R.I.P) P4N G4 P4

DRAM Memory Trends (Log Scale) June 9, 2009 204424 Digital Design Automation Source: Textbook, Industry Reports

Processor Performance Trends June 9, 2009 204424 Digital Design Automation Source: Hennesy & Patterson Computer Architecture: A Quantitative Approach, 3rd Ed. , Morgan-Kaufmann, 2002. Vax 11/780

Trends in VLSI
Transistor
Smaller, faster, use less power
Interconnect
Less resistive, faster, longer (denser design)
Yield
Smaller die size, higher yield

Summary - Technology Trends
Processor
Logic capacity increases ~ 30% per year
Clock frequency increases ~ 20% per year
Cost per function decreases ~20% per year
Memory
DRAM capacity: increases ~ 60% per year (4x every 3 years)
Speed: increases ~ 10% per year
Cost per bit: decreases ~25% per year

Technology Directions: SIA Roadmap June 9, 2009 204424 Digital Design Automation

Scaling
The process of shrinking the layout in which every dimension is reduced by a factor is called Scaling .
Transistors become smaller, less resistive, faster, conducting more electricity and using less power.
Designs have smaller die sizes, higher yield and increased performance.

Can Scaling Continue?
Scaling work well in the past:
In order to keep scaling work in the future, many technical problems need to be solved.
June 9, 2009 204424 Digital Design Automation Year 1989 1992 1995 1997 1999 Technology (  m) 0.65 0.5 0.35 0.25 0.18 2001 0.15

Can Scaling Continue?
Some characteristics of the transistors do not scale uniformly, e.g., delay, leakage current, threshold voltage, etc.
Mismatch in the scaling of transistors and interconnects. Interconnect delay has increased from 5-10% of the overall delay to 50-70%.

Roadmap
International Technology Roadmap for Semi-conductors (ITRS)
Projection of future technology requirements for the next 15 years.
June 9, 2009 204424 Digital Design Automation Edition Year of Publication 1st 2nd 3rd 4th 1992 1994 1997 1999 http://public.itrs.net 5th 2001 2002 updates

These trends have brought many changes and new challenges to circuit design. June 9, 2009 204424 Digital Design Automation

Complicated Design
Too many transistors and no way to handle them manually.
Solutions:
CAD
Hierarchical design
Design re-use

Power and Noise
Huge power consumption and heat dissipation becomes a problem
Noise and cross talk.
Solutions:
Better physical design

Interconnect Area
Too many interconnects
Solutions:
More interconnect layers (made possible by C hemical- M echanical P olishing)
CAD tools for 3-D routing

Interconnect Delay
Interconnect delay becomes a dominating factor in circuit performance
Solutions:
Use copper wire
Interconnect optimization in physical design, e.g., wire sizing, buffer insertion, buffer sizing.

Interconnect Delay June 9, 2009 204424 Digital Design Automation 0.65 1989 0.5 1992 0.35 1995 0.25 1998 0.18 2001 0.13 2004 0.1 2007 0 5 10 15 20 25 30 35 40 Gate delay Interconnect delay Source: SIA Roadmap 1997

Gallery - Early Processors June 9, 2009 204424 Digital Design Automation Mos Technology 6502 Intel 4004 First µP - 2300 xtors L=10µm

Intel 4004
Introduction date: November 15, 1971
Clock speed: 108 KHz
Number of transistors: 2,300 (10 microns)
Bus width: 4 bits
Addressable memory: 640 bytes
Typical use: calculator, first microcomputer chip, arithmetic manipulation

Gallery - Current Processors June 9, 2009 204424 Digital Design Automation PowerPC 7400 (G4) 6.5M transistors / 450MHz / 8-10W L=0.15µm Pentium® III 28M transistors / 733MHz-1Gz / 13-26W L=0.25µm shrunk to L=0.18µm

Gallery - Current Processors June 9, 2009 204424 Digital Design Automation Pentium® 4 42M transistors / 1.3-1.8GHz / 49-55W L=0.18µm Pentium® 4 “Northwood” 55M transistors / 2-2.5GHz L=0.13µm

Pentium 4
0.18-micron process technology (2, 1.9, 1.8, 1.7, 1.6, 1.5, and 1.4 GHz)
Introduction date: August 27, 2001 (2, 1.9 GHz); ...; November 20, 2000 (1.5, 1.4 GHz)
Level Two cache: 256 KB Advanced Transfer Cache (Integrated)
System Bus Speed: 400 MHz
SSE2 SIMD Extensions
Transistors: 42 Million
Typical Use: Desktops and entry-level workstations
0.13-micron process technology (2.53, 2.2, 2 GHz)
Introduction date: January 7, 2002
Level Two cache: 512 KB Advanced

Intel’s McKinley
Introduction date: Mid 2002
Caches: 32KB L1, 256 KB L2, 3MB L3 (on-chip)
Clock: 1GHz
Area: 464mm 2
Typical Use: High-end servers
Future versions: 5GHz, 0.13-micron technology

Gallery - Current FPGA June 9, 2009 204424 Digital Design Automation Xilinx Virtex FPGA

Gallery - Graphics Processor June 9, 2009 204424 Digital Design Automation nVidia GeForce4 57M transistors / 300MHz / ??W L=0.15µm

What we’re going to do
Chip design: MOSIS “tiny chip”

What we’re going to do
Fabricated MOSIS “Tiny Chip”

Die Photo - 2001 Design Project June 9, 2009 204424 Digital Design Automation Chip Design by Ed Thomas Photo courtesy Ron Feiller, Agere
