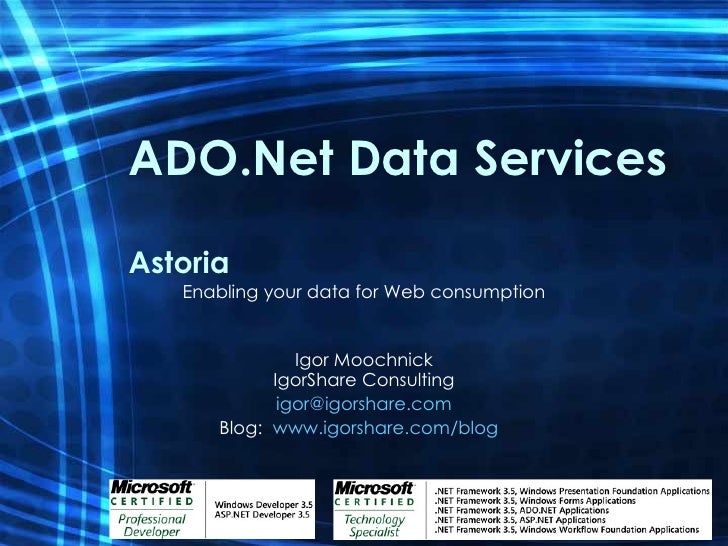

    • 1. ADO.Net Data Services Astoria Enabling your data for Web consumption Igor Moochnick IgorShare Consulting [email_address] Blog: www.igorshare.com/blog
    • 2. Data on the Web HTML + Javascript Data (XML,JSON,…) DLL + XAML Data (XML,JSON,…) Data (XML,JSON,…) Mashup UI Data Feeds AJAX Applications Silverlight Applications Online Services Mashups
    • 3. Time to think “SERVICES” <ul><li>Multi-tenant deployments </li></ul><ul><li>Trust </li></ul><ul><li>Reach </li></ul><ul><li>Interaction </li></ul><ul><li>Administration </li></ul><ul><li>Resource Governance </li></ul>Mobile/ Desktop OLAP FILE XML RDBMS Query Analysis Reporting Integration Sync Search Server Data Services
    • 4. Data Services For RIAs Presentation & Behavior Data (XML, etc) Data Presentation, Behavior & Data
    • 5. Presentation & Behavior Data (XML, etc) Data Presentation, Behavior Data Services For RIAs Create an on- premises data service 1 Consume the data service from RIA 3 <ul><li>Refine access to the data service </li></ul><ul><li>Authorization policy </li></ul><ul><li>Concurrency </li></ul><ul><li>etc </li></ul>2
    • 6. Presentation & Behavior (HTML & JS) Data (XML, etc) Data Data Services For RIAs
    • 7. Presentation & Behavior (HTML & JS) Data (XML, etc) Data Store archived records in the cloud storage Data Services For RIAs
    • 8. RESTful Web Services? Resources Res 1 Res 2 Res 3 Res 4 HTTP Request URL VERB Payload HTTP Response Status GET POST PUT DELETE XML JSON Payload XML JSON
    • 9. A REST Interface For Data
    • 10. .NET vs. REST <ul><li>ADO.NET Data Services </li></ul><ul><li>Client included in .NET Framework 3.5 SP1 </li></ul><ul><li>Data represented as .NET objects </li></ul><ul><li>DataServiceContext methods for updates </li></ul><ul><li>Use LINQ to define queries </li></ul><ul><li>REST Interface </li></ul><ul><li>Use any HTTP stack </li></ul><ul><li>Data represented in Atom (XML) </li></ul><ul><li>Standard HTTP verbs for updates </li></ul><ul><li>Use URLs to define queries </li></ul>
    • 11. Creating Data Services <ul><li>Create services directly from Visual Studio </li></ul><ul><li>Various data sources </li></ul><ul><ul><li>Entity Framework </li></ul></ul><ul><ul><li>LINQ providers </li></ul></ul><ul><li>Model-driven </li></ul><ul><ul><li>Structural description in Entity Data Model </li></ul></ul><ul><ul><li>Metadata shapes service </li></ul></ul>Data Access Layer Entity Framework Custom LINQ provider Relational database Other sources Service Runtime Hosting/HTTP listener HTTP IQueryable [+ IUpdatable]
    • 12. Entity Framework ? SQL Provider Oracle Provider ... Entity Provider Conceptual Model Store Model Map ADO.NET API ORM API
    • 13. ADO.Net Data Services Alignment Data Service Support Client Support ADO.Net Data Services (Astoria) SQL Data Service Evolves to include flex entities Evolves to include schematized data Schematized Data Flex Entities
    • 14. Exploring Data Services HTTP (AtomPub) Clients (Tools, Libraries, etc) SQL Data Services ADO.NET Data Services Framework SQL Server (On premises data service) (Cloud data service)
    • 15. Operations Semantics <ul><li>GET -> retrieve recourse </li></ul><ul><li>POST -> create resource </li></ul><ul><li>PUT -> update resource </li></ul><ul><li>DELTE -> delete resource </li></ul>
    • 16. Tip : force IE to show the feed XML <ul><li>Tools->Internet Options-> Content Tab </li></ul><ul><li>Click Settings button in the Feeds section </li></ul><ul><li>uncheck the Turn on Feed Reading View option </li></ul>Demo
    • 17. Data? What Kind of Data? <ul><li>Provide a type with public properties which are IQueryable<T> </li></ul><ul><ul><li>Some rules about how T has to be formed </li></ul></ul><ul><ul><li>Remember the extension method AsQueryable() </li></ul></ul><ul><li>Get write access if your type implements IUpdatable </li></ul><ul><li>Works well with generated code from: </li></ul><ul><ul><li>ADO.NET Entity Framework ( ObjectContext ) </li></ul></ul><ul><ul><li>LINQ to SQL ( DataContext *) </li></ul></ul>Demo
    • 18. ADO.NET Data Services payload <ul><li>ATOM/APP </li></ul><ul><li>JSON </li></ul><ul><li>Web3s (POX) - ??? </li></ul><ul><li>RDF - ??? </li></ul><ul><li>Controlled via Accept header </li></ul>
    • 19. Tools to explore the services <ul><li>JSON Viewer - http://www.codeplex.com/JsonViewer </li></ul><ul><li>Fiddler - http://www.fiddlertool.com/fiddler/ </li></ul><ul><li>Firebug - http://getfirebug.com/ </li></ul><ul><li>Raw.htm </li></ul><ul><li>Etc… </li></ul>Demo
    • 20. URL Conventions <ul><li>Addressing entities and sets </li></ul>Presentation options Demo Entity-set /Students Single entity /Students(1) Member access /Students(1)/Name Link traversal /Students(1)/ClassRegistrations Deep access /Students(1)/ClassRegistrations(2)/Grade Raw value access /Students(1)/Photo/$value Sorting /Students?$orderby=Name desc Filtering /Classes?$filter=substringof(Name, ‘Math’) Paging /Students?$top=10&$skip=30 Inline expansion /Students?$expand=ClassRegistrations
    • 21. Operators for $filter
    • 22. Operators <ul><li>() – grouping </li></ul><ul><li>Arithmetic </li></ul><ul><ul><li>add </li></ul></ul><ul><ul><li>sub </li></ul></ul><ul><ul><li>mul </li></ul></ul><ul><ul><li>div </li></ul></ul><ul><ul><li>mod </li></ul></ul><ul><li>Logical </li></ul><ul><ul><li>and </li></ul></ul><ul><ul><li>not </li></ul></ul><ul><ul><li>eq </li></ul></ul><ul><ul><li>ne </li></ul></ul><ul><ul><li>lt </li></ul></ul><ul><ul><li>gt </li></ul></ul><ul><ul><li>le </li></ul></ul><ul><ul><li>ge </li></ul></ul>
    • 23. Query operators <ul><li>callback (specific to JSON for AJAX calls) </li></ul><ul><li>expand - pull related data using EDM associations </li></ul><ul><li>format - define format of the response (eg xml, json, rdf) </li></ul><ul><li>keyset- only return the entityKeys </li></ul><ul><li>orderby (you know what this is) </li></ul><ul><li>skip (same as in LINQ) </li></ul><ul><li>top </li></ul>Demo
    • 24. Addressing Pseudo-Members <ul><li>$metadata </li></ul><ul><ul><li>AdventureWorks.svc/$metadata </li></ul></ul><ul><li>$value </li></ul><ul><ul><li>AdventureWorks.svc/Customers(1)/FirstName/$value </li></ul></ul><ul><li>$batch </li></ul><ul><ul><li>AdventureWorks.svc/$batch </li></ul></ul>Demo
    • 25. Query Options <ul><li>Ordering </li></ul><ul><ul><li>$orderby [asc | desc] </li></ul></ul><ul><li>Paging </li></ul><ul><ul><li>$skip </li></ul></ul><ul><ul><li>$top </li></ul></ul><ul><li>Filtering </li></ul><ul><ul><li>$filter </li></ul></ul><ul><li>Eager-Loading </li></ul><ul><ul><li>$expand </li></ul></ul>Demo
    • 26. &quot;Traditional&quot; Applications <ul><li>Web applications </li></ul><ul><ul><li>Data services client can be used in ASP.NET </li></ul></ul><ul><ul><li>ASP.NET data source control for accessing remote services </li></ul></ul><ul><li>Desktop applications </li></ul><ul><ul><li>Fully-featured .NET client library </li></ul></ul><ul><ul><li>Same API in desktop and Silverlight environments </li></ul></ul>
    • 27. Modern Data-Driven Web Apps <ul><li>AJAX integration </li></ul><ul><ul><li>AJAX-friendly JSON format in services </li></ul></ul><ul><ul><li>Javascript library that integrates with the ASP.NET AJAX toolkit </li></ul></ul><ul><li>Silverlight support </li></ul><ul><ul><li>.NET programming model for data services </li></ul></ul><ul><ul><li>Object based, LINQ enabled API </li></ul></ul><ul><ul><li>Code-gen entity types from metadata </li></ul></ul>
    • 28. Building Clients <ul><li>Services offer metadata </li></ul><ul><ul><li>MyService.svc/$metadata </li></ul></ul><ul><li>.NET clients made easier through a proxy generation tool </li></ul><ul><ul><li>datasvcutil.exe </li></ul></ul><ul><ul><li>Useful for both regular .NET clients & Silverlight </li></ul></ul><ul><li>AJAX clients made easier through a script library </li></ul><ul><ul><li>“ Data Service AJAX Client Library” </li></ul></ul><ul><ul><li>Available as a download on Codeplex </li></ul></ul>Demo
    • 29. Creating new entity <ul><li>JSON </li></ul><ul><li>{ </li></ul><ul><li>    Name: “James&quot; </li></ul><ul><li>} </li></ul><ul><li>ATOM </li></ul><ul><li><entry  xmlns:d=“…&quot; </li></ul><ul><li>xmlns:m=“…&quot; </li></ul><ul><li>xmlns=&quot;http://www.w3.org/2005/Atom&quot;> </li></ul><ul><li>  <content type=&quot;application/xml&quot;> </li></ul><ul><li>    <m:properties> </li></ul><ul><li>      <d:Name>James</d:Name> </li></ul><ul><li>    </m:properties> </li></ul><ul><li>  </content> </li></ul><ul><li></entry> </li></ul>Demo
    • 30. Debugging tricks <ul><li>[System.ServiceModel.ServiceBehavior(IncludeExceptionDetailInFaults = true)] </li></ul><ul><li>InitializeService </li></ul><ul><ul><li>config.UseVerboseErrors = true; </li></ul></ul>Demo
    • 31. Interception & Operations <ul><li>Possible to hook code into the framework </li></ul><ul><li>For queries we can write </li></ul><ul><ul><li>Query interceptors </li></ul></ul><ul><li>For modifications we can write </li></ul><ul><ul><li>Change interceptors </li></ul></ul><ul><li>Can also expose custom functionality </li></ul><ul><ul><li>Service Operations </li></ul></ul><ul><ul><li>Useful for providing “canned” functionality, can be parameterised </li></ul></ul>Demo
    • 32. Refining and Securing Services Demo
    • 33. Astoria-offline <ul><li>you could point to a data service and say “take it offline”… </li></ul><ul><li>… a SQL Server Compact database automatically created and sync-enabled </li></ul><ul><li>You write a regular “local” application … </li></ul>Demo
    • 34. Scalable, Available Data Services Storage and Database Services <ul><li>Windows Azure Storage </li></ul><ul><li>“ Essential storage service in the cloud” </li></ul><ul><li>Provides a core set of non-relational storage and retrieval abstractions at massive scale </li></ul><ul><li>SQL Data Services </li></ul><ul><li>“ Premium database service in the cloud” </li></ul><ul><li>Extends the rich capabilities of the SQL data platform to the cloud at scale </li></ul><ul><ul><li>Relational data processing over structured and unstructured data </li></ul></ul><ul><ul><li>Integrate with key data platform capabilities – e.g. Data Analytics, Reporting, ETL </li></ul></ul>
    • 35. A Look Inside Azure
    • 36. Reference Data ETL Data Mining
    • 37. Data SYNC <ul><li>Occasionally connected (or disconnected) clients </li></ul><ul><ul><li>Mobile </li></ul></ul><ul><li>Mirroring </li></ul><ul><li>Future: Integration with ADO.NET Data Services </li></ul><ul><li>Enterprise Data Hub </li></ul>
    • 38. Enterprise Data Hub Sharing data through Data Sync <ul><li>Sharing data via the Internet </li></ul><ul><ul><li>Across devices and across enterprises </li></ul></ul><ul><li>Sharing data with offline capabilities (Sync) </li></ul><ul><li>Sharing data through a sync service </li></ul>Demo Sync Service iPhone Occasionally Connected Data Sharing
    • 39. Advanced Topics <ul><li>Optimistic concurrency </li></ul><ul><ul><li>If-Match: * </li></ul></ul><ul><ul><li>If-None-Match: * </li></ul></ul>
    • 40. Batching of Operations “ INSERT” Customer 1 POST Order 1 POST Order 2 POST Order N POST
    • 41. Batching of Operations “ INSERT” Customer 1 Order 1 Order 2 Order N POST
    • 42. Batching in code <ul><li>DataServiceResponse responses = proxy.ExecuteBatch ( new DataServiceRequest<Shippers>(new Uri(&quot;Shippers&quot;, UriKind.Relative)), new DataServiceRequest<Employees>(new Uri(&quot;Employees&quot;, UriKind.Relative))); </li></ul><ul><li>proxy.SaveChanges( SaveChangesOptions.Batch ); </li></ul>Demo
    • 43. Batching of Operations <ul><li>Provides a mechanism to process a batch </li></ul><ul><ul><li>0 or more Query operations </li></ul></ul><ul><ul><li>0 or more [Create/Update/Delete] operations </li></ul></ul><ul><li>Uses multipart/mixed MIME type sent to a $batch endpoint </li></ul><ul><li>Use </li></ul><ul><ul><li>SaveChanges(SaveChangesOptions.Batch) </li></ul></ul><ul><ul><li>ExecuteBatch() </li></ul></ul>
    • 44. Managing Concurrency GET GET Customer: ALFKI Country: Spain Customer: ALFKI Country: Spain
    • 45. Managing Concurrency PUT Customer: ALFKI Country: UK PUT Customer: ALFKI Country: Germany
    • 46. Managing Concurrency <ul><li>Optimistic concurrency </li></ul><ul><li>Attribute used to specify properties </li></ul><ul><ul><li>Not necessary for Entity Framework data </li></ul></ul><ul><li>Standard HTTP protocol used </li></ul><ul><ul><li>eTags used to send to client ( in XML if necessary ) </li></ul></ul><ul><ul><li>HTTP If-match headers used to check when PUT/DELETE occurs ( 412 returned for failure ) </li></ul></ul>Demo
    • 47. Resources <ul><li>Team Blog: </li></ul><ul><ul><li>http://blogs.msdn.com/astoriateam </li></ul></ul><ul><li>Online Forum </li></ul><ul><ul><li>http://forums.microsoft.com/MSDN/ShowForum.aspx?ForumID=1430&SiteID=1 </li></ul></ul><ul><li>Using Microsoft ADO.NET Data Services (MSDN Technical Article) </li></ul><ul><ul><li>http://msdn.microsoft.com/en-us/library/cc907912.aspx </li></ul></ul>
    • 48. Q&A
    • 49. Thank you!
    • 50. ADO.Net Data Services Astoria Enabling your data for Web consumption Igor Moochnick IgorShare Consulting [email_address] Blog: www.igorshare.com/blog
    • 51.
    • 52. AZURE TABLES - CODE
    • 53. Insert Entity using .NET <ul><li>Create a new Message and Insert into Table </li></ul>Message message = new Message { PartitionKey = &quot;Channel9&quot; , // ChannelName RowKey = DateTime .UtcNow.ToString(), // PostedDate Text = &quot;Hello PDC&quot; , Rating = 3 }; serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); var context = new DataServiceContext (serviceUri); context.AddObject( &quot;Messages&quot; , message); DataServiceContext response = context.SaveChanges();
    • 54. <ul><li>Create an Atom XML payload and POST it </li></ul>Insert Entity using REST POST http://< Account> .table.core.windows.net/ Messages ... <!– Atom envelope --> < m:properties > < d:PartitionKey > Channel9 </ d:PartitionKey > <!-- ChannelName --> < d:RowKey > Oct-29 </ d:RowKey > <!-- PostedDate --> < d:Text > Hello PDC </ d:Text > < d:Rating > 3 </ d:Rating > </ m:properties >
    • 55. Query Entities serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); DataServiceContext context = new DataServiceContext (serviceUri); var messages = from message in context.CreateQuery< Message >( &quot;Messages&quot; ) where message.Rating == 3 select message; foreach ( Message message in messages) { } GET http:// <serviceUri> /Messages?$filter= Rating eq 3
    • 56. Update a property in an entity <ul><li>Using the .NET API </li></ul>Message message = ( from message in context.CreateQuery< Message >( &quot;Messages&quot; ) where message.PartitionKey == &quot;Channel9&quot;   && message.RowKey == &quot;Oct-29&quot; select message).FirstOrDefault(); message.Text = &quot;Hi there&quot; ; context.UpdateObject(message); DataServiceResponse response = context.SaveChanges(); PUT http:// <serviceUri> /Messages(‘Channel9’, ‘ Oct-29’) < m:properties > < d:Text > Hi there </ d:Text > <!-- Other properties are the same --> </ m:properties >
    • 57. <ul><li>Using the .NET API </li></ul>Delete an Entity // Get the Message object for ( &quot;Channel9&quot; , &quot;Oct-29&quot; ) context.DeleteObject(message); DataServiceResponse response = context.SaveChanges(); DELETE http://.../Messages(‘Channel9’, ‘ Oct-29’)
    • 58. <ul><li>.NET: LINQ Take(N) function </li></ul>Getting the Top N entities serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); DataServiceContext context = new DataServiceContext (serviceUri); var allMessages = context.CreateQuery< Message >( &quot;Messages&quot; ); foreach ( Message message in allMessages.Take(100)) { Console .WriteLine(message.Name); } GET http://< serviceUri> /Messages?$top=100

    ×
