SIEPON Workshop                Prague, Czech Republic              Ethernet: A look at the Ubiquitous Wired               ...
Before I Share My Views…                     “At lectures, symposia, seminars, or                       educational course...
Agenda     Overview     History and structure of Ethernet     Evolution of Ethernet     Key Historic Projects and Emerging...
Ethernet: History and Relation to 802     • History of LMSC              – 1st meeting Feb 1980. Originally known as the  ...
Ethernet: Organization and Process    • Organization              – Each Working Group has its own leadership and projects...
IEEE 802 Working Groups                                      IEEE 802 Sponsor Executive Committee           IEEE 802.1    ...
IEEE 802 Working Groups    • 802.1 - Protocol layers above the MAC & LLC layers    • 802.3 – Ethernet-based Local Area Net...
Agenda     Overview     History and structure of Ethernet     Evolution of Ethernet     Key Historic Projects and Emerging...
IEEE 802.3 Ethernet PHY Types        Rate (b/s)          100G                                                     Key:    ...
HSSG                                   IEEE Std 802.3u-1995 100Mb/s Ethernet                                              ...
GROWING APPLICATION          SPACEVersion 1.0              SIEPON Workshop – April 2012                IEEE P802.3 Mainten...
Higher Speed Ethernet Penetration       Campus/                                                                         Se...
Ethernet in the First MileVersion 1.0                 SIEPON Workshop – April 2012                   IEEE P802.3 Maintenan...
The Key Piece of the Access Puzzle   • 10G EPON will provide the solution for high definition     content distribution   •...
KEY HISTORIC PROJECTS:          POEVersion 1.0              SIEPON Workshop – April 2012                IEEE P802.3 Mainte...
Power over Ethernet              20W PTZ CAM          3~7W IP Phone                    > 15W PC                  18W Wi-Fi...
PoE Architecture: Switch  Power Sourcing Equipment (PSE)                                                           Powered...
PoE/P Enhanced Layer 2 Operation    PoE/P can also                                                                        ...
KEY HISTORIC PROJECTS:          EEEVersion 1.0              SIEPON Workshop – April 2012                IEEE P802.3 Mainte...
Ethernet Traffic Profiles         • Snapshot of a File Server with 1 Gb Ethernet link              – Shows time versus uti...
Motivation – A Link Perspective                                                     Typical switch with 24 ports         •...
Low Power Idle Overview                        Assert LPI                                          Deassert LPI           ...
Application – Wiring Closet                                                                                 EEE           ...
Application – Data Center and TOR                   Data Center Rack                                                      ...
KEY HISTORIC PROJECTS:          POEVersion 1.0              SIEPON Workshop – April 2012                IEEE P802.3 Mainte...
What is AV bridging?     • IEEE 802.1AS: Precise Timing in an 802 network              –   (< 1uS synchronization, <100 nS...
Application - AVB home network                                                                                            ...
EMERGING PROJECTSVersion 1.0             SIEPON Workshop – April 2012               IEEE P802.3 Maintenance report – July ...
Extended EPON         Example contribution taken from ExEPON_1111_xu_1.pdfVersion 1.0                        SIEPON Worksh...
EPoCVersion 1.0            SIEPON Workshop – April 2012              IEEE P802.3 Maintenance report – July 2008 Plenary   ...
EPON/EPoC ApplicationsVersion 1.0                SIEPON Workshop – April 2012                  IEEE P802.3 Maintenance rep...
RTPGE Study GroupVersion 1.0              SIEPON Workshop – April 2012                IEEE P802.3 Maintenance report – Jul...
Agenda     Overview     History and structure of Ethernet     Evolution of Ethernet     Key Historic Projects and Emerging...
Ethernet: Convergence and Leverage       Broadband Access                                                                 ...
Convergence    • Connectivity convergence              – Ethernet is the ubiquitous connectivity technology              –...
Converging Network Architectures              Core              Layer              L3 Aggregation                         ...
Leverage    • Technology leverage              – Family of technologies running natively on Ethernet                  • E....
Ethernet Leverage: 10G/1G EPON Ex.       CO                        XAUI                                     XAUI          ...
Growing Application Space:    Variety of Content, Providers, Users              Any Content                    Over Any Me...
Emerging Apps and their Requirements   • Focus on application requirements          – Diverse applications distilled to su...
Other Network Requirements    • Requirements passed across network boundaries              – E.g. Across SP/CP networks, a...
Other Network Requirements    • Unified and strong management              – 802.3 has monolithic management structure    ...
Agenda     Overview     History and structure of Ethernet     Evolution of Ethernet     Key Historic Projects and Emerging...
Concluding Remarks   • Ethernet is the ubiquitous wired connectivity          – < 0.01m to 1,000s of KMs          – 10Mb/s...
Concluding Remarks   • Many factors have to be considered to pick a solution          – (a) Geography (b) Installed base (...
Additional Resources      •       Ethernet Home Page: www.ieee802.org/3/              –   All past & present Ethernet proj...
Additional EEE Resources              EEN White Paper              • English:              http://www.broadcom.com/collate...
Broadcom WINs EEE Awards!     Broadcom wins 2010 Best Electronic Design Award for its broad and        extensive new portf...
THANK YOUVersion 1.0    SIEPON Workshop – April 2012   Copyright 2012   Page 49
Upcoming SlideShare
Loading in …5
×

Ethernet: A look at the Ubiquitous Wired Networking Technology and Why it Makes Sense for a Service Provider

1,225 views
1,046 views

Published on

Presentation from SIEPON Seminar on 20 April in Czech Republic, sponsored by IEEE-SA & CAG. Opinions presented by the speakers in this presentation are their own, and not necessarily those of their employers or of IEEE.

Published in: Technology, Business
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
1,225
On SlideShare
0
From Embeds
0
Number of Embeds
6
Actions
Shares
0
Downloads
36
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Ethernet: A look at the Ubiquitous Wired Networking Technology and Why it Makes Sense for a Service Provider

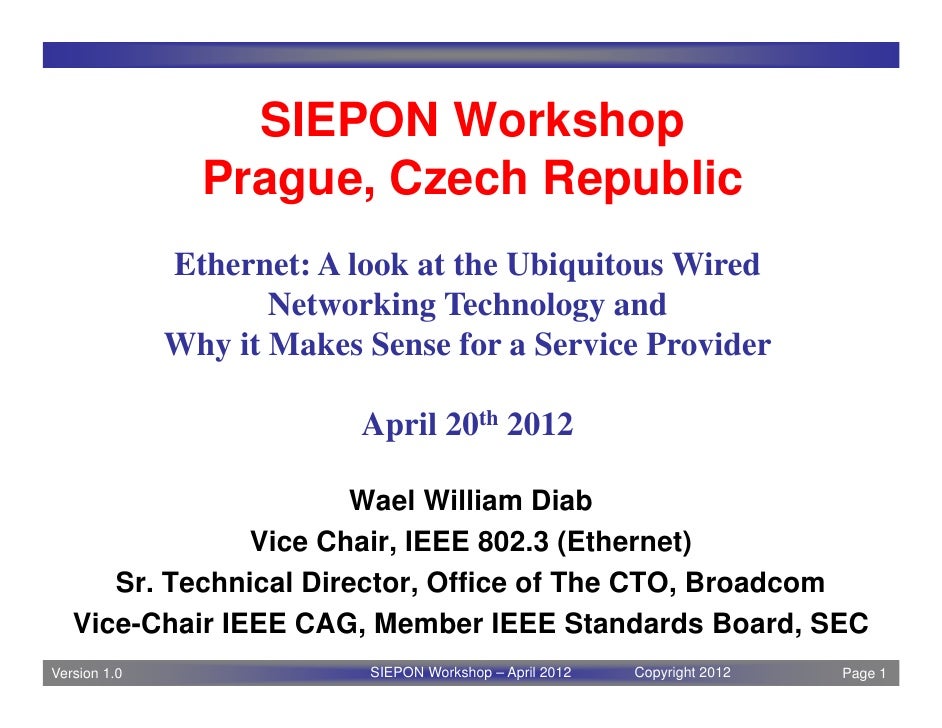

  1. 1. SIEPON Workshop Prague, Czech Republic Ethernet: A look at the Ubiquitous Wired Networking Technology and Why it Makes Sense for a Service Provider April 20th 2012 Wael William Diab Vice Chair, IEEE 802.3 (Ethernet) Sr. Technical Director, Office of The CTO, Broadcom Vice-Chair IEEE CAG, Member IEEE Standards Board, SECVersion 1.0 SIEPON Workshop – April 2012 Copyright 2012 Page 1
