Towards a Standard for Carbon Accounting: a view from CIBSE Hywel Davies CIBSE Technical Director and Stuart Macpherson  I...
Current Standards Activity <ul><li>BSI, CEN and ISO are working on standards related to carbon emissions from buildings an...
PAS 2050 <ul><li>Being developed jointly by Carbon Trust, Defra and BSI </li></ul><ul><li>Aims to “develop an agreed metho...
Directives <ul><li>The EPBD </li></ul><ul><li>Scottish Building Standards </li></ul><ul><li>Energy Assessors in Scotland <...
Carbon Accounting? <ul><li>Its not just about counting carbon, but controlling it </li></ul><ul><li>Thank you for listenin...
Westminster carbon counting conference, ICE, 24 January 2008 <ul><li>JOINING THINGS UP FOR BUILDINGS </li></ul><ul><li>Bil...
Wider implications  Benchmarking needs: <ul><li>Better data quality </li></ul><ul><li>Sharper standards </li></ul><ul><li>...
We need to save real carbon,  not virtual carbon
The Credibility Gap for a green building award winner
Saving energy and CO 2  in a hurry,   using the multiplier effect   <ul><li>Reduced demands  standards, passive measures <...
Use renewable supplies   AND   make buildings efficient in use
Making Performance Visible  with building energy certificates <ul><li>Ambitions of Europrosper </li></ul><ul><li>research ...
Passing on carbon + energy BPF Landlord’s statement <ul><li>Improves transparency </li></ul><ul><li>Includes multiple perf...
Passing on carbon + energy  BPF Landlord’s statement
Drilling down further to assign realistic priorities

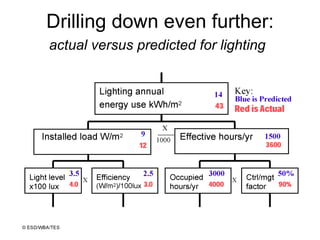

Drilling down even further: actual versus predicted for lighting
Comparing corporate performance on climate change – what metrics? Dr. Craig Mackenzie Director, Carbon Benchmarking Projec...
The scope for low cost reductions Source: Vattenfal
Breakdown of the Tesco footprint Add note on fridge energy? Refrigeration  Tesco CSR Report 2007
Direct CO2e emissions No  Data
Relative carbon intensity? NB: this slide does not give an accurate comparison of performance No  Data
Meaningful comparison? NB: this slide does not give an accurate comparison of performance Food  processing  business Food ...
An alternative strategy Add note on fridge energy? Refrigeration  Tesco CSR Report 2007 % f-gas  leakage pa KWh/linear met...
Carbon Counting for Neighbourhoods and Cities Dr Rajat Gupta Department of Architecture [email_address] Westminster Carbon...
Core methodologies used in DECoRuM Underlying physically-based energy models: BREDEM –12 linked to SAP 2001. Cost-benefit ...
Outputs from DECoRuM
Framework for baseline predictions DECoRuM baseline energy model estimates energy consumption and CO 2  emissions  of indi...
Oxford case study: DECoRuM baseline energy & CO 2  model © Rajat Gupta, Oxford Brookes University, Oxford, UK.
In conclusion Top down approaches Are they complementary to each other? What do we need to adopt for cities to be able to ...

10 20 30 40 50 2000 2010 2020 2030 2040 2050 1990 Carbon dioxide emissions (MtCO 2 ) Draft London Plan targets 15% 20% 25%...
London: Where emissions come from: 21% 7% Emissions from London Domestic Commercial (inc. public sector) Industrial Ground...
Responsibility for Delivering 30% CO2 Cuts by 2025 Source: LECI; GLA analysis <ul><li>GLA family (~10%) City  </li></ul><u...
Solar Cities: 2 nd  International Conference 2006
LOW CARBON WOLVERCOTE
Principles of carbon counting for buildings in use   <ul><li>THE KEY STEPS </li></ul><ul><li>The five key steps in countin...
Carbon Dioxide Emissions will include:   (Source:Robert Cohen) Probably the most ‘correct’ approach is to split the scores...
Making Business Sense of Climate Change www.thecarbontrust.co.uk
<ul><li>DECARBONISING BUILDINGS </li></ul><ul><li>CASE STUDY: The Sports Hall </li></ul><ul><li>The proposed sports halls ...

Recommendations: <ul><li>High the thermal efficiency of the structure of the sports hall through the use of good levels of...
The what works palette of RENs Source: njsolar
Wind –  It works and is available on site House height 8m 400W turbine Electricity provision: 20% of a household Height: 2...
RENEWABLE ENERGY GRANTS: The Low Carbon Buildings Programme - Stream 2B. ( www.lowcarbonbuildings.org.uk/  ).   <ul><li>So...
<ul><li>CALCULATING THE COST BENEFITS OF THE SAVINGS: </li></ul><ul><li>Recommendation 3:  Naturally ventilate the sports ...

Key recomendations:   142,000 644,180 134 20,578 TOTAL  35.53 35,000 36,500 6.9 985 Solar hot water systems 3.58 100,000 4...
Guy Hudson, Convenor   “ I nternational network for  C arbon  A ccounting  R eporting, and  R eduction in the  B uilt envi...
ICARB <ul><li>Positioning: a clear need – to ensure consistent and therefore comparable carbon accounting </li></ul><ul><l...
ICARB <ul><li>Questions </li></ul><ul><li>What does this mean applied to ICT?  </li></ul><ul><li>How do we achieve the obj...
Pushing at an open door <ul><li>ISO/BSI, the Carbon Trust and the supply chain </li></ul><ul><li>Industry initiatives PAS2...
ICARB  Consistent carbon accounting <ul><li>Scope is very large </li></ul><ul><li>Deep but very narrow </li></ul><ul><li>D...
The world according to ICARB 2 Dimensions of the problem Sectors Scope Individuals Communities Cities Government Buildings...
3 rd  Dimensions of the problem  Units, Metrics, Factors Datasets Boundaries For each sector. Each application level - ide...
The ICT Workgroup? Steering Committee Sectors Scope Parameters
The solution will involve: Open source, Standards –based  <ul><li>Methodologies open and available to all </li></ul><ul><u...
Each workgroup <ul><li>Position paper at the October conference </li></ul><ul><li>Gather data for standards and initiative...
Sue Roaf  Professor of Architectural Engineering Heriot Watt University Edinburgh [email_address]
