Grid Projects in the US (an inevitably incomplete view) Ian Foster Computation Institute Argonne National Lab & University...
Grid Projects in the US Resources Resource Provider Resource Provider Resource Provider
Grid Projects in the US Service  Provider Service  Provider Service  Provider Services Resources Resource Provider
Grid Projects in the US Community Community Community Service  Provider Content Services Resources Resource Provider Softw...
Grid Projects in the US Community Service  Provider Content Services Resources Software Providers Resource Provider
Resource Providers <ul><li>Campus and regional grids </li></ul><ul><ul><li>Purdue, Wisc, UCLA, …, … </li></ul></ul><ul><ul...
Open Science Grid Sites  (5/4/08) +3 in Brazil; 2 in Mexico; 2 in Taiwan; 1 in the UK. Grows by 10-20 per year.
Use by Community CMS ATLAS CDF Local Usage & bugs (unmapped to VO) D0 2,000,000 a week 1,000,000 a week
TeraGrid Participants
Growing User Community Source: TeraGrid Central Database
Growing Usage Source: TeraGrid Central Database 3.95B NUs delivered in CY2007
CY2007 Usage by Discipline 3.95B NUs delivered in CY2007 Molecular  Biosciences 31% Chemistry 17% Physics 17% Astronomical...
Grid Projects in the US <ul><li>For example: </li></ul><ul><li>Build and test service (Wisc) </li></ul><ul><li>Certificate...
caBIG: sharing of infrastructure, applications, and data.  Data Integration! Services & Cancer Biology Globus
caBIG Under the Covers NCICB Research Center Grid-Enabled Client Research Center Tool 1 Tool 2 Tool 3 Tool 4 Grid Data Ser...
LIGO Data Grid Birmingham • Replicating >1 Terabyte/day to 8 sites 770 TB replicated to date: >120 million replicas MTBF =...
Grid Projects in the US <ul><li>For example: </li></ul><ul><li>Earth System Grid </li></ul><ul><li>Children’s Oncology Gri...
Earth System Grid Main ESG Portal CMIP3 (IPCC AR4) ESG Portal <ul><li>198 TB of data at four locations </li></ul><ul><li>1...
SCEC Community  Modeling Environment Pathway Instantiations Knowledge Base Ontologies Curated taxonomies, Relations & cons...
Seismic Hazard Analysis <ul><li>Defn:  Max. intensity of shaking expected at a site during a fixed time interval </li></ul...
SCEC Computations & Grid <ul><li>Prepare input to Pathway2    wave propagation code  </li></ul><ul><li>Pathway2PGV convert...
Children’s Oncology Grid and MEDICUS Globus
Grid Projects in the US Community Service  Provider Content Services Resources Resource Provider Software Providers
Software Providers <ul><li>Globus  [GT4.2 released July 2, 2008] </li></ul><ul><ul><li>GRAM, GridFTP, MDS, RLS, DRS, … </l...
Virtual Data Toolkit (VDT) Software Release Process VDT components over time: built for 15 Linux Versions Development & te...
Creating Services: Introduce and gRAVI  <ul><li>Introduce </li></ul><ul><ul><li>Define service </li></ul></ul><ul><ul><li>...
Composing  Services Globus
Service Discovery: Registries Globus
Challenges Community Community Community Service  Provider Content Services Resources Resource Provider Software Providers...
The Future <ul><li>NSF eXtreme Digital (XD) solicitation </li></ul><ul><ul><li>Aka “TeraGrid III” </li></ul></ul><ul><li>D...
Upcoming SlideShare
Loading in...5
×

Grid Projects In The US July 2008

1,400

Published on

A talk given at the HPC 2008 meeting in Cetraro, Italy

Published in: Education, Technology
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,400
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
34
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide
  • Grid Projects In The US July 2008

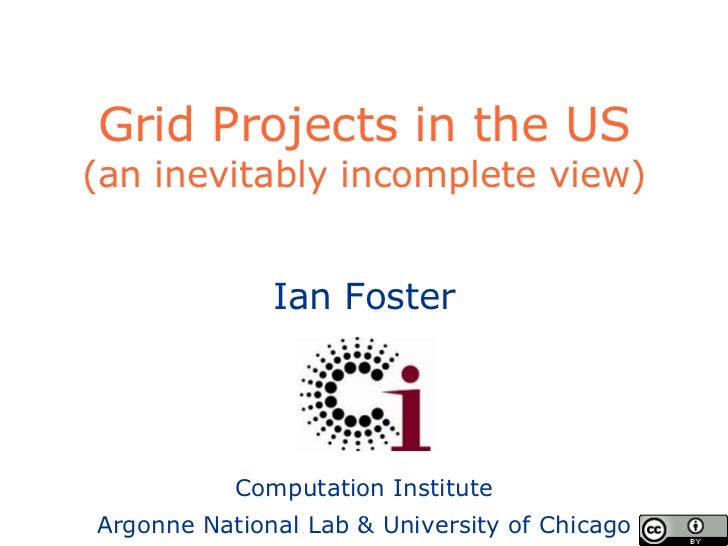

    1. 1. Grid Projects in the US (an inevitably incomplete view) Ian Foster Computation Institute Argonne National Lab & University of Chicago
