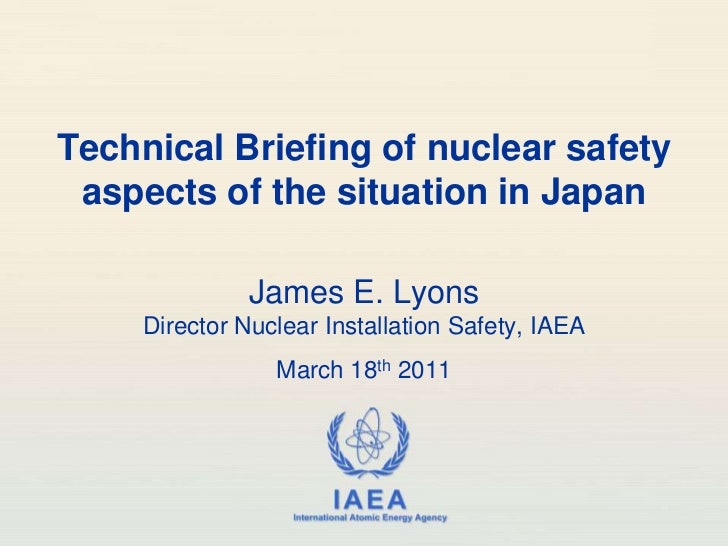

  1. 1. Technical Briefing of nuclear safety aspects of the situation in Japan<br />James E. LyonsDirector Nuclear Installation Safety, IAEA<br />March 18th 2011<br />
  2. 2. FUKUSHIMA DAIICHI<br />Reactor Unit 1<br />Common spent fuel pond<br />Reactor Unit 2<br />Reactor Unit 3<br />Smoke or vapour plume<br />Reactor Unit 4<br />Possible vapour plume<br />18 MAR 2011, 10:19am local time<br />Contains DIGITALGLOBE Copyrighted Materials<br />
  3. 3. FUKUSHIMA DAIICHI<br />Switchyard for Reactor Units 5 and 6<br />Reactor Unit 6<br />Diesel generator building<br />Reactor Unit 5<br />Fukushima Daiichi, Reactor Unit 5 and Reactor Unit 6, no blast or fire damage observed<br />18 MAR 2011, 10:19am local time<br />Contains DIGITALGLOBE Copyrighted Materials<br />
  4. 4. FUKUSHIIMA DAIICHI UNIT 1 REACTOR WATER LEVEL<br />
  5. 5. FUKUSHIIMA DAIICHI UNIT 1 REACTOR VESSEL PRESSURE<br />
  6. 6. FUKUSHIIMA DAIICHI UNIT 2 REACTOR WATER LEVEL<br />
  7. 7. FUKUSHIIMA DAIICHI UNIT 2 REACTOR VESSEL PRESSURE<br />
  8. 8. FUKUSHIIMA DAIICHI UNIT 2 CONTAINMENT DRYWELL PRESSURE<br />
  9. 9. FUKUSHIIMA DAIICHI UNIT 3 REACTOR WATER LEVEL<br />
  10. 10. FUKUSHIIMA DAIICHI UNIT 3 REACTOR VESSEL PRESSURE<br />
  11. 11. FUKUSHIIMA DAIICHI UNIT 3 CONTAINMENT DRYWELL PRESSURE<br />
  12. 12. IAEA International Nuclear and Radiological Event Scale - INES<br /><ul><li>The Japanese authorities today issued new INES Ratings
  13. 13. Fukushima Daiichi Units 1, 2 and 3 - INES 5.
  14. 14. Fukushima Daiichi Unit 4 - INES 3
  15. 15. Fukushima DainiUnits 1, 2 and 4 - INES 3</li>

×
