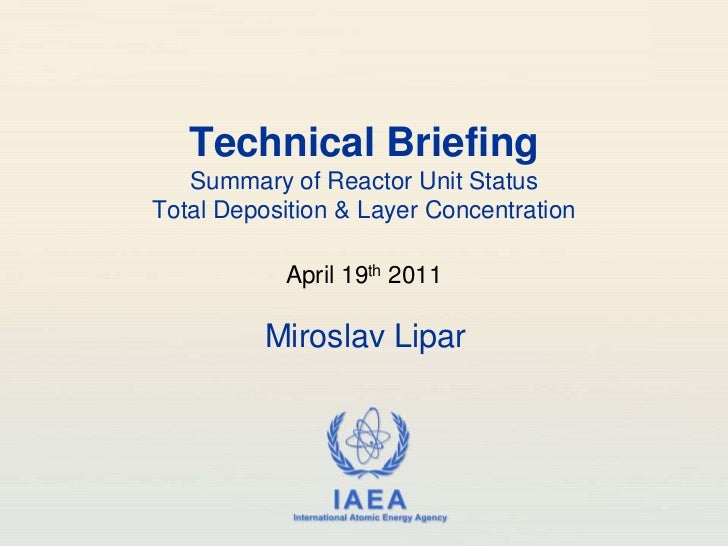

  1. 1. Technical BriefingSummary of Reactor Unit StatusTotal Deposition & Layer Concentration<br />April 19th2011<br />Miroslav Lipar<br />
  2. 2.
  3. 3.
  4. 4. FUKUSHIMA DAIICHI<br />Newly constructed storage tanks<br />Contaminated water storage tanks under construction<br />High level radioactive waste disposal building<br />Unit 2<br />Unit 3<br />Unit 4<br />Unit 1<br />Waste disposal facility<br />Silt fences installed in front of each water intake channel<br />14 APR 2011<br />Contains DIGITALGLOBE Copyrighted Materials<br />
  5. 5. FUKUSHIMA DAIICHI<br />Concrete pump trucks<br />Unit 3<br />Unit 4<br />Unit 2<br />Unit 1<br />Smoke or vapour plume<br />14 APR 2011<br />Contains DIGITALGLOBE Copyrighted Materials<br />
  6. 6. FUKUSHIMA DAIICHI<br />Newly constructed storage tanks<br />Suppression pool water storage tanks<br />Contaminated water storage tanks under construction<br />High level radioactive waste disposal building<br />Waste disposal facility<br />14 APR 2011<br />Contains DIGITALGLOBE Copyrighted Materials<br />
  7. 7. New construction<br />Unit 6<br />Unit 5<br />Diesel generator building<br />
  8. 8. Iodine 131 – Total Deposition & Layer ConcentrationRegional Model - March 14th – April 13th, 2011<br />4/19/2011<br />Miroslav Lipar<br />8<br />
  9. 9. Iodine 131 – Total Deposition & Layer ConcentrationGlobal Model - March 14th – April 13th, 2011<br />4/19/2011<br />Miroslav Lipar<br />9<br />
  10. 10. Cesium 137 – Total Deposition & Layer ConcentrationRegional Model - March 14th – April 13th, 2011<br />4/19/2011<br />Miroslav Lipar<br />10<br />
  11. 11. Cesium 137 – Total Deposition & Layer ConcentrationGlobal Model - March 14th – April 13th, 2011<br />4/19/2011<br />Miroslav Lipar<br />11<br />
