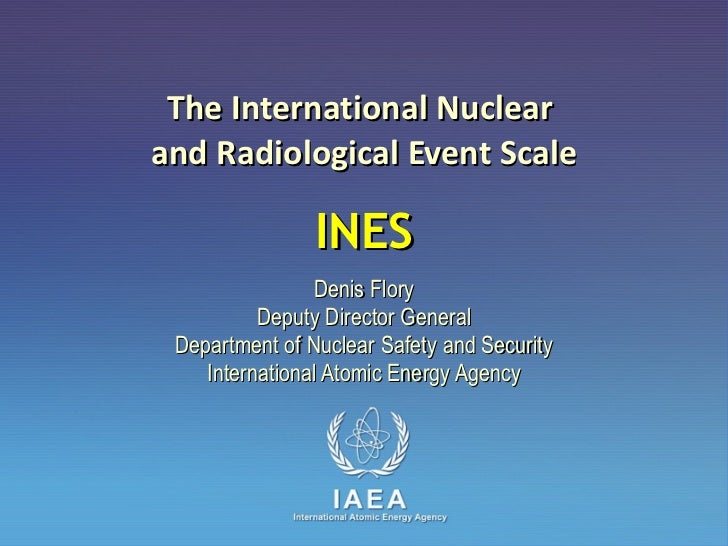

The International Nuclear  and Radiological Event Scale INES Denis Flory Deputy Director General Department of Nuclear Saf...
What is INES? <ul><li>International event rating scale with the aim of communicating to the public the safety significance...
Understanding the INES Scale Chernobyl (1986) Kyshtym (1957 ) TMI (1979) Tokaimura (1999) Vandellos (1989) Forsmark (2006)...
Using the INES Scale: three criteria <ul><li>Impact on people and environment </li></ul><ul><ul><li>Activity released or d...
General Description of Criteria At Level 4/5: fuel damage and radiological barrier  damage occurs At Level 6/7: significan...
<ul><li>&quot;All safety activities, whether organizational, behavioural or equipment related, are subject to  layers of o...
Defence in Depth Illustrated <ul><li>The fuel matrix </li></ul><ul><li>The fuel cladding </li></ul><ul><li>The boundary of...
Defence in Depth Rated <ul><li>Initiator approach:  </li></ul><ul><li>The occurrence that  c hallenges the safety systems,...
INES Event Rating Form Fukushima-Daiichi  units 1,2 and 3 Provisionally Rated  on 18 th  March at level 5
INES Event Rating Form Fukushima-Daiichi  units 1,2 and 3 Provisionally  Rated on 12 th  April  at Level 7
How to Communicate INES Events <ul><li>NEWS: www-news.iaea.org </li></ul><ul><ul><li>Events rated at INES level 2 and abov...
Questions & Answers <ul><li>Thank you for your time. </li></ul>
