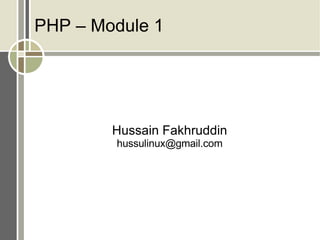

PHP – Module 1 Hussain Fakhruddin [email_address]

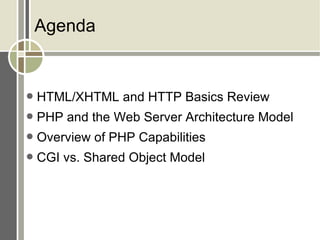

Agenda <ul><li>HTML/XHTML and HTTP Basics Review </li></ul><ul><li>PHP and the Web Server Architecture Model </li></ul><ul...

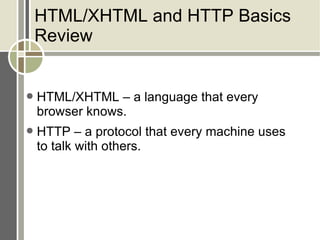

HTML/XHTML and HTTP Basics Review <ul><li>HTML/XHTML – a language that every browser knows. </li></ul><ul><li>HTTP – a pro...

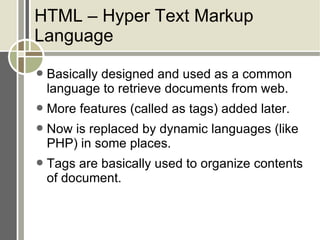

HTML – Hyper Text Markup Language <ul><li>Basically designed and used as a common language to retrieve documents from web....

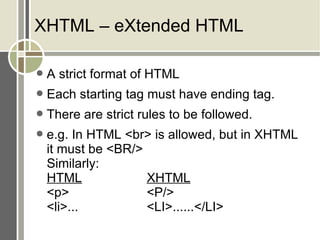

XHTML – eXtended HTML <ul><li>A strict format of HTML </li></ul><ul><li>Each starting tag must have ending tag. </li></ul>...

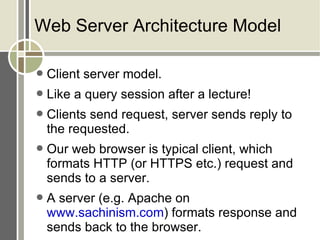

Web Server Architecture Model <ul><li>Client server model. </li></ul><ul><li>Like a query session after a lecture! </li></...

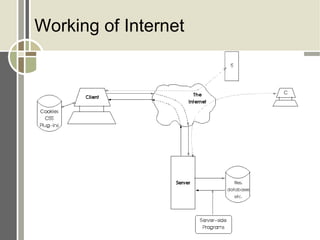

Working of Internet

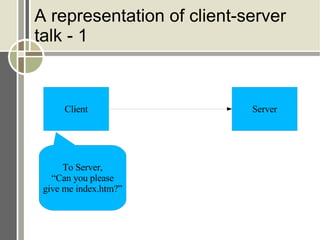

A representation of client-server talk - 1 Client Server To Server, “Can you please give me index.htm?”

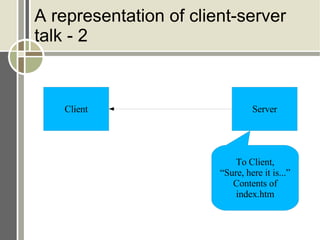

A representation of client-server talk - 2 Client Server To Client, “ Sure, here it is...” Contents of index.htm
A representation of client-server talk - 3 Client Server Wow... I am lucky to get index.htm so fast! Actual webpage,  that...

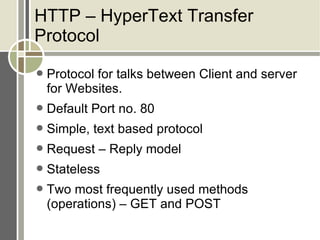

HTTP – HyperText Transfer Protocol <ul><li>Protocol for talks between Client and server for Websites. </li></ul><ul><li>De...

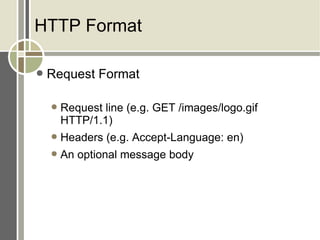

HTTP Format <ul><li>Request Format </li></ul><ul><ul><li>Request line (e.g. GET /images/logo.gif HTTP/1.1) </li></ul></ul>...

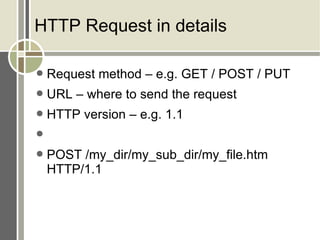

HTTP Request in details <ul><li>Request method – e.g. GET / POST / PUT </li></ul><ul><li>URL – where to send the request <...
Request methods -1 <ul><li>HEAD Request only headers for an GET request, not actual resource / data. Used to retrieve meta...

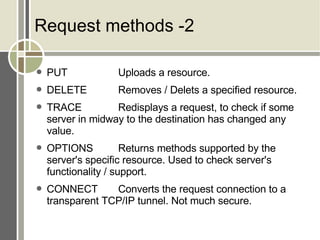

Request methods -2 <ul><li>PUT Uploads a resource. </li></ul><ul><li>DELETE Removes / Delets a specified resource. </li></...
HTTP Format <ul><li>Response form </li></ul><ul><ul><li>Status line </li></ul></ul><ul><ul><li>Headers </li></ul></ul><ul>...

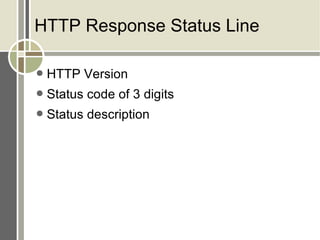

HTTP Response Status Line <ul><li>HTTP Version </li></ul><ul><li>Status code of 3 digits </li></ul><ul><li>Status descript...

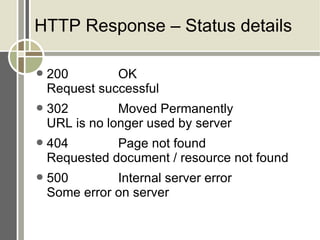

HTTP Response – Status details <ul><li>200 OK Request successful </li></ul><ul><li>302 Moved Permanently URL is no longer ...

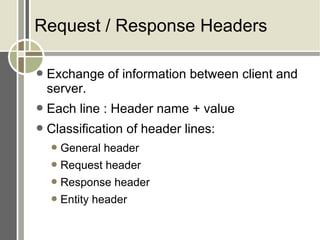

Request / Response Headers <ul><li>Exchange of information between client and server. </li></ul><ul><li>Each line : Header...

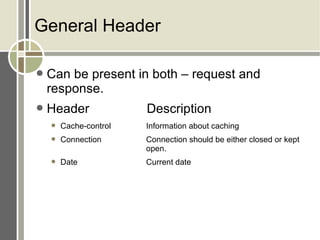

General Header <ul><li>Can be present in both – request and response. </li></ul><ul><li>Header Description </li></ul><ul><...

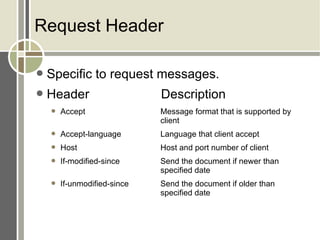

Request Header <ul><li>Specific to request messages. </li></ul><ul><li>Header Description </li></ul><ul><ul><li>Accept Mes...

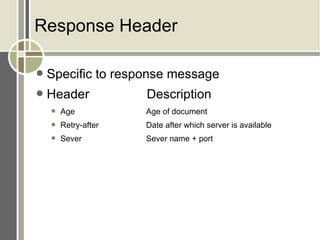

Response Header <ul><li>Specific to response message </li></ul><ul><li>Header Description </li></ul><ul><ul><li>Age Age of...

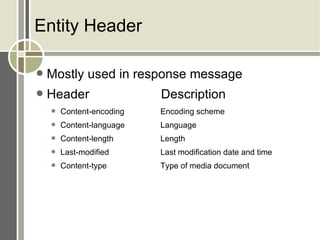

Entity Header <ul><li>Mostly used in response message </li></ul><ul><li>Header Description </li></ul><ul><ul><li>Content-e...
HTTP Example <ul><li>Request GET http://www.sachinism.com/index.htm HTTP/1.0 Accept: text/html Accept: image/jpeg </li></u...

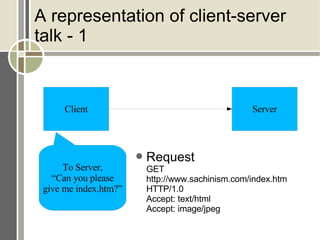

A representation of client-server talk - 1 <ul><ul><li>Request GET http://www.sachinism.com/index.htm HTTP/1.0 Accept: tex...
A representation of client-server talk - 2 <ul><ul><li>Response HTTP/1.0 200 OK Date: Thu, 20-Feb-08 09.00.00 GMT Server: ...

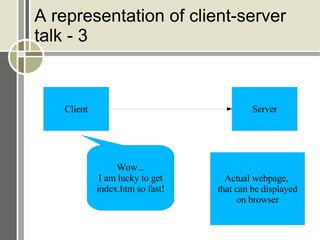

A representation of client-server talk - 3 Client Server Wow... I am lucky to get index.htm so fast! Actual webpage,  that...

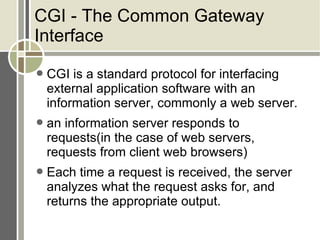

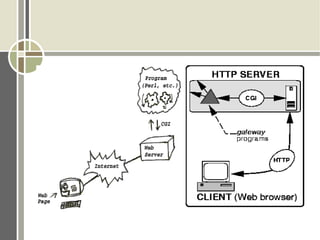

CGI - The Common Gateway Interface  <ul><li>CGI is a standard protocol for interfacing external application software with ...

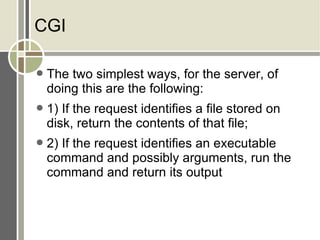

CGI  <ul><li>The two simplest ways, for the server, of doing this are the following: </li></ul><ul><li>1) If the request i...

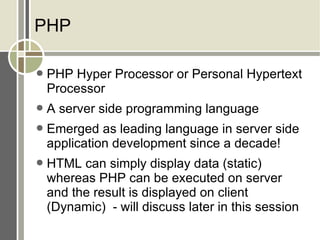

PHP <ul><li>PHP Hyper Processor or Personal Hypertext Processor </li></ul><ul><li>A server side programming language </li>...

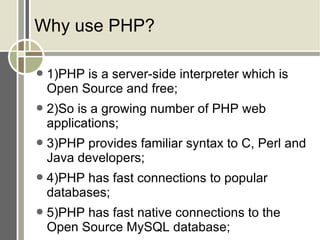

Why use PHP? <ul><li>1)PHP is a server-side interpreter which is Open Source and free; </li></ul><ul><li>2)So is a growing...

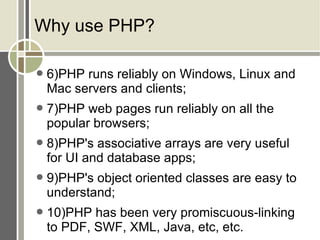

Why use PHP? <ul><li>6)PHP runs reliably on Windows, Linux and Mac servers and clients; </li></ul><ul><li>7)PHP web pages ...

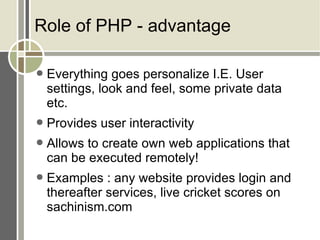

Role of PHP - advantage <ul><li>Everything goes personalize I.E. User settings, look and feel, some private data etc. </li...

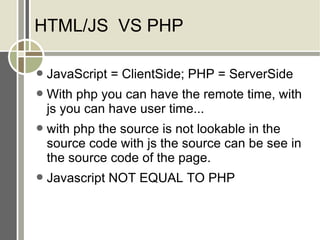

HTML/JS  VS PHP <ul><li>JavaScript = ClientSide; PHP = ServerSide </li></ul><ul><li>With php you can have the remote time,...

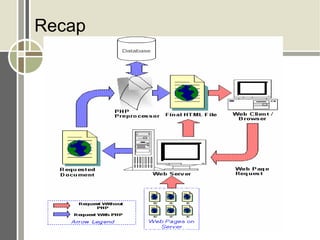

Recap

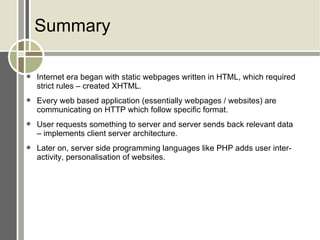

Summary <ul><li>Internet era began with static webpages written in HTML, which required strict rules – created XHTML. </li...

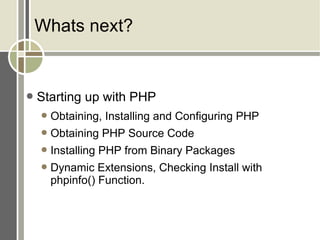

Whats next? <ul><li>Starting up with PHP </li></ul><ul><ul><li>Obtaining, Installing and Configuring PHP </li></ul></ul><u...
