Spring into rails

on

  • 1,939 views

QCon São Paulo 2011 presentation on converting a Spring MVC application into Rails.

QCon São Paulo 2011 presentation on converting a Spring MVC application into Rails.

Statistics

Views

Total Views
1,939
Views on SlideShare
1,934
Embed Views
5

Actions

Likes
1
Downloads
0
Comments
0

2 Embeds 5

http://us-w1.rockmelt.com 4
http://www.linkedin.com 1

Accessibility

Categories

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

Spring into rails Document Transcript

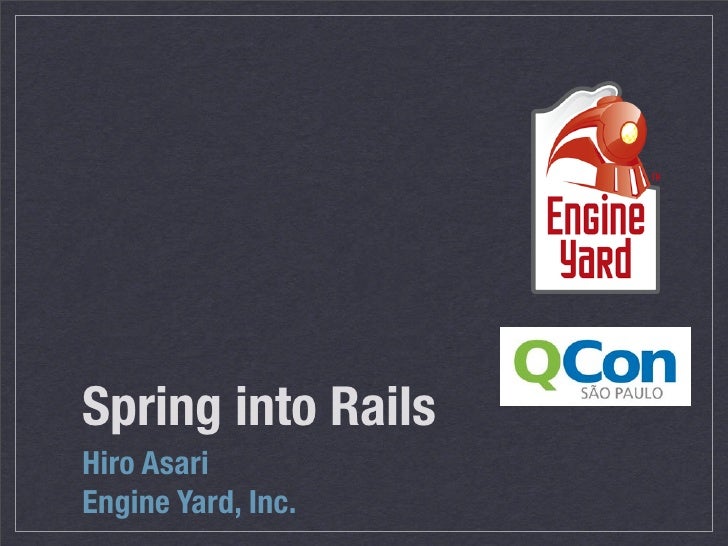

  • 1. Spring into RailsHiro AsariEngine Yard, Inc.
  • 2. Imagine…Maintaining enterpriseweb application writtenin Java…
  • 3. Imagine…
  • 4. public class FooTest { static Foo foo; public FooTest() { } @BeforeClass public static void setUpClass() throws Exception { } @AfterClass public static void tearDownClass() throws Exception { } @Before public void setUp() { foo = new Foo(); } @Test public void testReturn42() { assertEquals(…, …); }}
  • 5. public class FooTest { static Foo foo; public FooTest() { } @BeforeClass public static void setUpClass() throws Exception { } @AfterClass public static void tearDownClass() throws Exception { } @Before public void setUp() { foo = new Foo(); } @Test public void testReturn42() { assertEquals(42, foo.return42()); }}
  • 6. public class FooTest { static Foo foo; public FooTest() { } @BeforeClass public static void setUpClass() throws Exception { } @AfterClass public static void tearDownClass() throws Exception { } @Before public void setUp() { foo = new Foo(); } @Test public void testReturn42() { assertEquals(42, foo.return42()); # or is it assertEquals(foo.return42(), 42) ? }}
  • 7. What if…You didn’t have towrite in Java?
  • 8. JRubyA Ruby languageimplementation on JVM10 years (+ 1 day) sincethe first recorded commitSupporting Rails sinceMay, 2006Latest release is 1.6.4 (22August, 2011)
  • 9. JRuby Jam Session 15:00 BST 15 Setembro, 2011 http://pages.engineyard.com/JRubyInDepth.html
  • 10. WarblerFrom a Ruby/Rails/Merb/Rack application,create a WAR file foruse with Javaapplication containersuch as Tomcat andGlassfish http://www.pbase.com/wwcsig/image/59657656
  • 11. Application ServersTrinidad (Tomcat-based)TorqueBox (JBoss-based)Kirk (Jetty-based)
  • 12. $ jruby -S bundle installUsing backports (2.0.3)Using builder (3.0.0)⋮Using cucumber (0.10.2)Using cucumber-rails (0.4.0)Using database_cleaner (0.6.6)Using launchy (1.0.0) from https://github.com/copiousfreetime/launchy.git (at v1.0.0)Using monkey-lib (0.5.4)Using rspec-core (2.1.0)Using rspec-expectations (2.1.0)Using rspec-mocks (2.1.0)Using rspec (2.1.0)Using rspec-rails (2.1.0)Using tilt (1.2.2)Using sinatra (1.2.1)Using sinatra-sugar (0.5.0)Using sinatra-advanced-routes (0.5.1)Using sinatra-reloader (0.5.0)Using spoon (0.0.1)Using bundler (1.0.17)Your bundle is complete! It was installed into ./bundler
  • 13. Rackhttp://rack.rubyforge.org/Specifications for how Ruby-based webapplications should behavejruby-rack 1.0.10 (based on rack 1.3.2)
  • 14. Pet Clinic Example database- backed web app for Spring framework
  • 15. Enterprise softwareLong-running projects with legacy codebases Easy maintenance is important Testing is critical
  • 16. RefactoringWrite test first
  • 17. RSpechttp://relishapp.com/rspecBehavior-driven development tool for Ruby
  • 18. RSpec# bowling_spec.rbrequire bowlingdescribe Bowling, "#score" do it "returns 0 for all gutter game" do bowling = Bowling.new 20.times { bowling.hit(0) } bowling.score.should == 0 endend
  • 19. Cucumberhttp://cukes.infoTesting framework for describing softwarebehavior in plain English
  • 20. CucumberFeature: Pets Scenario: Edit Pet Given I am on the owners search page And I press "Find Owners" And I follow "George Franklin" And I follow "Edit Pet" When I fill in "Name" with "Leoni" And press "Update Pet" Then I should see "Leoni"
  • 21. http://bit.ly/refactoring-to-rails
  • 22. Small refactoringGive Ruby a foot in the door
  • 23. Requests/ /vets Java/ Spring App
  • 24. Requests JRuby/ /vets /rack/ Java/ Spring App
  • 25. Cucumber testdiff --git a/src/main/webapp/WEB-INF/jsp/vets.jsp b/src/main/webapp/WEB-INF/jsp/vets.jspindex cff2154..0d99817 100644--- a/src/main/webapp/WEB-INF/jsp/vets.jsp+++ b/src/main/webapp/WEB-INF/jsp/vets.jsp@@ -23,7 +23,7 @@ <table class="table-buttons"> <tr> <td>- <a href="<spring:url value="/vets.xml" htmlEscape="true" />">View as XML</a>+ <a href="<spring:url value="/rack/vets.xml" htmlEscape="true" />">View as XML</a> </td> </tr> </table>
  • 26. Cucumber testStand by while Tomcat finishes booting...Using the default profile...............................................................F-.............(::) failed steps (::)expected: /xml/, got: "text/html;charset=utf-8" (using =~)Diff:@@ -1,2 +1,2 @@-/xml/+text/html;charset=utf-8 (RSpec::Expectations::ExpectationNotMetError)org/jruby/RubyProc.java:268:in `call./features/step_definitions/xml_json_steps.rb:12:in `(root):in `/^I should seean XML document$/features/vets.feature:6:in `Then I should see an XML documentFailing Scenarios:cucumber features/vets.feature:3 # Scenario: View vets as XML13 scenarios (1 failed, 12 passed)75 steps (1 failed, 1 skipped, 73 passed)0m7.709srake aborted!Cucumber failed
  • 27. diff --git a/pom.xml b/pom.xmlindex 9e22f83..0810701 100644--- a/pom.xml+++ b/pom.xml@@ -211,6 +211,18 @@ <scope>provided</scope> </dependency>+ <!-- JRuby and JRuby-Rack -->+ <dependency>+ <groupId>org.jruby</groupId>+ <artifactId>jruby-complete</artifactId>+ <version>1.6.0</version>+ </dependency>+ <dependency>+ <groupId>org.jruby.rack</groupId>+ <artifactId>jruby-rack</artifactId>+ <version>1.0.8</version>+ </dependency>+ <!-- Test dependencies --> <dependency> <groupId>org.junit</groupId>
  • 28. diff --git a/src/main/webapp/WEB-INF/web.xml b/src/main/webapp/WEB-INF/web.xmlindex 8d02684..60ed6cb 100644--- a/src/main/webapp/WEB-INF/web.xml+++ b/src/main/webapp/WEB-INF/web.xml@@ -87,6 +87,21 @@ <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener>++ <listener>+ <listener-class>org.jruby.rack.RackServletContextListener</listener-class>+ </listener>++ <servlet>+ <servlet-name>rack</servlet-name>+ <servlet-class>org.jruby.rack.RackServlet</servlet-class>+ </servlet>++ <servlet-mapping>+ <servlet-name>rack</servlet-name>+ <url-pattern>/rack/*</url-pattern>+ </servlet-mapping>+ <!-- Defines the default servlet (usually for service static resources).
  • 29. diff --git a/src/main/webapp/WEB-INF/lib/app.rb b/src/main/webapp/WEB-INF/lib/app.rbindex 6ab5b3c..4398fb4 100644--- a/src/main/webapp/WEB-INF/lib/app.rb+++ b/src/main/webapp/WEB-INF/lib/app.rb@@ -1,6 +1,33 @@ require builder require erb+require spring_helpers++helpers do+ include Spring+end get /rack/ do <h1>Sinatra</h1> end++get /rack/vets.xml do+ content_type application/vnd.petclinic+xml+ builder do |xml|+ xml.instruct!+ xml.vets do+ clinic.vets.each do |vet|+ xml.vetList do+ xml.id vet.id+ xml.firstName vet.firstName+ xml.lastName vet.lastName+ vet.specialties.each do |spec|+ xml.specialties do+ xml.id spec.id+ xml.name spec.name+ end+ end+ end+ end+ end+ end+end
  • 30. Medium refactoringLayer on the Rails
  • 31. Requests JRuby/ /vets /rack/ Java/ Spring App
  • 32. Requests /owners Java// /vets /owners /1/pets Spring App
  • 33. Requests/ /vets JRuby /owners Java// /vets /owners /1/pets Spring App
  • 34. diff --git a/src/main/webapp/WEB-INF/web.xml b/src/main/webapp/WEB-INF/web.xmlindex 60ed6cb..f64b34d 100644--- a/src/main/webapp/WEB-INF/web.xml+++ b/src/main/webapp/WEB-INF/web.xml@@ -92,16 +92,6 @@ <listener-class>org.jruby.rack.RackServletContextListener</listener-class> </listener>- <servlet>- <servlet-name>rack</servlet-name>- <servlet-class>org.jruby.rack.RackServlet</servlet-class>- </servlet>-- <servlet-mapping>- <servlet-name>rack</servlet-name>- <url-pattern>/rack/*</url-pattern>- </servlet-mapping>- <!-- Defines the default servlet (usually for service static resources).@@ -162,6 +152,16 @@ <url-pattern>/</url-pattern> </servlet-mapping>+ <filter>+ <filter-name>RackFilter</filter-name>+ <filter-class>org.jruby.rack.RubyFirstRackFilter</filter-class>+ </filter>++ <filter-mapping>+ <filter-name>RackFilter</filter-name>+ <url-pattern>/*</url-pattern>+ </filter-mapping>+ <filter> <filter-name>httpMethodFilter</filter-name> <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
  • 35. Large refactoringFull-on Rails development
  • 36. Large refactoringChange directory structure; move files fromWEB-INF/* to Rails directory structureIn Rails initializer, create a Spring context to bootthe Spring appEnsure classpath includes Spring jars.
  • 37. Large refactoringConfigure warbler to ensure necessary files areincluded in WAR file
  • 38. TMTOWTDI <html> <head> </head> JSP <body> ### </body>Mixing JSP and </html>JRuby output + <div> Sinatra <h1>App</h1> </div>
  • 39. Questions? Twitter @hiro_asari G+ http://gplus.to/hiroasariLinkedIn http://linkedin.com/in/hiroasari asari.ruby@gmail.com hasari@engineyard.com http://github.com/banzaiman http://www.flickr.com/photos/42033648@N00/372887164
  • 40. Obligado! Twitter @hiro_asari G+ http://gplus.to/hiroasariLinkedIn http://linkedin.com/in/hiroasari asari.ruby@gmail.com hasari@engineyard.com http://github.com/banzaiman http://www.flickr.com/photos/42033648@N00/372887164
