Application Platforms and Developer Communities - New software tools and apps to support the research workflow

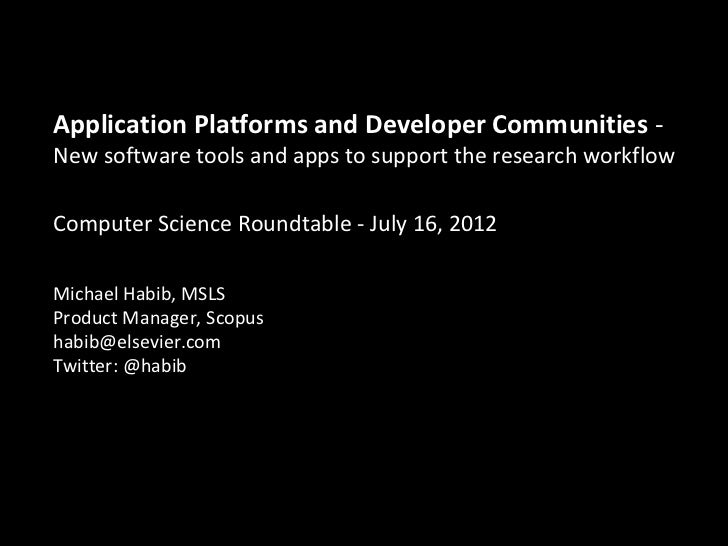

Application Platforms and Developer Communities -New software tools and apps to support the research workflowComputer Science Roundtable - July 16, 2012Michael Habib, MSLSProduct Manager, Scopushabib@elsevier.comTwitter: @habib

ScienceDirect– Elsevier’s online full text portal with 11 million full text articles from 2000+ journals as well as thousands of booksScopus– World’s largest abstract and citation database with 40 million abstracts, millions of author and affiliation profiles and reference and citation data.Hub– Comprehensive search covering ScienceDirect, Scopus and the Scirus scientific web index covering 400 million records from patents databases, arXiv, lab pages, news and more.

SCIVERSE APPLICATIONSopen, interoperable, domain specific

APPLICATIONS

DEVELOPER PORTAL

Developer Events 201110 Challenges, 4 Continents, 10 Countries 6 Global Institutions, 525+ Developers 35+ Apps launched $65,000 in Total Prize Money App s for Scie nce coun tries

“Hackathon” at NJIT 61 students, 13 teams 5 judges, 4 speakers 3 winners, 8 SciVerse apps 24 hours of coding $3,000 in total prizes “The Elsevier hackathon is the kind of challenging practical real-world collaborative programming experience we like to provide to students to augment the concepts that we teach in the classroom” -Narain Gehani Dean College of Computer Sciences, NJIT [+]

Apps for Science 2011JUDGES Akhilesh Pandey James Hendler Lee Dirks Tony Askew Johns Hopkins University Rensselaer Polytechnic Institute Microsoft Reed Elsevier Ventures Gully Burns Jeff Jonas Santo Politi University of Southern California IBM Spark Capital

WHY ARE WE DOING THIS?• Literature and data want to be together – Mass of data available to researchers outside the formal literature is huge and growing – This is inefficient - task switching between multiple interfaces, hard to find resources... – Smart apps can facilitate interoperability, bring relevant data into context with papers

(Researchers, N = 3824 ; study by Publishing Research Consortium, 2010) High importance but not easily accessible

LINKING DATA

WHY ARE WE DOING THIS?• Customers expect the tools they use to work together – Google Gmail on your Apple iPhone synced to your Dell laptop running Microsoft Windows – SciVerse is one tool among many our users are using and our customers are subscribing to – APIs and an open platform brings SciVerse to where users are and lets other products add value to SciVerse

ADDED VALUE “bX is already available on the eLibrary, and is proving very useful in presenting users with highly relevant material beyond what they find through their own searches. Adding bX to SciVerse will bring added value to those systems too.“ Gill McDonald – Librarian, Cardiff University

WHY ARE WE DOING THIS?• Domain specificity is the future of research tools – The current one-size-fits-all model of publishing is print-centric and needlessly constricting – Publishers/database providers cannot build tools for every single scientific discipline – An open platform is the obvious solution – let the research community build the tools they need

“THIS IS A MEDIEVAL WAY OF COMMUNICATING INFORMATION. WE HAVE TOWORK TOGETHER TO CHANGETHIS. THERE IS SO MUCH MORE WE CAN DO.”

SIMPLE THINGS

CONNECTING DATA IN CONTEXT

BACK UPSO WHAT JUST HAPPENED?

APPS ARE INTEGRATED GADGETS • OpenSocial, Shindig container for serving gadgets – Each gadget displayed in its own iFrame – Shindig container proxies content to comply with same origin policy • XML wrapper around HTML/JS – Gadgets API with some proprietary extensions – Can contain client side code or display external web pages • Integrated, context-aware – Many integration points in key pages in SciVerse user experience – Advanced features supported via javascript calls (link text on page, run a search, open overlay etc.) – Can ask container for data about user, inputs and page (meta)data

HTML GADGETS<?xml version="1.0" encoding="UTF-8"?><Module> <Require feature="opensocial-0.9" /> <Require feature="sciverse" /> <Require feature="hub" /> </ModulePrefs> <Content type="html" view=“profile"> <![CDATA[ <p>Hello World!</p> ]]></Content><Content type="html" view=“canvas"> <![CDATA[ <p>Hello World! This is my cat!</p> <img src=“http://foo.com/images/myCat.jpg” width=“800” height=“600”> <a href=“http://foo.com/images/catPics.html” target=“_blank”>See more pics of my cat here.</a> ]]></Content></Module>

URL/PROXIED CONTENT GADGETS Proxied Content – external content is proxied, can use extensions <?xml version="1.0" encoding="UTF-8"?> <Module> <Require feature="opensocial-0.9" /> <Require feature=“sciverse” /> </ModulePrefs> <UserPref name="doi" datatype="hidden"/> <Content type="html" view="profile" href="http://foo.com/docRef=__UP_doi__"/> </Module> URL – external web page is displayed as is, can still pass data on URL <?xml version="1.0" encoding="UTF-8"?> <Module> <Require feature="opensocial-0.9" /> </ModulePrefs> <UserPref name="doi" datatype="hidden"/> <Content type=“URL" view="profile" href="http://foo.com/docRef=__UP_doi__"/> </Module>

EXTENSIONSRetrieve contextual data: Retrieve contextual data:•getArticleContent(); Retrieve current article/abstract text•getContextInfo(); Retrieve all context data (i.e. metadata)•getResults(); Retrieve metadata of search results•subscribeToQuery(); Subscribe to user’s search query input•subscribeToResults(); Subscribe to updated results listsUI integrations UI integrations•gotoCanvas(); Display canvas (full screen) view of gadget•showHoverView(); Display hover (overlay) view of gadget•showResultsView(); Display gadget view under specific results•linkText(); Link specific terms on the page•returnQuerySuggestions(); Provide auto-complete query suggestionsUtilities Utilities•makeContentAPIRequest(); Make content API call to SciVerse APIs•makeRequest(); Make request to external API•adjustHeight(); Resize gadget window•makeMeInvisible(); Make gadget disappear•makeMeVisible(); Make gadget appear

EXAMPLE – ENTITY LINKING • getArticleContent(); • retrieves full text of article user is viewing • linkText(‘archidonic acid’); • links selected terms in article, notifies on click events • showHoverView(‘LMID’); • displays “hover” gadget view, passes arbitrary data

THE ENDapplications.sciverse.comdevelopers.sciverse.com/frameworkdevelopers.sciverse.com/apihabib@elsevier.comTwitter: @habib
