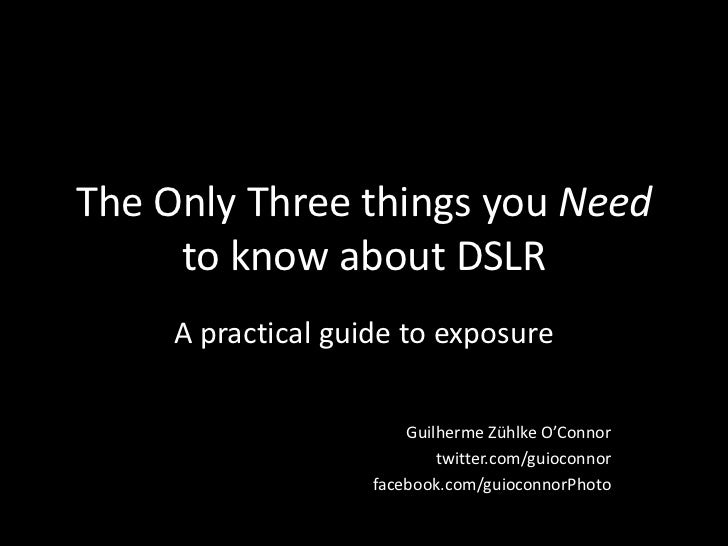

The Only Three things you Need to know about DSLR<br />A practical guide to exposure<br />Guilherme Zühlke O’Connor<br />t...
Once upon a time…<br />
Once upon a time…<br />… there was SLR<br />
SLR – Single Lens Reflex<br />
SLR – Single Lens Reflex<br />A camera with a single lens<br />
SLR – Single Lens Reflex<br />A camera with a single lens<br />Use of reflection to send the image to the viewfinder<br />
SLR – Single Lens Reflex<br />A camera with a single lens<br />Use of reflection to send the image to the viewfinder<br />
Back in the old times…<br />
Back in the old times…<br />The body of the camera was responsible for the exposure time<br />
Back in the old times…<br />The body of the camera was responsible for the exposure time<br />The lens was responsible for...
Back in the old times…<br />The body of the camera was responsible for the exposure time<br />The lens was responsible for...
The camera body<br />Tipically, a camera body would be set to expose the film for a period of time ranging from 30 seconds...
The Lens<br />Has a diafragm that controls the area of the aperture through which the light enters the camera<br />The amo...
The Film<br />The film has an emulsion containing silver salts that react to the presence of light<br />The more light it ...
(*) That’s the ISO setting for ya<br />
The correct exposure needs a certain amount of light.<br />
The correct exposure needs a certain amount of light.<br />If you want a faster shot, you need a wider aperture. And vice ...
Alright, alright. What about DSRLs, then?<br />
Alright, alright. What about DSRLs, then?<br />Same thing but with a sensor in place of the film.<br />
Manual Mode<br />Most DSLRs have a manual mode setting<br />
Manual Mode<br />Most DSLRs have a manual mode setting<br />You set the exposure time<br />
Manual Mode<br />Most DSLRs have a manual mode setting<br />You set the exposure time<br />You set the aperture<br />
Manual Mode<br />Most DSLRs have a manual mode setting<br />You set the exposure time<br />You set the aperture<br />Setti...
Aperture priority mode<br />Most DSLRs have an Aperture Priority Mode<br />
Aperture priority mode<br />Most DSLRs have an Aperture Priority Mode<br />You set the aperture you want to take the pictu...
Aperture priority mode<br />Most DSLRs have an Aperture Priority Mode<br />You set the aperture you want to take the pictu...
Aperture priority mode<br />Most DSLRs have an Aperture Priority Mode<br />You set the aperture you want to take the pictu...
f/4.8<br />f/32<br />
Shutter Priority Mode<br />Most DSLRs have a Shutter Priority Mode<br />
Shutter Priority Mode<br />Most DSLRs have a Shutter Priority Mode<br />You set the exposure time of the shot<br />
Shutter Priority Mode<br />Most DSLRs have a Shutter Priority Mode<br />You set the exposure time of the shot<br />The cam...
Shutter Priority Mode<br />Most DSLRs have a Shutter Priority Mode<br />You set the exposure time of the shot<br />The cam...
1/500 s<br />1/90 s<br />
But also for extreme light conditions<br />
Exposure time 104s, barely visible with the naked eye. Shot with ISO 50.<br />See more at http://www.facebook.com/media/se...
The ISO setting<br />Just as in film<br />
The ISO setting<br />Just as in film<br />The higher the ISO the less light you need<br />
The ISO setting<br />Just as in film<br />The higher the ISO the less light you need<br />The higher the ISO the more nois...
The ISO setting<br />Just as in film<br />The higher the ISO the less light you need<br />The higher the ISO the more nois...
The ISO setting<br />Just as in film<br />The higher the ISO the less light you need<br />The higher the ISO the more nois...
ISO 1600<br />ISO 200<br />
All fancy exposure settings on your DSLR are based on these  three basic principles.<br />
?<br />Questions<br />Further reading<br />http://www.z-oc.com/blog/2007/08/understanding-cameras-and-photography/<br />ht...
