Design Patterns for Distributed
  Non-Relational Databases
                  aka
 Just Enough Distributed Systems To Be
  ...
Introduction
Common Underlying Assumptions
Design Patterns
   Consistent Hashing
   Consistency Models
   Data Models
   S...
Why We’re All Here


     Scaling up doesn’t work
     Scaling out with traditional RDBMSs isn’t so
     hot either
      ...
Closed-source NRDBMSs
“The Inspiration”




           Google BigTable
                    Applications: webtable, Reader,...
Data Interfaces
“This is the NOSQL meetup, right?”




          Every row has a key (PK)
          Key/value get/put
    ...
Underlying Assumptions
Assumptions - Data Size


      The data does not fit on one node.
      The data may not fit on one rack.
      SANs are to...
Assumptions - Reliability
      The system must be highly available to serve
      web (and other) applications.
      Sin...
Assumptions - Performance
...and price thereof


            All systems we’re talking about today are
            meant f...
Design Patterns
Partitioning Schemes
“Where does a key live?”




          Given a key, we need to determine which
          node(s) it b...
Consistent Hashing
Maintaining hashing in a dynamic cluster
Consistent Hashing
Key Placement
Consistency Models

     A consistency model determines rules for
     visibility and apparent order of updates.
     Exam...
Strict Consistency

     All read operations must return the data from
     the latest completed write operation, regardle...
Eventual Consistency

     As t → ∞, readers will see writes.
     In a steady state, the system is guaranteed to
     eve...
Timestamps and Vector Clocks
Determining a history of a row



           Eventual consistency relies on deciding what
   ...
Vector Clocks

     Definition:
         A vector clock is a tuple {t1 , t2 , ..., tn } of clock
         values from each ...
Data Models
What’s in a row?




          Primary Key → Value
          Value could be:
                   Blob
         ...
Multi-Version Storage
Using Timestamps for a 3rd dimension



          Each table cell has a timestamp
          Timestam...
Storage Layouts
How do we lay out rows and columns on disk?




          Determines performance of different access
      ...
Row-based Storage




     Pros:
         Good locality of access (on disk and in cache) of
         different columns
    ...
Columnar Storage




     Pros:
         Data for a given column is stored sequentially
         Scanning a single column ...
Columnar Storage with Locality Groups




     Columns are organized into families (“locality
     groups”)
     Benefits o...
Log Structured Merge Trees
aka “The BigTable model”

           Random IO for writes is bad (and impossible in
           ...
LSM Data Layout
LSM Write Path
LSM Read Path
LSM Read Path + Bloom Filters
LSM Memtable Flush
LSM Compaction
Cluster Management

     Clients need to know where to find data
     (consistent hashing tokens, etc)
     Internal nodes ...
Omniscient Master

     When nodes join/leave or change state, they
     talk to a master
     That master holds the autho...
Gossip
     Gossip is one method to propagate a view of
     cluster status.
     Every t seconds, on each node:
         ...
Gossip - Initial State
Gossip - Round 1
Gossip - Round 2
Gossip - Round 3
Gossip - Round 4
Questions to Ask Presenters
Scalability and Reliability

      What are the scaling bottlenecks? How does it
      react when overloaded?
      Are th...
Performance

     What’s the goal? Batch throughput or request
     latency?
     How many seeks for reads? For writes? Ho...
Consistency

     What consistency model does the system
     provide?
     What situations would cause a lapse of
     co...
Cluster Management and Topology

     Does the system have a single master? Does it
     use gossip to spread cluster mana...
Data Model and Storage

     What data model and storage system does the
     system provide?
     Is it pluggable?
     W...
Data Access Methods


     What methods exist for accessing data? Can I
     access it from language X?
     Is there a wa...
Real Life Considerations
(I was talking about fake life in the first 45 slides)

            Who uses this system? How big ...
Questions?
http://cloudera-todd.s3.amazonaws.com/nosql.pdf
Upcoming SlideShare
Loading in...5
×

Design Patterns for Distributed Non-Relational Databases

59,862

Published on

Intro slides from http://nosql.net event (Jun 11, 09)

Published in: Technology
8 Comments
184 Likes
Statistics
Notes
  • 6 years after it was written, this is still an amazingly good summary of non-relational database architectures. It clarifies and summarizes a huge amount of still very relevent concepts (LSM trees, consistent hashing, etc)
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Really Great and helpful
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • GameAZ.us is a directory of free flash games - A web build on Cassandra Database
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Great presso. Good coverage. Thanks for sharing.
    Would be awesome if slideshare could also embed audio into it :)
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • The pattern format is well-suited to recap every way to address each aspect of the subject matter. This presentation is very useful for that. I would suggest to group between the patterns that are more relevant for the typical user of such distributed systems, and the patterns more useful for the implementors of such systems.
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total Views
59,862
On Slideshare
0
From Embeds
0
Number of Embeds
26
Actions
Shares
0
Downloads
2,431
Comments
8
Likes
184
Embeds 0
No embeds

No notes for slide

Transcript of "Design Patterns for Distributed Non-Relational Databases"

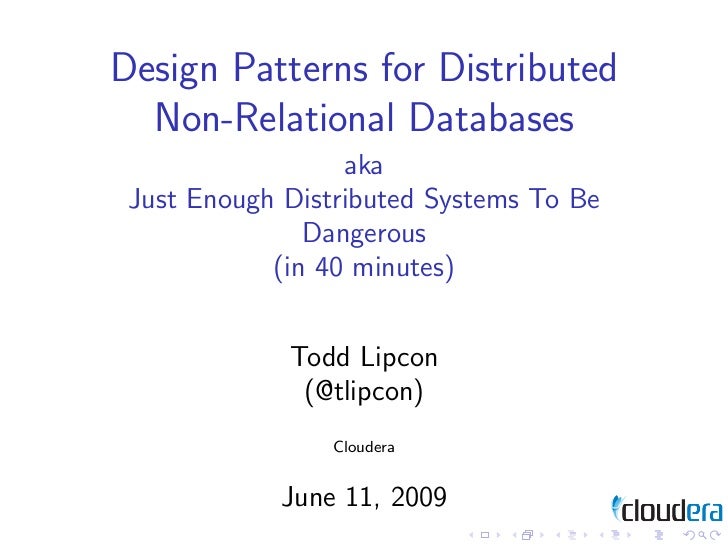

  1. 1. Design Patterns for Distributed Non-Relational Databases aka Just Enough Distributed Systems To Be Dangerous (in 40 minutes) Todd Lipcon (@tlipcon) Cloudera June 11, 2009
