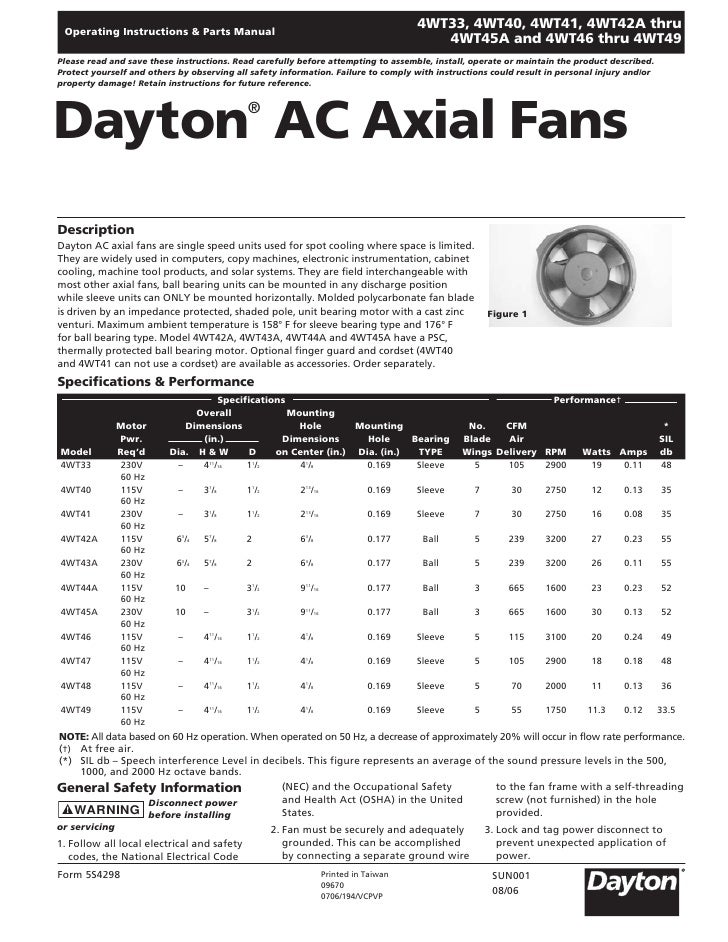

  • 1. 4WT33, 4WT40, 4WT41, 4WT42A thru Operating Instructions & Parts Manual 4WT45A and 4WT46 thru 4WT49 Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference. Dayton AC Axial Fans ® Description Dayton AC axial fans are single speed units used for spot cooling where space is limited. They are widely used in computers, copy machines, electronic instrumentation, cabinet cooling, machine tool products, and solar systems. They are field interchangeable with most other axial fans, ball bearing units can be mounted in any discharge position while sleeve units can ONLY be mounted horizontally. Molded polycarbonate fan blade is driven by an impedance protected, shaded pole, unit bearing motor with a cast zinc Figure 1 venturi. Maximum ambient temperature is 158° F for sleeve bearing type and 176° F for ball bearing type. Model 4WT42A, 4WT43A, 4WT44A and 4WT45A have a PSC, thermally protected ball bearing motor. Optional finger guard and cordset (4WT40 and 4WT41 can not use a cordset) are available as accessories. Order separately. Specifications & Performance Specifications Performance† Overall Mounting Motor Dimensions Hole Mounting No. CFM * Pwr. (in.) Dimensions Hole Bearing Blade Air SIL Model Req’d Dia. H & W D on Center (in.) Dia. (in.) TYPE Wings Delivery RPM Watts Amps db 4WT33 230V – 411/16 11/2 41/8 0.169 Sleeve 5 105 2900 19 0.11 48 60 Hz 4WT40 115V – 31/8 11/2 213/16 0.169 Sleeve 7 30 2750 12 0.13 35 60 Hz 4WT41 230V – 31/8 11/2 213/16 0.169 Sleeve 7 30 2750 16 0.08 35 60 Hz 4WT42A 115V 63/4 57/8 2 63/8 0.177 Ball 5 239 3200 27 0.23 55 60 Hz 4WT43A 230V 63/4 57/8 2 63/8 0.177 Ball 5 239 3200 26 0.11 55 60 Hz 4WT44A 115V 10 – 31/2 911/16 0.177 Ball 3 665 1600 23 0.23 52 60 Hz 4WT45A 230V 10 – 31/2 911/16 0.177 Ball 3 665 1600 30 0.13 52 60 Hz 4WT46 115V – 411/16 11/2 41/8 0.169 Sleeve 5 115 3100 20 0.24 49 60 Hz 4WT47 115V – 411/16 11/2 41/8 0.169 Sleeve 5 105 2900 18 0.18 48 60 Hz 4WT48 115V – 411/16 11/2 41/8 0.169 Sleeve 5 70 2000 11 0.13 36 60 Hz 4WT49 115V – 411/16 11/2 41/8 0.169 Sleeve 5 55 1750 11.3 0.12 33.5 60 Hz NOTE: All data based on 60 Hz operation. When operated on 50 Hz, a decrease of approximately 20% will occur in flow rate performance. (†) At free air. (*) SIL db – Speech interference Level in decibels. This figure represents an average of the sound pressure levels in the 500, 1000, and 2000 Hz octave bands. (NEC) and the Occupational Safety to the fan frame with a self-threading General Safety Information and Health Act (OSHA) in the United screw (not furnished) in the hole Disconnect power WARNING before installing States. provided. or servicing 2. Fan must be securely and adequately 3. Lock and tag power disconnect to grounded. This can be accomplished prevent unexpected application of 1. Follow all local electrical and safety by connecting a separate ground wire power. codes, the National Electrical Code Form 5S4298 Printed in Taiwan SUN001 09670 08/06 0706/194/VCPVP
