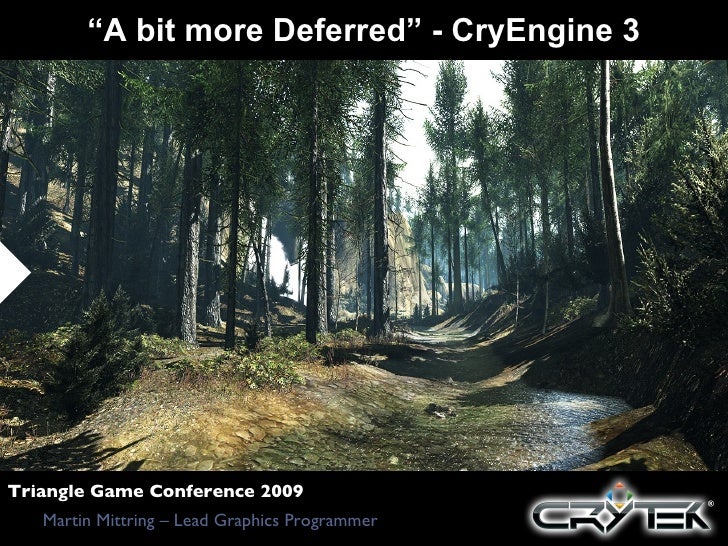

“ A bit more Deferred” - CryEngine 3 Martin Mittring – Lead Graphics Programmer Triangle Game Conference 2009
Crytek <ul><li>Main office: Germany Frankfurt </li></ul><ul><li>More studios:  Kiev, Budapest, Sofia, Nottingham, Seoul </...
<ul><li>32/64 Bit, WinXP/Vista, DX9/10, Multi CPU/GPU </li></ul><ul><li>WYSIWYP </li></ul><ul><li>ResourceCompiler Source ...
Goals after CryEngine 2 <ul><li>PS3 / XBox360 GPU, CPU, memory </li></ul><ul><li>Improve streaming </li></ul><ul><li>Impro...
What is the shader combination issue? <ul><li>Übershader is one shader with many features  (e.g. 0..4 lights, light types,...
Why Deferred Rendering? <ul><li>Rendering is a multi-dimensional query: View  x  Geometry  x  Material  x  Light </li></ul...
GBuffer in CryEngine 2 <ul><li>Minimal GBuffer (depth) </li></ul><ul><li>Slower Early Z pass when outputting linear depth ...
Deferred in CryEngine 2 <ul><li>Main use: Deferred shadows, Per pixel fog </li></ul><ul><li>Additionally: Soft Z clipped P...
Deferred Lighting in CryEngine 3 <ul><li>Passes: </li></ul><ul><ul><li>1) Forward GBuffer generation </li></ul></ul><ul><u...
Options for the light accumulation texture <ul><li>6 channels: Diffuse and Specular  </li></ul><ul><ul><li>two  7e3 7e3 7e...
Light accumulation texture in IBL <ul><li>The following pictures show lighting with Diffuse and Specular Cubemaps: </li></...
Storing normals in the GBuffer <ul><li>XYZ world space 8 bit: problematic with extreme reflections/specular 10 bit: good, ...
Alternative: VS Normal in 2 scalars -1..1 => -1..1 <ul><li>Normal to GBufffer: G= normalize( N .xy)*sqrt( N .z*0.5+0.5) </...
Improved SSAO (with normals) Video
Light rasterization in 2D  (Rectangle)  or 3D  (Convex Object) <ul><li>2D </li></ul><ul><ul><li>+ cheap WS position recons...
Deferred Light Types 1/3: <ul><li>Directional light optional with cloud shadows, multiple shadowmaps </li></ul><ul><li>Poi...
Deferred Light Types 2/3: Image Based Lighting (IBL) <ul><li>Light Probes are the high quality solution for distant light ...
Ambient without SSAO with hemispherical lighting
<ul><li>Bright ambient  SSAO </li></ul>Black ambient  Shadow casting light source  SSAO Grey ambient (hemispherical) Shado...
IBL ambient (Specular and Diffuse)  SSAO Video * brightened up for better display
Deferred Light Types 3/3: Real-time Dynamic Global Illumination <ul><li>Details will be presented at upcoming Siggraph 200...
<ul><li>black ambient </li></ul><ul><li>(to emphasize where GI </li></ul><ul><li>affects the image) </li></ul>color bleedi...
Global Illumination * brightened up for better display
Something missing? <ul><li>Transparency  => falling back to well known techniques: </li></ul><ul><ul><li>Per pixel global ...
References <ul><li>[Mittring07] “Finding Next Gen CryEngine2“ Siggraph 2007, Martin Mittring http://ati.amd.com/developer/...
