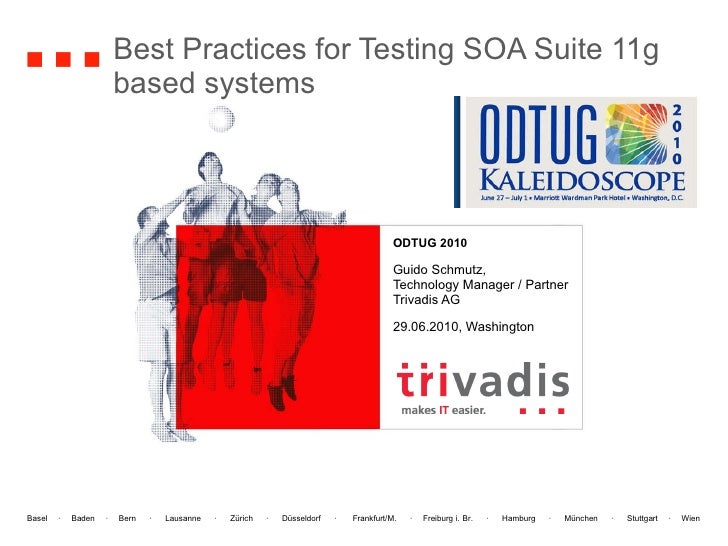

Best Practices for Testing SOA Suite 11g based systems ODTUG 2010 Guido Schmutz, Technology Manager / Partner Trivadis AG ...
Introduction <ul><li>Guido Schmutz </li></ul><ul><ul><li>Working for Trivadis for more than 13 years </li></ul></ul><ul><u...
About Trivadis <ul><li>Swiss IT consulting company </li></ul><ul><ul><li>13 locations in Switzerland, Germany and Austria ...
Agenda <ul><li>Introduction </li></ul><ul><li>Scenario with SOA Suite 11g as an example </li></ul><ul><li>Unit Testing of ...
Testing of SOA solutions <ul><li>For  testing N-tier solutions  some  common best practices  have been established </li></...
Challenges for testing SOA solutions <ul><li>SOA environments are  inherently heterogeneous </li></ul><ul><li>SOA solution...
Automatic Testing <ul><li>Relies on  automatic, programmatic execution  of the different test scenarios </li></ul><ul><li>...
Functionalities of a Testing Framework <ul><li>Generator   </li></ul><ul><ul><li>Produces the test data  </li></ul></ul><u...
<ul><li>Focuses on  one specific component  of the system </li></ul><ul><li>Outside dependencies  should be  isolated  as ...
Integration Testing <ul><li>Focuses on  the interaction between  multiple components </li></ul><ul><li>Focuses on the  low...
Agenda <ul><li>Introduction </li></ul><ul><li>Scenario with SOA Suite 11g as an example </li></ul><ul><li>Unit Testing of ...
SOA Suite 11gR1 PS2 Architecture Oracle Restricted and Confidential Unified Runtime BPMN Policy Manager Optimized binding ...
Sample scenario Request Generate ID Read customer info Validate credit card Internal External Best Practices for Testing S...
Implementation with SOA Suite 11g <ul><li>SCA composite with the Business Process and a Mediator for customer integration ...
Artifacts to be tested <ul><li>BPEL/BPMN flow logic </li></ul><ul><ul><li>Decisions, Orchestrations </li></ul></ul><ul><li...
Is this good enough? Best Practices for Testing SOA Suite 11g based systems OSB Console Enterprise Manager (EM)
Agenda <ul><li>Introduction </li></ul><ul><li>Scenario with SOA Suite 11g as an example </li></ul><ul><li>Unit Testing of ...
Unit testing of a SOA Suite 11g SCA component <ul><li>Oracle SOA Suite 11g provides a testing framework with the following...
Unit testing of an 11g SCA component <ul><li>CustomerMediator  called, but database access  (via DB-Adapter) only simulate...
Initial message, will be  sent to the BPEL component ( Generator ) Emulated answer from customer service, without calling ...
Executing test cases <ul><li>Test cases will be deployed with the normal deployment of an SCA composite </li></ul><ul><li>...
Different Unit Testing Patterns <ul><li>With Mediator logic </li></ul><ul><li>Without Mediator logic </li></ul>Best Practi...
Unit testing on an OSB service <ul><li>In order to be able to test the OSB service isolated (as a unit) there must be a wa...
But how do I get these Mock Services?  <ul><li>The Unit Testing Framework of SOA Suite 11g is not available for Oracle Ser...
soapUI <ul><li>Tool for Web Service Testing </li></ul><ul><li>Available in a free version </li></ul><ul><li>Supports the T...
Mock Service for the Visa Service Best Practices for Testing SOA Suite 11g based systems Mock
Fault Response and dynamic values with soapUI Best Practices for Testing SOA Suite 11g based systems
Executing WebService with soapUI Best Practices for Testing SOA Suite 11g based systems Request Response
Unit Testing Transformations <ul><li>Automated Unit testing of Transformations is not supported! </li></ul><ul><ul><li>dev...
Agenda <ul><li>Introduction </li></ul><ul><li>Scenario with SOA Suite 11g as an example </li></ul><ul><li>Unit Testing of ...
Integration Testing of SOA solutions <ul><li>All the single components are deployed and wired together in a dedicated test...
Integration Testing of SOA solutions <ul><li>How can the behavior of an external service be influenced? </li></ul><ul><ul>...
Integration Testing with soapUI <ul><li>Tests can be combined into a Test Suite and run all together </li></ul><ul><li>Tes...
Agenda <ul><li>Introduction </li></ul><ul><li>Scenario with SOA Suite 11g as an example </li></ul><ul><li>Unit Testing of ...
Summary <ul><li>Best Practices for testing conventional applications are valid for SOA solutions as well </li></ul><ul><li...
Thank you! ODTUG 2010   Guido Schmutz, Technology Manager / Partner Trivadis AG 29.6.2010, Washington
