Missilecommand Missilecommand Document Transcript

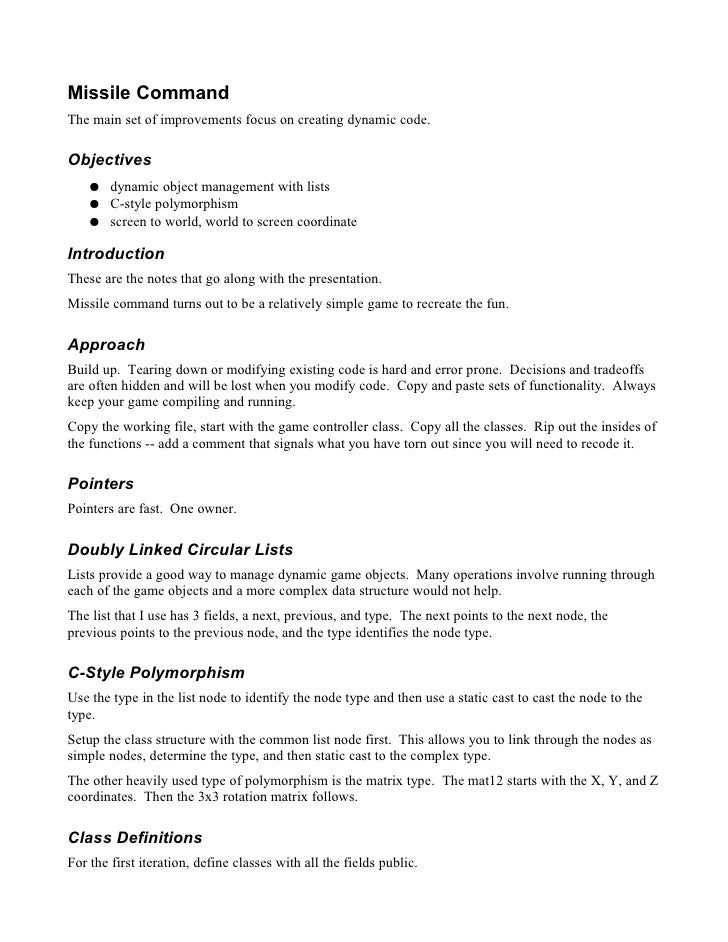

  • Missile Command The main set of improvements focus on creating dynamic code. Objectives ● dynamic object management with lists ● C-style polymorphism ● screen to world, world to screen coordinate Introduction These are the notes that go along with the presentation. Missile command turns out to be a relatively simple game to recreate the fun. Approach Build up. Tearing down or modifying existing code is hard and error prone. Decisions and tradeoffs are often hidden and will be lost when you modify code. Copy and paste sets of functionality. Always keep your game compiling and running. Copy the working file, start with the game controller class. Copy all the classes. Rip out the insides of the functions -- add a comment that signals what you have torn out since you will need to recode it. Pointers Pointers are fast. One owner. Doubly Linked Circular Lists Lists provide a good way to manage dynamic game objects. Many operations involve running through each of the game objects and a more complex data structure would not help. The list that I use has 3 fields, a next, previous, and type. The next points to the next node, the previous points to the previous node, and the type identifies the node type. C-Style Polymorphism Use the type in the list node to identify the node type and then use a static cast to cast the node to the type. Setup the class structure with the common list node first. This allows you to link through the nodes as simple nodes, determine the type, and then static cast to the complex type. The other heavily used type of polymorphism is the matrix type. The mat12 starts with the X, Y, and Z coordinates. Then the 3x3 rotation matrix follows. Class Definitions For the first iteration, define classes with all the fields public.
  • The first field in the class is a node for ou // JFL 04 Oct 08 class Input : public qe { public: LLNode lnk; // must be first in structure chr name[16]; // name Input(chr *name); // constructor int fillPlayerInpRec(PlayerInpRec *pir,int playerNum); }; // class Input Constants and sizeof() It is a bad idea to embed naked constants in your code. When defining structures, follow the DRY principle. Nesting Depth Construct functions to improve understanding by avoiding unnecessary nesting. Flow Of Control Construct your functions such that flow of control moves down. Bit Flags Use bitwise operators to define, set, test, and clear bits. Use Character Constants for Quick Ids There are three gun bases. The left, center, and right. Use the character constants 'L' 'C' 'R'. This approach is good for simple sets of ids, but breaks down when you have more ids. XYZ as Array The order of XYZ is always X then Y then Z. Use One Localized Control System For example, the dispatch system sets a flag when it is finished. Multiple sections of code may read this flag, but only one should clear it. Expiration Times Guarantee that game objects expire. Always Be Simplifying Continually clean your code. Remove unneeded functions and variables. Copy functions you would like to keep into dead.c. It is easy to add code. It is especially hard for other programmers to understand dead code.
  • Be wary of writing code or setting up systems you will need in the future. Procrastination pays. Protect You Code Write flexible code that can handle null pointers. Ray v Plane The ray versus plane intersection test is useful. float a,b,t,dirRay[3],xyzRay[3],nrmPlane[3],kPlane,xyzCol[3]; // ray v plane a = VecDot(dirRay,nrmPlane); if((a>-EPSILON)&&(a<EPSILON)) goto BAIL; // dir in same dir as plane normal, no col b = VecDot(xyzRay,nrmPlane); t = (kPlane-b)/a; // distance to collision VecAddScaled(xyzCol,xyzRay,dirRay,t);
